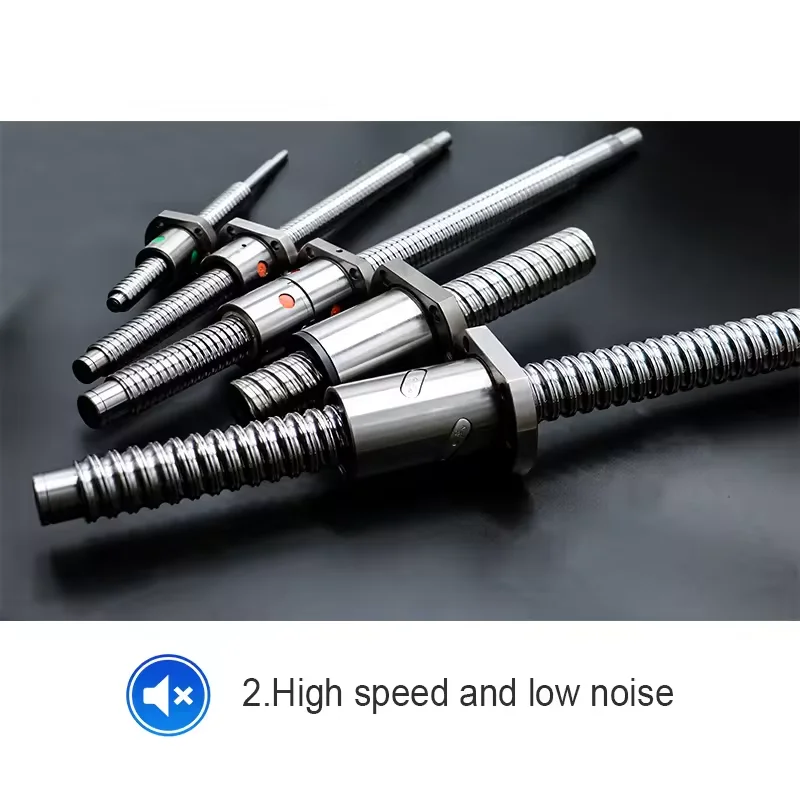

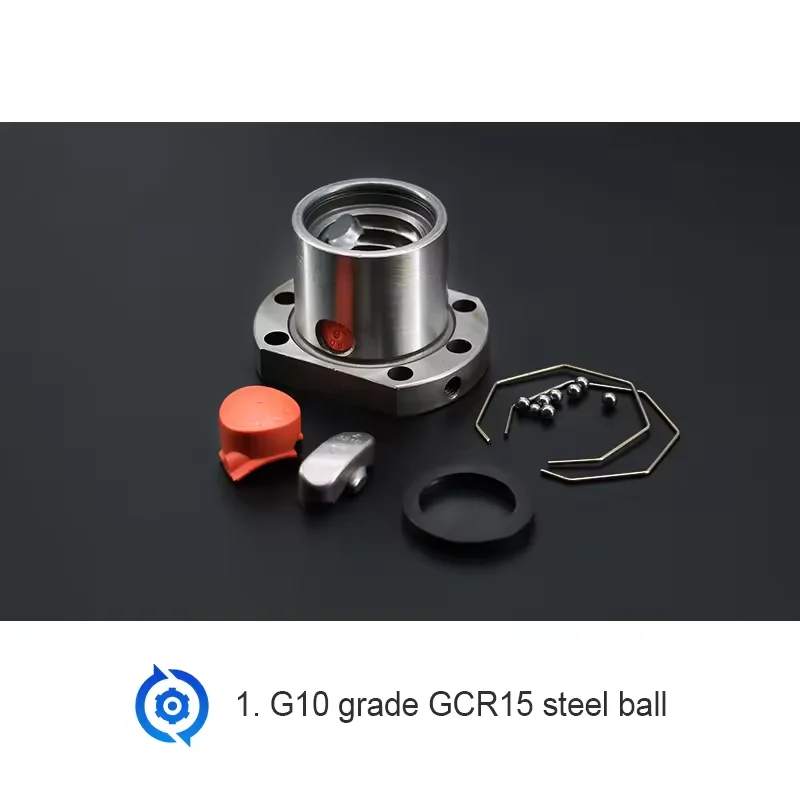

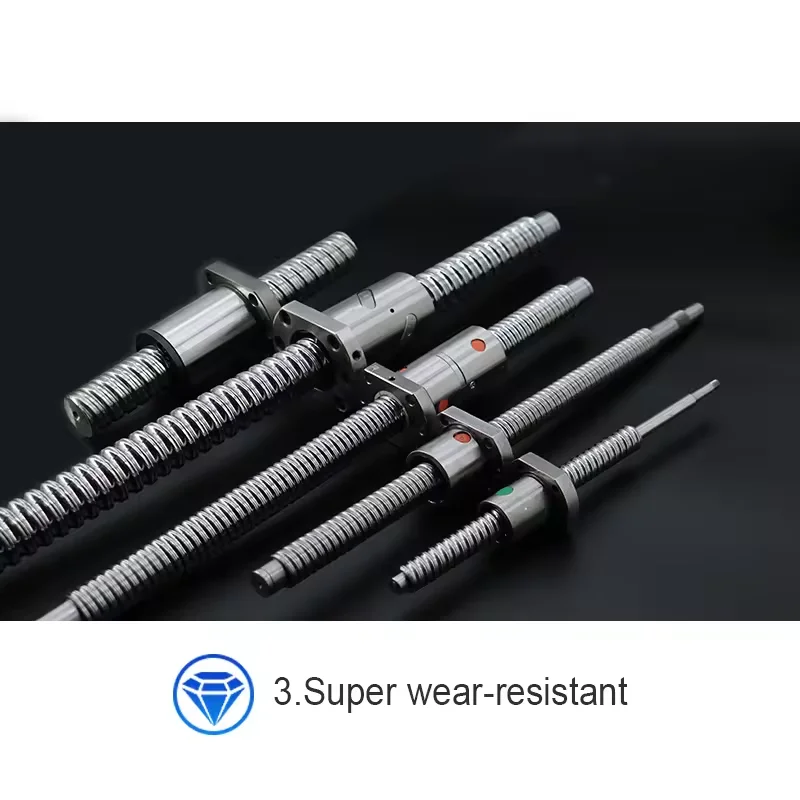

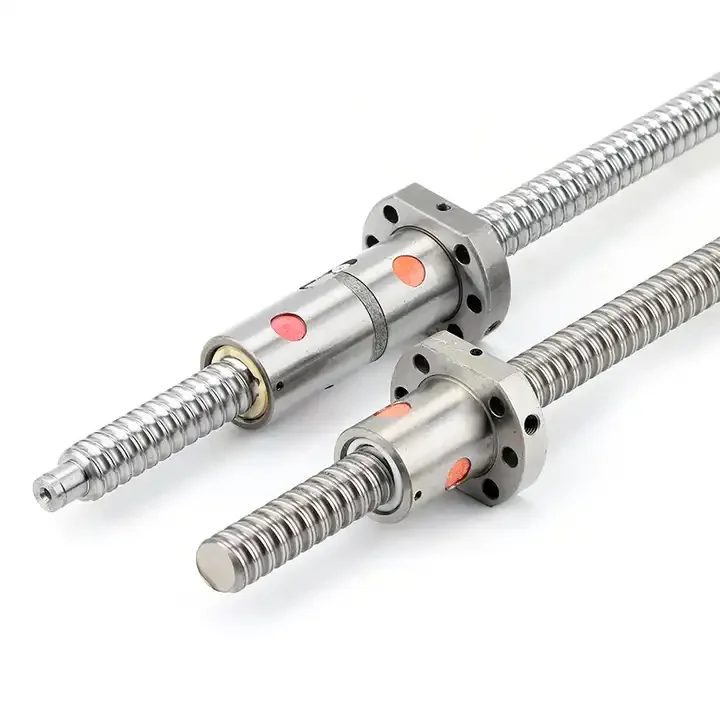

customise 10mm 20mm leadscrew ballscrew SFU SFS DFU DFS SFI high rigidity stainless steel
- Category: >>>
- Supplier: Shenzhen Sefuto Tech Co. Ltd.
Share on (1601035343482):
Product Overview
Description
Product Paramenters
Model No. | SFE 1616,3232,4040 2020 |
Size and others | screw dia16-80mm/lead16-40mm/ thread direction: R longest screw length 6000mm/ end process :allowed/ material:Gcr15 |
drawings | According to drawings or samples ,or the model number of supports |
Features | High reliability/Smooth operation/durable/High rigidity and preload/Low lost,only 1/2 of TBI,but same quality |
Price Composition | 1 set ball screw nut+1000mm units screw |

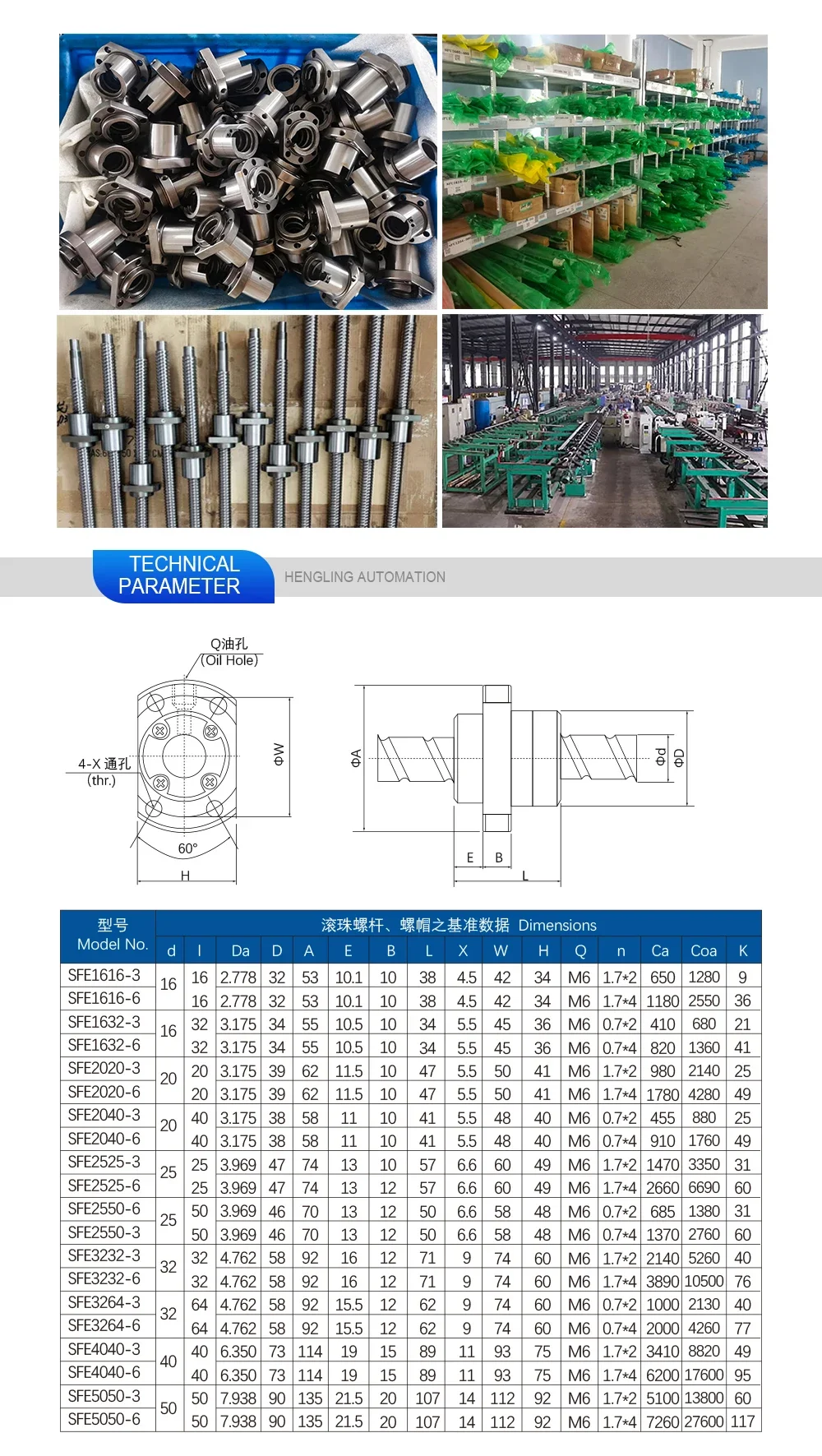

C7 C5 C3 Precision SFE Series 32mm Dia Ballscrew SFE3264-3
Ball Screw is made of screw and ball nut . It's function is to turn the rotary motion into linear motion.,which is a future extension and development of ball screw. The significance of the development is to move into a rolling bearing
from sliding action. With little frication, Ball Screw are widely used into various industrial equipment and precision instruments.
from sliding action. With little frication, Ball Screw are widely used into various industrial equipment and precision instruments.
Product name | C7 C5 C3 Precision SFE Series 32mm Dia Ballscrew SFE3264-3 |
Length | 110-6000mm, can be customized |
Manufacturing Process | Rolled thread and Milled thread, according to customer requirements |
Model Number | SFU(single nut),DFU(double nuts),SFE(long lead) series |
Available material | Gcr15, Gcr15SiMn, Chrome steel, stainless steel, alloy steel |
Precision | C5, C7 |
Prepressure | P2 (common prepressure) |
Hardness | 59-63 HRC |
Tolerance | 0.002-0.005mm |
Thread | usually right thread, part model can produce left thread. Please refer to the table below for details |
Processing charges | please provide the drawings, the processing fee is calculated according to the requirements of the drawings, and if the nut is needed, please contact the consulting quotation in advance |
Surface treatment | hot-dip, polishing, zinc plating, nickel plating, chrome plating, powder coating, phosphate coating, Anodizing, E-coating. |
Applications | Electrical , Automotive , Mechanical, Building, Furniture,, Machine assembly, Computer, Air industry. |
Related products | nuts, nut holders, couplings, support series, please refer to the specific products for details |
Our services | According to drawings or samples for our customers to manufacture products |
Package | 1.Plastic bag+box case or wooden case. If the ball screw length is more than 3 meters ,please inform us in advance. We will check the transport express information. 2.According to our customer's request, |
Delivery time | Generally 7-25 days, we determine the delivery time according to customer demand |
Ball Srew Series | ||||||
Diameter12mm | 1204 1205 1210 | |||||
Diameter16mm | 1604 1605 1610 1616 | |||||
Diameter20mm | 2004 2005 2010 2020 | |||||
Diameter25mm | 2505 2510 2525 | |||||
Diameter32mm | 3205 3210 3220 3232 | |||||
Diameter40mm | 4005 4010 4020 4040 | |||||
Diameter50mm | 5005 5010 5020 | |||||
Diameter63mm | 6310 6320 | |||||
Diameter80mm | 8010 | |||||
with different style blocks

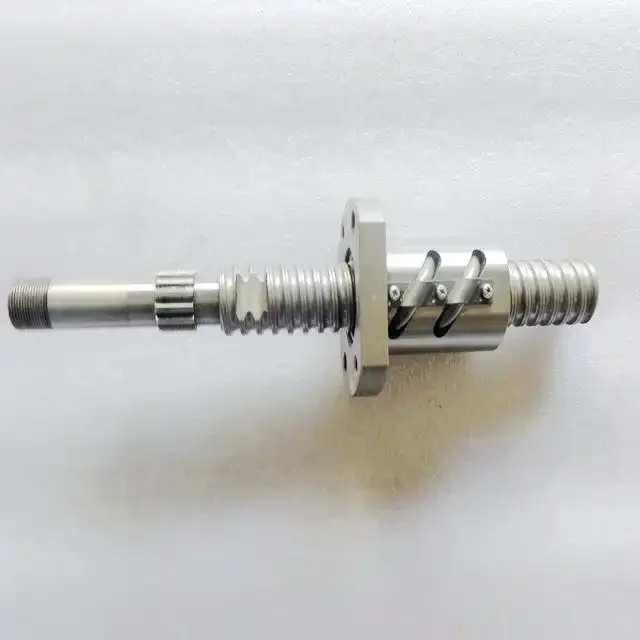

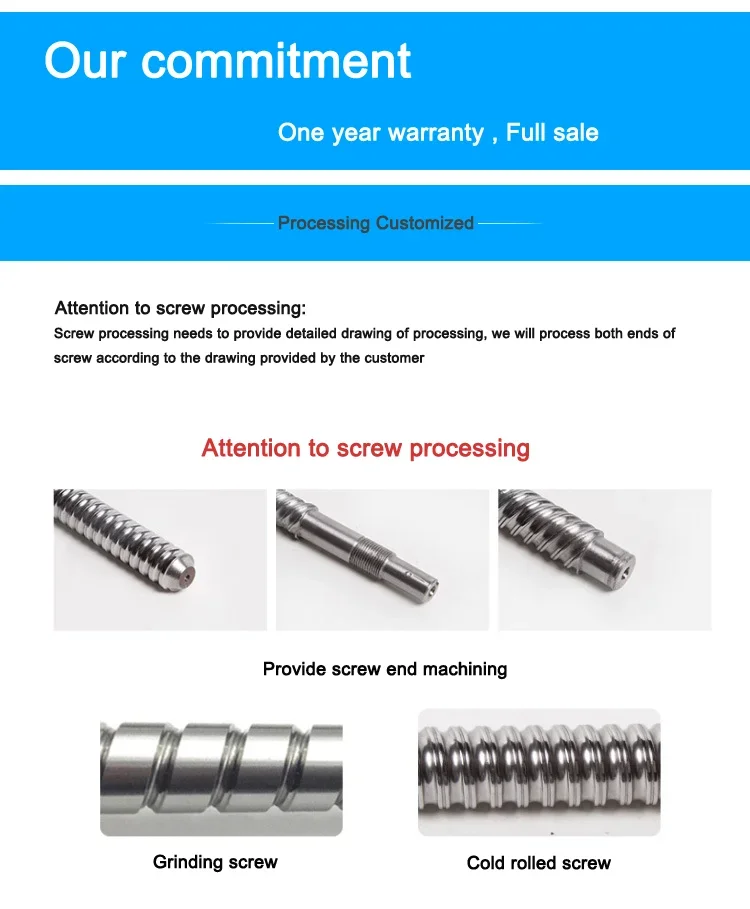

end maching can be customised
Length and precision according to your drawing

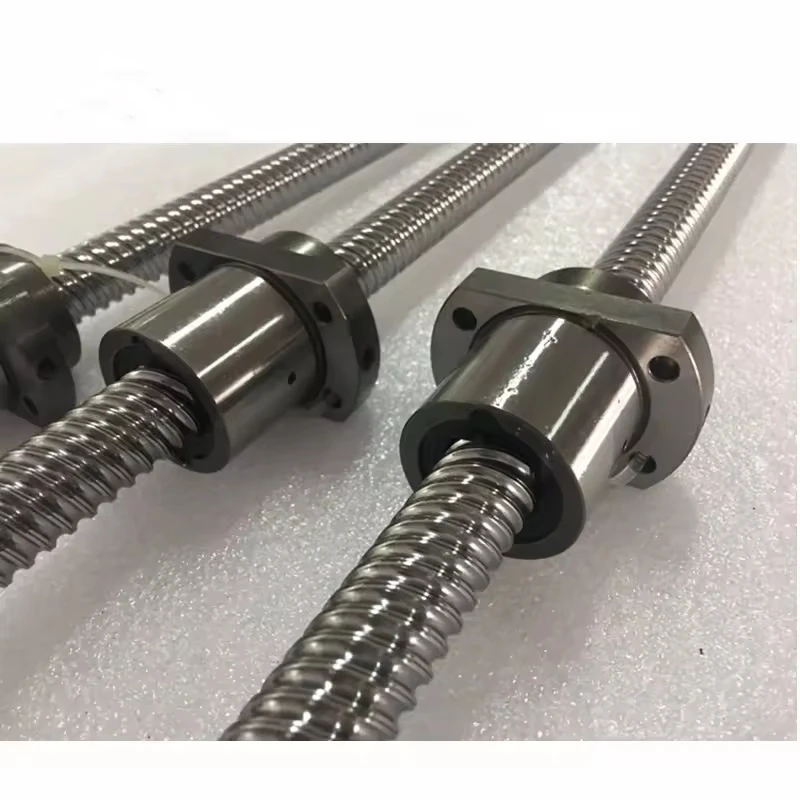

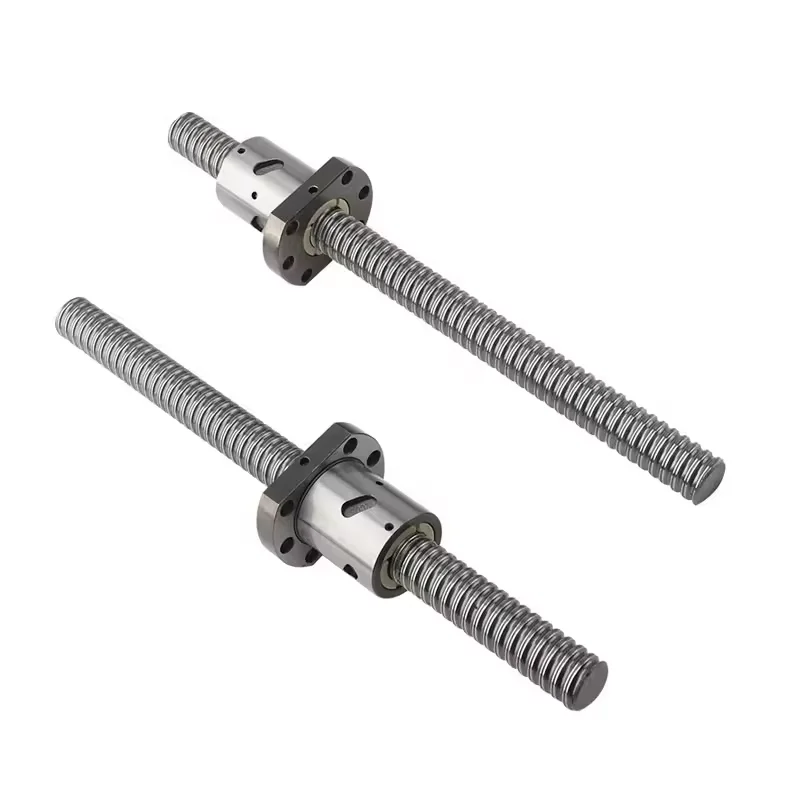

Customize Ballscrew SFU1605 SUF1610 SFU1204 SFU1210 SFU2510 SFU2505 SFU2010 SFU2005 SFU3205 series Ball screw
SFNU & SFU series features high smoothness, high rigidity, high durability and strong dust-proof, with internal circulation
design, making SFNU & SFU series applicable to small operating environment.

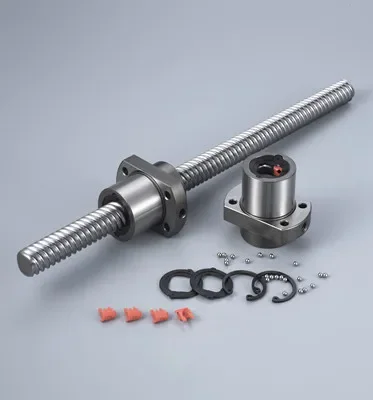

Feature of Ball Screw-Internal Return Series
1. Internal return design saves more space.
2. Small driving torque only one third of ACEM ball screw.
3. High accuracy guaranteed.
4. Fine feed, can be controlled within 0.1μm.
5. No backlash, High rigidity.
SFNU & SFU series features high smoothness, high rigidity, high durability and strong dust-proof, with internal circulation
design, making SFNU & SFU series applicable to small operating environment.
Feature of Ball Screw-Internal Return Series
1. Internal return design saves more space.
2. Small driving torque only one third of ACEM ball screw.
3. High accuracy guaranteed.
4. Fine feed, can be controlled within 0.1μm.
5. No backlash, High rigidity.
The standard materials are as follows:
Ball screw spindle: 42 CrMo4V / 50 CrMo4 / CF-53 (material numbers: 1.7225 / 1.7228 / 1.1213)
Ball screw nuts: 100Cr6 / 15 CrNi6 / 16 MnCr5 (material numbers: 1.3505 / 1.5919 / 1.7131)
Applications of ball screws
Our ballscrews for use in mechanical engineering, apparatus engineering, toolmaking, power plant construction, valve
technology, medical technology (computed tomography), lifting systems, lifting tables, machine axes, drive systems, XYZ axle construction, electric cylinders.
Ball screw spindle: 42 CrMo4V / 50 CrMo4 / CF-53 (material numbers: 1.7225 / 1.7228 / 1.1213)
Ball screw nuts: 100Cr6 / 15 CrNi6 / 16 MnCr5 (material numbers: 1.3505 / 1.5919 / 1.7131)
Applications of ball screws
Our ballscrews for use in mechanical engineering, apparatus engineering, toolmaking, power plant construction, valve
technology, medical technology (computed tomography), lifting systems, lifting tables, machine axes, drive systems, XYZ axle construction, electric cylinders.
Product Name | Ball Screw&Nut |
Advantage | Long Life,Low Noise,Low Price,High Rigidity |
Packing | Plastic Bag + Wooden Box Or According To Customers' Demands |
Application | CNC machines,electrical motors, Lathe,Automated machinery, Robot,General industrial machinery,Automated machinery,Electronic machinery,Transportation machinery,Food Machinery,industrial gearboxes,pumps,agricultural machinery...ETC |

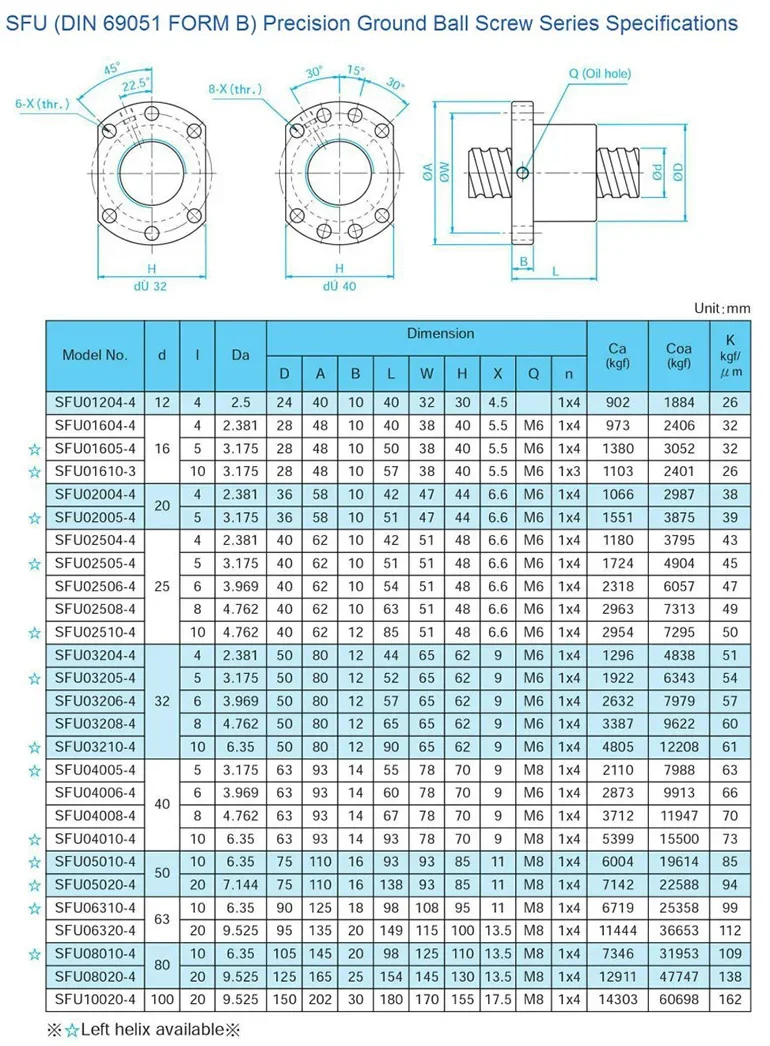

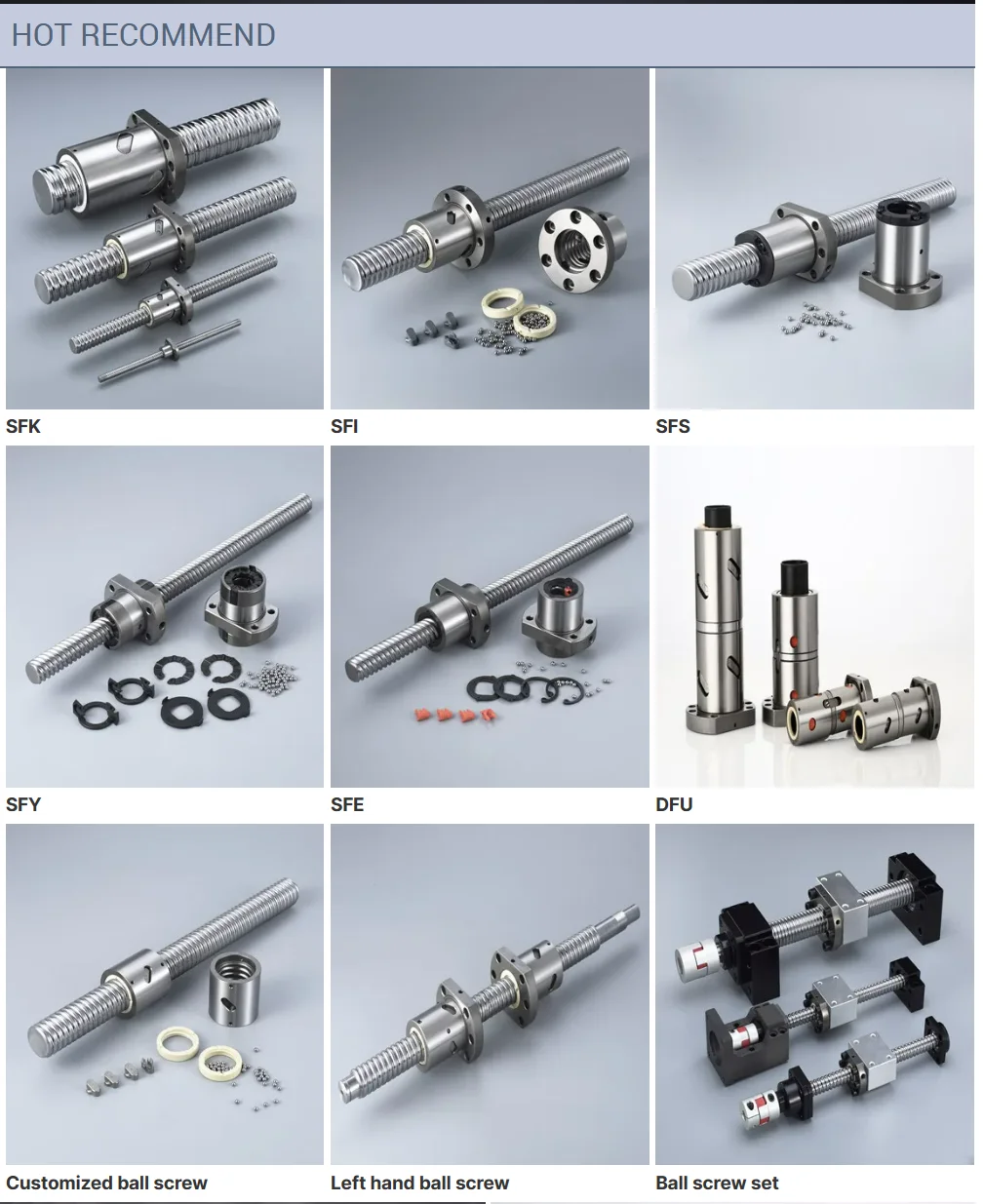

Pitch 4 MM | SFU1204, SFU1604, SFU2004, SFU2504 |
Pitch 5 MM | SFU1605, SFU2005, SFU2505, SFU3205, SFU4005, SFU5005 |
Pitch 10 MM | SFU1610, SFU2010, SFU2510, SFU3210, SFU4010, SFU5010, SFU6310, SFU8010 |
Double Nut | DFU1604,DFU1605, DFU2005, DFU2505, DFU2510, DFU3205, DFU3210, DFU4005, DFU4010, DFU5010, DFU6310, DFU8010 |
Big Lead | SFE1616,SFE1632,SFE2020,SFE2040,SFE2525,SFE2550,SFE3232,SFE3264,SFE4040, SFE5050 |
Ball Screw Parts | Ball Screw Nut, Nut Housing,Ball Screw Support BK,BF,EK,EF,FK,FF,End Maching Service Is Available |
Pitch 1mm | SFK00401,SFK00601,SFK00801 | ||||||
Pitch 2mm | SFK00802,SFK01002,SFK01202,SFK01402,,SFK01602,SFK02002,SFK02502 | ||||||
Pitch 4mm | SFK01004,SFU1204, SFU1604, SFU2004, SFU2504 for example | ||||||
Pitch 5mm | SFU1605, SFU2005, SFU2505, SFU3205, SFU4005, SFU5005 for example | ||||||
Pitch 8mm | SFU2508,SFU3208,SFU4008 for example | ||||||
Pitch 10mm | SFU1610, SFU2010, SFU2510, SFU3210, SFU4010, SFU5010, SFU6310, SFU8010 for example | ||||||
Double nut | DFU1604,DFU1605, DFU2005, DFU2505, DFU2510, DFU3205, DFU3210, DFU4005, DFU4010, DFU5010, DFU6310, DFU8010 for example | ||||||
Big lead | SFS1616,SFS1620,SFS2525,SFE1616,SFE2020,SFE2525,SFE3232,SFE4040, SFE5050,SFY1616,SFY1632,SFY2020,SFY2040,SFY2525,SFY2550,SFY3232,SFY3264,SFY4040,SFY4080,SFY5050,SFY50100 for example | ||||||
Ball screw parts | Ball screw nut, nut housing,ball screw support BK,BF,EK,EF,FK,FF，motor bracket | ||||||
End machining | As your drawing | ||||||
Left and right thread | SFU,DFU,SFI,DFI can made | ||||||
Non standard ball screw | First pls sent yr drawing or product requirements to us ,we'll communicate with engineers | ||||||
Warranty | 1 Year |

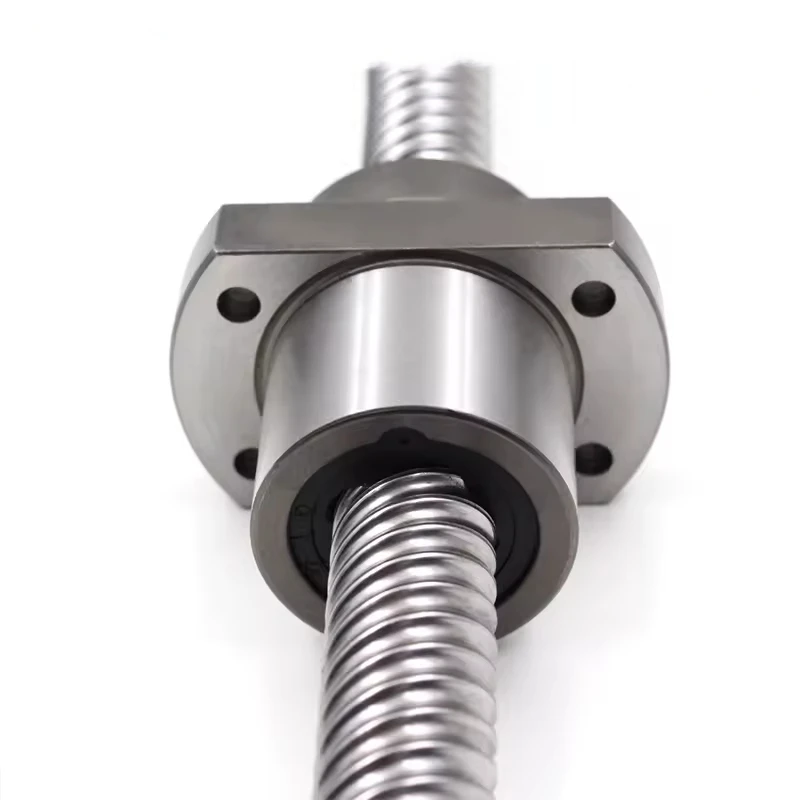

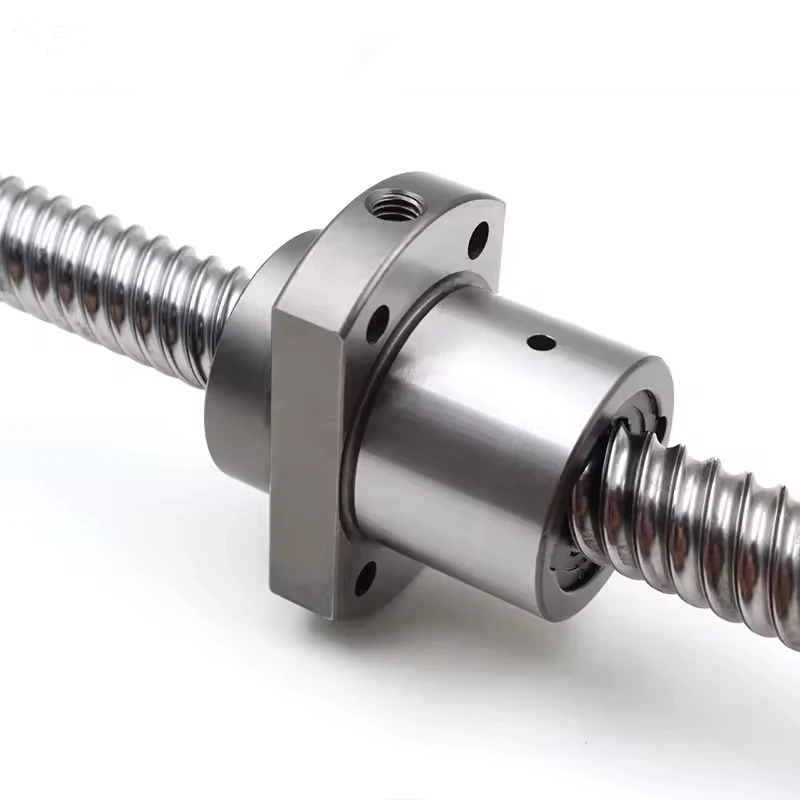

Product Name | Ball Screws |
Brand Name | PINSI |
Series | INTERNAL CIRCULATION |
Model# | SFU1204 1605 1610 2005 2505 2510 3205 3210 4005 4010 5010 5020 |
Diameter | 12, 16, 20, 25, 32, 40, 50, 63, 80, 100mm |
Lead | 4, 5, 10mm |
Accuracy Grade | C7 (0.05/E300mm), C5 (0.023/E300mm) |
Nut Type | Single or Double |
End pocessing | According to customer's drawing |
Shaft Length (mm) | 4000 or customized |
Features | Low Noice, High Speed, No Backlash and High Rigidity |

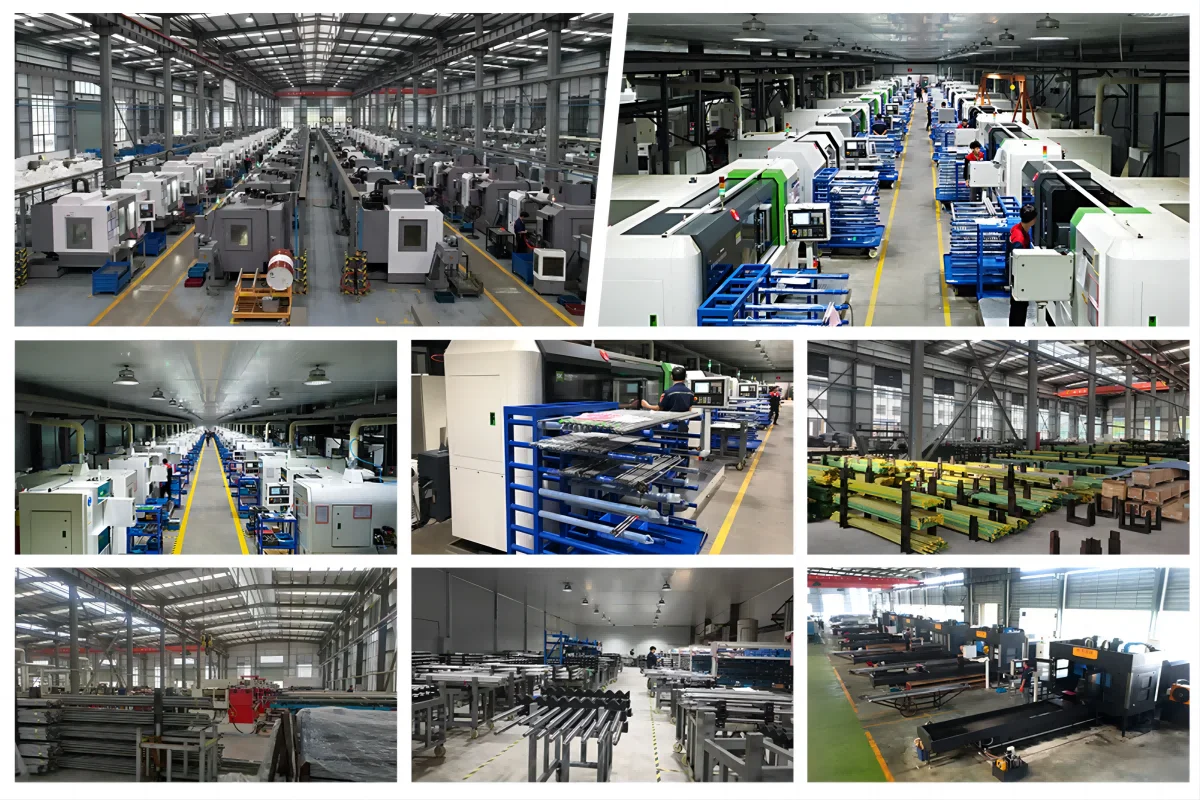

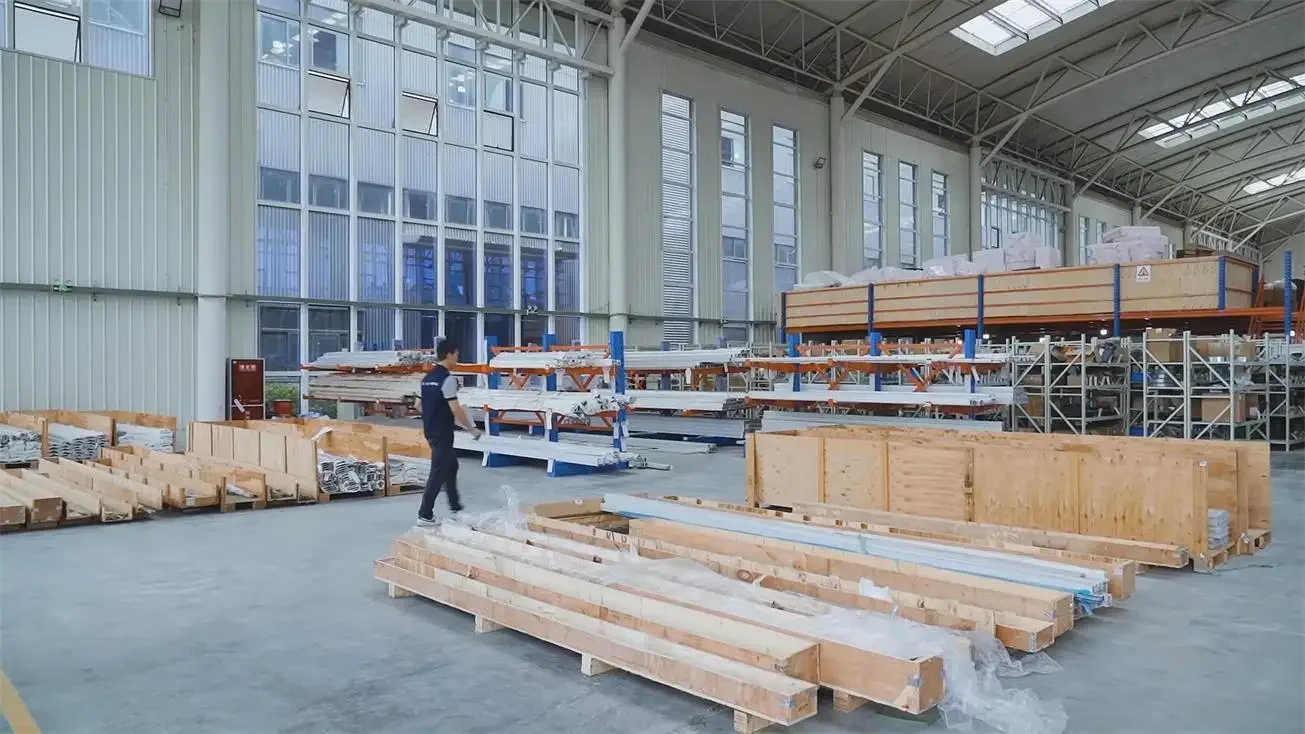

Company Profile

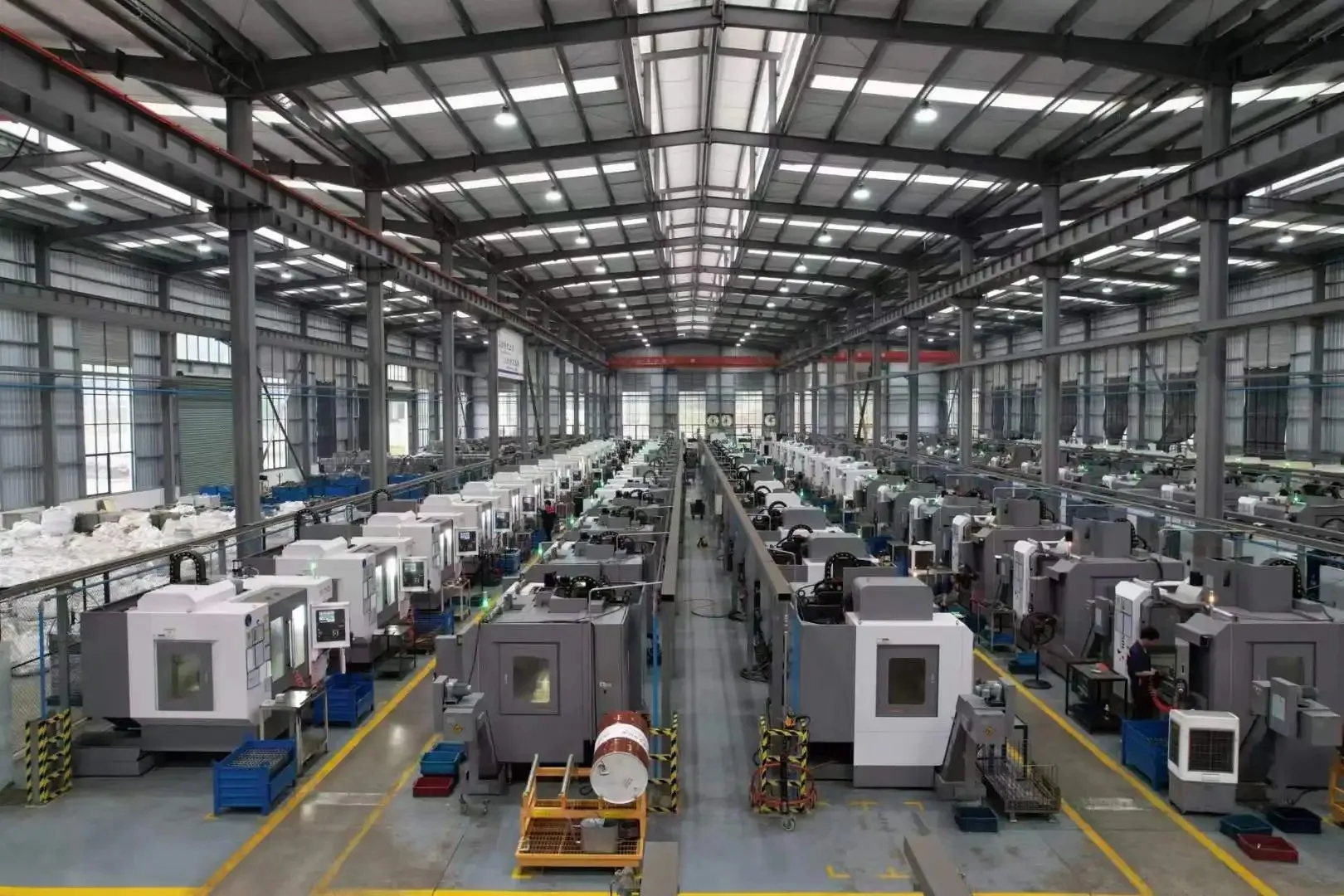

SEFUTO tech has professional R&D engineers and sales teams, with many years of export experience. Our products are mainly used in robots,drones, medical equipment, CNC machine tools, semiconductor equipment, high precision industry, electronic machinery equipment , testing equipment.engineering machinery, metallurgical equipment, automation industries. We have close cooperative relations with enterprises in various countries around the world, and have been recognized andtrusted by our customers!
We also have rich experience in brands like orginally Japan,Taiwan products ,and compatible CHINA brand.
Our advantages: customizable, high quality, low cost, short delivery time.
We also have rich experience in brands like orginally Japan,Taiwan products ,and compatible CHINA brand.
Our advantages: customizable, high quality, low cost, short delivery time.
