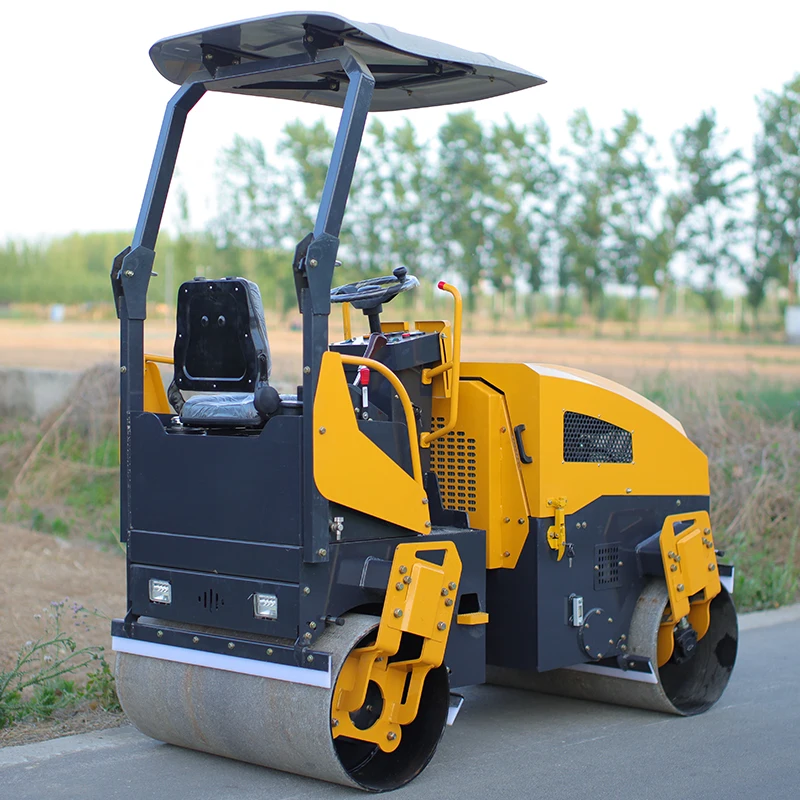

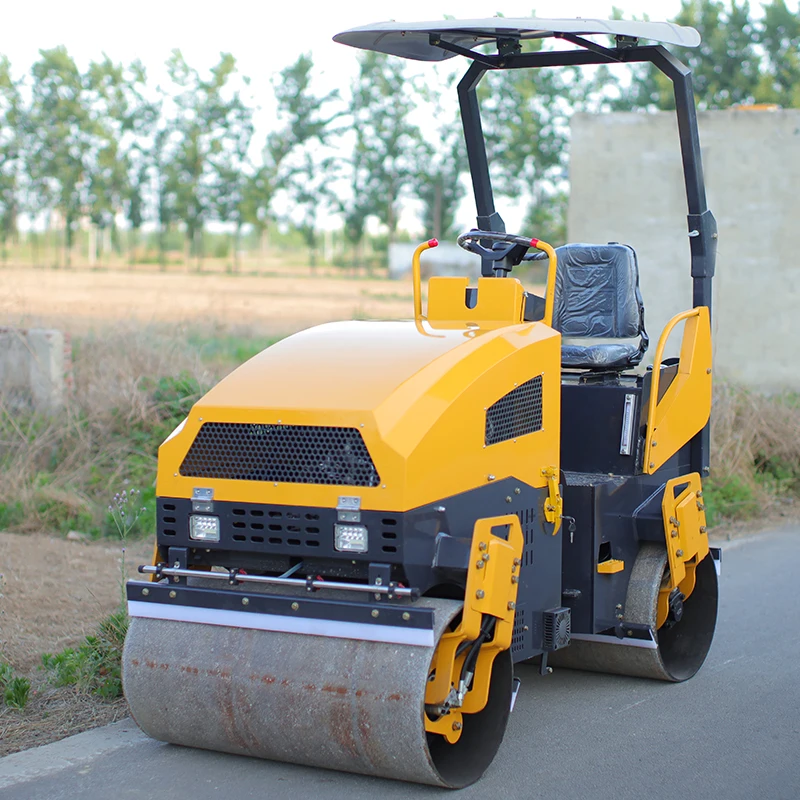

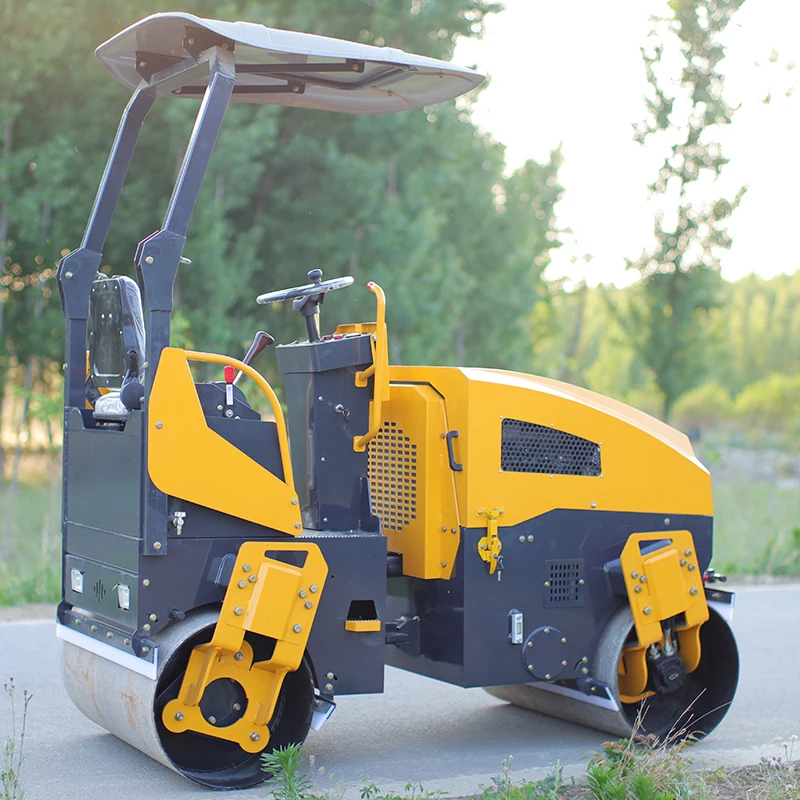

2 ton Road roller Hot Selling Rollerc With Low Price 3 ton 4 ton Road roller

Share on (1601035405657):


Price:$6,500.00 - $7,000.00

Quantity:


Product Overview

Description

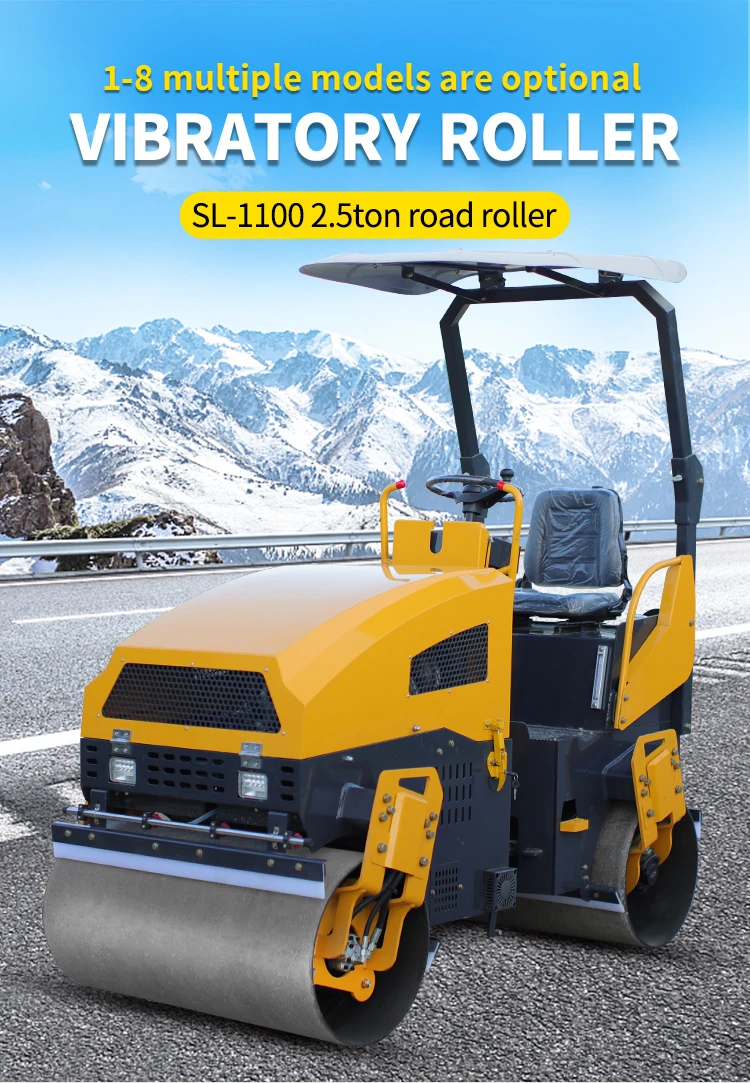

2 ton Road roller Hot Selling Rollerc With Low Price

Special price product


Rollerc





 Rollerc
Rollerc

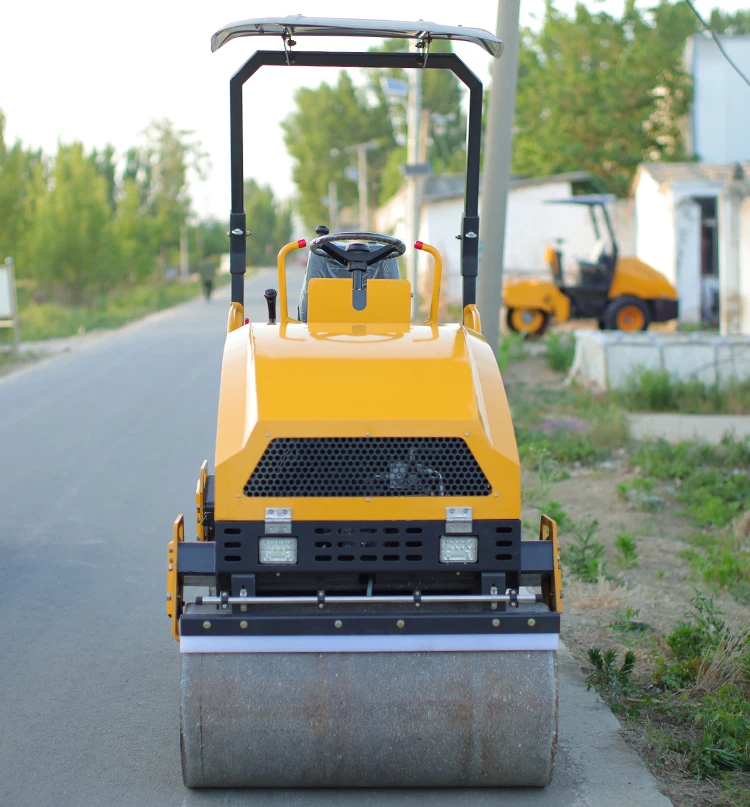

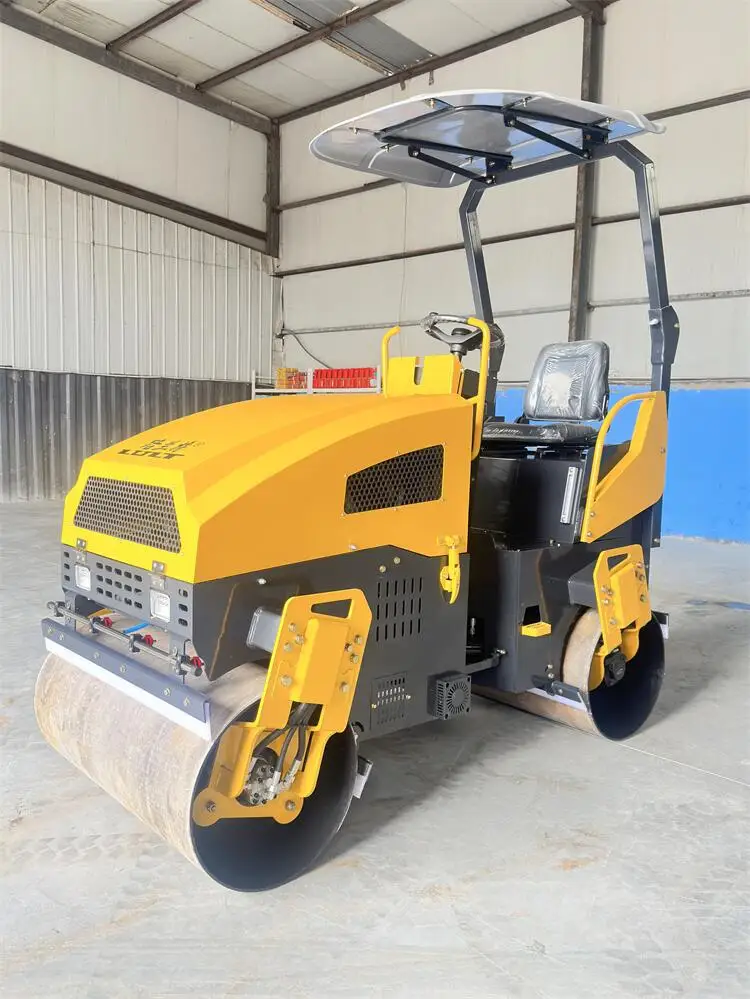

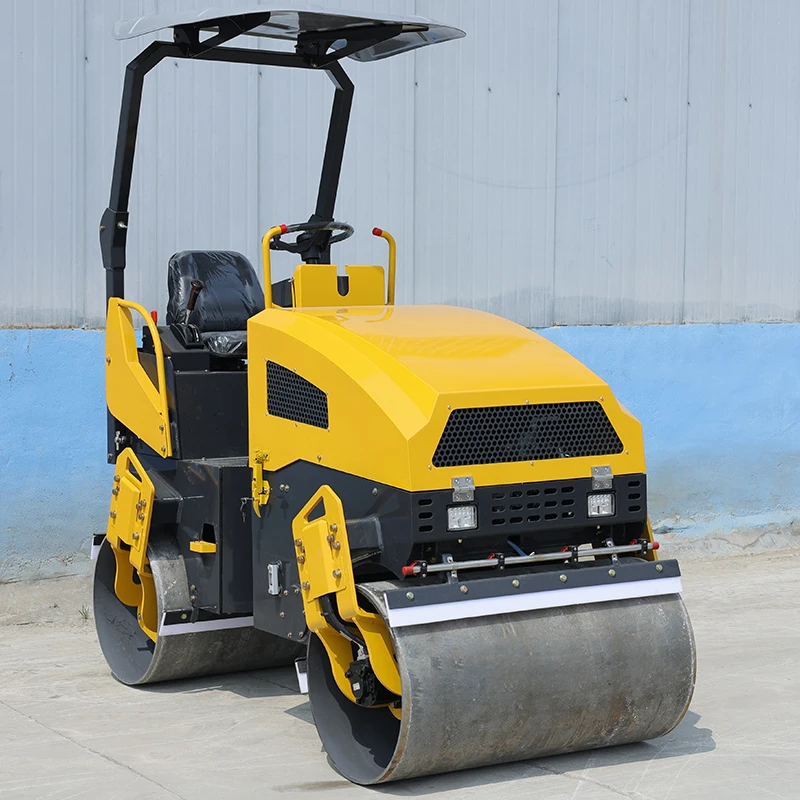

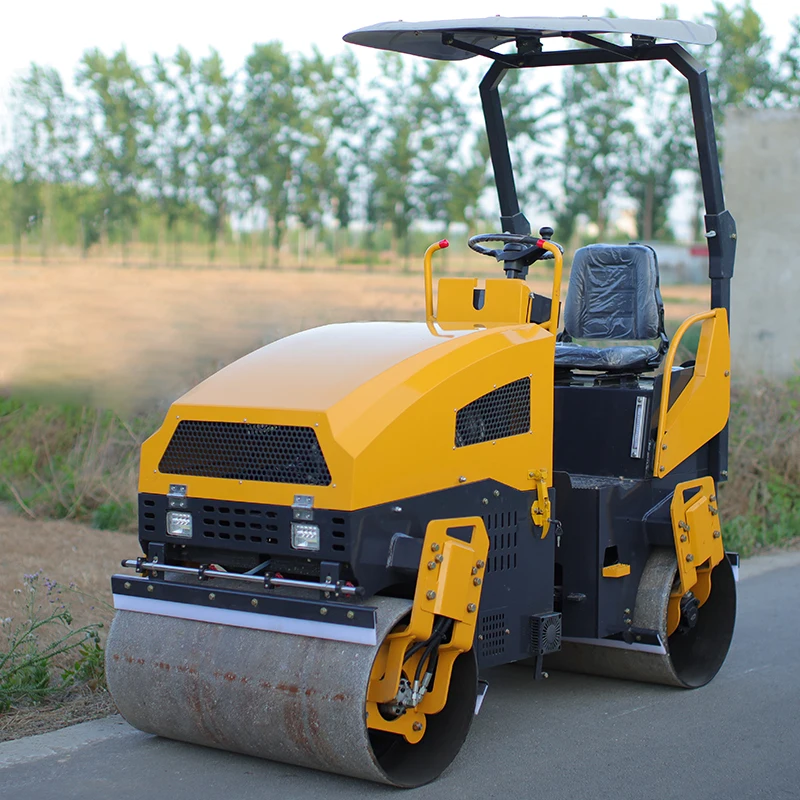

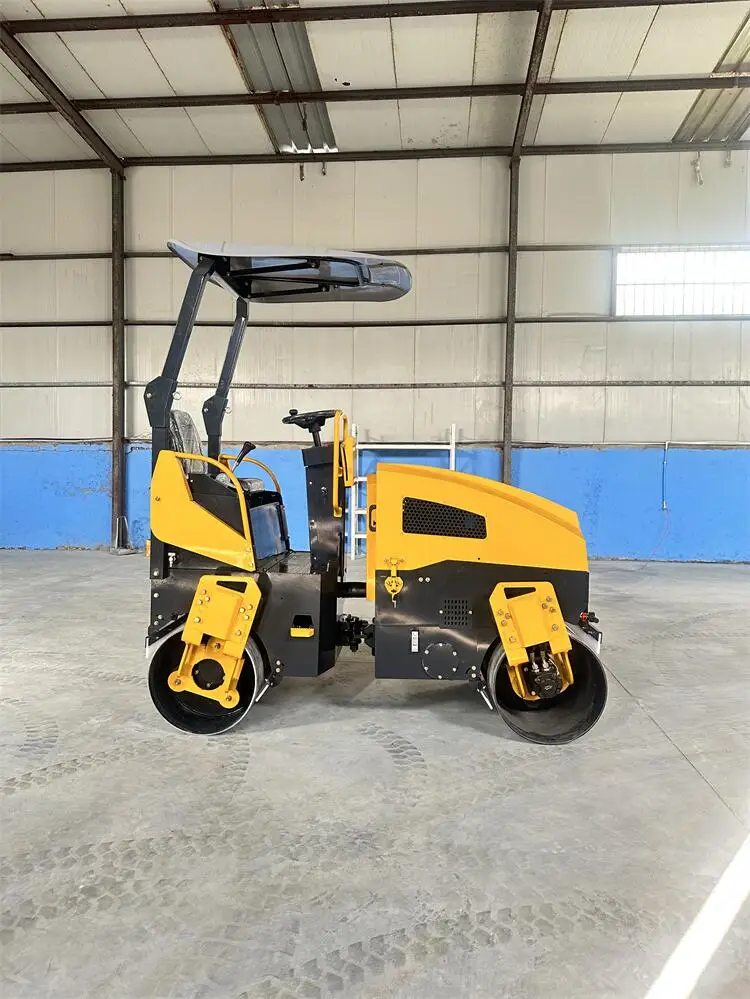

Product picture











Product parameter

























































































































































Model



SL1100



WEIGHT



Operating weight



2500kg



Static line load



80/70 n/cm



DIMENSIONS



Working width



1100mm



Overall length



1230mm



Overall height with ROPS



2300mm



Turning radius(inner/outer)



2205/3260mm



Drum width



1100mm



Drum diameter



560mm



Wheel base



1350mm



DRIVE



Engine



Huichai 390B/ Yanmar 3TN88



Type



Three cylinder, water-cooled, four-stroke, Minor engine



Output power



28kw/18.2kw



Rated speed



2600rpm



Electric equipment



12V



Drive mode



Variable displacement piston pump with infinitely variable speed, two-wheel drive motor in parallel



Walking speed



0-10km/h



Climbing ability (vibration on/off)



30%/ 35%



BRAKES



Working brake



Variable displacement pump



STEERING







Steering method



Hydraulic Cylinder, Articulated Steering



Steering system



Swing articulated



EXCITING SYSTEM







Vibration drum



Front/ front + rear



Driving form



Hydraulic motor



Vibration frequency



65hz



Amplitude



0.5mm



Exciting force



35kn



SPRINKLER SYSTEM



Sprinkling type



intermittent pressure spray



CAPACITY



Hydraulic oil tank



50L



Fuel tank



39L



Water tank



120L

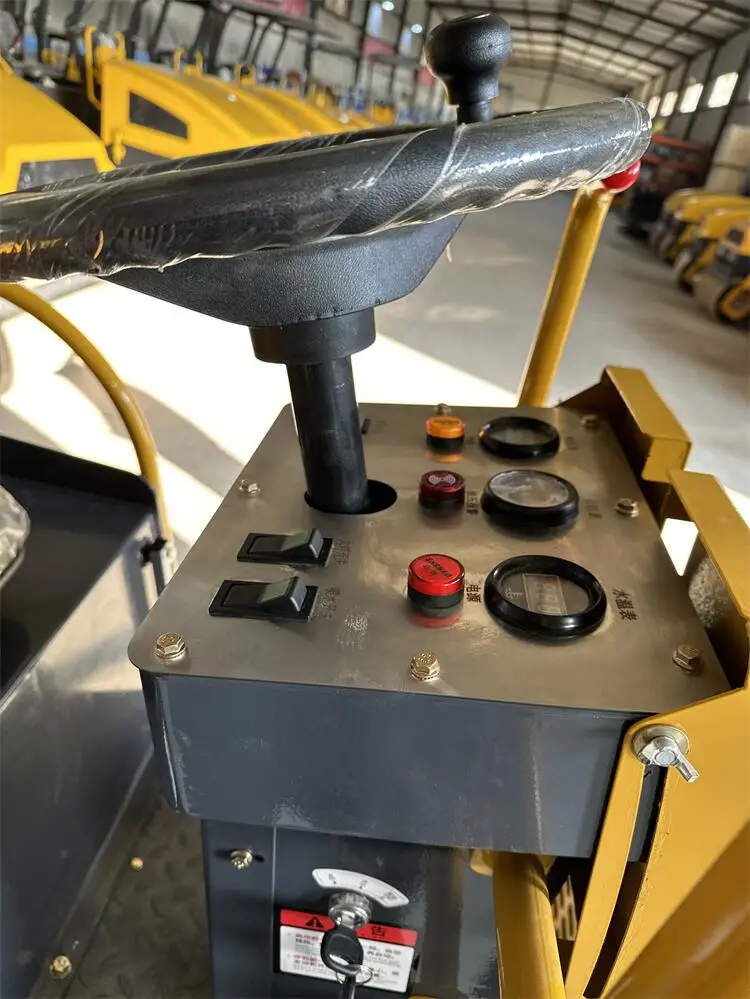

Detail picture

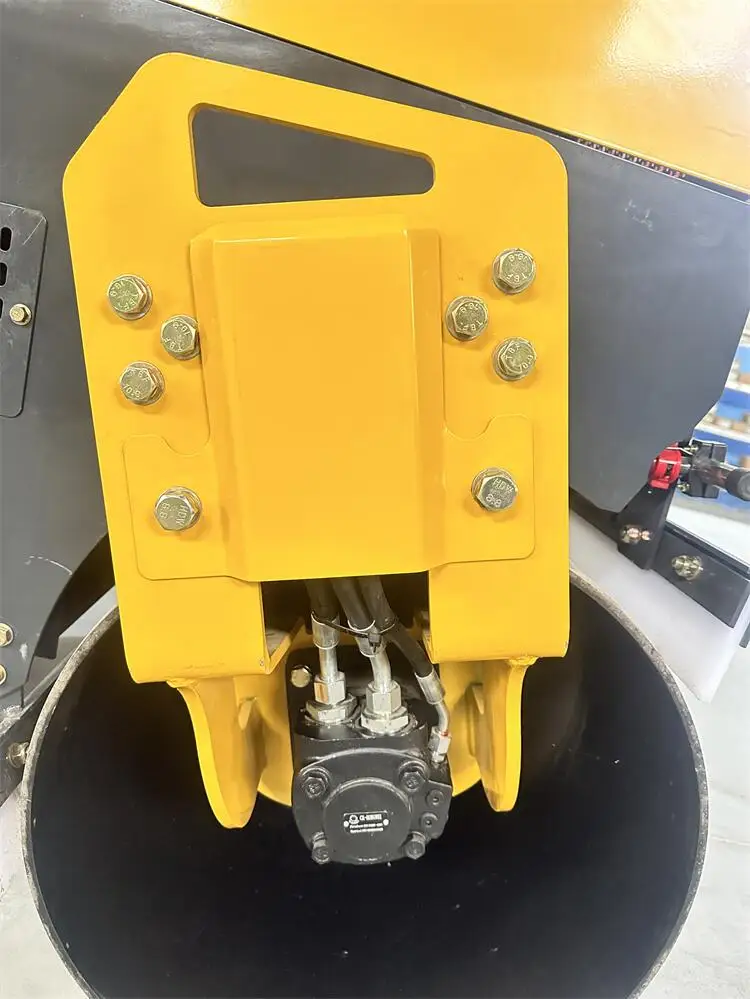

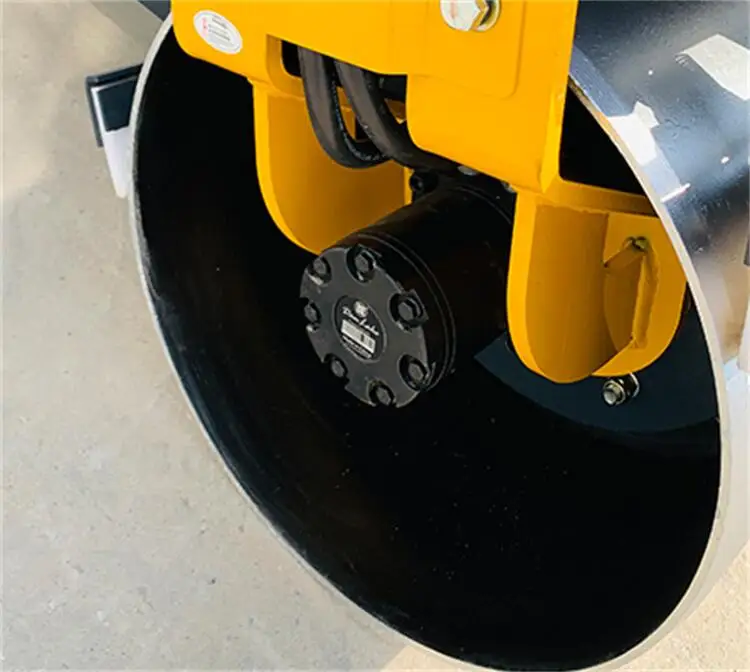

Hydraulic double drive




Hydraulic vibration, large vibration force, high energy efficiency conversion, stable performance.

































Rollerc













Corporate Information











Rollerc

Small roller is a kind of construction machinery used to compact roads, sites and other ground. It is mainly used to compact soil, asphalt, concrete and other materials to improve its compactness and bearing capacity. Small roller has the characteristics of small volume, light weight and simple operation, and is suitable for the construction of narrow spaces such as urban roads, community greening, garden landscapes and stadiums.





The main types of small rollers are:





1. Walking roller: This kind of roller is small in size and light in weight, and is suitable for compaction in narrow space. The operator can stand on the roller or follow the roller to operate.





2. Car-mounted roller: This kind of roller is bulky, and the operator can sit in the driver's seat for operation. Car-mounted road rollers usually have large compaction capacity and high working efficiency, and are suitable for large-scale projects.





3. Vibrating roller: This roller compacts the ground through the vibration force generated by the vibrating device. Vibrating roller has a high compaction effect and is suitable for projects with high density requirements.





4. Static pressure roller: This roller compacts the ground by its own weight and has no vibration device. The static pressure roller is suitable for projects that do not require high density and places that need to avoid the influence of vibration.





When purchasing a small roller, it is necessary to select it according to the engineering requirements, ground materials, compaction requirements and other factors. At the same time, the brand, performance, price and other factors of the roller need to be considered. In the process of use, we should pay attention to regular maintenance to ensure the performance and service life of the roller.
