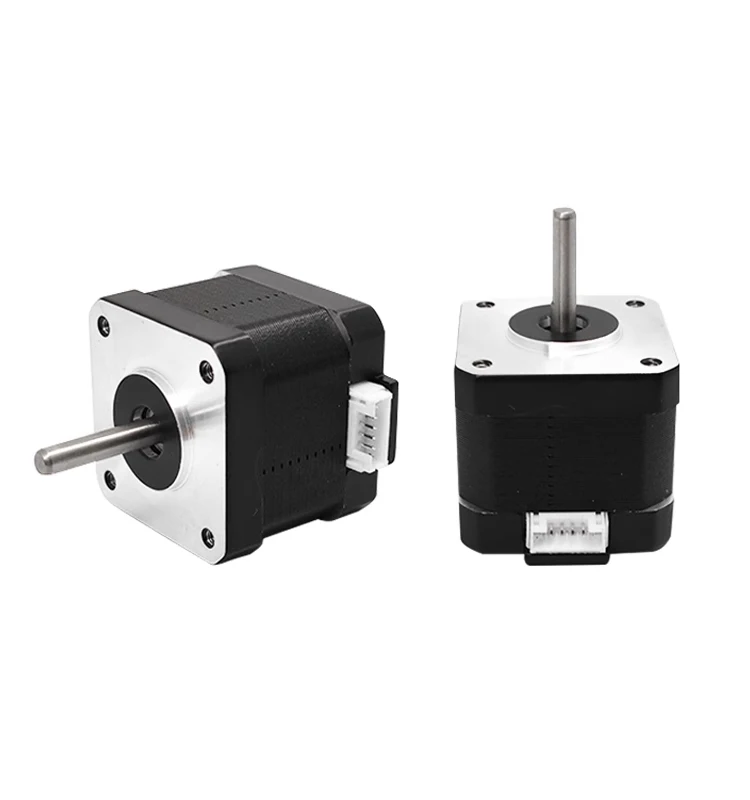

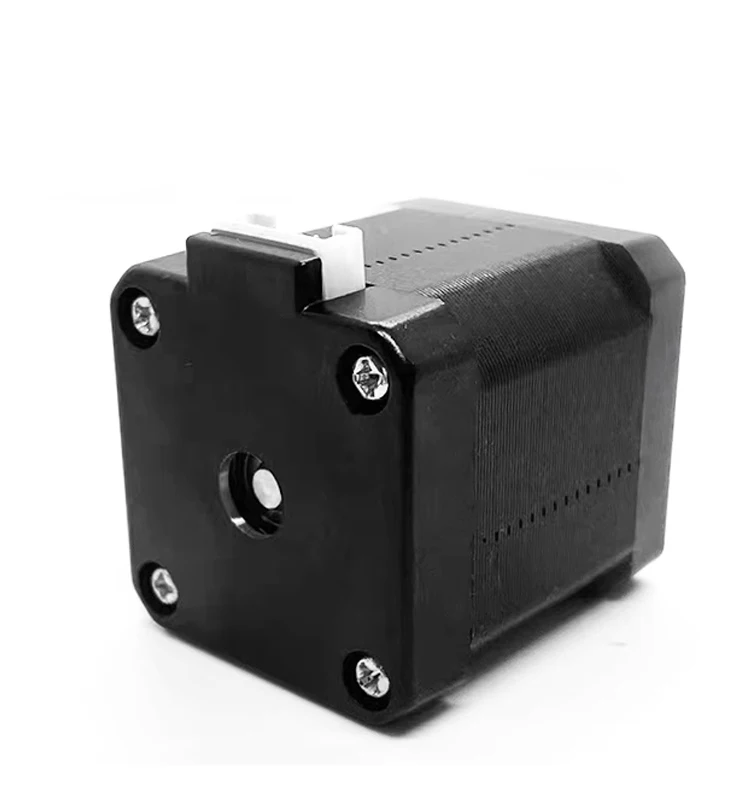

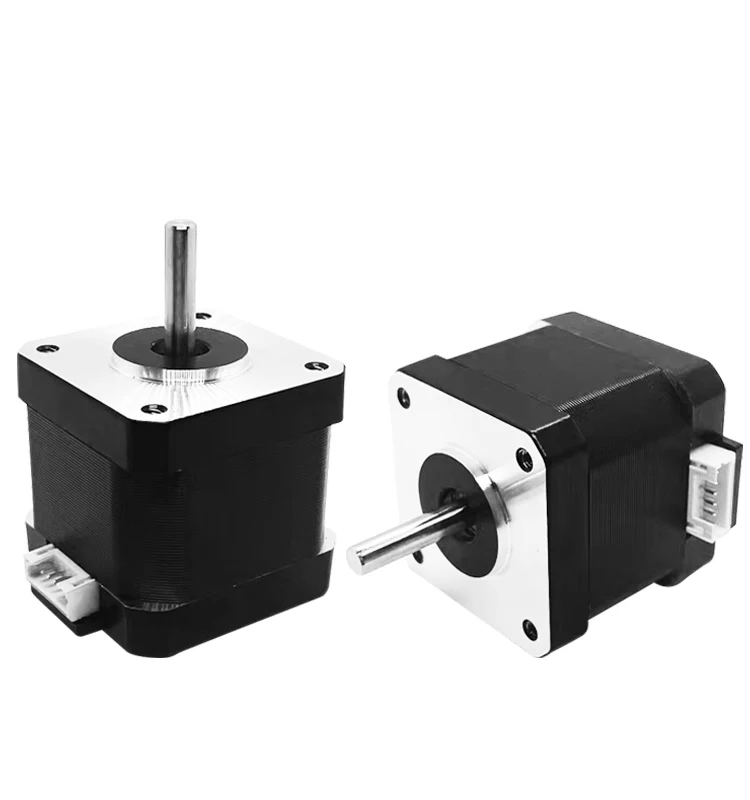

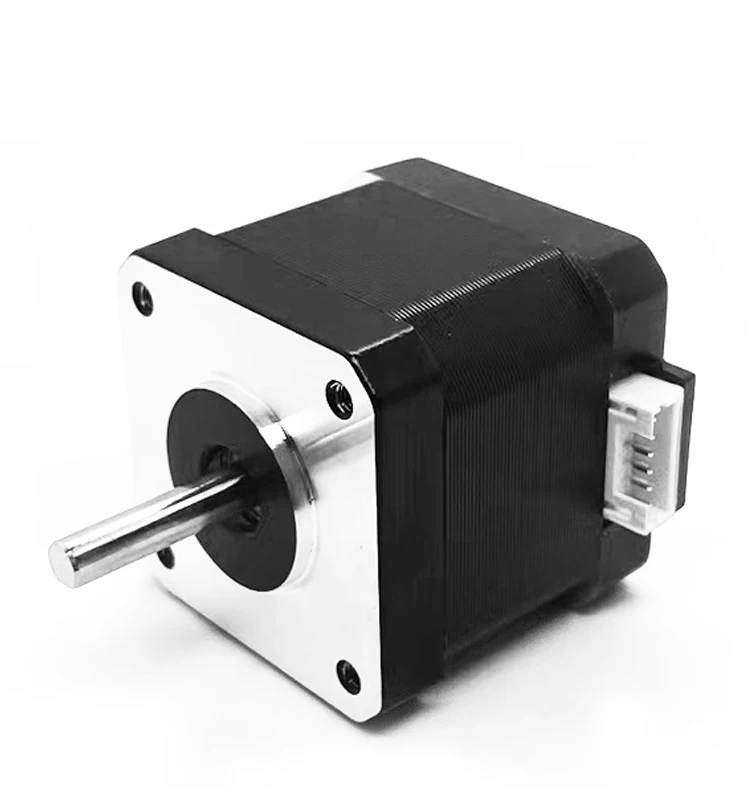

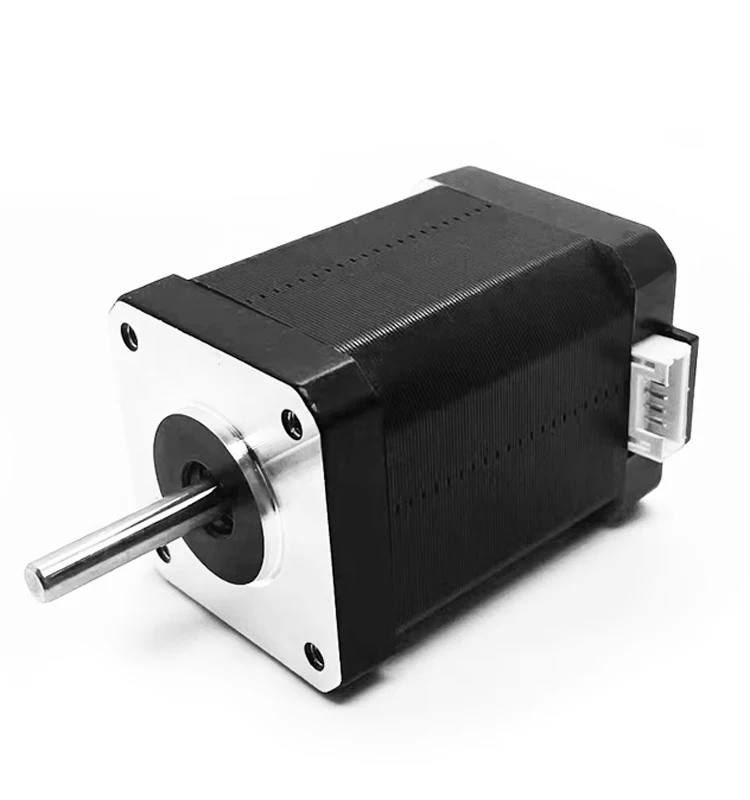

NEMA 17 42mm CNC 3D Printer Medical Micro Hybrid Stepper Motor
- Category: >>>
- Supplier: Changzhou Maikey Machinery Equipment Co. Ltd.
Share on (1601035408562):
Product Overview
Description
Specification

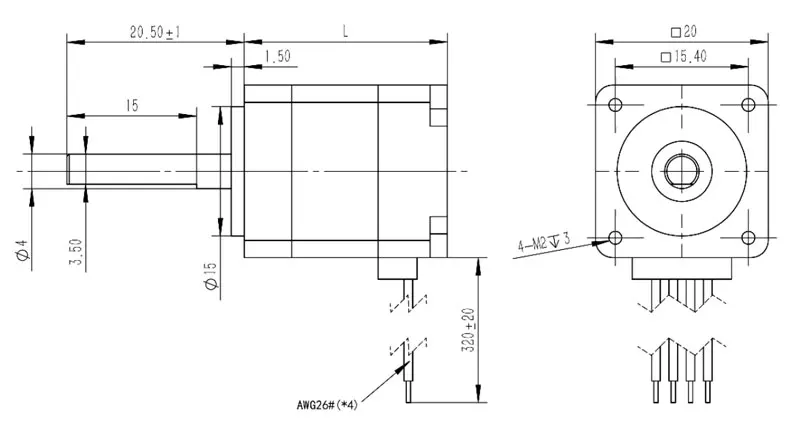

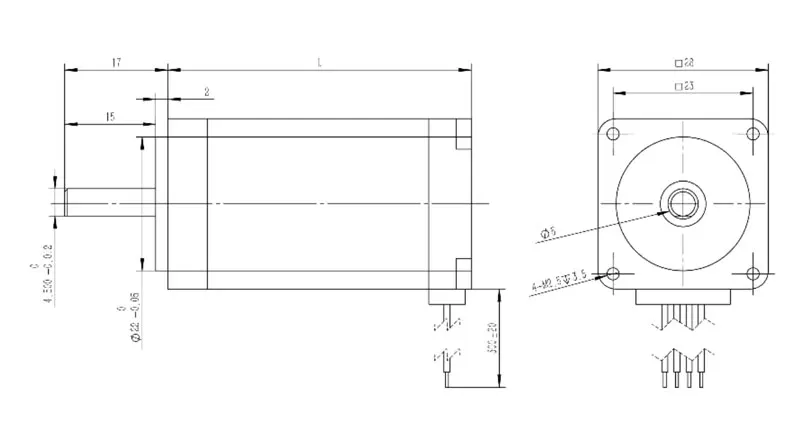

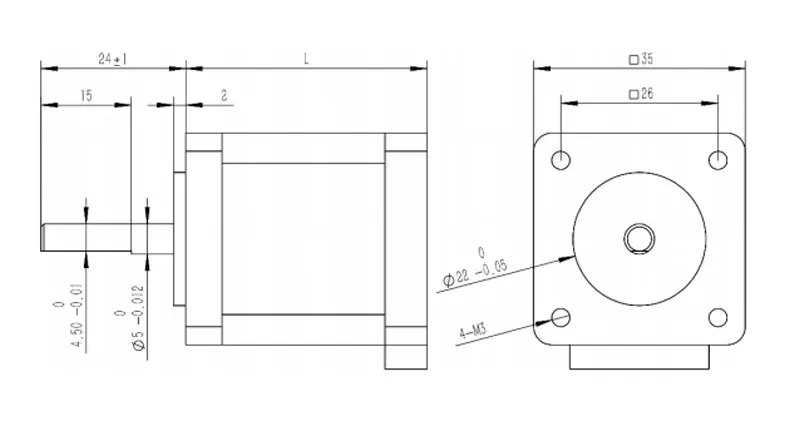

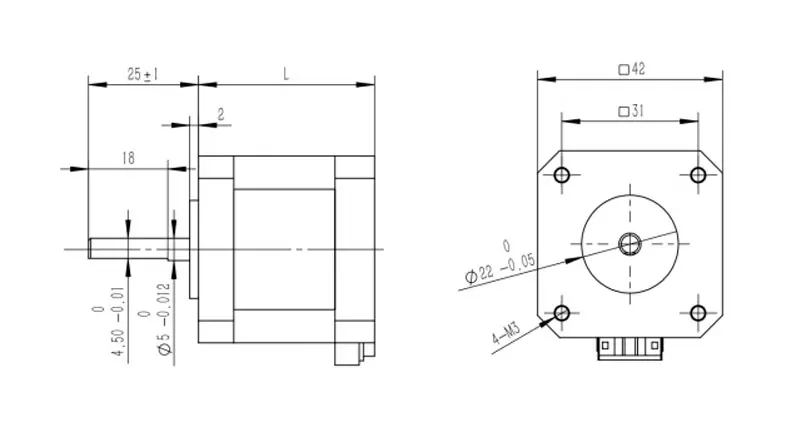

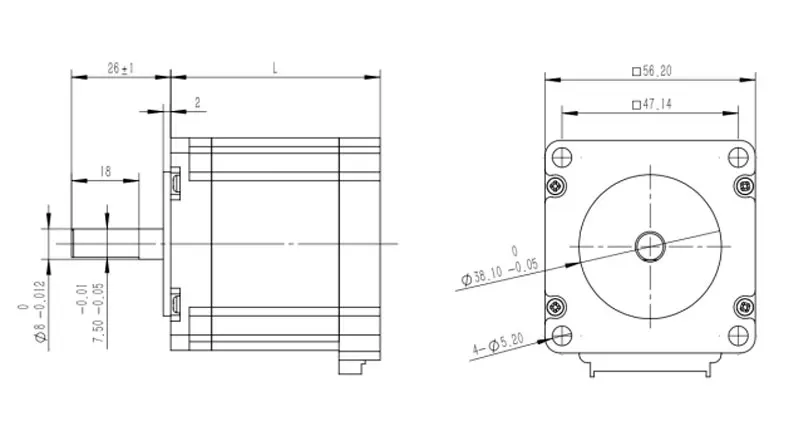

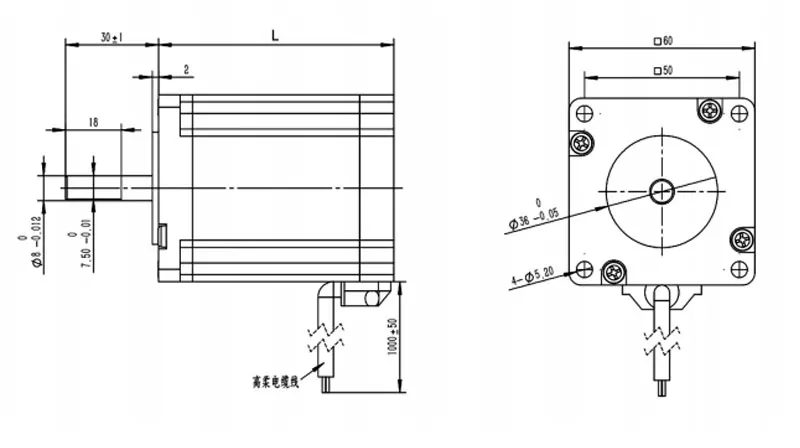

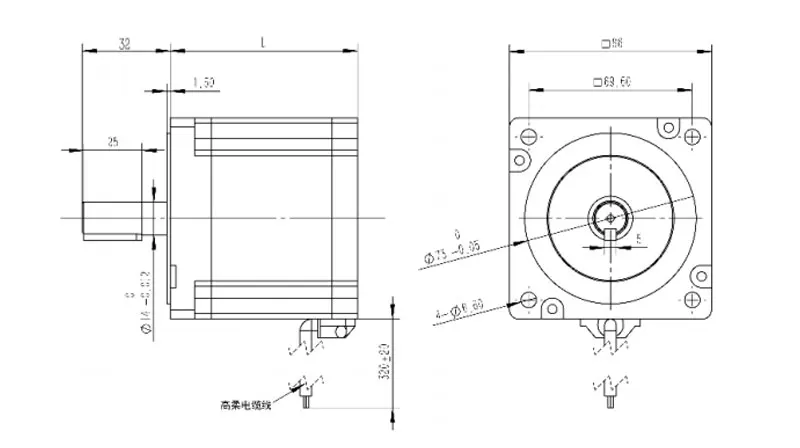

HYBRID STEPPING MOTOR 42SHD0217-24B | ||||||
General Specification | Electrical Specification | |||||
Step Angle | 1.8° | Rated Voltage | 3.75V dc | |||
Number of Phase | 2 | Rated Current | 1.5A | |||
Insulation Resistance | 100MΩmin. (500V DC) | Resistance per phase | 2.2Ω±10% | |||
Insulation Class | Class B | Inductance per Phase | 5.0mH±20% | |||
Rotor Inertia | 57g.cm² | Holding torque | 5.2N.m | |||
Mass | 0.25kg | Detent torque | 0.15N.m | |||
Stepper Motor 20HS :1.8°--NEMA 8 | ||||||||||||||||||
Model | Step Angle | Motor Length | Rated Current | Phase Resistance | Phase Inductance | Holding Torque | Rotor Inertia | Lead wire | Motor Weight | |||||||||
(deg) | (mm) | (A) | (Ohm) | (mH) | (N.m) | (g.cm²) | （No） | (g) | ||||||||||
20HS24 | 1.8 | 24 | 0.8 | 5.0 | 1.5 | 0.012 | 10 | 4 | 39 | |||||||||
20HS34 | 1.8 | 34 | 0.8 | 5.0 | 1.6 | 0.021 | 18 | 4 | 62 | |||||||||
20HS40 | 1.8 | 40 | 0.8 | 6.0 | 2.0 | 0.03 | 20 | 4 | 72 | |||||||||
20HS50 | 1.8 | 50 | 0.8 | 4.5 | 1.1 | 0.04 | 23 | 4 | 95 | |||||||||
Stepper Motor 28HS :1.8°--NEMA 11 | ||||||||||||||||||
Model | Step Angle | Motor Length | Rated Current | Phase Resistance | Phase Inductance | Holding Torque | Rotor Inertia | Lead wire | Motor Weight | |||||||||
(deg) | (mm) | (A) | (Ohm) | (mH) | (N.m) | (g.cm²) | （No） | (g) | ||||||||||
28HS28 | 1.8 | 28 | 1.0 | 2.7 | 2.0 | 0.08 | 7 | 4 | 90 | |||||||||
28HS34 | 1.8 | 34 | 1.0 | 4.0 | 4.2 | 0.1 | 10 | 4 | 120 | |||||||||
28HS40 | 1.8 | 40 | 1.0 | 4.0 | 3.8 | 0.12 | 12 | 4 | 150 | |||||||||
28HS50 | 1.8 | 50 | 1.0 | 5.5 | 5.6 | 0.17 | 18 | 4 | 200 | |||||||||
Stepper Motor 35HS :1.8°--NEMA 14 | ||||||||||||||||||
Model | Step Angle | Motor Length | Rated Current | Phase Resistance | Phase Inductance | Holding Torque | Rotor Inertia | Lead wire | Motor Weight | |||||||||
(deg) | (mm) | (A) | (Ohm) | (mH) | (N.m) | (g.cm²) | （No） | (g) | ||||||||||
35HS28 | 1.8 | 28 | 1.2 | 2.5 | 3.0 | 0.15 | 10 | 4 | 150 | |||||||||
35HS35 | 1.8 | 35 | 1.2 | 3.0 | 3.6 | 0.19 | 14 | 4 | 160 | |||||||||
35HS40 | 1.8 | 40 | 1.2 | 4.0 | 7.0 | 0.22 | 18 | 4 | 180 | |||||||||
35HS50 | 1.8 | 50 | 1.2 | 3.8 | 3.0 | 0.30 | 28 | 4 | 190 | |||||||||
35HS60 | 1.8 | 60 | 1.2 | 3.5 | 6.0 | 0.40 | 38 | 4 | 280 | |||||||||
Stepper Motor 42HS :1.8°--NEMA 17 | ||||||||||||||||||
Model | Step Angle | Motor Length | Rated Current | Phase Resistance | Phase Inductance | Holding Torque | Rotor Inertia | Lead wire | Motor Weight | |||||||||
(deg) | (mm) | (A) | (Ohm) | (mH) | (N.m) | (g.cm²) | （No） | (g) | ||||||||||
42HS28 | 1.8 | 28 | 0.6 | 2.6 | 10 | 12 | 34 | 4 | 150 | |||||||||
42HS35 | 1.8 | 34 | 1.3 | 2.4 | 2.8 | 28 | 34 | 4 | 220 | |||||||||
42HS40 | 1.8 | 40 | 1.5 | 1.5 | 2.8 | 40 | 54 | 4 | 280 | |||||||||
42HS50 | 1.8 | 48 | 1.8 | 1.8 | 3.2 | 52 | 68 | 4 | 400 | |||||||||
42HS60 | 1.8 | 60 | 1.7 | 1.5 | 2.8 | 70 | 72 | 4 | 450 | |||||||||
42HS80 | 1.8 | 80 | 2.8 | 1.5 | 3.8 | 90 | 83 | 4 | 740 | |||||||||
Stepper Motor 57 HS :1.8°--NEMA 23 | ||||||||||||||||||
Model | Step Angle | Motor Length | Rated Current | Phase Resistance | Phase Inductance | Holding Torque | Rotor Inertia | Lead wire | Motor Weight | |||||||||
(deg) | (mm) | (A) | (Ohm) | (mH) | (N.m) | (g.cm²) | （No） | (g) | ||||||||||
57HS41 | 1.8 | 41 | 2.8 | 0.7 | 1.4 | 55 | 120 | 4 | 450 | |||||||||
57HS51 | 1.8 | 51 | 2.8 | 0.83 | 2.2 | 101 | 275 | 4 | 650 | |||||||||
57HS56 | 1.8 | 56 | 2.8 | 0.9 | 2.5 | 126 | 300 | 4 | 700 | |||||||||
57HS76 | 1.8 | 76 | 2.8 | 1.13 | 3 | `89 | 480 | 4 | 1000 | |||||||||
57HS83 | 1.8 | 83 | 2.8 | 1.1 | 2.6 | 220 | 500 | 4 | 1150 | |||||||||
57HS100 | 1.8 | 100 | 2.8 | 2.1 | 1.0 | 260 | 650 | 4 | 1800 | |||||||||
57HS112 | 1.8 | 112max | 4.0 | 1.6 | 6.8 | 300 | 800 | 4 | 1800 | |||||||||
Stepper Motor 60 HS :1.8°--NEMA 24 | ||||||||||||||||||
Model | Step Angle | Motor Length | Rated Current | Phase Resistance | Phase Inductance | Holding Torque | Rotor Inertia | Lead wire | Motor Weight | |||||||||
(deg) | (mm) | (A) | (Ohm) | (mH) | (N.m) | (g.cm²) | （No） | (g) | ||||||||||
60HS56 | 1.8 | 56 | 4 | 0.45 | 1.40 | 1.5 | 4.5 | 4 | 830 | |||||||||
60HS76 | 1.8 | 76 | 4 | 0.55 | 2.20 | 2.3 | 3.06 | 4 | 1150 | |||||||||
60HS85 | 1.8 | 85 | 4 | 0.65 | 2.70 | 2.8 | 4.9 | 4 | 1300 | |||||||||
60HS100 | 1.8 | 100 | 4 | 0.75 | 3.05 | 3.5 | 6.18 | 4 | 1700 | |||||||||
Stepper Motor 86 HS :1.8°--NEMA 34 | ||||||||||||||||||
Model | Step Angle | Motor Length | Rated Current | Phase Resistance | Phase Inductance | Holding Torque | Rotor Inertia | Lead wire | Motor Weight | |||||||||
(deg) | (mm) | (A) | (Ohm) | (mH) | (N.m) | (g.cm²) | （No） | (g) | ||||||||||
86HS80 | 1.8 | 80 | 4.0 | 0.5 | 3.6 | 4 | 1.95 | 4 | 2500 | |||||||||
86HS98 | 1.8 | 98 | 4.0 | 0.63 | 3.6 | 6 | 2.50 | 4 | 3300 | |||||||||
86HS118 | 1.8 | 118 | 4.0 | 0.5 | 4.2 | 8 | 2.80 | 4 | 4000 | |||||||||
86HS156 | 1.8 | 156 | 4.0 | 0.5 | 5.3 | 12 | 4.94 | 4 | 5500 | |||||||||

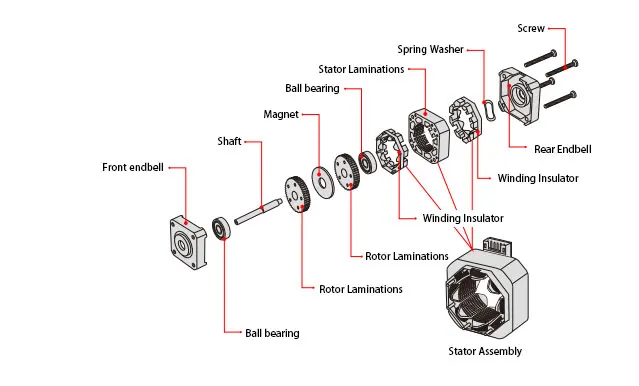

Stepper Motor Basic Structure
