0 25%VOL 30%VOL oxygen analyzer analizador de gas
- Category: >>>
- Supplier: Hunan Gri Instrument Co. Ltd.
Share on (1601035422347):
Product Overview
Description
Products Description

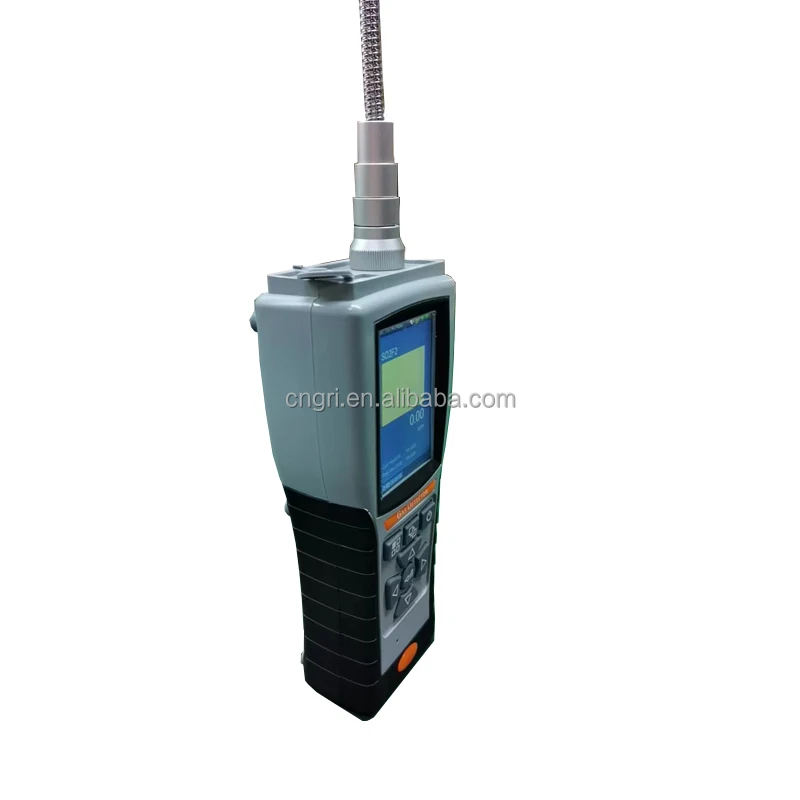

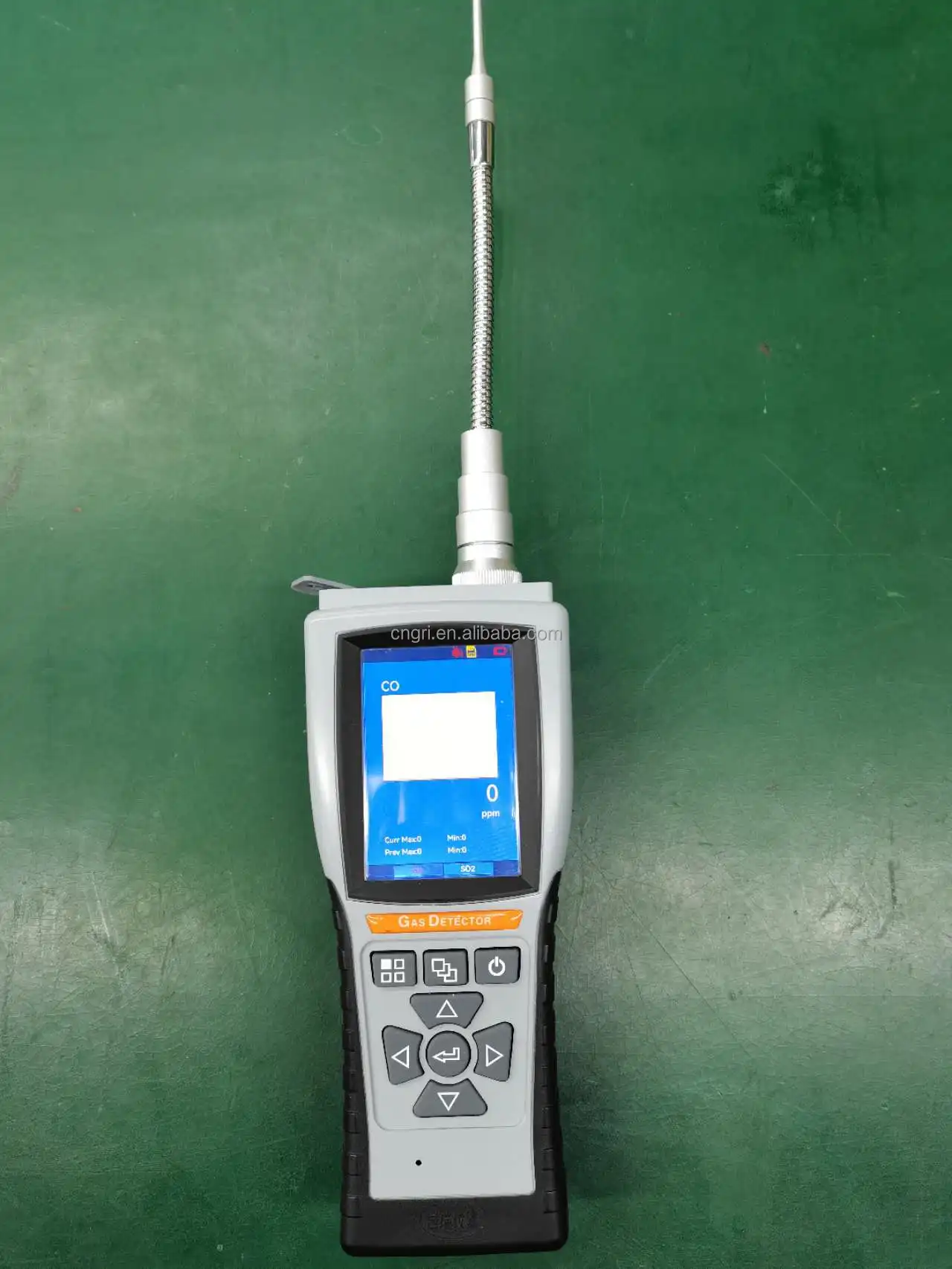

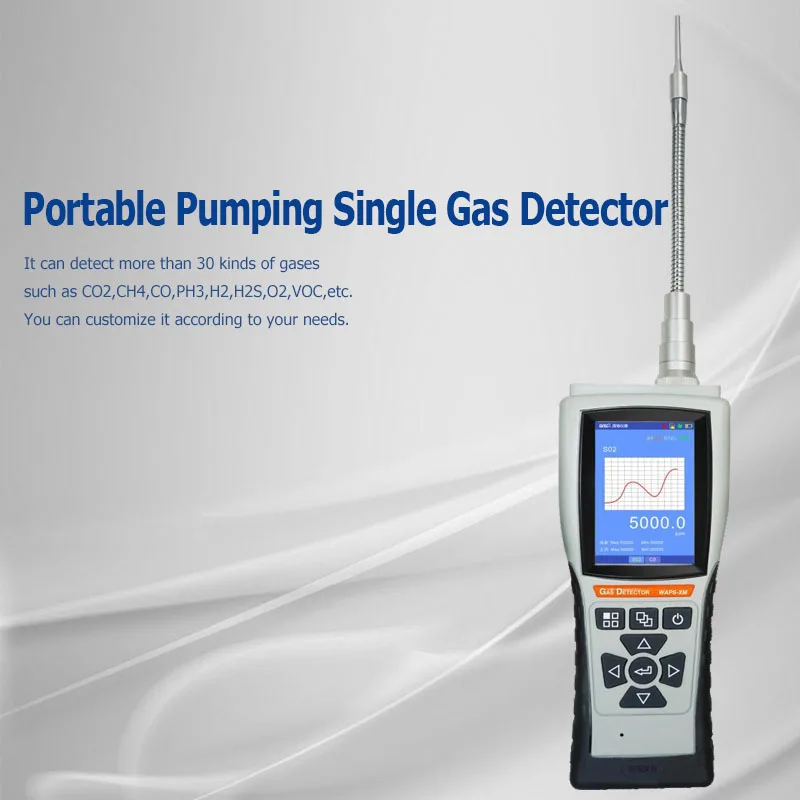

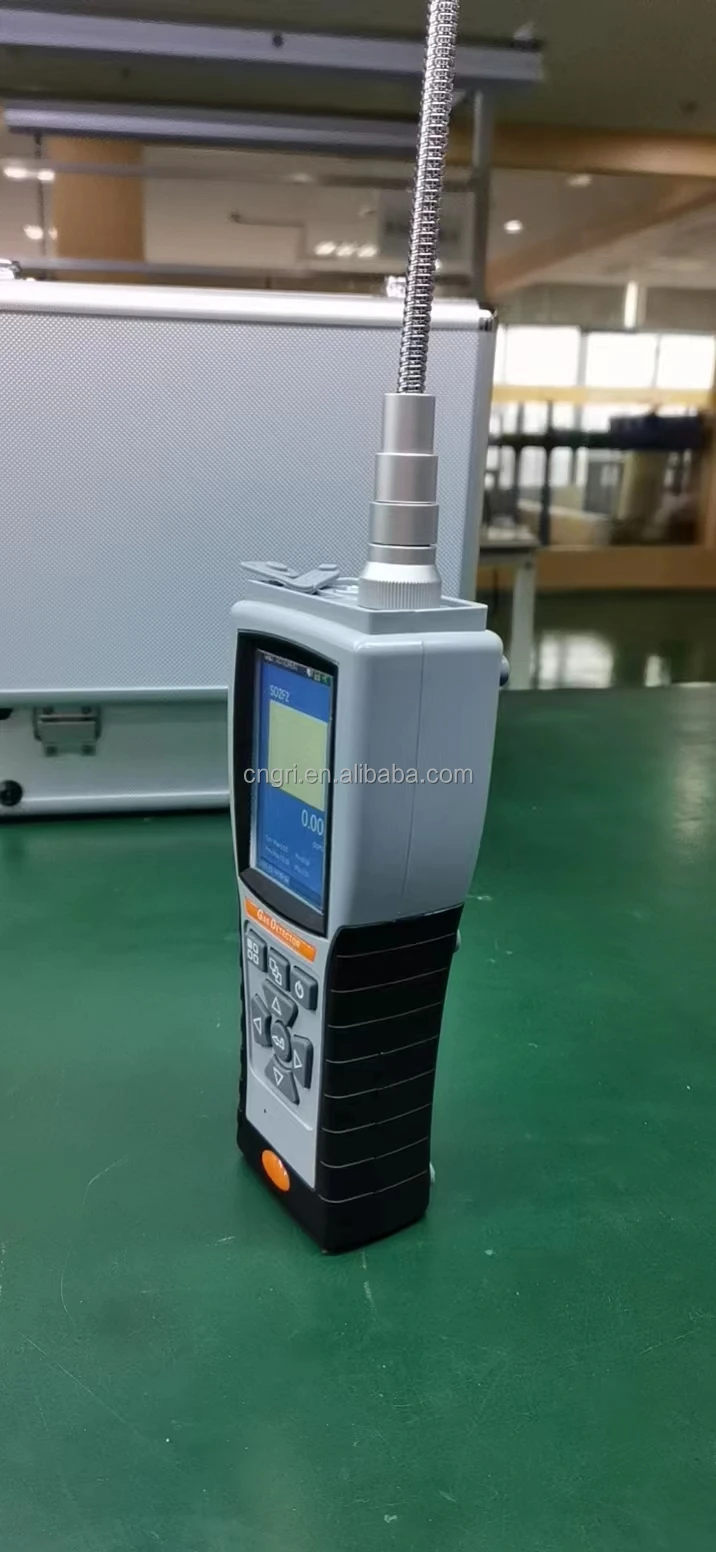

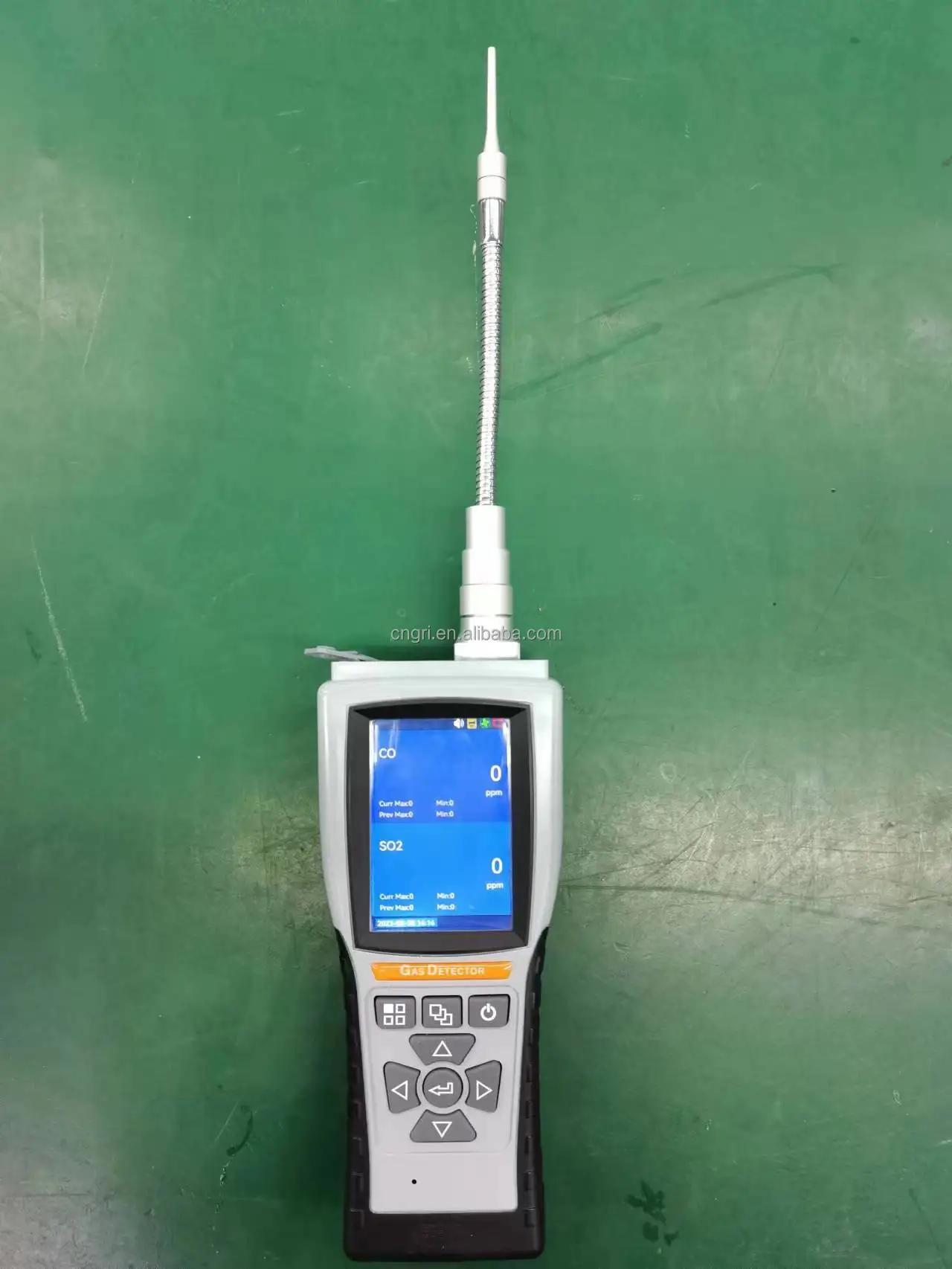

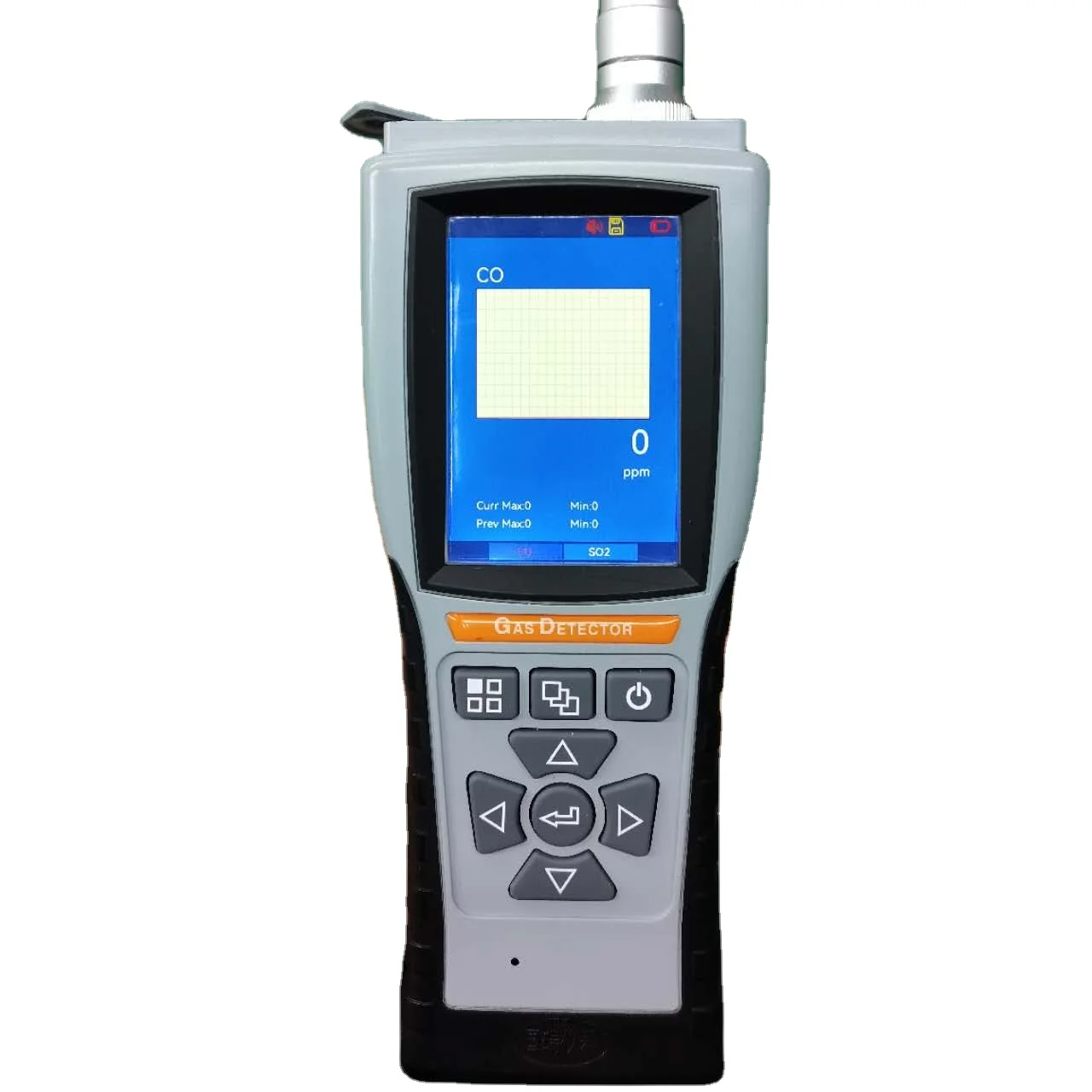

WASP-XM Portable Single Gas Detector adopt advanced gas sensor and high quality control technical, has quick response, high accuracy, great stability and repeatability. It's easy to operate, performance is in the leading level of gas detection industry.
It is a continuous monitoring of a variety of single gas detection equipment. This product is suitable for environmental monitoring, industrial production and other harmful gases working environment, which can effectively protect the health and safety of staff is not compromised.
The instrument features two instant alarms with audio/visual and vibratory indicators,rechargeable battery, and simple operation.
The instrument features two instant alarms with audio/visual and vibratory indicators,rechargeable battery, and simple operation.
Details Images
Technical Parameters
Sensor type | Electro-chemical 、NDIR infrared、 PID |
Sampling way | Pump priming (built-in pump, speed can be adjusted) |
Test range | optional(you can ask service for choice) |
Resolution | according to the range |
Precision | ±2%(F.S/year) |
Response time | T90<=30s |
Indicate way | LCD display real-time concentration ,LED ,buzzer alarm |
Pressure range | Atmospheric pressure |
Power supply | Lithium battery (3.7V/3000Ah) |
Operating Current | normal current:≤ 150mA; Alarm current: ≤ 200mA |
Operating Temperature | -40 ℃ to +70 ℃ |
Relative Humidity | 0% - 95%, non-condensing |
Storage Temperature | -20 ℃ - 60 ℃ |
Storage humidity | ≤ 90%, no condensation |
Sensor life | 2 year |
Data storage | 200,000pcs |
Continuous work hours | 12hours |
Charge time | 6-8hours |
Housing material | PC |
Dimensions | 228* 84 * 50.5mm |
Installation | Handheld / Stand-in |
Weight | 0.55 kg |
Protection Class | IP65 |
Warranty | 12 months |
Detecting Gas
No | Detecting Gas | Gas | Measure Range | Resolution | |
1 | WASP-XM-R-CH4 | Combustible Gas | EX/CH4 | 0-100%LEL /0-100%VOL | 0.1%LEL/0.1%VOL |
2 | WASP-XM-E-O2 | Oxygen | O2 | 0-25% /30%/100%VOL | 0.01%VOL/500 ppm |
3 | WASP-XM-E-H2S | Hydrogen Sulfide | H2S | 0-10/50/100/200/1000 ppm | 0.01/0.1 /1 ppm |
4 | WASP-XM-E-CO | Carbon Monoxide | CO | 0-200/1000/2000/5000 ppm | 0.01/0.1/1 ppm |
5 | WASP-XM-E-NO2 | Nitrogen Dioxide | NO2 | 0-20/500/1000 ppm | 0.01/0.1 ppm |
6 | WASP-XM-E-NO | Nitric Oxide | NO | 0-20/250/500/1000 ppm | 0.01/0.1/1 ppm |
7 | WASP-XM-R-CO2 | Carbon Dioxide | CO2 | 0-5000 ppm /0-1%/5%/10%/100%VOL | 1 ppm/0.1%VOL |
8 | WASP-XM-E-SO2 | Sulfur Dioxide | SO2 | 0-20/50/100/2000 ppm | 0.01/0.1 /1 ppm |
9 | WASP-XM-E-CL2 | Chlorine | CL2 | 0-20/200/2000 ppm | 0.01/0.1 ppm |
10 | WASP-XM-E-NH3 | Ammonia | NH3 | 0-50/100/1000/5000 ppm | 0.01/0.1 ppm |
11 | WASP-XM-E-H2 | Hydrogen | H2 | 0-1000/10000/40000 ppm | 0.1/1 ppm |
12 | WASP-XM-E-PH3 | Phosphine | PH3 | 0-5/20/50/100/500/1000 ppm | 0.01/0.1/1 ppm |
13 | WASP-XM-E-HCL | Hydrogen Chloride | HCL | 0-20/200/1000 ppm | 0.01/0.1 ppm |
14 | WASP-XM-E-CLO2 | Chlorine Dioxide | CLO2 | 0-20/200/2000 ppm | 0.01/0.1/1 ppm |
15 | WASP-XM-E-HCN | Hydrogen Cyanide | HCN | 0-50/100 ppm | 0.01/0.1 ppm |
16 | WASP-XM-E-C2H4O | Ethylene Oxide | C2H4O | 0-10/20/50/100/200/500/1500 ppm | 0.01/0.1 /1 ppm |
17 | WASP-XM-E-O3 | Ozone | O3 | 0-5/10/20/100/1000 ppm | 0.01/0.1 ppm |
18 | WASP-XM-E-CH2O | Formaldehyde | CH2O | 0-10/20/50/100/1000 ppm | 0.01/0.1 /1 ppm |
19 | WASP-XM-E-HF | Hydrogen Fluoride | HF | 0-1/10/50/100 ppm | 0.01 /0.1 ppm |
20 | Methylbenzene | 0-1/10/20/50/100 ppm | 0.01 /0.1 ppm | ||
21 | WASP-XM-E-H2O2 | Hydrogen peroxide | H2O2 | 0-100/500/2000 ppm | 0.01/0.1 ppm |
22 | WASP-XM-R-SF6 | Sulfur hexafluoride | SF6 | 0-1000/2000/3000 ppm | 1 ppm |
23 | WASP-XM-R-HC | Hydrocarbon | HC | 0-5%/10%/20%/50%100% VOL | 0.01/0.1% VOL |
24 | WASP-XM-P-VOC | Volatile organic compounds | VOC | 0-20/200/2000 ppm | 0.005/0.05/0.5 ppm |
Note: Other gas and measure range not listed are all support customize, please contact us for more details.
Application Area
Petroleum, petrochemical, chemical, environmental, paper, paints, coatings, mining, electroplating,textile, coking plants, indoor air quality monitoring, environmental monitoring systems, health monitoring systems.
Can be measured gas species: CH2O, TVOC, CO, H2S, NO2, NO, SO2, CL2, NH3, H2, PH3, O3, F2, HF, HCL, HBR, C2H4O, COCL2, SIH4, CLO2, HCN, C2H4, SF6, combustible gases.....and etc.

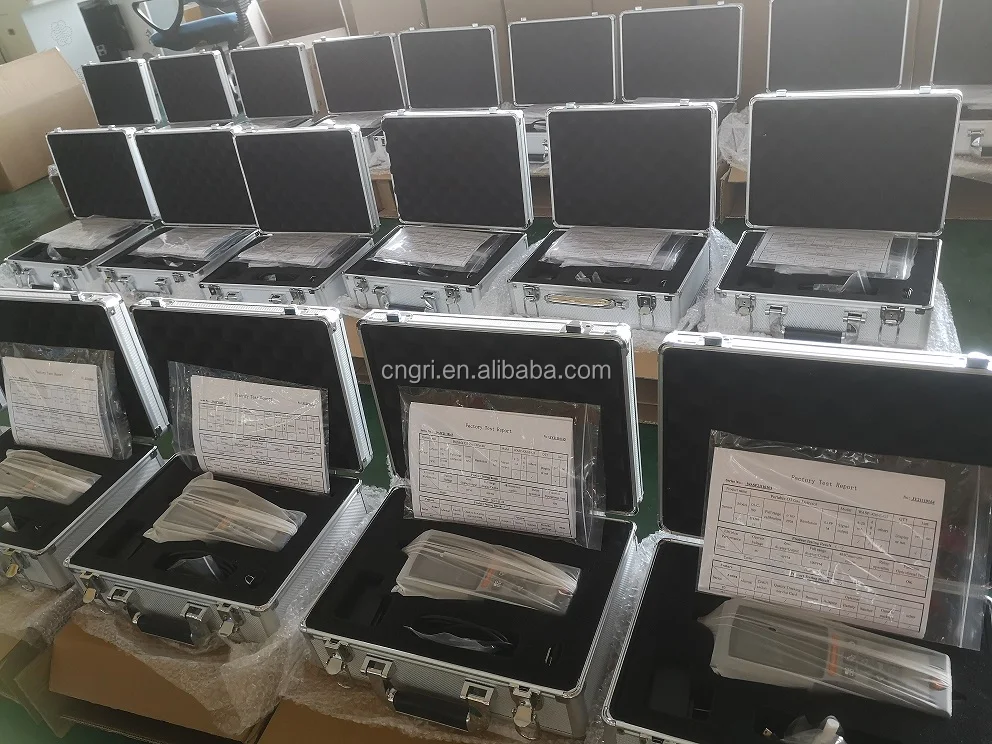

Product Packing
Standard Configuration:
Gas Detection Instrument 1Set
Lithium Battery 1Piece
Battery charger and USB line 1Set
Package box 1Set
Operational Manual 1Piece
Product inspection report 1Piece

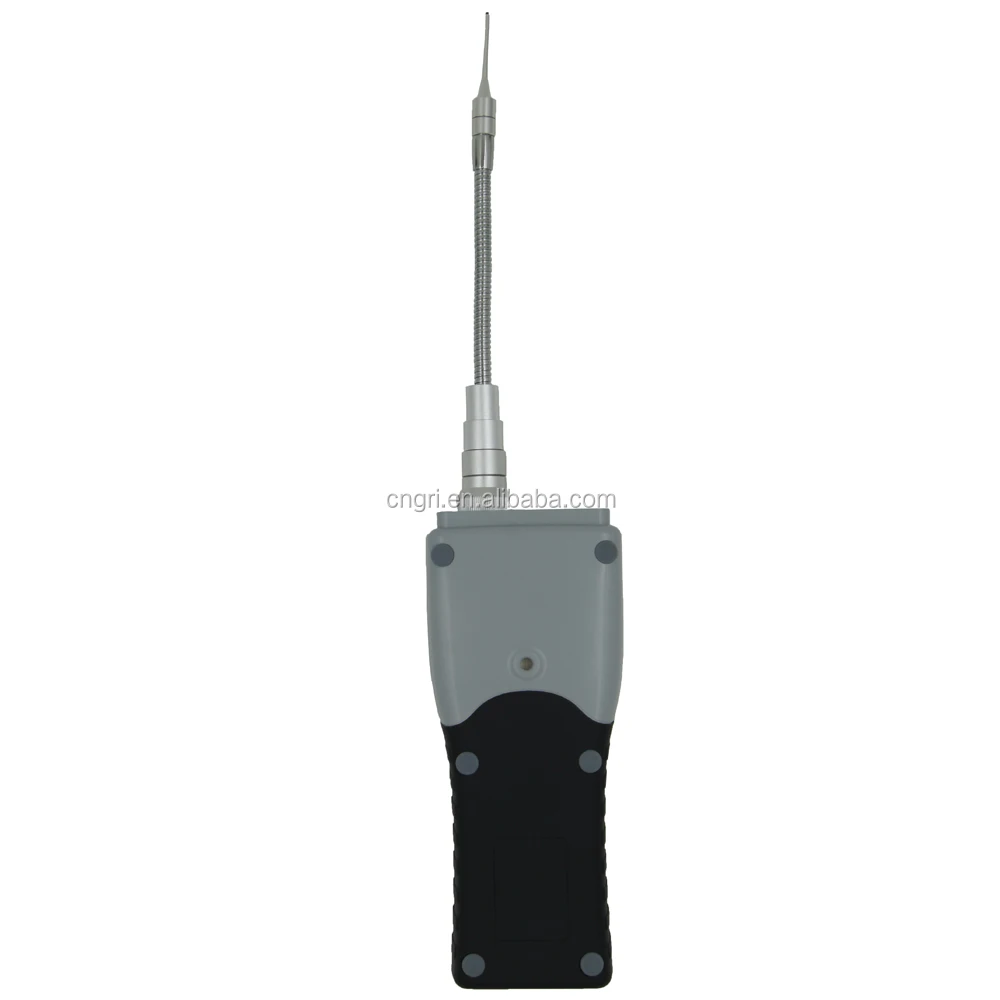

Metal ventilation pipe [straight pipe / Curved pipe ] 1Set
Fast delivery:
Sample order in stock and 5-7 working days for bulk production.
Shipping:
We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS, CHINA AIR POST.
You also can choose your own shipping forwarder.
About GRI factory
Our Business
GRI was established in 2009, expert in gas detector market more than 10 years. Specialize in development and production of gas detectors, gas analyzers and gas monitor. At present, gas instruments have been spread all over the world.
-OEM Manufacturing welcome: Product, Package...
-Sample order welcome...
-We will reply you for your inquiry within 24 hours.
-After package departured, we will track the products for you once every two days until you get the products. When you got the goods, test them, and give me a feedback.If any questions or problem, please contact us!
-Sample order welcome...
-We will reply you for your inquiry within 24 hours.
-After package departured, we will track the products for you once every two days until you get the products. When you got the goods, test them, and give me a feedback.If any questions or problem, please contact us!

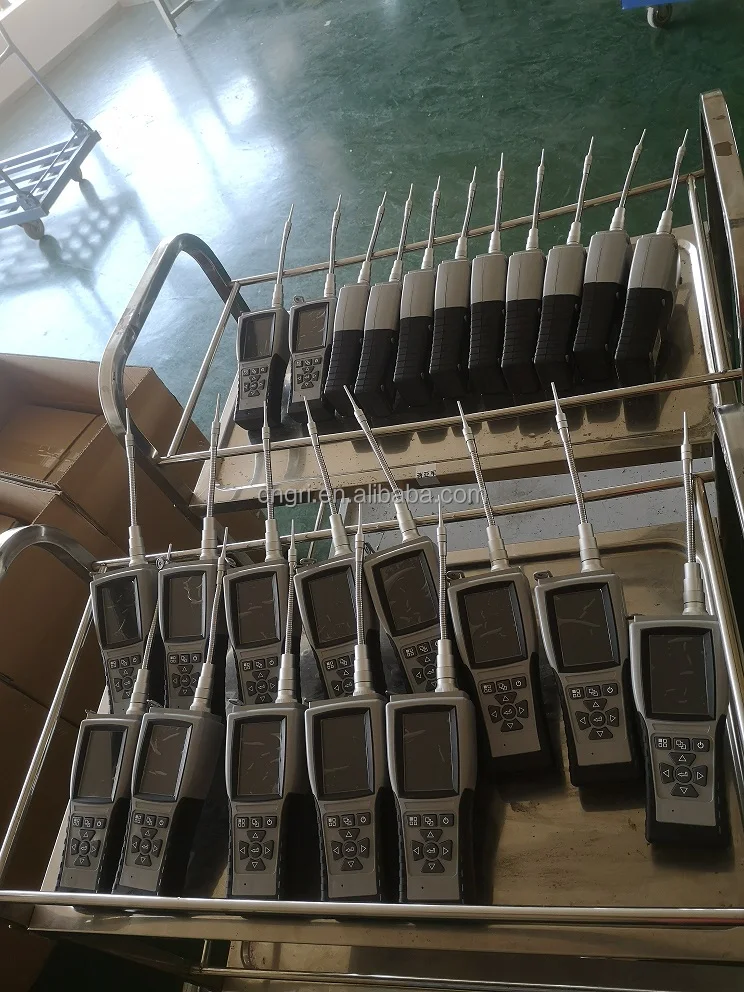

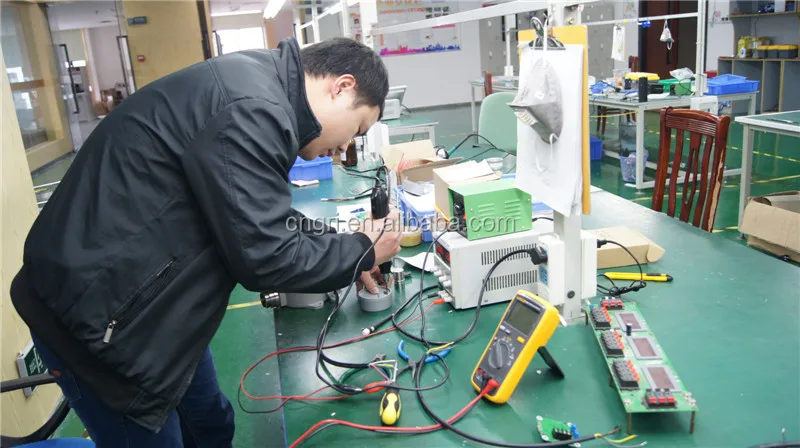

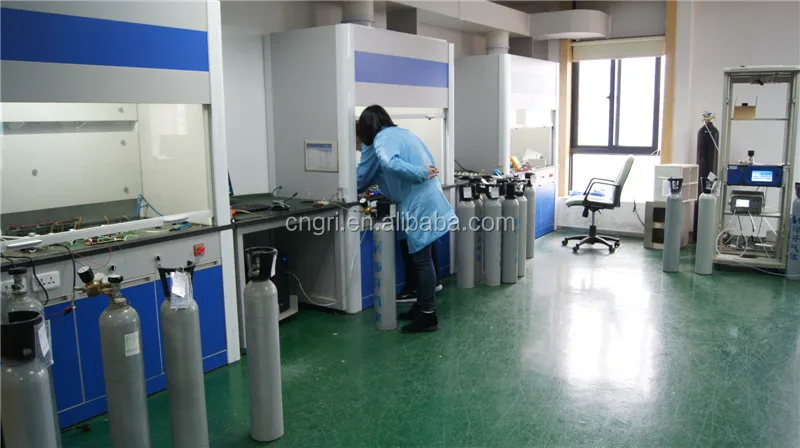

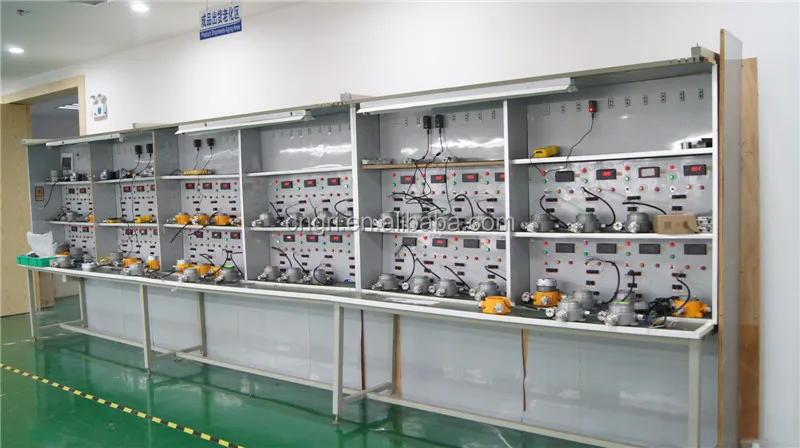

R&D and Production
We has own manufacture base in industrial park , always strictly implemented the ISO9001 quality management
system.We adhere to high standards of product quality, strict requirements, adopting the world-class sensor,
advanced management and production experience, developing the high-quality testing equipment.
system.We adhere to high standards of product quality, strict requirements, adopting the world-class sensor,
advanced management and production experience, developing the high-quality testing equipment.
FAQ
Q1:Are you factory or trade company?
A1:We are factory.
Q2:What about the payment method?
A2:T/T, Paypal, Western Union, L/C is available
Q3:Does your company accept customization?
A3:We do customizing service for customers.
Q4:What about the Shipment?
A4:We'll choose proper transportation mode based on the weight of goods, usually arrange shipment by air express such as DHL,FEDEX,TNT or UPS.
Q5:What about after-sale service?
A5:12 months warranty for all kinds of products;
Q6:What's the product range of our company?
A6:Industrail gas detector, fixed gas detector, home portable gas detector, priming pump gas detector, diffusion gas detector. Online gas monitor station. Gas anaylzer. Gas sensor.NDIR sensor.
