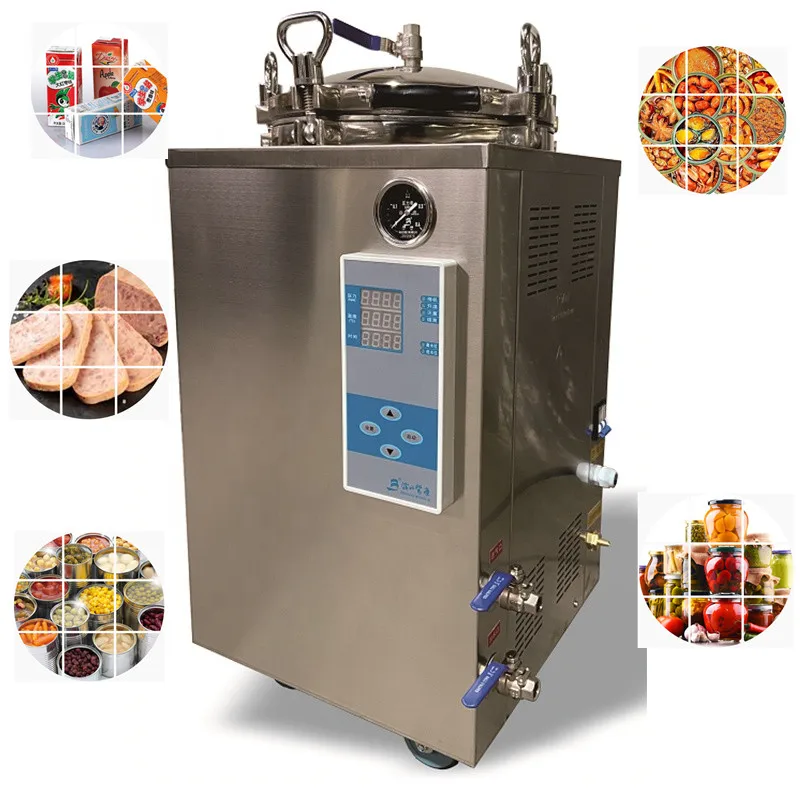

Hot Sale Vertical Autoclave For Glass Jar Packed Food For Sterilizing
- Category: >>>
- Supplier: Anhui Houyuan Medical Technology Co. Ltd.
Share on (1601035521856):
Product Overview
Description

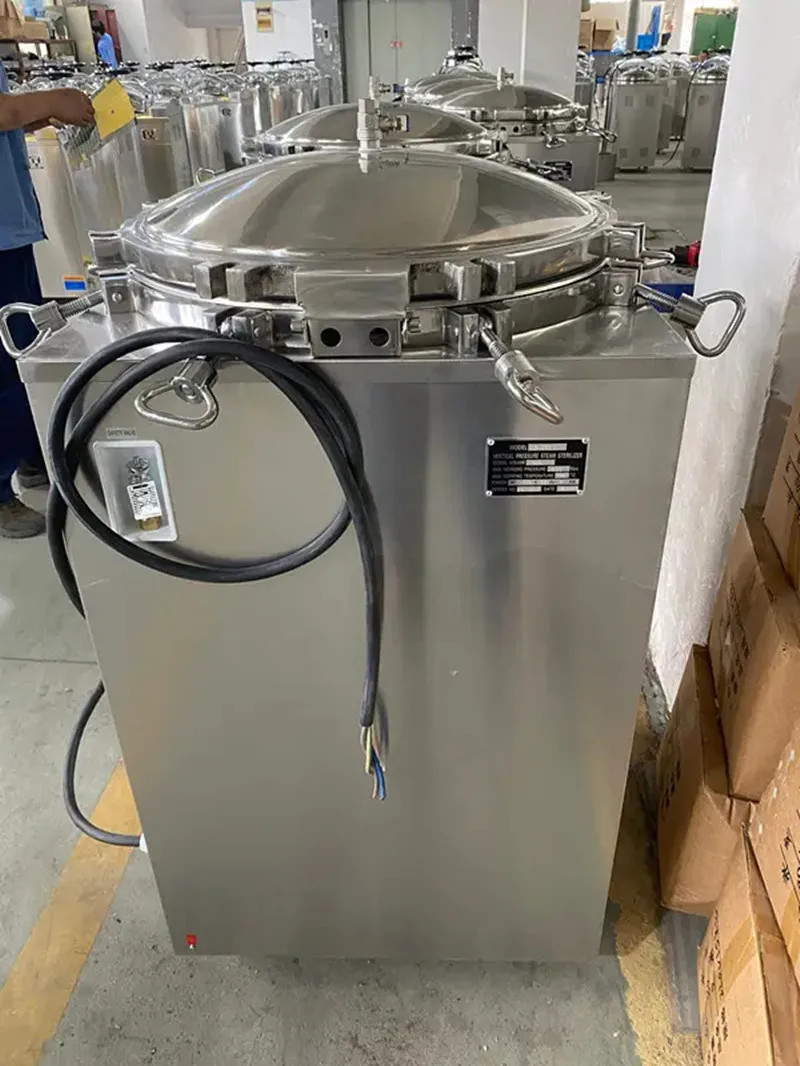

Hot Sale Vertical Autoclave For Glass Jar Packed Food For Sterilizing
USE
The counter pressure autoclave is a kind of micro - computer controlled sterilizing equipment in medium - size, it directly fills the water into the sterilization chamber for electric heating to generate the high pressure steam as the sterilizing cycle required, then the unit proceeds the sterilization to the articles, he water temperature would rapidly cool down in 3 minutes by the outer connected compressed air injection after the cycle finished, and the articles temperature in chamber could decreased to 30-40° C. The unit is program controlled, there are two operation options for choosing: boiling disinfection the sterilizing temperature of which is lower or equal to 100°℃ and rapid cooling pressure sterilization the sterilizing temperature of which is ranged from 105-134° C. The unit is with overload protection and buzzer alarm function after sterilization,easy and convenient to operate, safe and reliable. It is applicable to the disinfection and sterilization of food packaging, utensils,instruments and other articles. It is especially suitable for sterility test in food research institutions.
35L/50L/75L/100L/150L
Application:
This product is suitable for the disinfection and sterilization of food packaging, utensils, instruments and other articles. It is an ideal equipment for aseptic test in Food Research Institute.
Application:
This product is suitable for the disinfection and sterilization of food packaging, utensils, instruments and other articles. It is an ideal equipment for aseptic test in Food Research Institute.
Sterilization Objects:
Kinds of food, such as cannes food, bottle food, etc
Kinds of food, such as cannes food, bottle food, etc
Feature:
1.The unit is equipped with immersed electric heating tubes, which are with dry - burning prevention function. It would automatically cut off the heating power if the water level is lower than the specified line, and send alarm signal at the meanwhile.
2.The unit is equipped with timer to control the sterilizing time automatically.
3.This unit is reliable and safe to operation, which is equipped with a safety valve for releasing the pressure over 0.25Mpa automatically, the power would cut off itself if the temperature raised to 140C, is also with over heat protection, current over-load protection, and interlock protection.
4.The unit is applicable to the disinfection and sterilization of food packaging, utensils, instruments and other articles. It is especially suitable for sterility test in food research institutions.
5.The whole unit is made from high - quality stainless steel, has the advantages of corrosion resistance, easy maintenance and long service life.
2.The unit is equipped with timer to control the sterilizing time automatically.
3.This unit is reliable and safe to operation, which is equipped with a safety valve for releasing the pressure over 0.25Mpa automatically, the power would cut off itself if the temperature raised to 140C, is also with over heat protection, current over-load protection, and interlock protection.
4.The unit is applicable to the disinfection and sterilization of food packaging, utensils, instruments and other articles. It is especially suitable for sterility test in food research institutions.
5.The whole unit is made from high - quality stainless steel, has the advantages of corrosion resistance, easy maintenance and long service life.
Model | HY-F35DC | HY-F50DC | HY-F75DC | HY-F100DC | HY-F150DC | ||||
Capacity | 50L | 75L | 100L | 100L | 150L | ||||
Chamber size | 318*450mm | 340*550mm | 400*600mm | 440*650mm | 510*740mm | ||||
Working pressure | 0.22MPa | ||||||||
Working temperature | 134℃ | ||||||||
Max .working pressure | 0.23MPa | ||||||||
Heat average | ≤±1℃ | ||||||||
Heat average | 0-99min | ||||||||
Temperature adjust range | 105-134℃ | ||||||||
Power | 2.5KW/AC220V.50HZ | 3KW/AC220V.50HZ | 4.5KW/AC220V.50HZ | 6KW/AC220V.50HZ | |||||
Overall dimension(mm） | 470*450*840 | 520*500*970 | 550*530*990 | 580*560*1060 | 660*640*1130 | ||||
Transport dimension(mm） | 540*540*970 | 580*580*1090 | 610*610*1110 | 640*640*1170 | 730*730*1230 | ||||
G.W | 61kg | 73kg | 87kg | 95kg | 130kg | ||||
N.W | 46kg | 56kg | 67kg | 73kg | 111kg | ||||
