RC350C Geothermal Well Multi-function Drilling Rig Machine Water Well Drilling Machine for Sale Philippines Rotary Engine Diesel

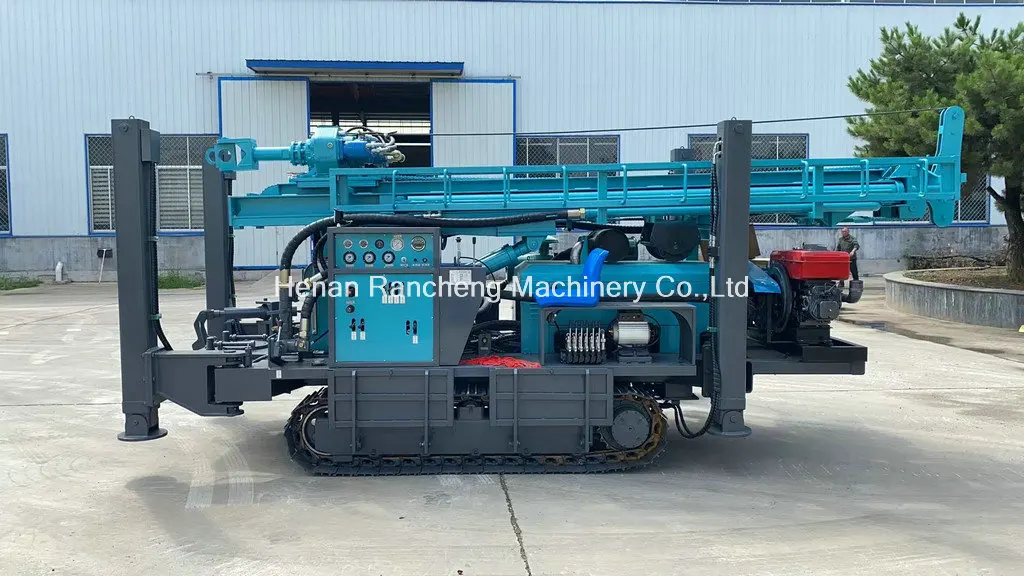

RCF350C (4)


 1.Introduction


RCF350C deep water well drilling rig is our independent research and development products. These new generation DTH are coupled to higher air power, and thus play a significant role in leading to faster drilling rates.


2.Advantage and features


a. Easy and flexible full hydraulic control


The rig's speed, torque, thrust axial pressure, reverse axial pressure, thrust speed, and lifting speed can be adjusted at any time to meet the requirements of different drilling tool working conditions and different construction processes


b.Top-drive slewing propulsion lift


It is easy to connect and disconnect the drill pipe, shorten the auxiliary time, and also facilitate drilling with the pipe





c. High efficiency


Due to the full hydraulic and top-drive slewing propulsion lifting, it is suitable for various drilling processes and various drilling tools, with convenient and flexible control, fast drilling speed and short auxiliary time, so the operation efficiency is high.

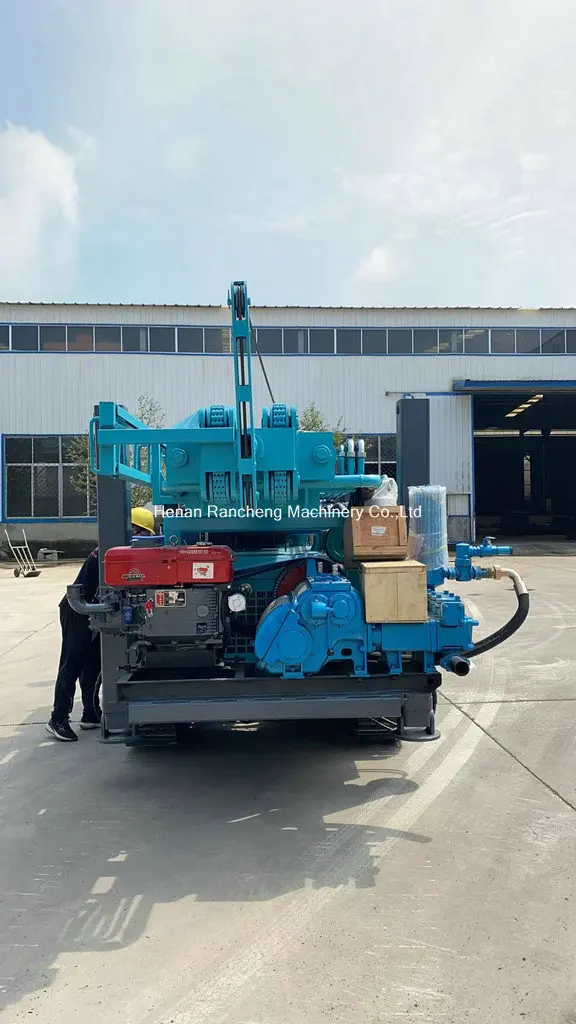

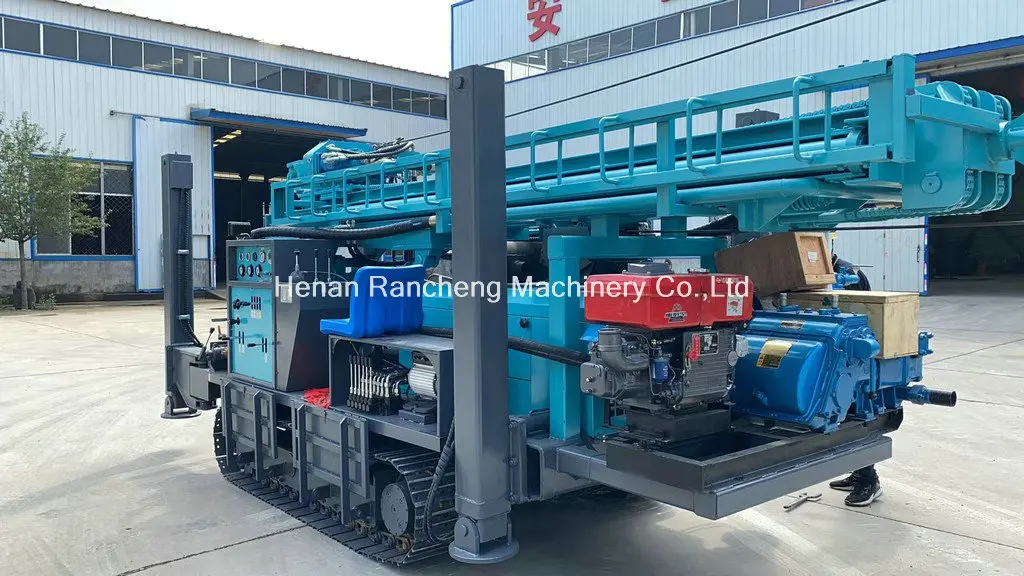

 RCF350C (16) - RCF350C (13) -














2.Technical parameters


































































































Bore diameter(hammer)



140-350mm



Bore depth



350m



Air consumption



17-35m³/min



Air pressure



1.7-3.5Mpa



Pipe diameter



89mm/102mm



Pipe length



1m/2m/3m/6m



Lifting force



24T



Lifting speed



3m/min



feeding speed



0.5-5m/min



Fast lifting speed



30m/min



Fast feeding speed



50m/min



Max torque of rotary



6200-9000Nm



Rotary speed



55-115r/min



Hoist lifting capacity



2T



Mud Pump flow



450L/min (option)



High hydraulic leg



1.5m



Feeding efficiency



10-35m/h



Travel speed



2.5Km/h



Climb ability



30°



Dimension(L*W*H)



5900×2000×2850mm



weight



9000Kg



Diesel engine



91KW Yuchai engine 4 cylinders



Drilling way



Air compressor drilling or mud pump drilling






Packaging & Shipping

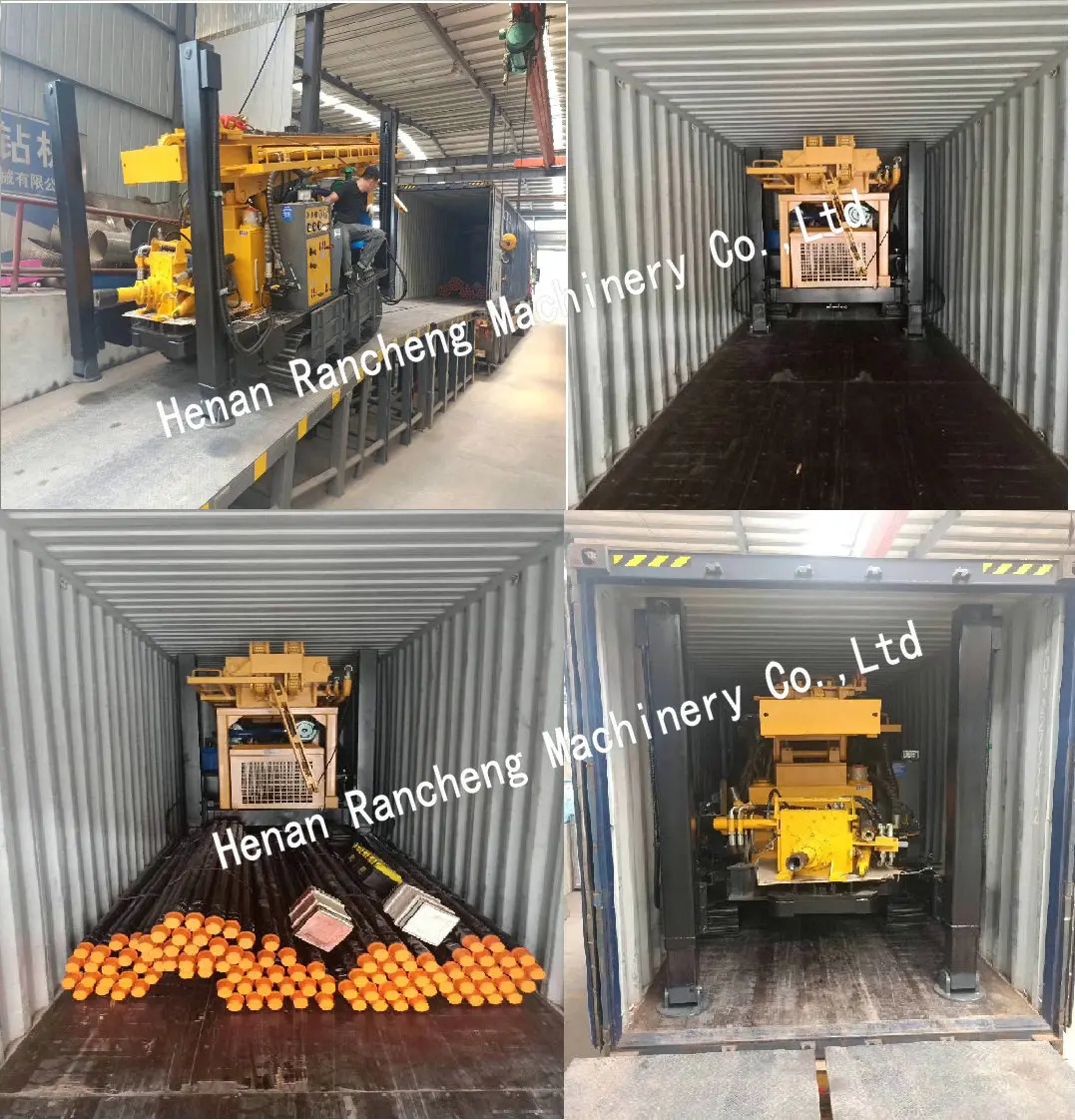

It can be loaded into 20" container, delivery time :10-15days,standard exporting packing








Our Services


1,24/7 service by chat online and phone.


2,Lifelong and free technical support.


3,Service overseas: if you need, we can dispatch an engineer to your door.





Company Information


 Rancheng factory








FAQ





-Why choose us?


Rancheng Machinery have rich experience in this industry for 11 years.Now our products are serving around the world.we have High Quality, Competitive Price, and Fast Shipment.


-After-sales Service:


1 year warranty for all kinds of products


-Do you offer any custom designs?


Yes,we have our own trade factory


-whether we can visit your factory?


Yes ,you are warmly welcome to visit us








Delivery

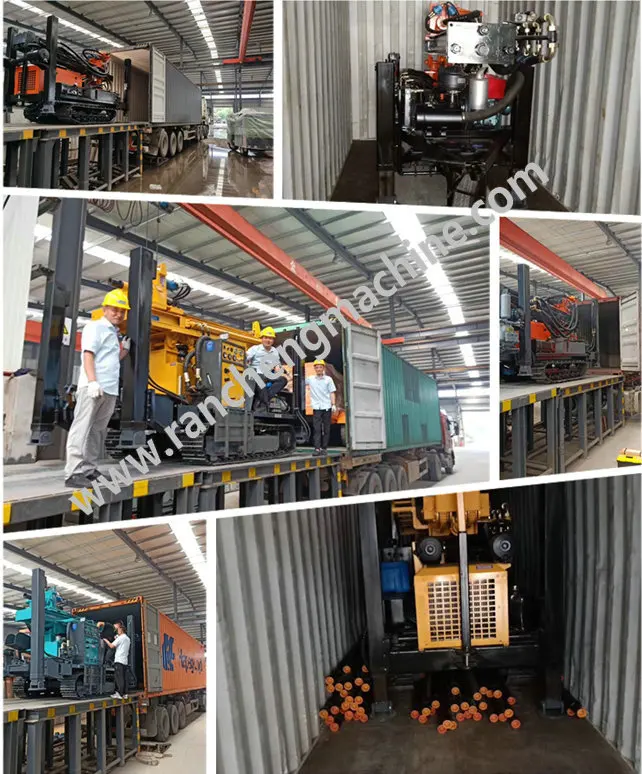

 drilling rig deliverydrilling rig delivery
