Product Overview
5G/4G IoT RUT IP Camera

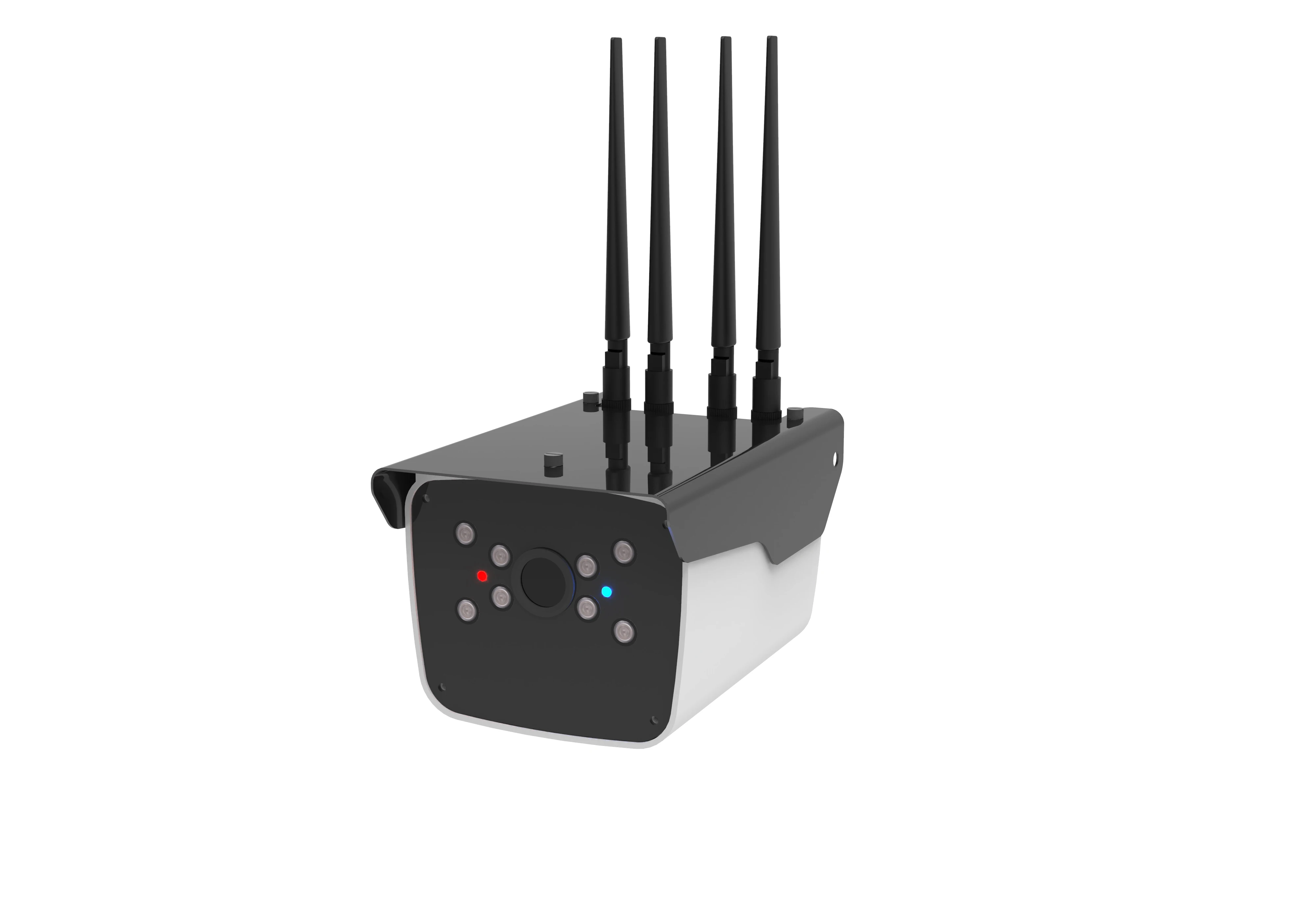

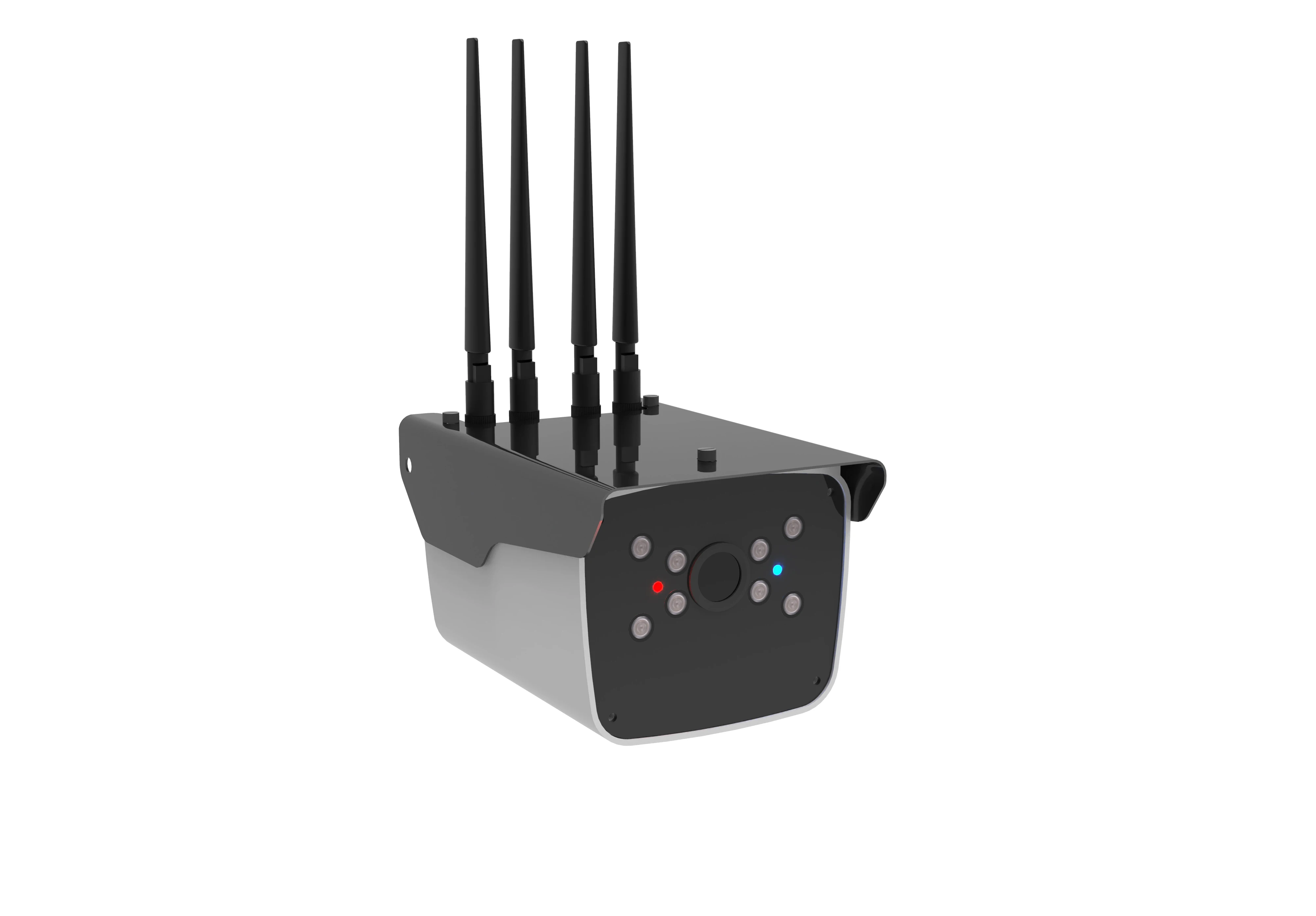

C920 5G/4G built-in battery bullet IP camera as the main product of the intelligent IoT surveillance system,
specially designed for industrial-grade IoT applications. The camera can provide long distances and low
latency HD video wirelessly by using the industrial 5G/4G module. At the same time, the built-in battery can
support the solar panel for recharging the battery power that can achieve the long-time standby monitoring.
specially designed for industrial-grade IoT applications. The camera can provide long distances and low
latency HD video wirelessly by using the industrial 5G/4G module. At the same time, the built-in battery can
support the solar panel for recharging the battery power that can achieve the long-time standby monitoring.
PRODUCT SPECIFICATIONS
Cellular | ||
Standard & Band | 5G, LTE FDD, LTE TDD, EVDO, WCDMA, TD-SCDMA, CDMA1X, GPRS/EDGE | |
Bandwidth | 5G NR: Downstream rate 3.4Gbps, uplink rate 350Mbps FDD-LTE: Downstream rate 150Mbps, uplink rate 50Mbps TD-LTE: Downstream rate 130Mbps, uplink rate 35Mbps | |
Transmit Power | <23dBm | |
Sensitivity | <-97dBm | |
Interface | ||
Ethernet | 1x 10/100/1000M RJ45 (POE) | |
DC-12V IN(Optional) | Battery Version: Standard DC12V charging adapter (DC 5.5*2.5mm) Non Battery Version: Optional 12-60V wide voltage input (terminal connector) | |
Audio I/O @Audio Compression(Optional) | 1/1&G.711/AAC | |
IO & Relay(Optional) | 2 x DI, 2 x DO, 2 x Relay | |
ADC | 2@12bit | |
UART(Optional) | 2 x RS232 & 2 x RS485 | |
Power Return (Optional) | 12V@500MA & 5V@1000MA | |
storage (Optional) | Internal Micro SD Slot, support Micro SD/Micro SDHC/Micro SDXC card (Support Maximum 512G) Internal 2.5” Hard Disk SATA interface, support maximum 4TB HDD or SSD | |
Interface type | M16 Waterproof Interface | |
GPS(Optional) | ||
GPS module | Industrial GPS module，compatible with Beidou, GLONASS | |
Accuracy | Positioning: 2.5m CPE SBAS: 2.0m CPE | |
Sensitivity | Tracking: -160dBm Recapture: -160dBm Cold Boot: -146dBm | |
Camera | ||
Lens | Fixed Lens 2.8mm @F2.0 | |
Field of View | H123°/D142°/V68° | |
Shutter Time | 1/100000s~1/5s | |
IR Distance | 50m | |
Day & Night | ICR Filter Auto Switch | |
Video | ||
Max. Image Resolution | 1920×1080 / 2650×1920 | |
Primary Stream | 30fps@(1920×1080, 1280×960,1280×720, 704x576) | |
Secondary Stream | 30fps@(704x576, 640×480, 640×360, 352x288, 320x240, 320x192, 320x176 ) | |
Tertiary Stream | 30fps@(1920×1080, 1280×720, 704×576, 640×480, 640×360, 320×240, 320x192, 320x176 ) | |
Video Compression | H.265(HEVC)/H.264/MJPEG | |
Bit Rate | 16Kbps~16Mbps (CBR/VBR Adjustable) | |
Image Setting | Brightness/Contrast/Saturation/Sharpness | |
System | ||
Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 512G | |
Advanced Function | Motion Detection, Privacy Masking, Backlight Compensation, HLC, 2D DNR, 3D DNR, ROI, Anti-fog,White Balance, EIS, IP Address Filtering | |
Event Trigger | Motion Detection, Network Disconnection, External Input, etc. | |
Event Action | FTP Upload/SMTP Upload/SD Card Record | |
Video Analysis (Optional) | Human-vehicle recognition, passenger flow counting, water level detection, mask detection, etc. Provides deep customization of target detection and tracking algorithms tailored to industry-specific scenarios | |
Protocol & Industrial Standard | Onvif Profile S GB/T28181-2016 Modbus RTU MQTT IEC101*, IEC104* (*In development) | |
