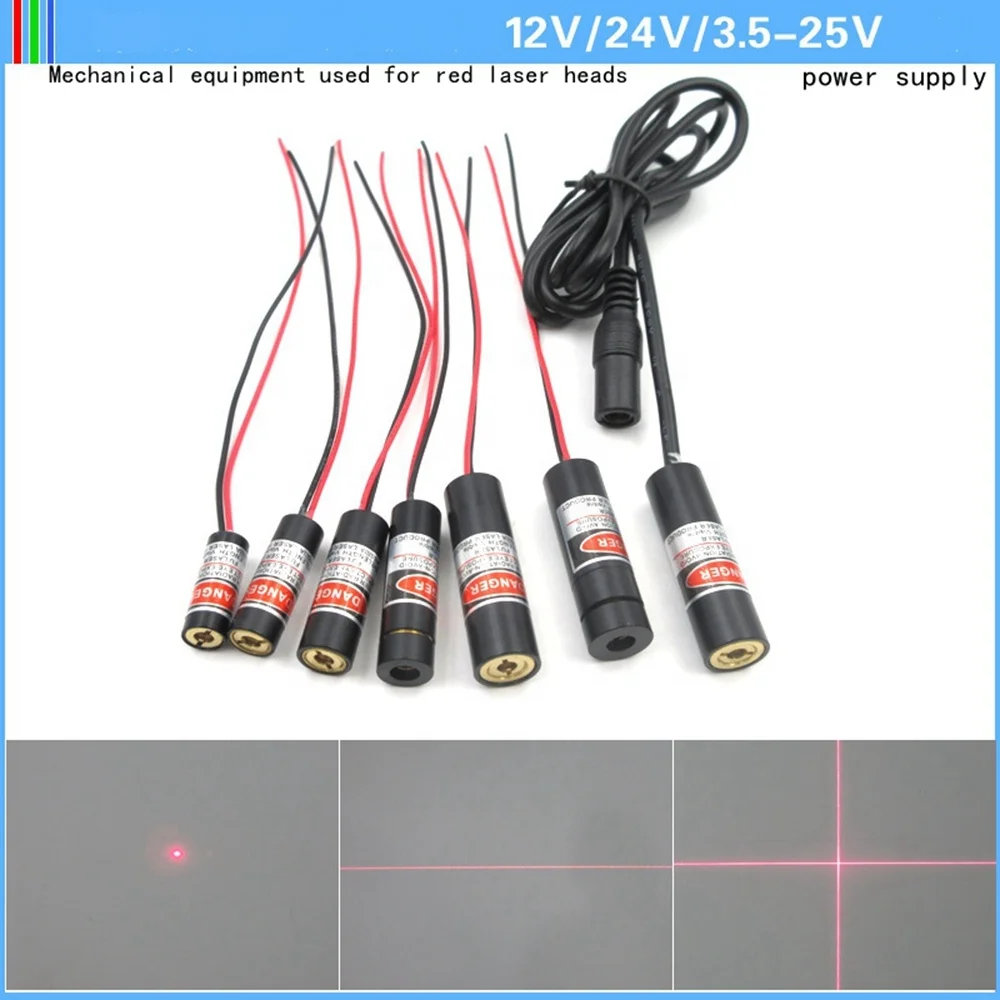

Laser module 12V24V3.5 25V power supply red laser indicator for mechanical equipment
- Category: >>>
- Supplier: Changchun Realpoo Photoelectric Co. Ltd.
Share on (1601035673179):
Product Overview
Description
Product Description

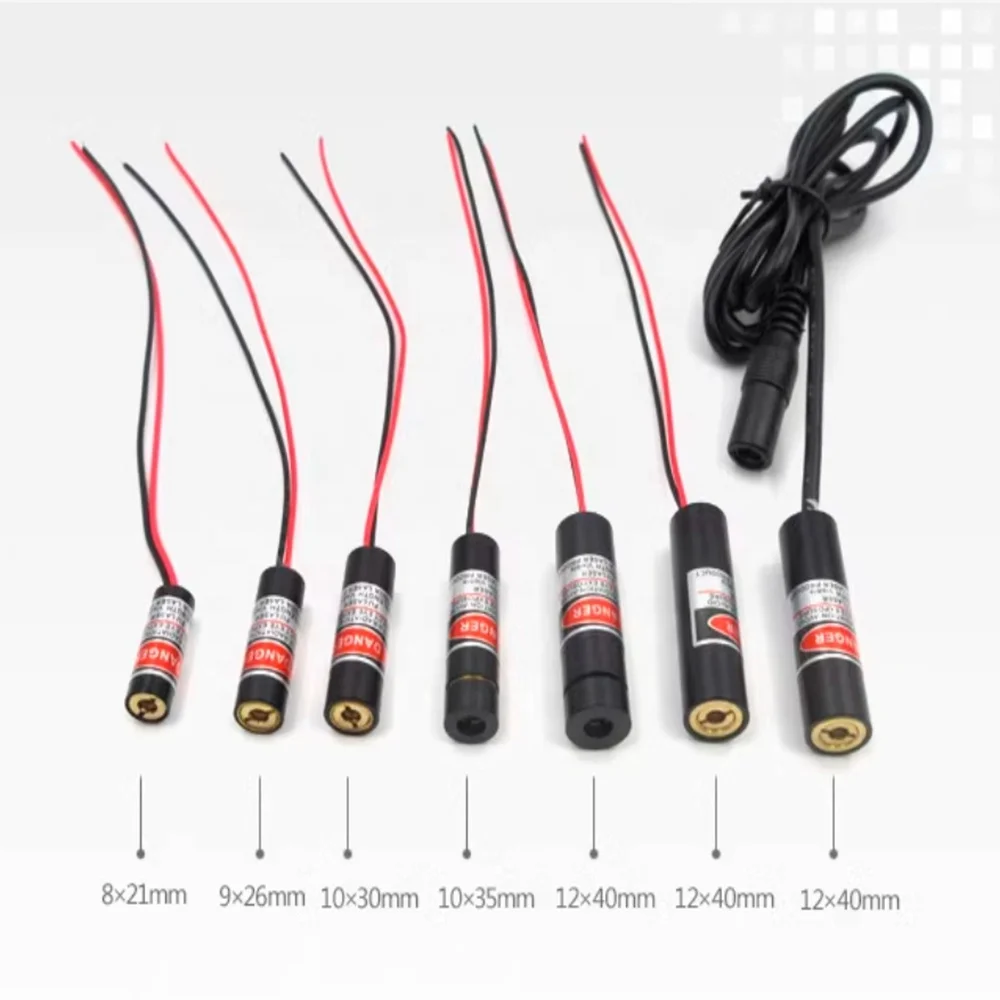

Laser head size: diameter: 12mm length: 40mm

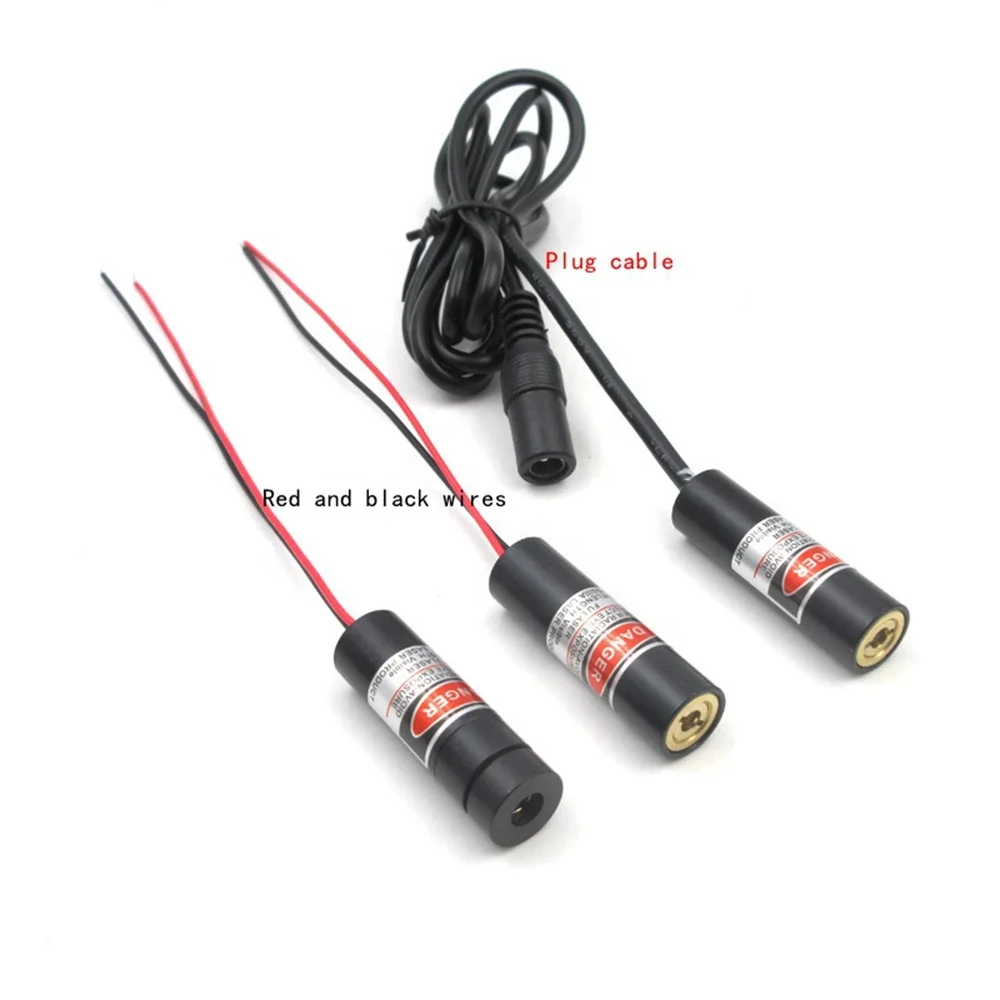

Red and black wire style: The tail red and black wire is 10cm long, with red positive and black negative wires
Plug wire style; Tail plug wire length of 1.2m, positive inside and negative outside

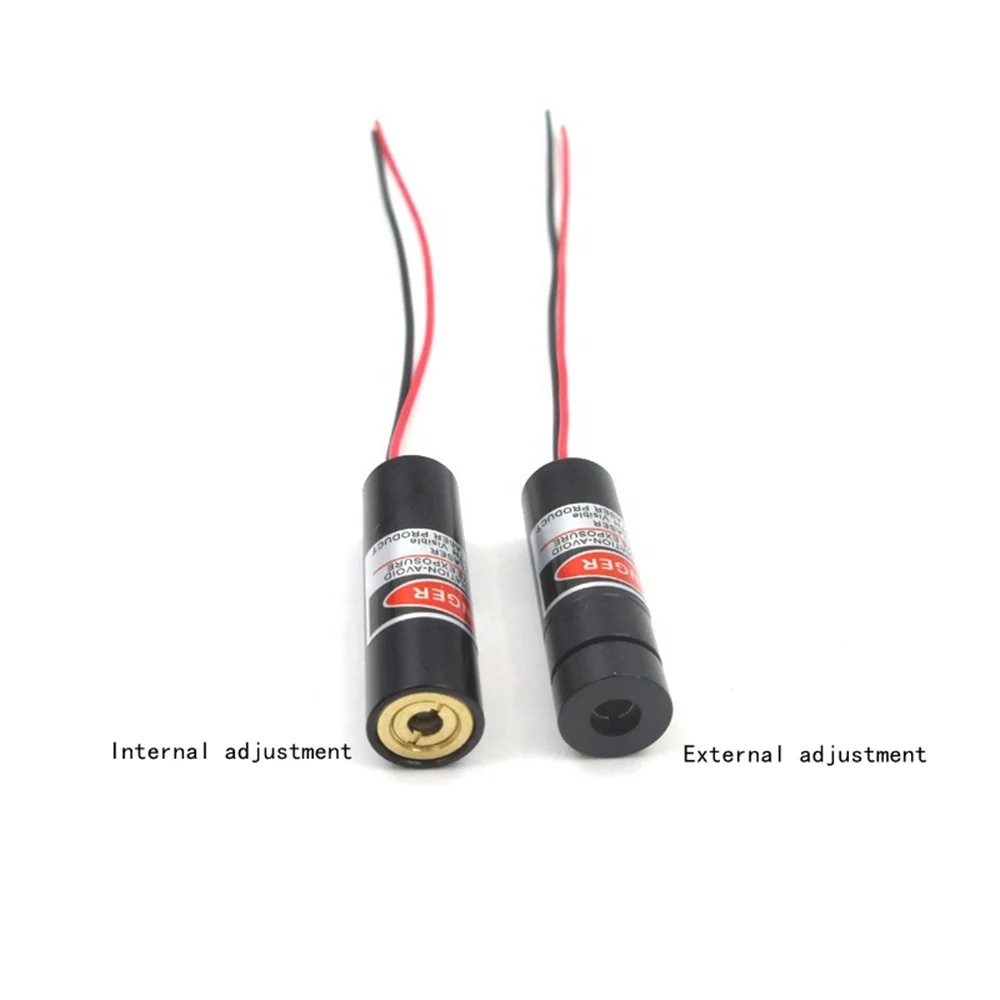

Internal adjustment: The light outlet has grooves and the size of the light spot can be adjusted by rotating the tool
External adjustment: The front end of the laser head can be directly rotated by hand without the need for other tools to adjust the spot size
Voltage: standalone 12V power supply/standalone 24V power supply/3.5-25V wide range power supply

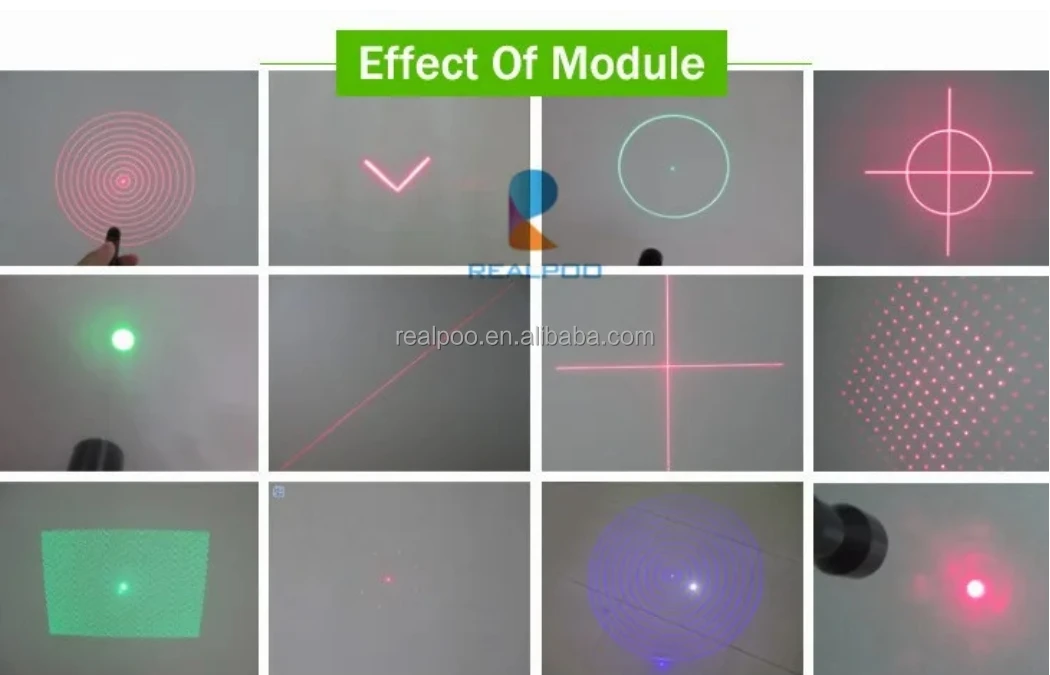

Spot: straight line/cross line/dot shape
Specification
item | value |
Place of Origin | China |
Jilin | |
Condition | New |
Warranty | 1 Year |
Online support | |
Spare Parts Type | laser module |
Machinery Test Report | Not Available |
Marketing Type | New Product 2020 |
Brand Name | Realpoo |
Key Selling Points | Long Service Life |
Showroom Location | None |

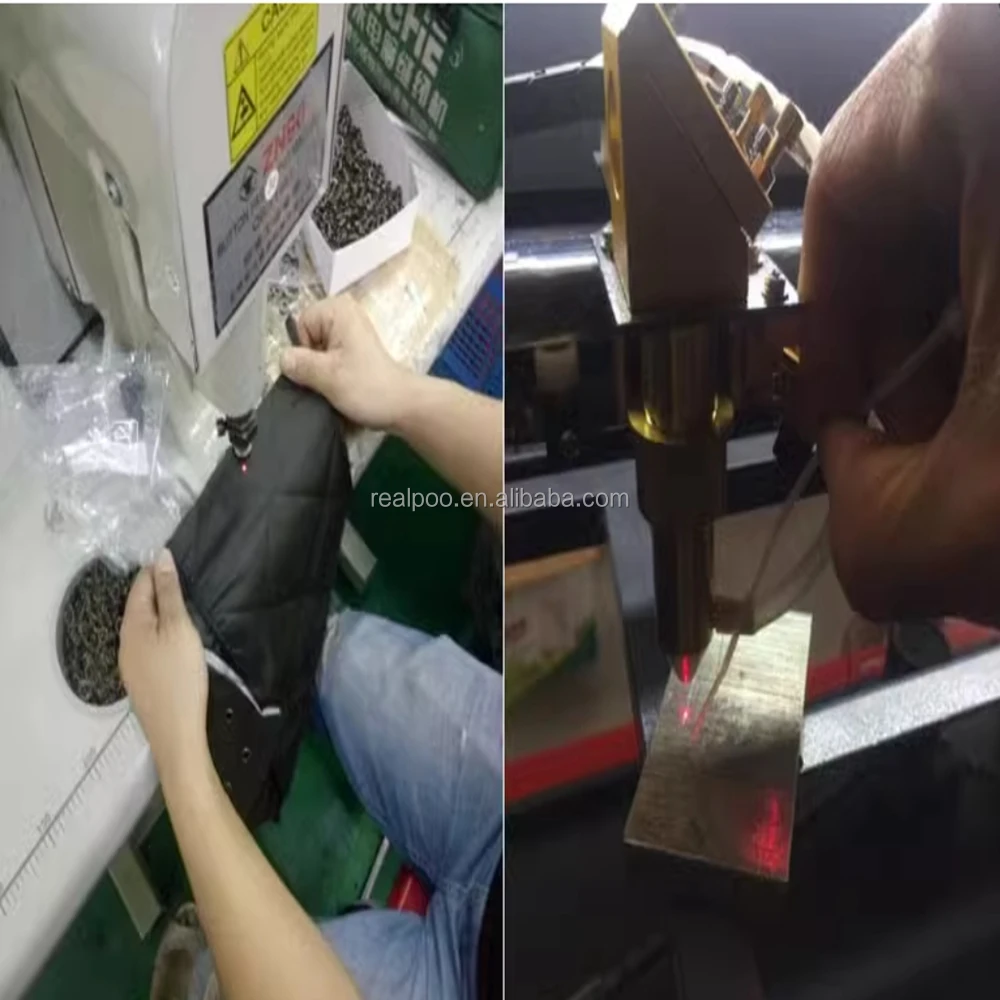

Applicable Industries | mechanical equipment |
Weight (KG) | 0.03KG |
Product number | 12V/24V/3.5-25V laser |
Model Number | ZLM5AD650-821BC-12V |
Type | Laser |
Band range | visible light |
Operation mode | continuous |
Incentive method | Electric excitation type |
Working material | semiconductor |
Light path | internal light path |
shape | dot/line/cross |
custom | accept |

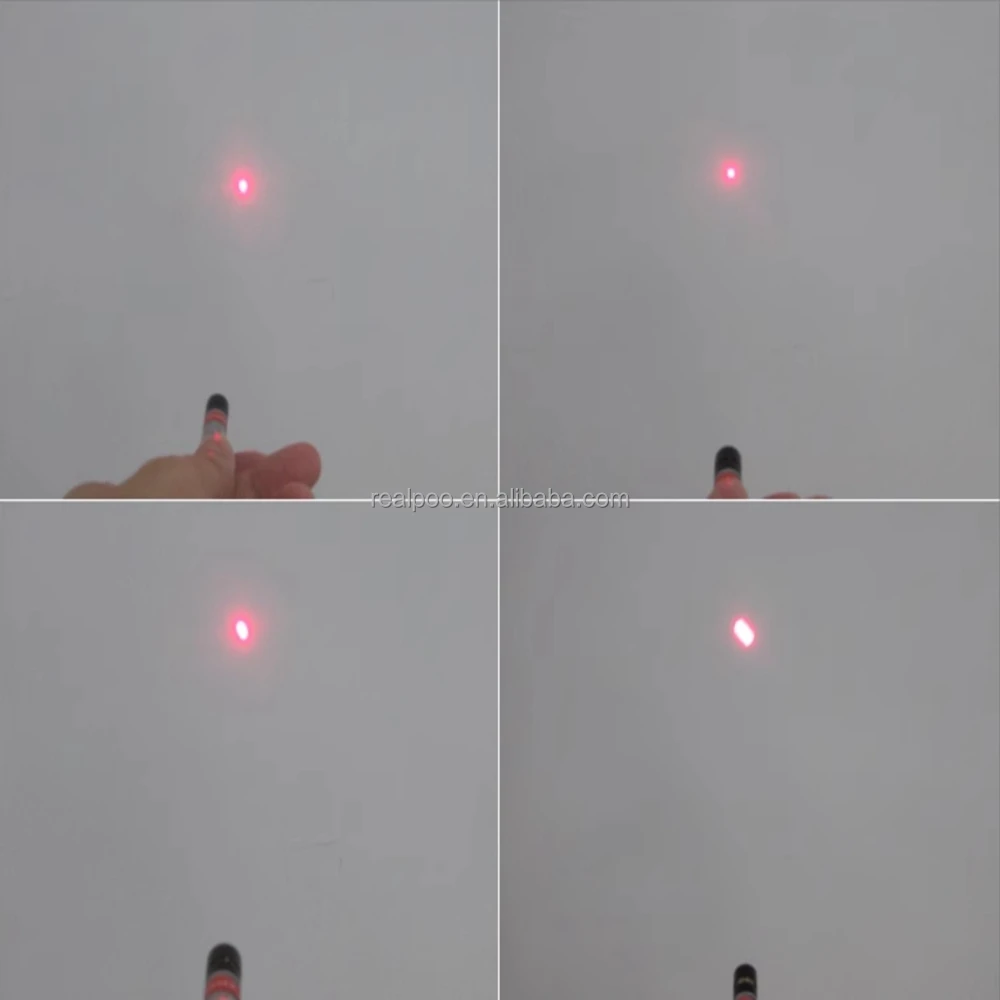

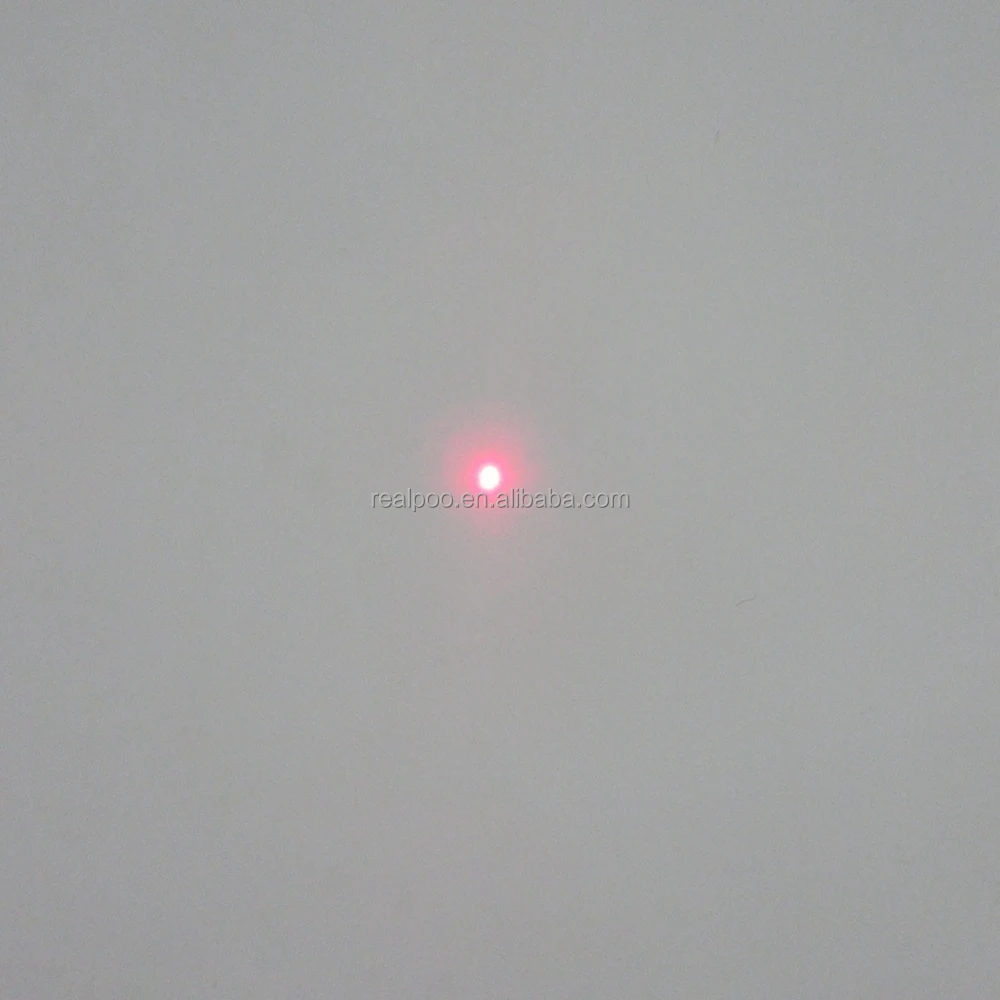

Dot shaped spot description:
During the day, it is possible to reach 0-150 meters indoors
You can reach 0-50 meters outdoors during the day
Can reach 0-300 meters in dark environments
The spot size can be adjusted to a minimum of 1mm at 1 meter

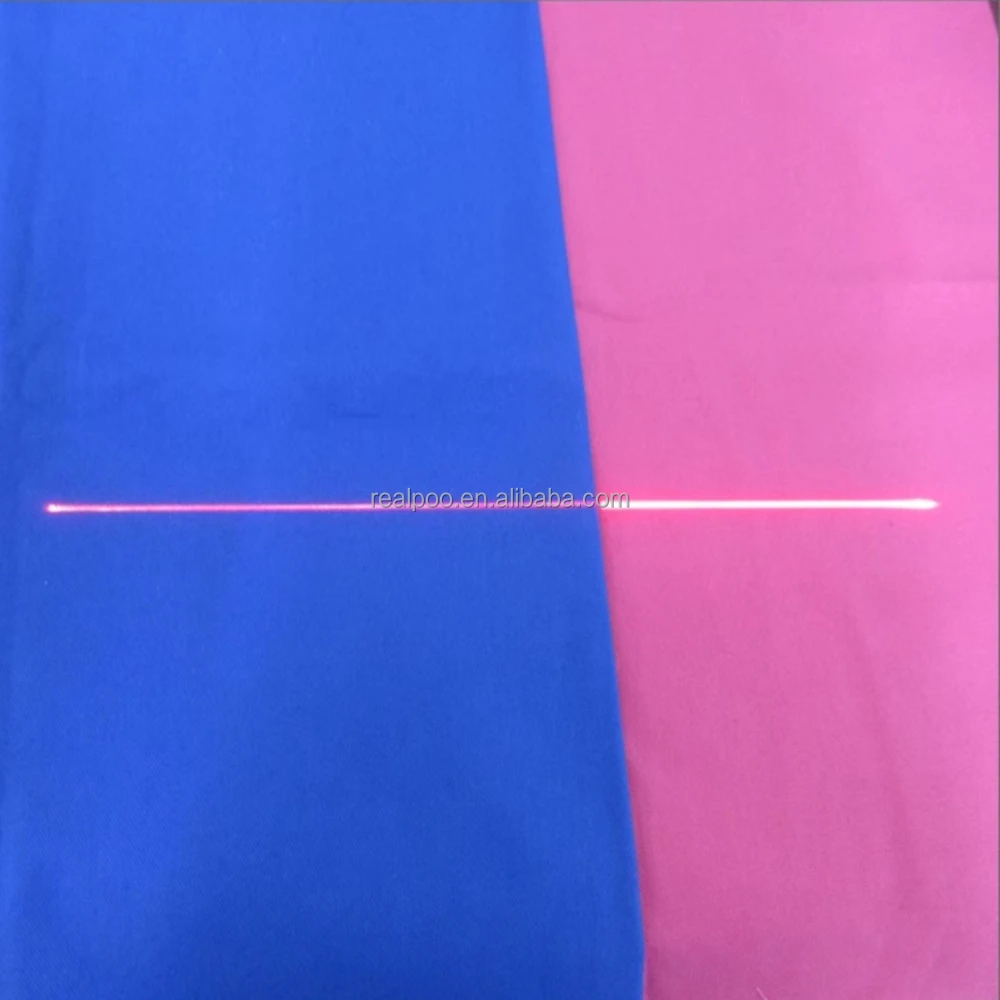

line description:
The indoor working environment can reach 3-4 meters
The red line is thin and uniform, with very high collimation and stability
The installation height of the straight line can be used from 0 meters to 2 meters
Line width adjustable between 0.4-15mm

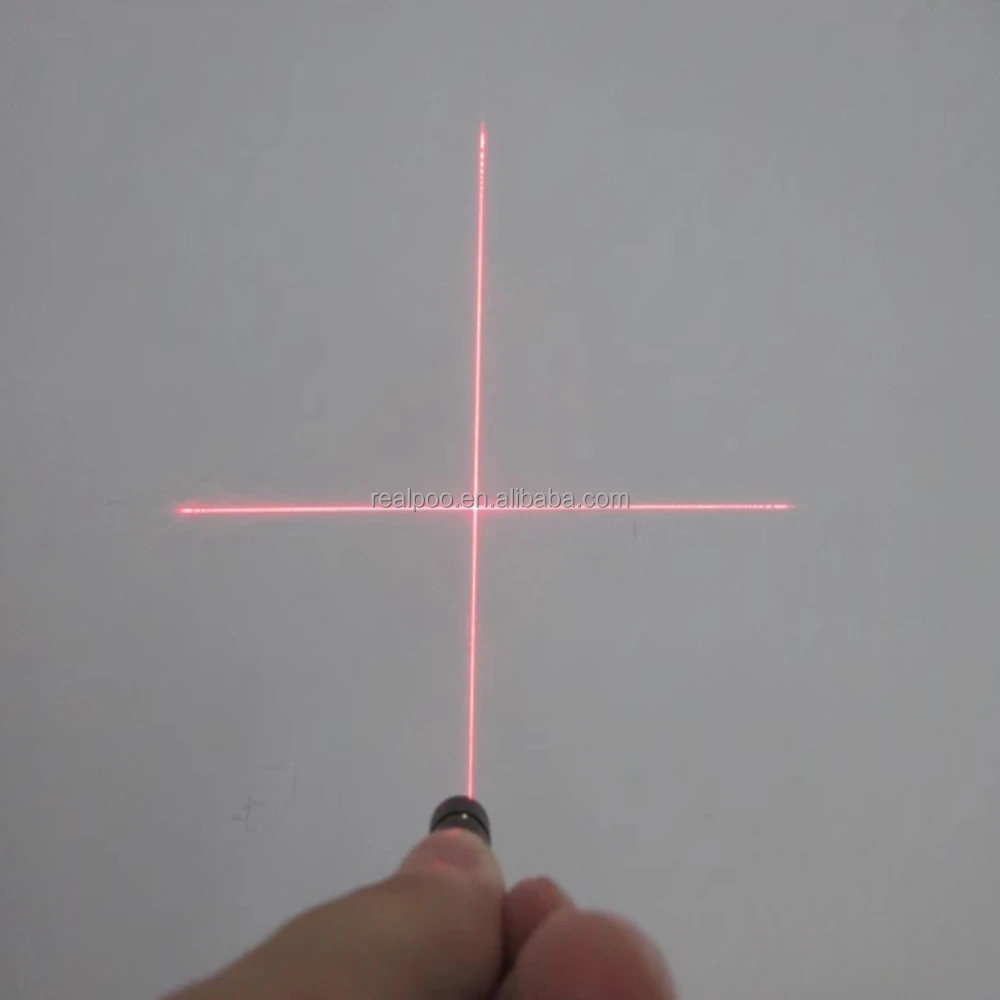

Crosshair Description:
The indoor working environment can reach up to 2 meters (the horizontal and vertical lines of the cross are 2 meters long)
The red line is thin and uniform, with very high collimation and stability
The installation height of the crosshair can be used from 0 meters to 2 meters
Adjustable line width between 0.5-15mm
During the day, it is possible to reach 0-150 meters indoors
You can reach 0-50 meters outdoors during the day
Can reach 0-300 meters in dark environments
The spot size can be adjusted to a minimum of 1mm at 1 meter
line description:
The indoor working environment can reach 3-4 meters
The red line is thin and uniform, with very high collimation and stability
The installation height of the straight line can be used from 0 meters to 2 meters
Line width adjustable between 0.4-15mm
Crosshair Description:
The indoor working environment can reach up to 2 meters (the horizontal and vertical lines of the cross are 2 meters long)
The red line is thin and uniform, with very high collimation and stability
The installation height of the crosshair can be used from 0 meters to 2 meters
Adjustable line width between 0.5-15mm
Packing & Delivery
Customized box and protective packing
