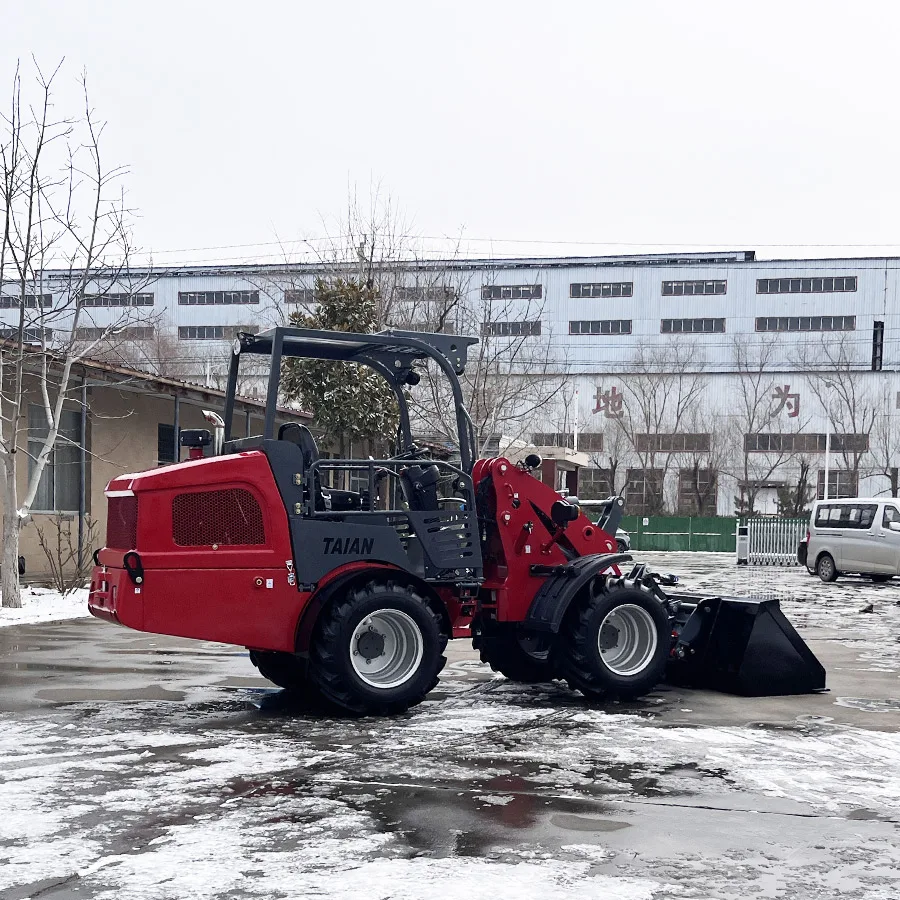

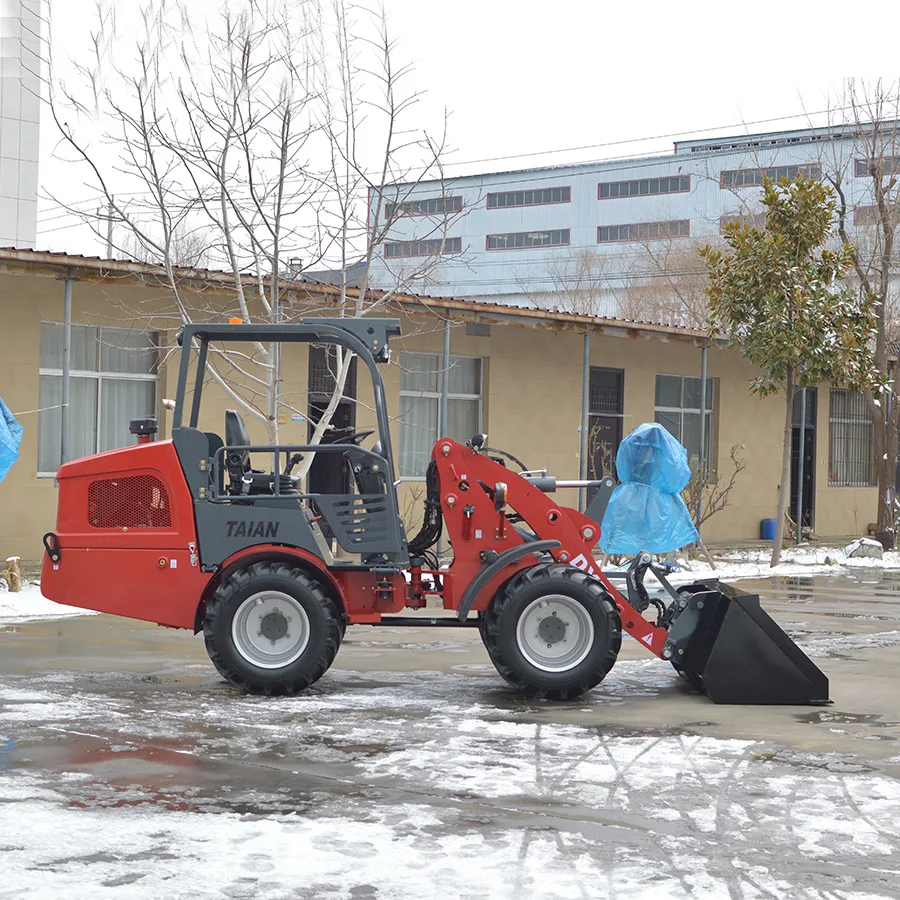

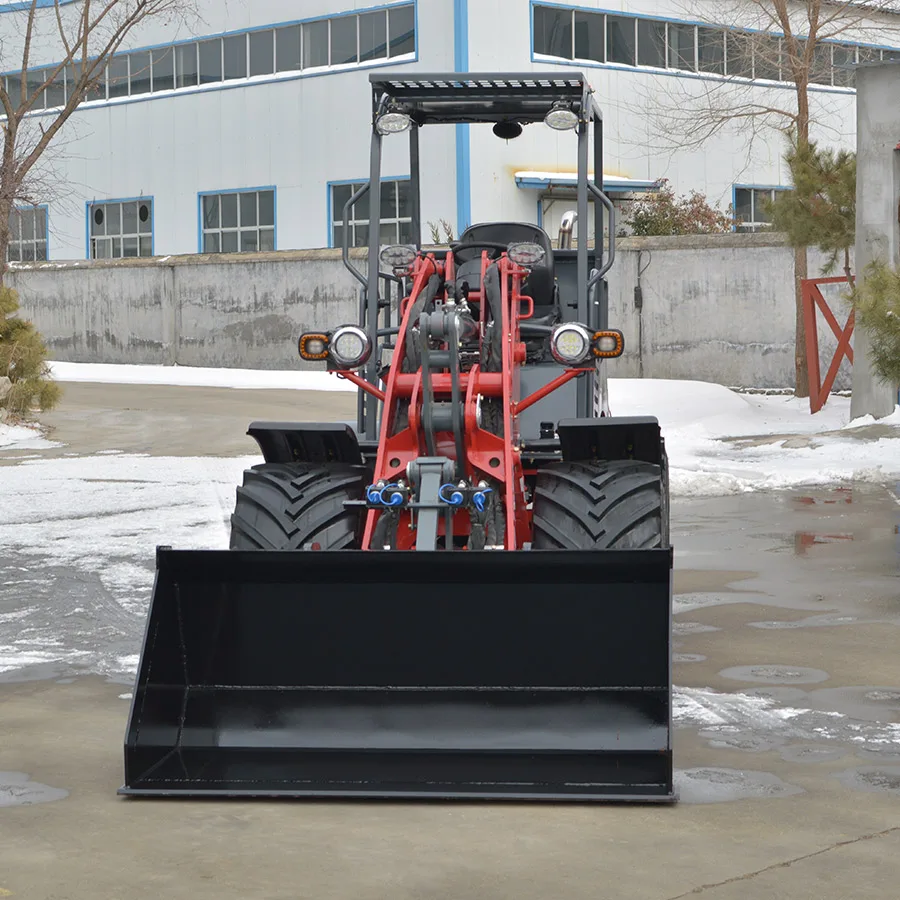

New Design Mini Wheel Loader DY50 Small Front End Loader For Sale

Share on (1601035693417):


Price:$21,000.00 - $25,000.00

Quantity:


Product Overview

Description


 New Design Mini Wheel Loader DY50 Small Front End Loader For Sale



Product Description







 DY50 Mini Wheel Loader Specification:





















































































Model



DY50



Overall Dimensions(With standard bucket):



4850MM*1560MM*2340MM



Operating Weight (Without Attachment):



2860kgs



Max.Lifting Force:



2480kgs



Rated Loading Capacity (Bucket/Forks):



1400kgs/1250kgs



Tipping Load With Standard Bucket:



Walking Horizontal & Machine Straight:



1680kgs



Oil Tank Capacity:



Fuel Tank Capacity:



50L



Hydraulic Oil Tank Capacity:



55L



Driving System:



Driving Speed:



0-10km/H, 0-24 km/H



Type of Drive/Traction Drive:



Hydrostatic Via Drive Shaft



Pressure:



400bar



Hydraulic Output:



128L/min



Standard Tires:



19.0/45-17



Hydraulic Working System:



Hydraulic Output:



89L/min



Working pressure:



180bar



Bucket capacity:



0.6CBM






 ------For all our loaders, we offer one year or 1000 working hours warranty whichever comes first.

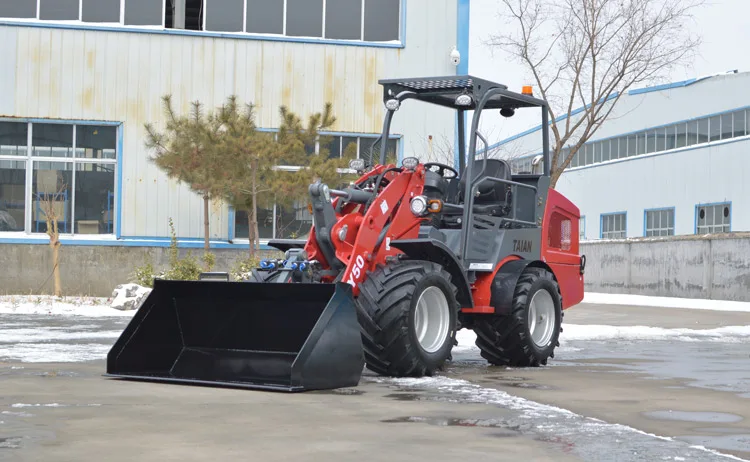

DSC_0235

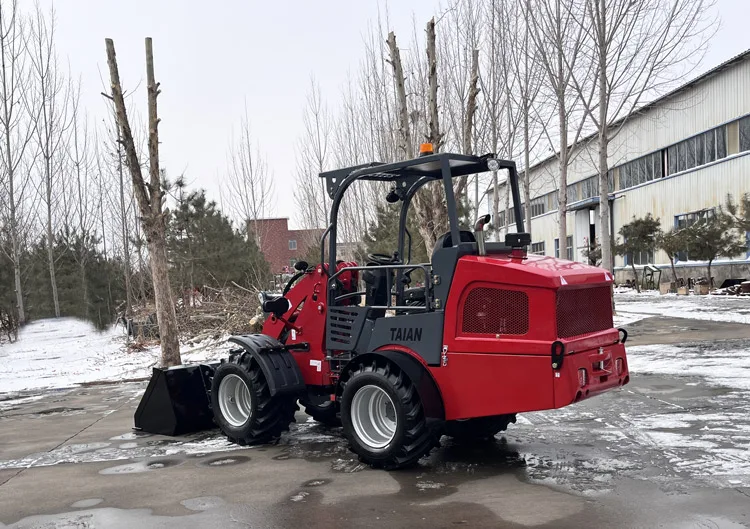

IMG_2953

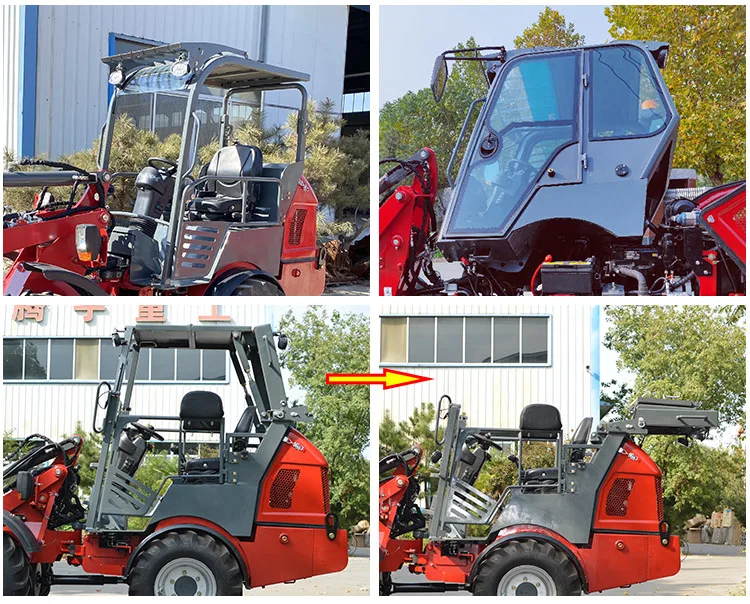

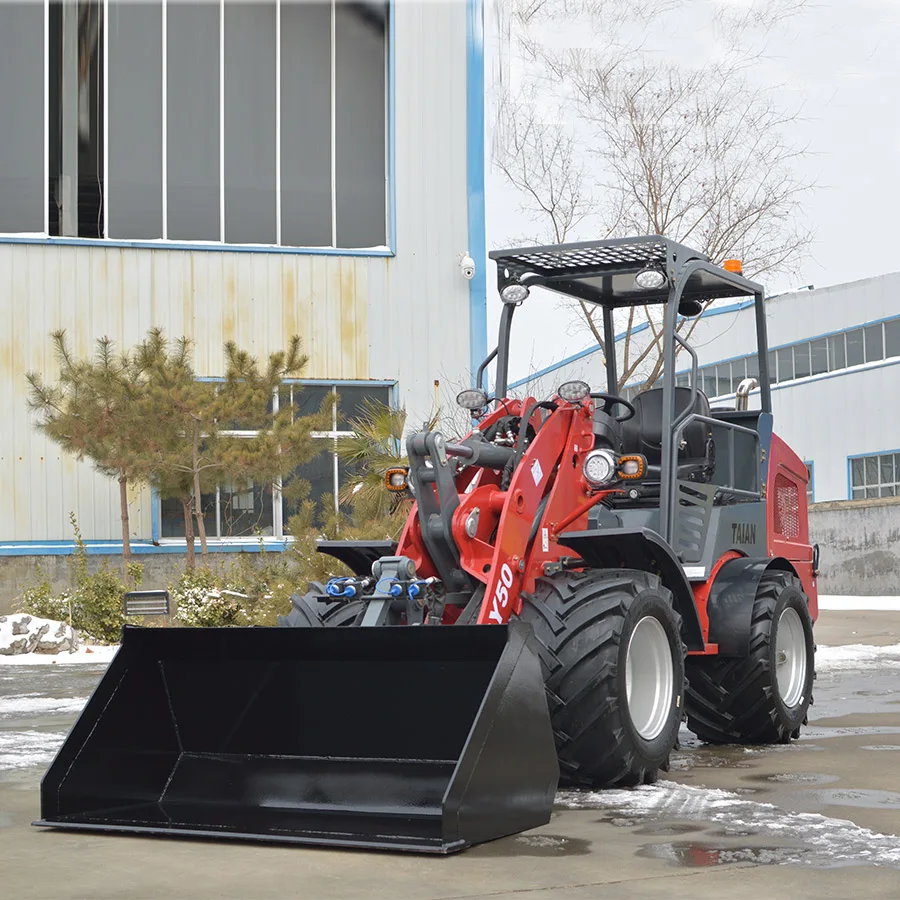

DY50 front end loader cabin:


DY50 with Proof Canopy as standard, optional with Closed cabin and Collapsible Canopy cabin. The tiltable cabin design ensure the daily maintenance more easier.


cabin

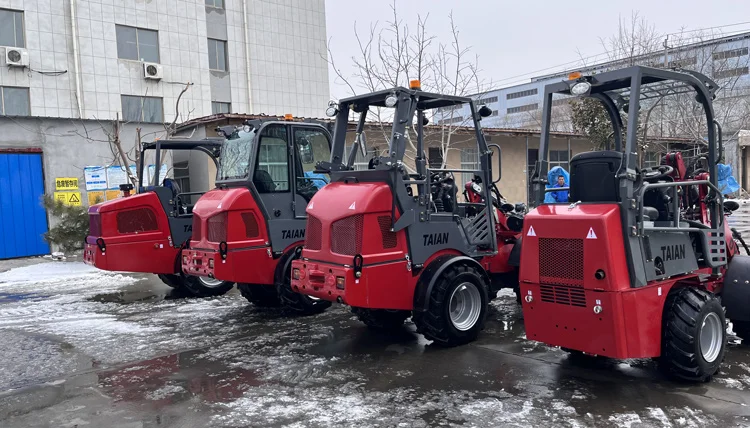

Compact design, low centre of gravity, tight turning radius and powerful performance – these features have characterized the TAIAN DY25/35/50 farm loader lines of products for years and still determine the immense success of the machines. The DY25/35/50 farm loader effortlessly fulfil any work task and work quickly, flexibly and safely – DY25/35/50 farm loader is simply always ready for use.

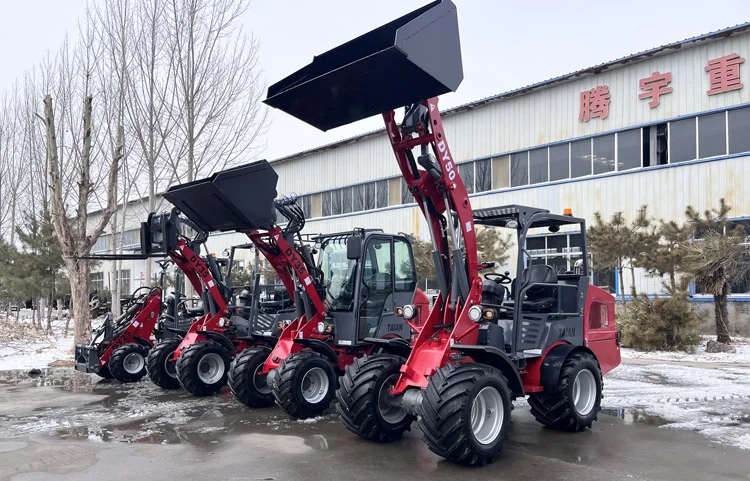

DY50







You can choose different models according to actual needs:









































 CompareDY25 DY35 DY50
External dimension3615*930*2192mm 4140*1090*2260mm 4850*1560*2340mm
Operating Weight1400kg2250kg2860kg
Max Travel Speed10km/h17km/h24km/h
Rated Operating Capacity809kg/527kg 1158kg/850kg 1400kg/1250kg
Wheel Base1345mm 1502mm 1733mm





Our Services


1. Quick response to every inquiry.


2. Professtional and detailed answer to any of customer's questions.


3. Strict QC and in time delivery


4. Offer all relative material for customer to know and better use the machine.


5. Periodically after service follow up, offer any necessary support if needed.


6.For the new machine, within determined limits, the manufacture guarantees for a period of 12 months after bought or 1000 working hours(whichever comes first).


7.The warranty includes repairation or replace the parts for free which were proved to be defective in origin by the technical department of the manufacture.


8.The repairation or replacement for the parts should not exceed the warranty period.


9.The warranty is valid on the condition of all the terms listed in the contract was observed.





Why choose us



Why choose us?
1/We are the first one in China who start to produce telescopic loaders, thus we have more than 20years' experiences with such kind of loaders.
2/We are real manufacturer, compared with other trading companies, the quality, delivery time and after service can be well guaranteed.
3/Quality assurance, For all our loaders, we offer one year or 1000 working hours warranty whichever comes first. And most important, within warranty, we’ll offer relative parts for free by airway or express post, customers can receive the parts within 4~6 days.
4/Can provide a variety of loaders accessories, products are exported to many countries and regions overseas
Can meet the different needs of customers
5/Professional sales, engineering and service team makes your purchasing pleasant and convenient.
6/We has advanced production technology and management team, and we are well capable in offering overseas after-sales service. Besides, we also provide rational packing and shipping program,let shipment cheaper and security.








Company Information







company





Customer feedback:


Customer-Feedback (1)





Customer-Feedback (2)






Related Products






























FAQ


1.Q:Why choose us?





A:First of all, we are the first one in China who start to produce telescopic loaders, thus we have rich experiences with such kind of loaders.





Second, we are real manufacturer, compared with other trading companies, the quality, delivery time and after service can be well guaranteed. We warmly welcome you to visit our factory to check everything.





Third, professional sales, engineering and service team makes your purchasing pleasant and convenient.





2.Q:What’s the warranty of the products?





A:For all our loaders, we offer one year or 1000 working hours warranty whichever comes first. And most important, within warranty, we’ll offer relative parts for free by airway or express post, customers can receive the parts within 4~6 days.
