Product Overview
Description
Product Description

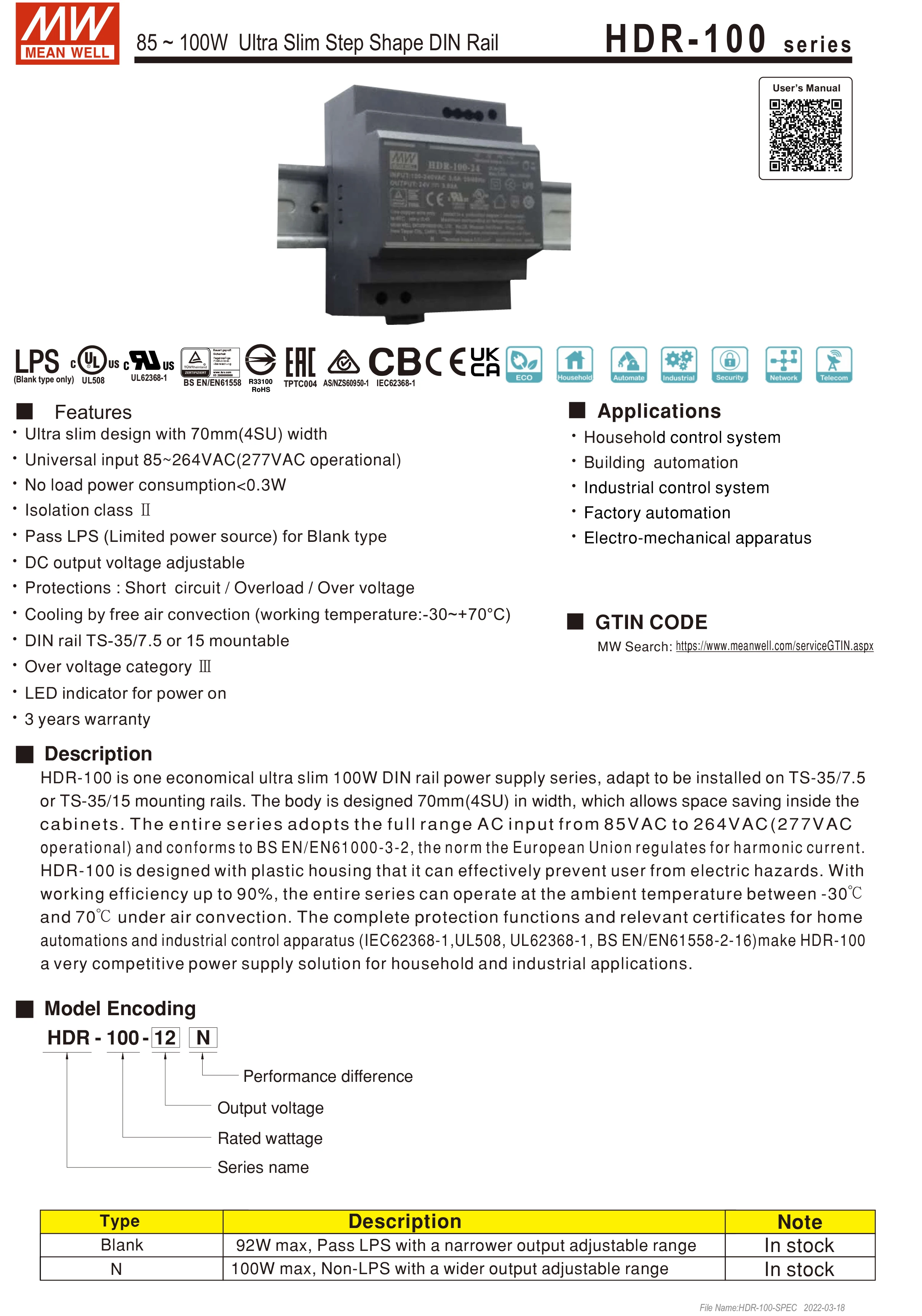

HDR-100 is one economical ultra slim 100W DIN rail power supplyseries,adaptto be installed onTS-35/7.5orTS-35/15 mounting rails. The body is designed 70mm(4SU) in wiath, which allows space saving inside thecabinets. The entire series adopts the fullrangeAC inputfrom 85VAC to 264VAC(277VACoperational) and conformsto BS ENEN61000-3-2 the norm the European Union regulates for harmonic current.HDR-100 is designed with plastic housing that it can effectively prevent user from electric hazards. Withworking efficiency up to 90%,the entire series canoperateatthe ambienttemperature between30Cand 70'C under air convectionThecomplete protectionfunctions and relevant certificates forhomeautomations and industrial control apparatus (IEC62368-1,UL508, UL62368-1 BS EN/EN61558-2-16)make HDR-100a very competitive power supply solution for householdand industrial applications.
| Item | Value |
| Place of Origin | China Zhejiang |
| Brand Name | MEAN WELL |
| Model Number | Mean Well HDR-100-12 |
| Output Power | 100W |
| InputVoltage | 85 ~ 264 VAC |
| Protection | Over load/ Over voltage |
| Working HumidityWarranty | 20 ~ 90% non-condensing |
| Certification | CE CCC CB |
| Warranty | 3Years |
Packaging & Shipping
0.27Kg; 48pcs/13.74Kg/0.96CUFT
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Our Services
Easyplus always embraces the principle that customers come the first. We provide 7*24 Hours Service.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Information
Company Name:Hangzhou Easyplus Technology Co., Ltd
Company address:Room 220, Building 3, No. 20 Xingxing Road, Xingqiao Street, Linping District, Hangzhou City
Mobile/wechat/what's app: +86-19957121792
Tel / Fax: +86-57186690070
Email: yulu.chen(at)4easylifeplus.com;
FAQ
Q1. Can I have a sample order firstly?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3~10 days, mass production time depends on order quantity
Q3. Do you have any MOQ limit ?
A: Yes, MOQ depends on the detailed request
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 2-7 years warranty to our products.
Q7: Do you instant chatting tools?
A: Yes, you may contact us by following ways:
Mobile/wechat/what's app: +86-19957121792
Tel / Fax: +86-57186690070
Email: yulu.chen(at)4easylifeplus.com;
