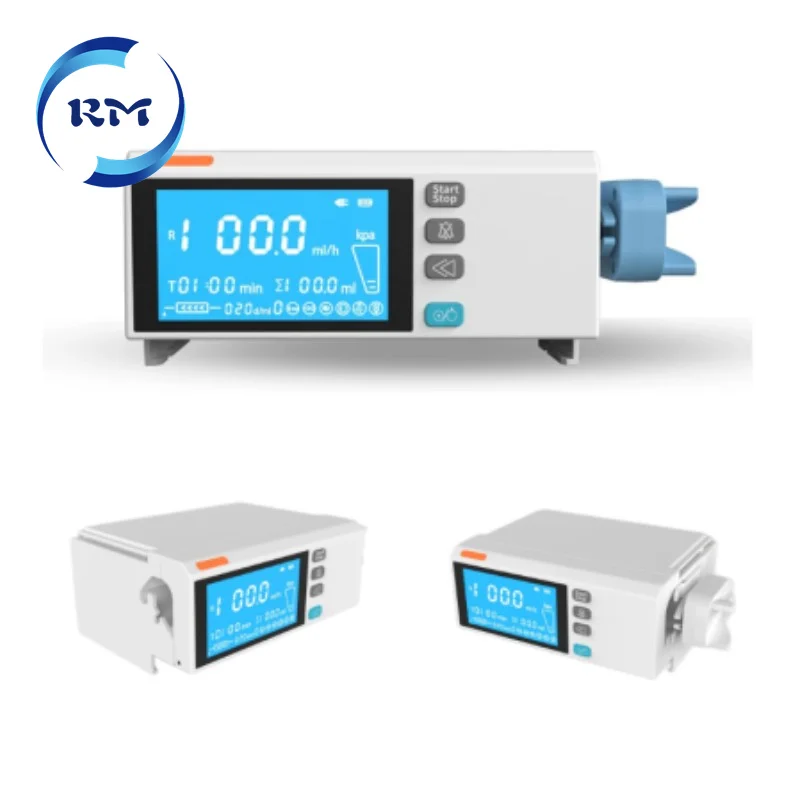

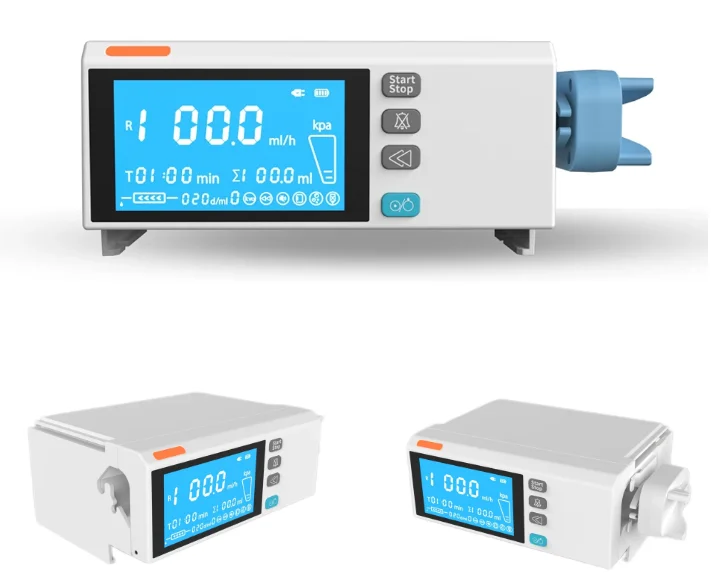

Medical portable dual channel auto injection pump intravenous infusion electronic syringe pump
- Category: >>>
- Supplier: Shandong Rayman Medical Systems Co. Ltd.
Share on (1601035698825):
Product Overview
Description
Medical portable dual-channel auto-injection pump intravenous infusion electronic syringe pump
Good price 4.3 Inch Color Touch Screen blood transfusion portable medical infusion syringe pump
Product Details

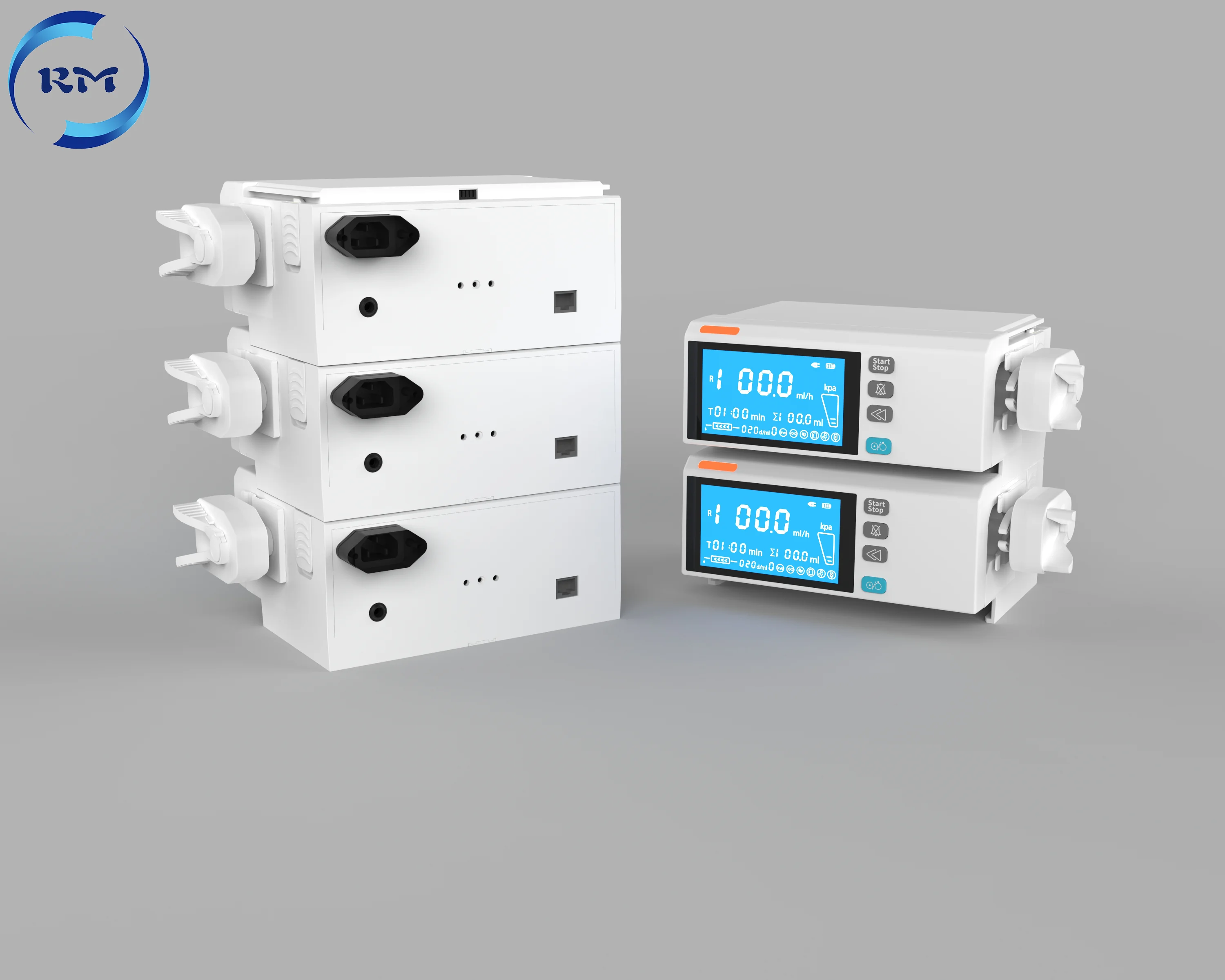

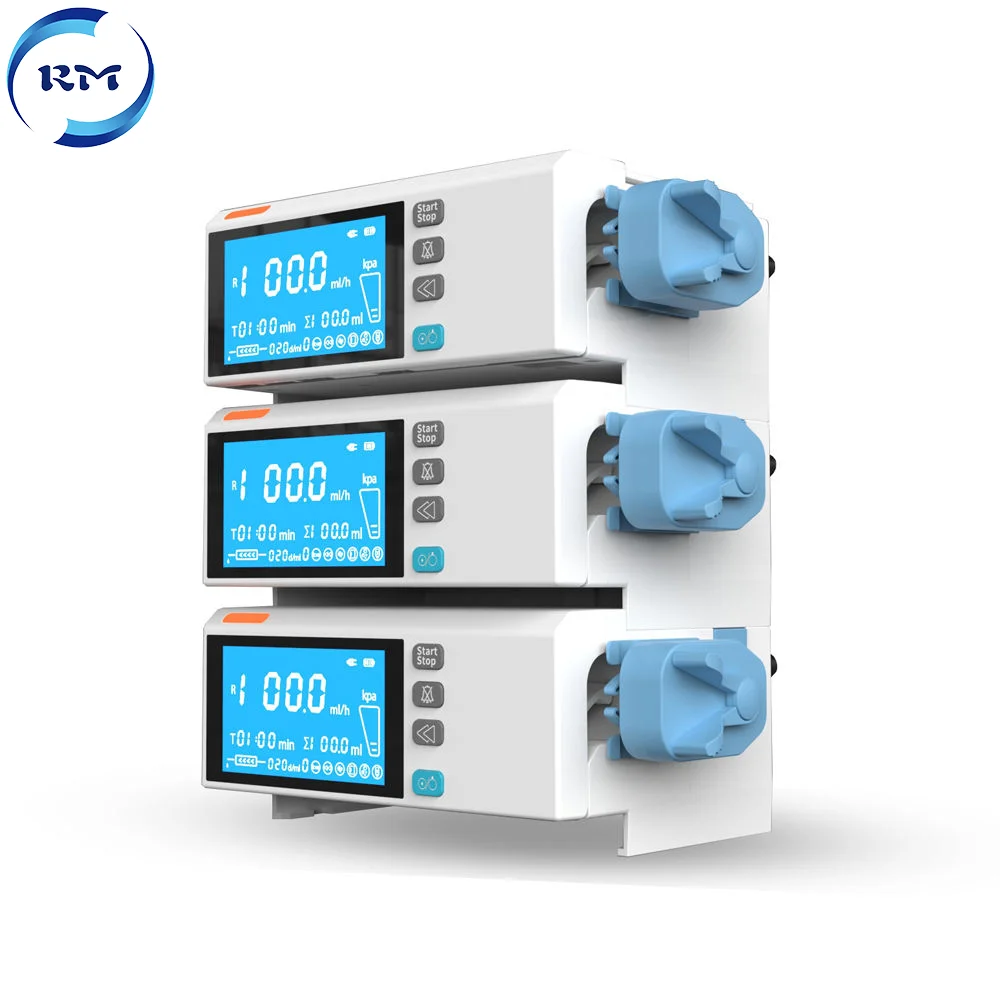

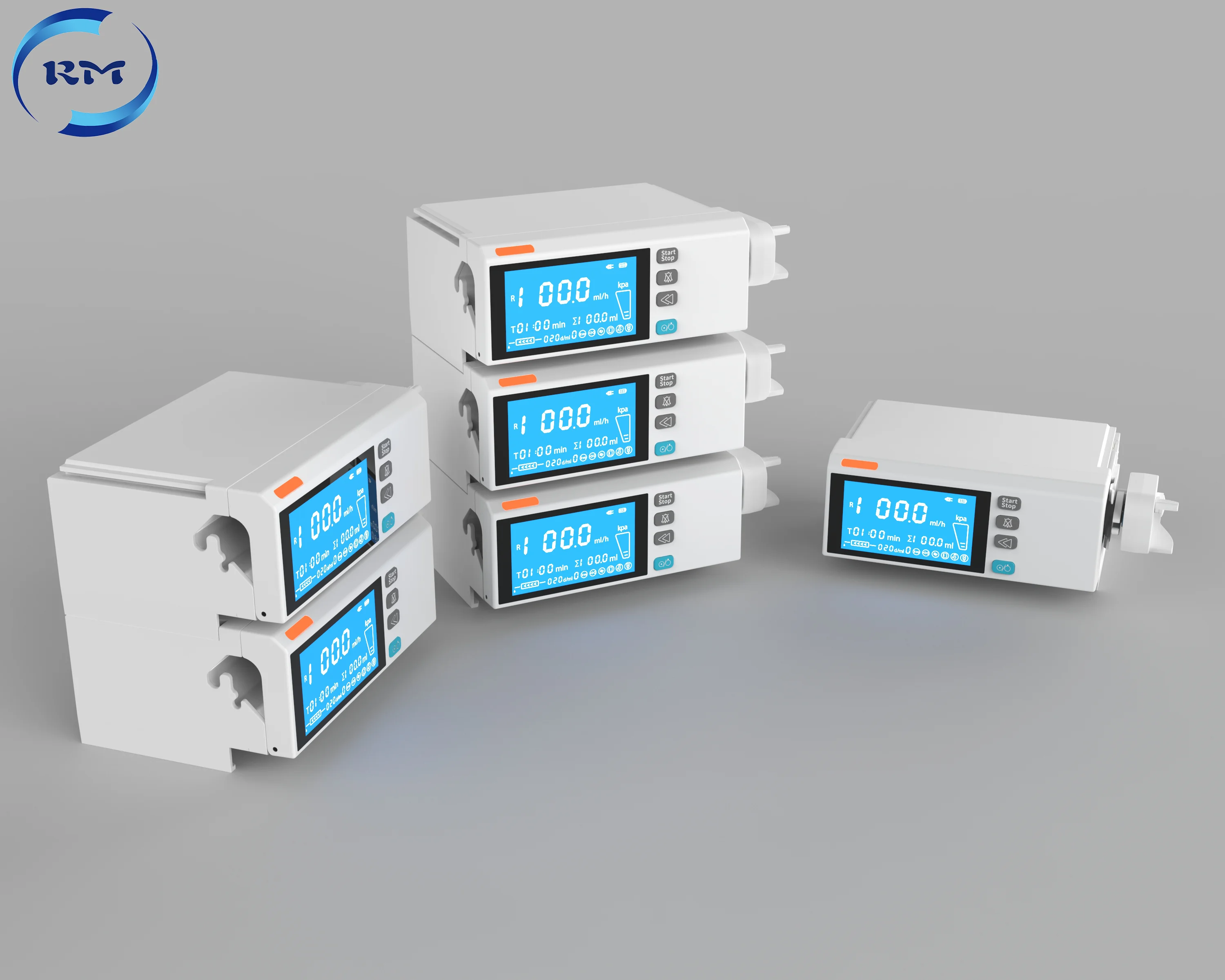

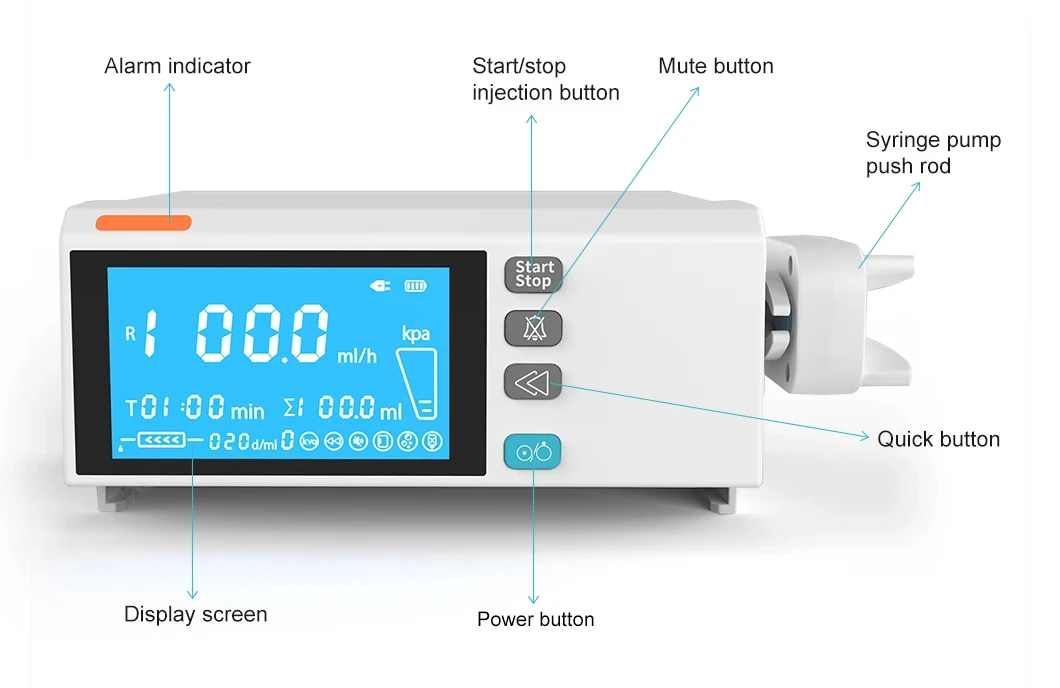

Medical portable dual-channel auto-injection pump intravenous infusion electronic syringe pump

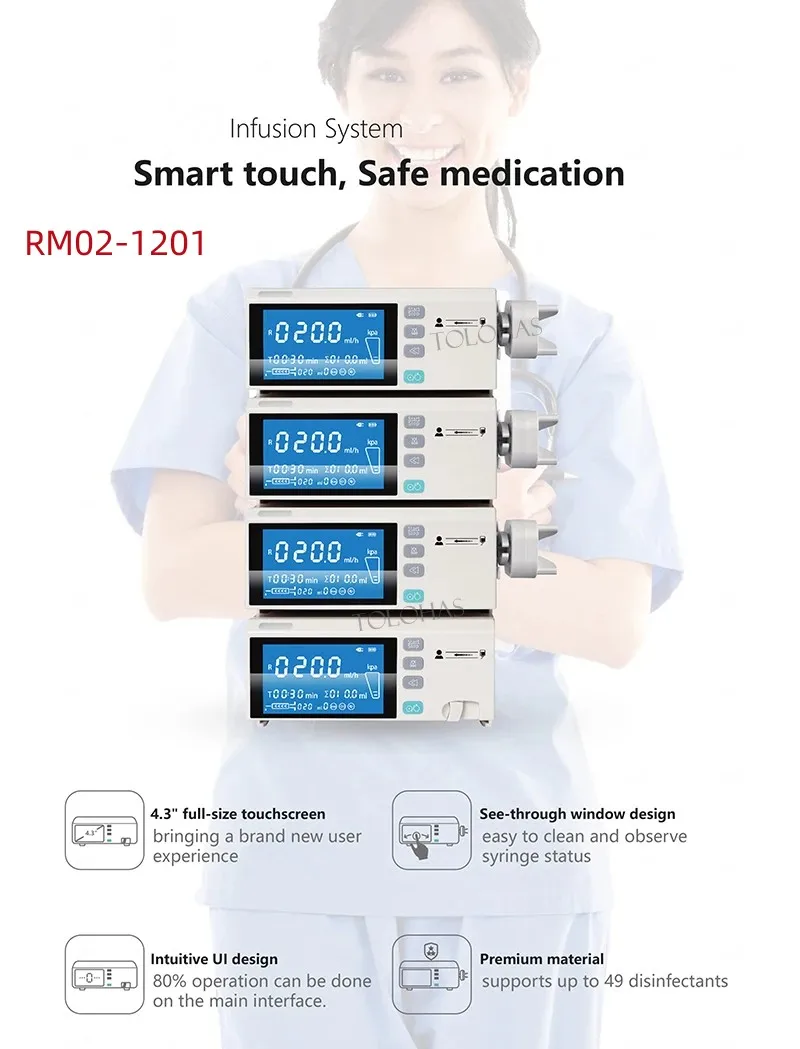

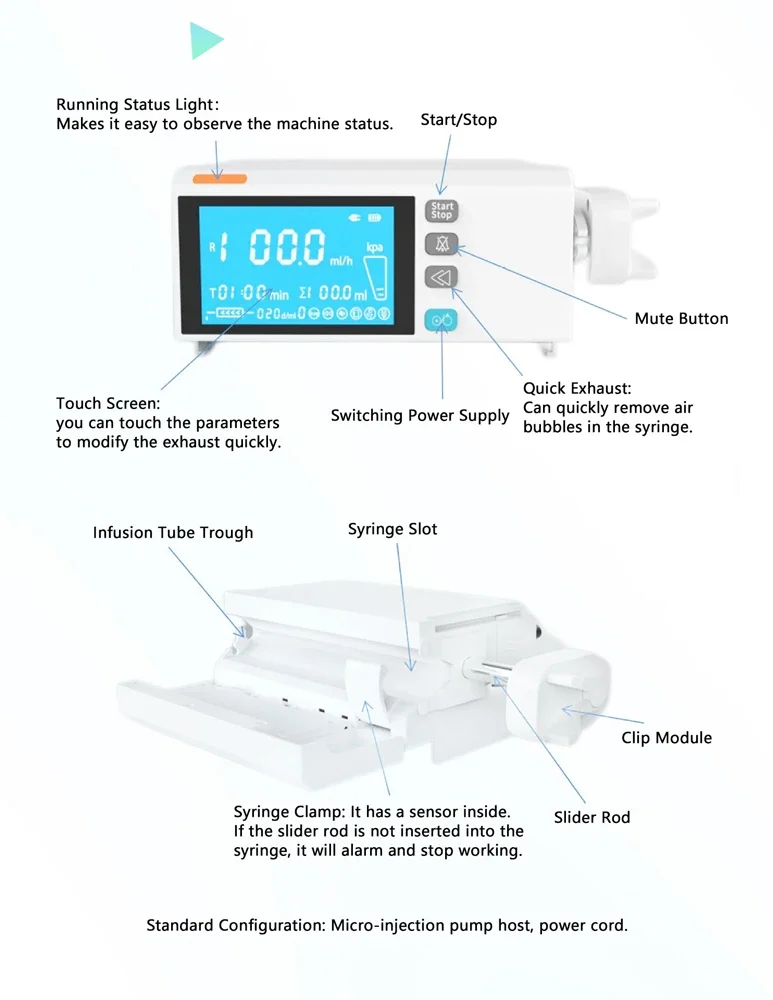

Features:
1. 4.3 inch color touch screen for clear vision
2. Simple rate mode with one key start , easy to operate
3. Compatible with various brands of syringe
2. Simple rate mode with one key start , easy to operate
3. Compatible with various brands of syringe
Features:
4. Various infusion modes to meet different clinical requirements
5. User friendly interface with audible and visual alarm system
6. Rechargeable lithium battery can work continuously for around 5 hours
6. Rechargeable lithium battery can work continuously for around 5 hours

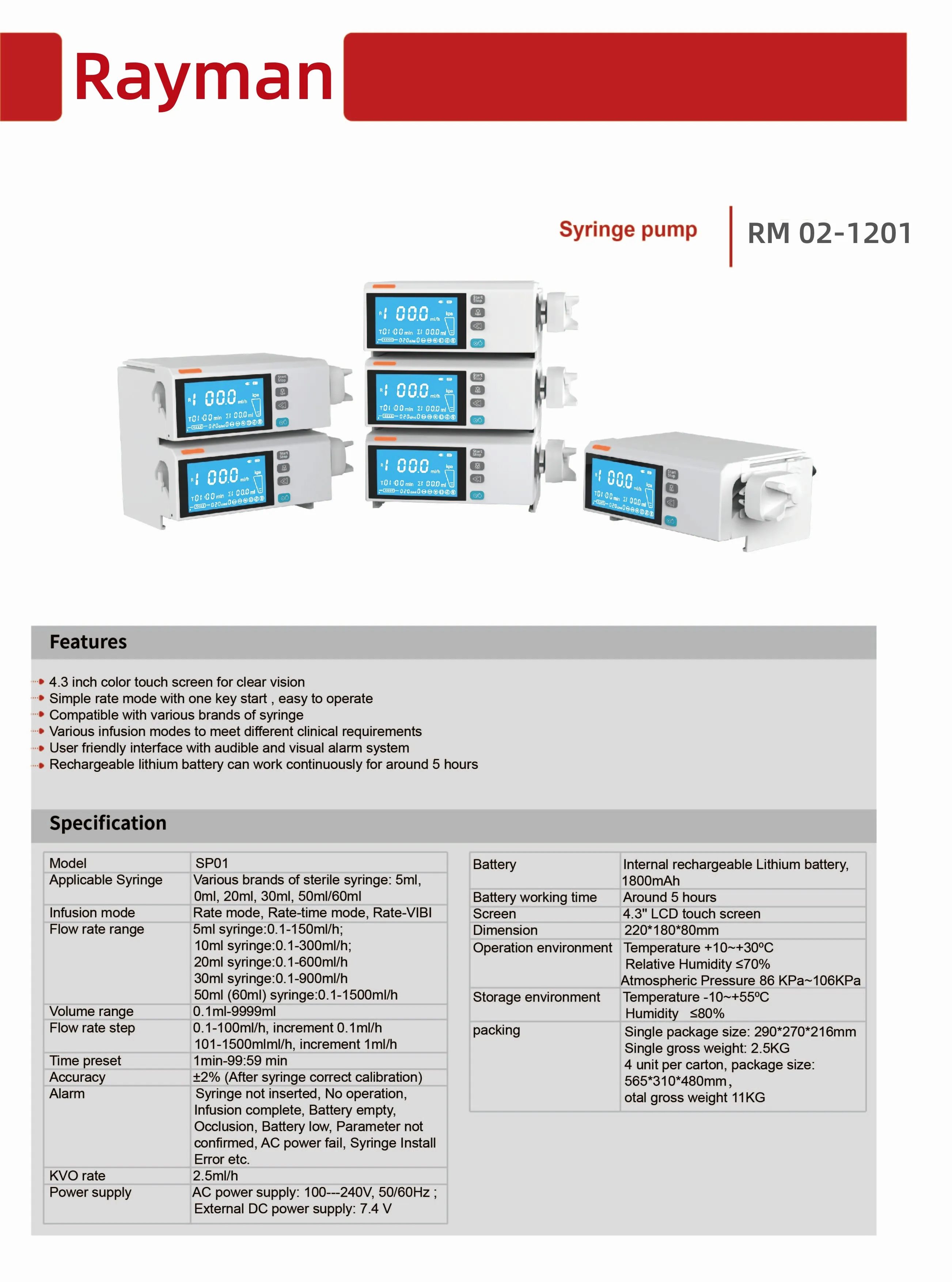

Specification
Model: RM 02-1201
Applicable Syringe: Various brands of sterile syringe: 5ml, 10ml, 20ml, 30ml, 50ml,60mlInfusion mode: Rate mode, Rate-time mode,Rate-VIBI
Flow rate range: 5ml syringe:0.1-150ml/h;
10ml syringe:0.1-300ml/h;
20ml syringe:0.1-600ml/h;
30ml syringe:0.1-900ml/h;
50ml (60ml) syringe:0.1-1500ml/h.
Packing:
Single package size:290*270*216 mm
Single gross weight: 2.5 KG
4 unit per carton
Package size: 565*310*480 mm
Total gross weight: 11 KG
Flow rate step: 0.1-100ml/h, increment 0.1ml/h,101- 1500mlml/h,increment 1ml/h
Time preset: 1min-99:59 min
Accuracy: ±2% (After syringe correct calibration)
Alarm: Syringe not inserted, No operation, Infusion complete, Battery empty, Occlusion, Battery low, Parameter not confirmed, AC power fail, Syringe Install Error etc.
KVO rate: 2.5ml/h
Battery working time: Around 5 hours

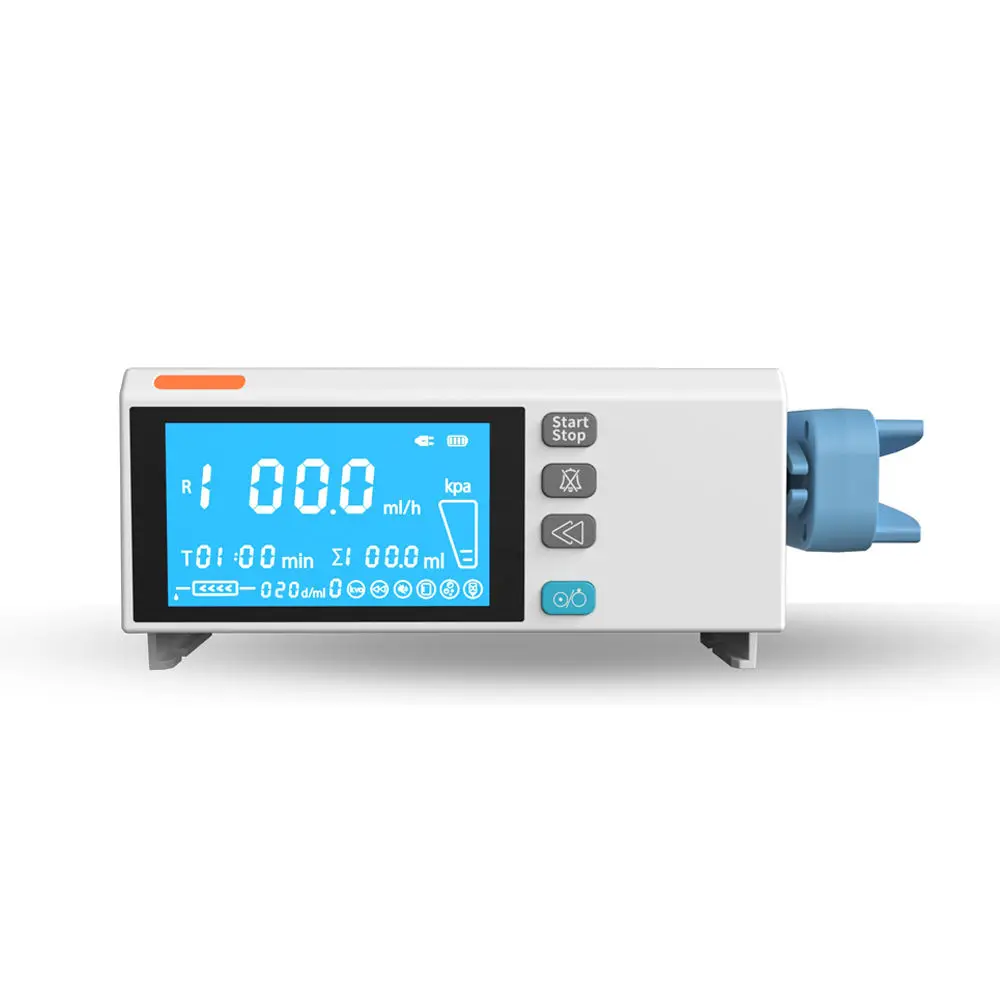

Screen: 4.3" LCD touch screen
Dimension: 220*180*80mm
Operation environment: Temperature +10~+30°C
Relative Humidity≤70%
Atmospheric Pressure 86 KPa~106KPa
Storage environment: Temperature -10~+55℃; Humidity ≤80%
item | value |
Type | Oxygen Supply System |
Brand Name | Rayman |
Model Number | RM02-1201 |
Place of Origin | China |
Shandong | |
Instrument classification | Class II |
Warranty | 3 years |
After-sale Service | Return and Replacement |

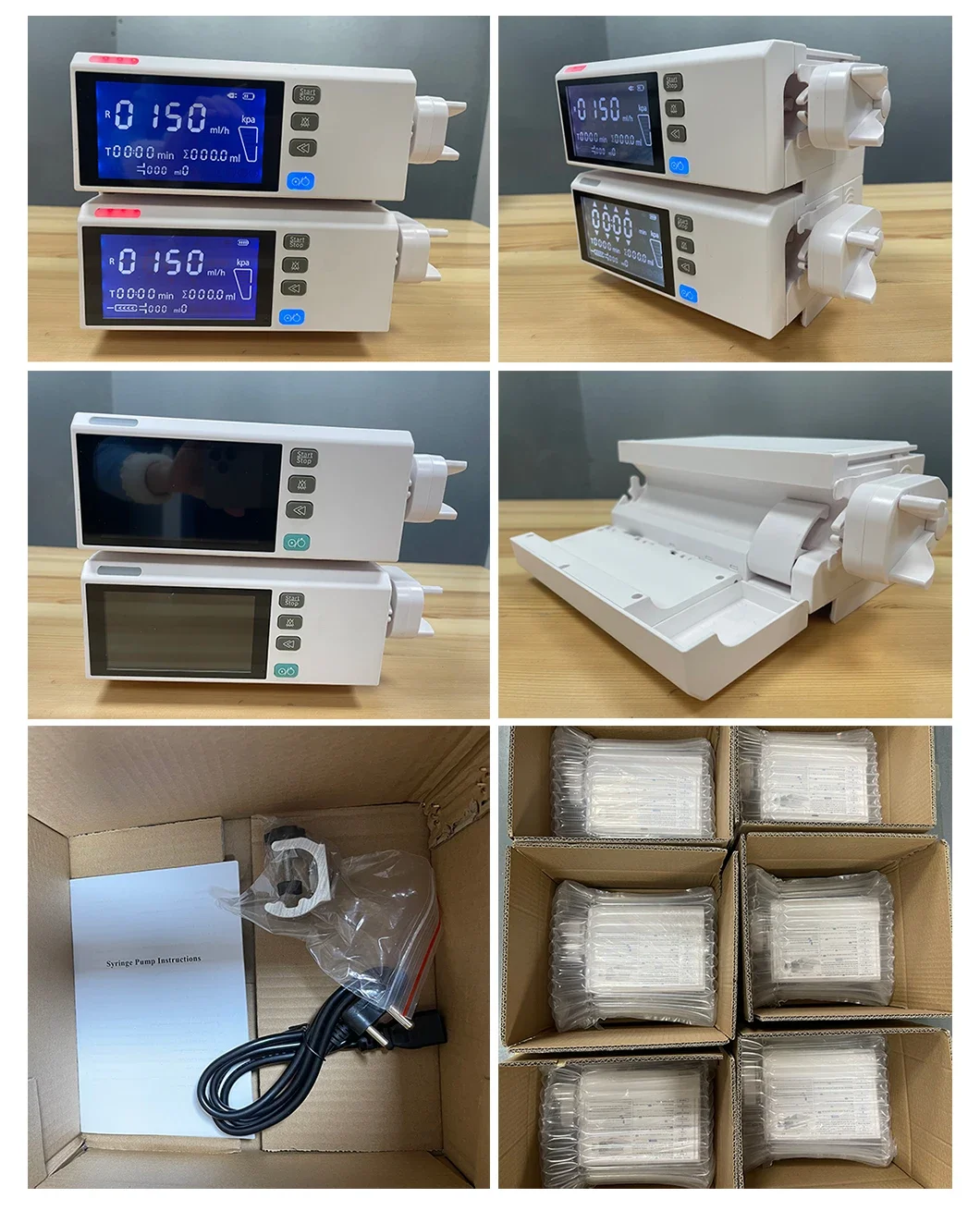

Packing & Delivery
Certificate Display
Company Profile
Shandong Rayman Medical Systems Co., Ltd.
Rayman medical system,as a leading professional medical equipment manufacturer in China, is specializing in the field of medical products research,development, production, sales and service.Our main products cover patient monitors, electrocardiographs, AED, shadowless lamps,X-ray machines, hospital beds, medical trolleys, infusion pumps, syringe pumps, anesthesia machines, ventilators, etc. Our products have passed CE and ISO certification, are widely used around the world, and have received unanimous praise.Rayman products in 3 categories cover more than 30 series total 300+ basic models and items include patient monitors, ECG, Ultrasound machine,Hospital Bed, Hospital Trolley, Wheelchair, etc., which are exported to more than 150 countries all over the world.

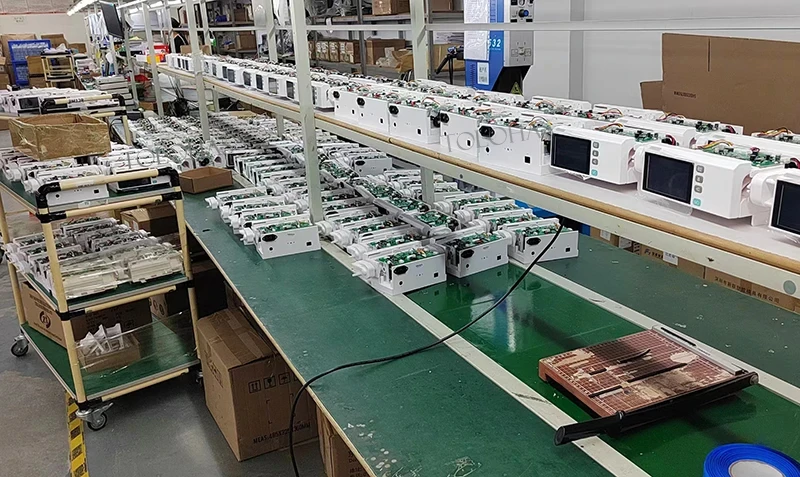

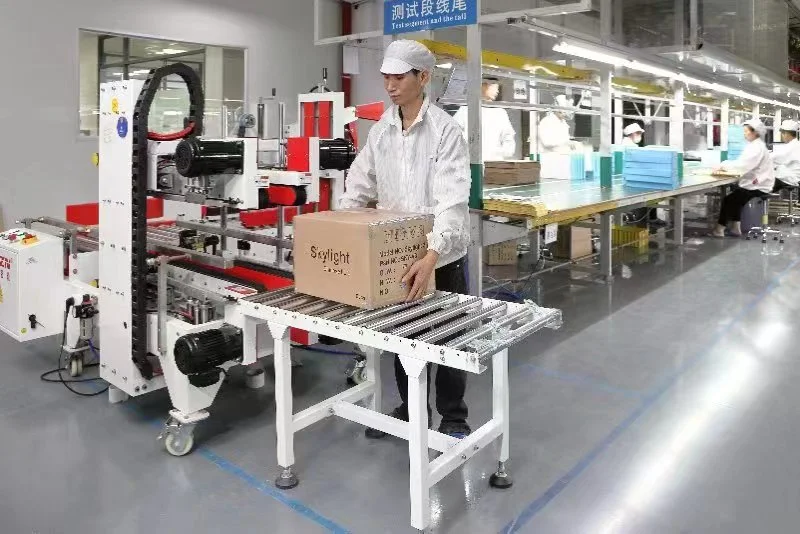

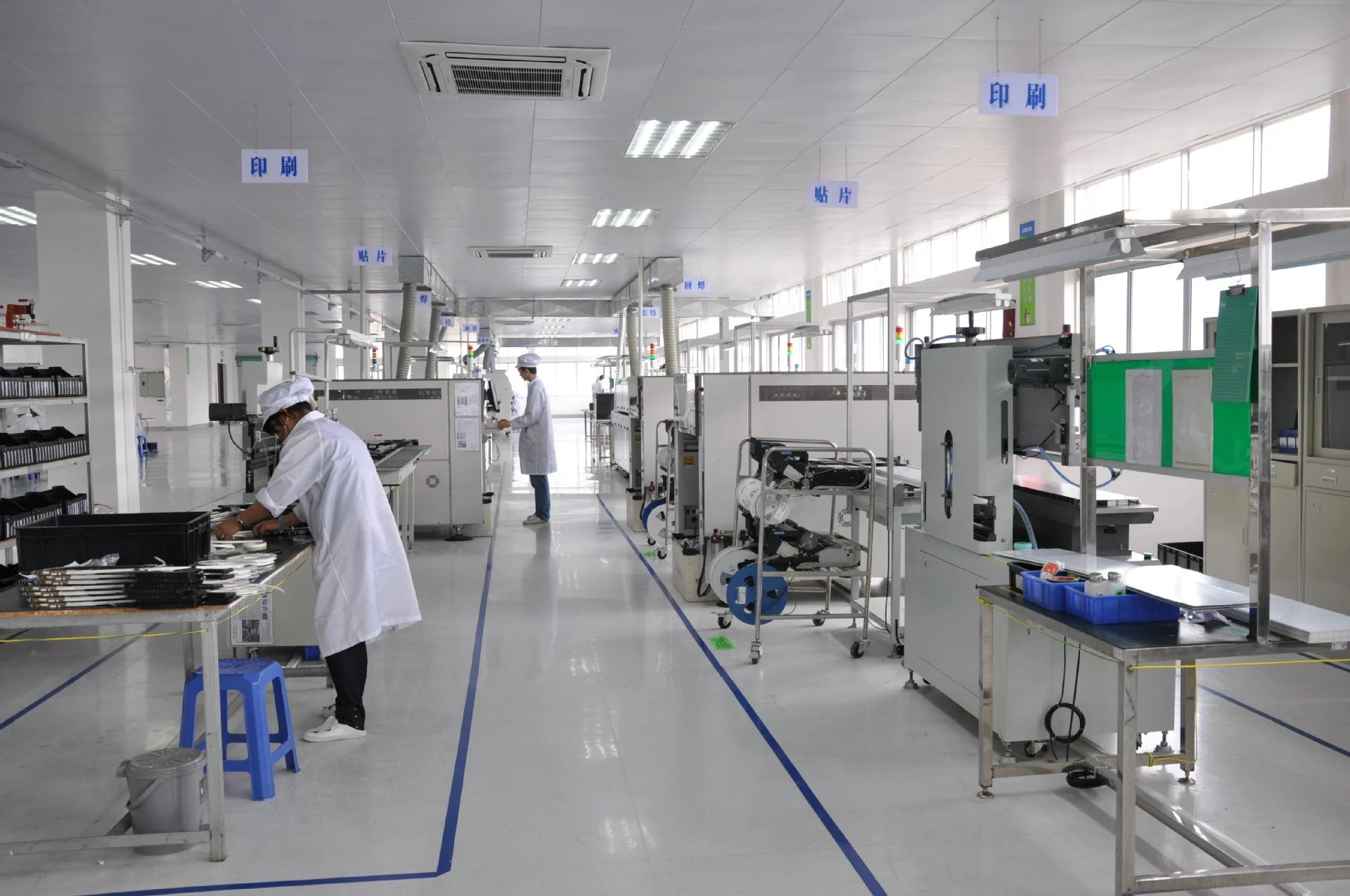

Rayman has two R&D centers with a R&D team of more than 60 personnel. At present we have nearly 200 patents and authorized trademarks. Rayman also has three production bases cover an area of 50000 square meters equipped with independent laboratories, testing centers, professional intelligent SMT production lines, dust-free workshops, precision mold processing and injection molding factories, forming a complete and cost-controllable production and quality control system. The output is nearly 20 million units to meet the customized needs of global customers.

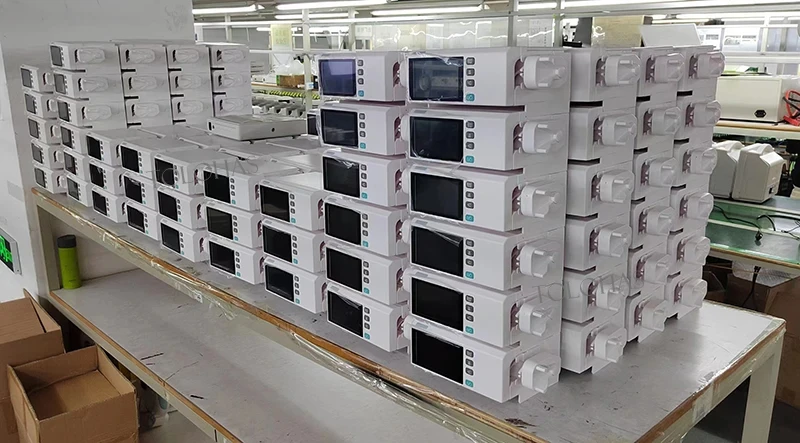

Manufacture Specification
FAQ
1. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3. Why should you buy from us not from other suppliers?
We Rayman is in the medical products field for more than 20 years.
3. What services can we provide?
Delivery Terms: FOB,CFR,CIF,EXW,DDP
Payment Currency:USD,EURPayment Terms: T/T,L/C,D/P D/A,MoneyGram,Credit Card,
PayPal,Western Union,Cash,Escrow.
