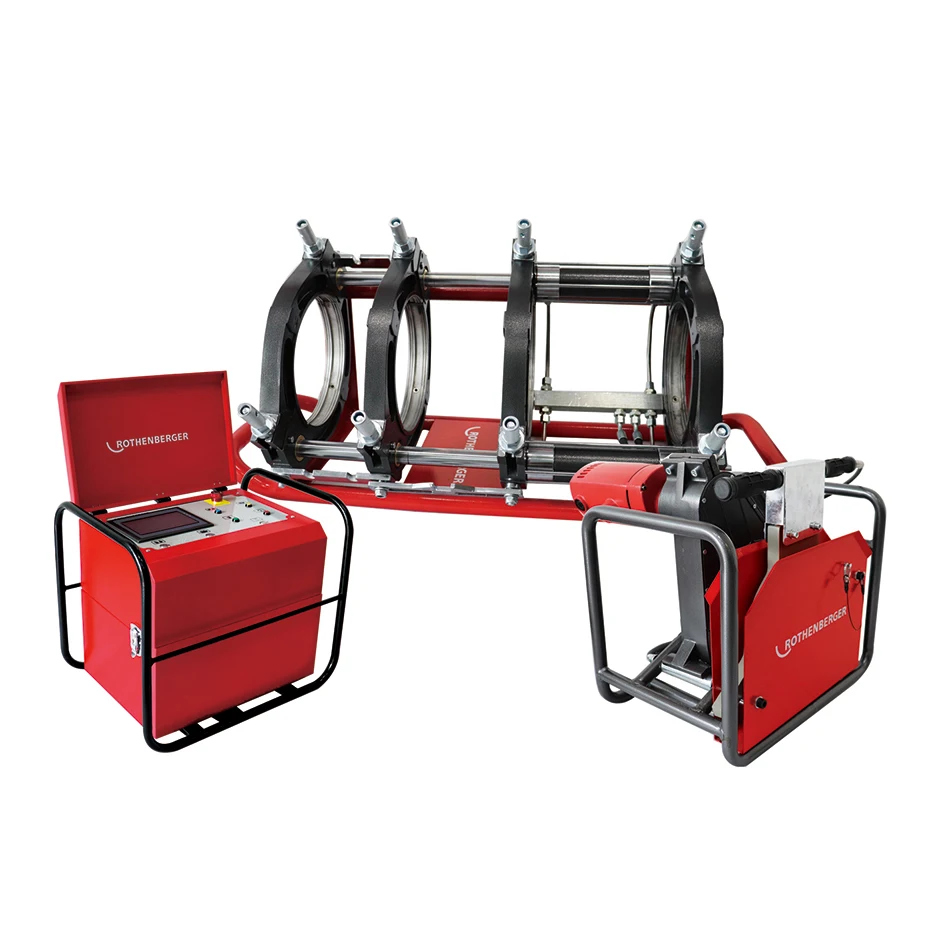

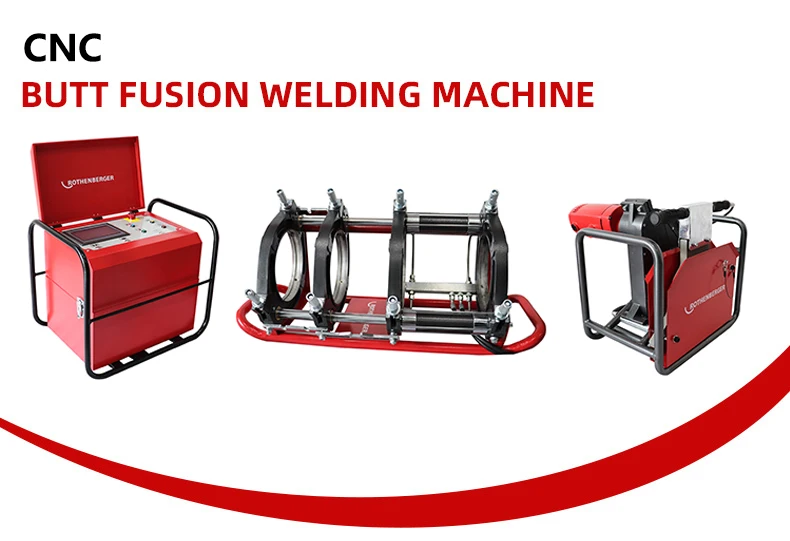

355mm full automatic butt fusion welding machine pe pipe welding machine
- Category: >>>
- Supplier: Rothenberger (Wuxi) Pipe Technologies Co. Ltd.
Share on (1601035770109):
Product Overview
Description

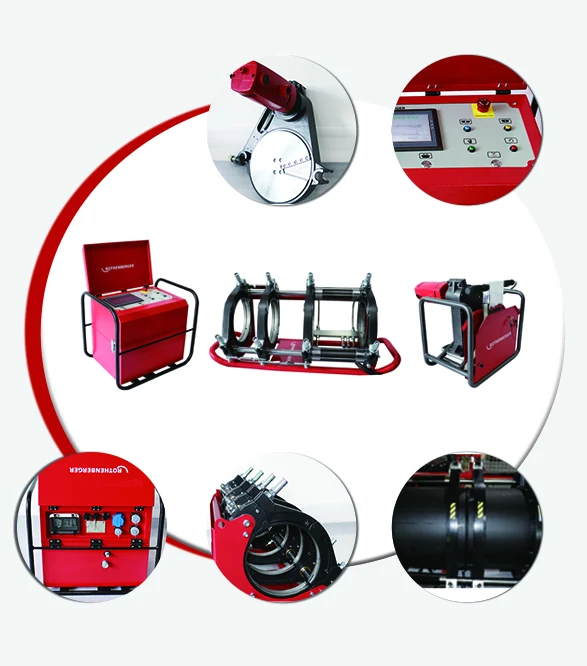

1. Latest Rothenberger frame construction, reliable, fast switching speed.

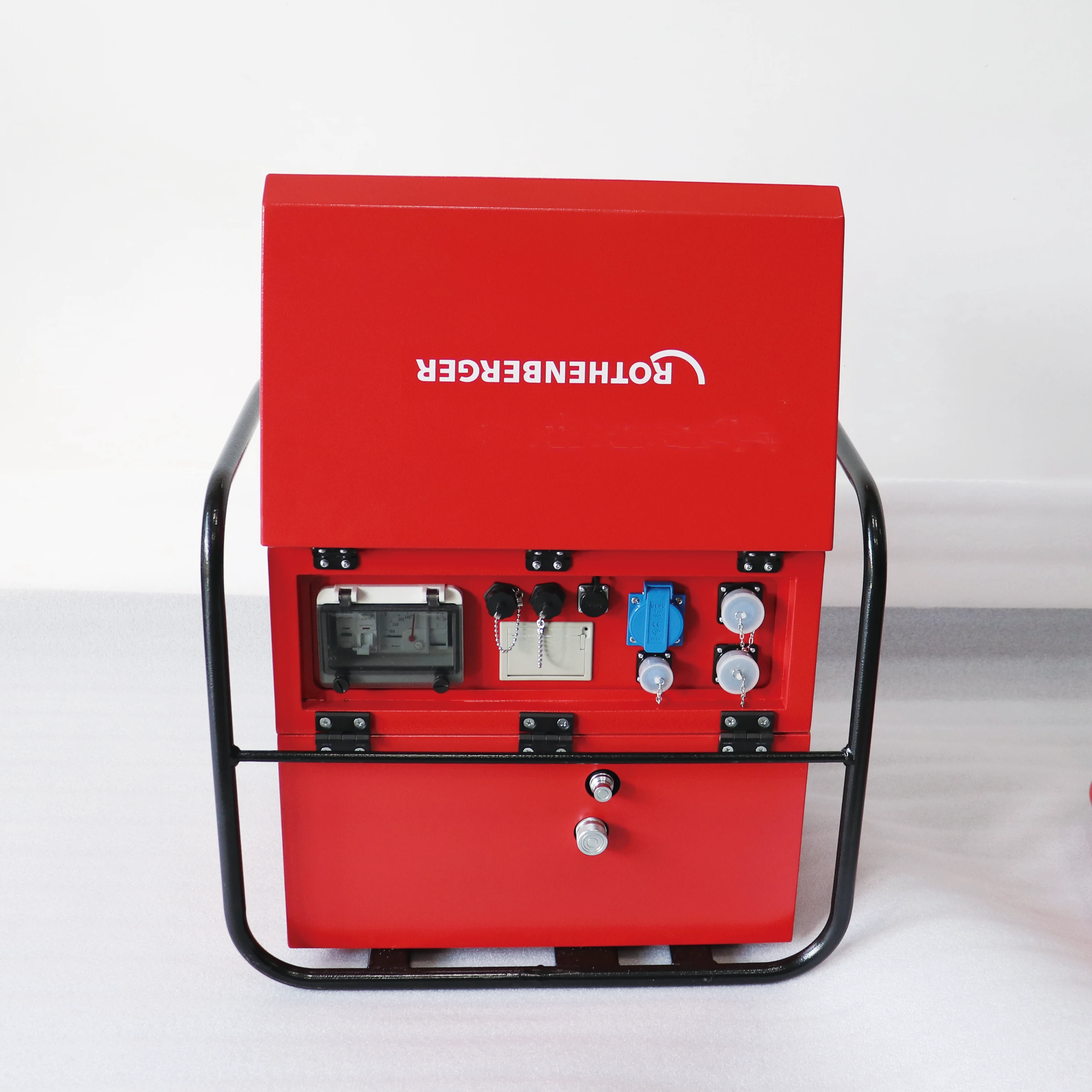

2. Latest Rothenberger hydraulic system, high control accuracy.
3. Standard with solid inserts to improve the accuracy of pipeline alignment.

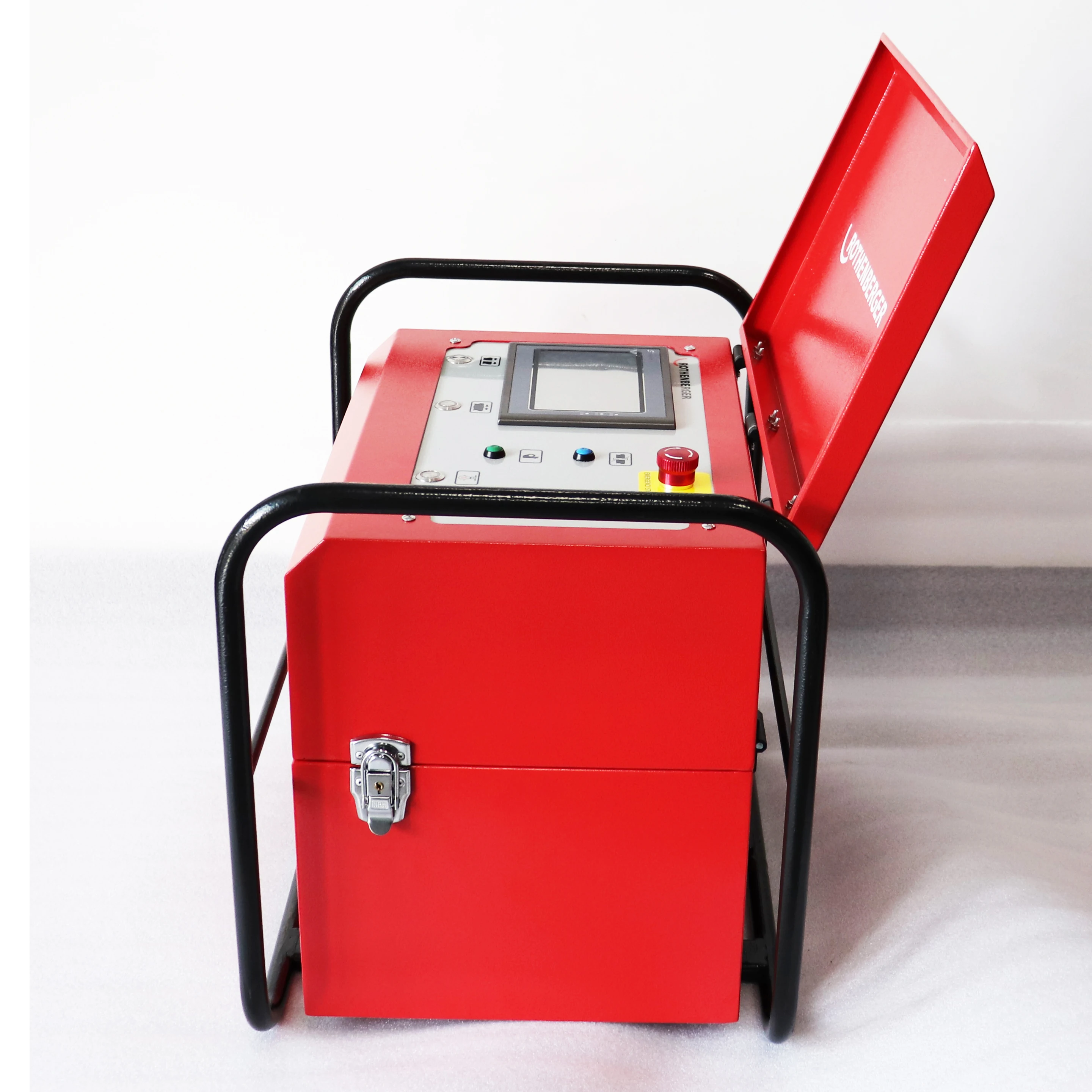

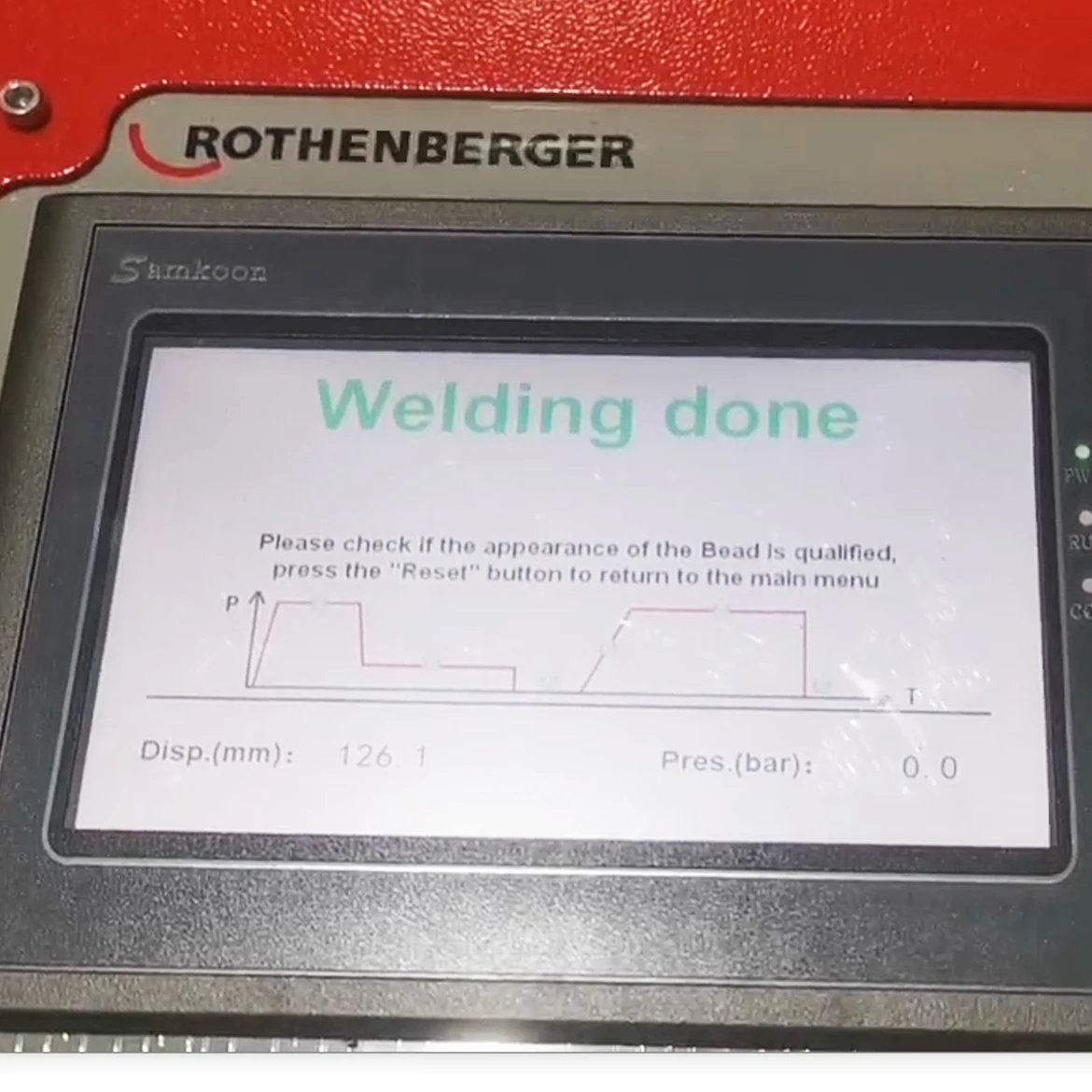

4. Integrated controller, color touch screen control, individuation guidance operation interface, easy operatio
5. Multi-language display ( Chinese, English, Spanish...)
6. Pre-installed welding standard such as TSG, ISO, DVS, GIS, etc.

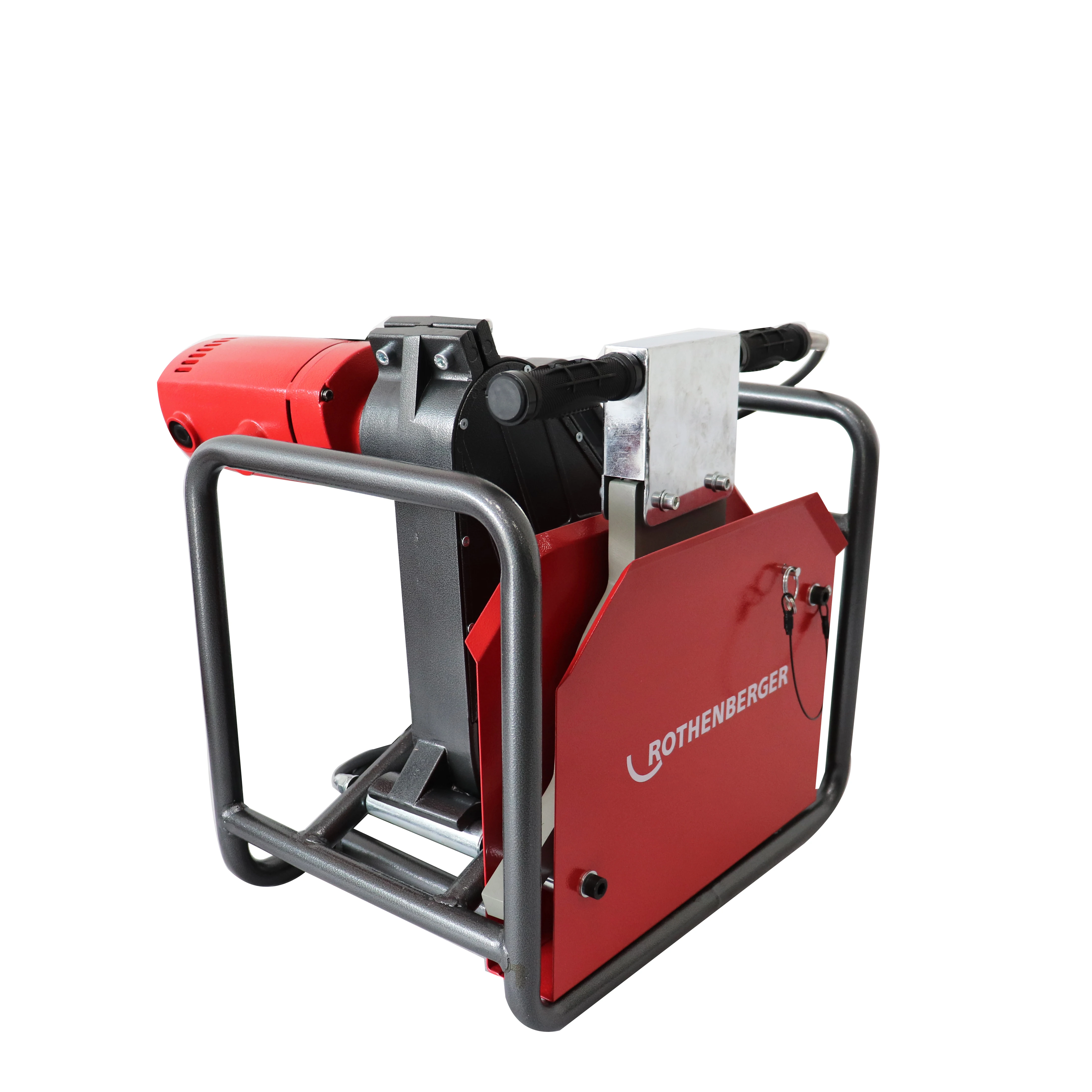

7. Automatic welding, insert and lift the trimmer and heating plate manually.
8. Real-time data printing, recording function and USB port available.
2. Latest Rothenberger hydraulic system, high control accuracy.
3. Standard with solid inserts to improve the accuracy of pipeline alignment.
4. Integrated controller, color touch screen control, individuation guidance operation interface, easy operatio
5. Multi-language display ( Chinese, English, Spanish...)
6. Pre-installed welding standard such as TSG, ISO, DVS, GIS, etc.
7. Automatic welding, insert and lift the trimmer and heating plate manually.
8. Real-time data printing, recording function and USB port available.
Model | R355C |
Pipe Size(mm) | 160,180,200,225,250,280,315,355 |
Heating Plate Max.Temp | 270°C |
Temp.Deviation in Surface(170-250°c) | s+5°C |
Pressure Adjustable Ranges | 0.4-6Mpa |
Working Voltage | 220VAC、50Hz |
Heating Plate Power | 4KW |
Planing Tool Power | 1.1KW |
Hydraulic Unit Power | 0.75KW |
Total Power | 5.85KW |
Rothenberger was founded in 1949, headquartered in Germany. Rothenberger Chinaestablished in 1991 is a wholly-owned subsidiary of Rothenberger Group, specializingin plastic welding machines.We are one of the earliest and biggest PE welding machines and band saws manufacturer in China. We have applied for more than 40 national patents, including 8 invention patents, participated in the drafting of nearly 10national and industry standards, and participated in the development of relevant textbooks and reference books.
Our company has been certified by SGS group for ISO9000 quality system and hasalso been certified by German TUV organization for CE product compliance. Thesecertifications have provided a reliable guarantee on the improvement of quality of ourproducts. More than 80k machines made by us have been running in mor than 80countries.
Kindly hope we can cooperate with you on our high quality machines in near future.
Our company has been certified by SGS group for ISO9000 quality system and hasalso been certified by German TUV organization for CE product compliance. Thesecertifications have provided a reliable guarantee on the improvement of quality of ourproducts. More than 80k machines made by us have been running in mor than 80countries.
Kindly hope we can cooperate with you on our high quality machines in near future.
