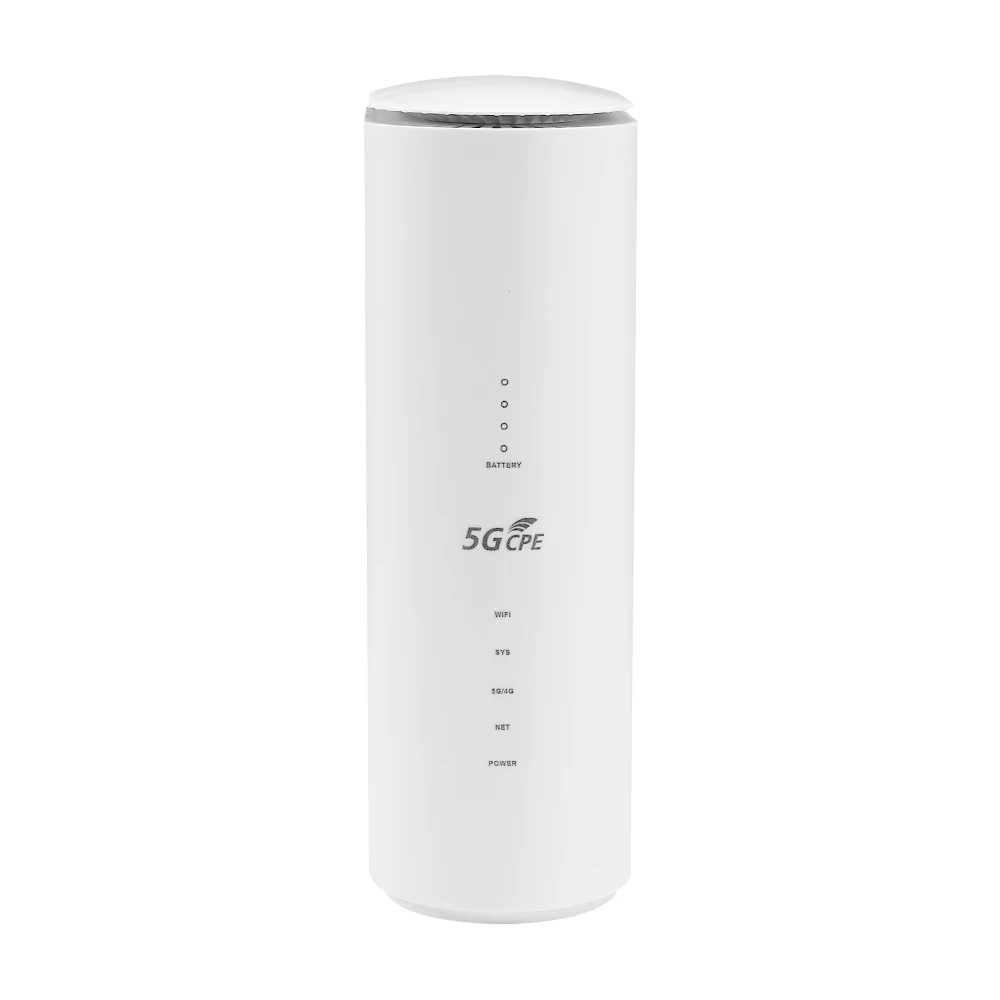

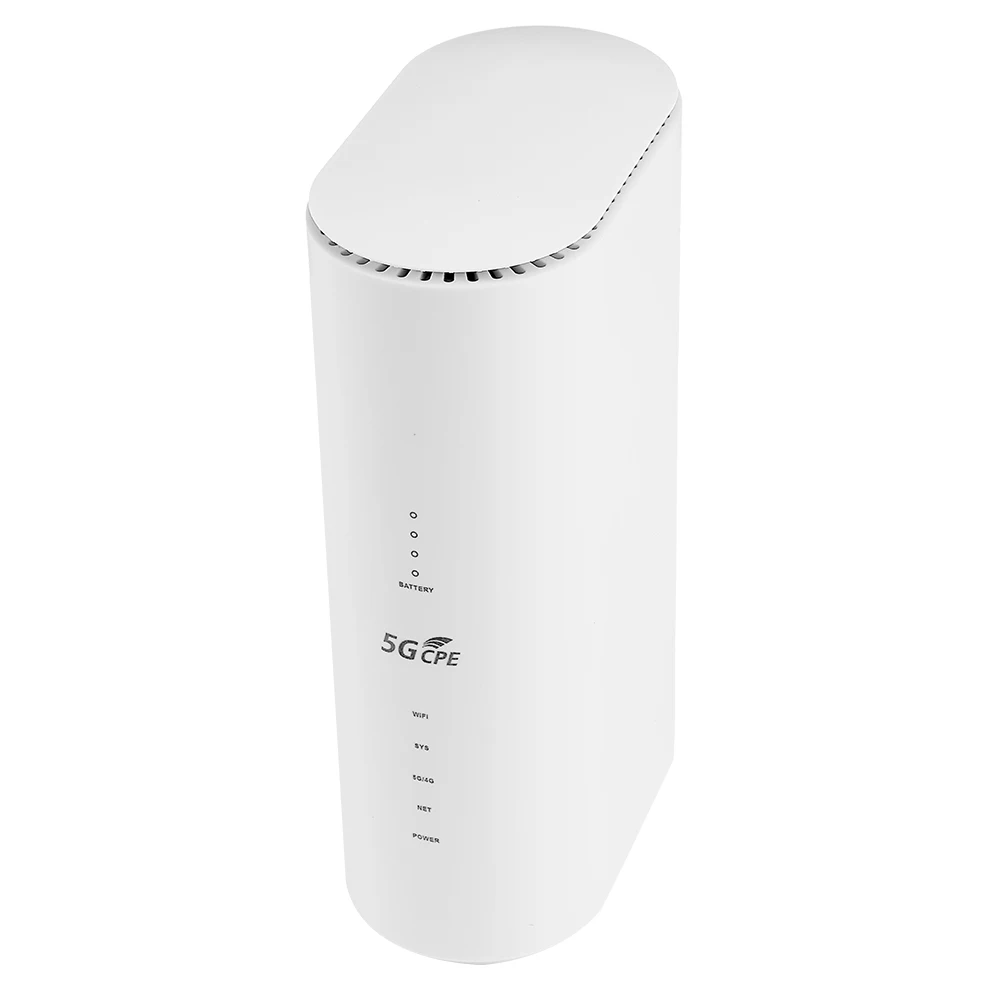

Wifi 6 SA NSA 2.4g&5.8g battery optional 5g sim router with voice call

Description

Item no.

NR500

CPU chipset

UNISOC UDX710/RG500U-EA/Dual-core ARM Cortex-A55 processor 1.35GHz

Wifi chipset

Qualcomm 2064/FC06E

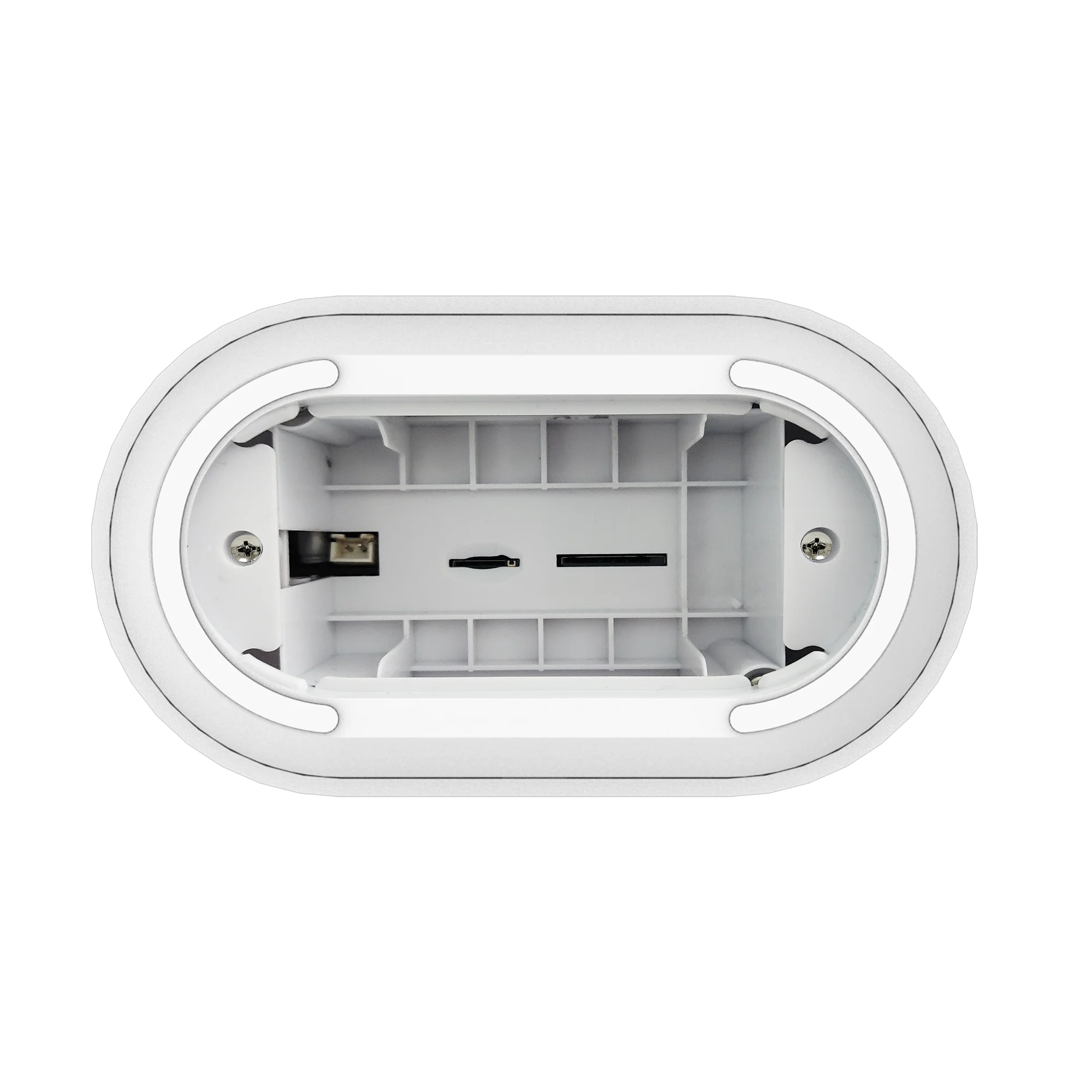

SIM slot

2FF or 4FF(DUAL SIM OPTIONAL)

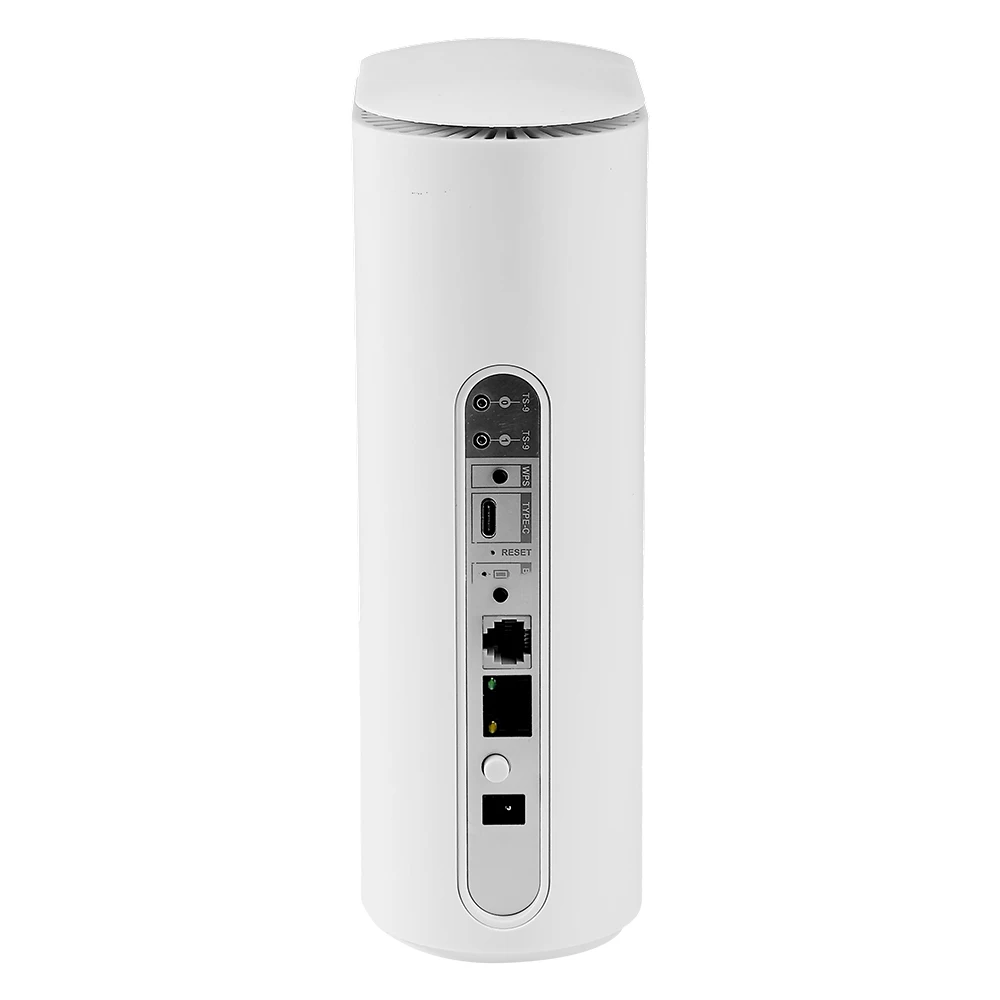

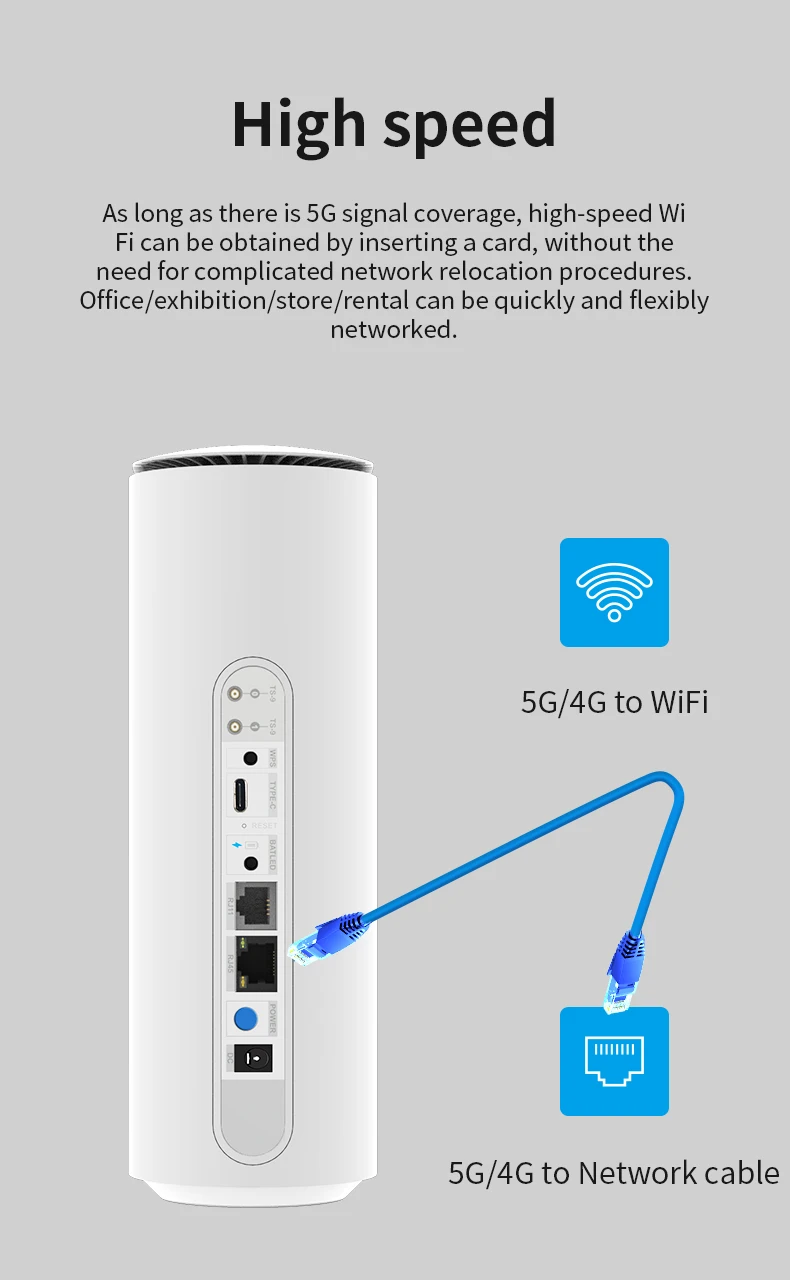

Lan port

1*1000Mbps

Voice

1*RJ11 port(optional)

Button

Reset/WPS/Battery level/Power

External antenna

TS9 connector(optional)

Battery

7.4V(2000mAh X 2 or 5000mAh X 2)  (optional)

Type C

Firmware upgrade

Power

Input voltage: 12V/1.5A

WiFi

2.4G&5G

5G NR NSA  n1/ 3/ 7/ 38/ 40/ 41/ 66/ 77/ 78

5G NR SA n1/ 3/ 5/ 7/ 8/ 20/ 28/ 38/ 40/ 41/ 66/77/78

LTE-TDD B38/ 40/ 41

Max. Transmitter

  Power

5G NR n1/n3/n5/n7/n8/n20/n38/n40/n41/n66:Class 3 (23 dBm ±2 dB)
5G NR n28:Class 3 (23 dBm +2/-2.5 dB)
5G NR n77/n78:Class 3 (23 dBm +2/-3 dB)
5G NR n41/n78 HPUE:Class 2 (26 dBm +2/-3 dB)

LTE B1/B2/B3/B4/B5/B7/B8/B20/B38/B40/B41/B66:Class 3 (23 dBm±2.7 dB)
LTE B28:Class 3 (23 dBm +2.7/-3.2 dB)
LTE B41 HPUE:Class 2 (26 dBm ±2.7 dB)
WCDMA B1/B2/B5/B8:Class 3 (24 dBm +1/-3 dB)

5G NR Feature

DL 4 × 4 MIMO:n1/ 3/ 7/ 38/ 40/ 41/ 66/ 77/ 78
UL 2 × 2 MIMO:n38/ 40/ 41/ 77/78

NSA: MAX DL 2.6 Gbps,MAX UL 575 Mbps
SA: MAX DL 2 Gbps,MAX UL 1 Gbps

LTE Feature

Max: CA:DL 3CC,UL 2CC
         FDD:DL Cat 12,UL Cat 13
         TDD:DL Cat 12,UL Cat 13

Support 1.4/3/5/10/15/20 MHz bandwidth

DL support 2 × 2 MIMO

Max:  DL 600 Mbps    UL 150 Mbps

UMTS Feature

Support  DC-HSDPA HSDPA HSUPA HSPA+ WCDMA

Max:DL 42.2 Mbps  UL  11Mbps

Modulation

DBPSK/DQPSK/CCK/BPSK/QPSK/QAM

WiFi protocol

IEEE 802.11 a/b/g/n/ac/ax

Antenna Frequency

2.4 GHz WLAN: 2.400–2.4835 GHz

 5 GHz WLAN: 5.150–5.850 GHz

Bandwidth

2.4G   20MHz/40MHz   5G   20MHz/40MHz/80MHz

Rate

1774.5Mbps data rate (2×2 + 2×2 11ax DBS)

2.4G Max. transmitter power

802.11b/1Mbps                   21dbm

802.11g/54Mbps                19dbm

802.11n/HT40 MCS7         18dbm

802.11ax/HE40 MCS11     17dbm

5G Max. transmitter power

802.11a/54Mbps                18dbm

802.11n/HT40 MCS7         18dbm

802.11ac/VHT80 MCS9     17dbm

802.11ax/HE80 MCS11     16.5dbm

Wizard

Support

Device info

CPU Usaage/Memory Usage/Online time/Runtime/UUID/software version

Network info

IMEI/IMSI/ICCID/RSRP/RSRQ/RSSI/SINR/PCID/EARFCN/Frequency

WIFI mac filter

White list and Black list

WIFI Broadcast

Support

Hidden WIFI signal

Support

WPS

Support

WIFI Security Type

WPA-PSK/WPA2-PSK

system upgrade

Local upgrade/FOTA

Reboot and Reset

Support

Signal bar

Support (WEBUI)

Dimension

Device: 20.9*12.5*7cm

Package

10pcs/ctn size: 40x21.5x46.5cm  G.W.: 8.0Kg/ctn
