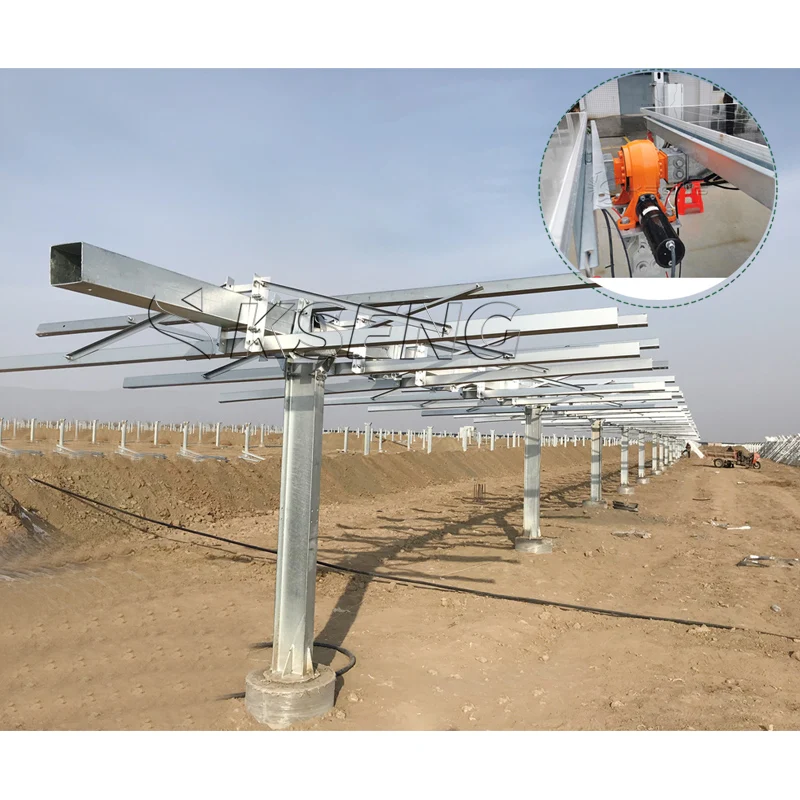

Kseng China Professional Manufacture Sun System Powered Single Axis Solar Tracker
- Category: >>>
- Supplier: Xiamen Kseng New Energy Tech Co. Ltd.
Share on (1601035814501):
Product Overview
Description
Kseng China Professional Manufacture Sun System Powered Single Axis Solar Tracker
Products Description

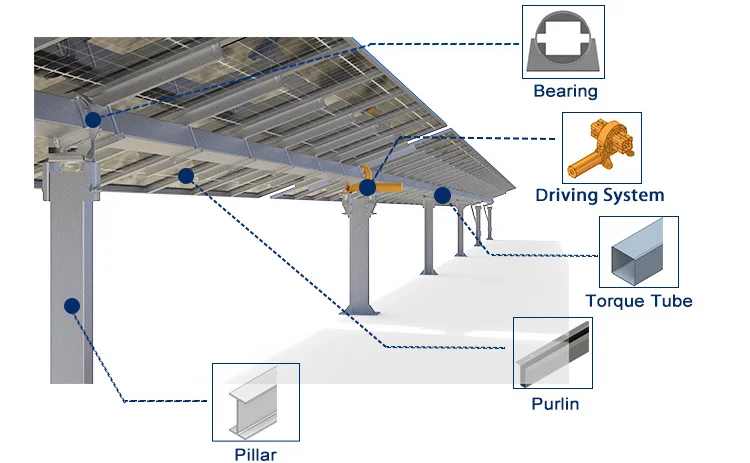

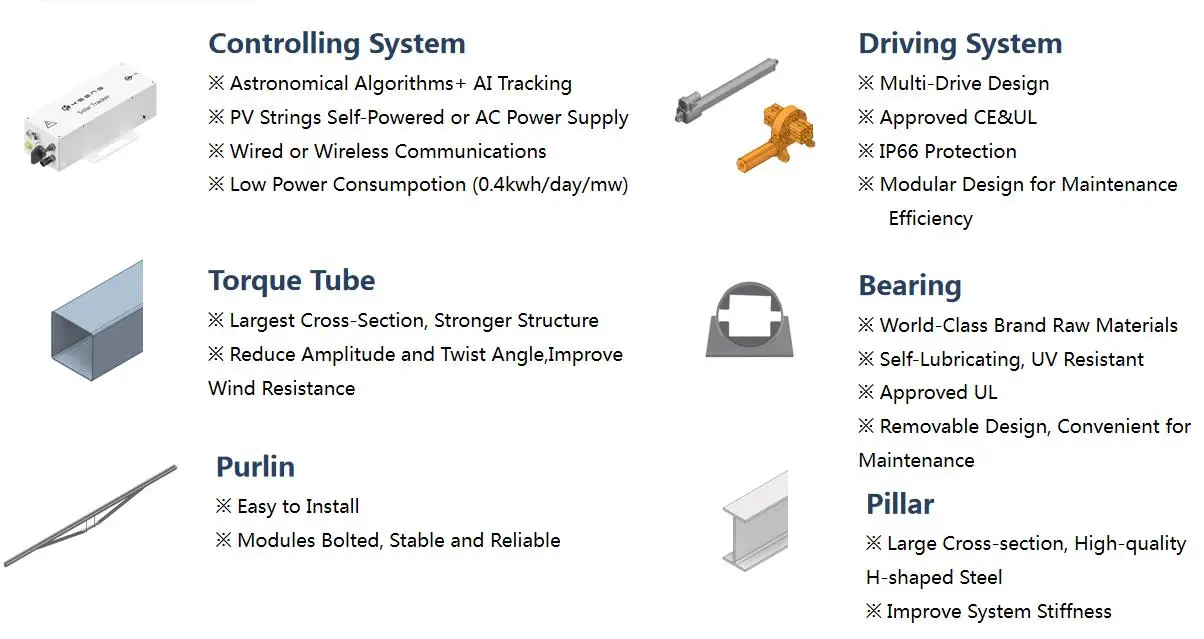

Main Structural Parts
① Fully fit for 210 larger modules.
② Intelligent AI algorithm,can increase 15%-30% yield gain
③ Adopt ion to various terrains allowing a north-south slope up to 10%-20%.
④ Easy installation and easy maintenance.
⑤ Stable and reliable operation.
② Intelligent AI algorithm,can increase 15%-30% yield gain
③ Adopt ion to various terrains allowing a north-south slope up to 10%-20%.
④ Easy installation and easy maintenance.
⑤ Stable and reliable operation.

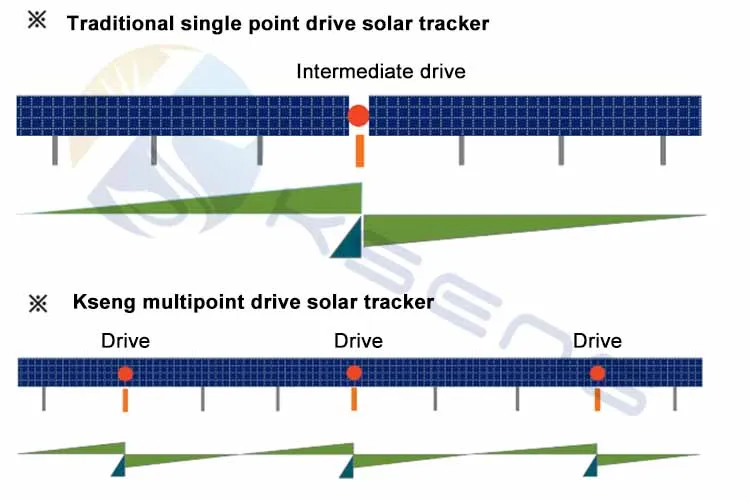

Kseng Solar Tracking System Advantages
1. System damping ratio is greater,can reduce the component amplitude by 50%.
2. spindle force can reduce 40%.
3. Reduce the force on the drive column by 50%.
4. Reduce spindle torsion angle by 60%.
5. Better system wind resistance.

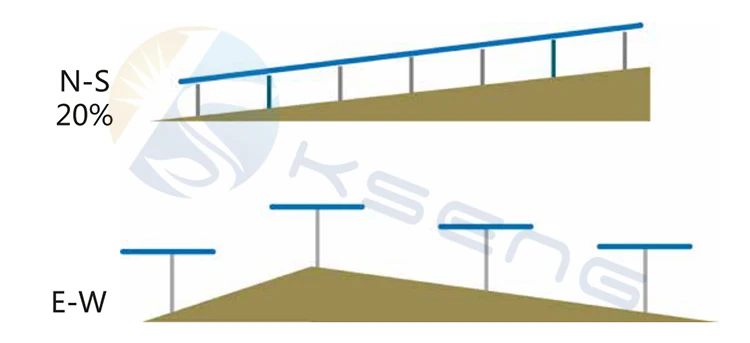

Terrain adaptability
1. Flexible arrangement, make full use of irregular land and can improve land utilization.
2. North and South can adapt to 20% slope.
3. Unlimited slope in the east-west.
3. Unlimited slope in the east-west.

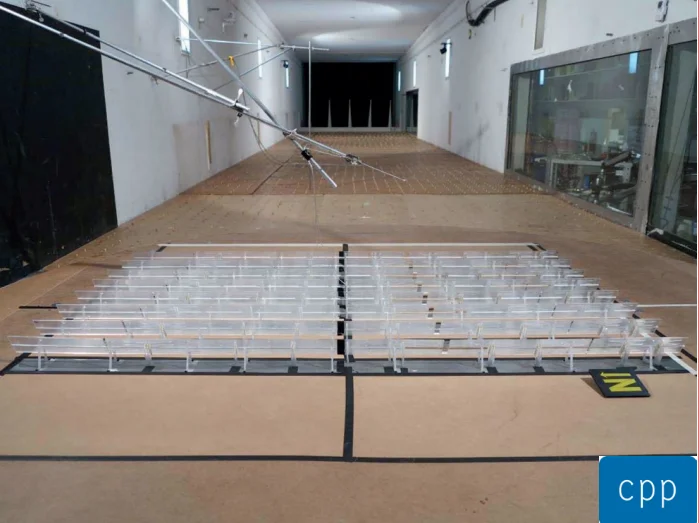

CPP Wind Tunnel Test
Kseng established a partnership with CPP WIND ENGINEERING，the first American company to provide wind engineering services to architects and engineers. Combining the frequency and characteristics of damping ratio of the KS-tracker tracking system, study
the results caused by the KS-tracker system under the action of aerodynamics, and analyze the influence and instability during the
operation of the system.
the results caused by the KS-tracker system under the action of aerodynamics, and analyze the influence and instability during the
operation of the system.

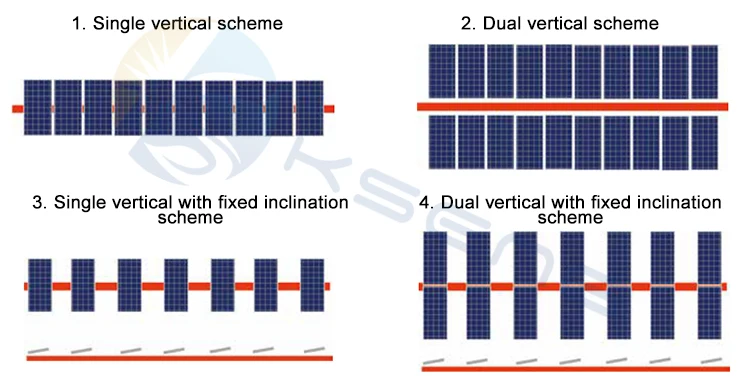

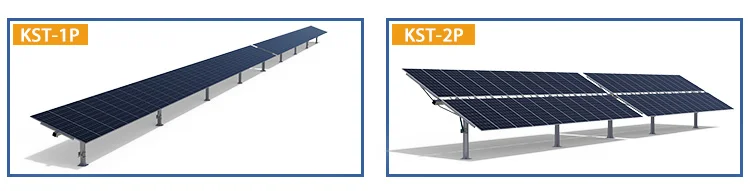

Component arrangement scheme
Tracking Structure Parameters | ||||||||
Tracking Technology | Dual-Portrait Horizontal flat single-axis tracking system | Maximum capacity per row | 72KWp(3 or 4 Strings of 210 Type Module) | |||||
PV-Modules quantity per row | 45PCS (2Px45) or 60PCS (2PX60) | Tracking range | ±45°to ±60° | |||||
Tracking accuracy | ±1° | Terrain Adaptability | 10°north-south, east -west unlimited | |||||
Protection of wind speed | 18m/s | Foundation form | Concrete (customizable all steel foundation) | |||||

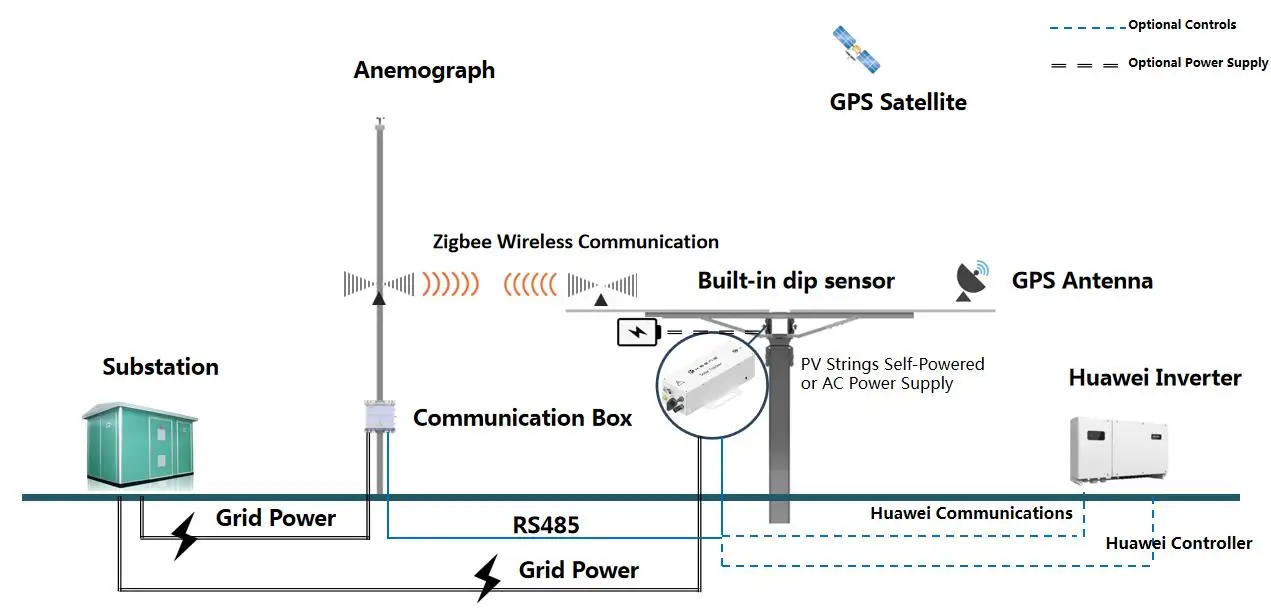

Tracking Controller Parameters | ||||||||
Control system | MCU | Communication type | RS485 or wireless Zigbee | |||||
Night stow mode | Have | Backtracking algorithm | Have | |||||
Overload prevention | Have | Self trouble checking Function | Have | |||||
System voltage | DC24 | Drive System | Linear Motor | |||||
Power Acquisition Mode | External Supply/Self-Powered supply | Control algorithm | Astronomical Multi-point algorithm + closed loop（AI Control） | |||||

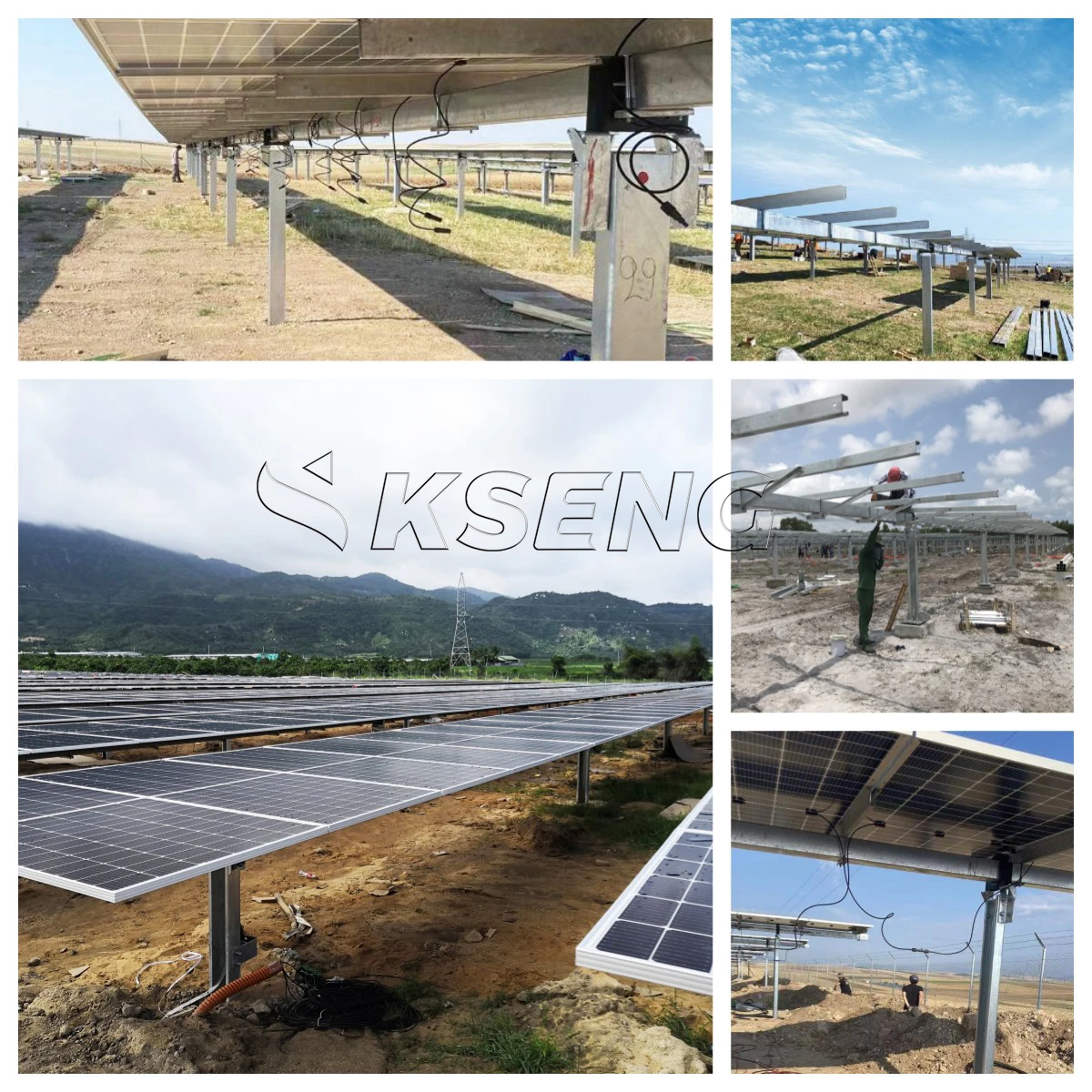

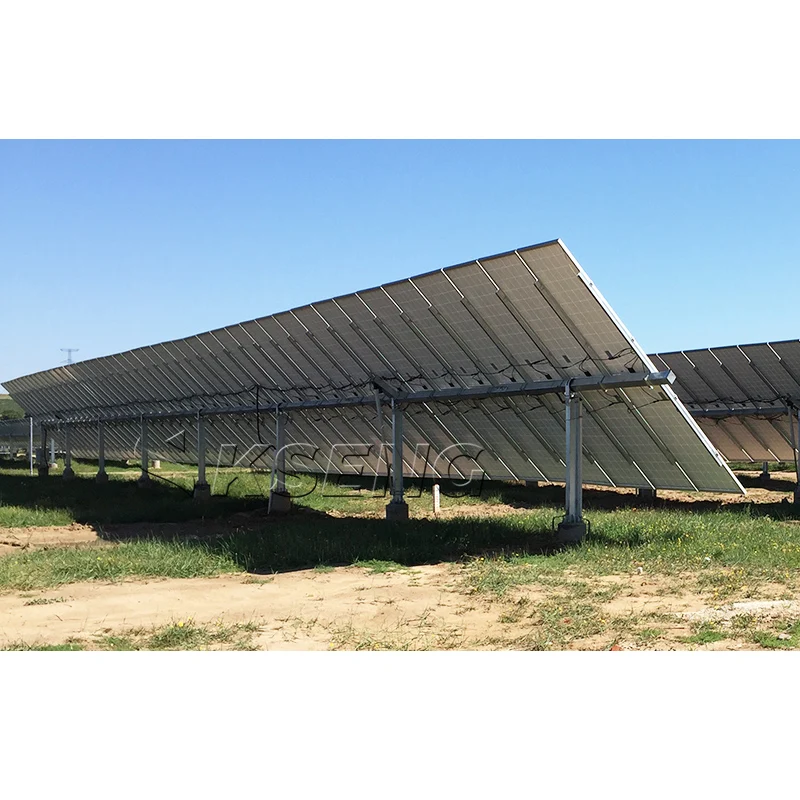

Project Gallery

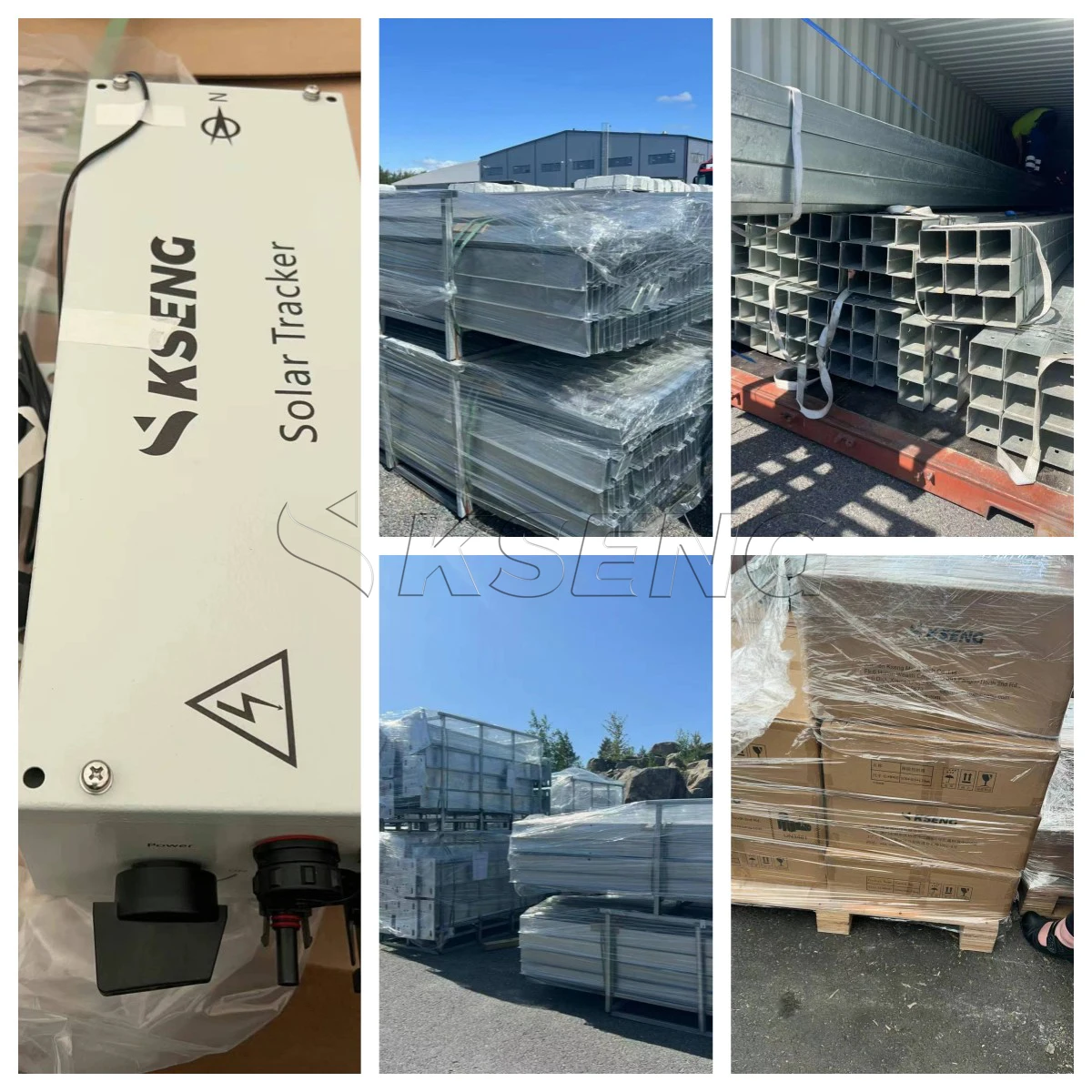

Product packaging

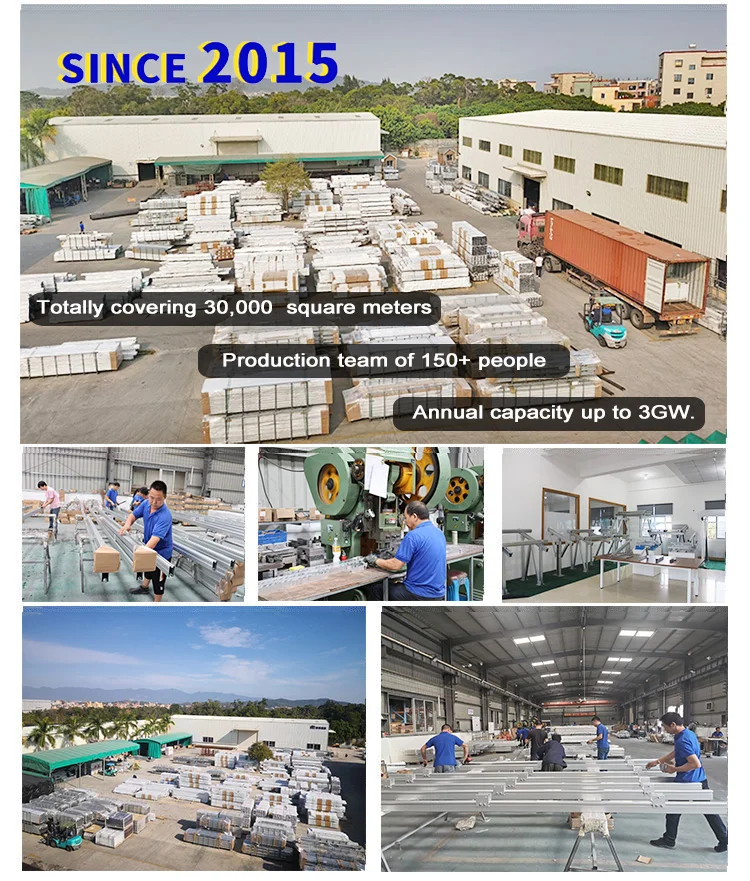

Company Information
Xiamen Kseng Metal Tech Co., Ltd is a national high-tech enterprise with independent intellectual property rights.Annual production capacity can reach 3GW.
Headquartered in beautiful coastal city Xiamen, China, the company has branches and offices in Hong Kong S.A.R, Australia, Malaysia, Japan, South Korea, Vietnam and other countries and regions.

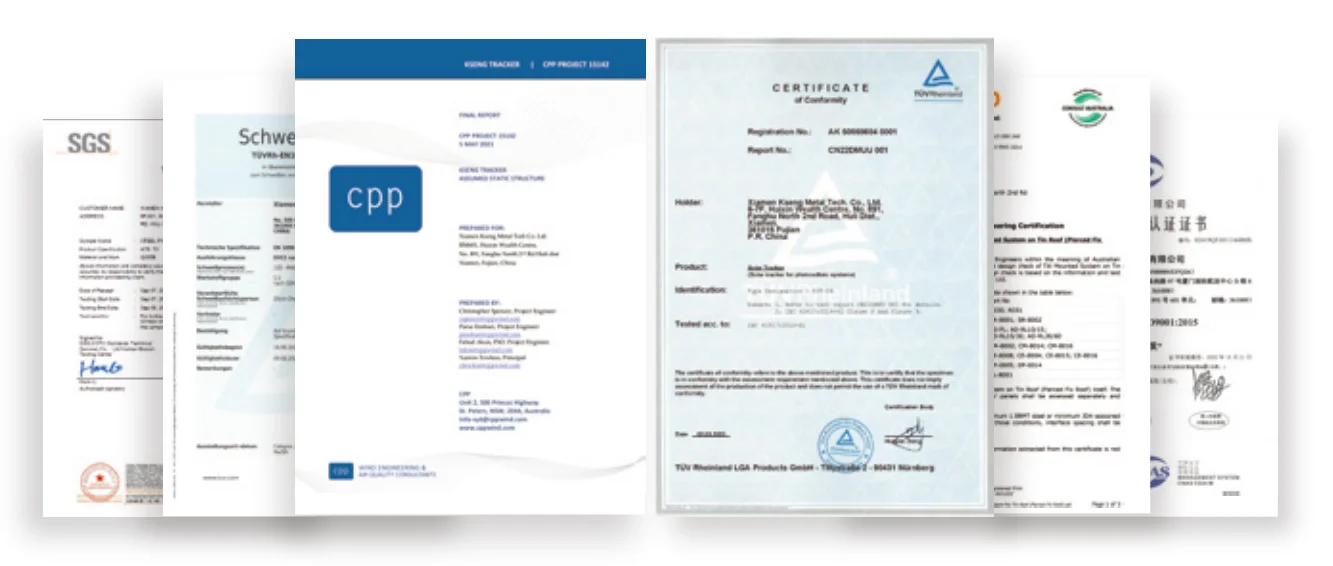

Certifications
Our company has obtained nearly 100 utility model patents, the products are also approved AS/NZS 1170, TUV, UL, CE, CPP, and ISO 9001 quality management system and other international authorized certification.
