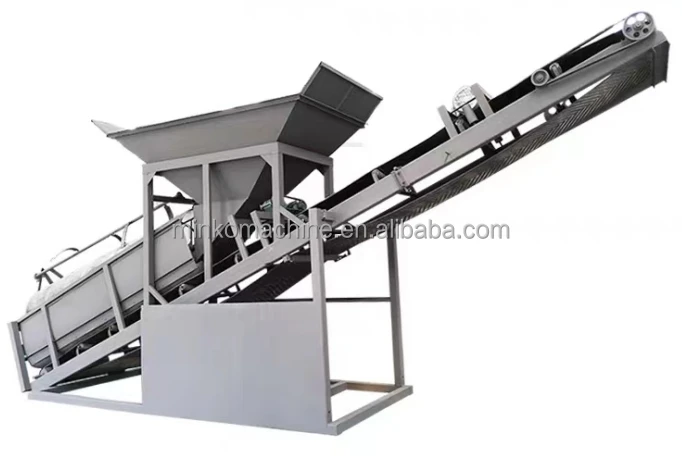

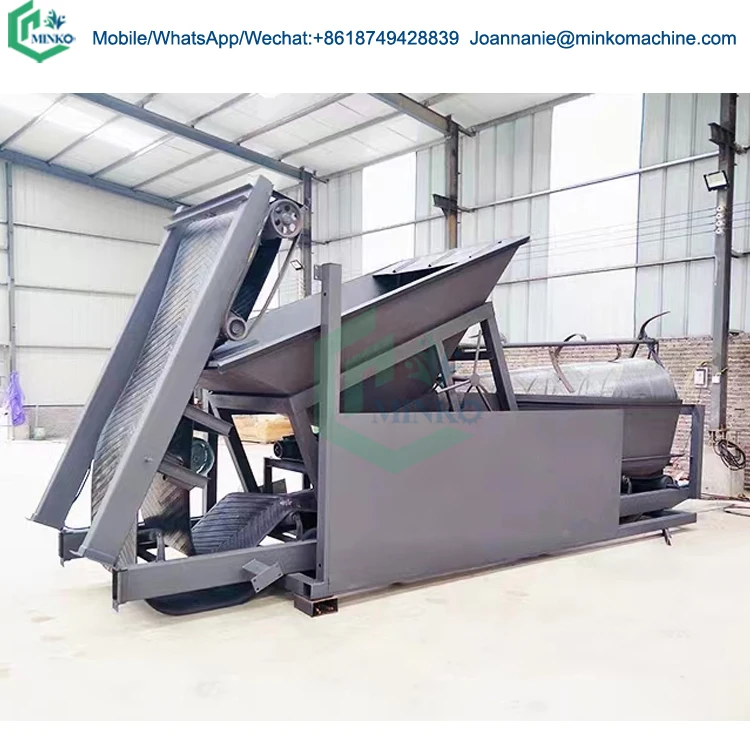

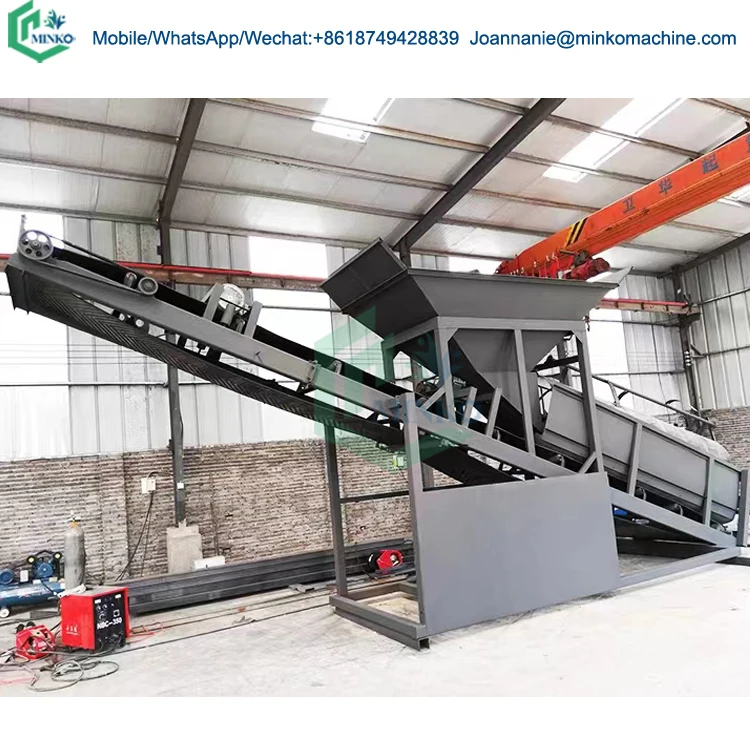

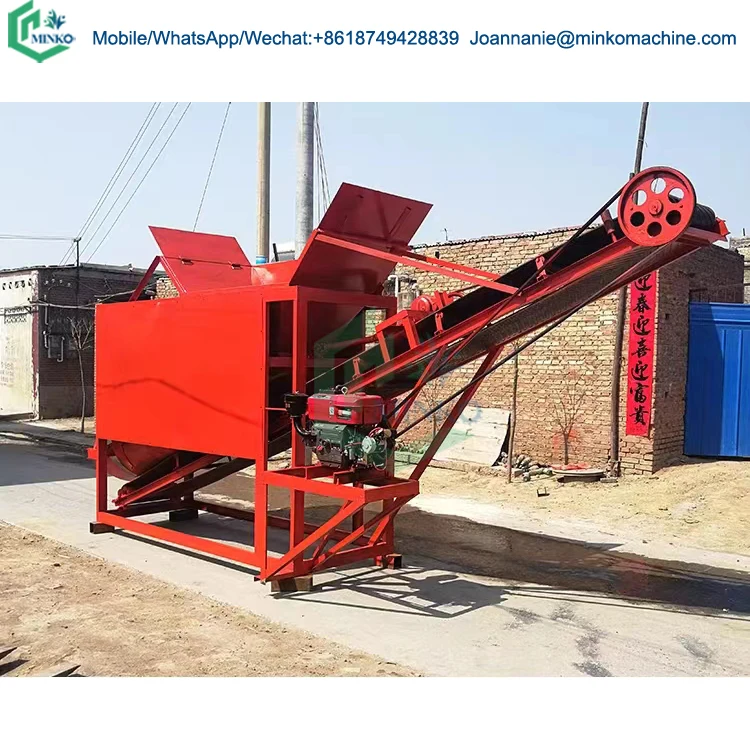

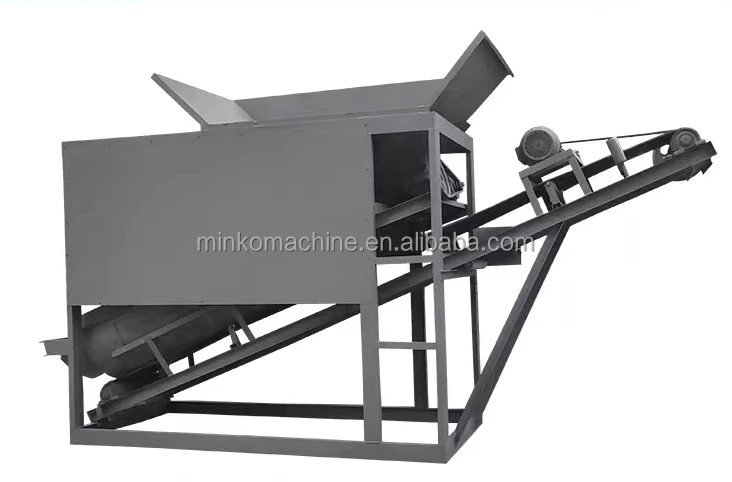

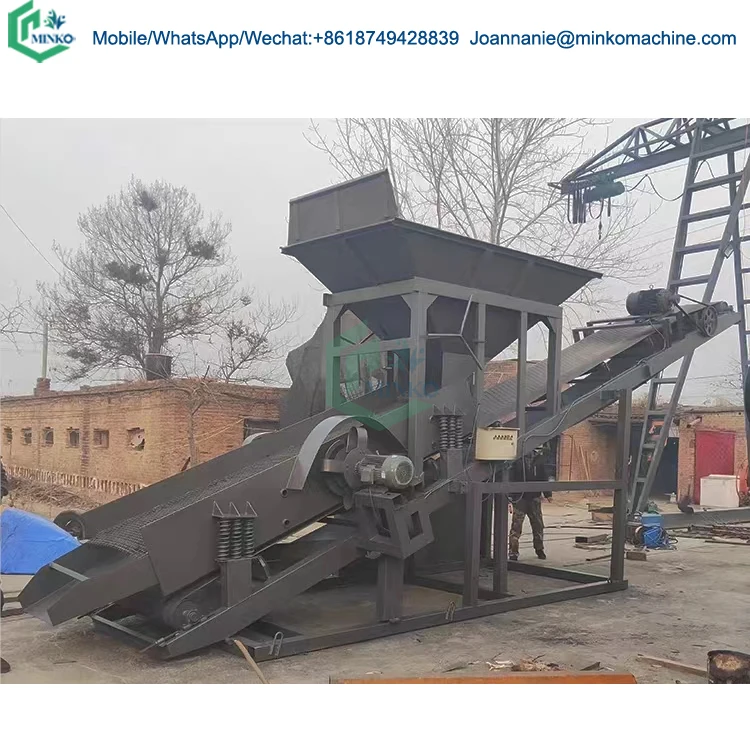

Large roller sand screening machine Linear Vibrating Screen sand and stone separator mobile sand screening machine
- Category: >>>
- Supplier: Henan Minko Machinery Co. Ltd.
Share on (1601035818474):
Product Overview
Description
Products Description

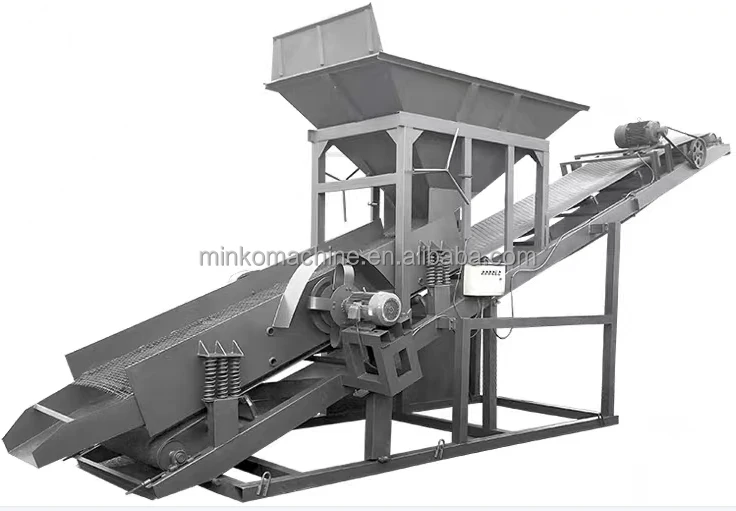

Large roller sand screening machine Linear Vibrating Screen sand and stone separator mobile sand screening machine

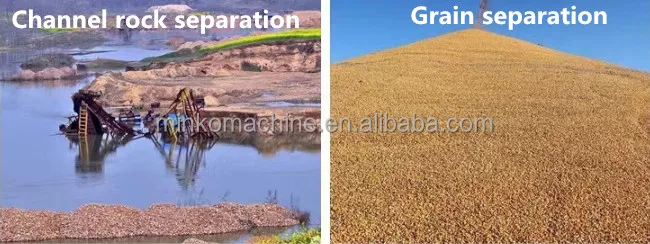

Large industrial sand shaker mobile vibrating sand screen machine sand and stone separator is driven by double strong power motor. Therefore, it can be used in various fields to separate impurity from sand and many other materials. Under the combined action of the exciting force and the material self gravity, the material is thrown up on the screen surface, jumps or moves forward in a straight line, so as to achieve the purpose of screening and grading the material.Our hot sale sand screening machine has gained a high reputation across the world. As a professional sand screening machine manufacturer, our products have been exported to USA, India, Dubai, Netherlands, and ect.
Working Principles:

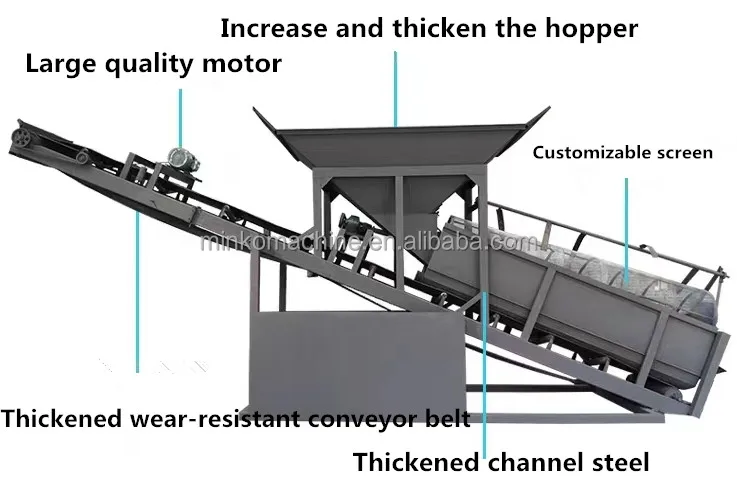

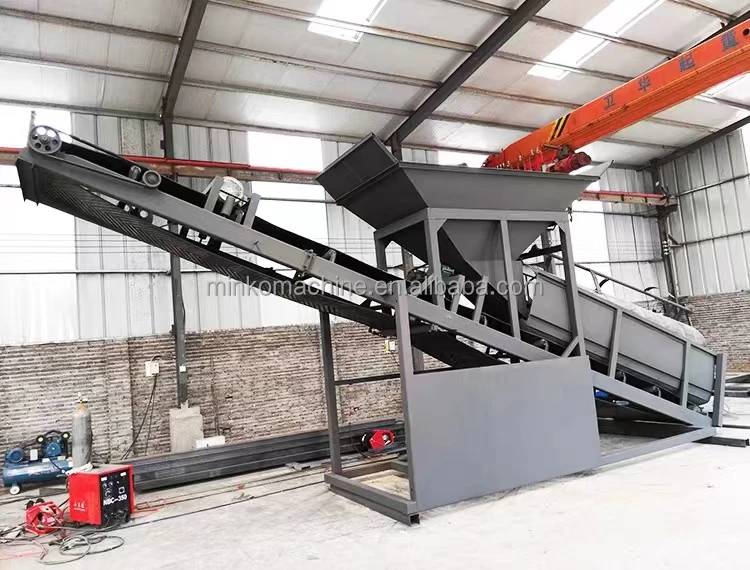

1. The whole equipment of the cylindrical river sand screening machine is composed of raw material storage hopper, raw material feeding belt conveyor, flat screen mesh, finished sand pile material belt, and abandon stone discharge trough.
2. After the equipment is energized, the loader will load the raw materials.
3. Into the large-capacity storage hopper, the raw material is put into the flat sieve cylinder through the feeding belt, and the rotating sieve cylinder drives the raw material to form the artificial sieve effect of the raw material sliding on the screen surface.
4. Under the pushing and tumbling of the inner blade of the cylinder, the finished sand falls on the finished sand belt through the collecting hopper, and is lifted down by the belt into a finished material pile or directly into the storage hopper.
5. The whole process is continuous and the material classification is clear and accurate
1. The whole equipment of the cylindrical river sand screening machine is composed of raw material storage hopper, raw material feeding belt conveyor, flat screen mesh, finished sand pile material belt, and abandon stone discharge trough.
2. After the equipment is energized, the loader will load the raw materials.
3. Into the large-capacity storage hopper, the raw material is put into the flat sieve cylinder through the feeding belt, and the rotating sieve cylinder drives the raw material to form the artificial sieve effect of the raw material sliding on the screen surface.
4. Under the pushing and tumbling of the inner blade of the cylinder, the finished sand falls on the finished sand belt through the collecting hopper, and is lifted down by the belt into a finished material pile or directly into the storage hopper.
5. The whole process is continuous and the material classification is clear and accurate
Details Images

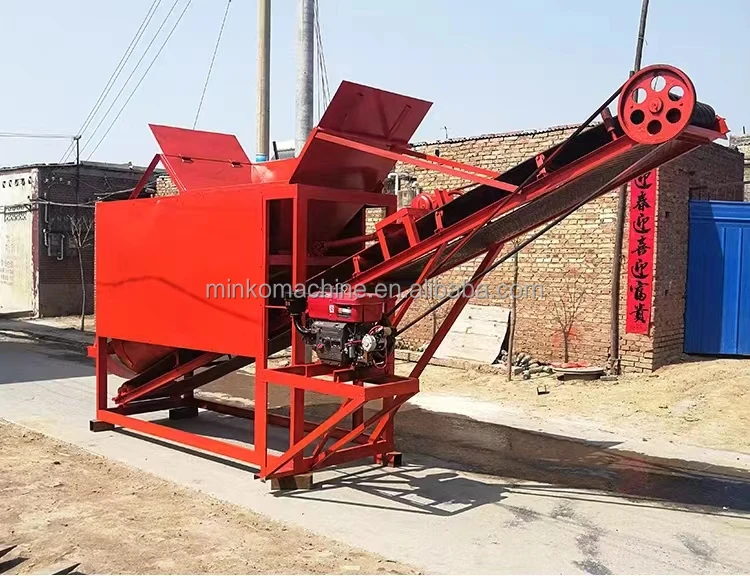

Model: 20 drum type

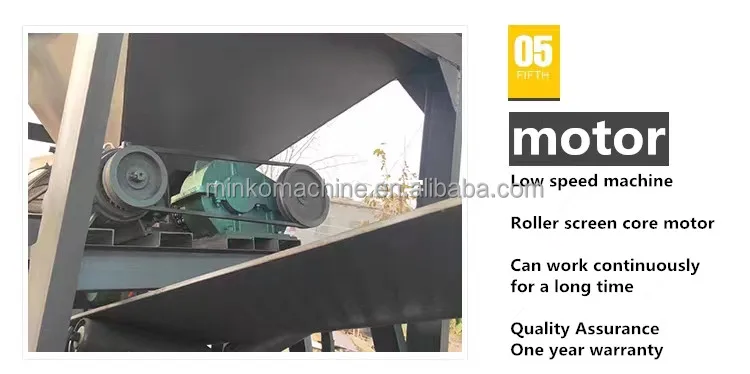

Main motor: 4kw
Vibration motor: 0.5kw
Screen motor: 4kw
Weight: 550kg
Overall size: 4.2x1.1x2.2m
Screen size "1.5x0.6(customizable)
Screen size: 10mm(customizable)
Working efficiency: 30-40m³/h
Rated voltage: 380V
Hopper size: 2*1m
Conveyor belt: 4x0.6m
Model: 20 vibration type
Main motor: 4kw
Vibration motor: 0.5kw
Screen motor: 4kw
Weight: 1100kg
Machine size: 4.5x1.4x2.4m
Screen size: 1.5x0.6(customizable)
Screen size: 10mm(customizable)
Working efficiency: 50-80m3/h
Rated voltage: 380V
Hopper size: 2*1.05m
Conveyor belt: 4x0.5m
Model: 30 drum type
Main motor: 7.5kw
Vibration motor: 0.5kw
Screen motor: 4kw
Weight: 1500kg
Machine size: 8.3x1.6x3.2m
Screen size: 3x0.8(customizable)
Screen size: 10mm(customizable)
Working efficiency: 60-80m³/h
Rated voltage: 380V
Hopper size: 3.2*1.5m
Conveyor belt: 8x0.8m
Model: 50 vibration type
Main motor: 11kw
Vibration motor: 0.5kw
Screen motor: 7.5kw
Weight: 2000kg
Machine size: 9.2x3.4m
Screen size: 3x1.2(customizable)
Screen size: 10mm(customizable)
Working efficiency: 150-200m³/h
Rated voltage: 380V
Hopper size: 3.8*1.6m
Conveyor belt: 9x1m
Main motor: 11kw
Vibration motor: 0.5kw
Screen motor: 7.5kw
Weight: 2000kg
Machine size: 9.2x3.4m
Screen size: 3x1.2(customizable)
Screen size: 10mm(customizable)
Working efficiency: 150-200m³/h
Rated voltage: 380V
Hopper size: 3.8*1.6m
Conveyor belt: 9x1m
Model: 50 drum type
Main motor: 11kw
Vibration motor: 1kw
Screen motor: 4kw
Weight: 2000kg
Machine size: 9.2*1.9*3.4m
Screen size: 3.5x1(customizable)
Screen size: 10mm(customizable)
Working efficiency: 100-120m³/h
Rated voltage: 380V
Hopper size: 3.7x1.6m
Conveyor belt: 9x1m

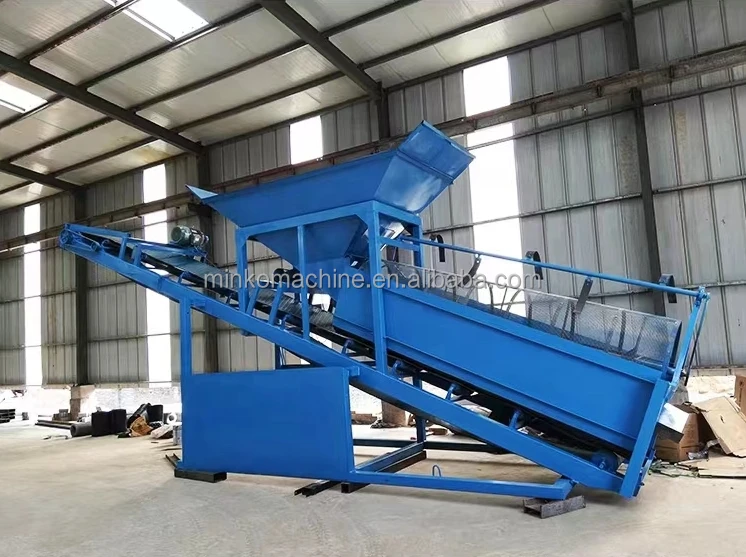

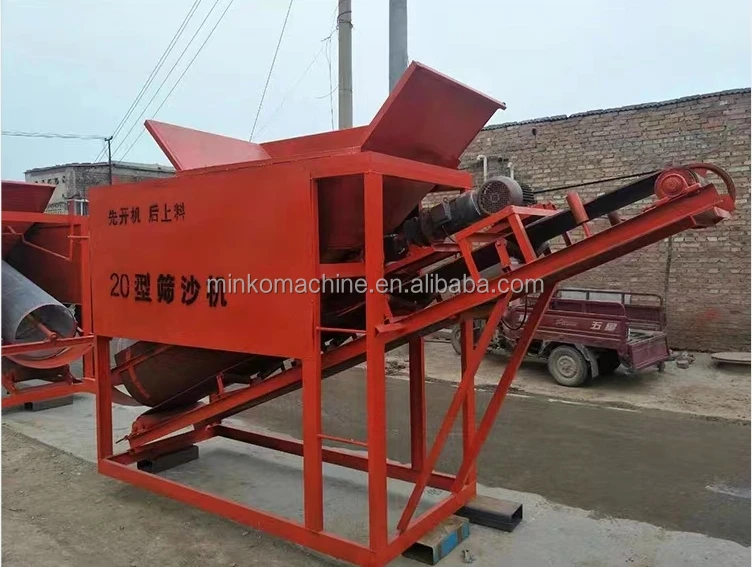

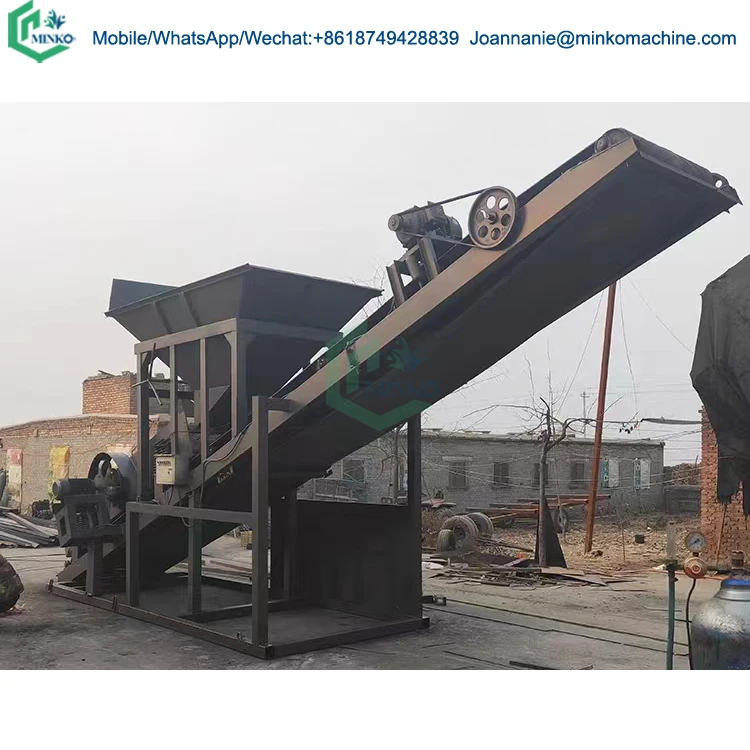

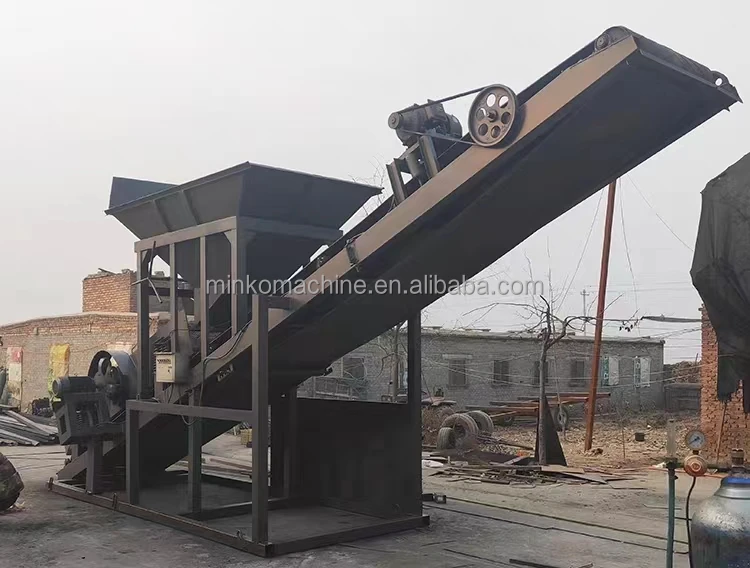

Model 20 roller

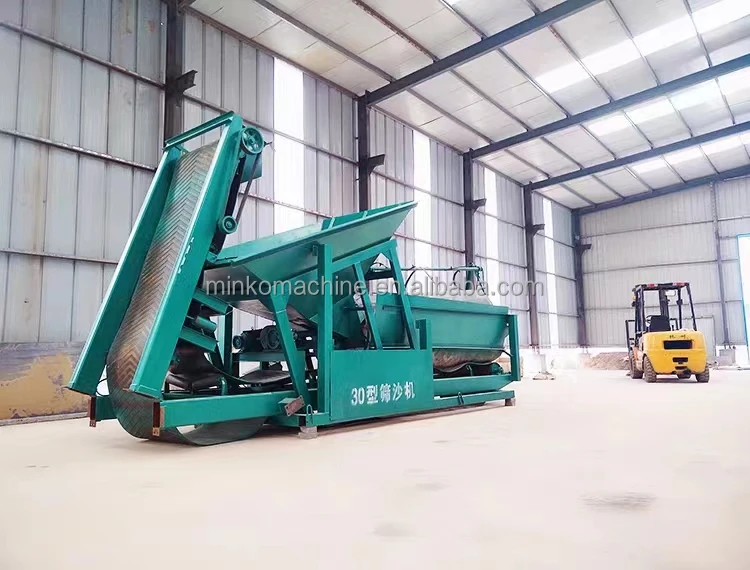

Model 30 roller
Model 50 roller

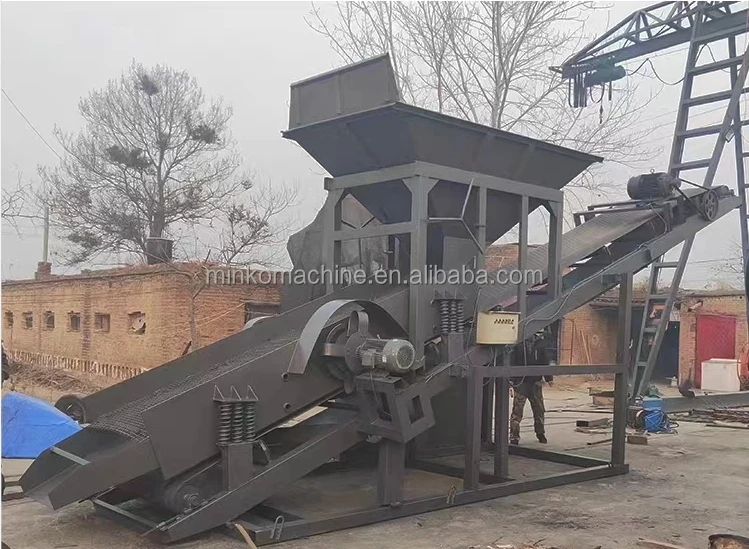

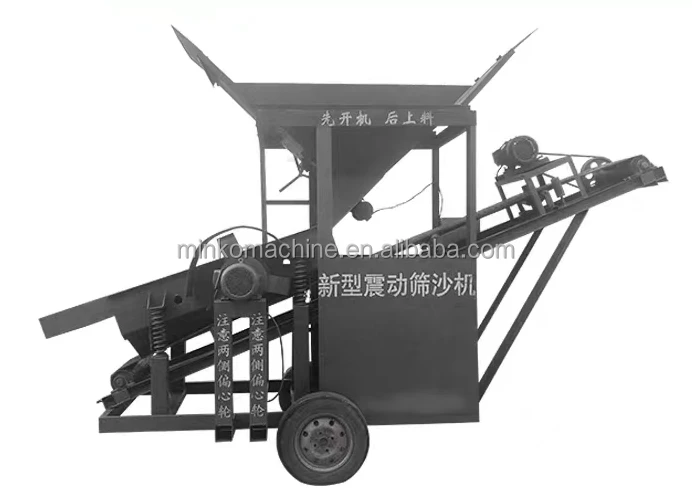

Type 50 vibration

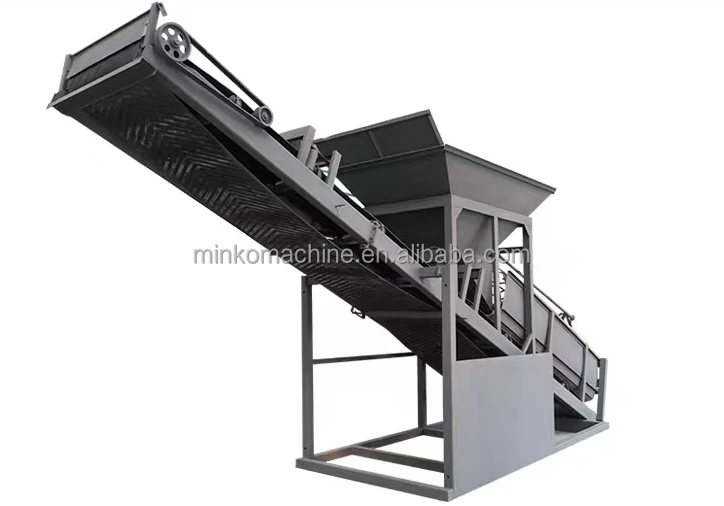

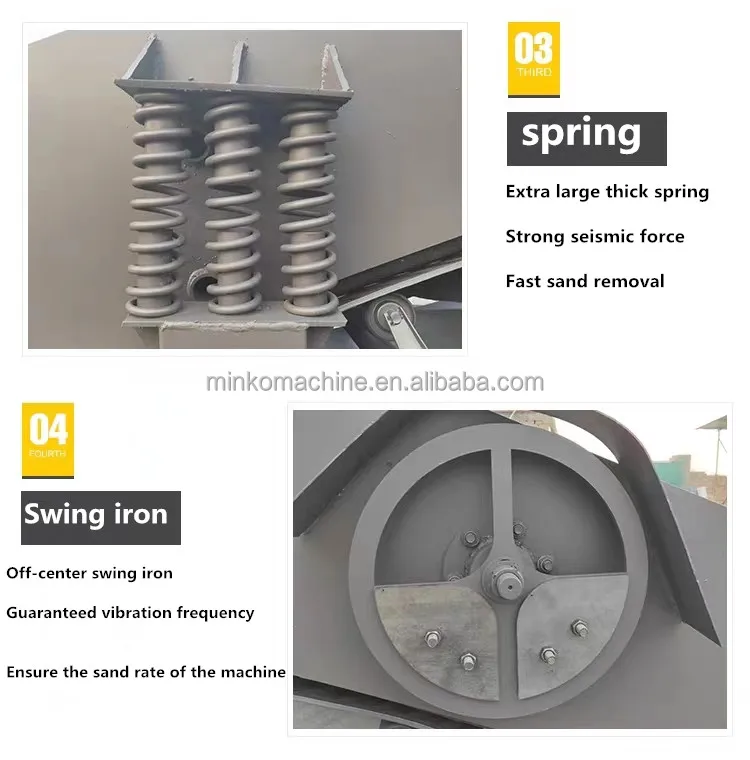

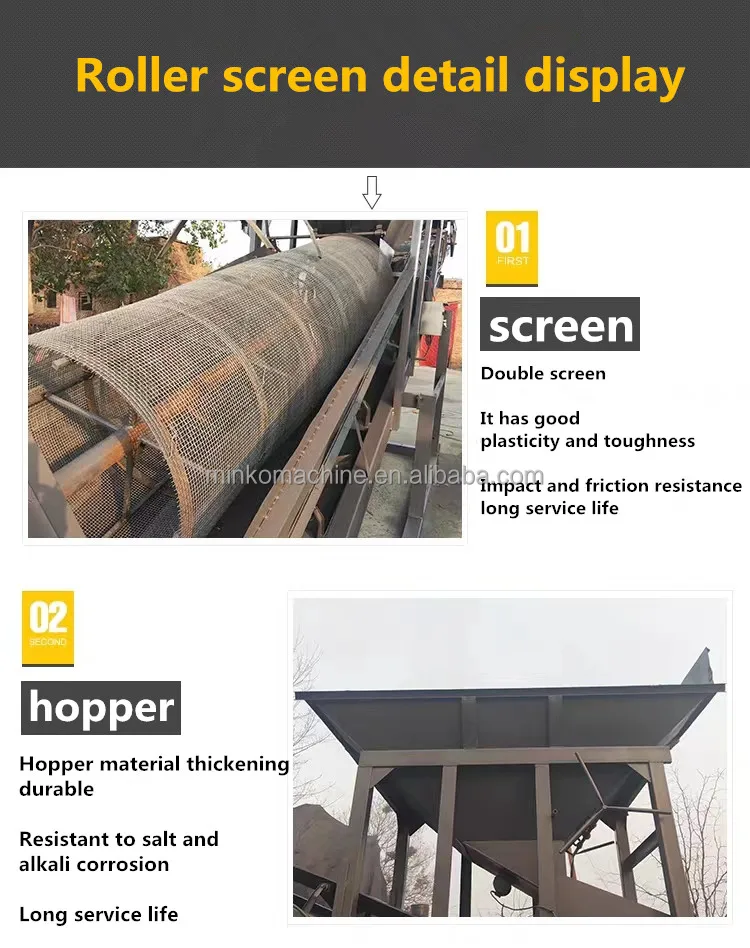

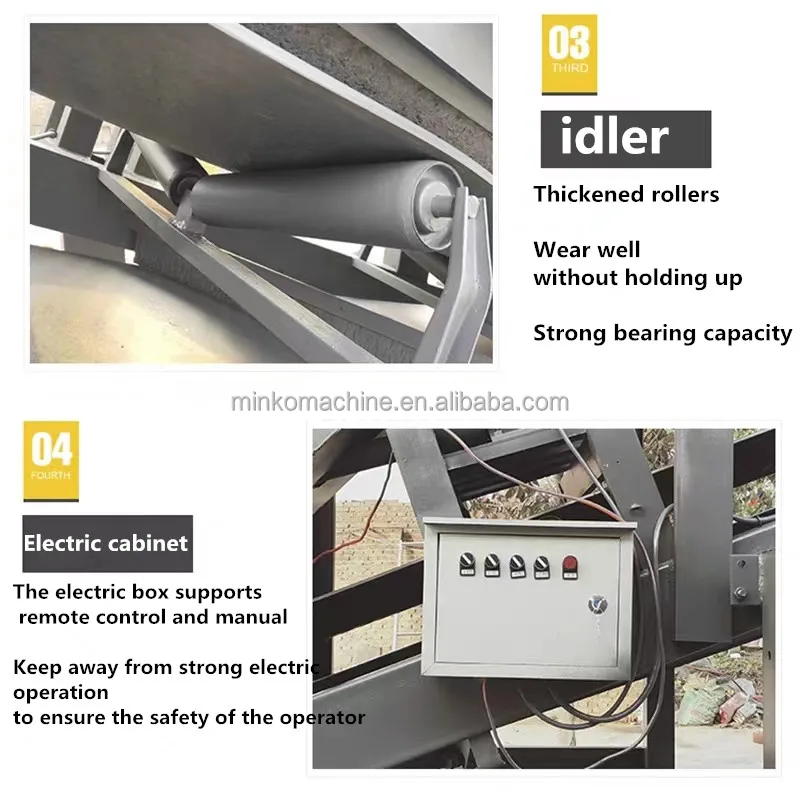

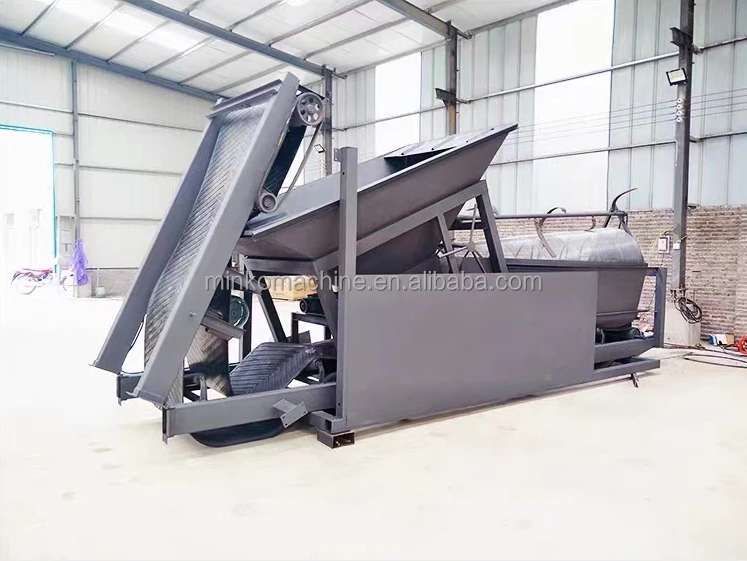

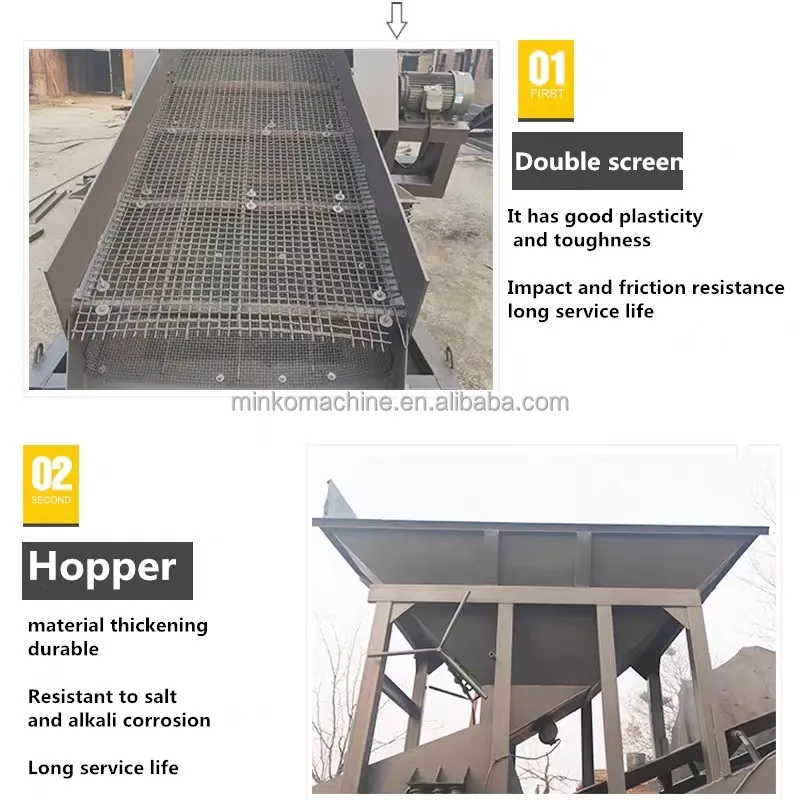

Roller type machine details Vibrating machine details
Recommend Products
Packaging&Shipping
Package
*Moisture-proof inner package *Shockproof inner package
*Insect-proof wooden box package
*Iron fastening tape
*Insect-proof wooden box package
*Iron fastening tape
Shipping
*Land shipping *Rail transportation
*Sea transportation
*Air shipping
*Sea transportation
*Air shipping
Documents
Bill of loading . packing list
Commercial invoice .C/O
FORM A FORM E CE etc
