Canadiansolar Photovoltaic Home Power 290/295/300W Or 350/355/360W 80kw 100kw 110kw On Grid Solar System With Inverter
- Category: >>>
- Supplier: Csi Solartronics (suzhou) Co. Ltd.
Share on (1601035828017):
Product Overview
Description
Products Description

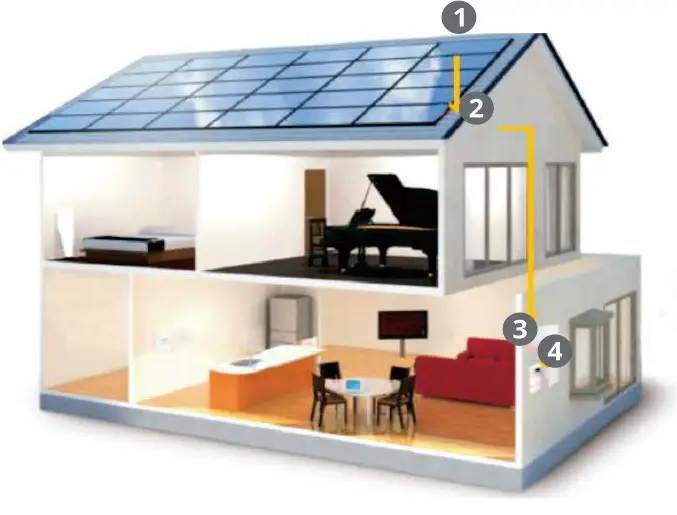

1. Solar Module
Convert sunlight into electric energy.
2. Mounting System
Fix solar panels on surfaces like roofs, building facades, or the ground, etc.
3. Inverter
Convert DC solar energy power into AC power.
4. Distribution Box / Cabinet
Provides safety protection for DC and AC circuits, such as overload, over voltage, over current, short circuit and lightning protection, etc.
Convert sunlight into electric energy.
2. Mounting System
Fix solar panels on surfaces like roofs, building facades, or the ground, etc.
3. Inverter
Convert DC solar energy power into AC power.
4. Distribution Box / Cabinet
Provides safety protection for DC and AC circuits, such as overload, over voltage, over current, short circuit and lightning protection, etc.
If You Are Interested In Our Producs

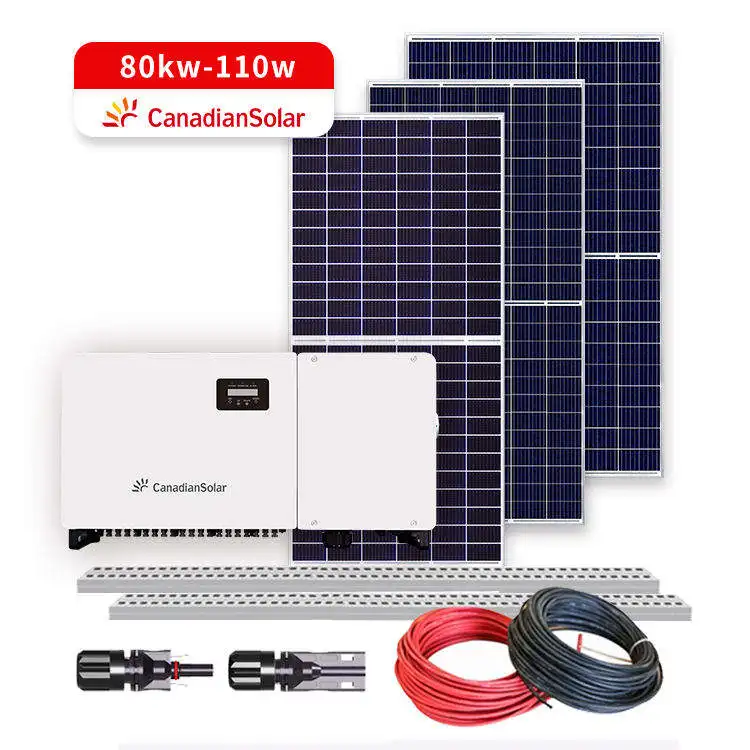

Distributed Solar Power System
Components | Model | 80kw | 100kw | 110kw |
Solar Panel | CS3L-P 350W | 240 pcs | 320 pcs | 340 pcs |
Inverter | CSI-80K/100K/110K-T400 | 1 set | 1 set | 1 set |
Wifi Module | CSI-WIFI | 1 set | 1 set | 1 set |
PV Cable | PV1-F/1x4mm²/red/black | 500 meters | 600 meters | 750 meters |
Compatible Connector | T4 | 24 set | 32 set | 34 set |
Mounting Structure | Standard Pitched Roof | 1 set | 1 set | 1 set |
FEATURES AT A GLANCE

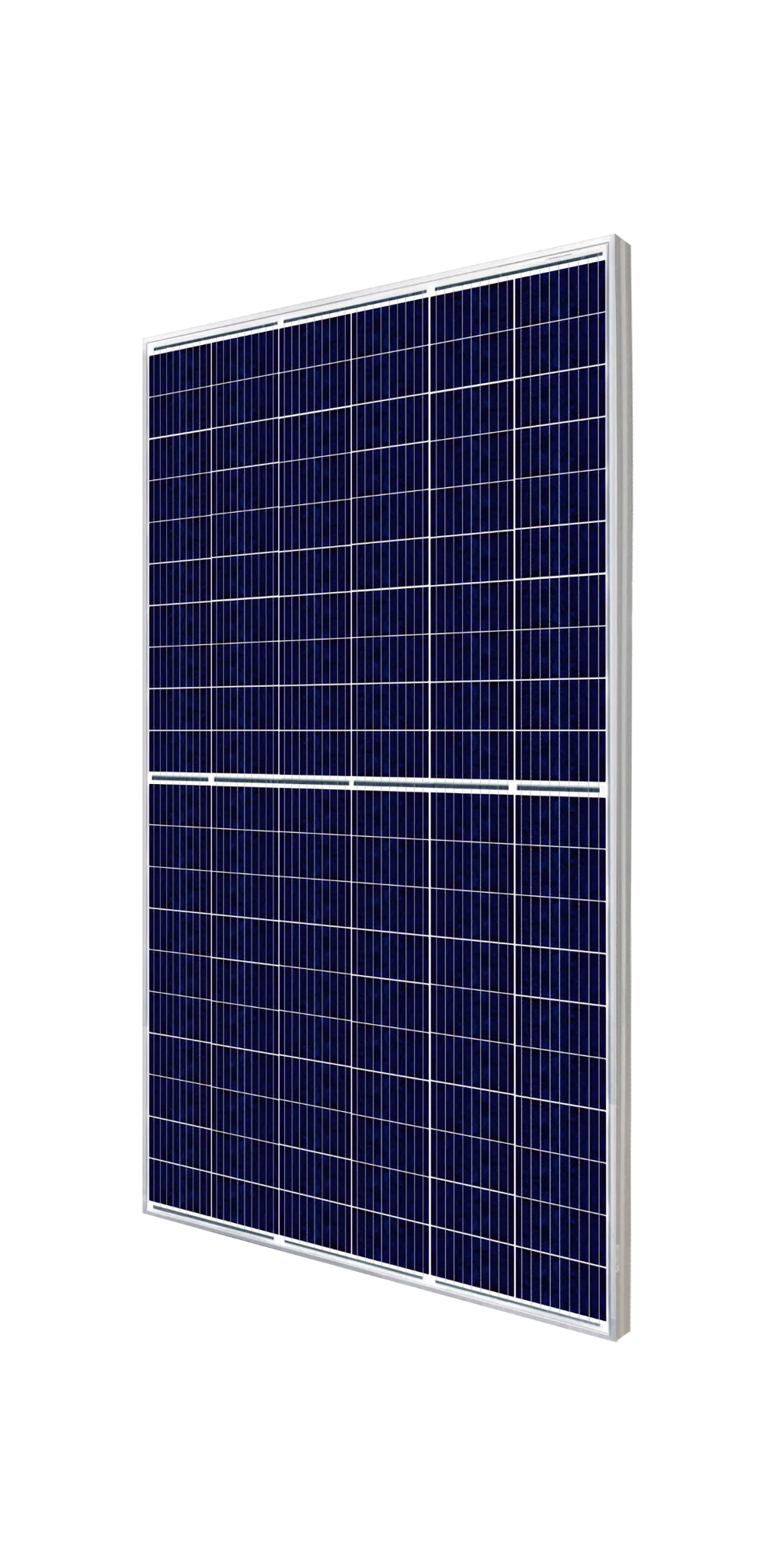

CanadianSolar Hiku
High Power Poly PERC Module 350WMORE POWER
· 24 % higher power than conventional modules
· Up to 4.5 % lower LCOE, Up to 2.7 % lower system cost
· Low NMOT: 42 ± 3 °C, Low temperature coeffi cient (Pmax):-0.36 % / °C
· Better shading tolerance
MORE RELIABLE
· Lower internal current, lower hot spot temperature
· Minimizes micro-crack impacts
· Heavy snow load up to 5400 Pa, wind load up to 3600 Pa
· 24 % higher power than conventional modules
· Up to 4.5 % lower LCOE, Up to 2.7 % lower system cost
· Low NMOT: 42 ± 3 °C, Low temperature coeffi cient (Pmax):-0.36 % / °C
· Better shading tolerance
MORE RELIABLE
· Lower internal current, lower hot spot temperature
· Minimizes micro-crack impacts
· Heavy snow load up to 5400 Pa, wind load up to 3600 Pa
CanadianSolar CSI-80K/100K/110K
Three Phase String Inverter
KEY FEATURES
· Maximum efficiency of 98.7%, Maximum EU efficiency of 98.3%
· 10 MPPTs to achieve higher system efficiency
· 13A input for each PV string
· Integrated DC Switches
· Smart string monitoring and IV curve diagnosis
· Advanced thermal design and convection cooling
HIGH RELIABILITY
· Intelligent redundant fan-cooling
· SPD type II on both DC and AC sides
· Leakage current repression technology
· Fuse free design
· DC reverse polarity protection
BROAD ADAPTIBILITY
· IP66 rated for outdoor application
· Utility interactive controls: Active power derating, reactive power control and over frequency derating
· Wide MPPT range for flexible string sizing
· High switching frequency and ultra fast MPPT for maximum efficiency over a wide load range

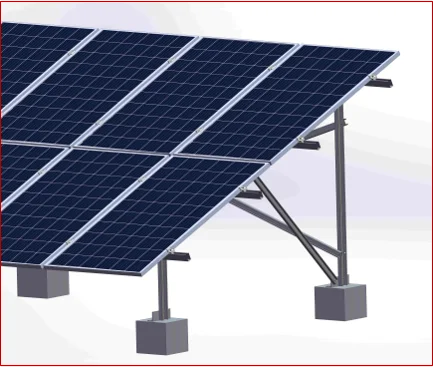

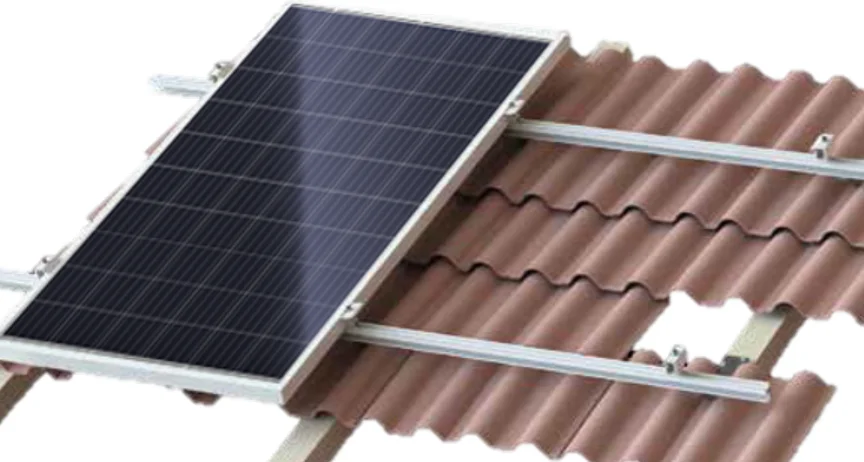

Mounting System
· Fix solar panels on surfaces like roofs, building facades,or the ground, etc.
· Aluminum and stainless steel structure, hot dip galvanized steel, and stainless steel fastener
· Aluminum and stainless steel structure, hot dip galvanized steel, and stainless steel fastener
Accessories
· High quality materials
· Lower contact resistance and higher current transfer capability
· IP68 water-proof rating and can be used in a wide operating temperature range from -40 °C to 90 °C.
· 2 Pfg 1169 PV1-F 1x4mm2, Black / Red, TUV certification
· Lower contact resistance and higher current transfer capability
· IP68 water-proof rating and can be used in a wide operating temperature range from -40 °C to 90 °C.
· 2 Pfg 1169 PV1-F 1x4mm2, Black / Red, TUV certification
More New Products and Information >Click Here To Get<
Company Profile
OUR HISTORY
Dr. Shawn Qu, Chairman, President and Chief Executive Officer founded Canadian Solar (NASDAQ: CSIQ) in 2001 in Canada, with a bold mission: to foster sustainable development and to create a better and cleaner earth for future generations by bringing electricity powered by the sun to millions of people worldwide. Under Dr. Qu’s leadership, we have grown into one of the world’s largest solar photovoltaic products and energy solutions providers, as well as one of the largest solar power plant developers globally.
OUR ACHIEVEMENTS
* More than 46 GW solar modules shipped
* 14 GW module capacity and 10 GW cell capacity
* 17 manufacturing facilities in Asia & Americas
* Active buying customers in more than 150 countries
* Subsidiaries in 20 countries & regions on 6 continents
* 14 GW module capacity and 10 GW cell capacity
* 17 manufacturing facilities in Asia & Americas
* Active buying customers in more than 150 countries
* Subsidiaries in 20 countries & regions on 6 continents
Team & Exhibition
Awards
· No. 1 Top Bankable Manufacturer Rated by BloombergNEF in 2020*
· Tier 1 Solar Company by BloombergNEF 2017-2020
· Leading company in PHOTON PV TRIATHALON 2017
· No. 1 Module Supplier for Quality and Performance/Price Ratio in IHS Module Customer Insight Survey in 2016
· The Best PV Module Manufacturer Award in Brazil by Smart Energy 2016
· No. 1 Silicon module solar plant developer by Greentech Media Research in 2017
· Best Structured Project Bond Award by Environmental Finance
· 2017 TWO DEAL OF THE YEAR AWARDS FROM POWER FINANCE & RISK in 2018
· Intersolar North America 2012 Solar Project Award Finalist
*100% of respondents surveyed by BloombergNEF considered Canadian Solar's modules bankable. Note that it is the respondents considering this, not BNEF.
Successful Project
Project in Nigeria
Project in USA
Project in Canada
Certifications
FAQ
Q1: Can the product be shipped to my area?
A1: We export to most area of Southeast Asia, USA/Canada, Europe, Brazil/Caribbean/Central America, We will check and confirm for you after you provide the region.
A1: We export to most area of Southeast Asia, USA/Canada, Europe, Brazil/Caribbean/Central America, We will check and confirm for you after you provide the region.
Q3: What about the lead time?
A3: 10 days for ＜100kW requirements, we need to negotiate if your needs ≥100kW.
A3: 10 days for ＜100kW requirements, we need to negotiate if your needs ≥100kW.
Q2: How can I make payment?
A2:100% TT or maximum we can accept 30% TT in advance and 70% TT upon goods ready before shipment
A2:100% TT or maximum we can accept 30% TT in advance and 70% TT upon goods ready before shipment
Q4: What is the mode of transport?
A4: International section is generally sea transport, after entry we will use multimodal transport of rail, barge.
Q5: What’s the warranty?
A5: Standard Warranty is 5 years in most region.
A5: Standard Warranty is 5 years in most region.
