magnetic filter/filting machine
- Category: >>>
- Supplier: Suzhou Golden Eagle Machinery & Equipment Co. Ltd.Suzhou Ltd.
Share on (1601036002419):
Product Overview
Description

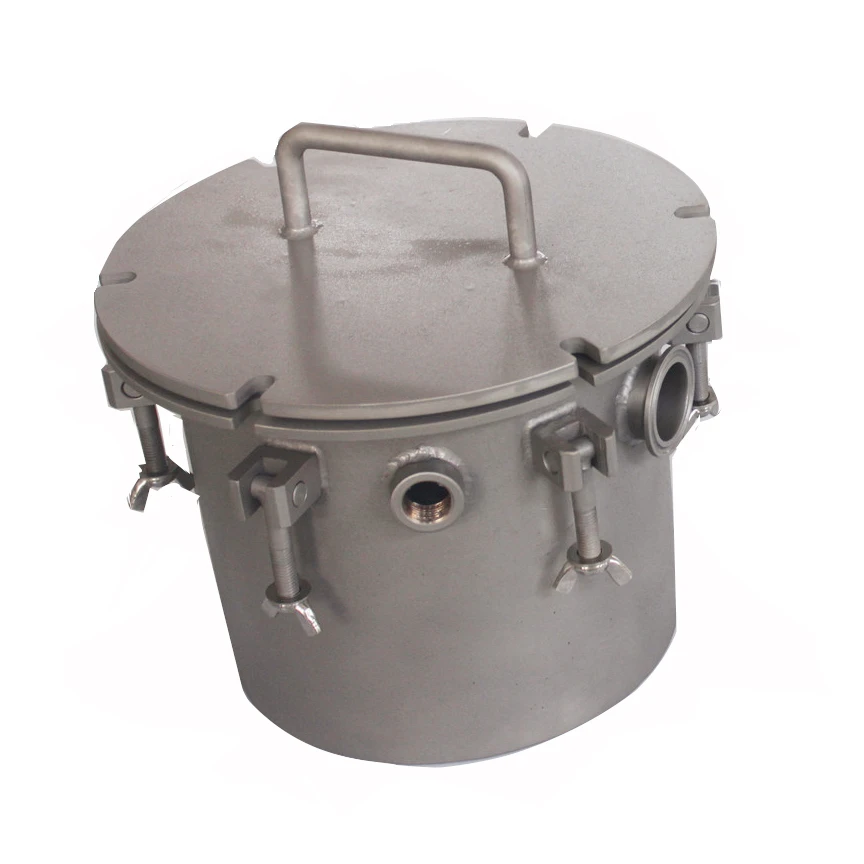

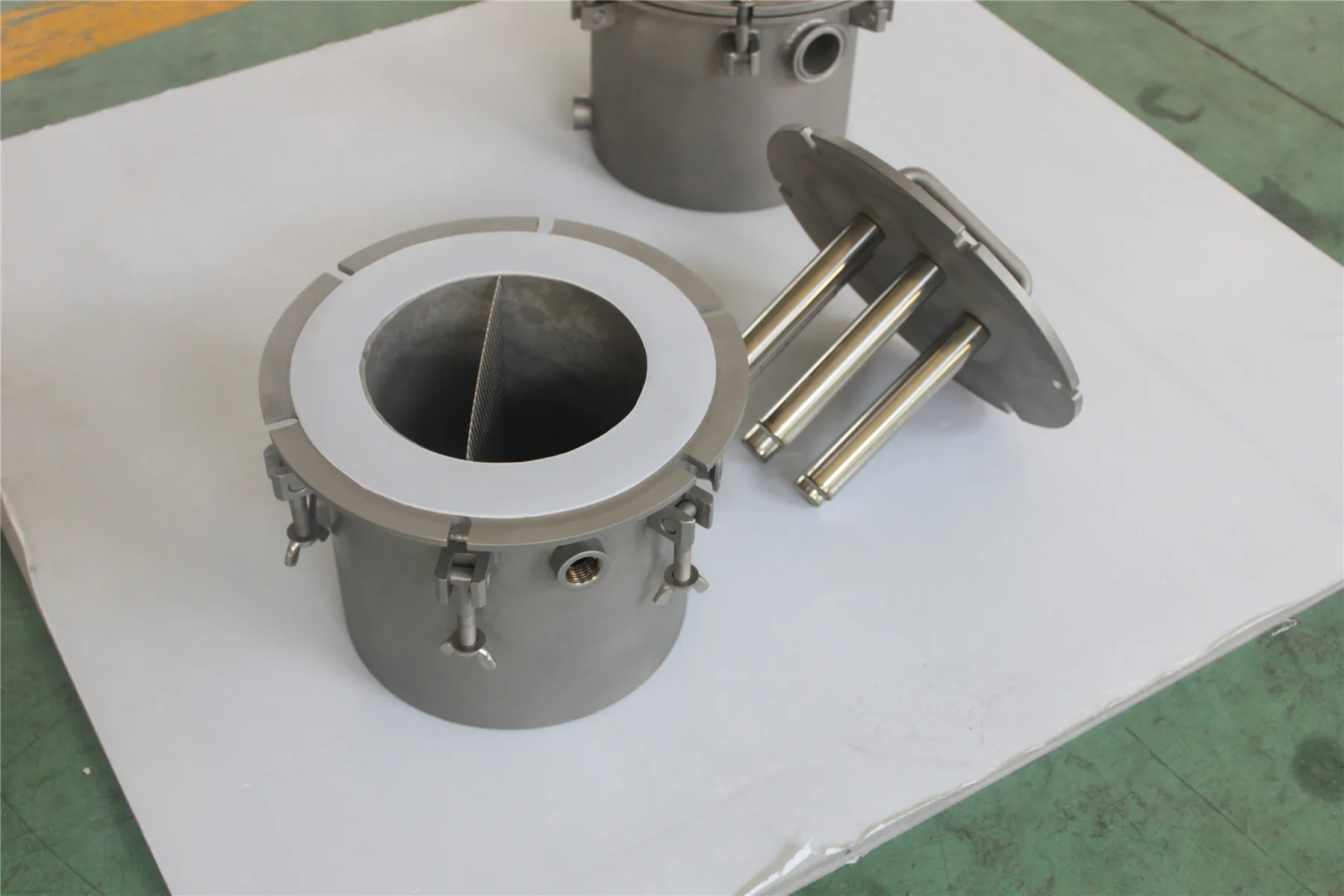

This filter is with magnetic bars and screen inside, put after discharging of conche used to filt metals and some impurities in products.
Made of SS304 stainless steel.
fast disassembling clamp connection.
Products description
Application:

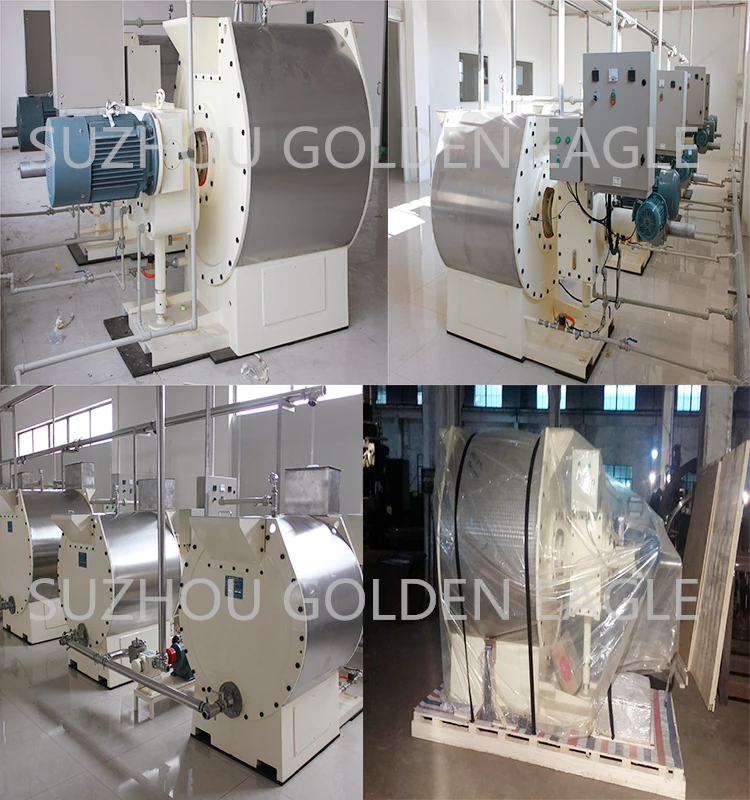

Chocolate conche machine is one of the major machines for fine grinding chocolates and can also be used to grind soya flour, oil plants and the raw materials for daily-use chemicals with requirements for fine granules.
Our max output reaches 38 units per month, Average monthly output 25 units.
More details:
- Double layers for hot water.
- Motor: good brand Chinese motor
- Electrics: Schneider or omron
- Sticks and scrapers Material: 65#Mn steel after heat treatment with high strength, hardness and good abrasion resistence. Life is about 3 yeasrs with normal use.
- Machine body: painted carbon steel
- with temperature probe and temperature controller for automatically control.
- Spare parts: 1pcs electrical heatings, some pcs linears, 1pcs scrapers, about 1 meter packing.
Technical parameters:
| Model | QYJ20 | QYJ100 | QYJ500 | QYJ1000 | QYJ1500 | QYJ2000 | QYJ3000 |
| Maximum capacity(L) | 20 | 100 | 500 | 1000 | 1500 | 2000 | 3000 |
| Grinding Fineness(micron) | 20~25 | 20~25 | 20~25 | 20~25 | 20~25 | 20~25 | 20~25 |
| Main Axle Rotating Speed(rpm) | 93 | 48 | 33 | 35 | 35 | 35 | 35 |
| Grinding time(h) | 8~10 | 12~16 | 16~22 | 16~22 | 16~22 | 16~22 | 16~22 |
| Main motor power(kw) | 1.5 | 5.5 | 15 | 18.5 | 30 | 37 | 45 |
| Electrical heating power(kw) | 0.6 | 2.5 | 5 | 2X2 | 6 | 3x2 | 12 |
| Power of spot operation motor(kw) | manual | manual | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Weight(kg) | 295 | 1050 | 2572 | 2950 | 4850 | 5350 | 7500 |
| Outside dimensions(mm) | 920*600 *1110 | 1200*1150 *1050 | 2465*1146 *1312 | 2627*1280 *1520 | 2918*1650 *1920 | 3040*1912 *1920 | 3450*2016 *2280 |
Optional:
- imported motor and electric parts.
- Solenoid valve to control cooling water automatically.
- standard is button cotrol, we can make PLC control with touch screen if you want.
- Other speciall requirements, let us know before putting order.
