Hybrid inverter DEYE brand 8kw 10kw 12kw SUN 8K SG04LP1 EU on grid DEYE off grid hybrid inverter with wifi
- Category: >>>
- Supplier: Jiangsu Solarman Technology Co. Ltd.
Share on (1601036086723):
Product Overview
Description
Product Description

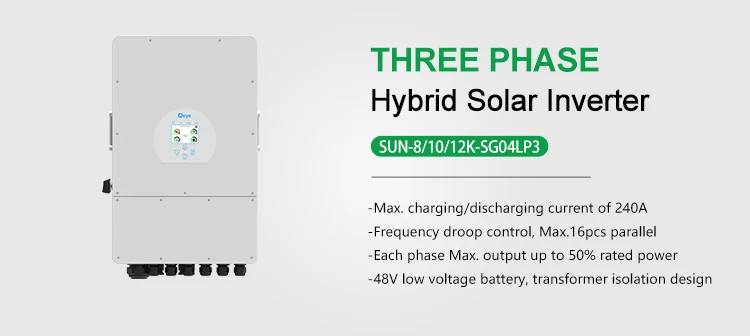

SUN-8/10/12K-SG04LP3-EU

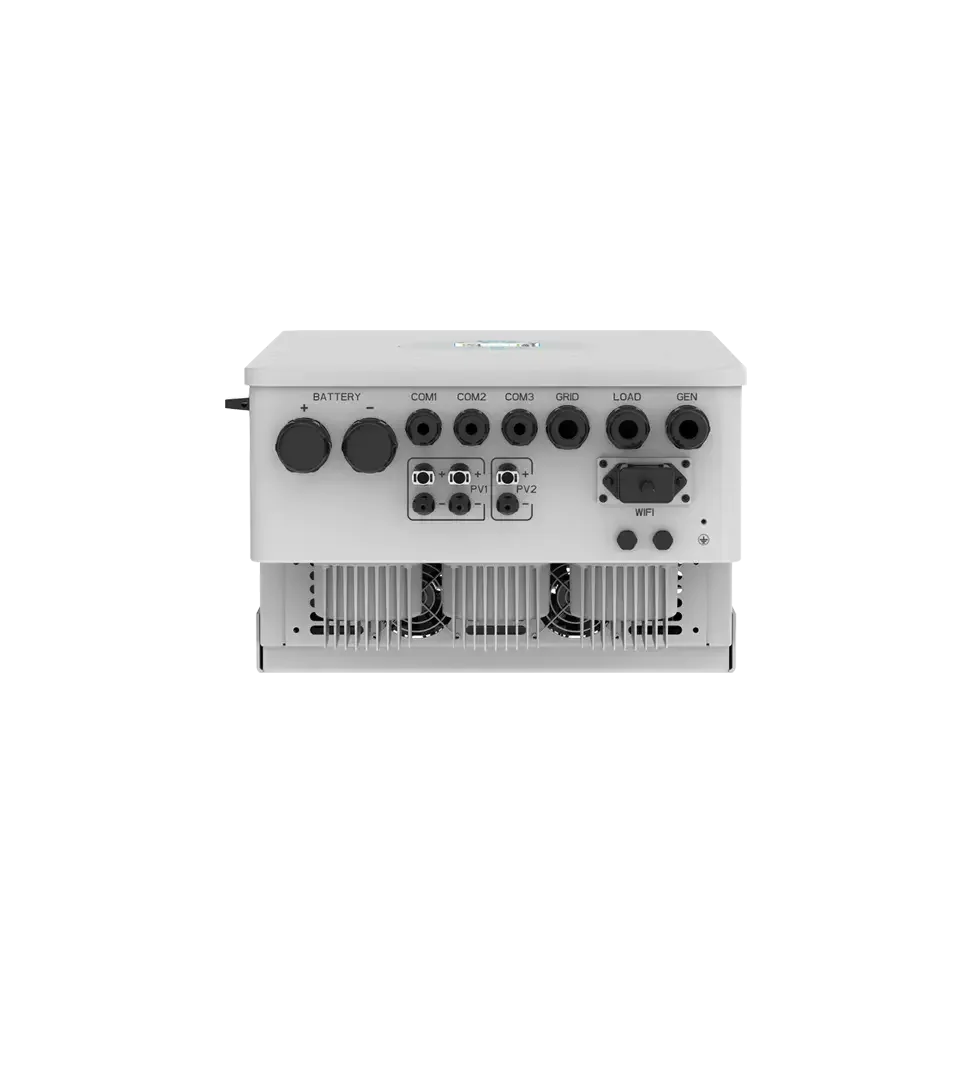

is brand new three phase hybrid inverter with low battery voltage 48V, ensuring system safe and reliable.With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios. Equipped with CAN port (x2) BMS and parallel, x1 RS485 port for BMS,x1 RS232 port for remotely control, x1 DRM port, which makes the system smart and flexible.
Technical Specifications
Model | SUN-8K-SG04LP3 | SUN-10K-SG04LP3 | SUN-12K-SG04LP3 | |||
Battery Input Data | ||||||
Battery Type | Lead-acid or Li-lon | |||||
Battery Voltage Range (V) | 40~60V | |||||
Max. Charging Current (A) | 190A | 210A | 240A | |||
Max. Discharging Current (A) | 190A | 210A | 240A | |||
Charging Curve | 3 Stages / Equalization | |||||
External Temperature Sensor | Optional | |||||
Charging Strategy for Li-Ion Battery | Self-adaption to BMS | |||||
PV String Input Data | ||||||
Max. DC Input Power (W) | 10400W | 13000W | 15600W | |||
Rated PV Input Voltage (V) | 550V (150V~800V) | |||||
MPPT Range (V) | 200V-650V | |||||
Start-up Voltage (V) | 160V | |||||
Full Load DC Voltage Range | 350-650 | |||||
PV Input Current (A) | 13+13 | 26+13 | ||||
No.of MPPT Trackers | 2 | |||||
No.of Strings Per MPPT Tracker | 1+1 | 2+1 | ||||
AC Output Data | ||||||
Rated AC Output and UPS Power (W) | 8000W | 10000W | 12000W | |||
Max. AC Output Power (W) | 8800W | 11000W | 12000W | |||
Peak Power (off grid) | 2 times of rated power, 10 S | |||||
AC Output Rated Current (A) | 12A | 15A | 18A | |||
Max. AC Current (A) | 18A | 23A | 27A | |||
Max. Continuous AC Passthrough (A) | 50A | |||||
Output Frequency and Voltage | 50/60Hz; 230/400Vac (Three phase) | |||||
Grid Type | Current Harmonic Distortion | |||||
Current Harmonic Distortion | THD<3% (Linear load<1.5%) | |||||
Efficiency | ||||||
Max. Efficiency | 97.60% | |||||
Euro Efficiency | 97.00% | |||||
MPPT Efficiency | 99.90% | |||||
Protection | PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Output Over Voltage Protection | |||||
Surge protection | DC Type II / AC Type II | |||||
Certififications and Standards | ||||||
Grid Regulation | IEC61727, IEC62116, IEC60068, IEC61683, NRS 097-2-1 | |||||
Safety EMC / Standard | IEC62109-1/-2, IEC61000-6-1, IEC61000-6-3, IEC61000-3-11, IEC61000-3-12 | |||||
General Data | ||||||
Operating Temperature Range (℃ ) | -25~60℃ , >45℃ Derating | |||||
Cooling | Smart cooling | |||||
Noise (dB) | <30 dB | |||||
Communication with BMS | RS485; CAN | |||||
Weight (kg) | 36.8 | |||||
Size (mm) | 422W×658H×281D | |||||
Protection Degree | IP65 | |||||
Installation Style | Wall-mounted | |||||
Warranty | 5 years | |||||
Basic System Architecture
This illustration shows basic application of this inverter.It is a complete power generation operation system. This
inverter can power all kinds of appliances in home or office environment, including motor type appliances such as refrigerator and air conditioner. Consult with SOLARMAN for other possible system architectures depending on your requirements.
inverter can power all kinds of appliances in home or office environment, including motor type appliances such as refrigerator and air conditioner. Consult with SOLARMAN for other possible system architectures depending on your requirements.
