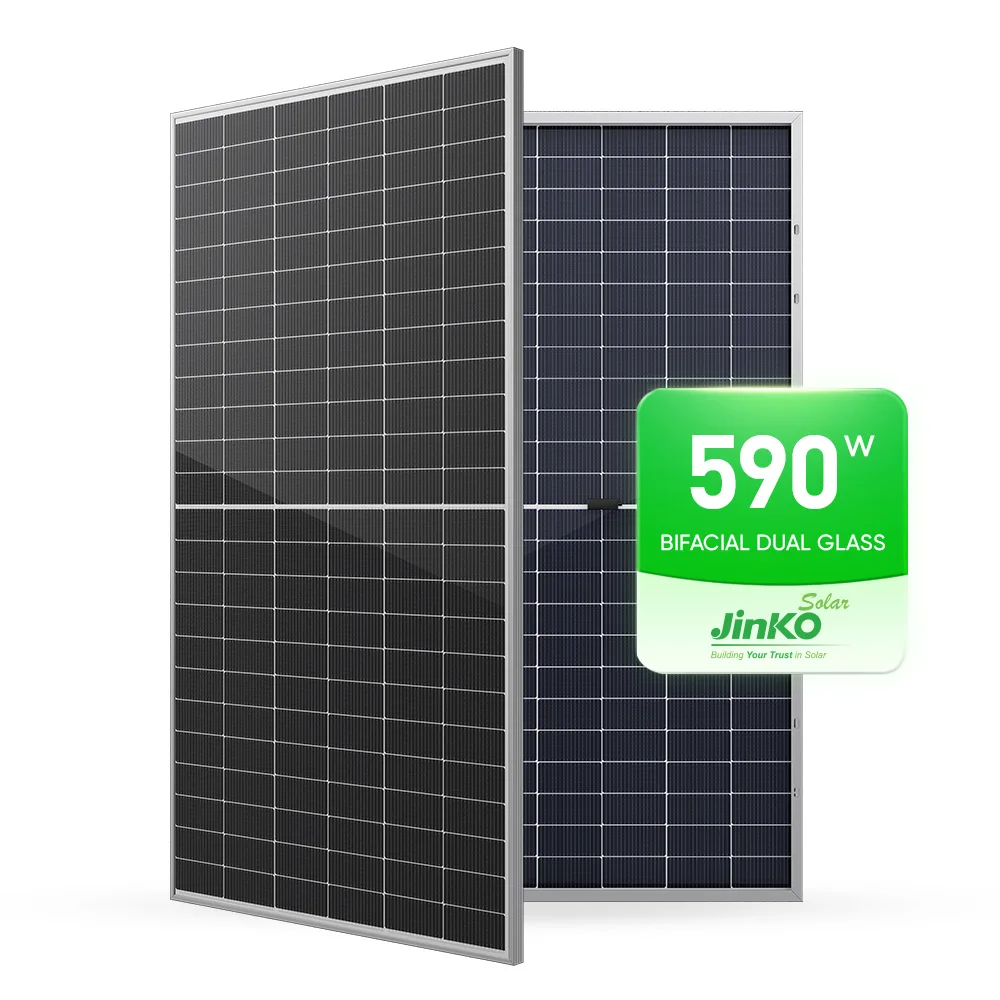

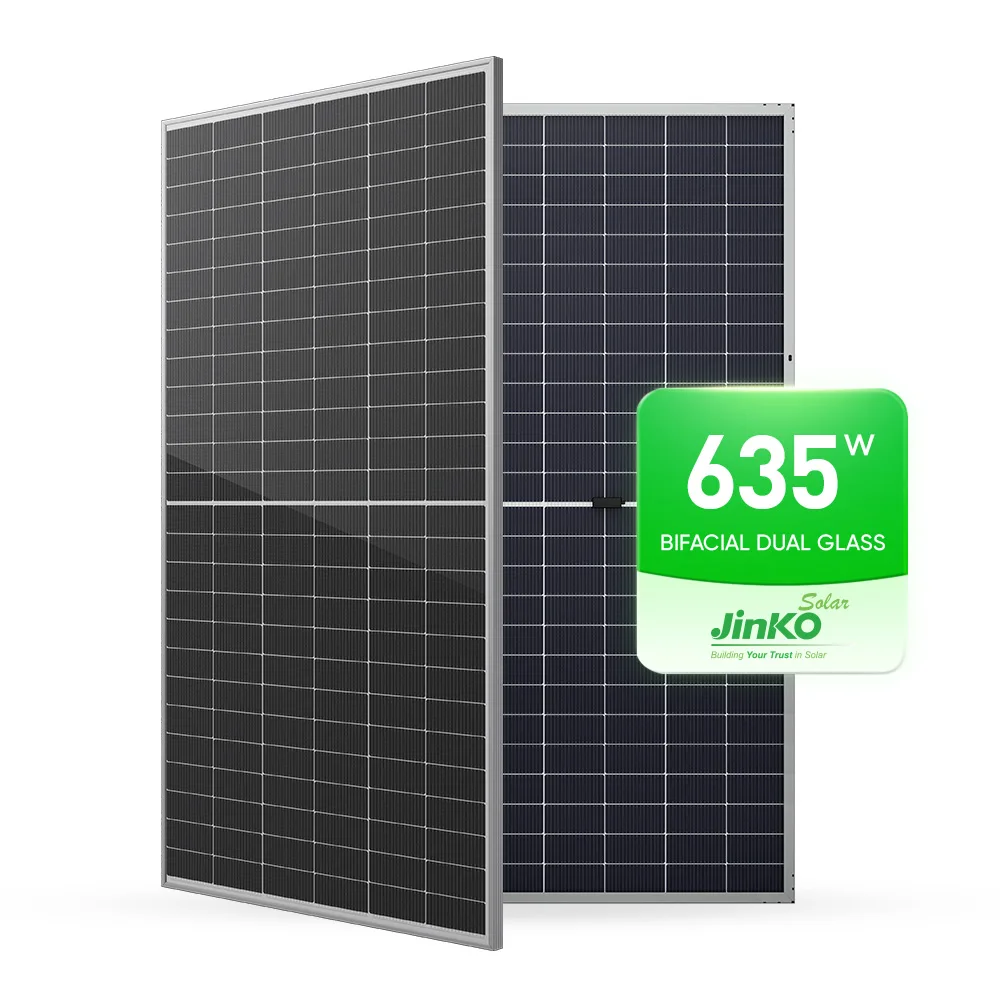

Jinko N Type Topcon Solar Panels 555W 580W 620W 625 Watt Bifacial half cut cell Pv Module Solar Panel
- Category: >>>
- Supplier: Sunpal Solar Co. Ltd.Sunpal Ltd.
Share on (1601036190260):
Product Overview
Description

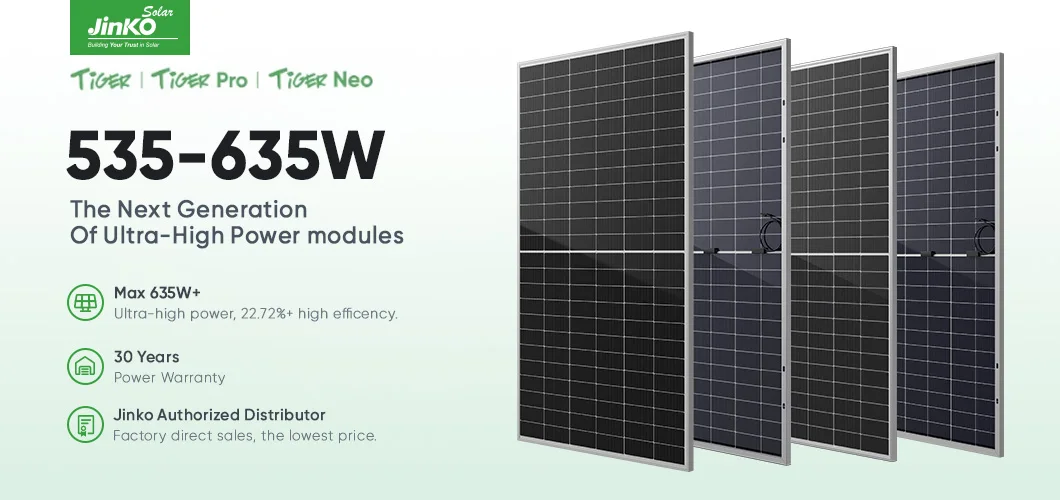

Jinko Solar Panel

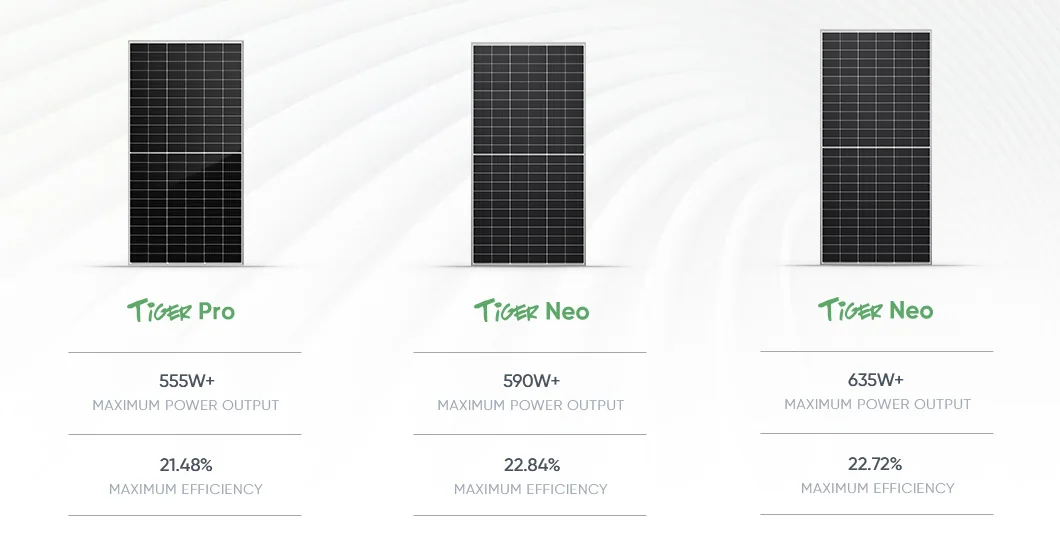

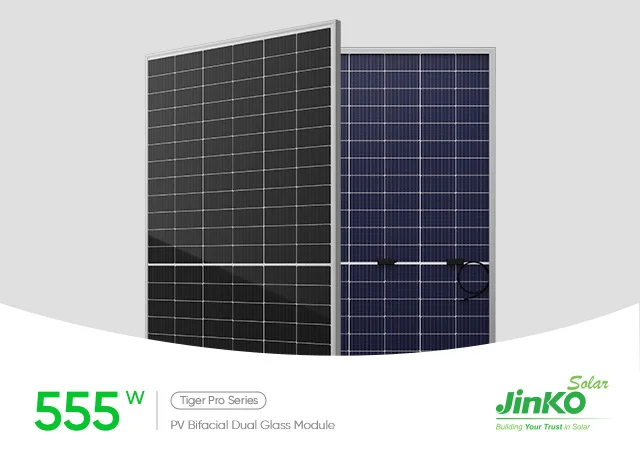

Jinko Tiger Series
Tiger Pro 72HC 535-555 Watt BI-FACIAL MODULE | ||||||||||
Maximum Power（Pmax/W） | 535 | 540 | 545 | 550 | 555 | |||||
Voltage at Maximum Power(Vmp/V) | 40.94 | 41.13 | 41.32 | 41.51 | 41.70 | |||||
Current at Maximum Power(Imp/A) | 13.07 | 13.13 | 13.19 | 13.25 | 13.31 | |||||
Open Circuit Voltage（Voc/V) | 49.54 | 49.73 | 49.92 | 50.11 | 50.30 | |||||
Short Circuit Current(lsc/A) | 13.83 | 13.89 | 13.95 | 14.04 | 14.07 | |||||
Module Efficiency(%) | 20.71% | 20.90% | 21.10% | 21.29% | 21.48% | |||||

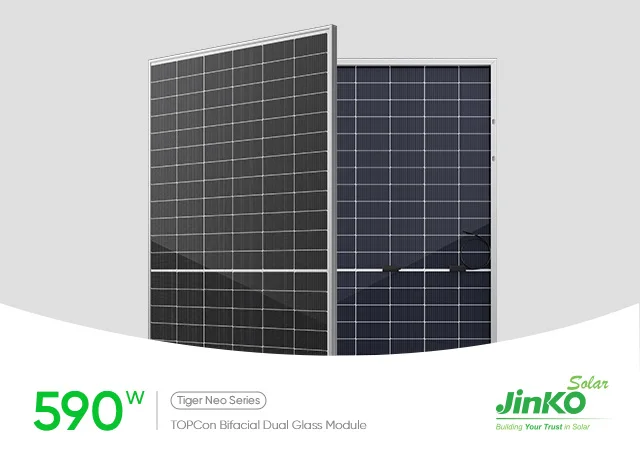

Tiger Neo 72HL4 570-590 Watt BI-FACIAL MODULE | ||||||||||
Maximum Power（Pmax/W） | 570 | 575 | 580 | 585 | 590 | |||||
Voltage at Maximum Power(Vmp/V) | 43.58 | 43.73 | 43.88 | 44.02 | 44.17 | |||||
Current at Maximum Power(Imp/A) | 13.08 | 13.15 | 13.22 | 13.29 | 13.36 | |||||
Open Circuit Voltage（Voc/V) | 52.10 | 52.30 | 52.50 | 52.70 | 52.90 | |||||
Short Circuit Current(lsc/A) | 13.83 | 13.89 | 13.95 | 14.01 | 14.07 | |||||
Module Efficiency(%) | 22.07% | 22.26% | 22.45% | 22.65% | 22.84% | |||||

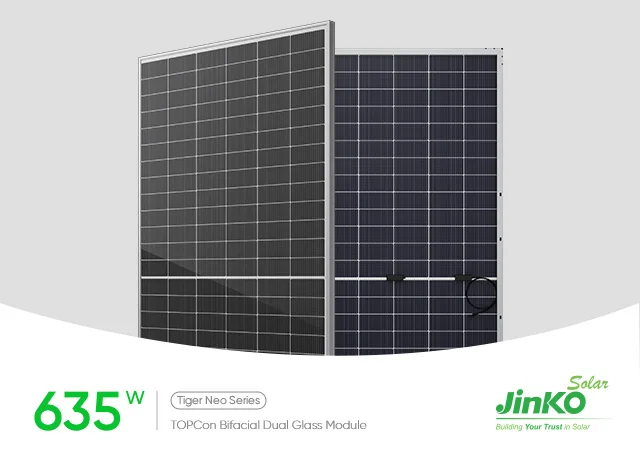

Tiger Neo N-type 78HL4 615-635 Watt BI-FACIAL MODULE | ||||||||||
Maximum Power（Pmax/W） | 615 | 620 | 625 | 630 | 635 | |||||
Voltage at Maximum Power(Vmp/V) | 47.20 | 47.37 | 47.54 | 47.70 | 47.86 | |||||
Current at Maximum Power(Imp/A) | 13.03 | 13.09 | 13.15 | 13.21 | 13.27 | |||||
Open Circuit Voltage（Voc/V) | 56.69 | 56.82 | 56.95 | 57.08 | 57.21 | |||||
Short Circuit Current(lsc/A) | 13.68 | 13.74 | 13.80 | 13.86 | 13.92 | |||||
Module Efficiency(%) | 22.00% | 22.18% | 22.36% | 22.54% | 22.72% | |||||
Power Range: 535-554WNo. of Cells: 144 cells
Dimension: 2278×1134×30mmWeight: 31 kg
Modules per box: 36pcs
Modules per 40' container: 720pc
Power Range: 570-590W
No. of Cells: 144 cells
Dimension: 2278×1134×30mm
Weight: 31 kg
Modules per box: 36pcs
Modules per 40' container: 720pcs
No. of Cells: 144 cells
Dimension: 2278×1134×30mm
Weight: 31 kg
Modules per box: 36pcs
Modules per 40' container: 720pcs
Power Range: 615-635WNo. of Cells: 156 cells
Dimension: 2465×1134×30mm
Weight: 34 kg
Modules per box: 36pcs
Modules per 40' container: 576pcs
Dimension: 2465×1134×30mm
Weight: 34 kg
Modules per box: 36pcs
Modules per 40' container: 576pcs

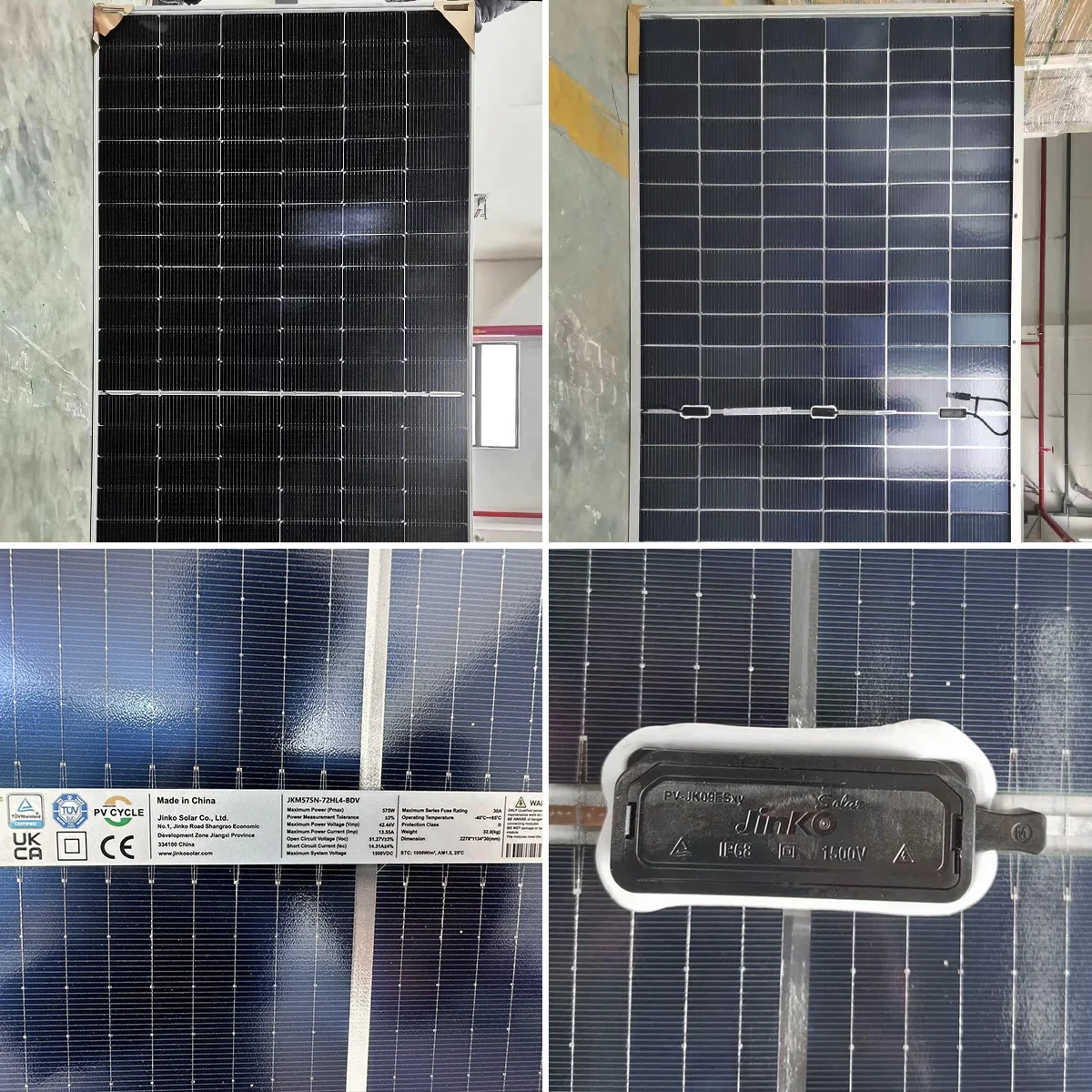

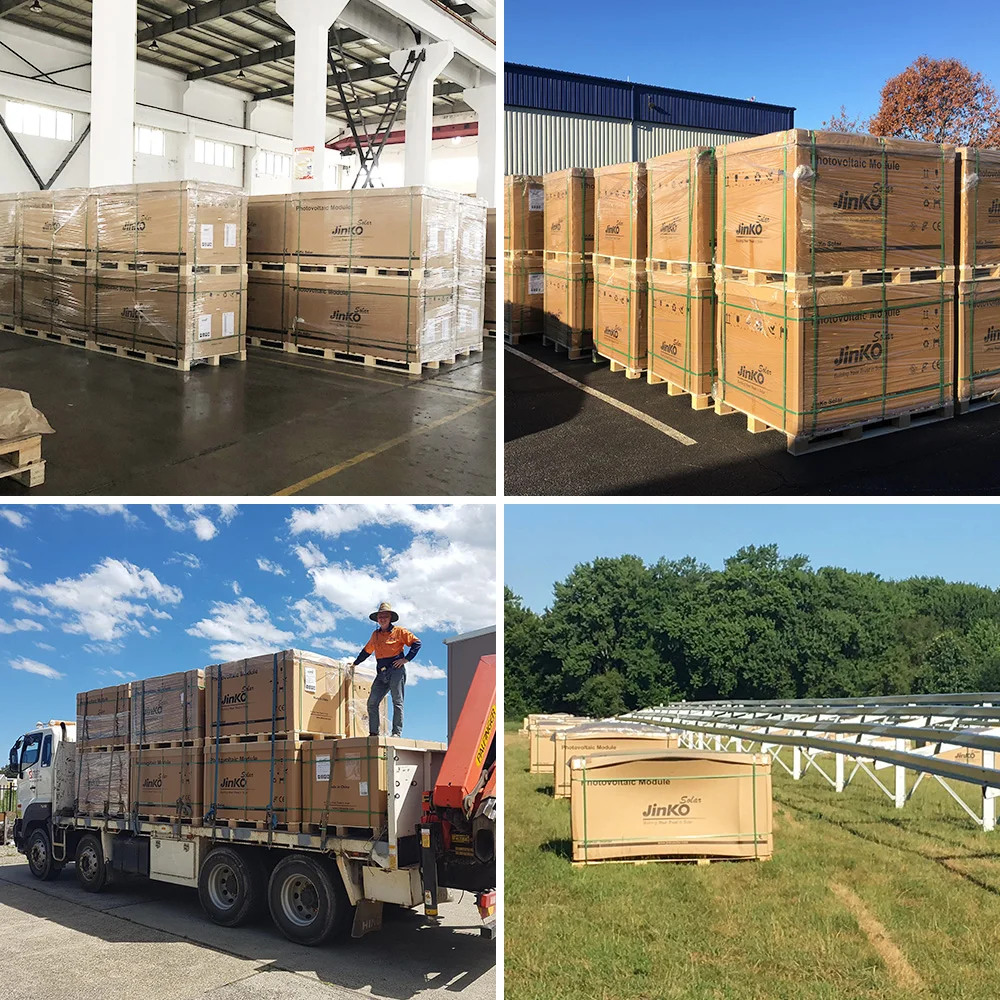

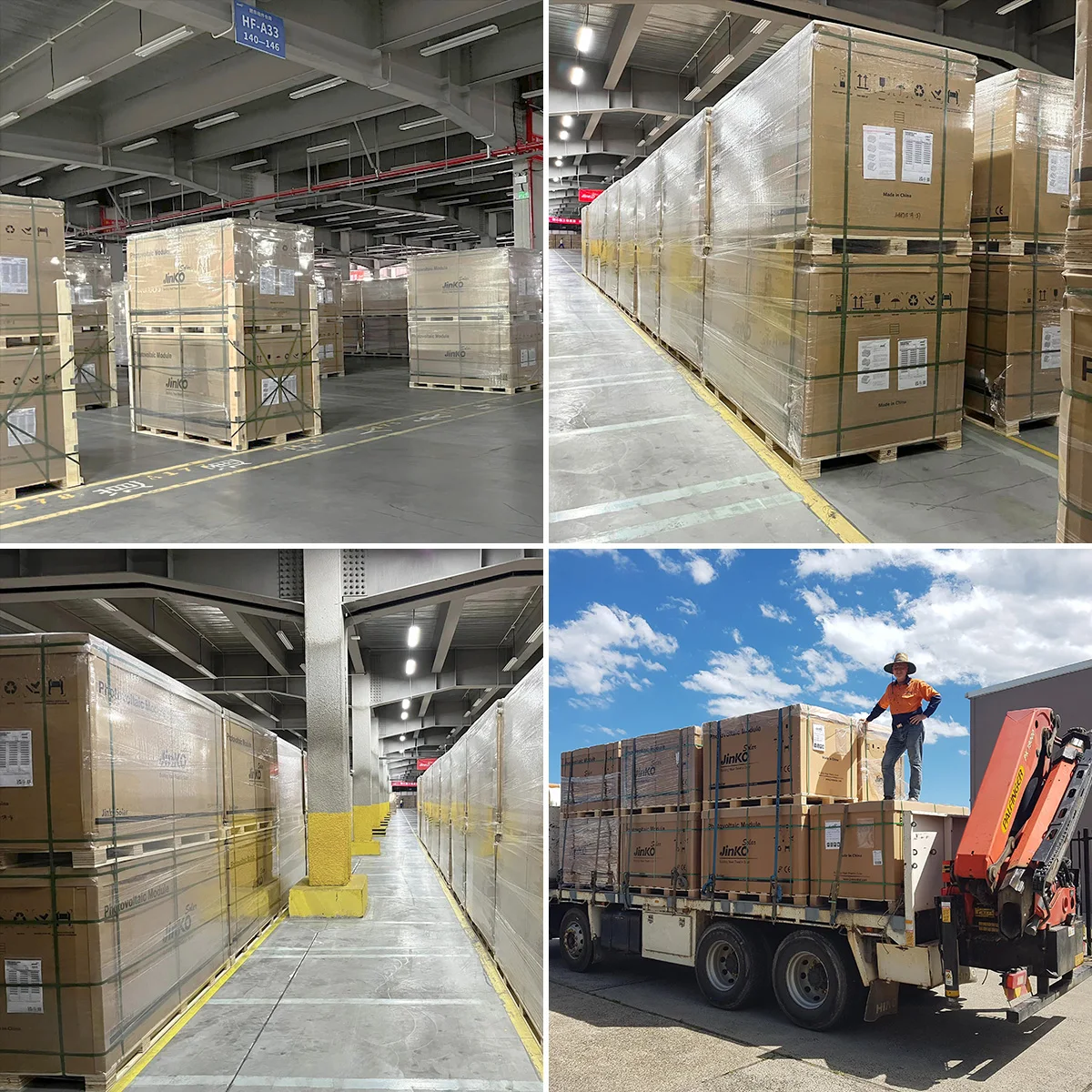

Pictures and Packages

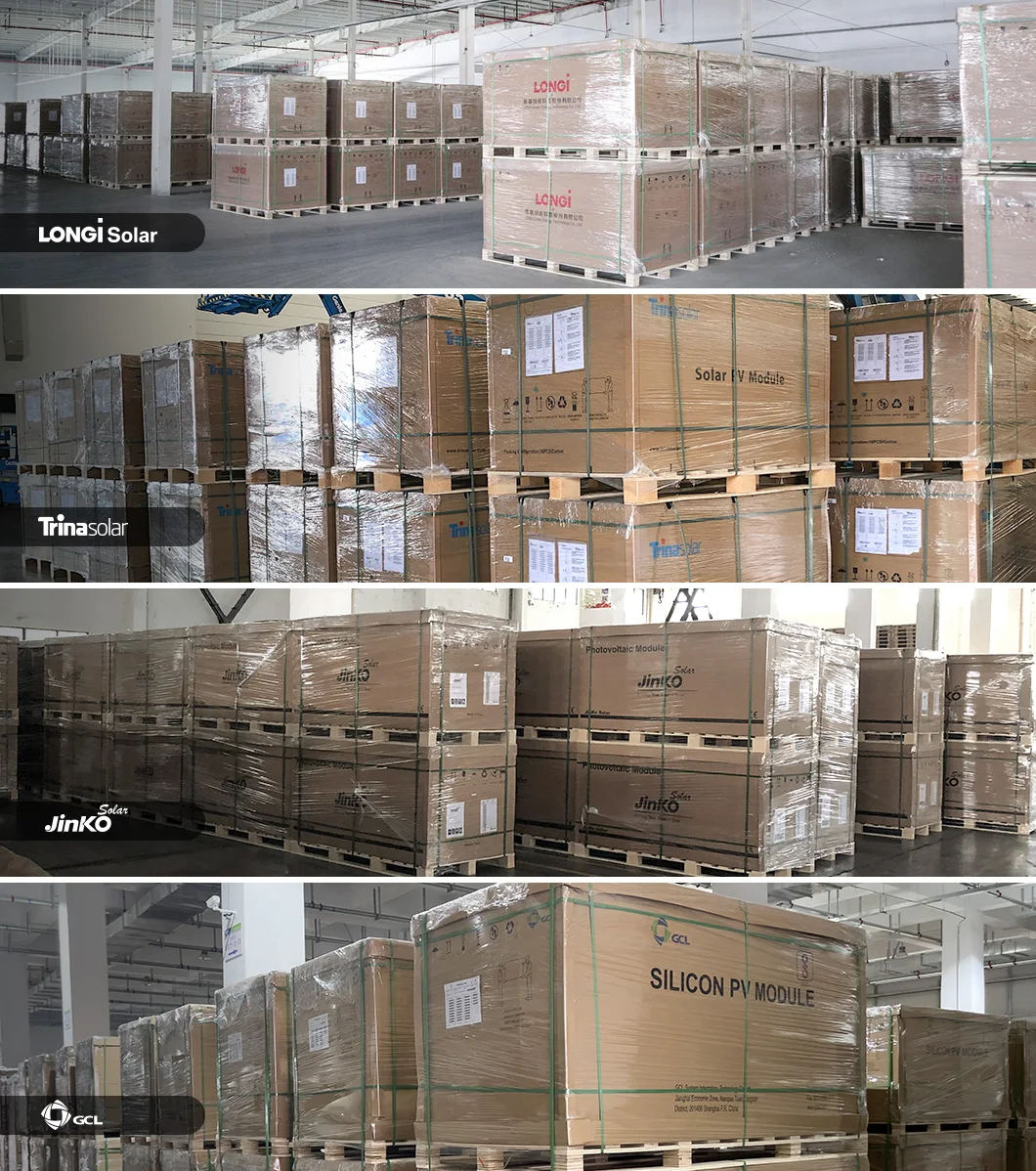

Tier 1 Solar Module

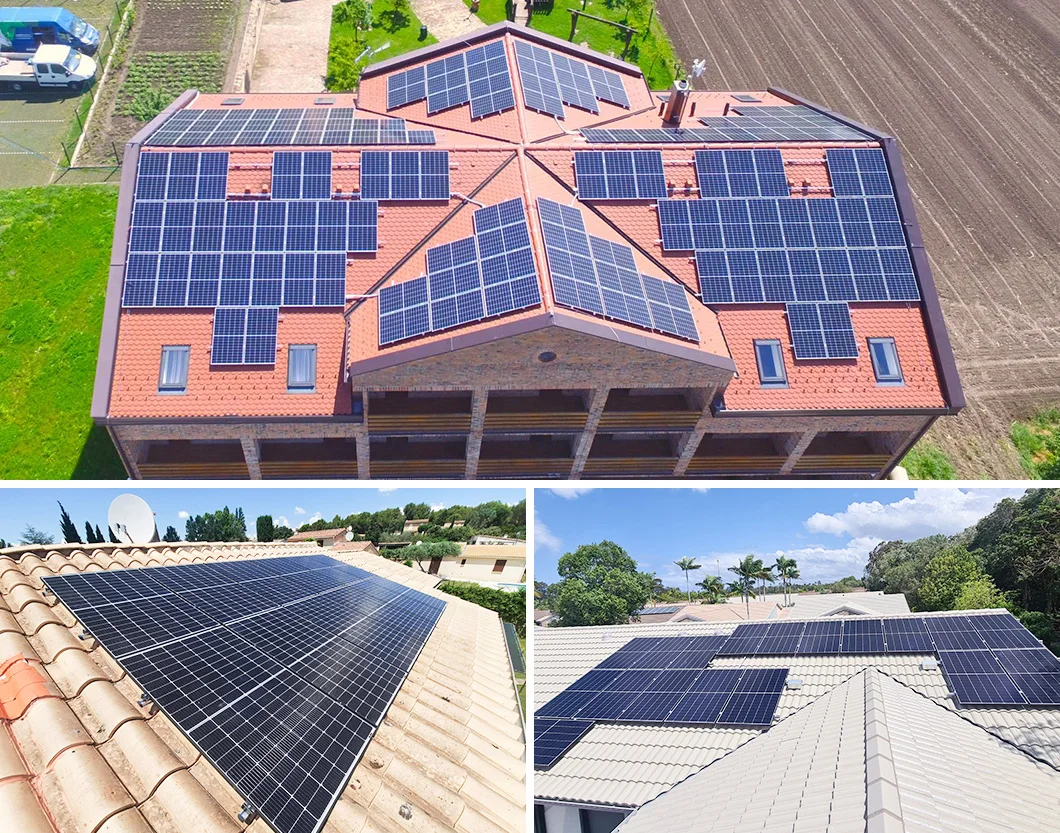

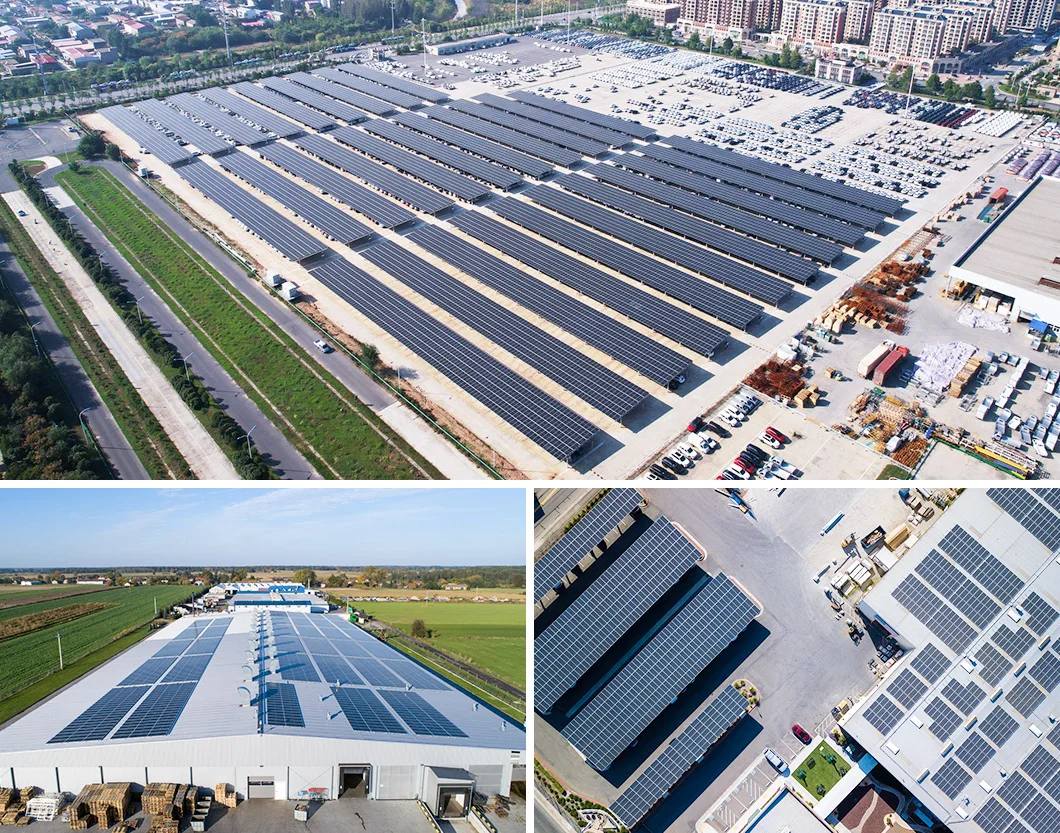

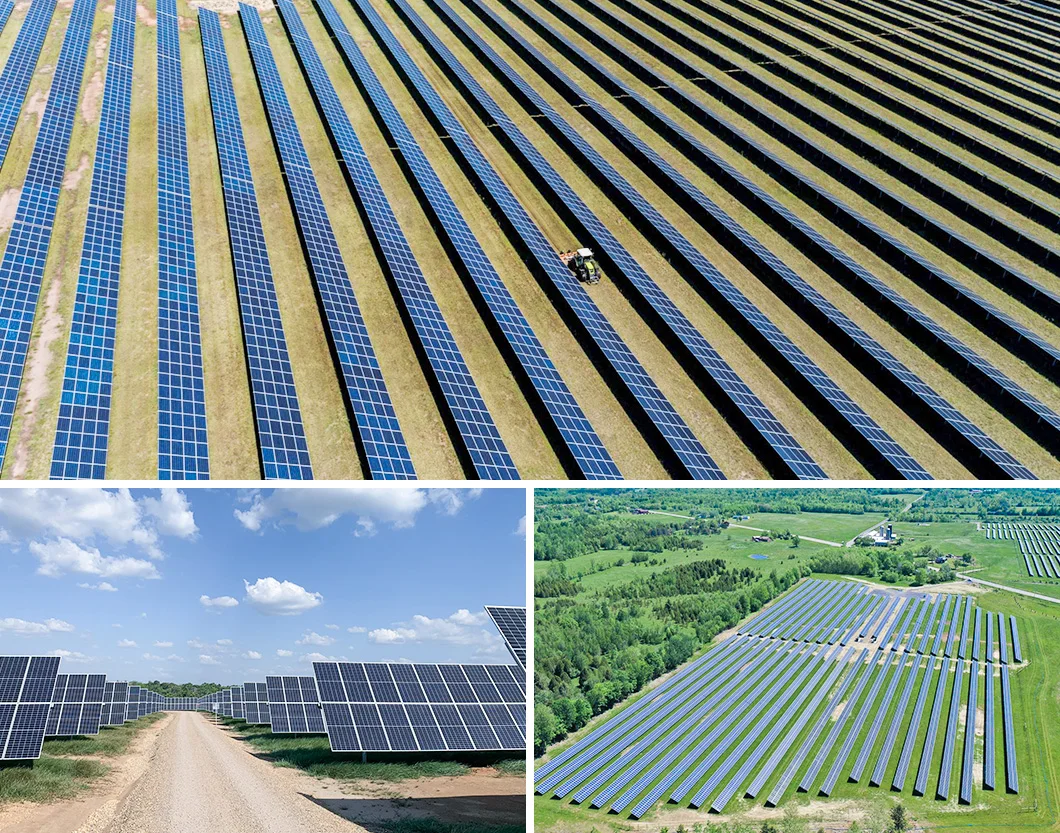

Global Project Case
About Us

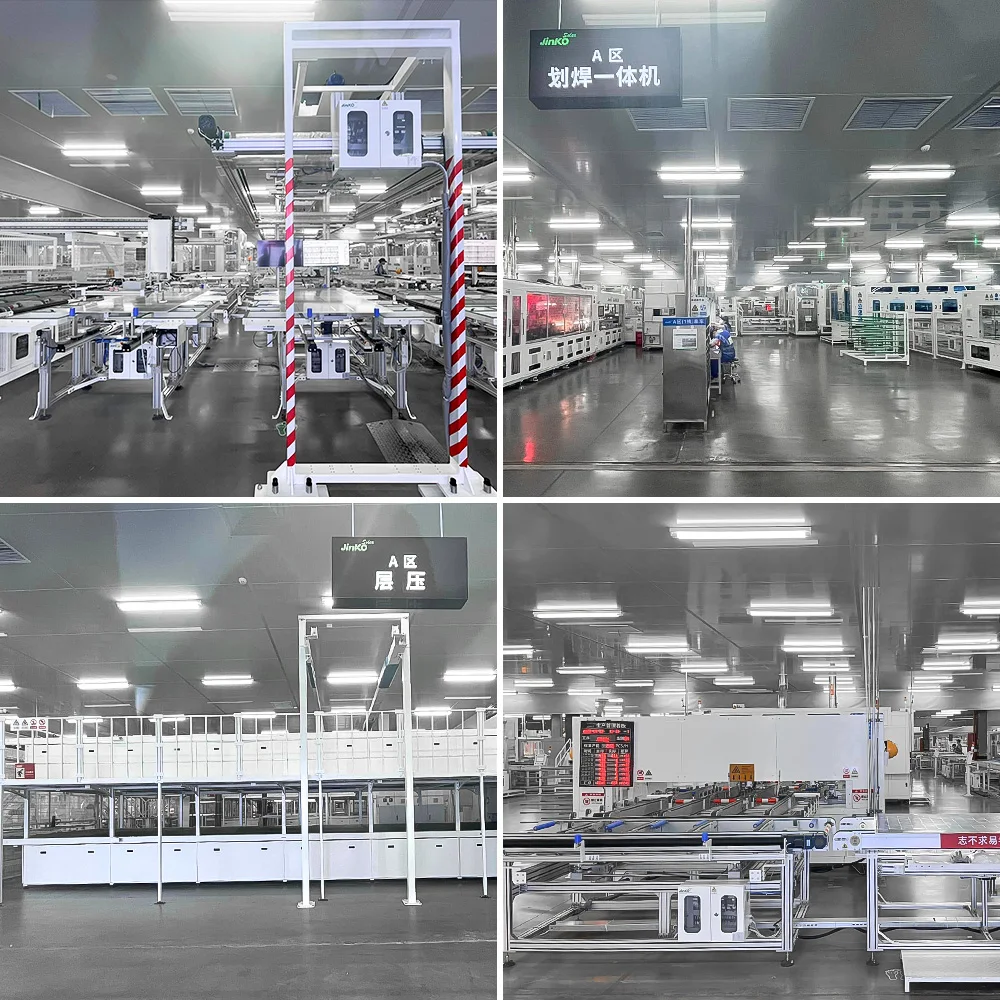

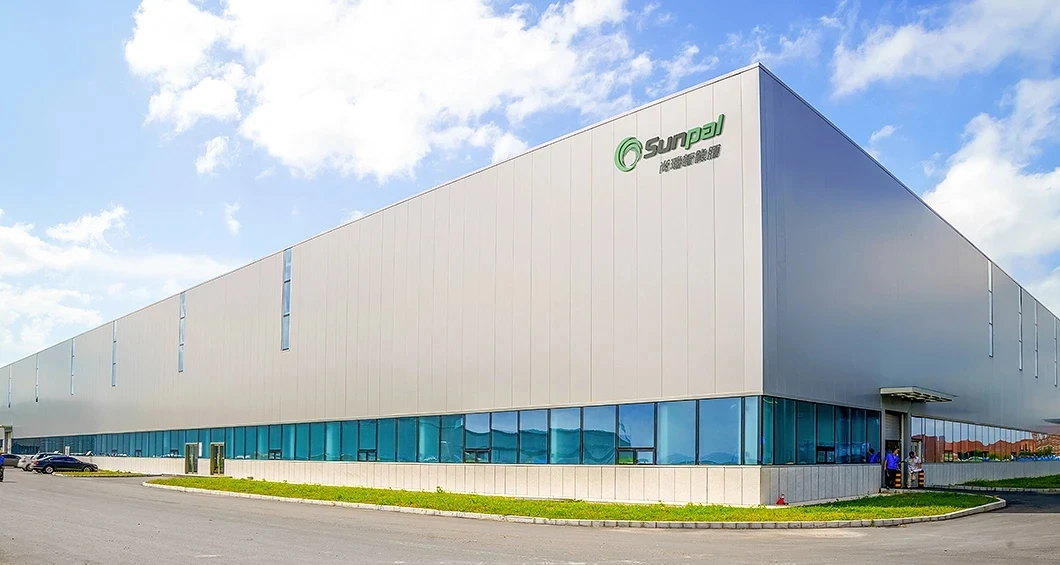

Company Overview
As a world-class solar products manufacturer, Sunpal specializes in the research, development, production, and sales of solar PV products and solar panels.Sunpal is accredited as Batch I Smart Manufacturing Plant by Jiangsu Government, the Witness Laboratory Accreditation Certificate (WMTC) by CSA、DEKRA, and CTF Laboratory Certificate by TUV SUD. Sunpal focused on research and manufacture of all-black solar panels since the year 1998, we have exported our various kinds of full-black solar panels to 86 countries and won a good reputation in quality. With over 10 years of development, Sunpal now has factory area covering 150,000
square meters, with 600 experienced employees.
square meters, with 600 experienced employees.
