  • Tempered Glass Cutting Machine Automatic CNC Glass Cutting Machine for window glass making
Tempered Glass Cutting Machine Automatic CNC Glass Cutting Machine for window glass making
Tempered Glass Cutting Machine Automatic CNC Glass Cutting Machine for window glass making
Tempered Glass Cutting Machine Automatic CNC Glass Cutting Machine for window glass making
Tempered Glass Cutting Machine Automatic CNC Glass Cutting Machine for window glass making
Tempered Glass Cutting Machine Automatic CNC Glass Cutting Machine for window glass making
Tempered Glass Cutting Machine Automatic CNC Glass Cutting Machine for window glass making
Tempered Glass Cutting Machine Automatic CNC Glass Cutting Machine for window glass making

Tempered Glass Cutting Machine Automatic CNC Glass Cutting Machine for window glass making

Share on (1601036396165):


Price:$23,500.00

Quantity:


Product Overview

Description



Tempered Glass Cutting Machine Automatic CNC Glass Cutting Machine for window glass making


Products Description








Product Paramenters


Machine parameters

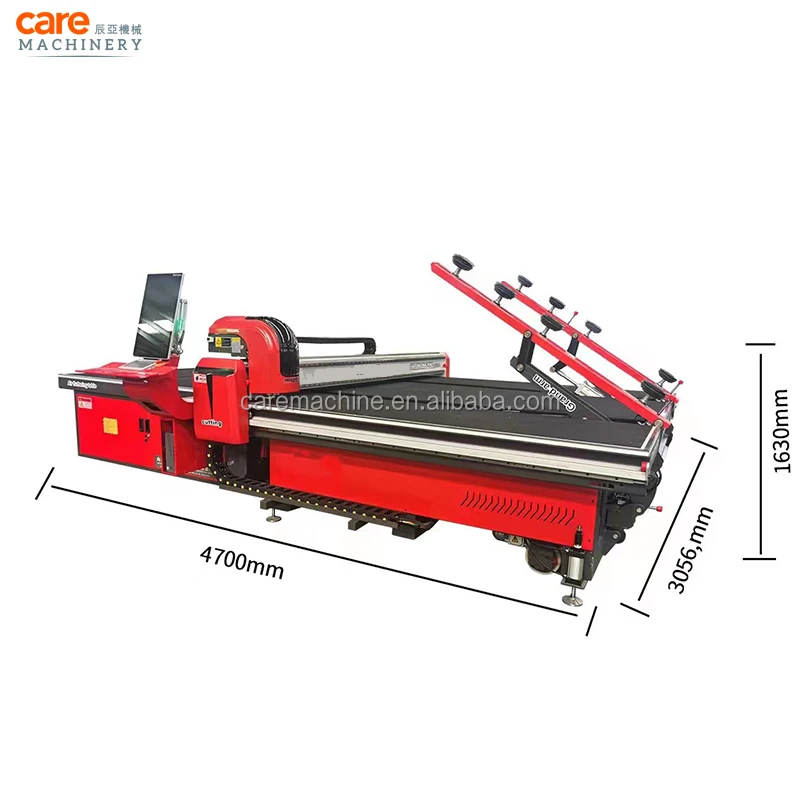

Dimensions(L*W*H)
3100*2400*1630mm
4100*2900*1400mm
Weight
1200kg
2300kg
Table height
880±30mm(Adjustable feet）
Power requirements
380V，50Hz
Installed power
8.5kW
Compressed air
0.6Mpa
Processing parameters
Cut Glass size
MAX.2500*2000mm
MAX.3600*2400mm
Cut Glass thickness
3~19mm
Cutter head speed
0 ～ 200m / min (can be set)
Cutting bridge speed
0 ～ 200m / min (can be set)
Cutting acceleration
≥8m/s²
Cutting knife seat
Cutting head can rotate 360 degrees (precise cutting of straight lines and special shapes)
Cutting accuracy
≤±0.25mm/m（Based on the size of the cutting line before the glass breaking）
