Hot sales 16 inch sand cutter suction sand dredger
- Category: >>>
- Supplier: Qingzhou Yongli Mining And Dredging Machinery Co. Ltd.
Share on (1601036404413):
Product Overview
Description
Our Company
About company
Main productions: cutter suction dredger, gold dredger, diamond dredger, gold washing plant, sand dredger and other mining equipment. We are located in Qingzhou city with convenient transportation access. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In recent years, our company has introduced a series of advanced equipment including gas cutting machine, automatic welding machine, electric welder and other equipments.
Model List
Model | Slurry capacity | Dredging depth | Discharge distance | Total power |
CSD-200 | 500m³/h | 10m | 500m | 224kw |
CSD-250 | 800m³/h | 12m | 800m | 351kw |
CSD-300 | 1200m³/h | 12m | 1000m | 648kw |
CSD-400 | 2200m³/h | 15m | 1000m | 806kw |
CSD-450 | 3000m³/h | 15m | 1000m | 1007kw |
CSD-500 | 3500m³/h | 15m | 1500m | 1193kw |
CSD-550 | 5000m³/h | 15m | 1500m | 1640kw |
CSD-650 | 6000m³/h | 15m | 1500m | 2446kw |
Products Description
YLCSD-450
Parameter：
*Slurry capacity:3000m³/h
*Concentraction:15-20%
*Length: 37m
*Breadth:7.2m
*Height:2.0m
*Dredging depth:10-15m
*Discharge distance:0-1500m
*Total power:1007kw(optional)
*Cutter shaft power:115kw
*Slurry capacity:3000m³/h
*Concentraction:15-20%
*Length: 37m
*Breadth:7.2m
*Height:2.0m
*Dredging depth:10-15m
*Discharge distance:0-1500m
*Total power:1007kw(optional)
*Cutter shaft power:115kw
Remark：Can be customized according to customer requirements
Details Images

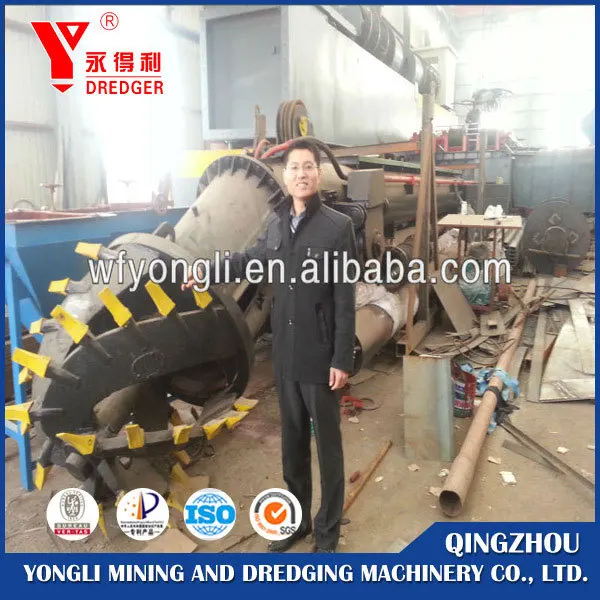

Cutter head
Diameter:1500mm
shaft power:115kw
RPM:0-30 r/min
Material:ZG30CrMn
Amont: 5 Pcs
Remark:cutter teeth can be replaced
Main engine
Maker: Cummins China
Model :K38-M
Power:746KW
RPM :1800r/min
Model :K38-M
Power:746KW
RPM :1800r/min
No. of cylinders: 12
Fuel consumption:130l/h
Remark: can be selected by customer's requirement
Dredging pump
Maker：Shijiazhuang
Model :WN-350
Water flow :3000m³/h
Solid capacity ：450-600m³/h
Diameter of suction：500mm
Diameter of Discharge：450mm
Solid capacity ：450-600m³/h
Diameter of suction：500mm
Diameter of Discharge：450mm
Remark: can be selected by customer's requirement
Winch
Diameter of drum ：580mm
Hydraulic motor maker ：Xinhong
Model ：S3C4
Wire rope speed ：0-20m/min
Dia. Of wire rope ：22mm
Wire rope length ：150m
Hydraulic motor maker ：Xinhong
Model ：S3C4
Wire rope speed ：0-20m/min
Dia. Of wire rope ：22mm
Wire rope length ：150m
Remark: can be selected by customer's requirement
Customer Photos

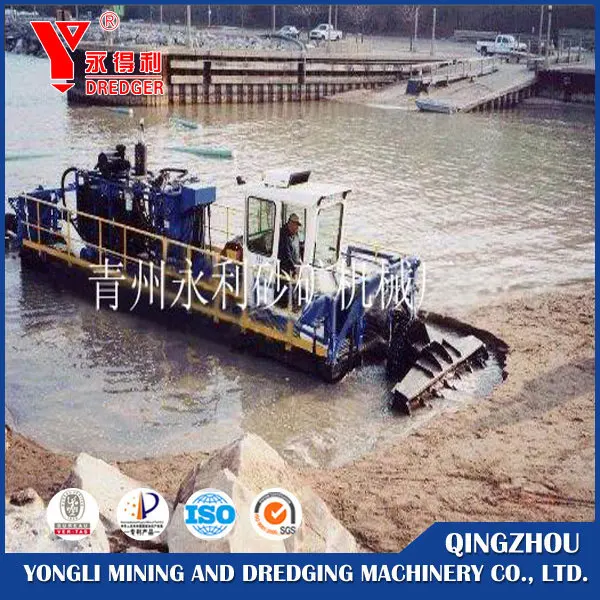

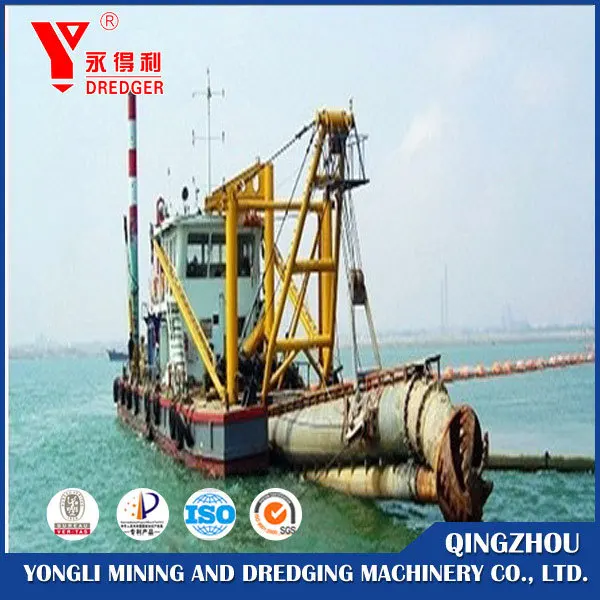

Working site
The above pictures are from the installation site in Bangladesh, this is 20 inch cutter suction dredger with 895kw cummins main engine, 373kw auxiliary engine, the dredging depth can be reached 15m, the discharege distance is about 1500m.
