Product Overview
Description
Product Description

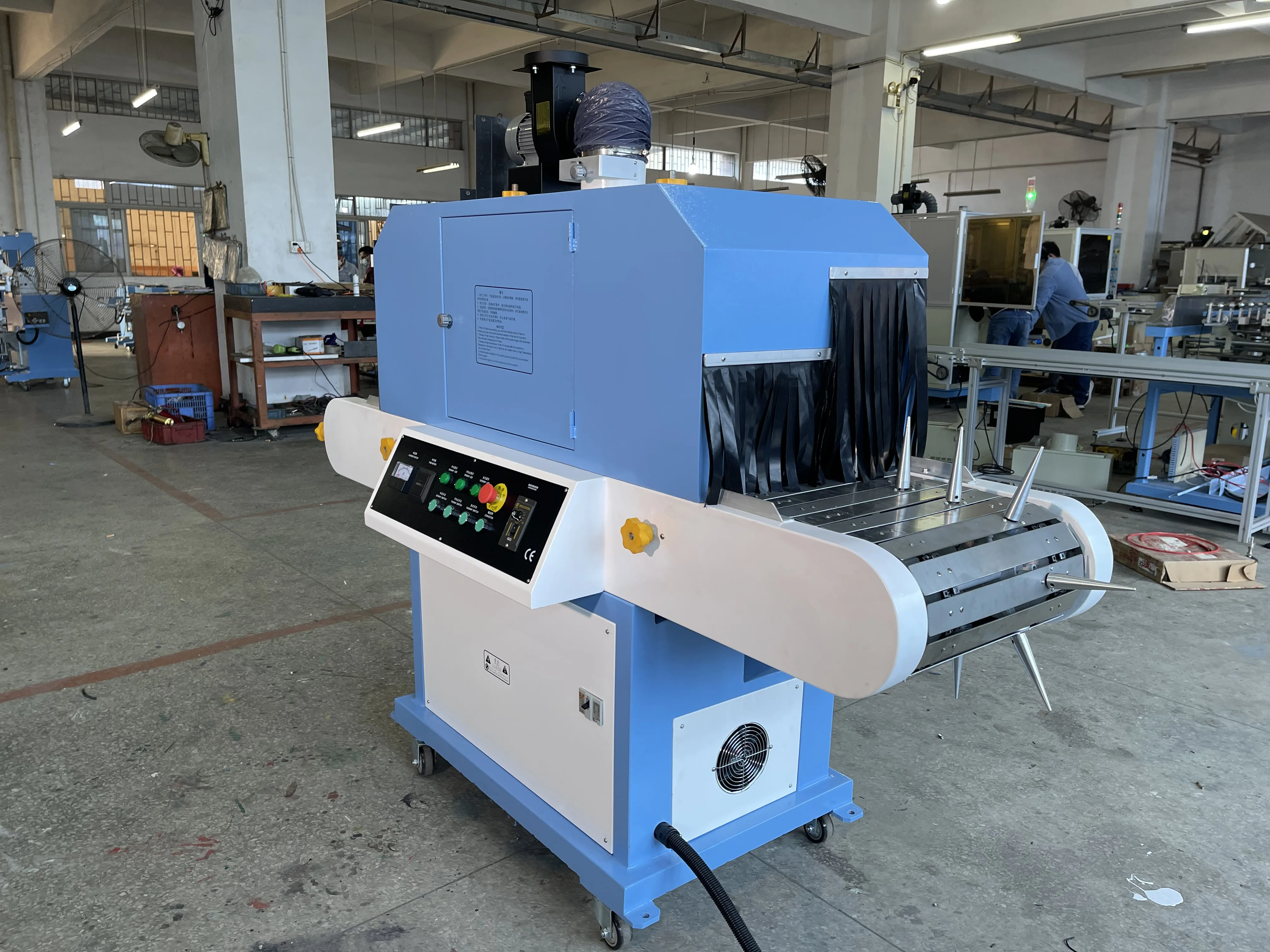

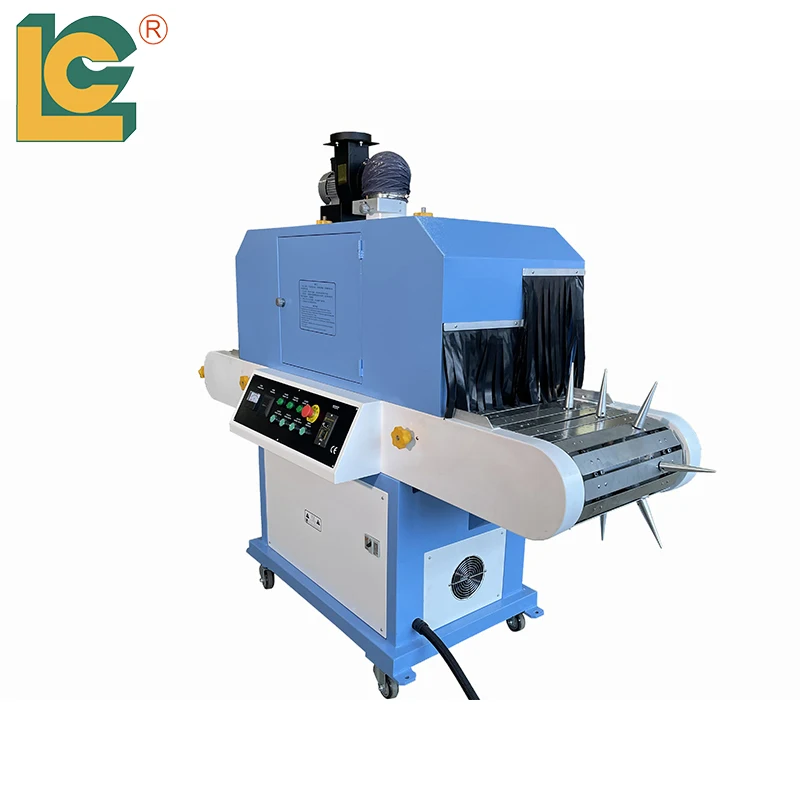

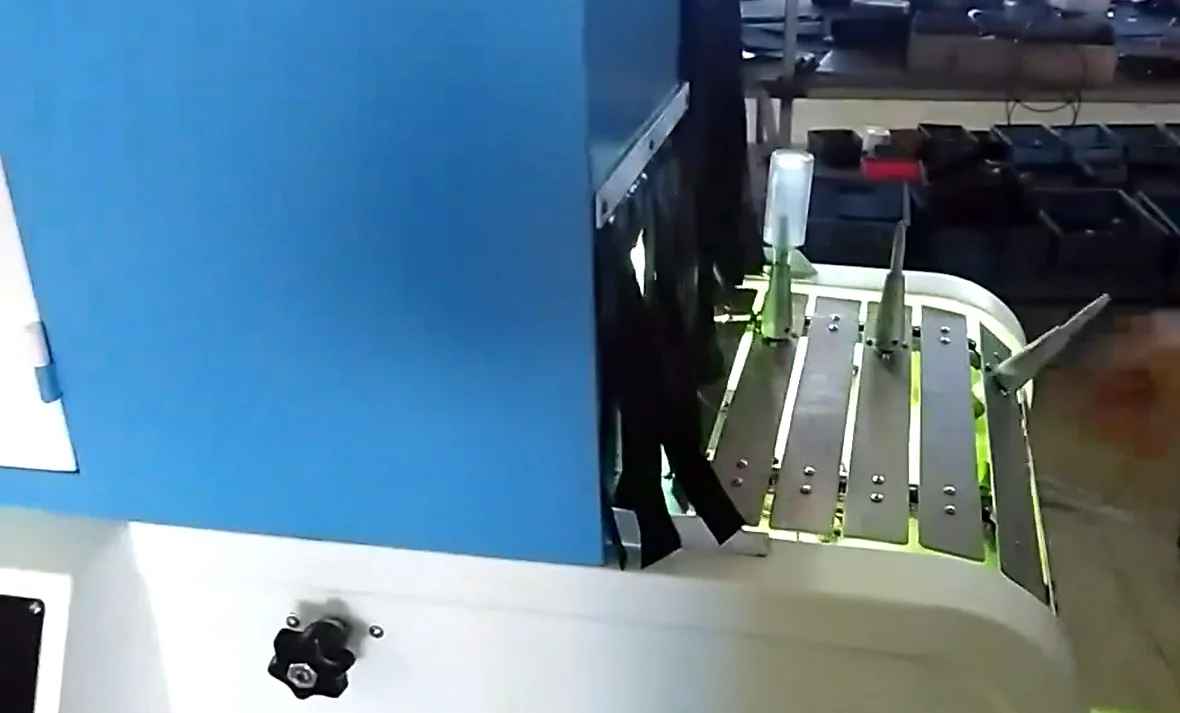

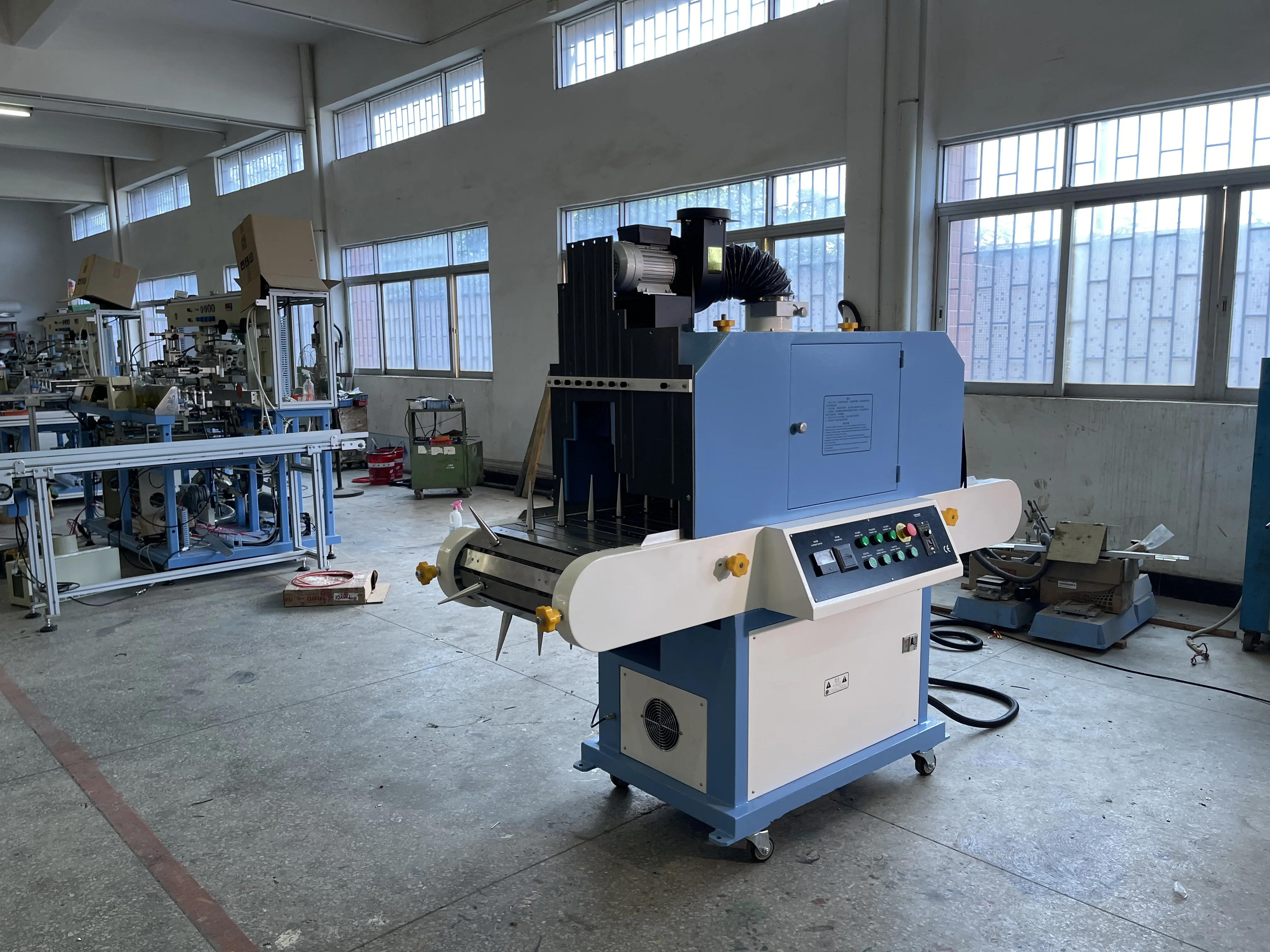

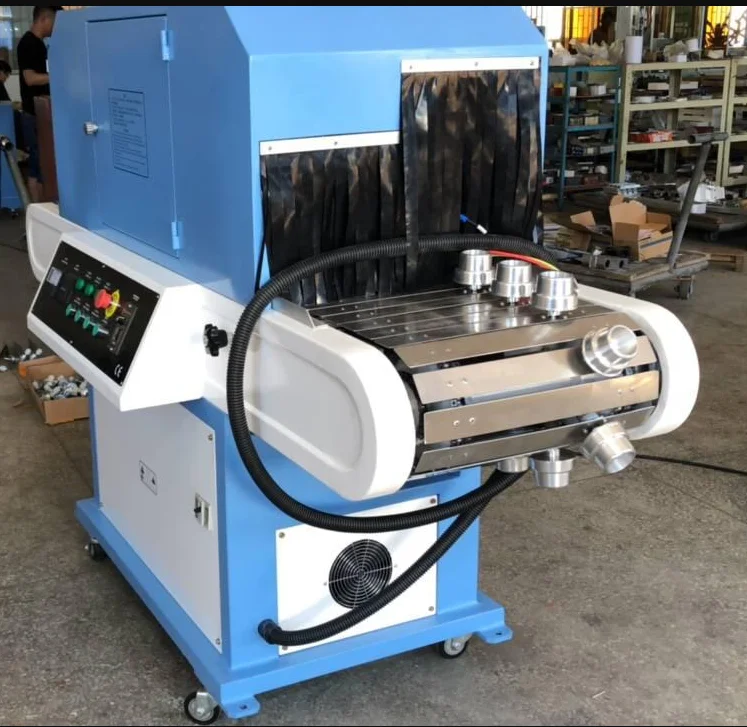

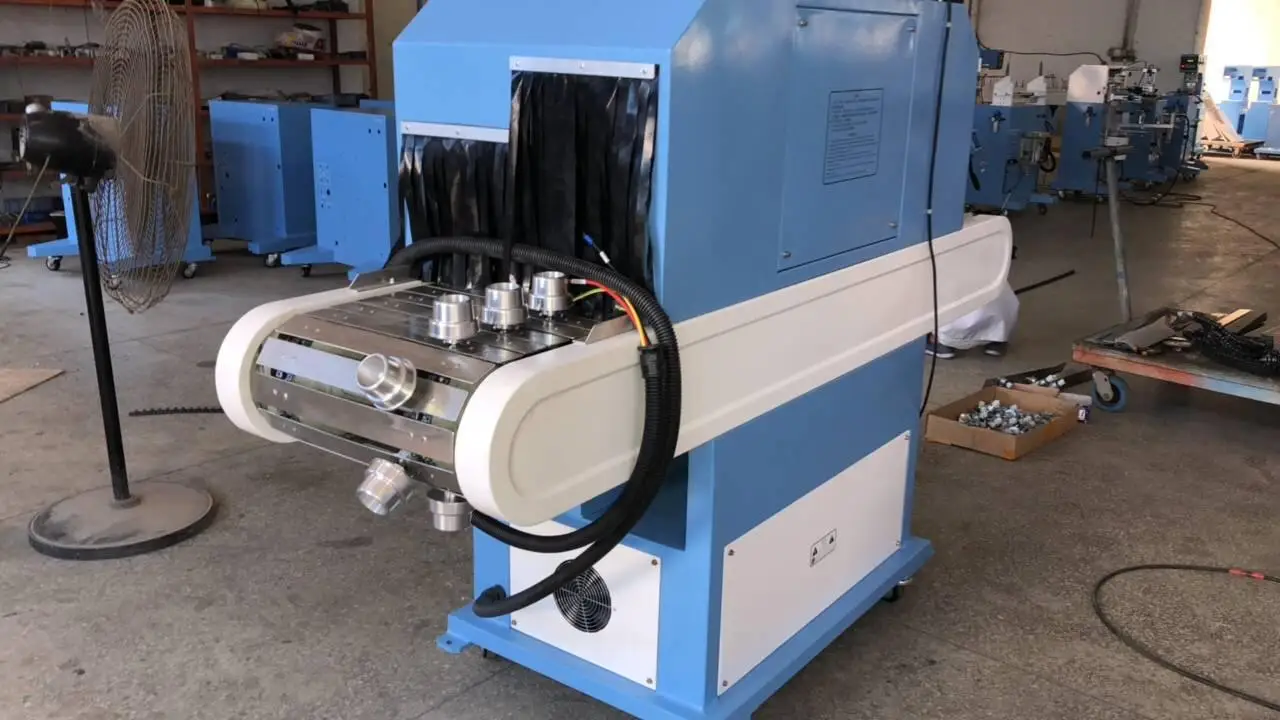

Plane and Round Surfaces Bottle UV curing machine with conveyor belt

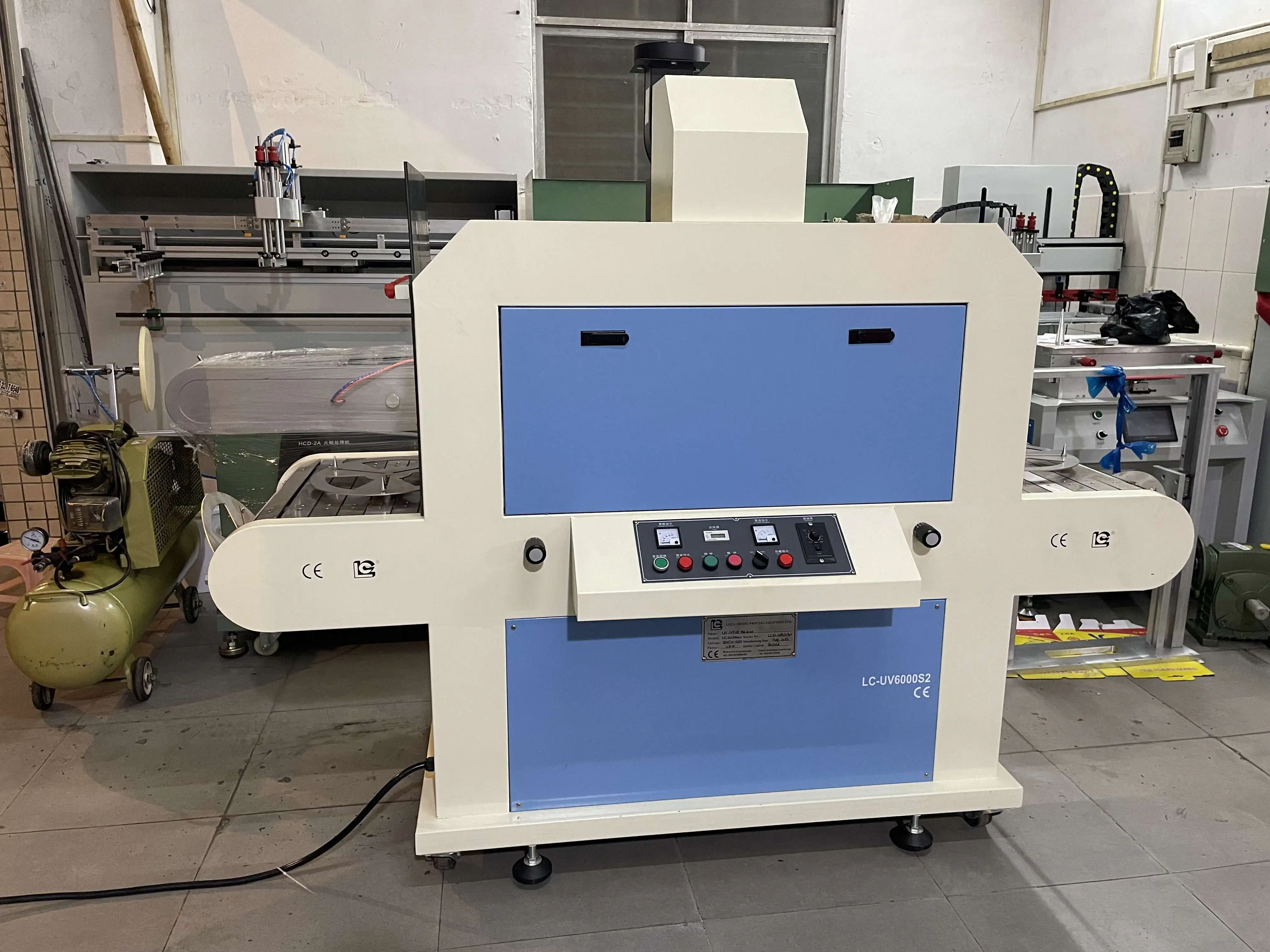

LC-UV6000S2 UV Curing machine is mainly used for the curing of printed UV ink on various surfaces such as bottles and cylindrical articles.
By adjusting its lighting angle, it also can be used in the UV Ink printing cure of flat substrate， Stainless steel conveyer to resist High Temperature. Stepless speed adjustment to match with different bottles. Suitable for bottles made by plastic, Metal, Glass Etc.
1 .UV drying for round bottle and plane products.
2. Cylinder products increased the effect of light -
3. UV Drying of products according to size, material, adjust the speed conveyor belt
4. Ventilation system installed at the top, so as to extend lamp life
5. A closed-end structure
6. Aesthetic appearance, apply a wide range, solid-effective
7. Reliable, safe and easy to operate
1 .UV drying for round bottle and plane products.
2. Cylinder products increased the effect of light -
3. UV Drying of products according to size, material, adjust the speed conveyor belt
4. Ventilation system installed at the top, so as to extend lamp life
5. A closed-end structure
6. Aesthetic appearance, apply a wide range, solid-effective
7. Reliable, safe and easy to operate
Advantages:
1. Independent control of the UV system, each lamp can be independently controlled and can be used alternately to extend the life of the UV lamp.
2. Teflon conveyor belt, high-temperature resistance.
3. Driven by a brand-name motor, with stepless speed adjustment, it is convenient to adjust the conveying speed according to product characteristics.
4.The UV lamp tube adopts a high-quality light source, has a long life, can be started instantly, and quickly enters normal UV brightness.
5. Taiwan electronic components (transformer, starter), precise control, long life.
6. The ventilation function can quickly remove the heat in the curing chamber; a reasonable airflow cooling system is designed to minimize the temperature generated by the light source, reduce product deformation, and improve lamp efficiency.
7. The UV machine adopts the upper and lower parts of the reverse air suction at the same time, for some thin paper, PVC film, soft PCB, UV silicone, UV glue, it can be perfect UV curing.
2. Teflon conveyor belt, high-temperature resistance.
3. Driven by a brand-name motor, with stepless speed adjustment, it is convenient to adjust the conveying speed according to product characteristics.
4.The UV lamp tube adopts a high-quality light source, has a long life, can be started instantly, and quickly enters normal UV brightness.
5. Taiwan electronic components (transformer, starter), precise control, long life.
6. The ventilation function can quickly remove the heat in the curing chamber; a reasonable airflow cooling system is designed to minimize the temperature generated by the light source, reduce product deformation, and improve lamp efficiency.
7. The UV machine adopts the upper and lower parts of the reverse air suction at the same time, for some thin paper, PVC film, soft PCB, UV silicone, UV glue, it can be perfect UV curing.
Specifications
Model | LC-UV4000S2 | LC-UV5000S2 | LC-UV6000S2 | |
Max UV curing round bottle high | 320mm | 320mm | 400mm | |
Max UV curing round bottle width | 400mm | 400mm | 400mm | |
UV Curing product diameter | 12-24mm | 25-100mm | 150-350mm | |
Curing size of workpiece | Cylinder products:320*400mm | / | ||
Conveyor speed | 0-10m/min | 0-10m/min | 0-10m/min | |
(UK brand)UV lamp power | 4KW/PC | 4KW/PC | 4KW/PC | |
UV Drying products speed | 1800-3000PCS/Hr | 1800-3000PCS/Hr | 1500-2500PCS/Hr | |
Total power | 5KW | 5KW | 5KW | |
Power supply | 380V | 380V | 380V | |
Machine dimension | 2000*800*1500mm | 2200*600*1700mm | 2400*800*1900mm | |
Machine Structure

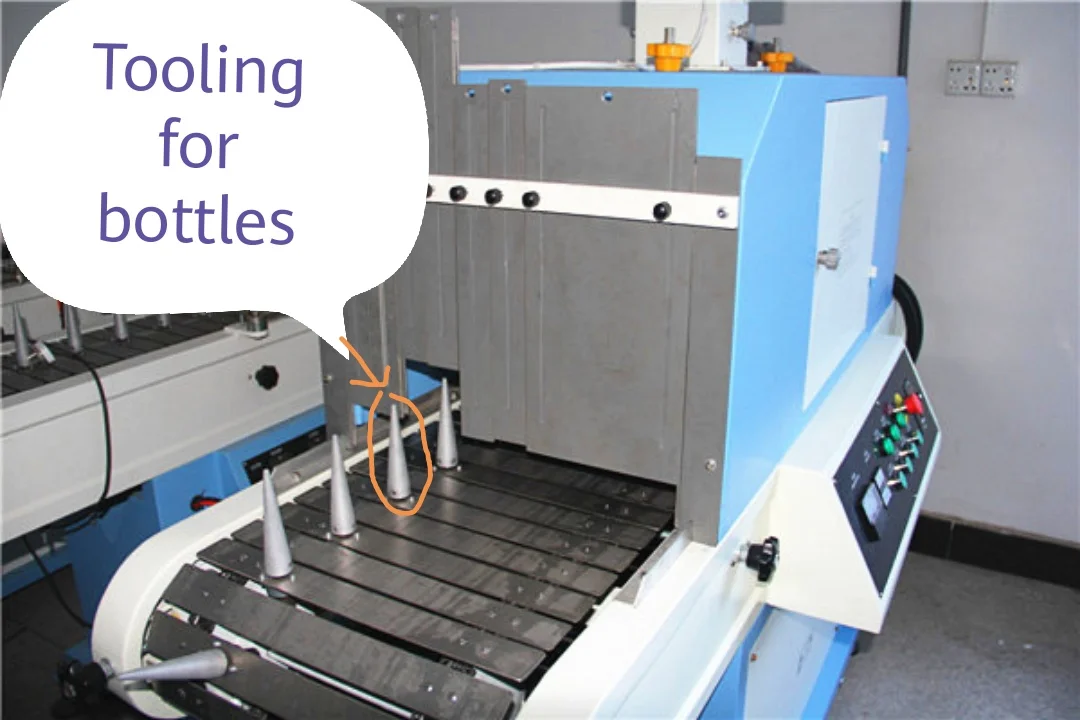

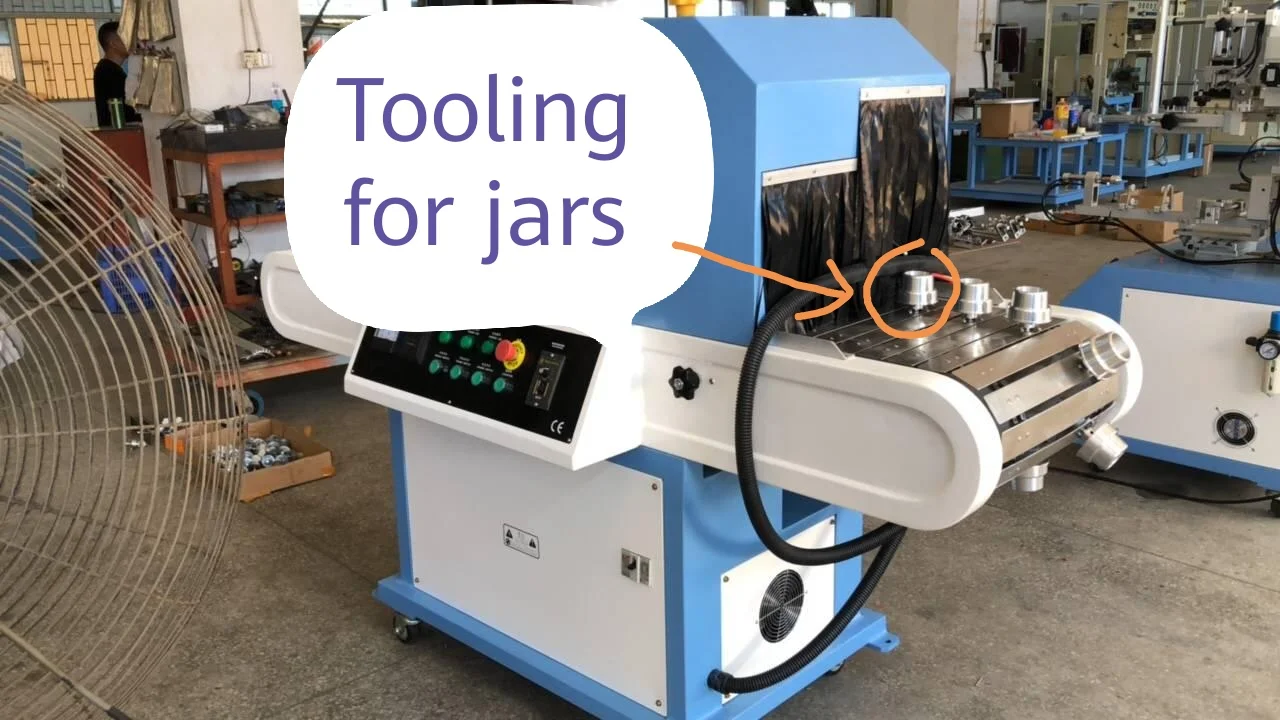

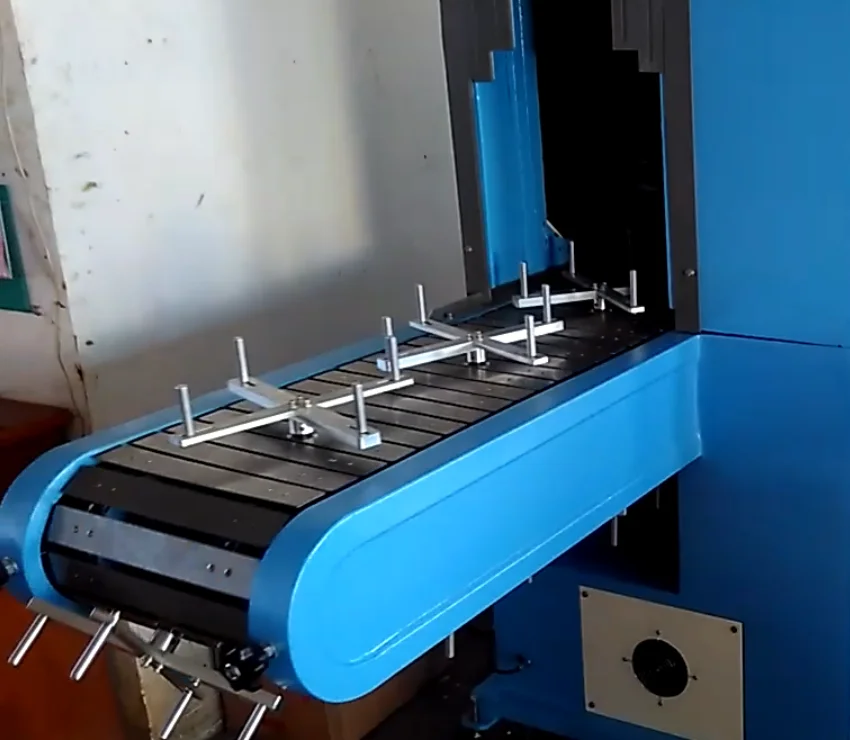

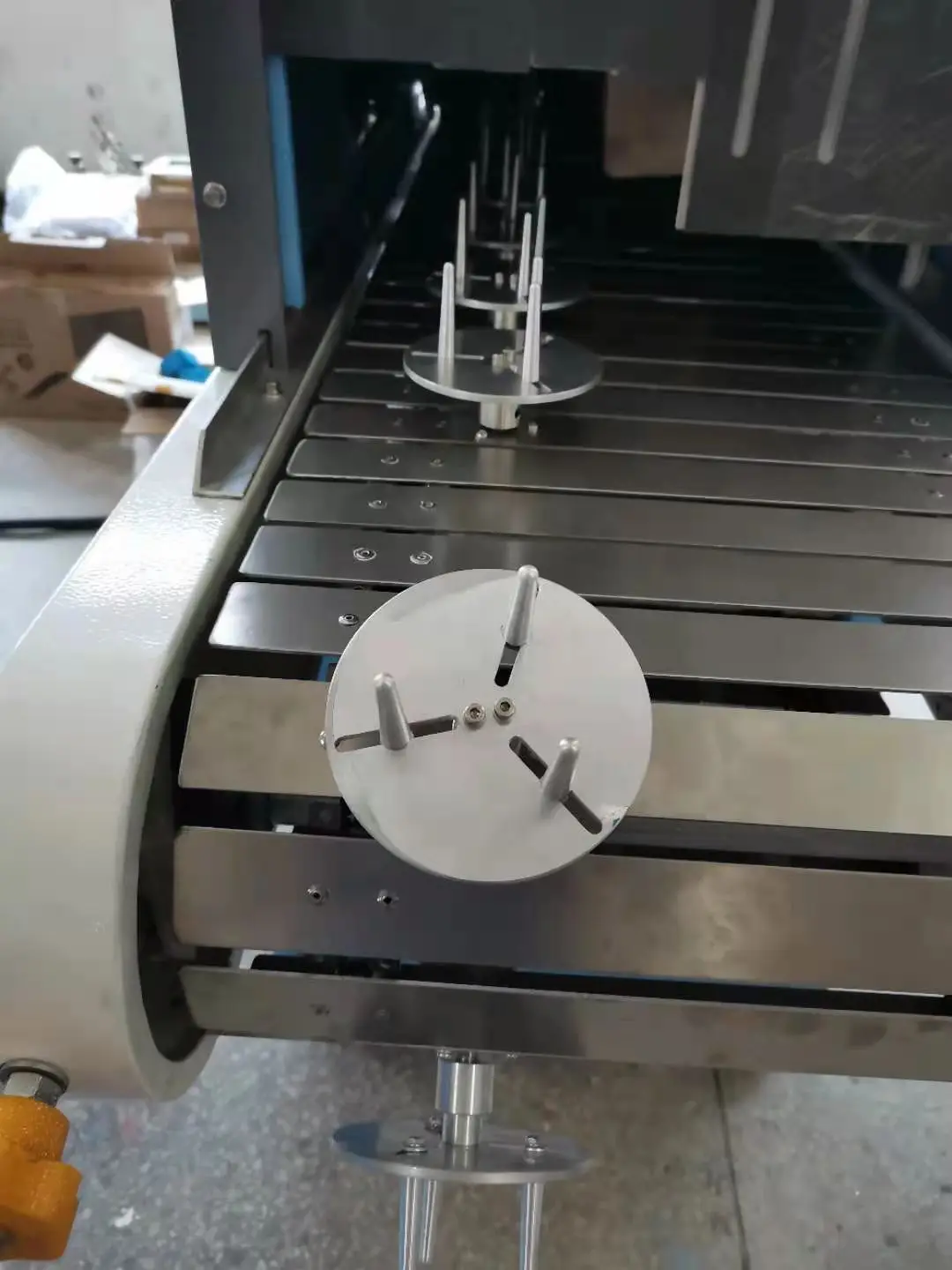

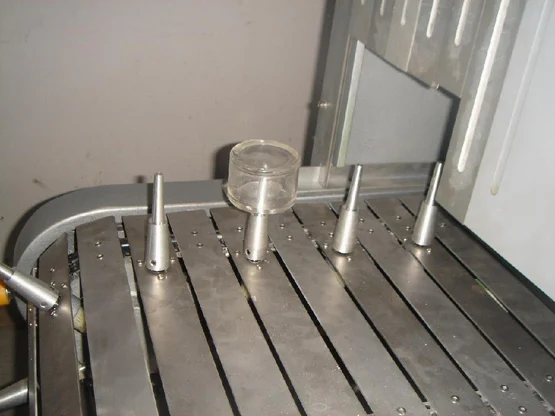

Special fixtures can be customized for your products.
Printing Effect

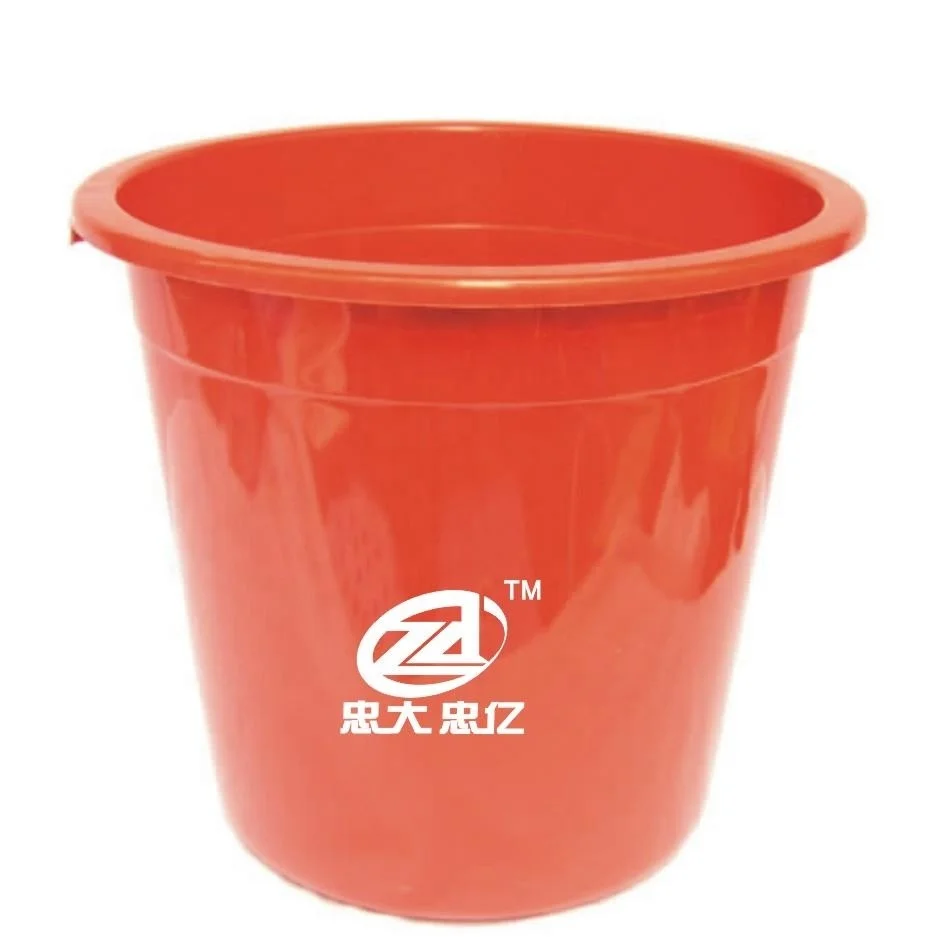

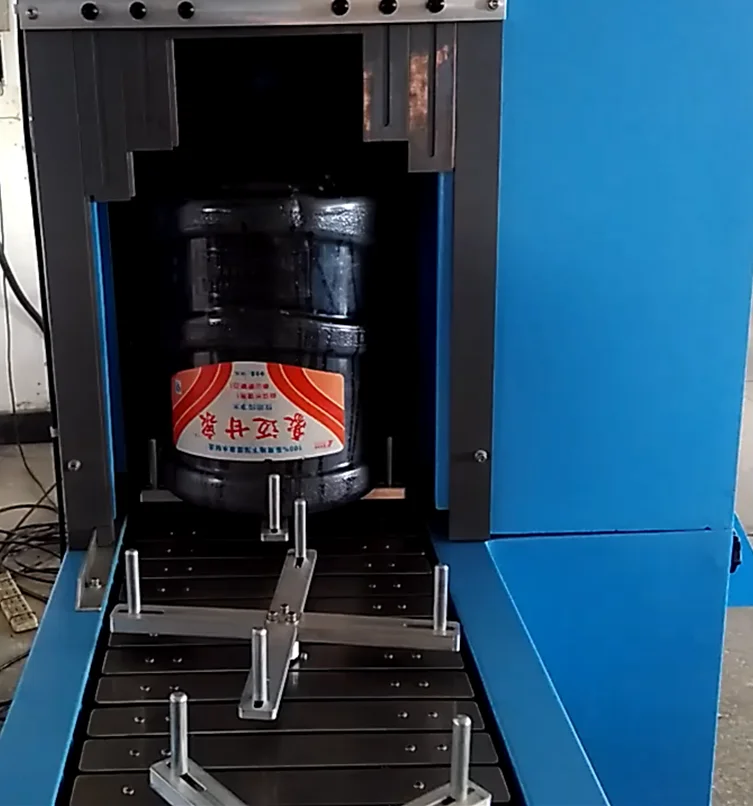

Cream bottles Glass bottles 5 gallon bucket
