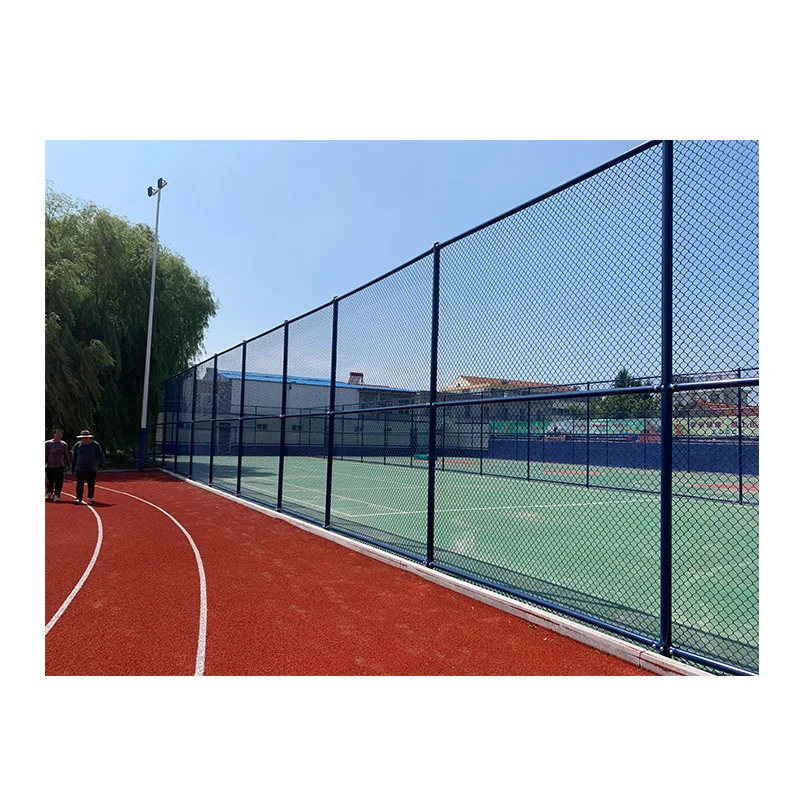

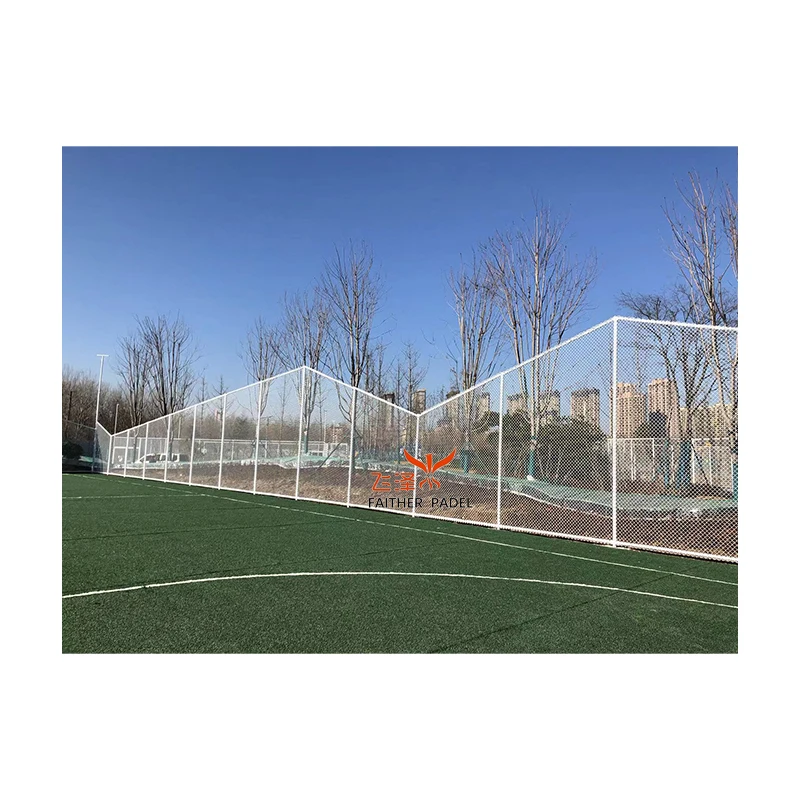

Football Stadium Dark Green Sports Field Fence Net
- Category: >>>
- Supplier: Qingdao Faither Sports Facilities Co. Ltd.
Share on (1601036487905):
Product Overview
Description
Specification

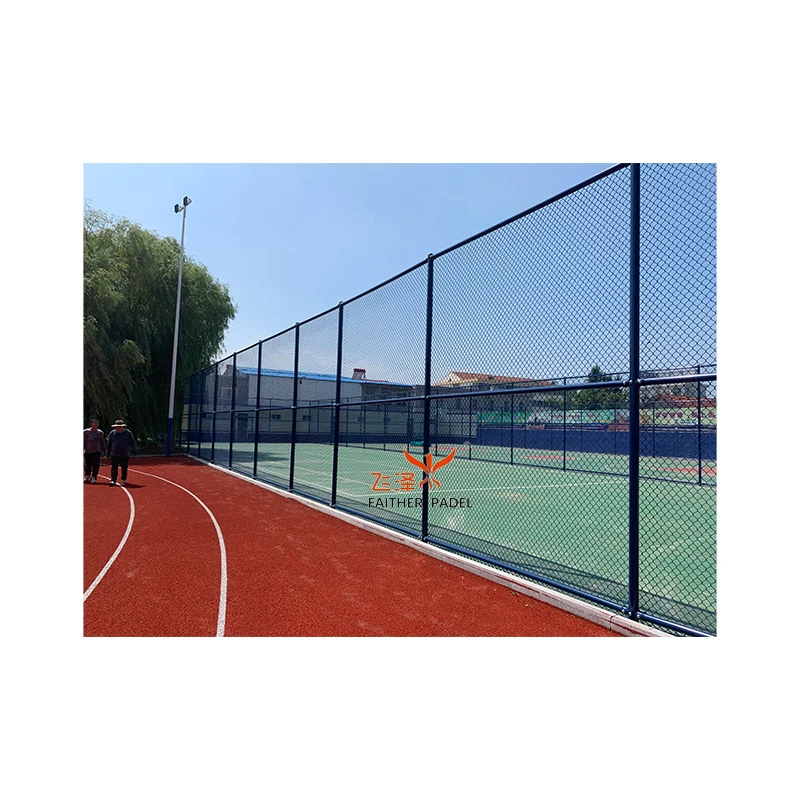

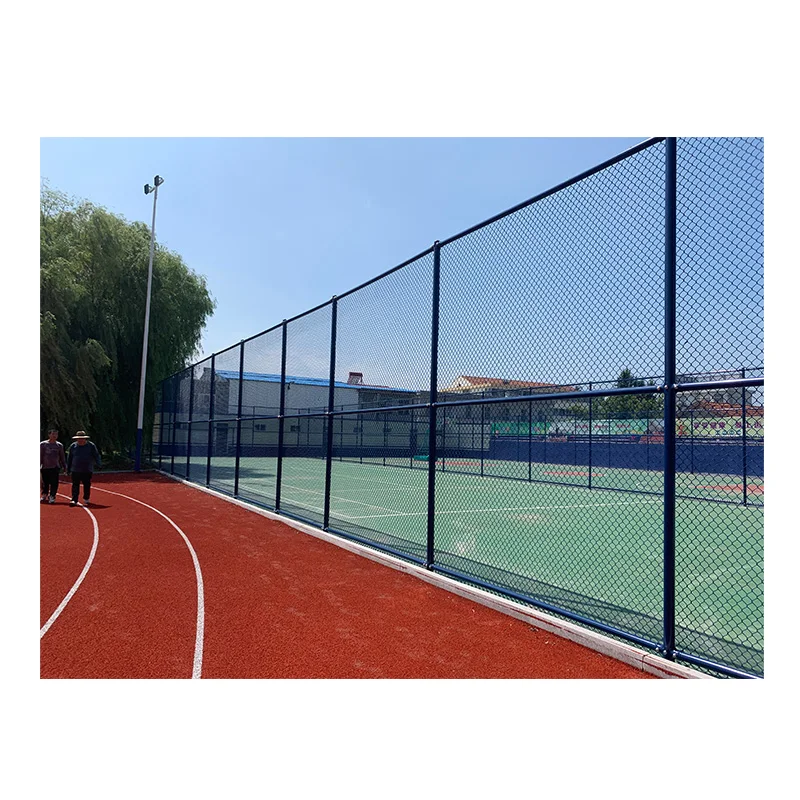

Flat Pull Fence
This is a widely used fencing product; we use high volume, high efficiency production methods to ensure stable product quality and greatly improve production efficiency, redefining "cost-effective".
Product Paramenters
Sports fence | Column: ①φ76 steel wall thickness of 2.5mm; ② above ground height of 4m, lengthened by 400mm, the total length of the column 4.4m; ③straight insertion installation; ④ columns every 10-12 metres, in the height of the ground is not less than 2.4m plus ф42 * 2.5mm steel pipe auxiliary support. |
Cross beam: ① Adopt φ60 steel pipe with wall thickness of 2.0mm; add diagonal support at four corners. ② 3 beams double-square structure, with waterproof pipe plugging | |
Connectors: Pressing with 2.5mm thick steel plate. | |
Upper 2 metres hooked wire mesh: ①PE plastic-coated galvanised iron wire, inner diameter 2.3mm, outer diameter 4.0mm, mesh hole 50*50mm; Height: 4m | |
Lower 2 metres spring mesh: Adopt 6mm*6mm*6mm double-clamped wire reinforcing mesh, mesh 50*170mm, galvanized with high quality polyester powder electrostatic spraying treatment after galvanization, double anti-corrosion; surrounded by 304 stainless steel springs tautly welded with 304 stainless steel U hooks welded on the frame; | |
Fasteners: ① Dacromet carriage bolts ② Dacromet nuts ③ M5.5*32 Dacromet self-drilling screws ④ 304 stainless steel anti-theft cap ⑤ special PE self-drilling wire waterproof gaskets ⑥ 20*4mm aluminum alloy compression strips ⑦ self-tapping PE anti-theft cap | |

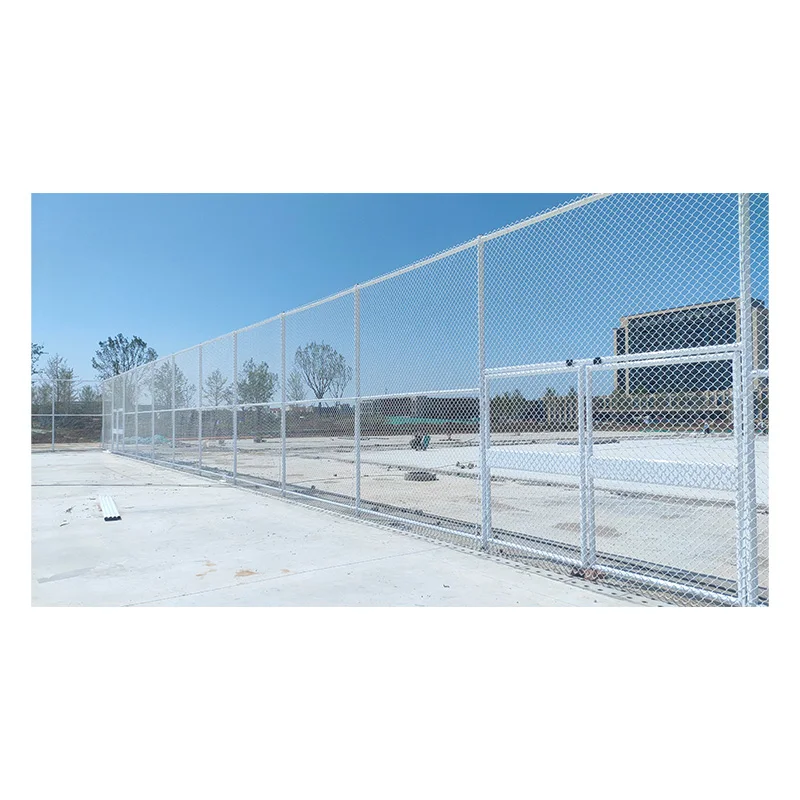

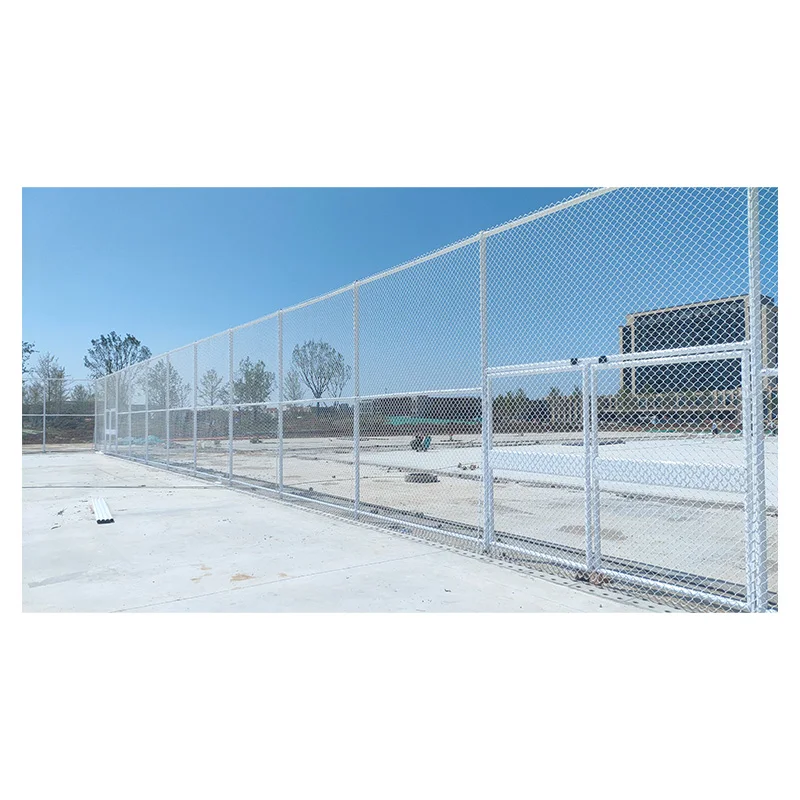

Single door ①Height 2.2m, width 1.4m; ②door and door frame are made of aluminium alloy, embedded with 666 double-clamped wire mesh sheet; ③ internal and external universal door handle, door hinge is made of 304 stainless steel, to prevent the rust of rotating friction, with large load-bearing capacity should not be deformed; ④the door's restriction stopper is equipped with a plastic protective sleeve. | |
Light pole | Double-arm light pole ①Adopting φ114*3.0mm steel pipe 6m, lengthening 600mm for buried installation, total length 6.6m;② the wiring inspection port is fully welded with independent steel plate parts to prevent stress cracking of the incision. ③The surface treatment of the lamp post is the same as that of the main post, and the lamp post is used as the main post at the same time, as part of the fencing system. |

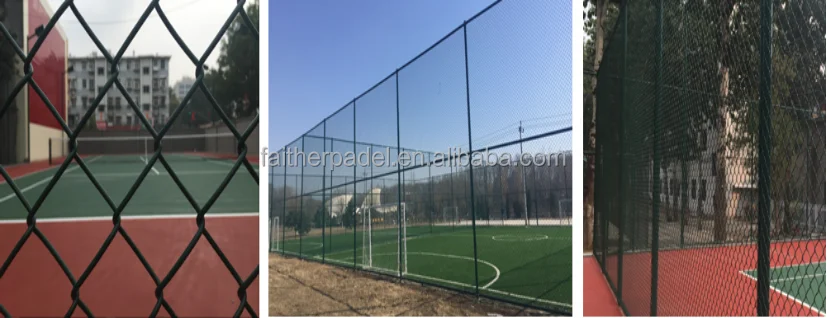

Details Images
Overall structural advantages:
The product achieves factory standardized production, and only assembly is required on the construction site. The construction site is quiet, hygienic, dust-free, and pollution-free.
No on-site welding, cutting, etc. required, ensuring safety.
Construction is not affected by weather, and only three to four ordinary workers are needed on the construction site to produce professional quality.
Quality guaranteed, less prone to rusting, and long service life. Easy to disassemble and flexible.
No on-site welding, cutting, etc. required, ensuring safety.
Construction is not affected by weather, and only three to four ordinary workers are needed on the construction site to produce professional quality.
Quality guaranteed, less prone to rusting, and long service life. Easy to disassemble and flexible.

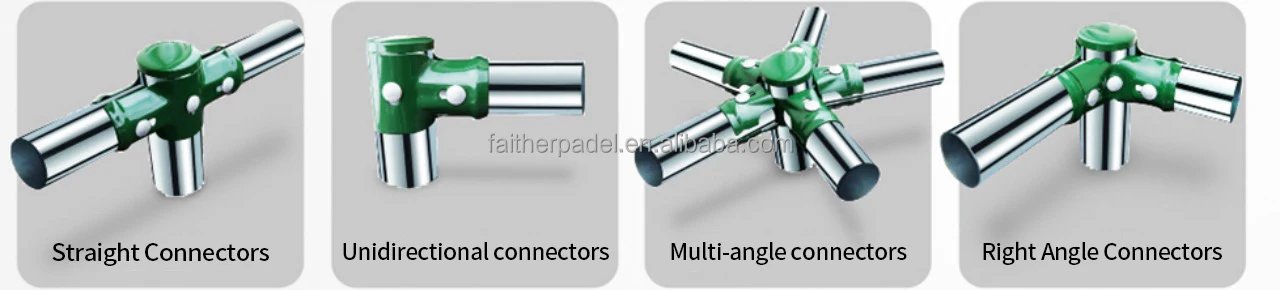

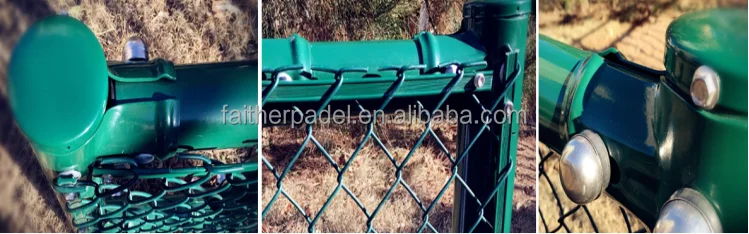

Special connectors:
Easy and fast installation: The application of connectors does not require welding or cutting on site, is not affected by climate, and has a short construction period.
Stable overall structure: The connecting bolts pass through the column and crossbeam, making the overall structure more stable; After professional testing by the national quality inspection department, the load-bearing capacity and load rate are all better than on-site welding methods.
The standard specifications are applicable to: ф 60 ф 76 ф 114
The connecting piece is made of 2.5mm thick steel plate stamped, with reserved compatibility space to avoid installation difficulties caused by basic size issues;
Easy and fast installation: The application of connectors does not require welding or cutting on site, is not affected by climate, and has a short construction period.
Stable overall structure: The connecting bolts pass through the column and crossbeam, making the overall structure more stable; After professional testing by the national quality inspection department, the load-bearing capacity and load rate are all better than on-site welding methods.
The standard specifications are applicable to: ф 60 ф 76 ф 114
The connecting piece is made of 2.5mm thick steel plate stamped, with reserved compatibility space to avoid installation difficulties caused by basic size issues;

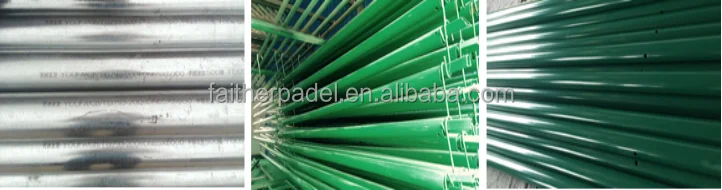

Pipe selection:
National standard pipe: Q235, all of which are national standard steel, purchased by large factories, with high strength and corrosion resistance characteristics.
Mechanical processing
Anti corrosion and surface treatment: degreasing: degreasing, using alkaline liquid to remove surface oil stains. Pickling: Rust removal, soak in hydrochloric acid. Phosphating: increases adhesion, short-term rust prevention. Spray molding: Made of high-quality outdoor polyester powder material through electrostatic spraying.
National standard pipe: Q235, all of which are national standard steel, purchased by large factories, with high strength and corrosion resistance characteristics.
Mechanical processing
Anti corrosion and surface treatment: degreasing: degreasing, using alkaline liquid to remove surface oil stains. Pickling: Rust removal, soak in hydrochloric acid. Phosphating: increases adhesion, short-term rust prevention. Spray molding: Made of high-quality outdoor polyester powder material through electrostatic spraying.
Fastener Description:
The fasteners of the entire system are made of aluminum alloy pressure strips, customized Dacromet bolts, self tapping screws, 304 stainless steel gaskets, plastic waterproof pipe plugs, anti rust gaskets, and nuts. Fundamentally eliminate the risk of rust.
The fasteners of the entire system are made of aluminum alloy pressure strips, customized Dacromet bolts, self tapping screws, 304 stainless steel gaskets, plastic waterproof pipe plugs, anti rust gaskets, and nuts. Fundamentally eliminate the risk of rust.
Description of PE wrapped plastic fence:
Made of high-quality low-carbon galvanized iron wire, wrapped in original imported high-density PE plastic.
Additives such as anti-aging, anti ultraviolet and color additives are added to the PE base material.
Wrapped plastic mesh: inner diameter Ф 2.1-4.0mm, outer diameter Ф 3.2-5.0mm, mesh size 45-60mm × 45-60mm can be customized.
Made of high-quality low-carbon galvanized iron wire, wrapped in original imported high-density PE plastic.
Additives such as anti-aging, anti ultraviolet and color additives are added to the PE base material.
Wrapped plastic mesh: inner diameter Ф 2.1-4.0mm, outer diameter Ф 3.2-5.0mm, mesh size 45-60mm × 45-60mm can be customized.
Our Advantages

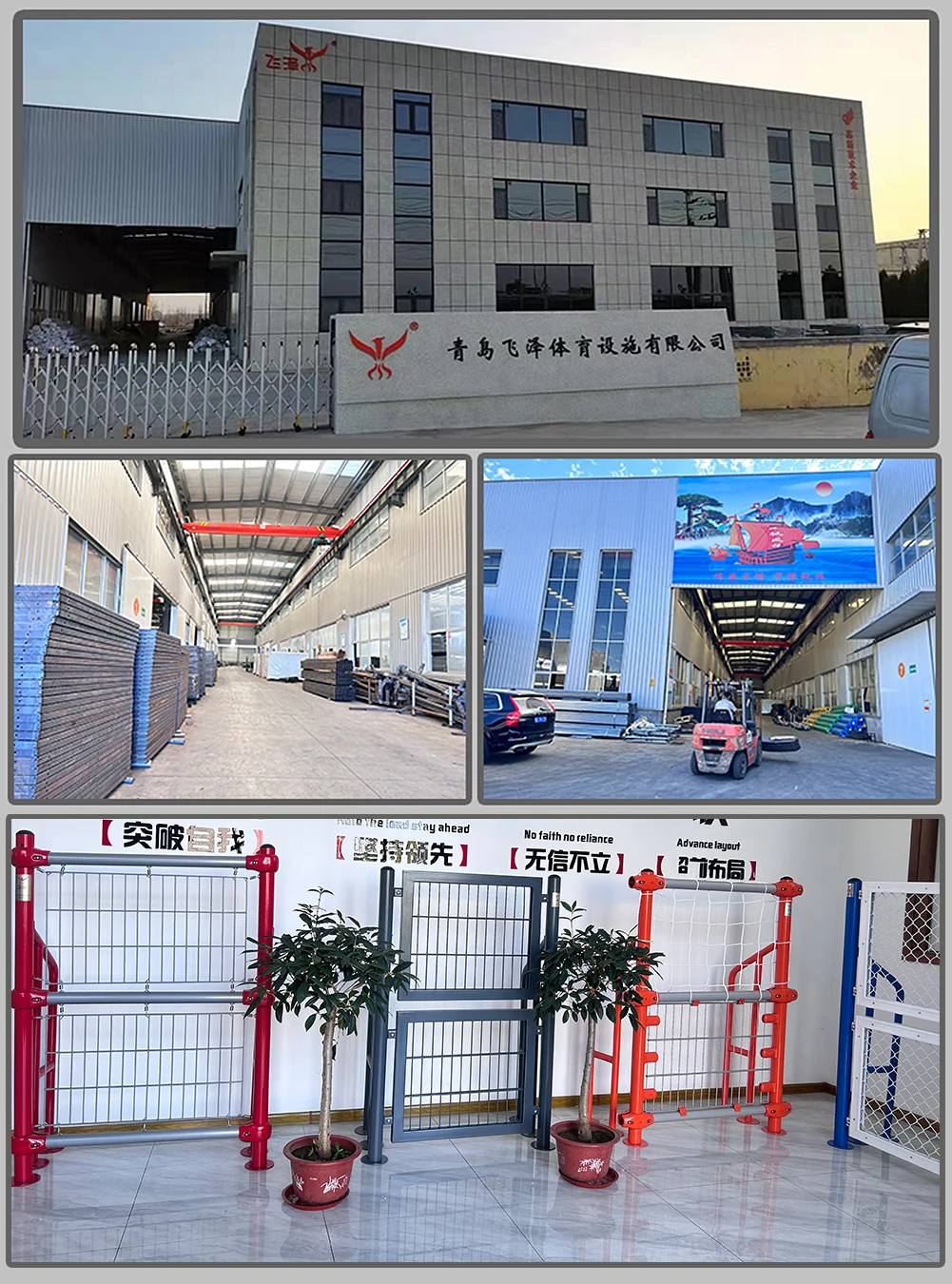

Company Profile
Faither--The Power of Faith
Qingdao Faither Sports Facilities Co., Ltd, with its production base in Jiangshan Industrial Park, Laixi City, Qingdao, and its self-built factory covering an area of nearly 20,000 square meters, has the largest production base in China's fencing industry.
Faither has been specialized in researching, developing, producing and selling sports fencing, padel court and the same series of sports equipment since 2015. The stadium fencing produced by Faither was certified by NSCC (National Sport Goods Quality Supervision and Inspection Center) in 2018, and the fencing has been widely adopted in Chinese
government procurement projects. In 2020, Faither is the first domestic fencing company in China to
pass the NCSS certifcation of the new national standard. In 2019, Faither started to develop and produce padel courts, and
made a lot of detail improvements on the basic products, focusing on the safety, practicality and aesthetics of the products. And invested great eforts to develop products with great market competitiveness and applied for patents.
The company regards product quality as the life of the enterprise, pays attention to details, and specializes in solving the difficult problems in the sports fence and paddle court industry for customers. Since the padel court series products are put into the market, they have been recognized by the majority of domestic and foreign customers, and become the preferred OEM enterprise of many famous brands at home and abroad. We are frmly committed to creating value for our customers, making the best quality products, providing the best service, and solving customers' worries.
If you are interested in Padel Court and Stadium Fence products or troubled by product quality and price, you are welcome to come to China to visit our factory and understand every detail of our product production and the key link that determines the quality, and I'm sure you will agree with our product positioning. Sports fences and padel court not only provide safety protection for sports lovers, but also a beautiful city landscape. Faither, the power of faith, the power to believe, believe that we are with you..

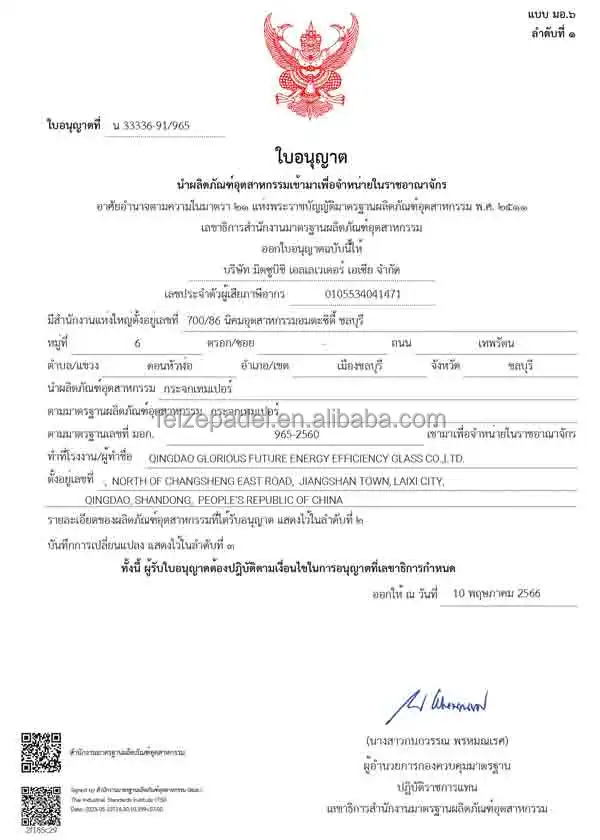

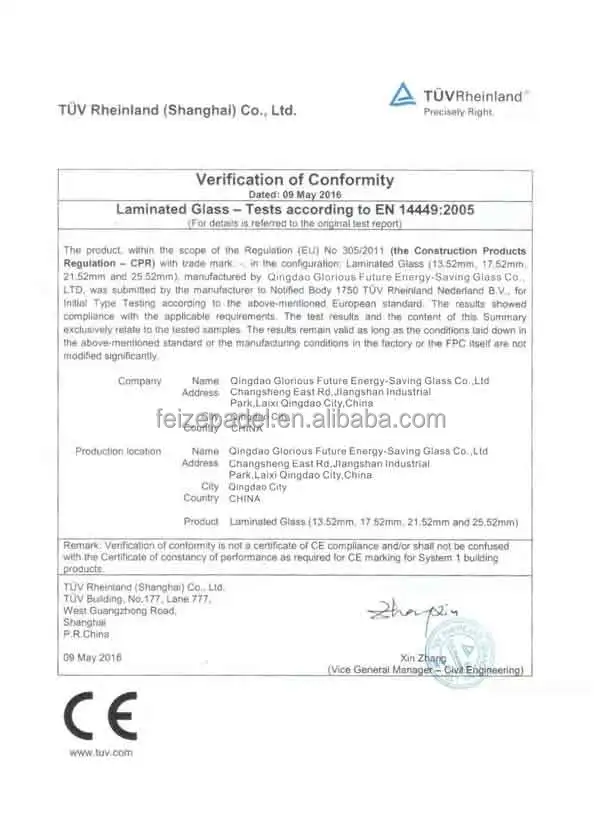

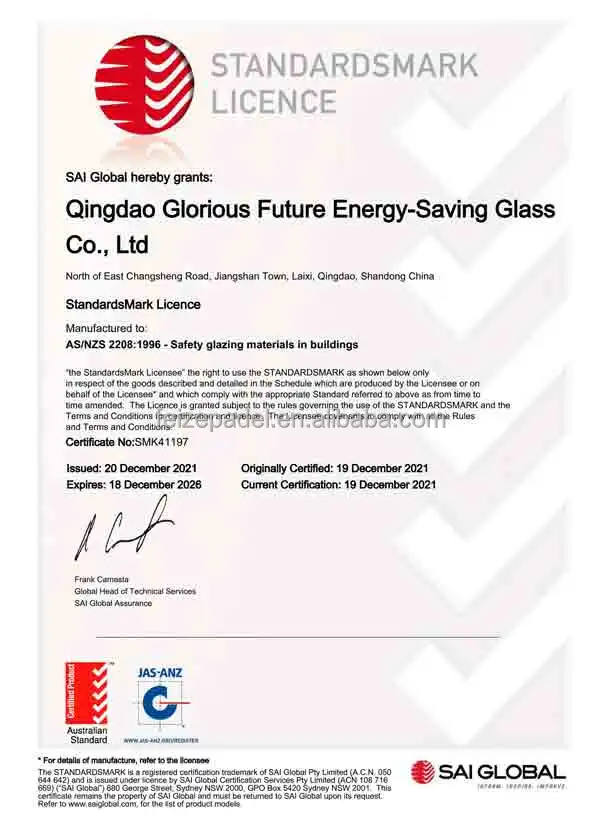

Certifications

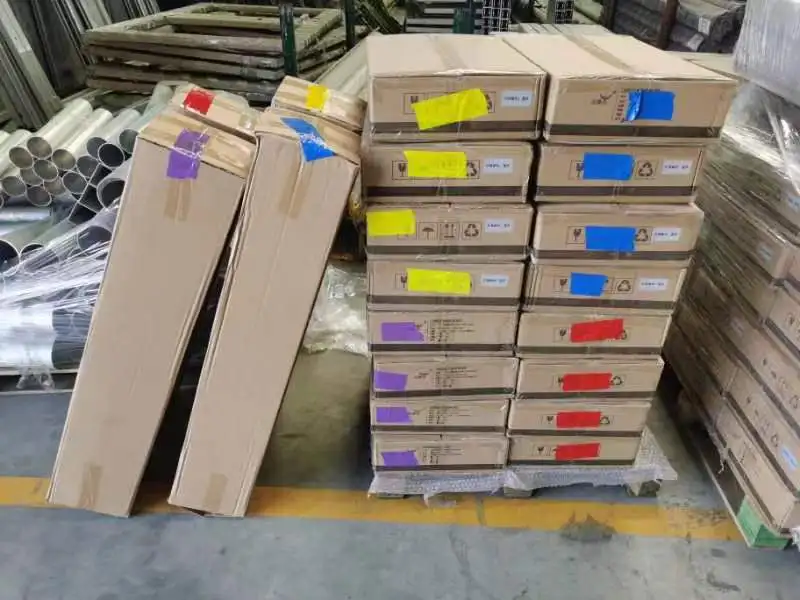

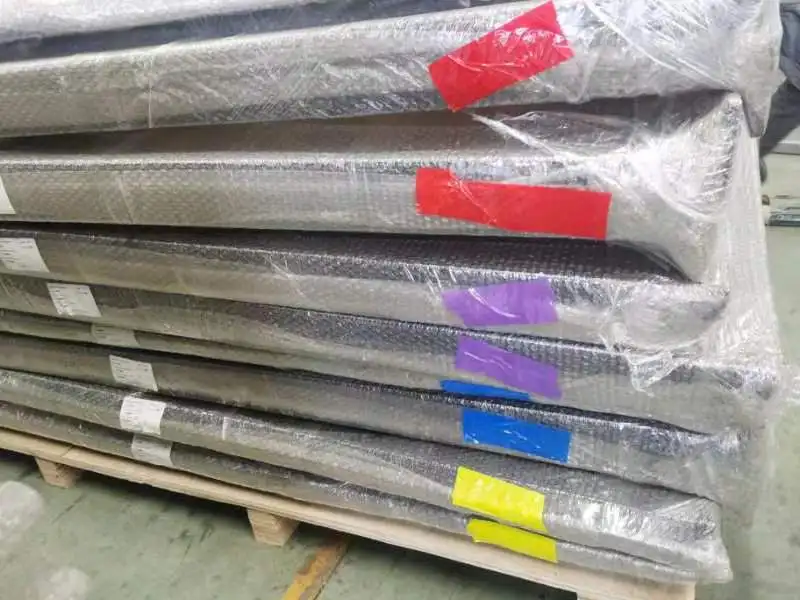

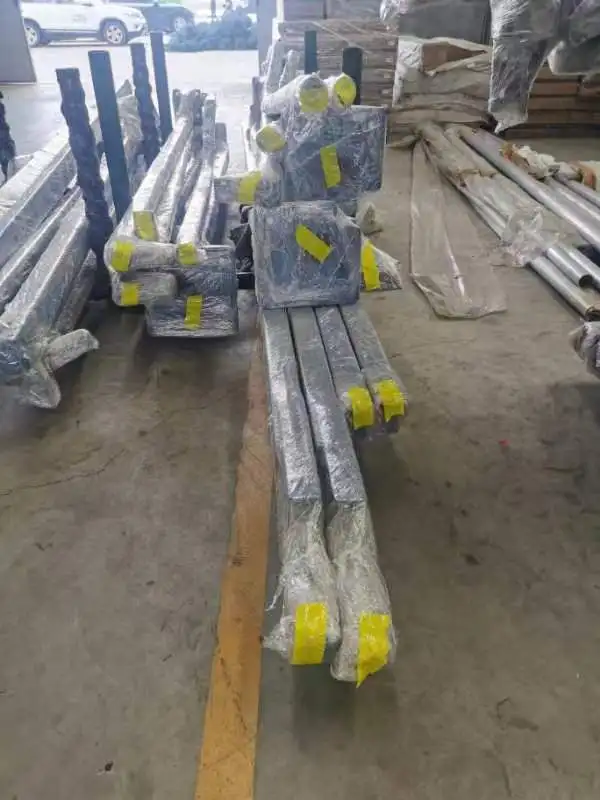

Product packaging
FAQ
Q: Why choose Faither?
A: FAITHER has been specialized in researching, developing, producing and selling sports fencing, paddle tennis and the same series of sports equipment since 2015, with a self-built factory covering an area of nearly 20,000 square feet, and possessing the largest production base in China's fencing industry. The company regards product quality as the life of the enterprise, pays attention to details, and specializes in solving the difficult problems in the sports fence and paddle court industry for customers.
Q: What are clear advantages of Faither over other suppliers?
A: Faither focuses on and fine-tuning production management. It is the first fencing manufacturer in China that has passed the new national standard NCSS certification.
FAITHER PADEL is positioned as a high-end brand in the international market, become the first choice of customization and OEM production enterprise for many famous brands at home and abroad.
A: FAITHER has been specialized in researching, developing, producing and selling sports fencing, paddle tennis and the same series of sports equipment since 2015, with a self-built factory covering an area of nearly 20,000 square feet, and possessing the largest production base in China's fencing industry. The company regards product quality as the life of the enterprise, pays attention to details, and specializes in solving the difficult problems in the sports fence and paddle court industry for customers.
Q: What are clear advantages of Faither over other suppliers?
A: Faither focuses on and fine-tuning production management. It is the first fencing manufacturer in China that has passed the new national standard NCSS certification.
FAITHER PADEL is positioned as a high-end brand in the international market, become the first choice of customization and OEM production enterprise for many famous brands at home and abroad.
Q: Can I have a sample order?
A: We can send you a sprayed metal sample, turf sample, etc. for testing, and the courier cost is borne by the customer. The cost of postage can be deducted from the cost of the order after the order has been placed.
Q: How long is the delivery time?
A: According to the quantity requirement, it usually takes10-15 days. If the quantity is large, it takes 20-30 days
Q: Do you accept customization?
A: Yes, shaped tubes, colors, Lamp posts shapes, and lighting etc. can be customized according to customer requirements.
Q：How about the warranty of the goods?
A: We provide the following warranty for products that cannot be used due to their own quality problems during normal use, after verifying that we provide the following warranty: 5-year warranty for the fence, 5-year warranty for the lighting, 5-year warranty for the artificial grass, and 10-year warranty for the toughened glass. This warranty does not include product color fading, rust, human damage, etc
A: We can send you a sprayed metal sample, turf sample, etc. for testing, and the courier cost is borne by the customer. The cost of postage can be deducted from the cost of the order after the order has been placed.
Q: How long is the delivery time?
A: According to the quantity requirement, it usually takes10-15 days. If the quantity is large, it takes 20-30 days
Q: Do you accept customization?
A: Yes, shaped tubes, colors, Lamp posts shapes, and lighting etc. can be customized according to customer requirements.
Q：How about the warranty of the goods?
A: We provide the following warranty for products that cannot be used due to their own quality problems during normal use, after verifying that we provide the following warranty: 5-year warranty for the fence, 5-year warranty for the lighting, 5-year warranty for the artificial grass, and 10-year warranty for the toughened glass. This warranty does not include product color fading, rust, human damage, etc
