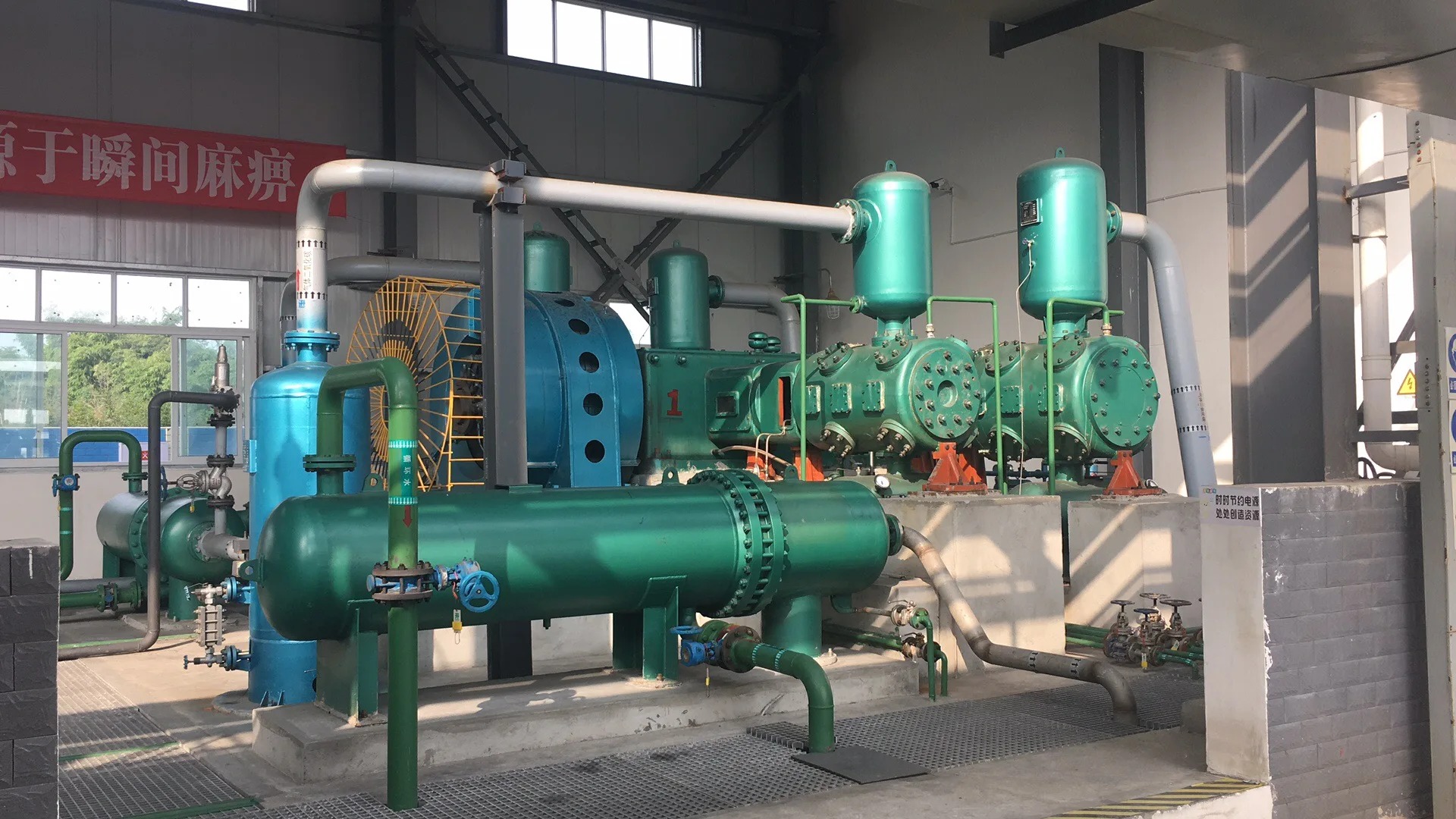

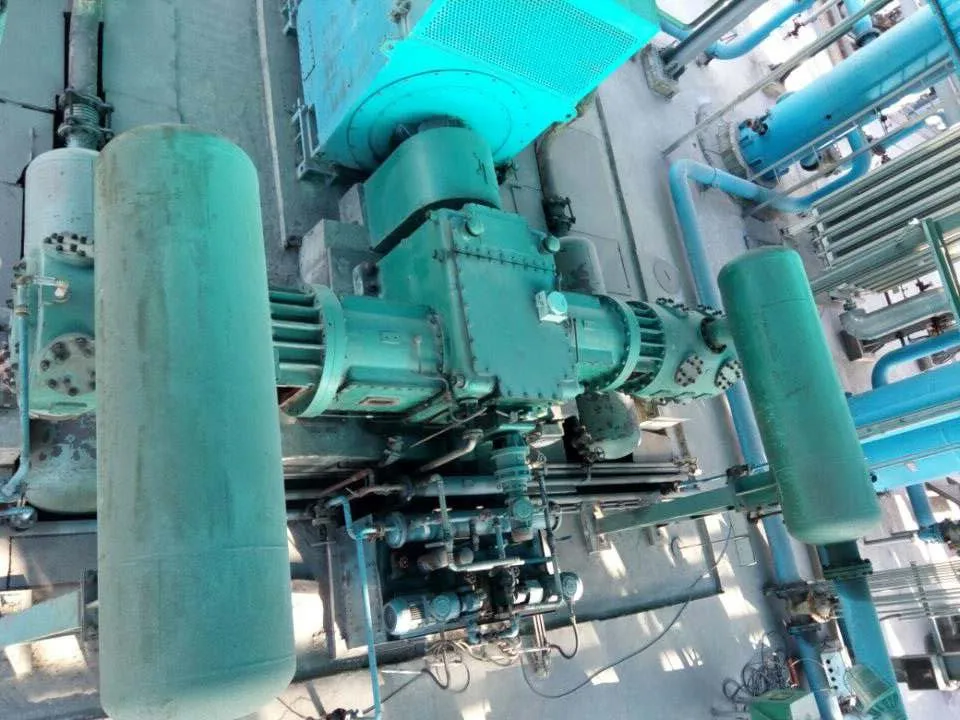

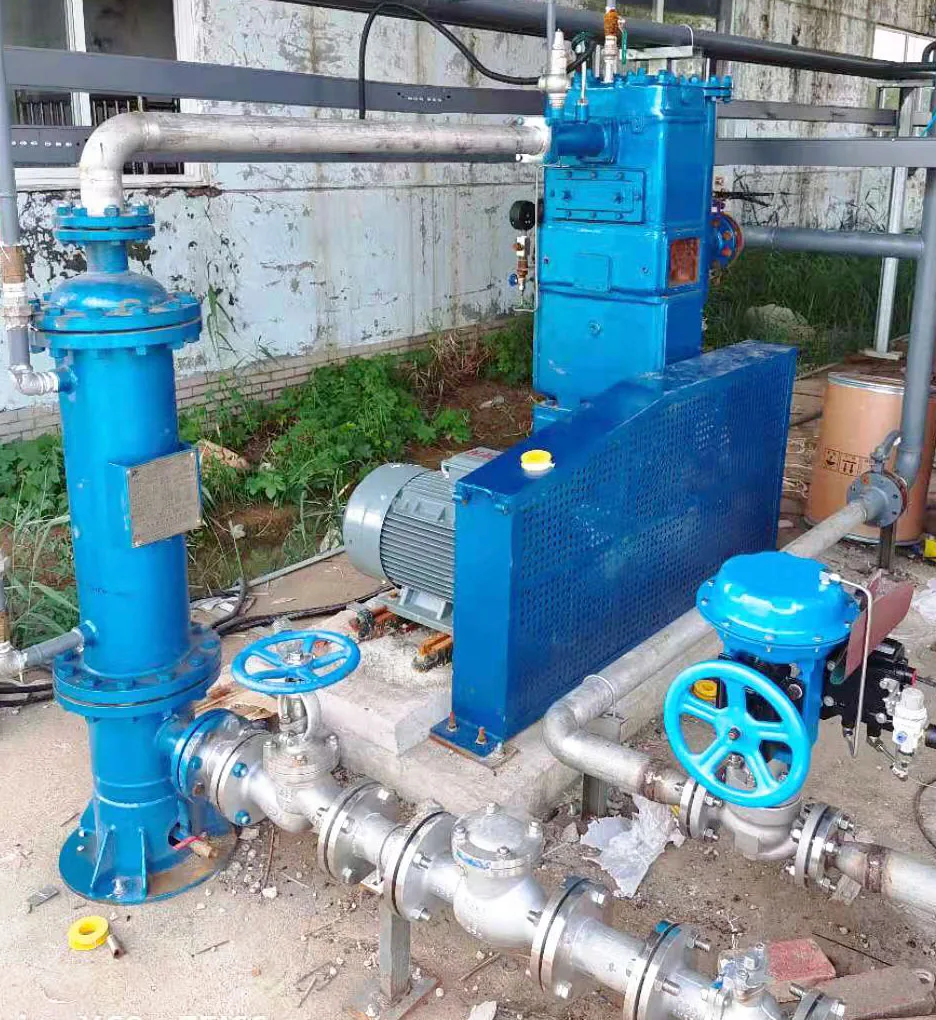

low speed separable air compressor package in cement plant power pant steel plant
- Category: >>>
- Supplier: Henan Yuanju Machinery Equipment Co. Ltd.
Share on (1601036615377):
Product Overview
Description
Company Profile
Yuanju compressor
Thanks to decades years of the rapid industry development in china ,the reciprocating technology is propelled and our clients can
benefit from the competitive price, and diverse range of standardized compressor, highly quality compressed process gas isachieved including ,but not limited to :air, carbon dioxide ,oxygen,nitrogen ,natural gas ,mixed gas.
Product Description
Special design for nitrogen compressor:

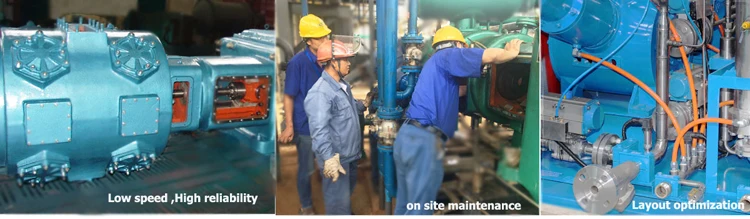

--Low speed
* Low piston velocity guarantee the long
--Low speed
* Low piston velocity guarantee the long
service life of sealing
* Piston speed range from 240rpm
* Piston speed range from 240rpm
to 740 rpm
--High efficiency
* Optimized designing ensure
--High efficiency
* Optimized designing ensure
discharge temperature less
than 150 ℃
* Piston ring ,guide ring and
* Piston ring ,guide ring and
valve plate with metal material
* High discharge pressure ,high
* High discharge pressure ,high
thermal efficiency
--Reliable operation
* Special material for seats,
--Reliable operation
* Special material for seats,
gasket,valves ,rings
* Flow rate change can not
* Flow rate change can not
affect pressure
Standardize prototypes and Modular portfolio

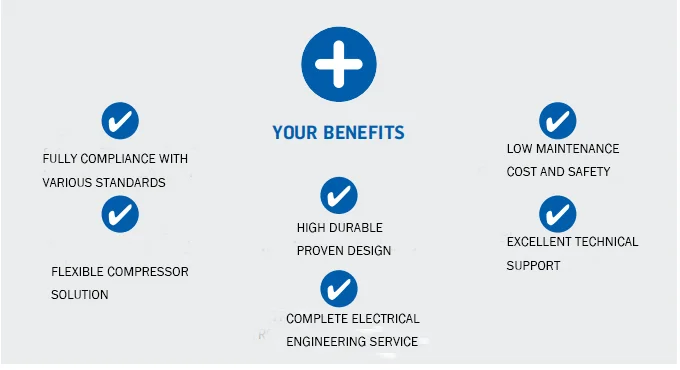

Benefits
-Pre-assembled package only to be
connected with water pipe,gas
pipe and wire on the site
-More than 14 models with standard
sizes are available
for countless variation
-Easy installation and maintenance
-Maximize the reliability ,efficiency
-Easy installation and maintenance
-Maximize the reliability ,efficiency
and quality
-Connect modular structure portfolio
-Connect modular structure portfolio
with the suitable components
High durable proven design

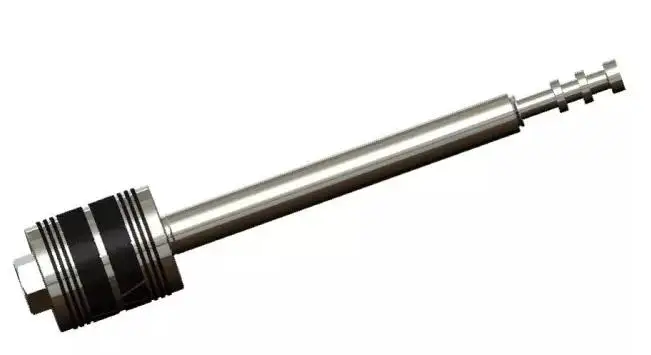

Rigid piston rod and piston
--Piston ring and guide ring are
--Piston ring and guide ring are
made of composite PTFE or
peek for long life.
--Piston are made of composite
aluminum stainless steel or
other materials according
to the process.
--Piston rod in stainless steel
or nitriding steel
(38CrMoAIA, 3Cr13,40Cr)
according to the
the discharge pressure.
Durable cylinder
--Cooled by forced water circulation to
minimize temperature,increasing efficiency
and reliability
-- Generally discharge valves on the
bottom in accordance with API 618
--Material of cylinder is wear-resistant
cast iron or stainless steel ,base on
the media gas and discharge
pressure.
Efficient valve
-Stainless steel plate
-Design of wide
-Stainless steel plate
type valve or other
types.
-Customized discs
(peek or stainless
steel ) for different
applications
-Design of wide
channel and low
speed ensure
minimum pressure
loss and extend
service life.
Rugged crankcase
---Crankcase in high
---Crankcase in high
strength cast iron
or forged steel
-- Forced lubrication
ensure the highly
rigidity, wear
resistance and
fatigue strength
--Design for long
service life.
-- Forced lubrication
is carried out by
a crank mounted
oil pump or motor
Fully compliance with
various standards
All yuanju compressor are
ce marked to meet clients
request ,be designed
according to Machine Directive ,
PED and ATEX requirements
and in compliance with
the API 618 or API 617
standard.Vessels can be
made base on ASME
standards.
Flexible compressor
solution
put together an optimal
put together an optimal
compressor,from our wide
range of modular portfolio.
combine the basic structure
of running gear with
suitable size of cylinder
and piston stroke .
Specification
Max horse power | 2000kw |
Max discharge pressure | 30.0mpa |
Max capacity | 200m3/min |
Number of stage | 1-6 stages |
control | Manual / PLC/DCS |
Cooled way | air cooled or water cooled |
Connection | belt driven or direct |
Application
Tire plant
Oil& gas
Nitrogen filling station
Chemical processing
Psa nitrogen plant
Psa nitrogen plant
Food industry
Laser cutting
Instrument gas
Synthetic ammonia system
Package
Package
To better ensure the safety of hydrogen compressor, professional, environmentally friendly, convenient and efficient packaging services will be provided. Generally the wooden box package is offered .

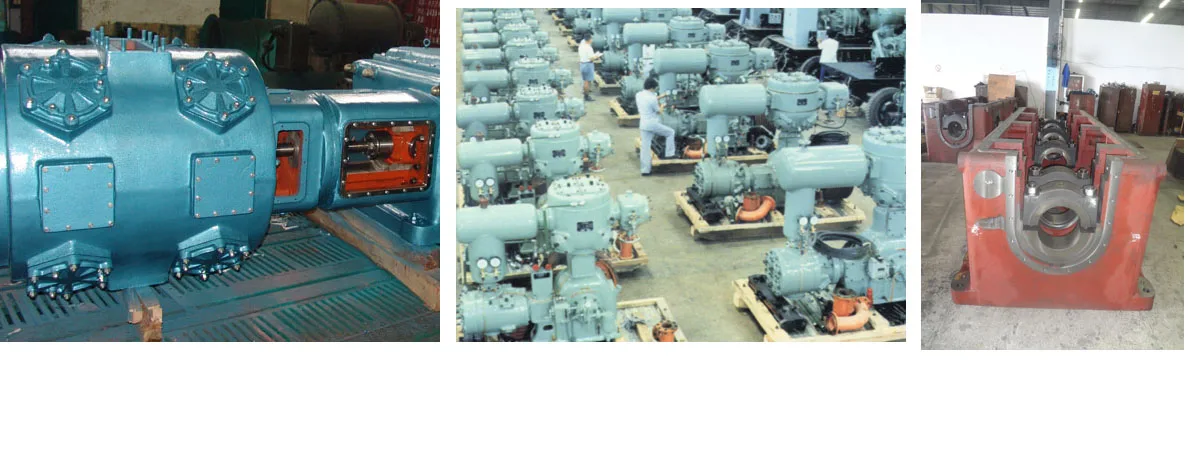

Fabrication process
For large scale compressor ,we adopt Jiangxi compressor for our process gas compressor package, since 1953 Jiangxi has designed and engineered piston compressor for variety applications,and sets the standard in quality ,reliability and technical support.
From casting mold to assemble ,and testing, the whole fabrication process is accomplished in our workshop, which safeguard the good quality and competitive efficiency.

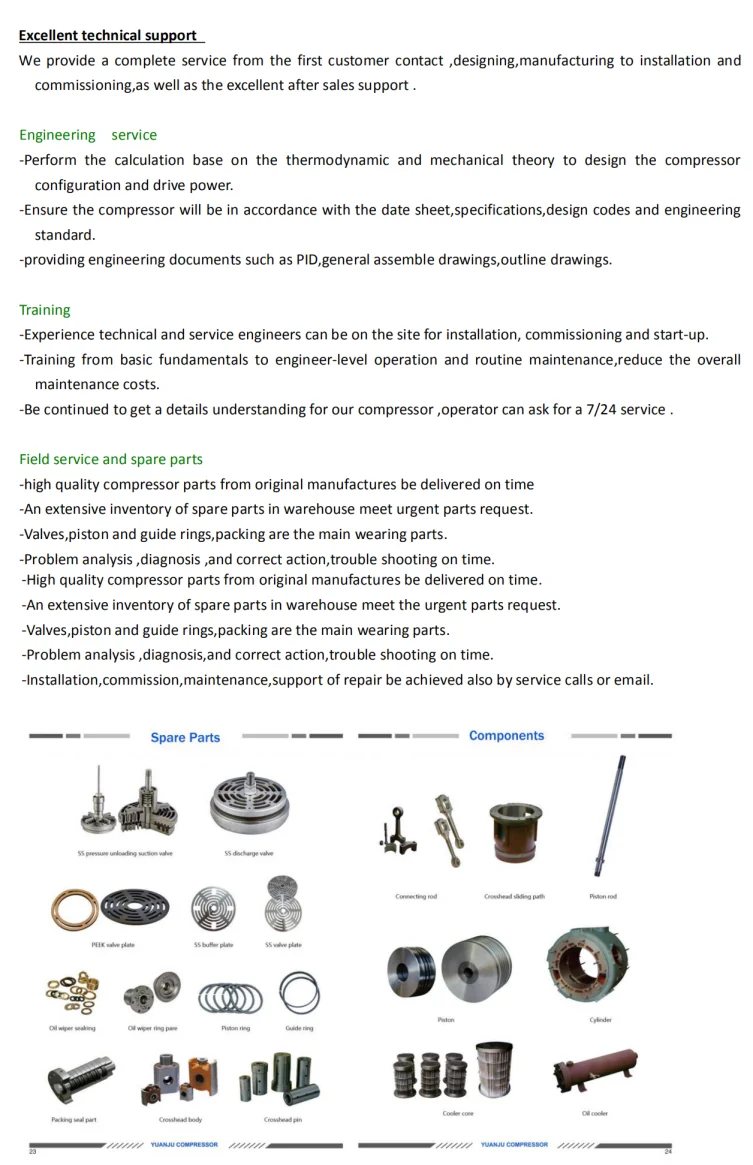

After sales support
