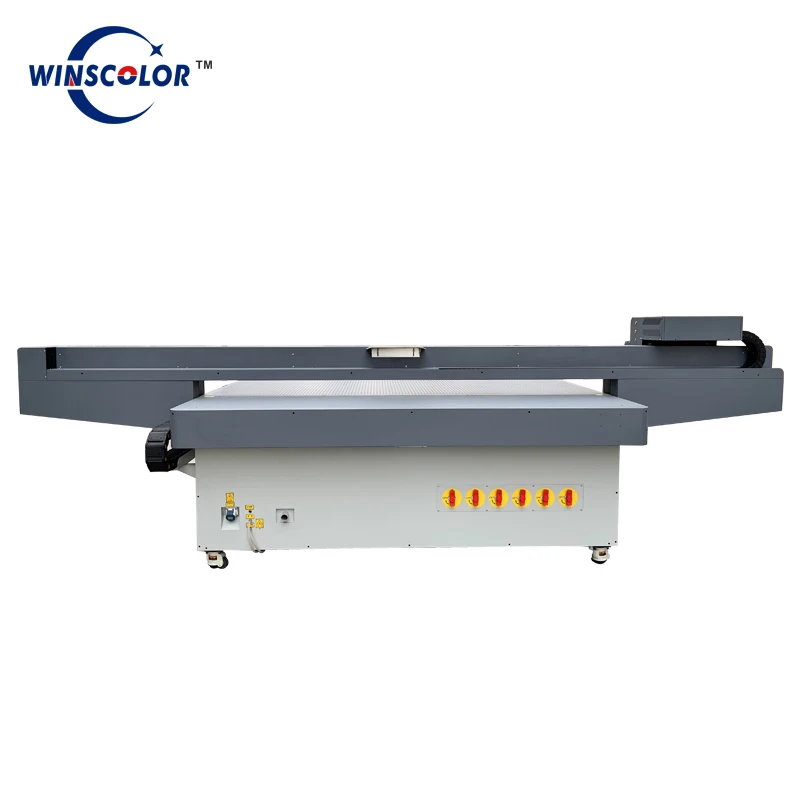

Small business machine ideas 3d printer price uv printer 2513
Small business machine ideas 3d printer price uv printer 2513
Small business machine ideas 3d printer price uv printer 2513
Small business machine ideas 3d printer price uv printer 2513
Small business machine ideas 3d printer price uv printer 2513
Small business machine ideas 3d printer price uv printer 2513
Small business machine ideas 3d printer price uv printer 2513

Small business machine ideas 3d printer price uv printer 2513

Share on (1601036629421):


Price:$2,000.00 - $4,000.00

Quantity:


Product Overview

Description



Product Description




Printhead
Ricoh GEN5/Ricoh GEN6
Printhead 2-8 units optional
Print Effect
Color, White, Varnish and
embossing effect optional.
Application
Advertising Industry,
Furniture Industry


Product Paramenters

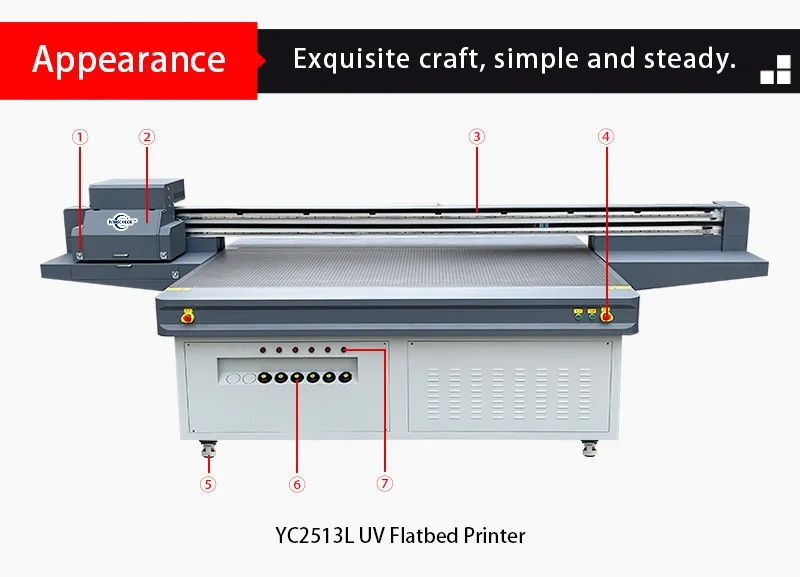

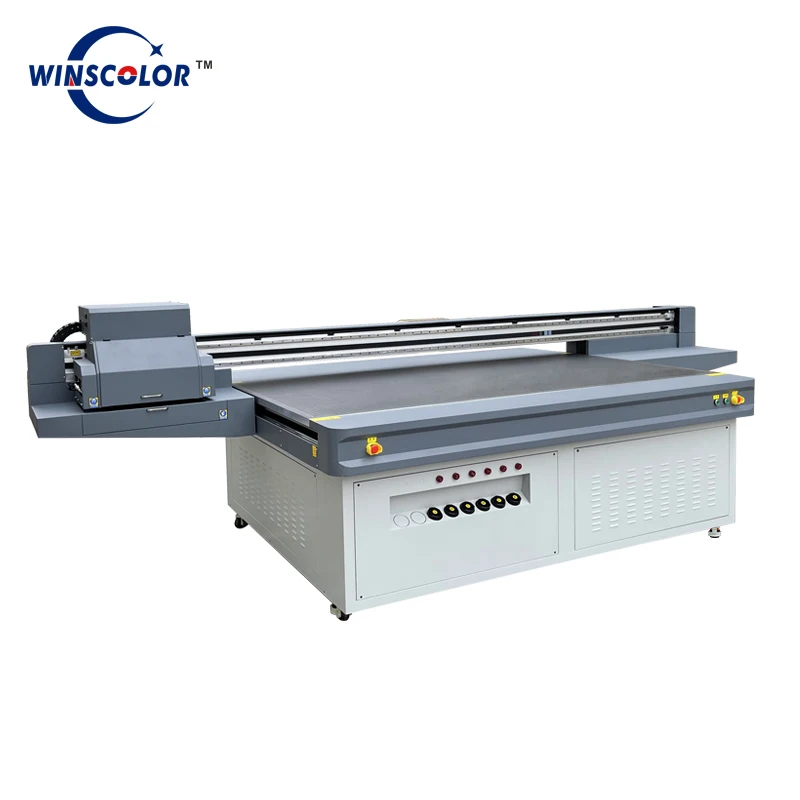

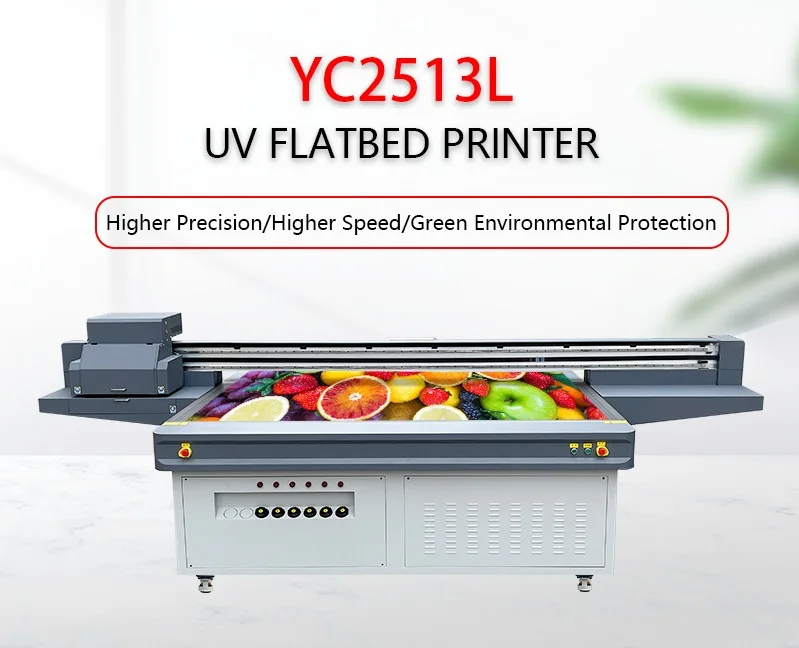

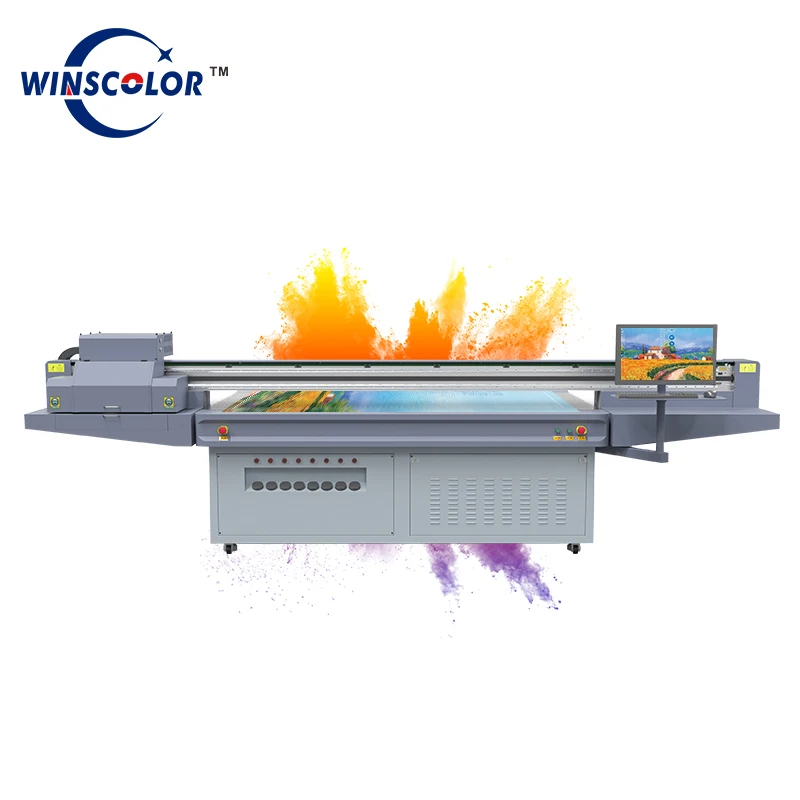

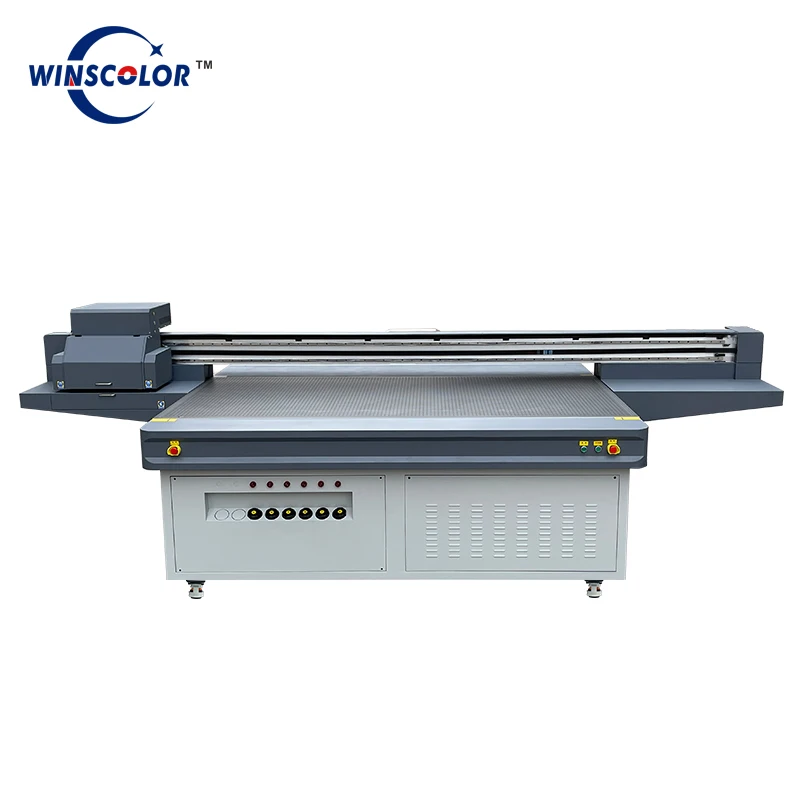

YC2513L UV Flatbed Printer
①UV LED Lamp
④Switch and power switch area
⑦Ink level alarm system
②Industrial print head
⑤Universal wheel
③TAIWAN HIWIN guide rail
⑥Ink tank




Specifications
Product Model
YC2513L
Printhead Type
RICOH GEN5/GEN6/KM1024I/SPT1024GS
Printhead Number
2-8 heads
Ink Characteristics
UV Curing Ink (VOC Free)
Ink reservoirs
Refillable on the fly while printing/2500ml per color
LED UV Lamp
more than 30000-hours life made in Korea
Printhead arrangement
CMYK LC LM W V Optional
Printhead Cleaning System
Automatic Cleaning System
Guide Rail
TAIWAN HIWIN/THK Optional
Working Table
Vacuum Sucking
Printing Size
2500*1300mm
Print Interface
USB2.0/USB3.0/Ethernet Interface
Media Thickness
0-100mm
Print Resolution& Speed
720X600dpi
4PASS
15-33sqm/h
(GEN6 40% faster than this speed)
720X900dpi
6PASS
10-22sqm/h
720X1200dpi
8PASS
8-18sqm/h
Life of printed image
3 years(outdoor),10years(indoor)
File Format
TIFF,JPEG,Postscript,EPS,PDF etc.
RIP Software
Photoprint /RIP
Power Supply
220V 50/60Hz(10%)
Power
3100W
Operation Environment
Temperature 20 to 30 ℃,Humidity 40% to 60%

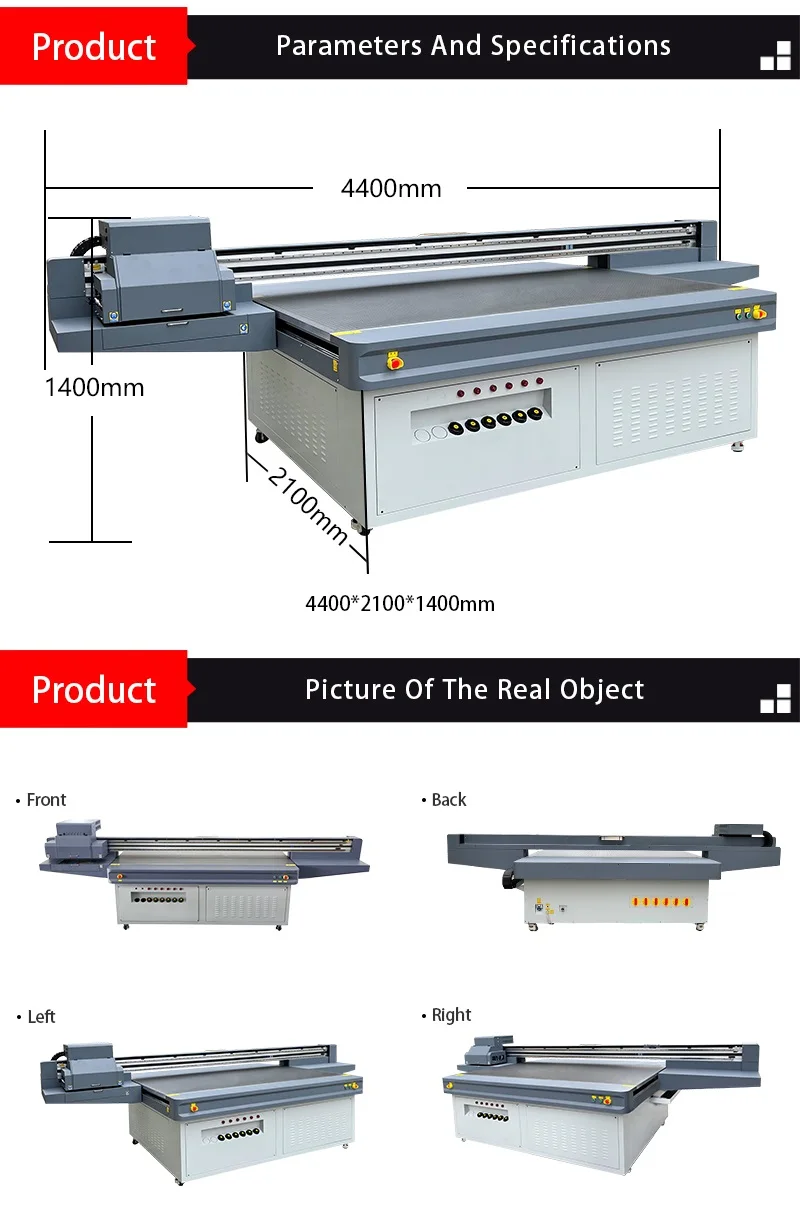

Machine Dimension
2.1*4.4*1.4m
Packing Dimension
4.6*2.3*1.65m
Weight
1200kg
Warranty
12 months exclude the consumables
Above specification subject to change without notice beforehand


Machine Details

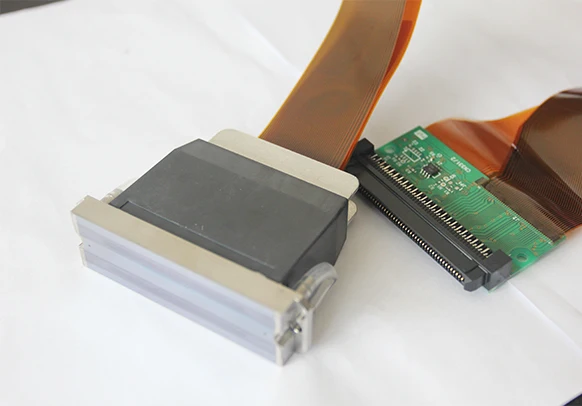

Ricoh Print Head
Adopting gray level Ricoh stainless steel internal heating industry head which has high performance in speed and resolu-tion. It is suitable for long-time working, 24 hours running.

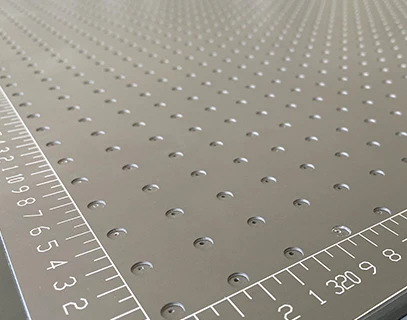

Vacuum Adsorption Platform
Hard oxidized honeycomb hole section-alized adsorption platform, strong adso-
rption capacity, low motor consumption, customers can adjust the adsorption area according to the size of the printing
material,the platform surface hardness is high, scratch resistance, corrosion resistance.

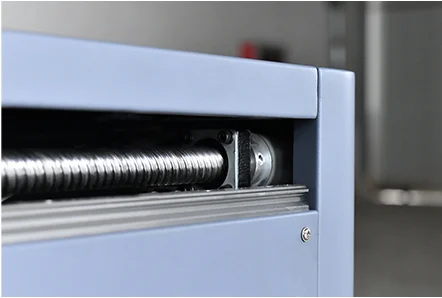

Taiwan HIWIN Screw Rod
Adopting dual-level precision screw rod and imported Panasonic servo synchro-nous motors, ensure the screws rod on the both sides of Y axis synchronous running.

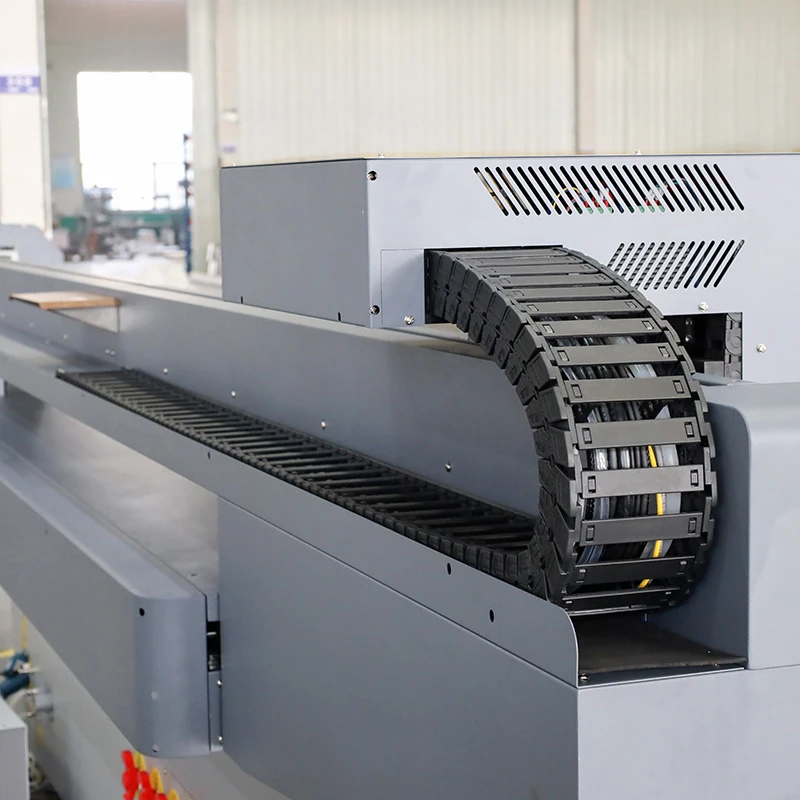

German IGUS Energy Chain
Utilize Germany IGUS mute drag chain on X axis, suitable for protection of cable and tubes under high speed motion.With high performance, low noise, make the working environment more comfortable.

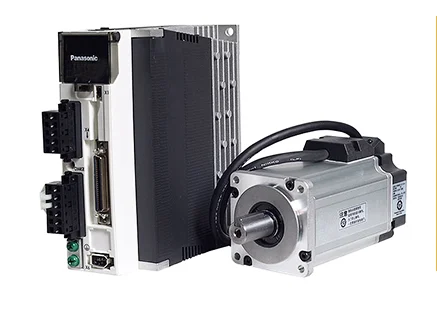

Panasonic Servo Motors And Drives
Using Panasonic servo motor and driver, effectively overcome the step loss prob-lem of step motor. High speed printing
performanceis good, low speed running is stable, dynamic response is timely, running stable.




Large capacity ink tank and ink shortage alarm system
Printhead Anti-collision
Korea UV
LED LAMP


Universal wheel
Tempreture control system for printheads plate
Sencondery cartrighe




Automatic origin postioning
Antistatic System
Automatic height measurement





Adopt Ricoh piezoelectric nozzle, one nozzle 384/1280 nozzles, the accuracy can reach 1440dpi, the new variable ink drop technology, provide 7/14/21pl ink dot size, can achieve high speed or low resolution cases can also easily achieve high quality picture, to achieve no point printing effect.

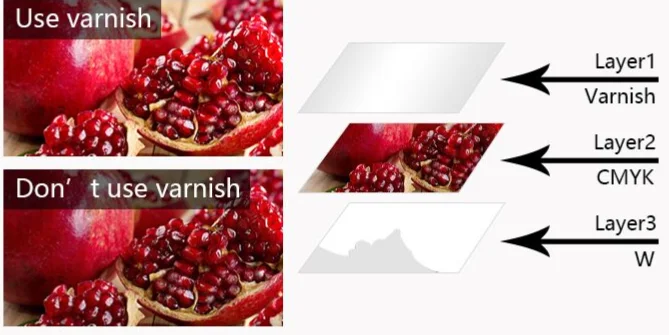

CMYK+W+V All three colors at once
The use of varnish makes the product more gorgeous gloss and "high gloss" effect, not only makes the surface of the whole picture has a gloss sense, get a more exquisite printing effect, but also can better protect printing product, make the product more durable.


Printing Samples




Wood
Plastic
Phone Case


Ceramic
Acrylic
Handcraft


Decoration
Fiber
Wall background


Glass Photo
PVC
Advertising Sign

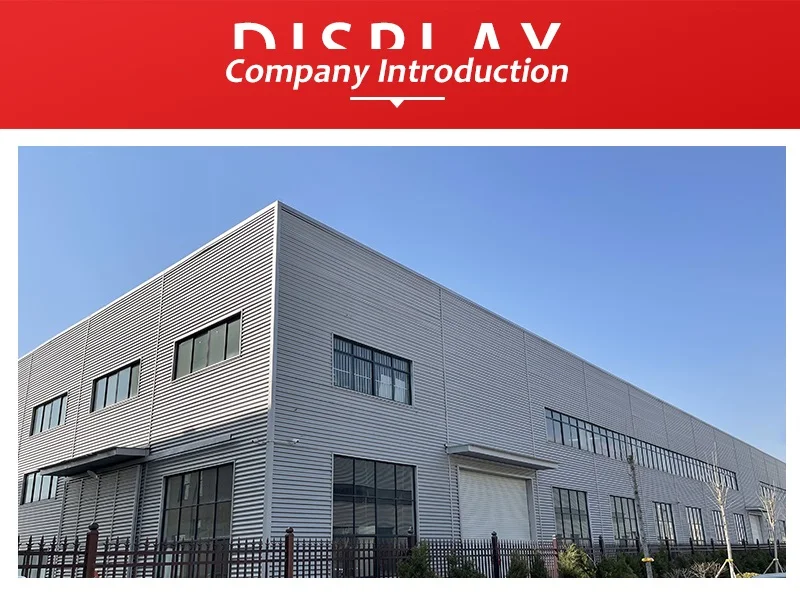

Company Profile


Jinan Yingcai Digital Technology Co., Ltd
Jinan Yingcai Digital Technology Co., Ltd ( short as”Winscolor”) was established in 2015, locating in Jinan City, Shandong province, China. The independent plant covers more than 20,000 square meters, with six professional production lines to support annually sales volume.
Winscolor is an exporter of UV digital printing machines . Now our printer series include UV Flatbed printer, UV Flatbed with Roll to roll printer, and UV Hybrid printer, as well as smart UV printer.
Winscolor digital printing machine was exported since 2015, with widespread praise and recognition by our customers, our printers are welcome more than 150 countries in Asia, Europe, Australia and Africa etc.
Winscolor UV printers have been widely used in advertisement, sign,decoration, glass, crafts and other industries. We strengthen technological innovation, optimize the cost of consumption, and strive to cr-eate the best quality UV digital printing machines for our customer, and some comprehensive soluti-ons according to different demands in various industries.
Winscolor uphold the concept of excellence, and continuously improve product quality, to become the most trusted brand in UV printing equipment industry. We will continue to committed to industrial printing R & D and innovation and promote the healthy development of printing industry.




Ｏne Year Warranty
Important parts,
warranty for one year.
Free Replacement
Within the warranty period, free replacement of damaged parts caused by quality problems.
Intimate After-sales
At least three times a year
after sales return visit, keep
track of the machine use.


Packing&Delivery




Customer Photos




FAQ




1. Can the printing speed be improved by adding printhead?
Yes, usually adding printheads can increase the printing speed, please advise what printing speed you want to achieve, so we can check and recommend printhead number which is suitable for you.

2. How about the Maintenance and after-sales service?
After you get the machine, firstly we will send you operate manual and installation videos, our engineer will teach you how to install machine by online ways, such as whatsapp/wechat/Dingtalk, whenever you have
questions for machine, you can freely contact engineer. In addition, Remote guide service also be supported.

3. How long is the warranty for your machines?
UV printer warranty is 12 months(except printhead and ink system, which belong to consumables) and We
will provide Lifetime service for you.

4. What kinds of materials need add coating before printing?
Before printing Glass, ceramic, metal, acrylic, need to add coating to add Adhesion.

5. How about the quality of your products?
We are professional UV printer manufacturer for 12 years, all machines self-developed and produced, in addition,We have quality inspection process. All machines are inspected before delivery to ensure the performance and stability of the machine. So machine quality is guaranteed.

6. Can I buy ink from our local company instead of your company?
Yes, but our ink have been tested many times by our printers, the ink fluency, flavor and colors have been turned out to be most suitable to our printers.

7. How soon can you deliver your machines?
Usually 5-7 working days. After factory receive your deposit,will arrange to produce for you in time.

8. Can I get supplies and wearing parts from you?
Yes, we provide all the wearing parts for our printers always and they are in stock.

9. How will you achieve the warranty?
If any electronics or a mechanical part is confirmed to be broken, should send the new part within 48hours by express like TNT, DHL, FEDEX .etc to the buyer. And the shipping cost should be born by the buyer.

10. What kinds of materials need premier before printing?
Glass, ceramic, metel, acrylic, marble etc
