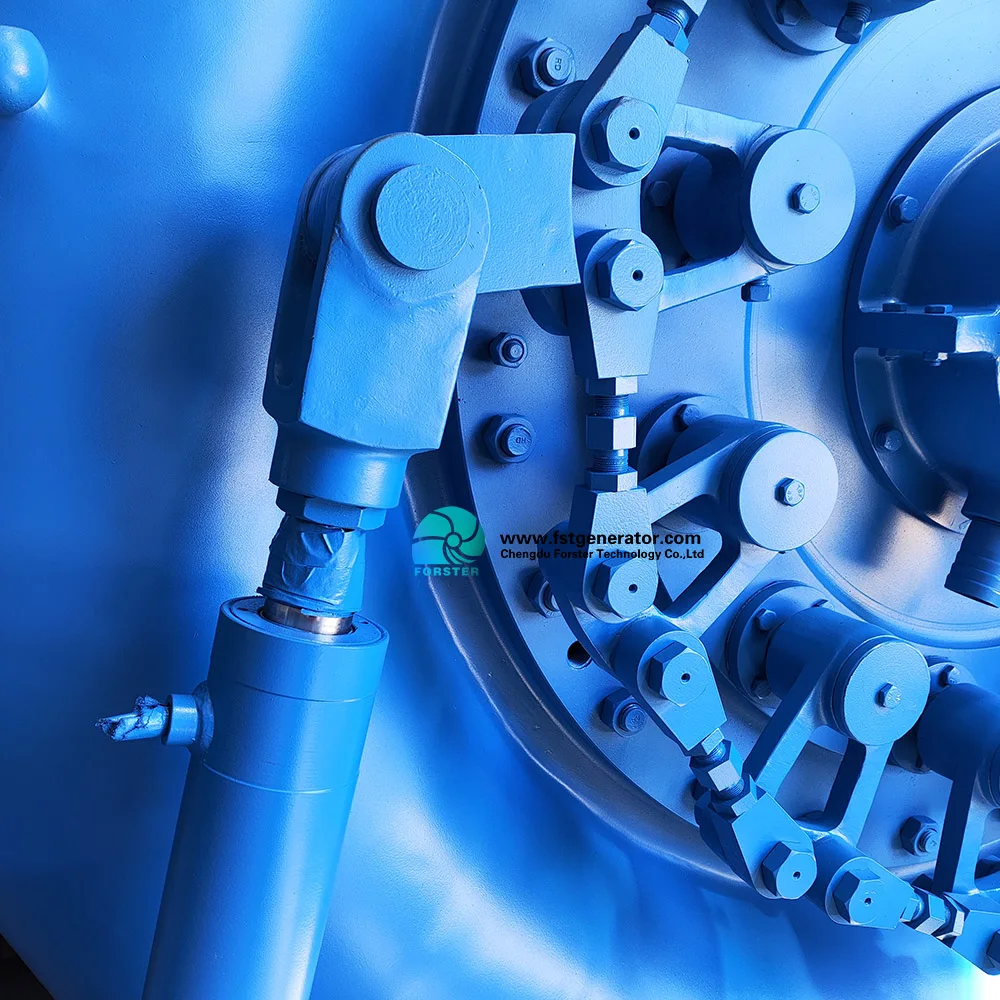

0.8MW 1MW 2MW 1.5MW 2MW 2.5MW 3MW 5MW Francis Turbine Automation Hydro Power Plant
- Category: >>>
- Supplier: Chengdu Forster Technology Co. Ltd.
Share on (1601036633695):
Product Overview
Description
0.8MW 1MW 2MW 1.5MW 2MW 2.5MW 3MW 5MW Francis Turbine Automation Hydro Power Plant
Our main products included:
(1) Kaplan water turbine generators series.
(2) Turgo water turbine generators series,e.g. vertical type horizontal type.
(3) Tubular water turbine generators series ,e.g. Bulb type and shaft extension type.
(4) Francis water turbine generators series.
(5) Pelton water turbine generators series and double turbine generators series and so on.
Product features
1.Francis turbine has the advantages of compact structure, high efficiency and can adapt to a wide range of water head of turbine type. It is one of the widely used ar 20KW mini hydro turbine-generator ound the world;
2.When the water flow through the turbine wheel, it enters to radial, axial flow, so it is also called the radial axial flow turbine;
3.Francis turbine is also called the Francis turbine. The water flow from the surrounding radial inflow runner, then approximate axial flow runner, runner by the crown, under the ring and the blade;
Product parameters
Product name:1×1MW Francis Turbine Generator Unit | |||
Technical Parameters | |||
Net Head | Hr | 70 | m |
Design Flow Rate | Qr | 1×1.73 | m³/s |
Power | P | 1×1000 | kW |
Turbine | Generator | ||
Model | HLA678-WJ-60 | Model | SFWE-W1000-6/1180 |
Unit Flow Q11 | 0.67m3/s | Rated Efficiency of Generator ηf | 94% |
Unit Rotating Speed n11 | 71.71 r/min | Frequency of the generator f | 50Hz |
Max Hydraulic Thrust Pt | 5.66t | Rated voltage of generator V | 400V |
Rated rotating speed r | 1000r/min | Rated current of the generator I | 1804.27A |
Model Efficiency of turbine ηm | 93.5% | Excitation | Brushless Excitation |
Max Runway speed nfmax | 1825r/min | Connection way | Direct connection |
Rated Output Nt | 1065kW | Max runaway speed nfmax‘ | 2000r/min |
Rated Discharge Qr | 1.73m3/s | Rated rotating speed nr | 1000r/min |
Turbine real machine efficiency ηr | 89% | Unit support form | Horizontal 2 point |

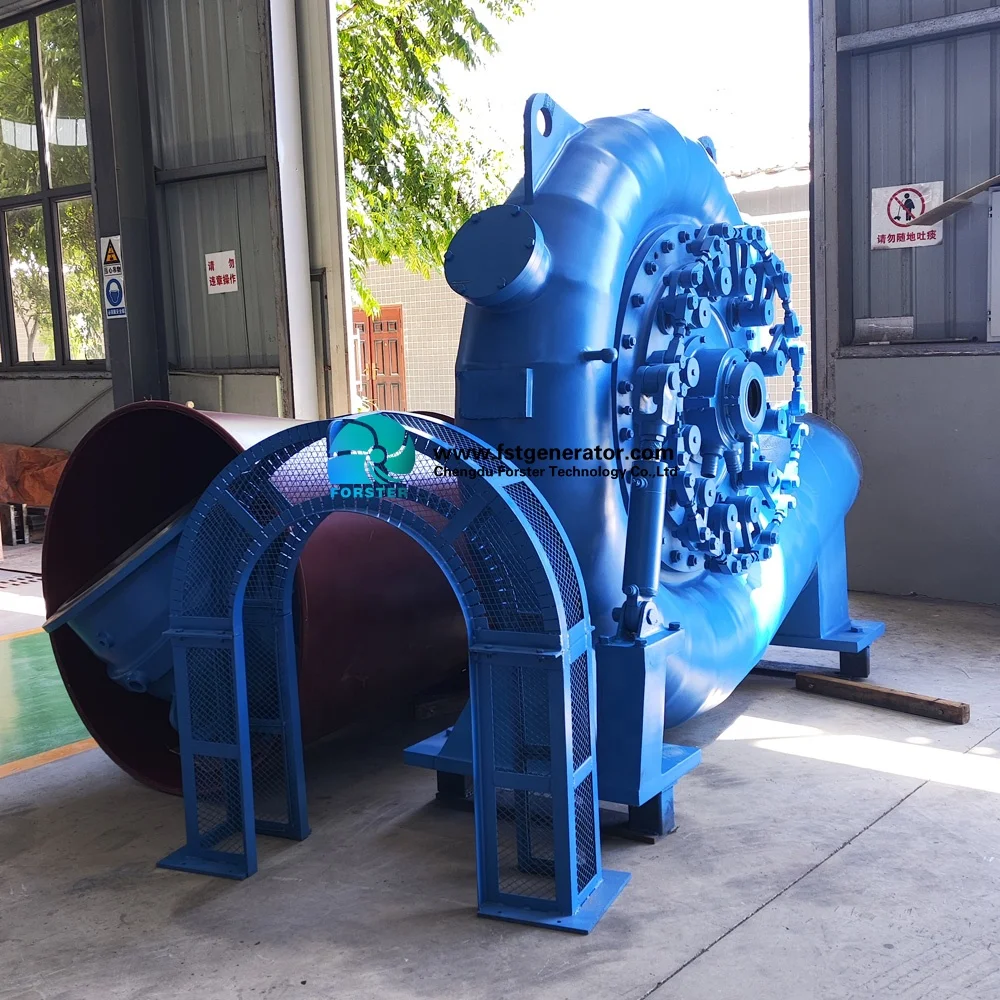

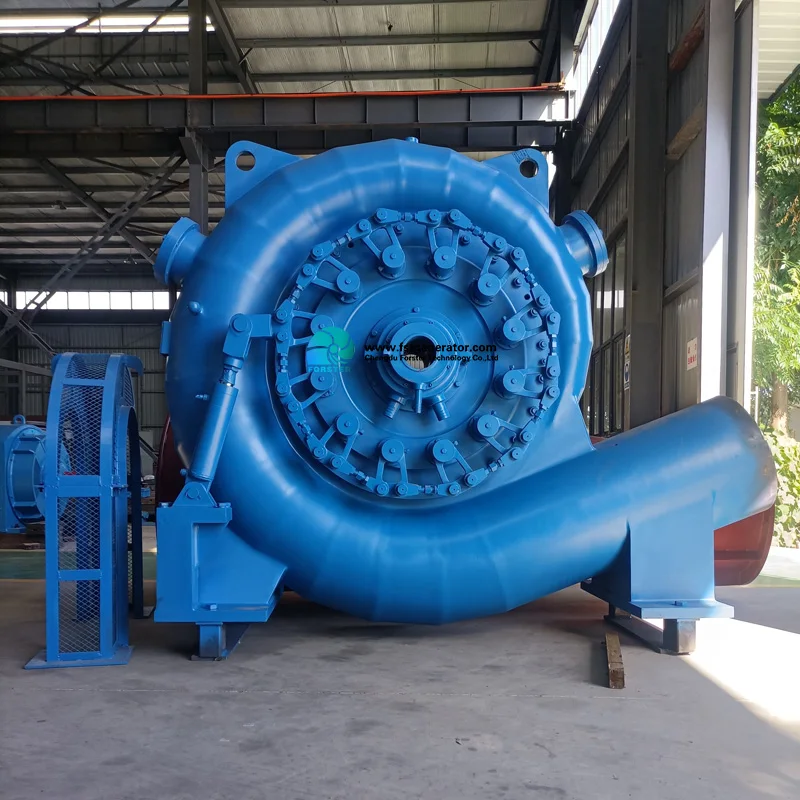

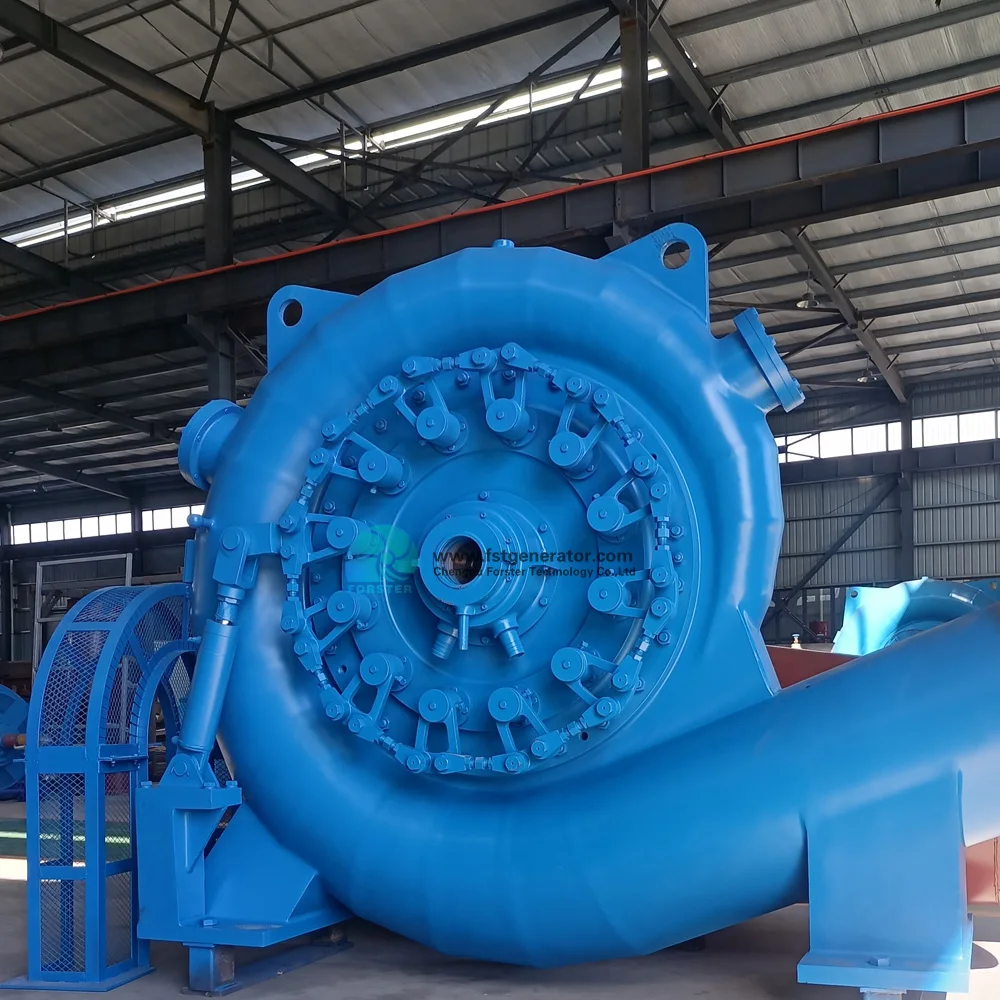

Product pictuers
Other Product
 |  |

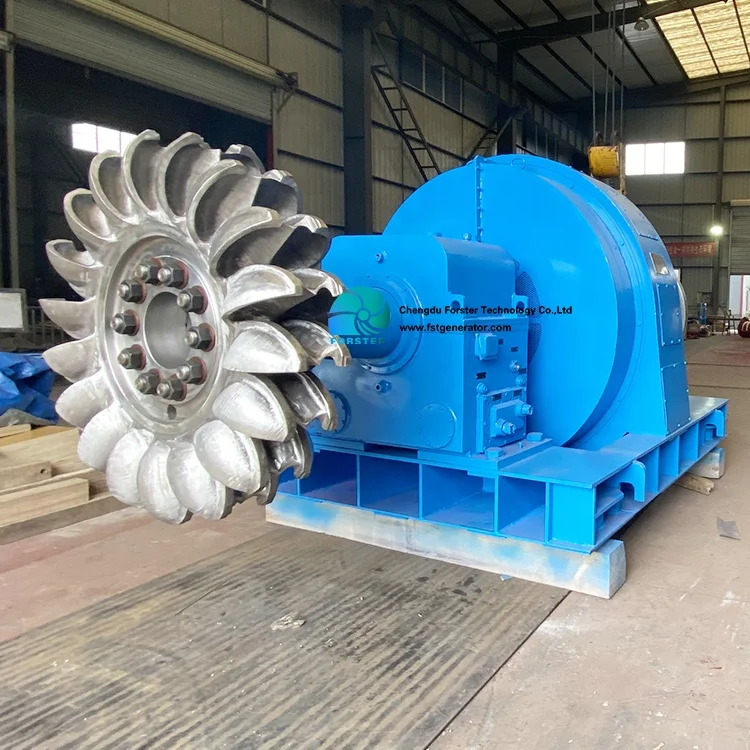

| Kaplan Water Turbine Generator | Pelton Water turbine Generator |
Company Information
Our Workshop:
Advantages:

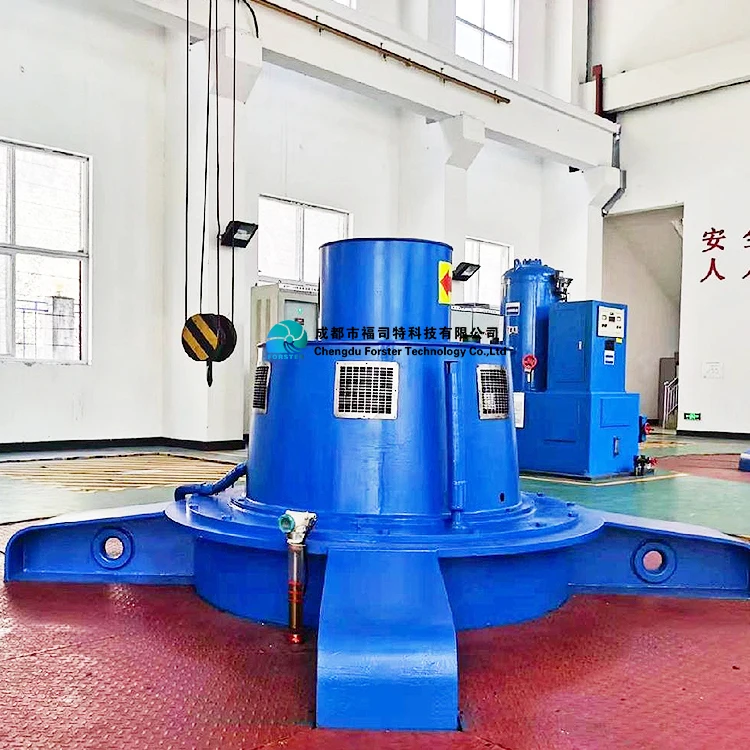

Engineering Case
Packaging & Shipping
FAQ
Q1, Which hydro turbine should I choose?
Please tell me the water head, flow rate, frequency, Total power you need
, voltage, on grid or off grid operation, we will propose a solution.
Q2, Can your factory provide all the equipment for hydropower generation?
Yes, we can provide you with turbines, hydro-generators, pressure regulators, turbine wheels, control panels, transformers, monitoring systems and more.
Q3, Can you do EPC for a hydroelectric power plant?
Yes, we can provide TURN-KEY and EPC services including measurement, design, manufacturing, construction, manufacturing, commissioning, inspection, maintenance runner replacement and refurbishment/upgrade/improvement/repair/refurbishment of turbines/generators including bearings, seals For parts and key parts, we will send technicians and workers to install equipment.
Q4,Is your company a trading company or a manufacturer?
We are a manufacturer of hydro turbine generators and started to promote the international market in 2013. Our factory is located in Sichuan, where China's water conservancy and hydropower is most developed. Welcome to visit our factory in China.
Q5, What is an acceptable MOQ?
For this product, our acceptable MOQ is 1 set.
Q6,How long is the delivery time?
Delivery times range from 15 days to 6 months depending on the model you are purchasing.
For more hydro power plant details, please contact our business manager
Sales Manager__George Huang
