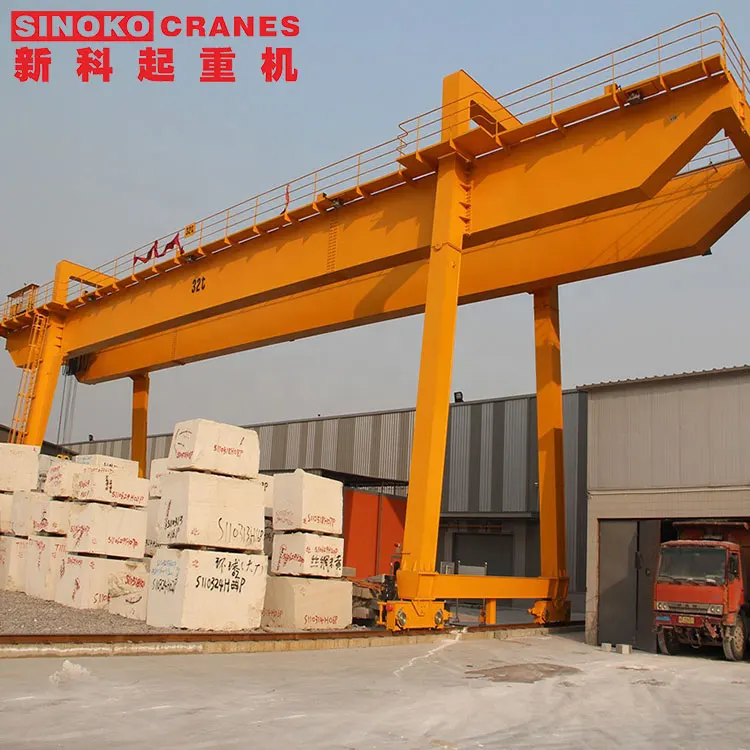

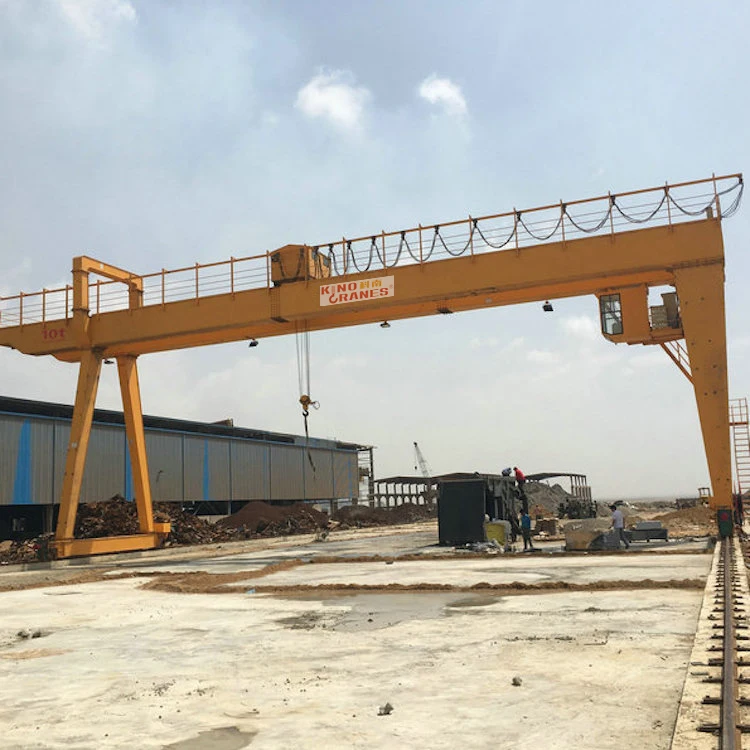

Outdoor Rail Mounted Double Girder Gantry Crane 30 ton

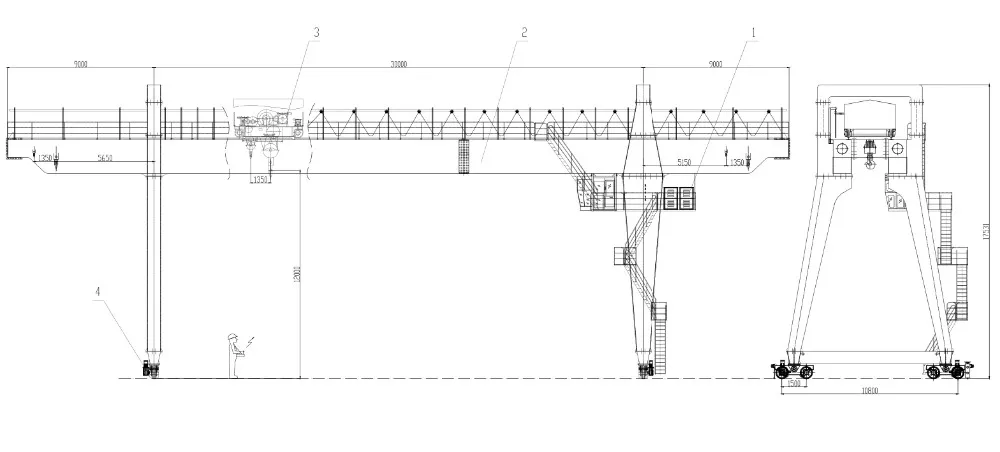

MG type double main beam gantry crane is composed of bridge frame, cart running mechanism, trolley, electrical equipment, etc. The bridge frame adopts box type double beam welding structure, the cart running mechanism is driven separately, and all the mechanisms are operated in the cabin room. The double-beam gantry crane power supply system is divided into two types: cable reel and slide wire in the air. You can choose one of them. The environment in which the crane of the system is normally used shall be in the range of -25 ° C to +45 ° C, and the average temperature within 24 hours shall not exceed +45 ° C

Technical specification:

MDG Universal Gantry Crane features:

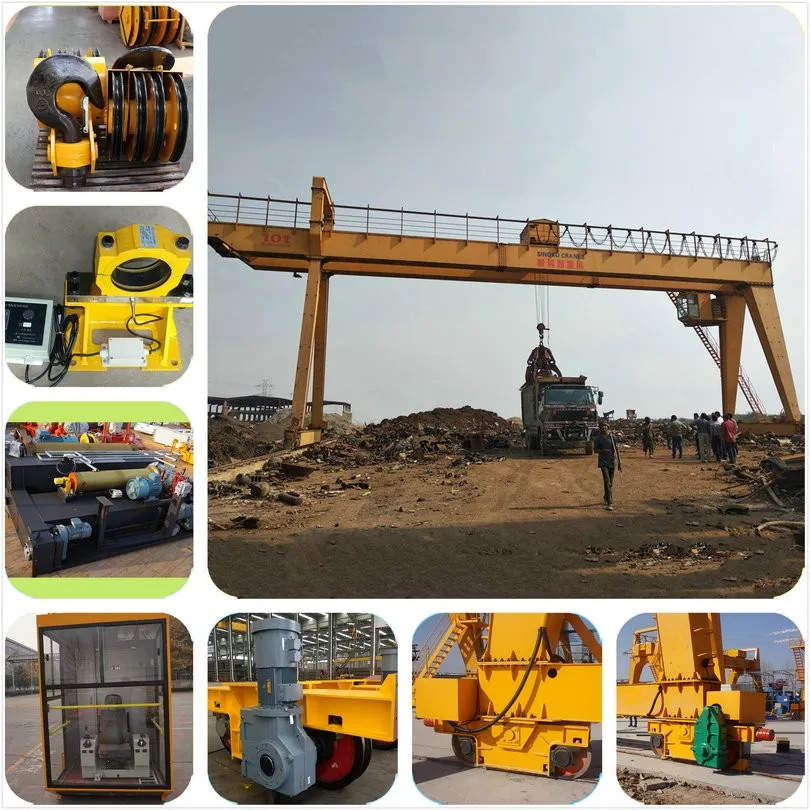

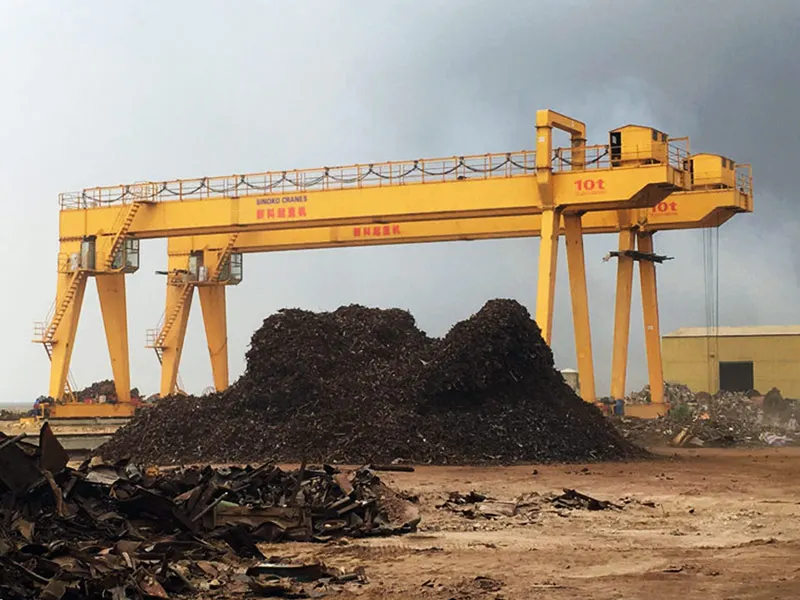

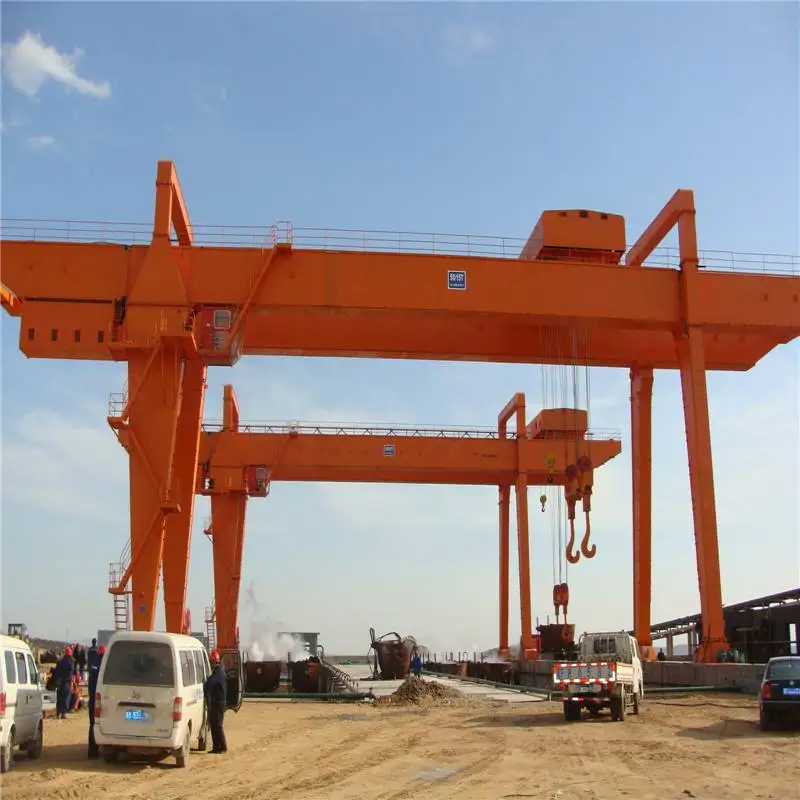

1. MG type double girder hook gantry crane is suitable for loading and unloading of open storage, material yard, railway freight station and port terminal. A variety of special hooks can also be used for a variety of special operations.

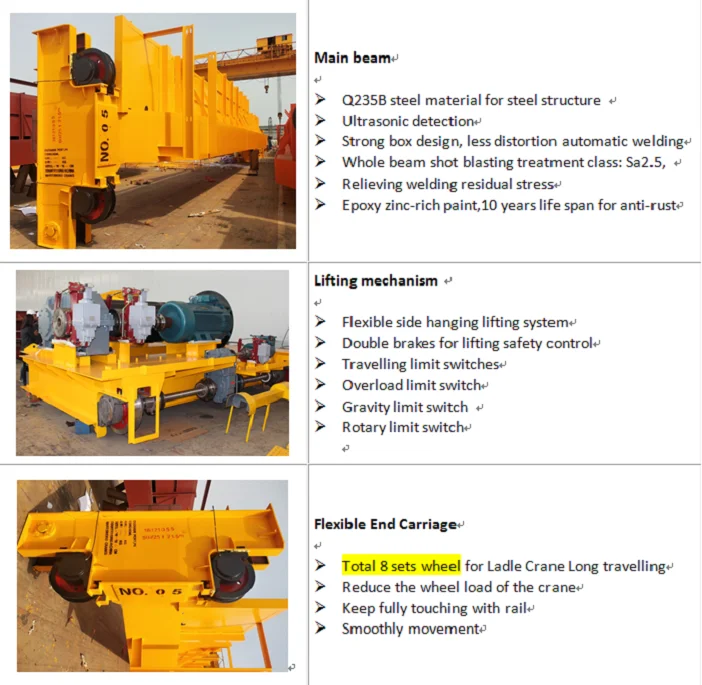

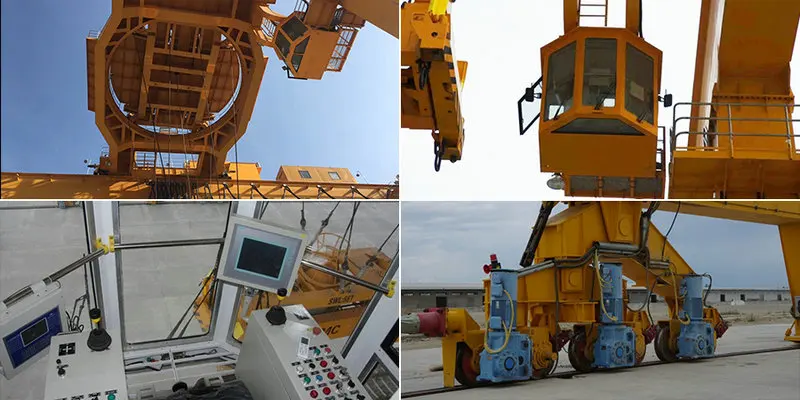

2. The crane has a bridge frame, a cart running mechanism, a trolley, and electrical equipment. The bridge frame adopts box-type double-beam welding structure, and the running mechanism of the cart is driven separately, and all the mechanisms are operated in the operating room.

3. The conductive form of the crane is divided into two types: cable and slide line. The user can choose one of them. The data in the chart is based on the slide line.

4. The normal working environment of the crane of this system should be within the range of 25-40 degrees Celsius, and the average temperature within 24 hours should not exceed 35 degrees Celsius. The altitude of other installation and use sites shall not exceed 2000 meters. When the temperature exceeds 1000 meters, the motor capacity shall be checked.

After sales service:
1.Warranty: The quality of our cranes is guaranteed for one year, in this period, if any quality problem happens with correct operation, we will send spare parts to our customer free of charge.
2.After warranty, we will supply spare parts at cost prices to our customer.

3.We will provide our customers technicals help forever.

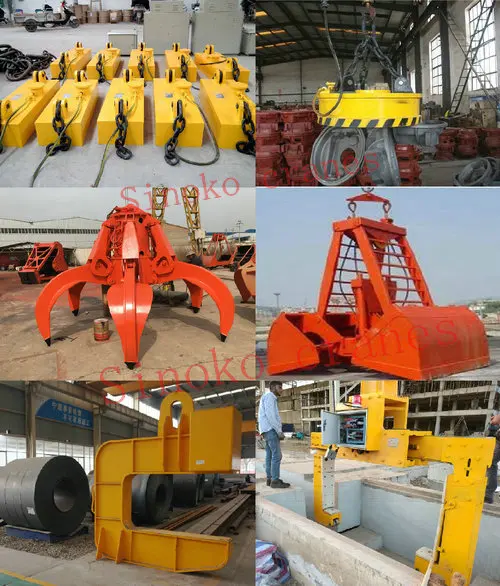

Our spare parts

(1)Magnetic chuck

(2)Grabs

(3)Coil lifters

(4)C type lifter
