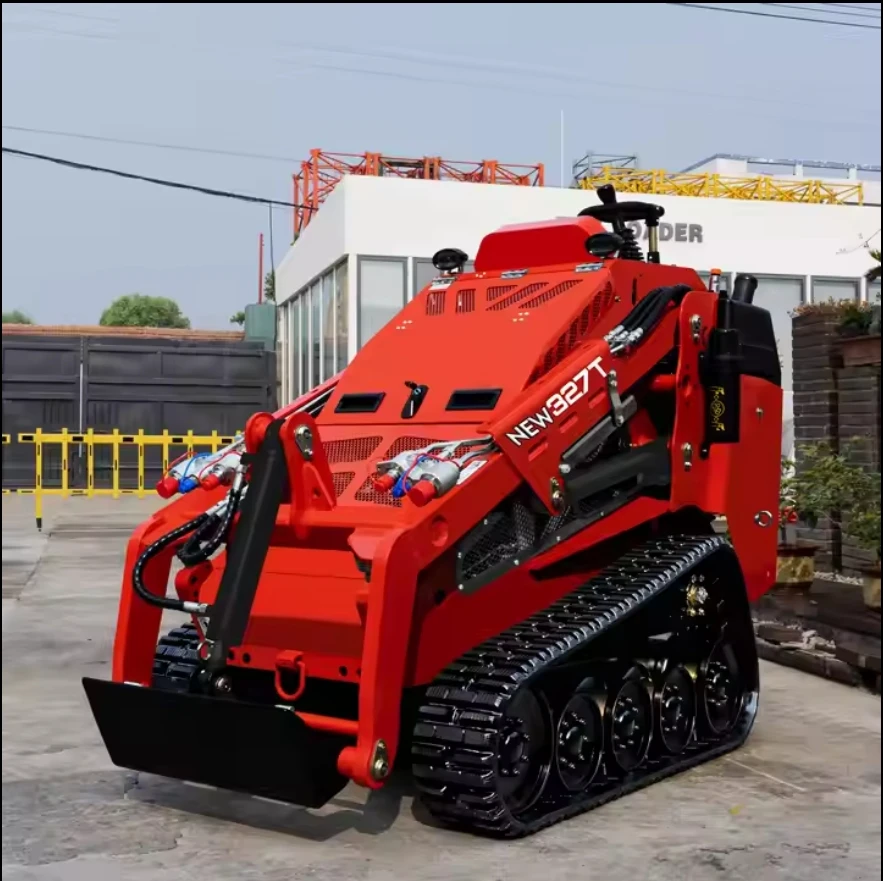

Vmeng factory 600kgs lifting capacity diesel track mini skid steer loader with mixer attachment

Share on (1601036980237):


Price:$9,998.00

Quantity:


Product Overview

Description



Product Description


Vmeng factory 600kgs lifting capacity diesel track mini skid steer loader with mixer attachment


327T without bucket

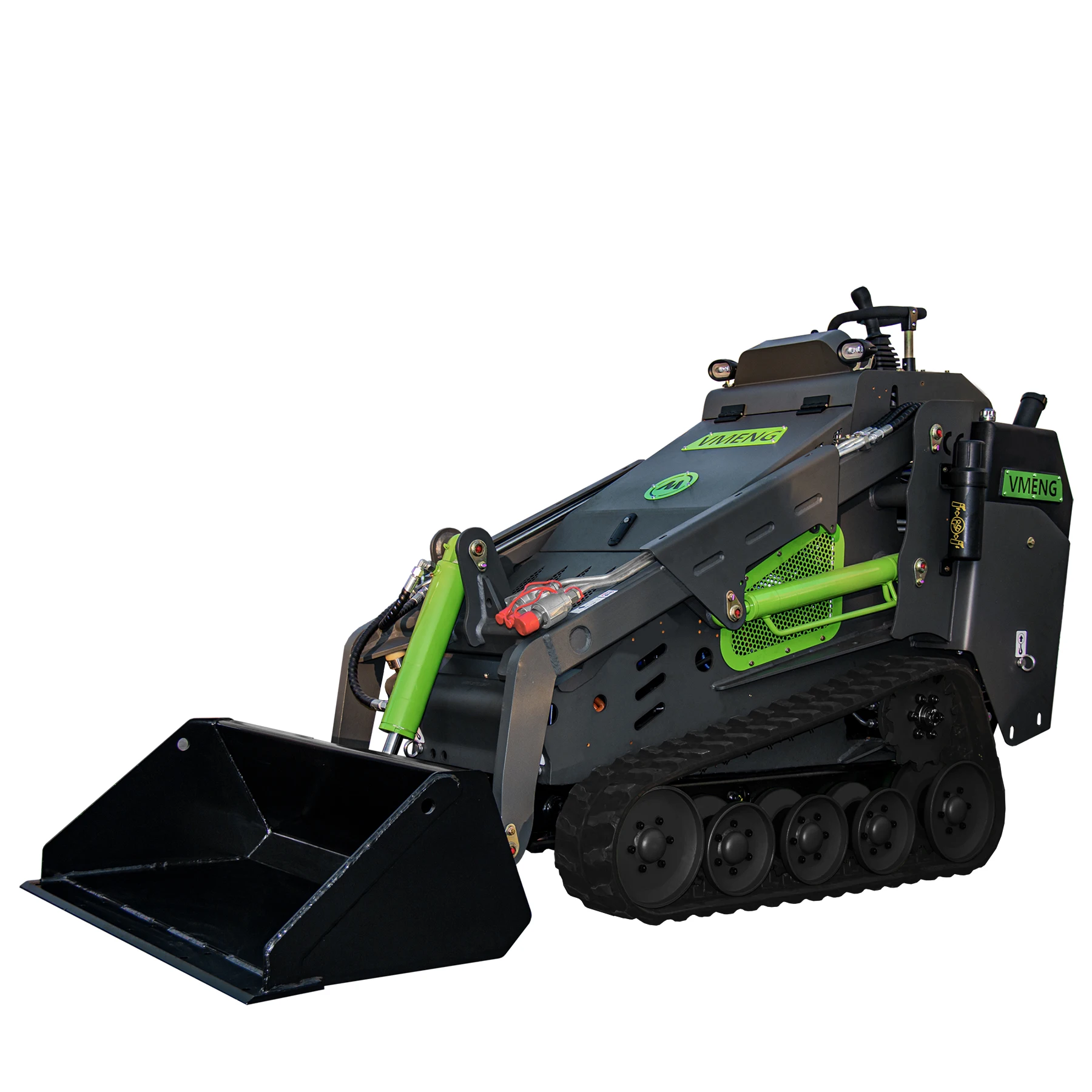

1800X1800 1

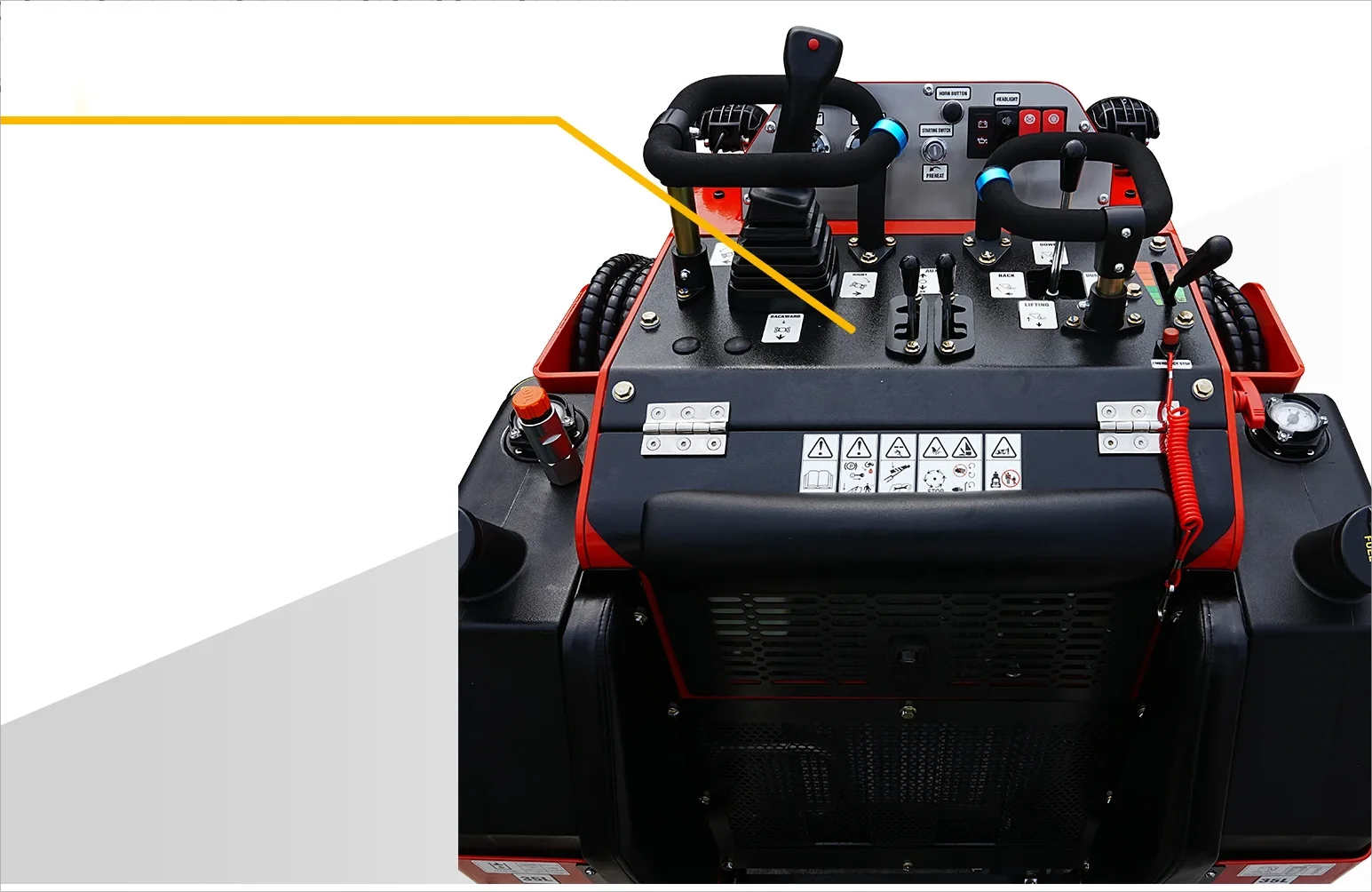

>>>>>>INSTRUMENT PANEL
Updated instrument panel standard features include: the automatic arm lock and parking brake system,conveniently located dual hydraulic levers for auxiliary hydraulic attachment operation, an engine emergency stop function, and an updated loader arm control joystick that adds float function capabilities.China Meng brand Mini crawler compact skid steer loader  high quality 25hp 30hp 35hp mini skid steer loader with attachment

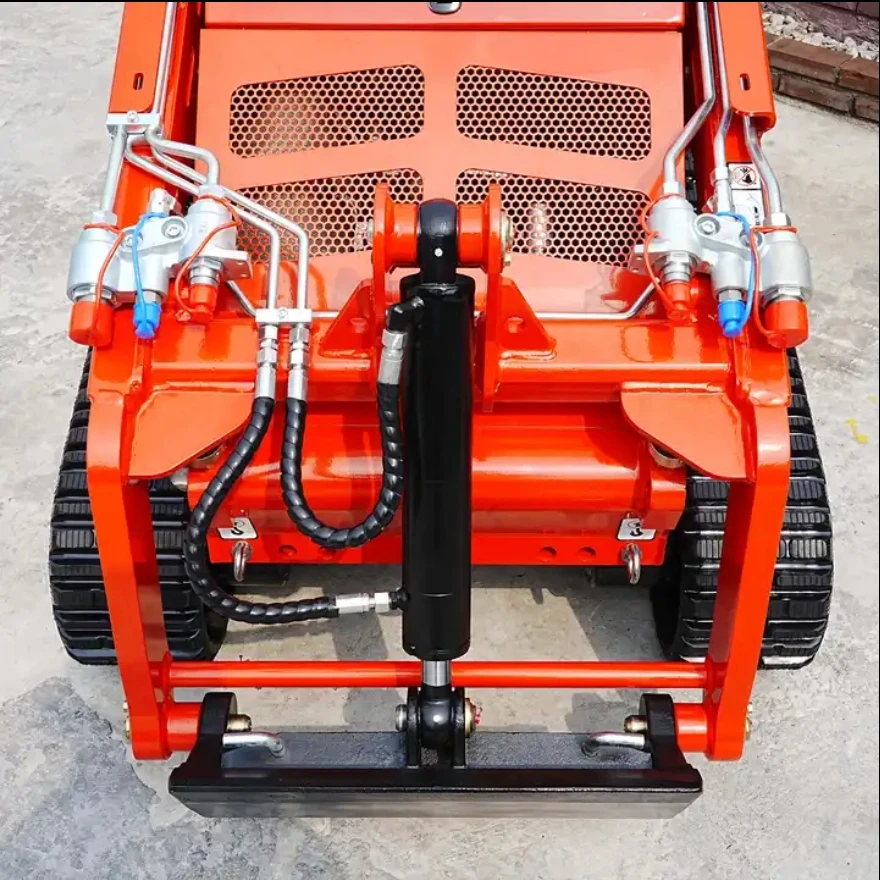

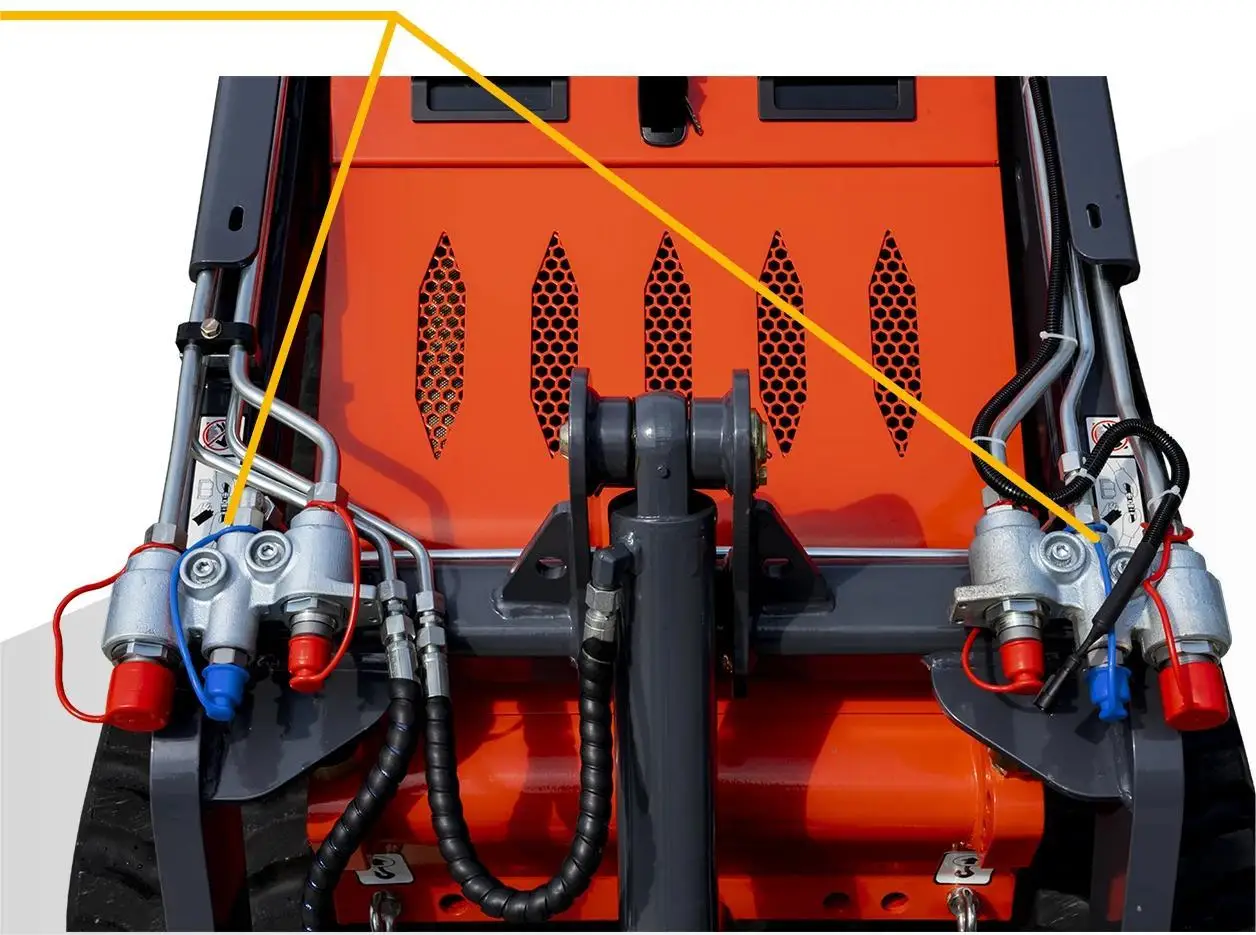

>>>>>>DUAL HYDRAULIC AUXILIARY
Dual hydraulic auxiliary output connections come standard.Two sets of quick couplers with case drain port on each side of machine.This allows support for high flow attachments that may require additional hydraulic requirements.


China Meng brand Mini crawler compact skid steer loader  high quality 25hp 30hp 35hp mini skid steer loader with attachment

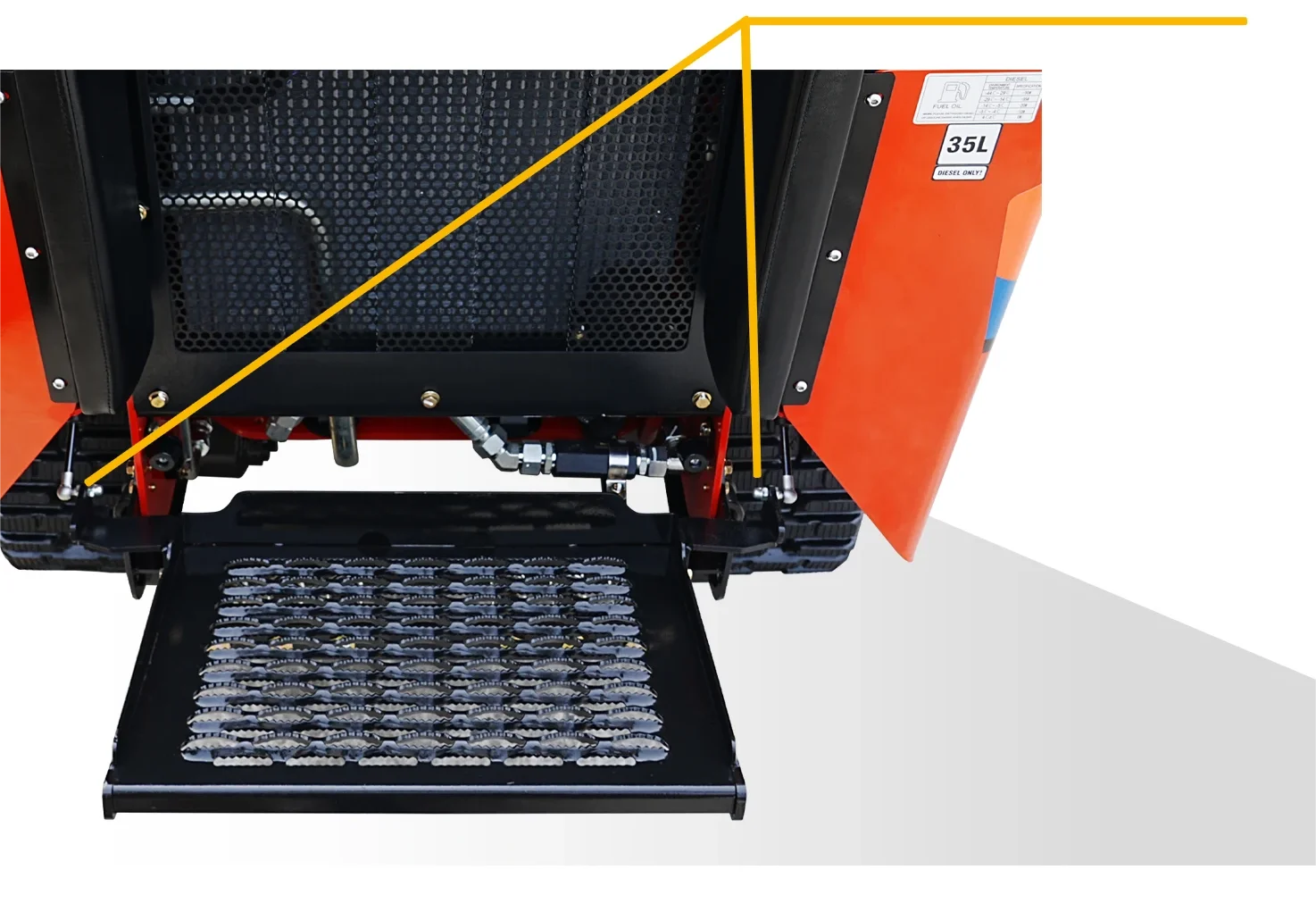

>>>>>>STANDING PLATFORM
The comfortable stand on platform design can be conveniently folded up when machine is being transported.loaded/unloaded,or stored.


China Meng brand Mini crawler compact skid steer loader  high quality 25hp 30hp 35hp mini skid steer loader with attachment

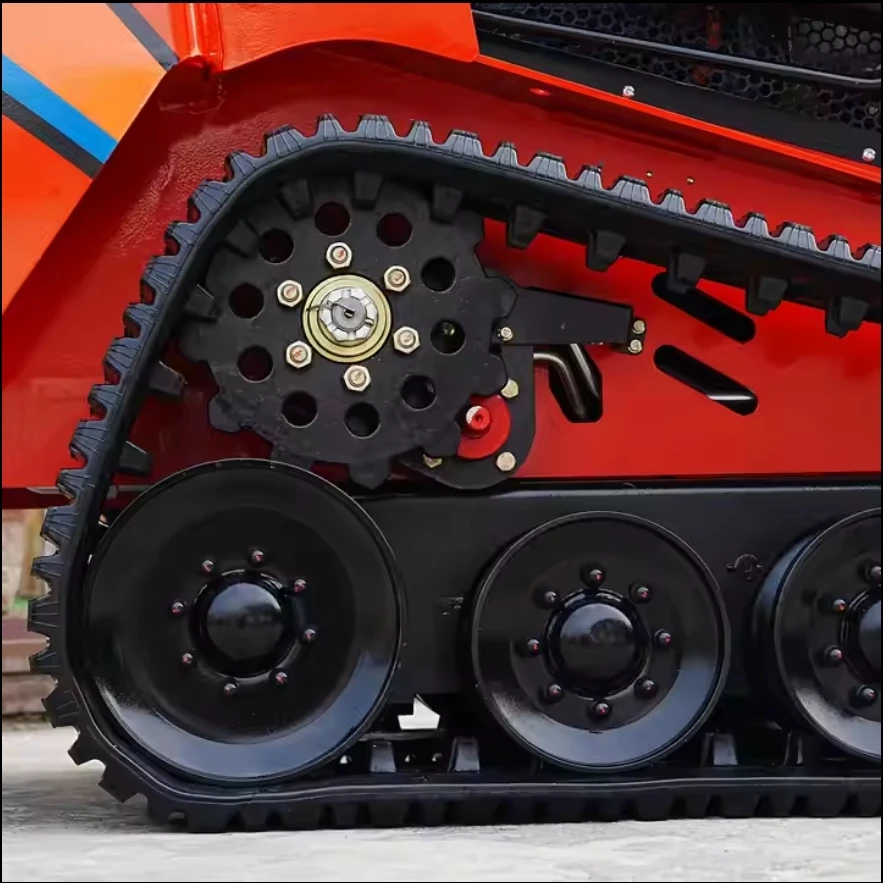

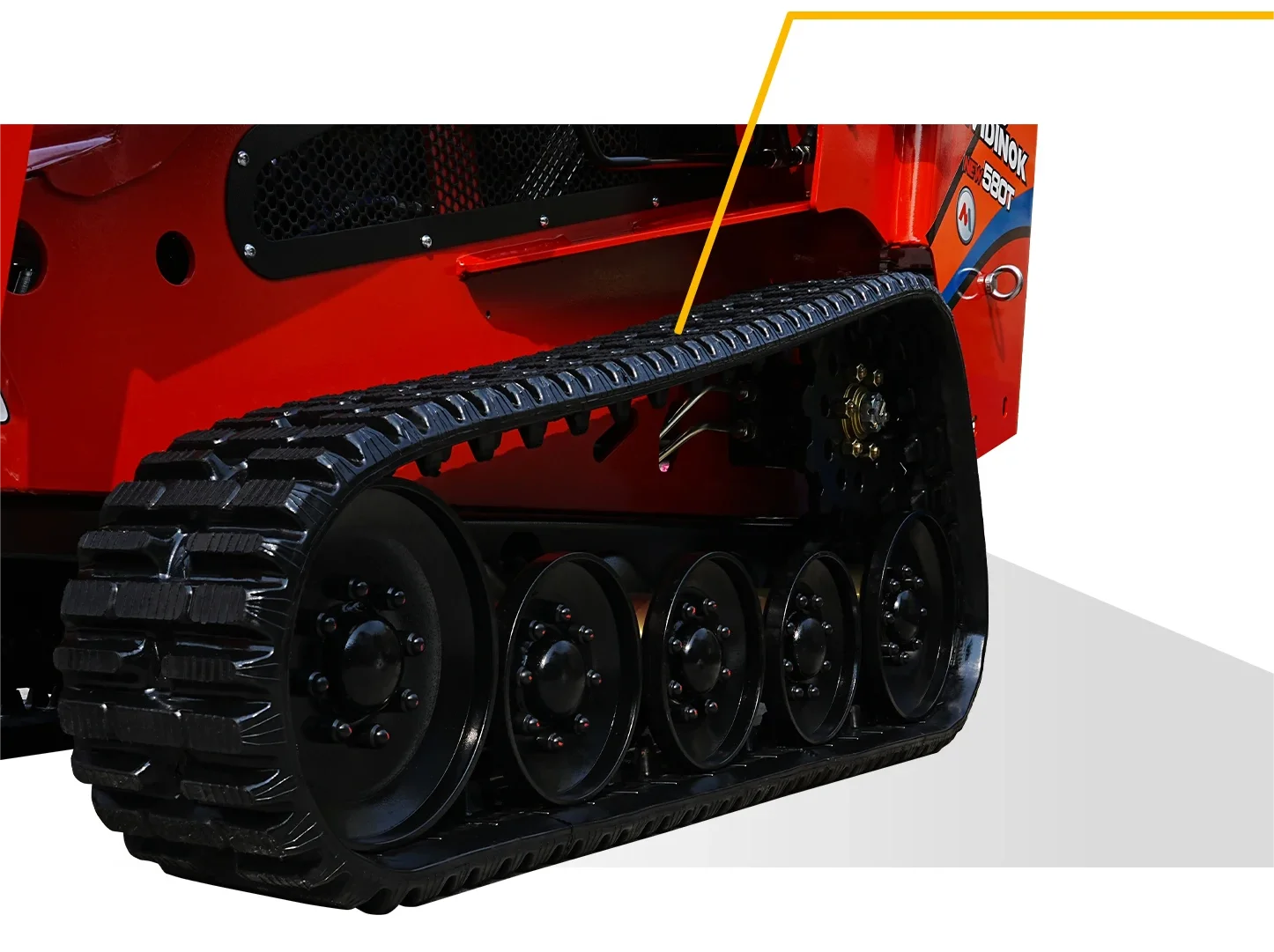

>>>>>>RUBBER TRACK
New designed 361°all-terrain and high performance tracks, suitable for any working conditions.


China Meng brand Mini crawler compact skid steer loader  high quality 25hp 30hp 35hp mini skid steer loader with attachment

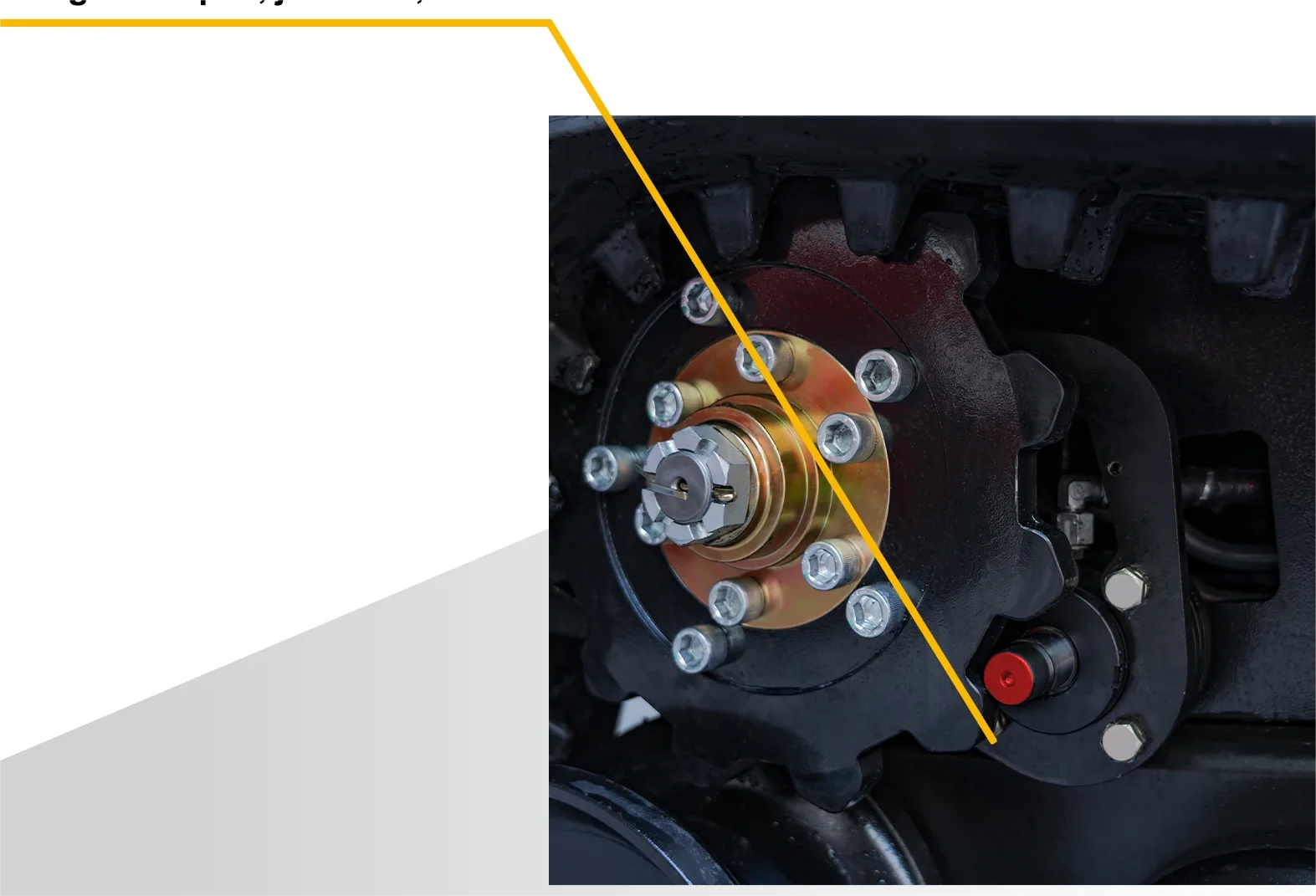

>>>>>>PARKING BRAKE
Parking brake system comes standard.Provides safety and piece of mind when parking on slopes, job sites, and trailers


 China Meng brand Mini crawler compact skid steer loader  high quality 25hp 30hp 35hp mini skid steer loader with attachment

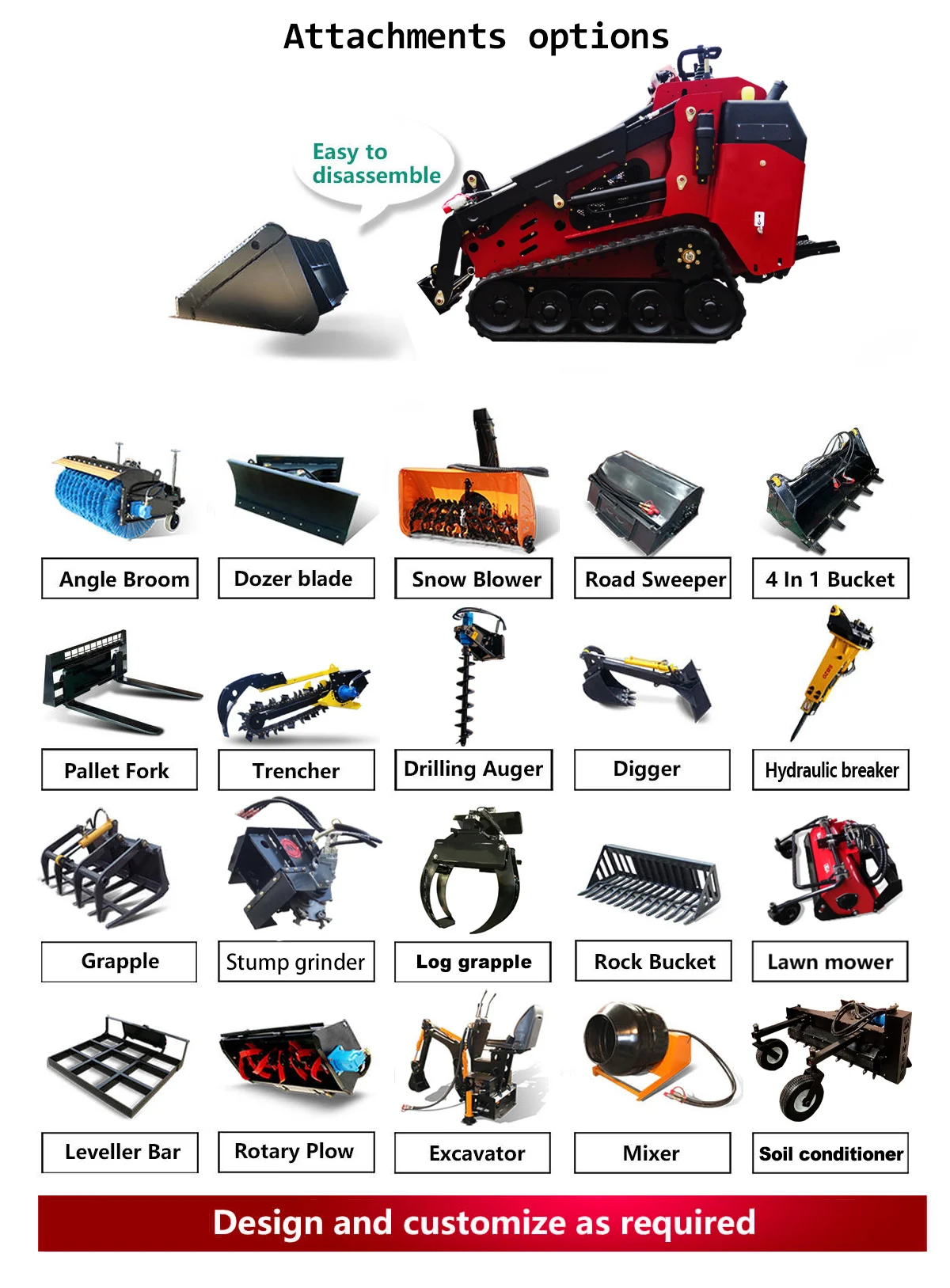

attachments

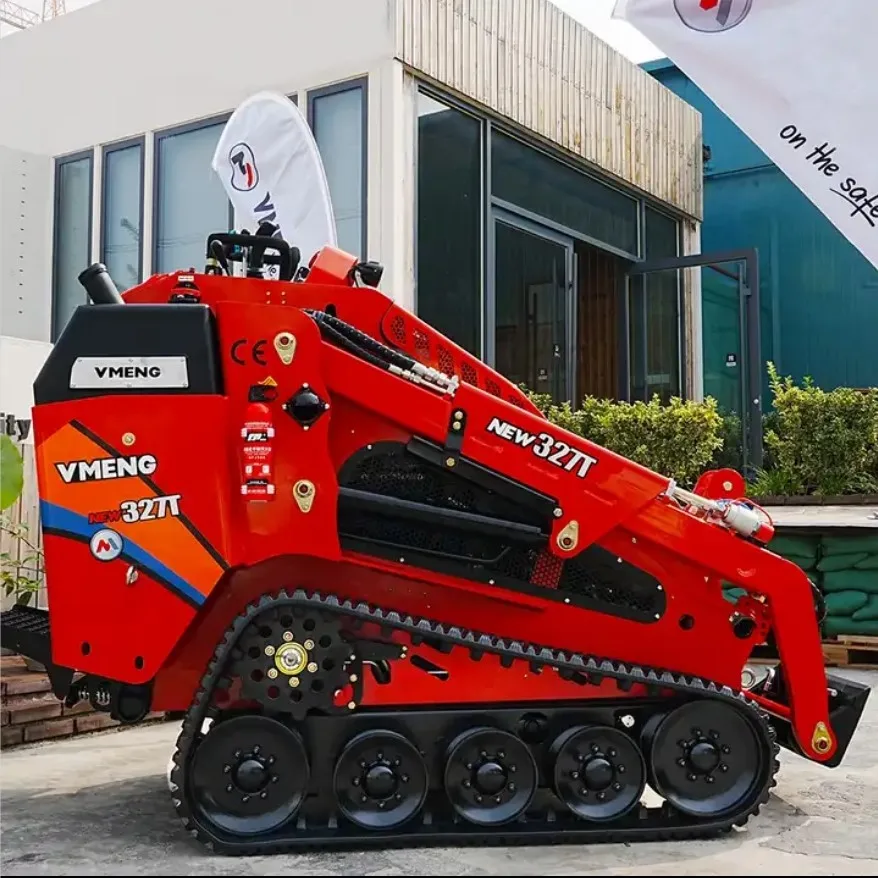

 MINI SKID STEER LOADER VMENG TY-327T CHARACTERISTICS:


1. The MENG TY-327T has powerful traction and lift, allowing it to perform many large tasks up close.


2. Crawler design, fast turn, low pressure on soft ground and grass.


3. MENG BRAND work accessories offer endless opportunities for this mini crawler loader.


4. MENG TY-327T can save you a lot of work, either alone or as a supplement to a large loader.

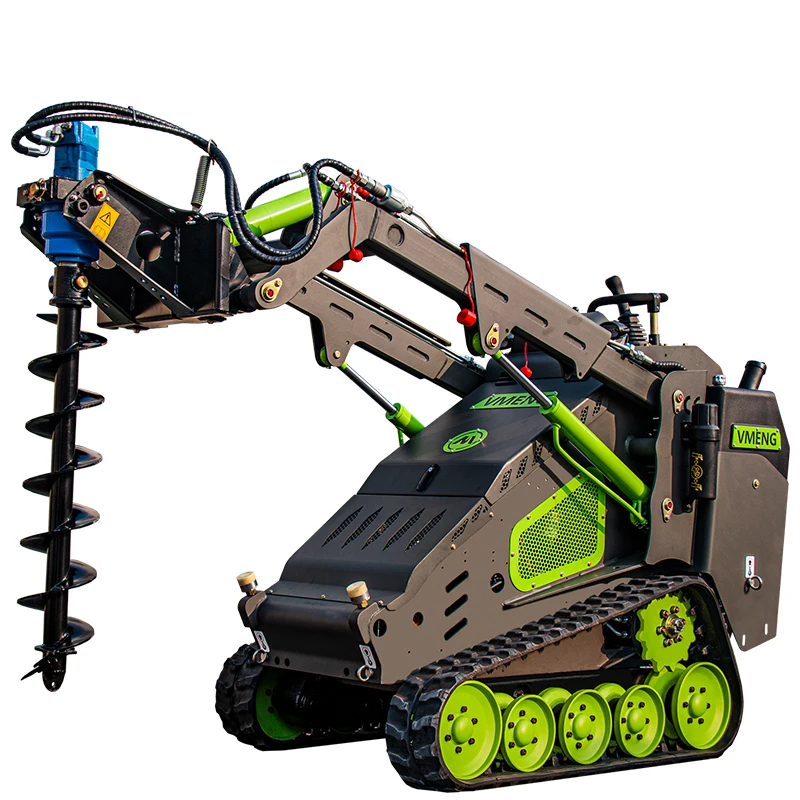

 mini loader with auger





Mini skid steer loader TY327T specifications:






















































DIMENSIONS



TY-327T Tracked



Operating height



2695mm



Height to bucket hinge pin



2000mm



Height to top



1496mm



Overall length with GP bucket



2694mm



Overall length without bucket



2067mm



Wheelbase



1080mm



Overall width



1070mm



Mini ground clearance



94mm



Angle of departure



23°



Rated loading capacity



400kgs



Kerb weight



1330kgs











































POWER



TY-327T Tracked



Engine maker



   Kubota engine



Fuel type



Diesel



Rating power



25hp



Number of cylinder



3



Displacement



1.123L



Rated speed



3600 rpm



TRAVEL SPEED



TY-327T Tracked



Max. drive speed



6.8 km/h















































































HYDRAULIC SYSTEM



TY-327T Tracked



WORKING SYSTEM




working  system pressure



180bar



working system Flow rate



36L/min



DRIVING SYSTEM




Driving System pressure



250 bar



Driving system Flow rate



62.4 L/min



Auxiliary circuit System




Auxiliary circuit Pressure



180bar



Auxiliary circuit flow rate



36L/min



FLUID CAPACITIES



TY-327T Tracked



Fuel tank capacity



40 L



Engine oil



4.7 L



Hydraulic reservior capacity



40 L




BATTRY



TY-327T Tracked



Electrical Voltage



12V



Battry type



45AH made by YUASA



  breaker quick attach

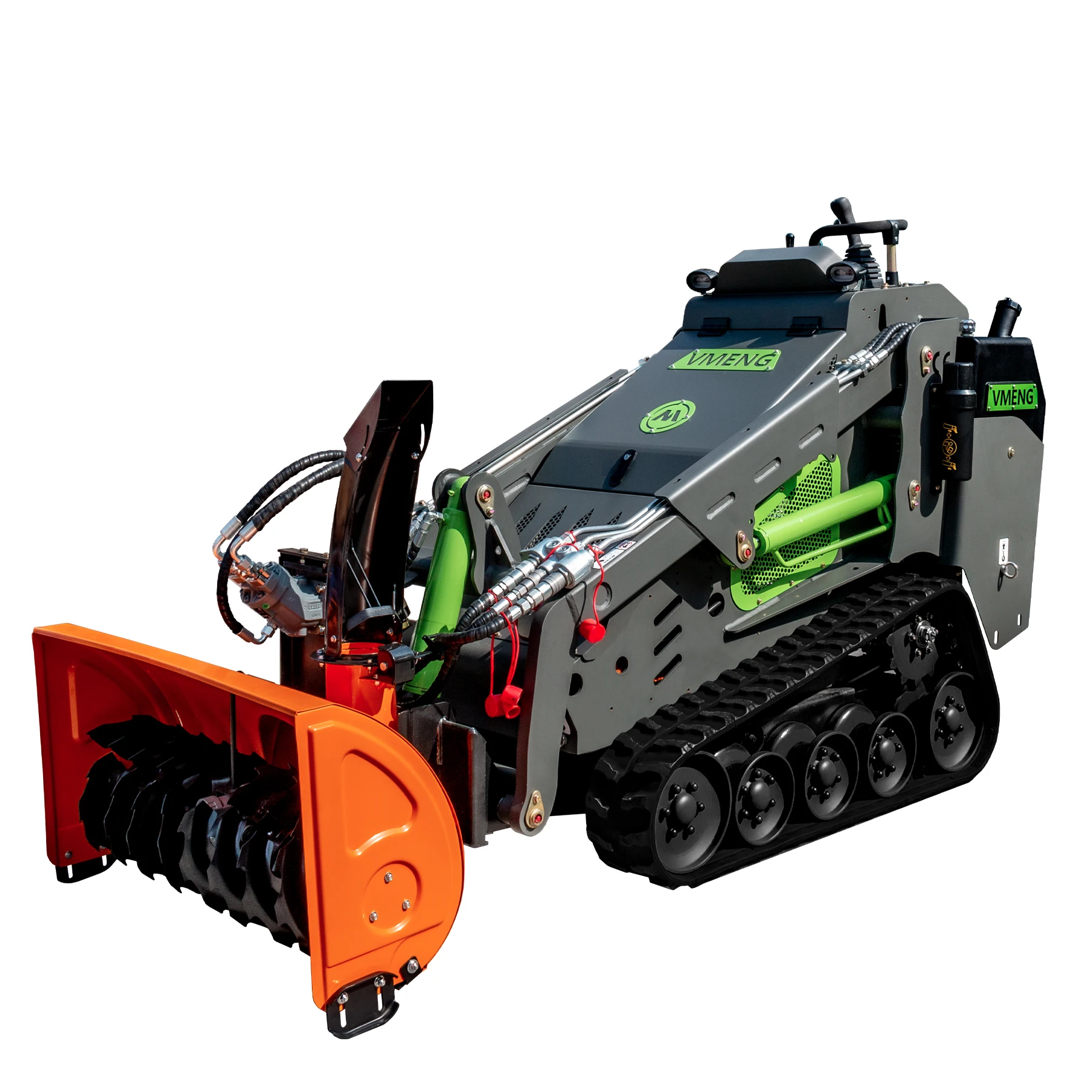

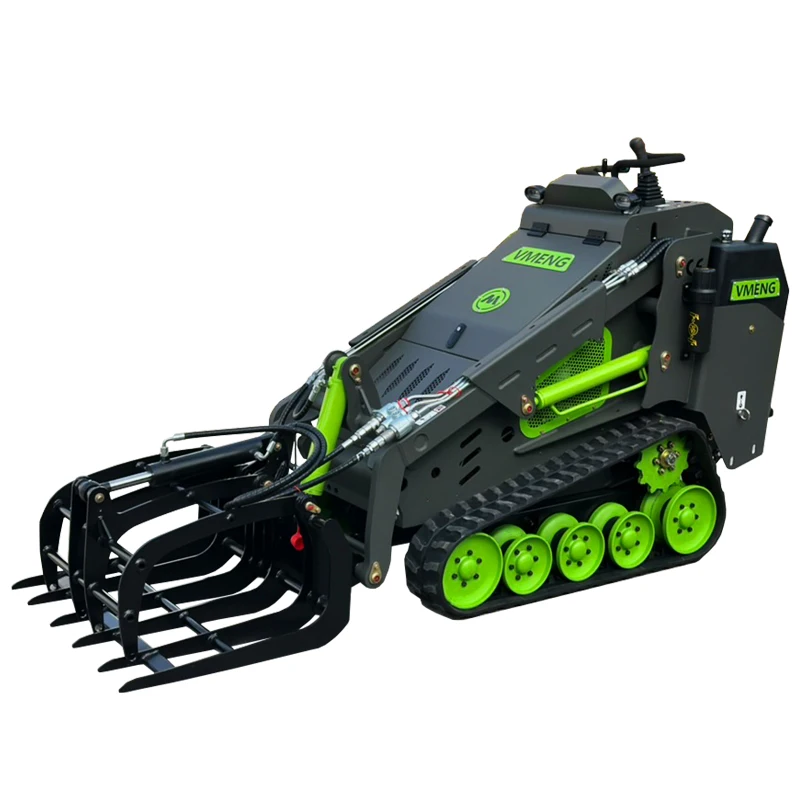

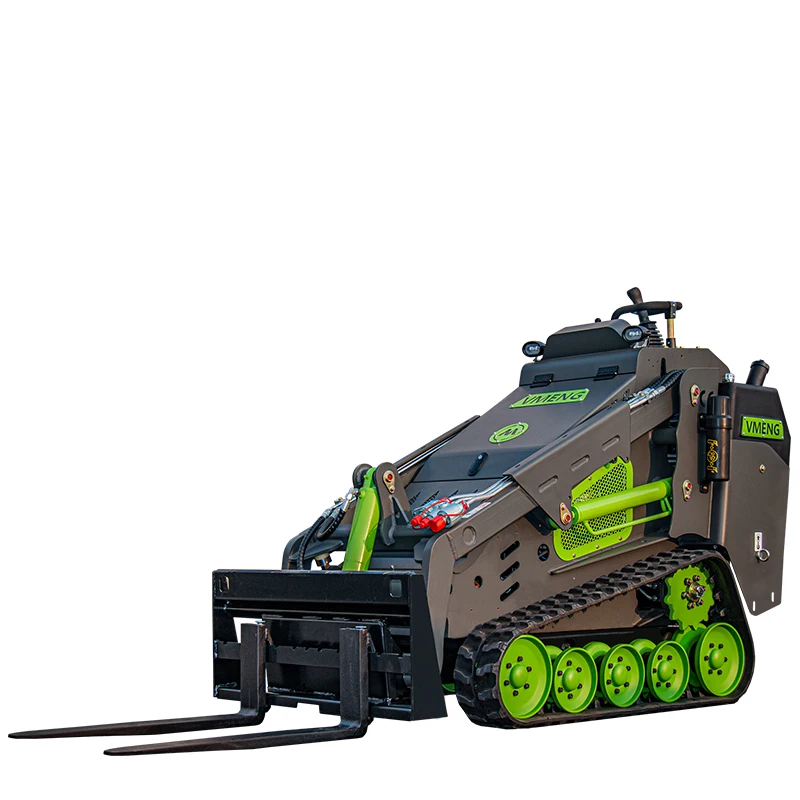

-1 1Meng mini loader forks21 (1)








Packaging & Shipping


 1. 1-3 units, will be packed into plywood cover box, the packing measurement should be negotiated with the seller according to your order items(including attachments, tools,etc..)
2.  6 units into one 20'GP container.
3. 12 units into one 40'GP container.









Company Information


  Taian Hi-Tech Sunrise Machinery Co., Ltd (say “Hengtian”) locates at the foot of world famous Mount Tai, has beautiful environment and convenient transportation of road, train and airport.
• Since founded in 2003, Hengtian has been developed into an integrated and professional machinery manufacturing and mining equipment enterprise with/integrating R&D, manufacturing, sales and service, etc.
• With excellent quality and competitive price, Hengkang products have won full recognition and trust from customers all over the world, especially in Australia, Canada, America and Europe.
• Hengtian will devote to provide quality products and satisfied services for all customers by adopting advanced manufacturing technology, equipments and management control system.
• Warmly welcome friends around the world to come and create a win-win future!

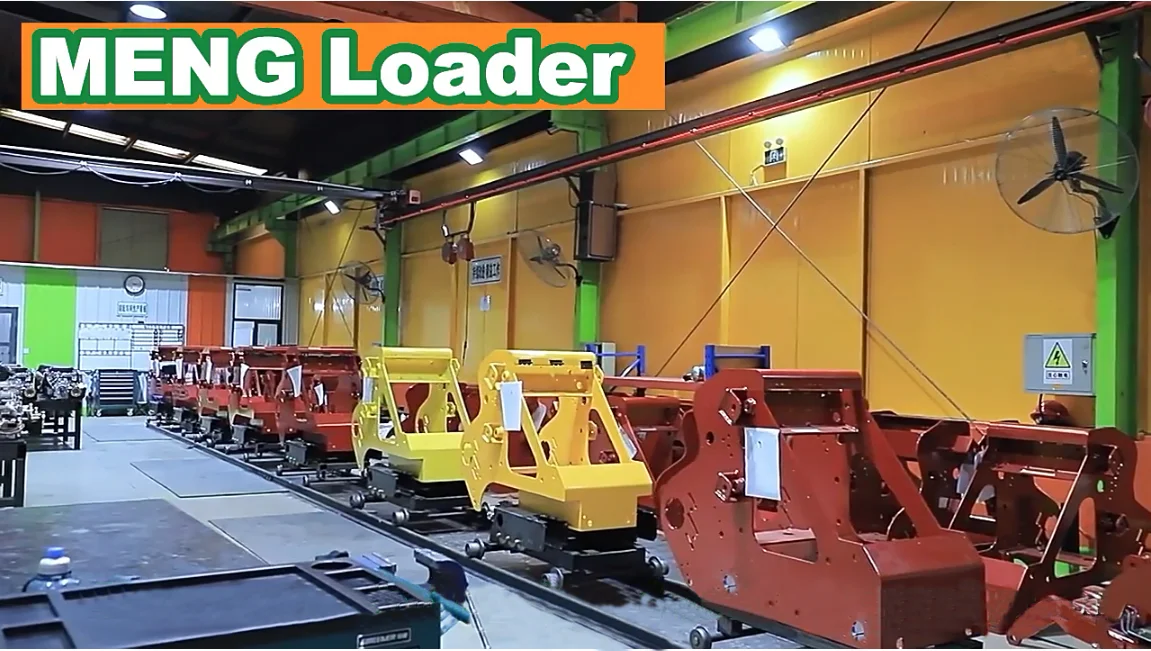

 showroom 2loader manufacturer -
