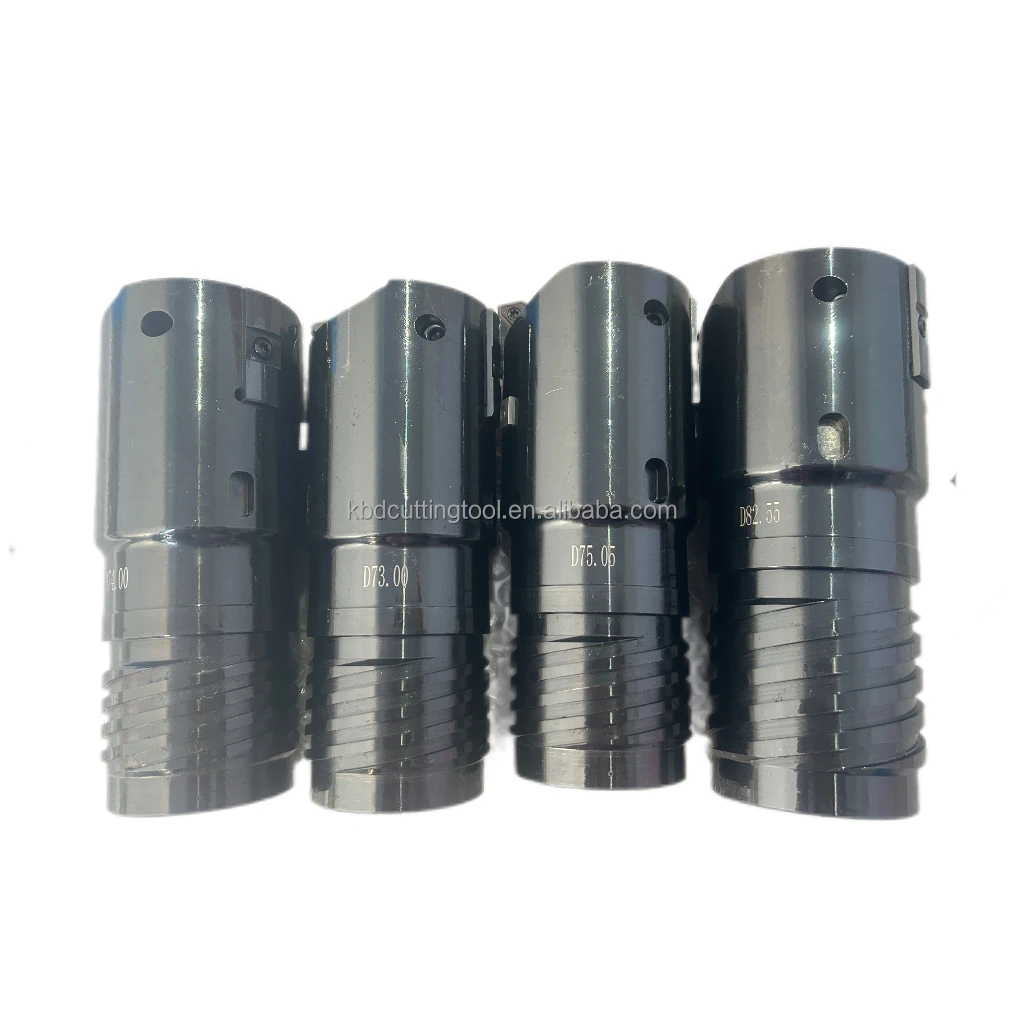

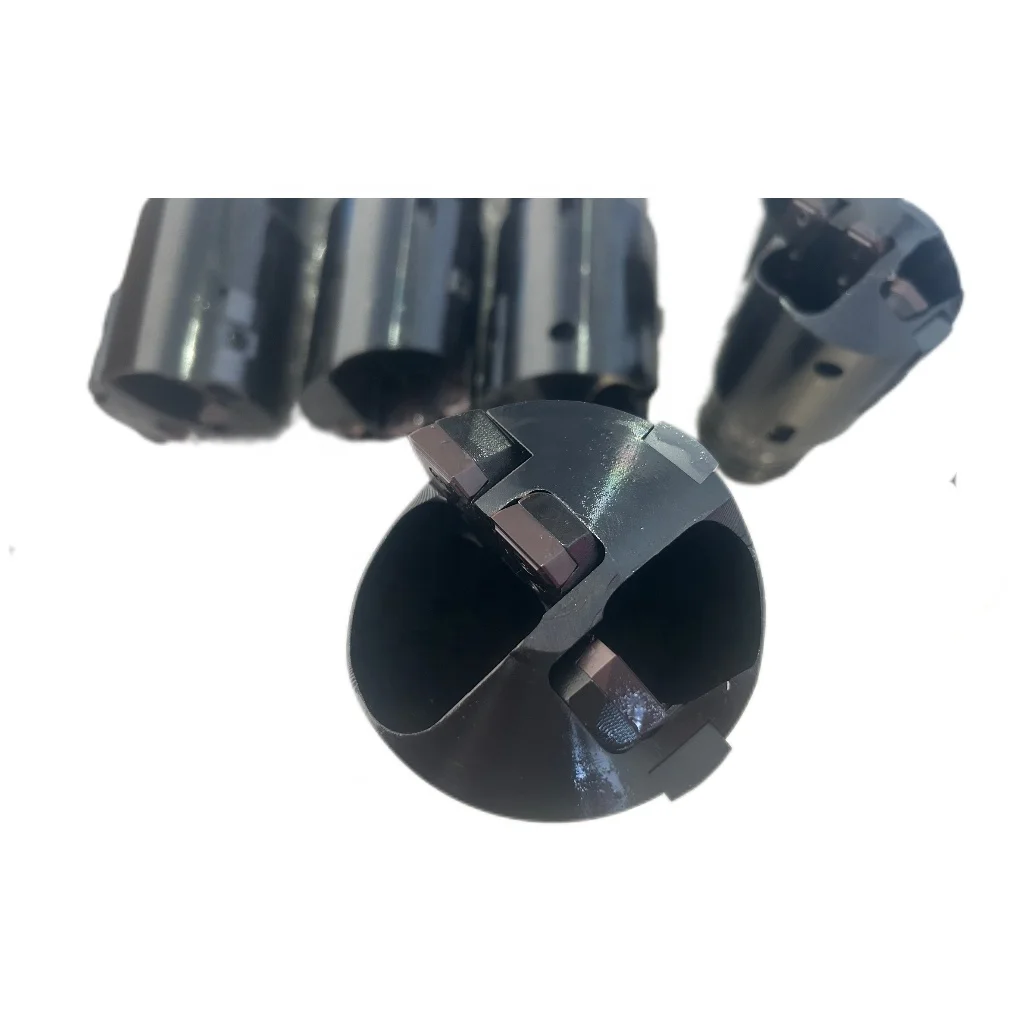

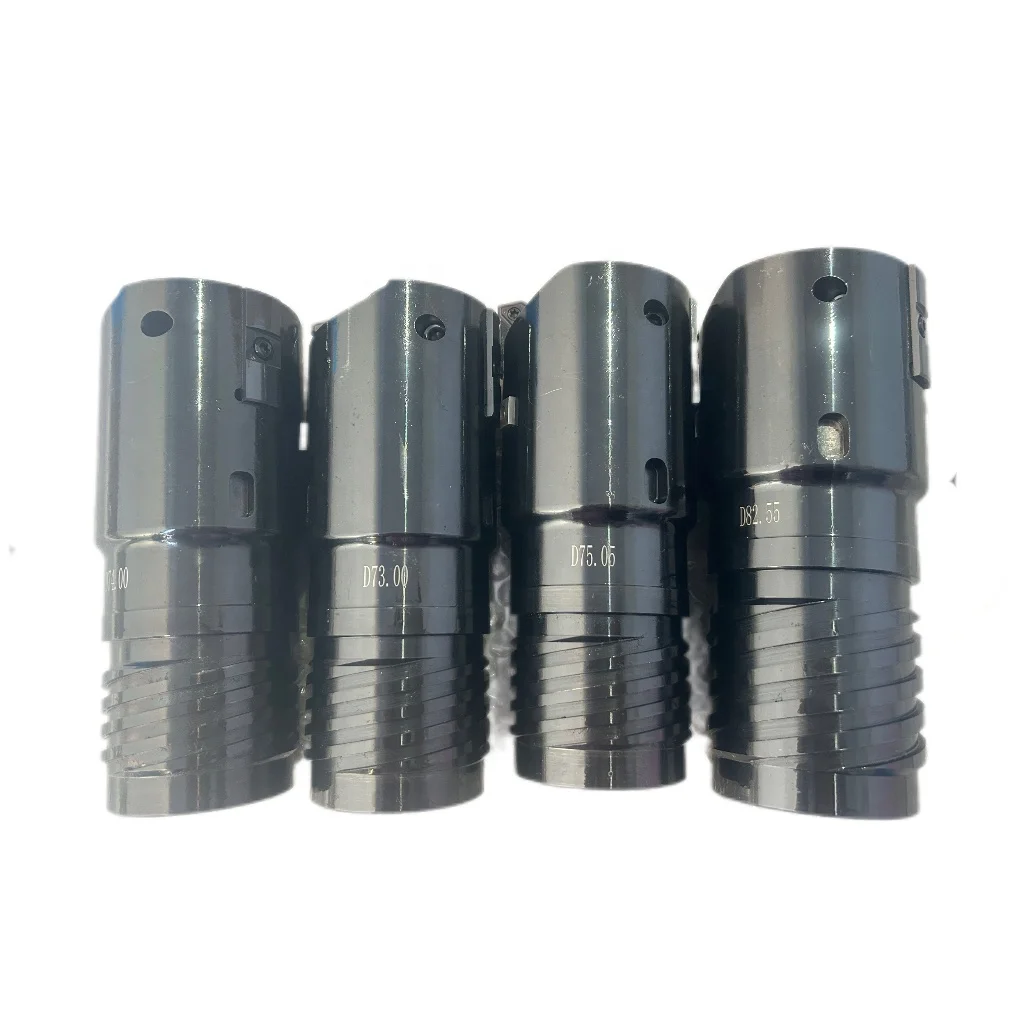

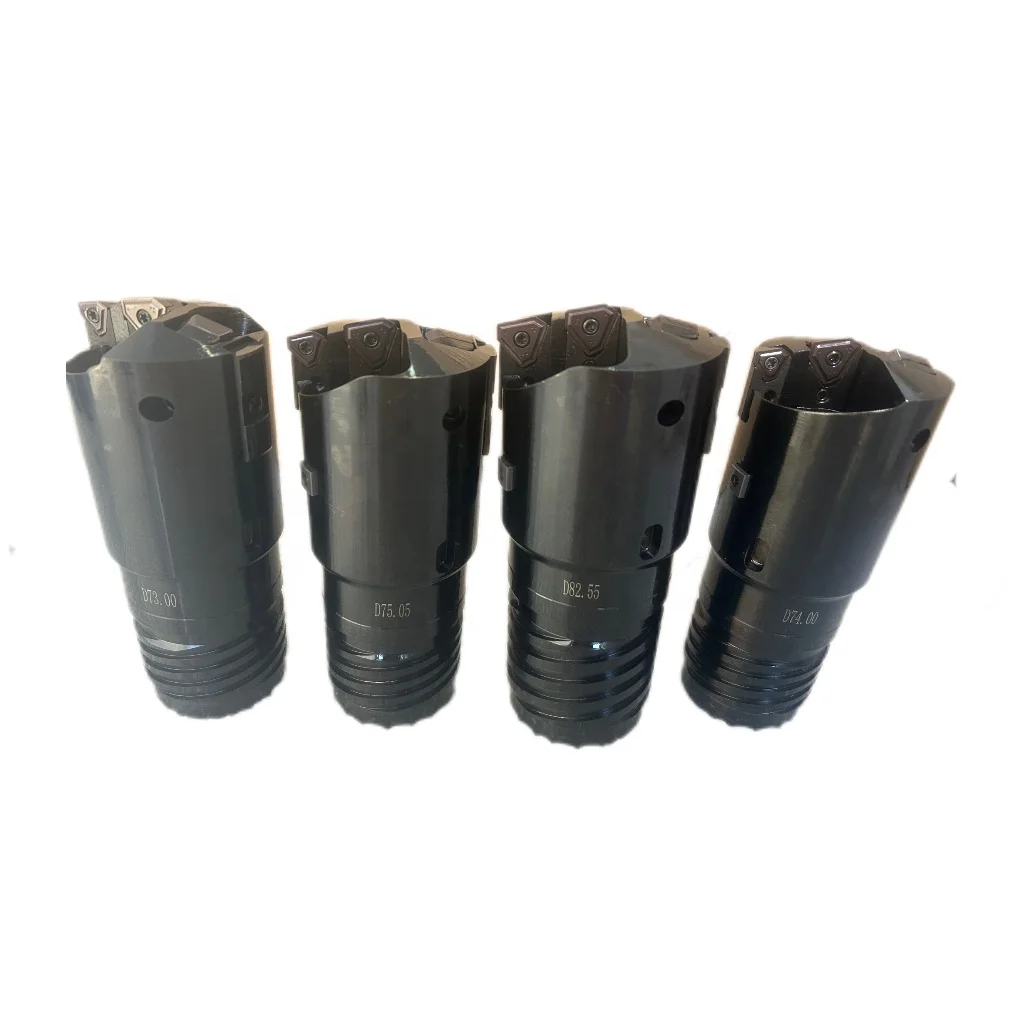

CNC Deep hole drilling machine tools with Replaceable bta deep hole drilling head

Product Overview

Description

China Manufacture BTA drill head with indexable insert D25-D160mm deep hole drilling tool indexable deep hole BTA drilling tool

Our indexable deep hole drills cover a range of diameters from 19 to 300mm.

The BTA drill head is mounted on a long drilling rod using threads. It has multiple cutting surfaces for efficient chip removal with high pressure metalcutting fluid draining through a hole in the drill head and then out of the drilling rod.The BTA tool can be configured with either welded or indexable carbide inserts. Drillstar can provide B type, P-type clamped /welded deep hole drilling, reaming drill, complete set of drill pipe, and other non-standard deep hole machining tooIs. We provide more individualized deep-hole drilling scheme and technical support in deep hole machining application.Indexable drilling grades provide significant productivity increases and long tool life. With each cutting edge, you get excellent chip control, chip evacuation and surface finish



In the BTA system hole making process, fluid under pressure flows to the setting edge over the O.D. of the boring bar and head, and exhausts with the chips through the I. D. of the boring bar. Clean filtered fluid flows constantly over the outside of the head, thus lubricating the guide pads which act as a burnishing tool to produce a smoother finish, and capable of high rate of feed. Hole depth is obtainable as much as 150 diameters or deeper.



Dezhou Kabaide Cutting Tool Co.,Ltd is s a deep hole drilling bit manufacturer and supplier of china deep hole drilling machine,located in Dezhou City ,Shandong Province China .we focus has been on the development and production of drilling tools: deep hole gun drilling tools with diameters from 1mm-4000mm, BTA drill head and reaming tools as well as the associated service,
As part of our scrupulous inspection procedure, we test our drills and under for assembly integrity, leakage, and specified oil flow.
we have our own technique process, and registered our own brand.Nowadays,our products are sold well in domestic market and overseas,and are highly praised by our customers.

As a good private owned company, we have innovative,capable and flexible structure,and complete and scientific quality control system.Our gun drills are high hardness,good rigidity,high accuracy,long lasting,and good cost performance.

Continuous improvement of the process, solid progress to produce the gun drills, creating a national brand,and to pursue the excellence is our eternal goal.

Q1: What is the Warranty for the tungsten carbide products ?



A1: We own high precision grading machine to control geometry dimensions and apply ultra fine grain size substrate coated with high performance coatings to guarantee the lifetime of our products, which can satisfy every working condition.If any quality problems on our side occurred in this period , we will take on the shipping cost and replacement.

Q2: Do you provide free samples?



A2: Yes, usually we provide free samples for testing under the condition of freight paid by customer.

Q3: What is your minimum order requirement?

A3: We will indicate the MOQ for each item in the quotation sheet. We accept the sample and trial order. If the quantity of single item can't reach the MOQ, the price should be sample price.

Q4: What is the delivery time of your products?

A4: It depends on the inventory availability.If items needed are in stock, the delivery time would be within 8 work days, but if not the delivery time would be around 20 work days.

Q5: Can you manufacture carbide Special-shaped products?

A5: Yes, we can. We can produce both standard end mills and special tools. We can make them according to your drawings and samples.

Q6: May I have my order working schedule ?

A6: Yes, we will send working schedule of your order each week. We will inspect and test all merchandise in case of damaging and missing parts before shipment. The detailed inspection pictures of the order will be sent to you for your confirmation before delivery.

Your feedback is our best honor, please do not hesitate to give us your valuable feedback and we can let you feel more confident to our company and products.
