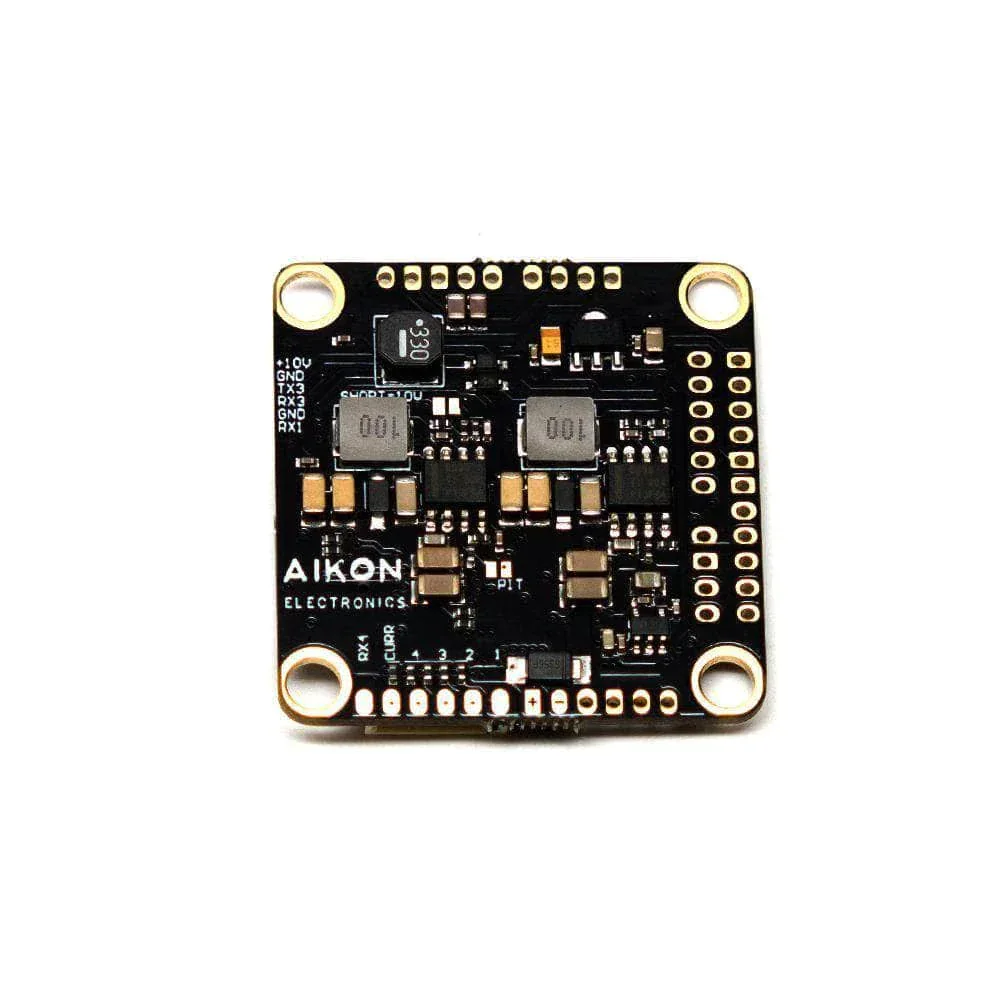

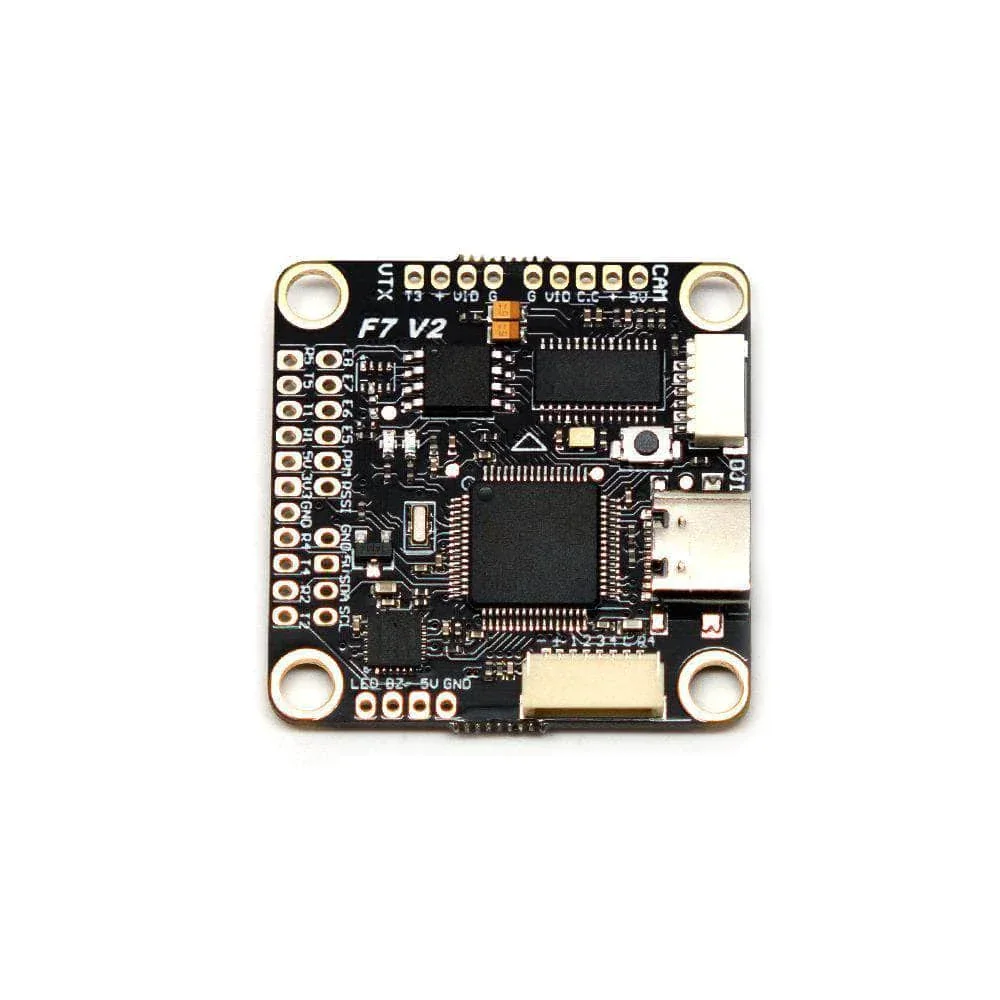

AIKON F7 30X30 V2 HD FLIGHT CONTROLLER W/OSD

Share on (1601037360506):


Price:

Quantity:


Product Overview

Description


The Aikon flight controller is a new generation flight controller designed specifically to work with the Aikon 4-in-1 ESCs. Aikon packed all the greatest features into one seamless flight experience.


Check out all our 30x30mm Flight Controllers and the rest of our Aikon Products!


FEATURES


216mhz F7 processor


Onboard OSD and blackbox


Software controlled VTX power switch (assigned to USER1 mode by default)


LED and buzzer outputs (LED input doubles as PPM)


Quick connection cable for 4-in-1 ESCs


Quick connection cable for DJI HD system


On-board high overhead voltage regulators rated up to 6S (50v peak to handle voltage spikes)


USB Type C connector for easy programming


SPECIFICATIONS


Input Voltage: 2-6s


MCU: STM32F722


IMU: MPU6000 (interrupt pin connected) or BM!270


Blackbox: SPI 16MB


UARTS: 5


BEC: 10V 1.5A


Mounting Pattern: 30.5×30.5mm


Firmware: Betaflight


Target: AIKONF7


Weight: 12g


PACKAGE INCLUDES:


1x Aikon F7 30×30 V2 Flight Controller w/OSD
