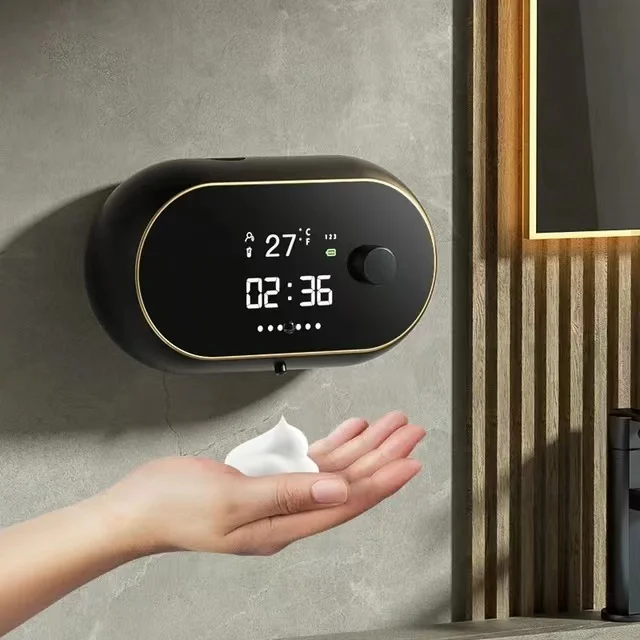

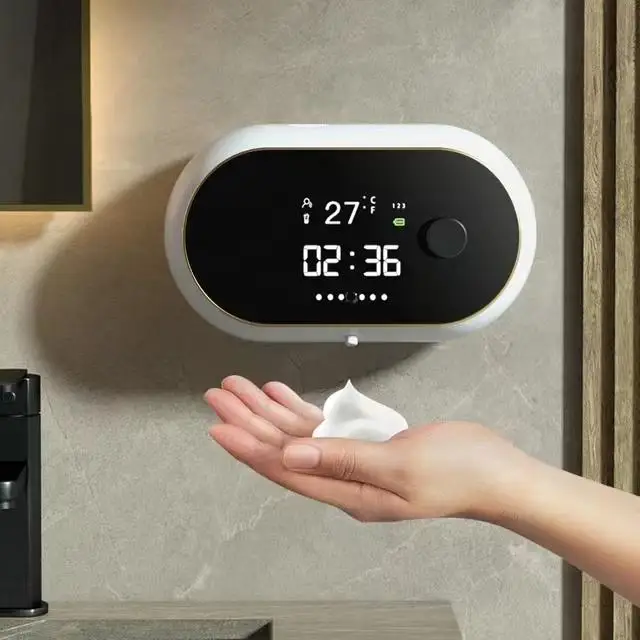

Electric Touchless Induction Soap Dispenser USB Rechargeable Body Induction Liquid Soap Wash Machine With Digital Screen Display

Product Overview

Description

Product Name	Automatic Foam Soap Dispenser
Color	Black.White
Material	ABS+Silicone+Electronic Components
Product Size	185*65*108mm
Package Size	215*80*111mm
N.W/G.W	390g/505g
Voltage	3.7V/1A
Power	3.7W
Capcaity	450ML
Battery Capacity	2000mAh
Charging Time	3-4 Hours
Packing	48pcs/Carton 59*32*44cm 16.8kg/19kg



Warning

Do not spray water or wahs on the machine screen to avoid causing machine facilure , If there is dirty, wipe it with a dry rag .



Foam Type:

1.It is recommended to use foam-type hand sanitizer, is strictly prohibited the use of impurities containing particles .powder . pearl and other liquids .

2Thick hand sanitizer and non-foaming hand sanitizer, detergent ,shampoo.body wash need to ne  1: 3~5 times dilluted with water and stirred well after use, so as not to cause machine facilure.

Geal Type:

Shampoo.body wash .detergent and other thick liqquids can be used directly without disolution with water



NOTES

• 1. Please read the instruction carefully before using this product .


• 2. Disassembly or alteration of the product is strictly prohibite.


• 3. No soaking in water , Do not tilt the product upside down to avoid damage.


• 4. It is strictlu  forbidden to use liquid containing impurities or strong acid and alkali in the product water tank to avoid blockage or corrosion of the filter screen of the internal bubble device .


• 5. Afrer charging , pull out the charging head, please hold the plug , do not pull the charging cable.


• 6. The product  hanging height should be more than 15 cm above the table , otherwise the table will interfere with the machine inductio.


• 7. Do not immerse the chargeer part of the host in water or other liquids to avoid fire , electticty leakage , personal injury,product damage and other risk .


• 8. The equipment shall be used in accordance with the instructions and shall not be used for other purpose.

Q&A

1. Why is there no induction after I turn on the machine

    In order to prevent the possibility of automacti liquid release of the machine , after the machine is turned on, the human body sensor needs to sense the human body and the screen , the upper left human body sensor      will light up and reach out to bubble.

2. What if my machine is mounted on the side of the sink and doesn't sense the human body.

    If the product is installed on the side of the wash basin and can not sense people , the human body sensot at the bottom of the screen can be started nnormally every time when the hand passes through the screen.

3. Whay do I pour the cleaning liquid and water into the machine respectively and there is no induction bubble.

    Foam style : The cleaning liquid needs to be diluted and stirred enevly in a container before being poured into the machine , Do not pour water and cleaning liquid into the machine separately , as it will not be diluted          and clog the product , thus preventing foam.

4.How to cut off the human body sensor function

   The human body inductor can realize the human to automatically light up the screen , the machine starts up after sensing the human screen and huamn body symbol light up hand  will be out of liquid.

   Press the button three times continuously to cut off the human body sensor

   After the human body sensor is cut off , it can bubble by reaching into the induction area of the machine u nder the boot statte and the screen will light up only under the liquid state .

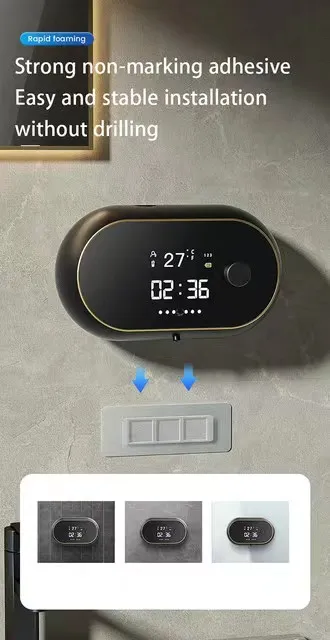

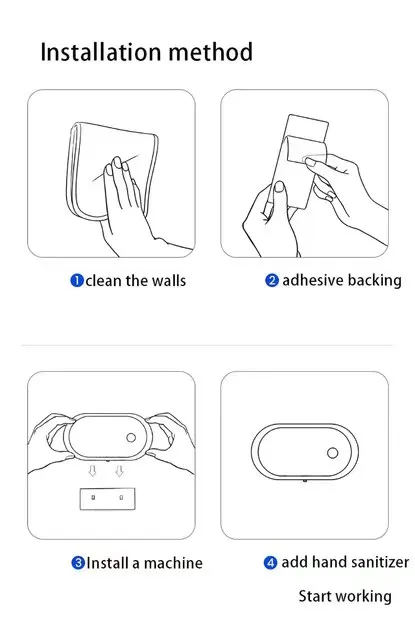

Step 1: Product installation

How to install automatic washing mobile phone ?what to watch out for ?

1.The wall should be kepy smooth, dry and dust-free, suitable for tile,amrble,mirror and other smooth surface , not suitable for painting the wall cloth, antique brick and other non-smooth walls ( the product hanging height should be more than 15cm high table, otherwise it will interface with the amchine induction.)



2.Tear off the protective adhesive film and paste it onto the wall , Press around the backplane for 40-50 seconds to ensure that the adhesive is completely  attached to the wall



3.The gum should be placed on the wall for 24 hours before hanging up the washing phone, The gum should have a certain reaction time with the wall and reach the most stable state after 24 hours



4.Gum can not be repared paste us .



Step 2:Switch the machine time and temperature adjustment

Q1:How to turn the machine on and off

Long press the screen knob for 3 seconds, when the screen lights up, the machine is in power-on state and long press the screen for 3 seconds to turn off the machine is in power-off state.



Q2:How to adjust Beijing time

1.In startup state , press the screen knnob twice continuously  to enter the time adjustment program.



2.When the screen display 88:--, adjust for hours , at this time , rotate the right knob to + hours , rotate the laft knob to -hours , press the screen knob once to confirm the minute adjustment , the screen display --88 ., show



3.Similarly , rotate the knob to adjust the minute and press the screen knob once to confirm the minute, the adjustment time is finished .



Q3: How to switch  the temperature

A: Single click the knob on the screen ti switch the temperature, the temperature can be fahreheit or celsius .



Matters needing attention

1.if no operation is performed  for 5 seconds during time adjustment , the system automatically exits time adjustment .

2.The machine is displayed in Beijing time, due to the lack of wireless connection , the time can not be corrected in real time and 3-5 minutes of deviation may occur in 1-2 months , this is a normal ohenomenon and time  can be corrected manually.



Step 3 : How to open the function of automatic induction use and self-cleaning

Q1: How to mix clean liquid ?

A: This product does not pick cleaning liquid , the two styles of soap dispenser corrresponding to use different concentrations of liquid

Foam: oridinary cleaning liquid( oridinary thick hand sanitizer , shampoo, showl gel , diswashing liquid , laundry liquid) can be diluted with 3-8 times water in a container and then poured into the machine for use (WARNING: cleaning liquid with particulate matter can be diluted)Foaming hand sanitizer can be poured directly into the machine for use .

Gel type: Oridinary cleaning liquid (oridinary thick hand sanitizer, shampoo,showel gel,dishwashing liquid, laundry liquid) can be directly poured into the machine for use , the liquid is original , foam cleaning liquid can not be poured .

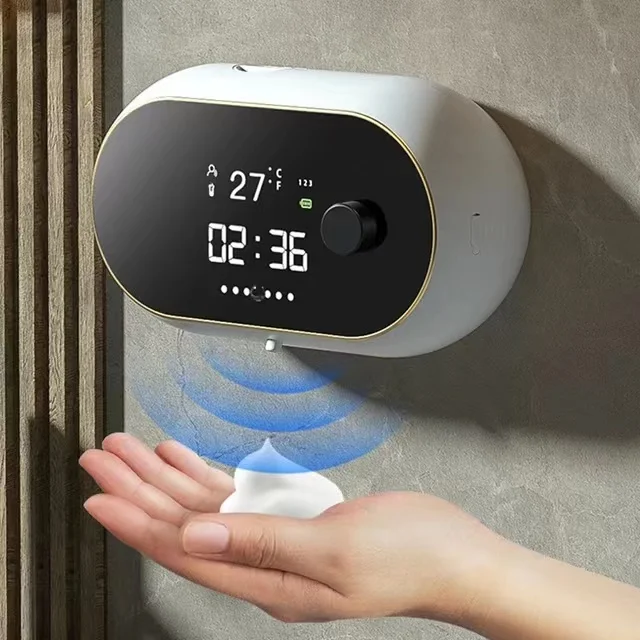

Q2: How to use automatic sensing?

A: 1. After long pressing the knob switch on the screen to turn it on , you can reach out to the sensing area to make bubbles. the sensing range of the sensor is within 5 cm , the default one is the first gear, you can switch gears according to the demand, the upper right shows the number 123 as the corresponding gear.



2.In order to prevent the machine may automatically out of liquid, this prevent the machine may automatically out of liquid , this product increase the human sensor, after the boot induction to the human screen will light up, then the hand induction will not be out of liquid , if you want to turn off the functionof human sensor, press the power button three times in the startup state to cut off thee function of human sensor .

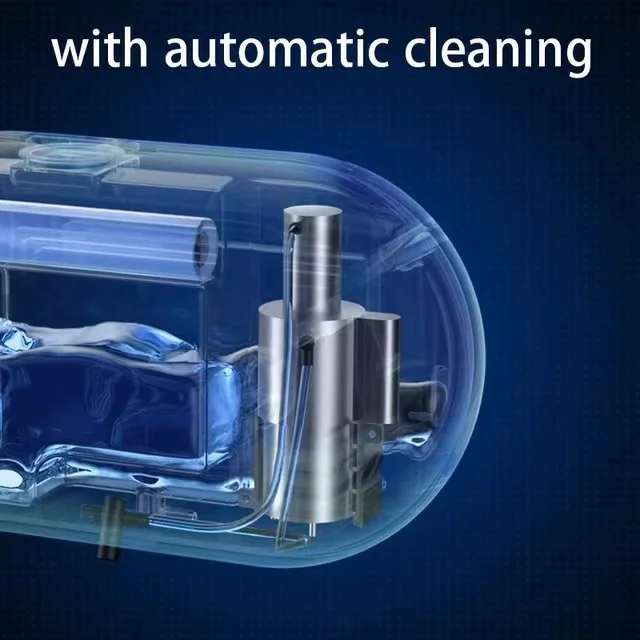

3, How to enable or disable the self-cleaning function , the machine can open the self-cleaning function by pressing the power button three times in the shutdown state and close the self-cleaning function by pressing the power button three times in the shutdown state (The self-cleaning function can be opened and dredge the machine when the machine is blocked, and there is no need to open the self-cleaning function under normal use .



Q&A on automatic sensing and liquid ratio

1. Why is there no induction after I turn on the machine,

In order to prevent the possibility of automatic liquid release of the machine, after the machine is turned on m the human body sensor needs to sense the human body , and the screen and the upper left human body sensor will light up  and reach out to bubble .



2.What if my machine is mounted on the side of the sink and doesn't sense the human body . If the product is installed on the side of the wash basin and can not sense people , the human body sensor at the bottom of the screen caan be started normally every time when the hand passes through the screen .



3.Why do I pour the cleaning liquid and water into the machine respectively and there is no induction bubble .

Foam style: The cleaning liquid needs to be diluted and stirred evenly in a container beffore being poured into the machine, Do not pour water and cleaning liquid into the machine separately , as it will not be diluted and clog the product , thuspreventing foam .



How to charge and how to cut off the human body sensor function

How to charge

1. Charging is introduced

Q: About the charging

A: 1. Shutdown state , after USB is connected , enter charging state ,geneerally 3-4 hours full .

    2. After USB is connected , the machine will enter charging state .

    3. This product is suitable for universal USB charging port adapter in the market .



How to cut off the body sensor

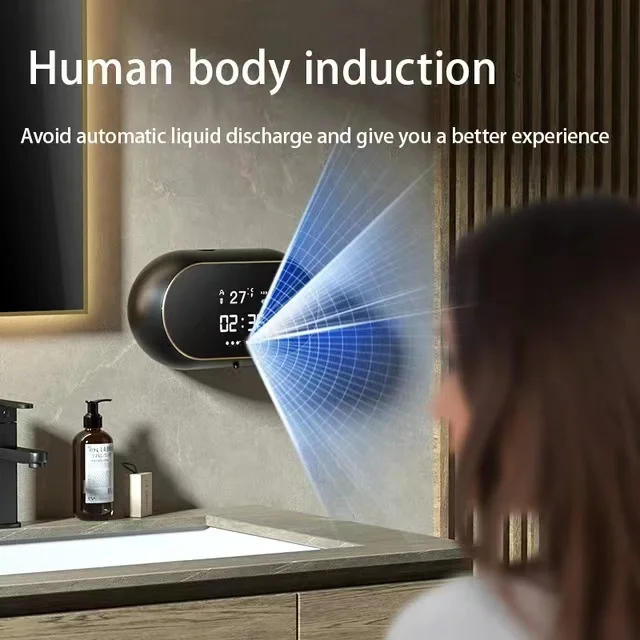

1.Introduction of human body sensor

Q: On the human body sensor function

A: The human body inductor cana realize the human to automatically light up the screen , the machine starts up after sensing the human screen and human body symbol light up hand will be out of liquid .



2. Press the button three times continuously to cut off the human body sensor .



3. After the human body sensor is cut off, it can bubble by reaching into the intduction area of the machine under the boot state , and the screen will light up only under the liquid state .



Notes :

Matters needing attention

1.Please read the instruction carefully before using this product .

2 Disassembly or alteration of the product  is strictly prohibite.

3. No soaking in water , Do not tilt the product  upside down to avoid damage .

4. It is strictly forbidden to use liquid containing impurities or strong acid and alkali in the product water tank to avoid blockage or corrosion of the filter screen of the internal bubble device .

5. After charging, pull out the charging head , please hold the plug , do not pull the charging cable.

6. The product hanging height should be more than 15cm  above the table , otherwise the table will interfere with the machine induction .

7. Do not immerse the charger part of the host in water or other liquids to avoid fire , electricity leakage , personal injury , product damage and other sink.

8. The equipment shall be used in accordance with the instructions and shll bot be used for other purposes.

9. Please keep this manual for further reference .
