Price:$24,800.00-55,800.00

Quantity:


Product Overview

Description



PRODUCT OVERVIEW

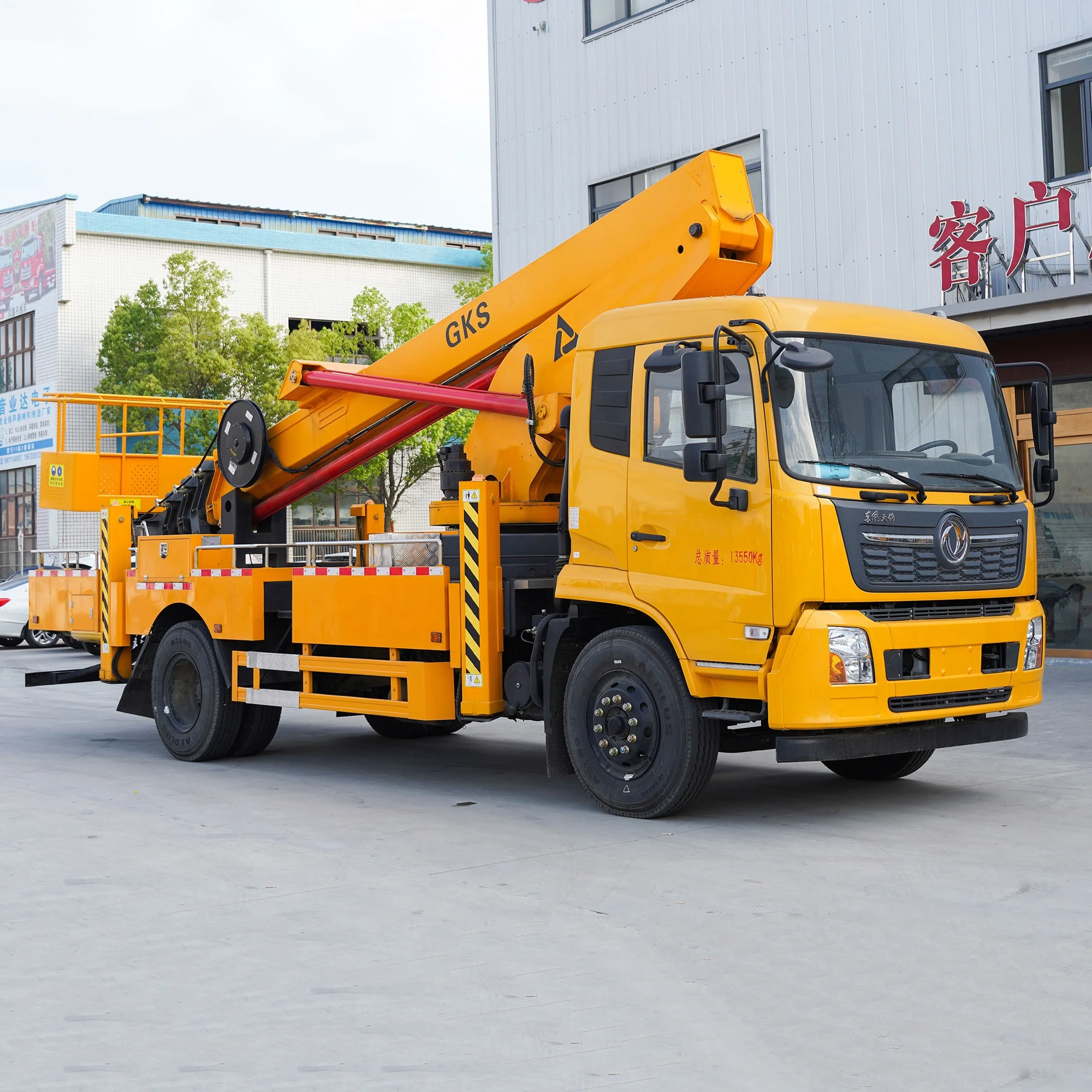

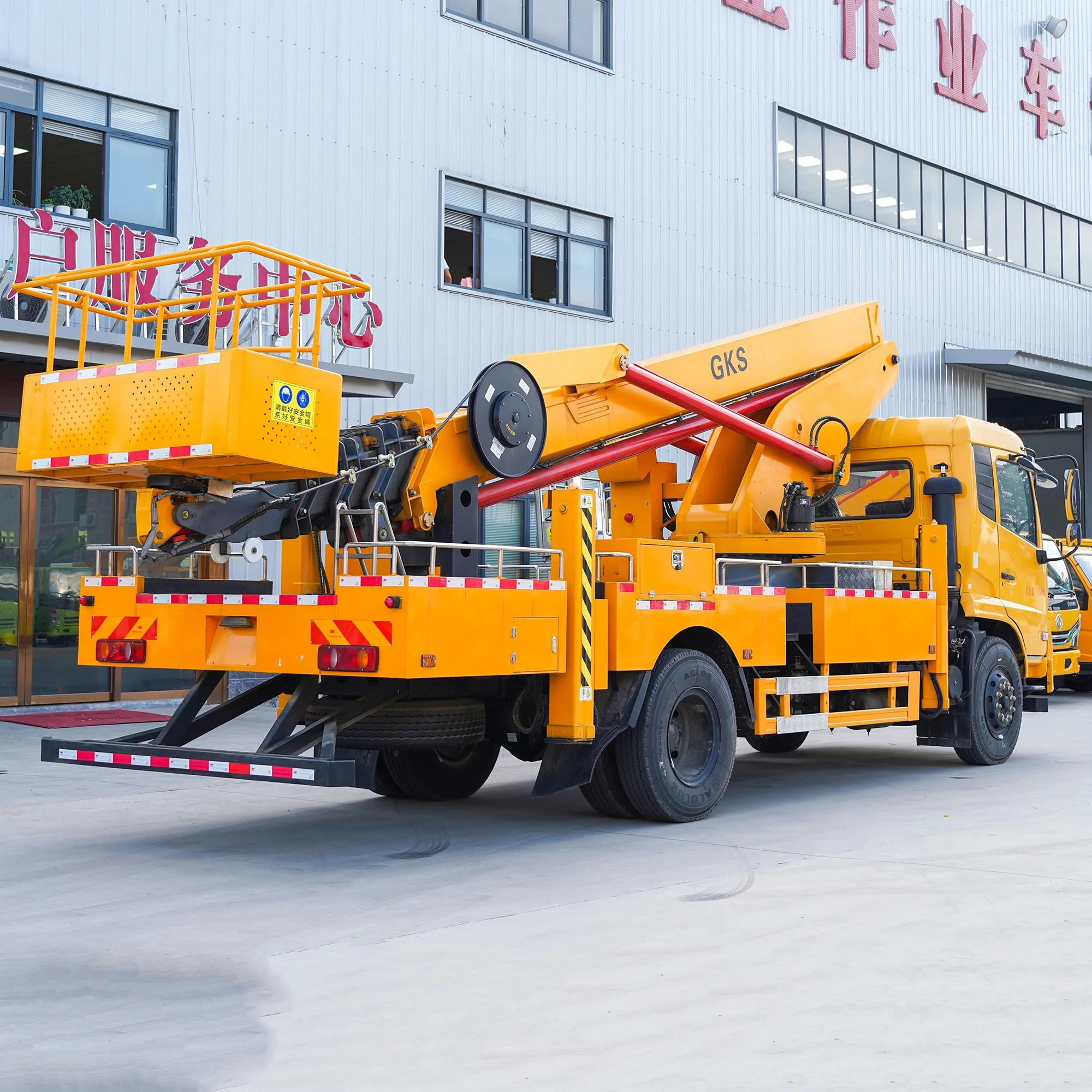

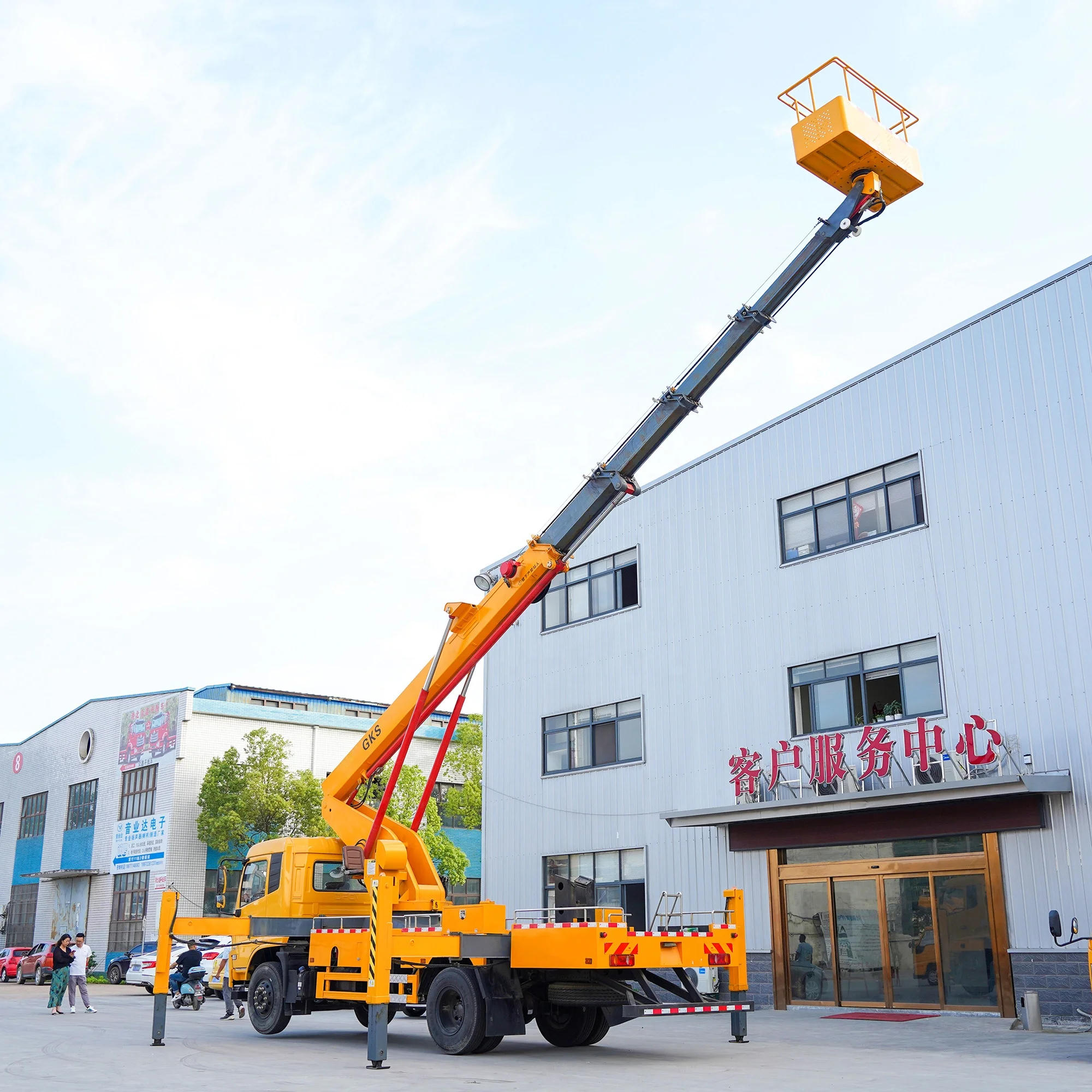

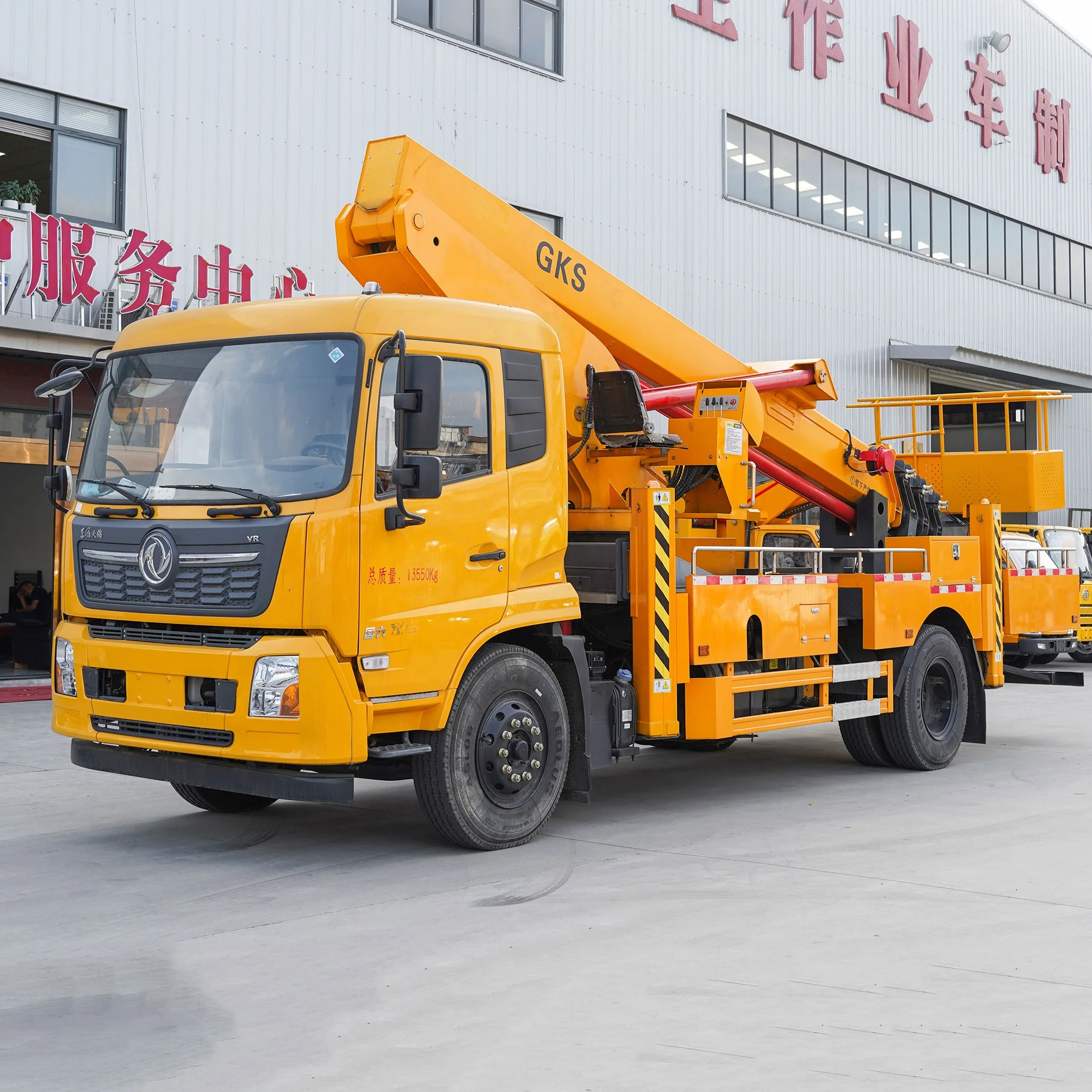

ZORY Hot Sale Aerial Work Trucks
Aerial Work Vehicle uses a fully automatic remote control system, equipped with intelligent controller and LCD, which can realize amplitude control, automatic throttle, load, amplitude, height display and other operation information.


PRODUCTS DESCRIPTION




Overall Dimension
7750×2260×3160mm（L*W*H）
Emission Standard
Euro6
Transmission
Shaanxi Gear 8-speed
Tyre
245/70R19.5 16 PR
Wheelbases
3800mm
Motor Model
D30TCIF1
Motor Displacement
2300ml
Motor Power
125kw
Working boom
Six-section, fourteen-sided boom, telescopic are using double rope structure, double luffing cylinder.

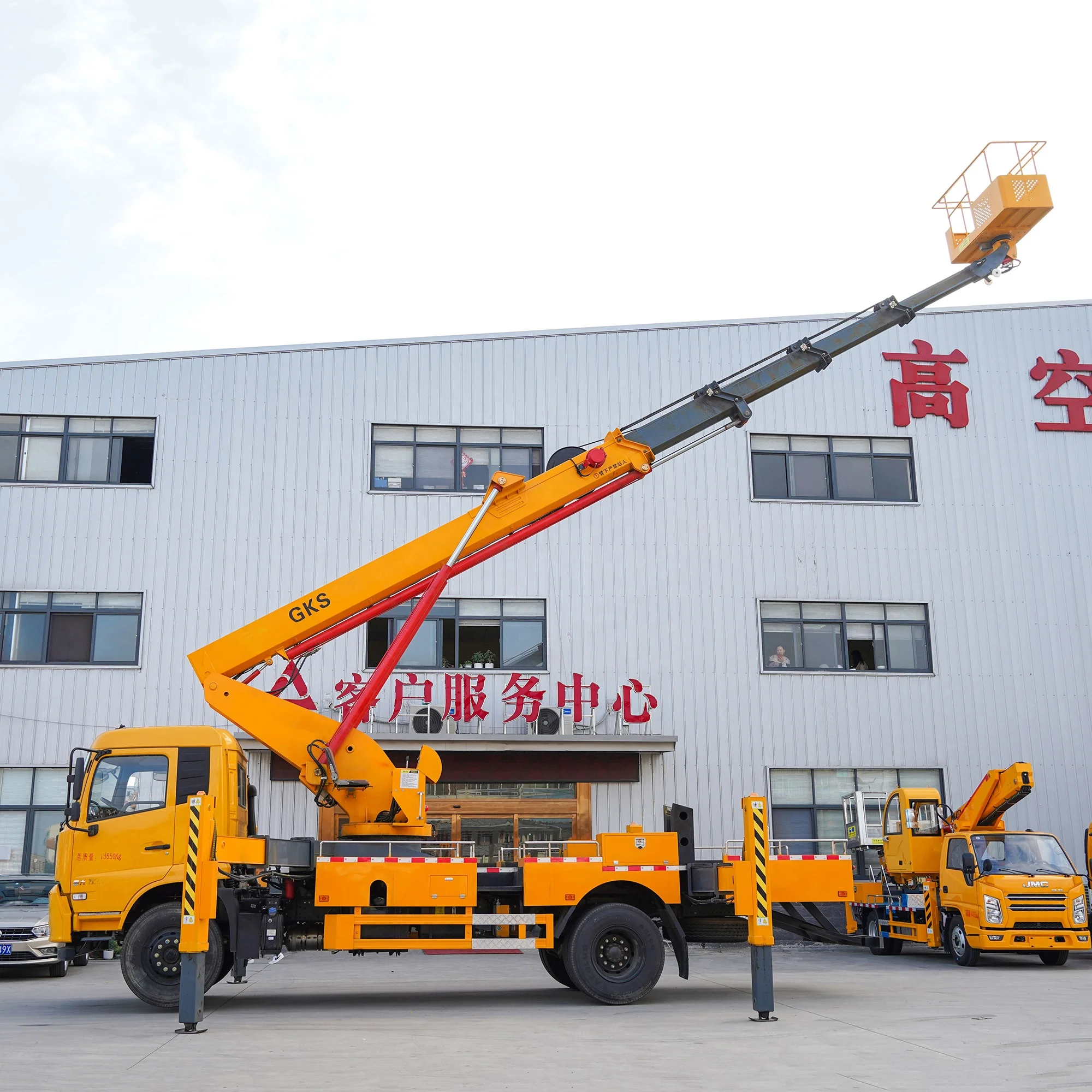

Outriggers
V front and V rear double-section outriggers
Lateral Span
5400mm
Longitudinal span
5100mm
Bucket Size
1600×700×1000mm（L*W*H）
Bucket rated weight
200kg

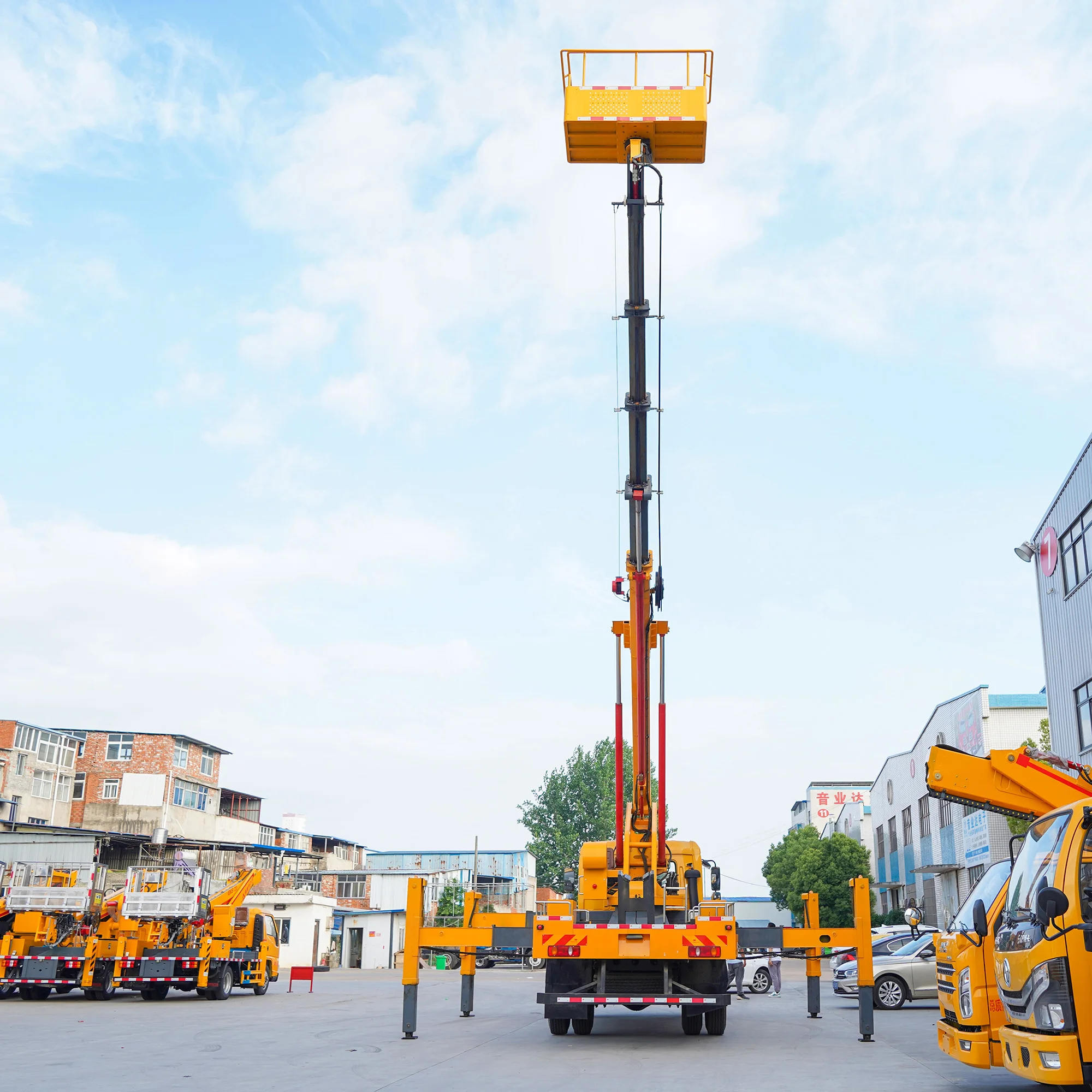

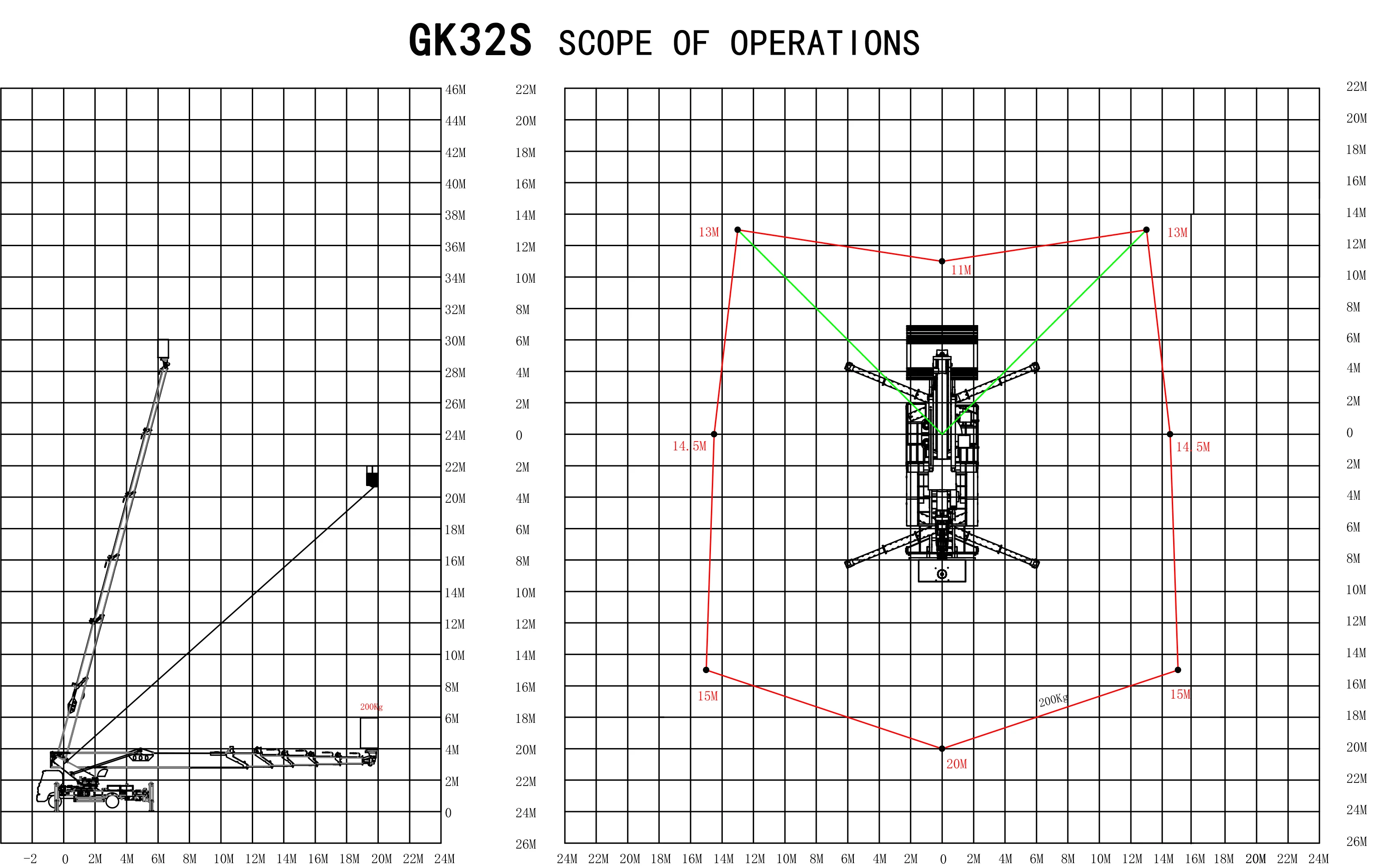

Maximum working height
30m
Option
Cab,2000/2200*700*1000 folding basket, hydraulic winch, oil and electricity dual-use machine




PRODUCT ADVANTAGES




Introduction of advanced 14-sided arm manufacturing process
Small bending and welding deformation, high precision of arm, anti-bending and anti-twisting.


Wireless Remote Control
1.Coverage radius 100M
2.Multi-motion synchronized operation Wireless remote control operation, savelabor, save cost,and open the field ofvision Wider, more efficient and safer
3.With a display screen, it can show the working status of the boom in real time, including amplitude, angle, height and boom length.


Seat operation
1. Hydraulic handle operation, can operate multiple motions at the same time, easy to operate and wide field of vision;
2. Equipped with display screen, which can show the working status of the boom in real time, including amplitude, angle, height and boom length.
3. Equipped with lighting switch, remote control switch, working bucket rotation, engine start/stop, emergency stop, etc.


Operation In The Basket
The wireless remote control can be placed in the basket operation, good field of vision, convenient for construction personnel to operate, high efficiency, more secure


Outrigger Operation
The legs are manually operated with independent hydraulic handles, which can operate each leg individually or at the same time.


OPTIONAL




Cab
Folding Basket
2000/2200*700*1000mm
Hydraulic Winches


FRODUCT FEATERES






1.3D simulation, CAE safety analysis and calculation, drawing size accurate to each screw hole.
Ensure product consistency.

2. The material is made of high quality WISCO plate, with good flexibility, compression and distortion resistance, and high safety coefficient.

3. Adopting laser cutting material, high precision of structural parts size.

4. Industrial robot welding, uniform and beautiful weld seam, no air holes, no false welding.

5. Structural parts sandblasting treatment, rust, oil, welding slag. Stress relief for structural parts, no deformation of structural parts,No deformation.

6. All structural parts are fully treated with pickling, phosphatizing, electrophoresis surface, structural parts are not easy to rust. All structural parts are individually painted and then assembled.


WHY CHOOSE US




Xuzhou ZORY Construction Machinery Co., Ltd. specializes in designing, developing, and manufacturing truck-mounted cranes, with a focus on innovation and technology. Our product range, spanning over 37,000 square meters of factory space, includes the SQ01-SQ55 series of truck-mounted cranes, marine cranes, pickup cranes, and Aerial Working Platforms. Strict quality control system makes us pass ISO quality management system and CE certificate to ensure our product quality.
Our expert R&D team drives our commitment to safety, intelligence, and technological leadership, using advanced design and analysis systems. We uphold a strong enterprise spirit of sincerity, stability, innovation, and cooperation, ensuring excellence in every aspect from design to service. Our goal is to lead in technology and service within China's truck-mounted crane industry.


FAQ


1.What's your payment link?

There are 2 solutions, first you pay 30% advanced payment, balance pay before shipment. second 30% advanced payment, balance pay by L/C.
2.What chassis do you use?
We use JMC,Isuzu,Dongfeng and SINOTRUK HOWO chassis and so on .
3.Can you provide double row seats?
We can design double row seats for you according to your needs.
4.Is your car fully automatic?
Yes, our car is fully automatic and equipped with a remote control.
If you have any needs, please feel free to contact me.
5.What is your MOQ?
One Set is ok for your trial order.
6.What is the delivery time?
Most of the order will within 20days, sometimes depend on your quantity and our present production plan.
7.How about your Warranty and after sale service?
Normally is about 12 months after leaving factory.
8.OEM or ODM is available?
Yes, we can produce with your logo.
