DC12V 24V Micro Constant Flow Pump Food Grade Large Flow Hose Pump G1016 Peristaltic Pump
- Category: >>>
- Supplier: Shenzhen Seven Magic Technology Co. Ltd.Shenzhen Ltd.
Share on (1601037946477):
Product Overview
Description
Products Description
DC12V 24V Micro Constant Flow Pump Food Grade Large Flow Hose Pump G1016 Peristaltic Pump
Product name | Peristaltic pump |
Model | SM-WP-18 |
Pump tube | transparent silicone tube |
Voltage | DC12V / 24V |
Color | Silver+Black |
Tube SIze | ID*OD=7.9*11.1mm |
Flow range | 559ml/min - 3158ml/min |
Motor type | DC brush geared motor |
Current | 1.5A |

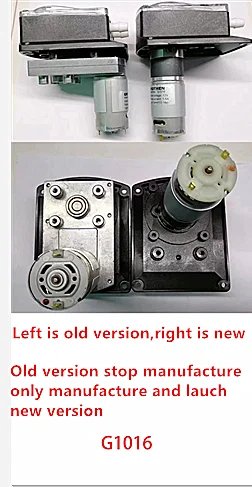

Motor sizer | See picture |
Pump head material | PC |
Weight | 0.7kg |
Due to the particularity of the product, the used product will contaminate the silicone tube. Trial is not supported. Once the product is sold, it is not a quality problem and returns or exchanges are not supported. Please read the product parameters carefully before purchasing. Thank you for your cooperation!
1. Product details
Pump tube material: transparent silicone tube for food-grade peristaltic pumps
Pump tube specifications: inner diameter 7.9mm, outer diameter 11.1mm
Pump tube life: >200 hours, replaceable
Screws: Hexagon socket screws, 304 stainless steel rust-proof, the pump cover can be quickly disassembled and assembled
Wheel frame: ball motor grade bearing, quiet, long life
Roller: Two rollers, peristaltic fluid extraction
Correction wheel: four rollers to prevent the pump tube from deflecting
Motor: DC reduction motor
Rated working voltage: 12V/24V
Rated current: 1.5A (circuit current limit setting is recommended to be greater than 2A)
Rated power: 18W
Rated flow: 1500ml/min (actual flow will vary by +/-10%)
Product noise: 65db
Product weight: 0.7KG
Working environment: temperature 0~40℃, relative humidity <80%
Medium flow direction: It depends on the positive and negative pole connections of the motor. The positive and negative poles of the terminals can be selected arbitrarily.
2. Product materials
Pump cover: Highly transparent PC
Connector: Highly transparent PC
Pump shell: PA66
Roller: PA66+MoS2
1. Product details
Pump tube material: transparent silicone tube for food-grade peristaltic pumps
Pump tube specifications: inner diameter 7.9mm, outer diameter 11.1mm
Pump tube life: >200 hours, replaceable
Screws: Hexagon socket screws, 304 stainless steel rust-proof, the pump cover can be quickly disassembled and assembled
Wheel frame: ball motor grade bearing, quiet, long life
Roller: Two rollers, peristaltic fluid extraction
Correction wheel: four rollers to prevent the pump tube from deflecting
Motor: DC reduction motor
Rated working voltage: 12V/24V
Rated current: 1.5A (circuit current limit setting is recommended to be greater than 2A)
Rated power: 18W
Rated flow: 1500ml/min (actual flow will vary by +/-10%)
Product noise: 65db
Product weight: 0.7KG
Working environment: temperature 0~40℃, relative humidity <80%
Medium flow direction: It depends on the positive and negative pole connections of the motor. The positive and negative poles of the terminals can be selected arbitrarily.
2. Product materials
Pump cover: Highly transparent PC
Connector: Highly transparent PC
Pump shell: PA66
Roller: PA66+MoS2
3. Product traffic
3.1 The product can work for a long time under the working voltage of 6~12V. Different voltages correspond to different flow rates. The corresponding flow rates are as follows.
3.1 The product can work for a long time under the working voltage of 6~12V. Different voltages correspond to different flow rates. The corresponding flow rates are as follows.
3.2 If the working voltage of the product is between 12V and 24V, it is considered an overload operation. The circuit current limit setting must be greater than 2A. It is recommended that the power supply power be greater than 48W. Otherwise, the product will not be able to work overload due to insufficient power. Long-term overload operation (12V~24V) shortens the product life, or insufficient personal power supply causes the product to fail to start. Returns are not accepted, so please consider carefully before purchasing.

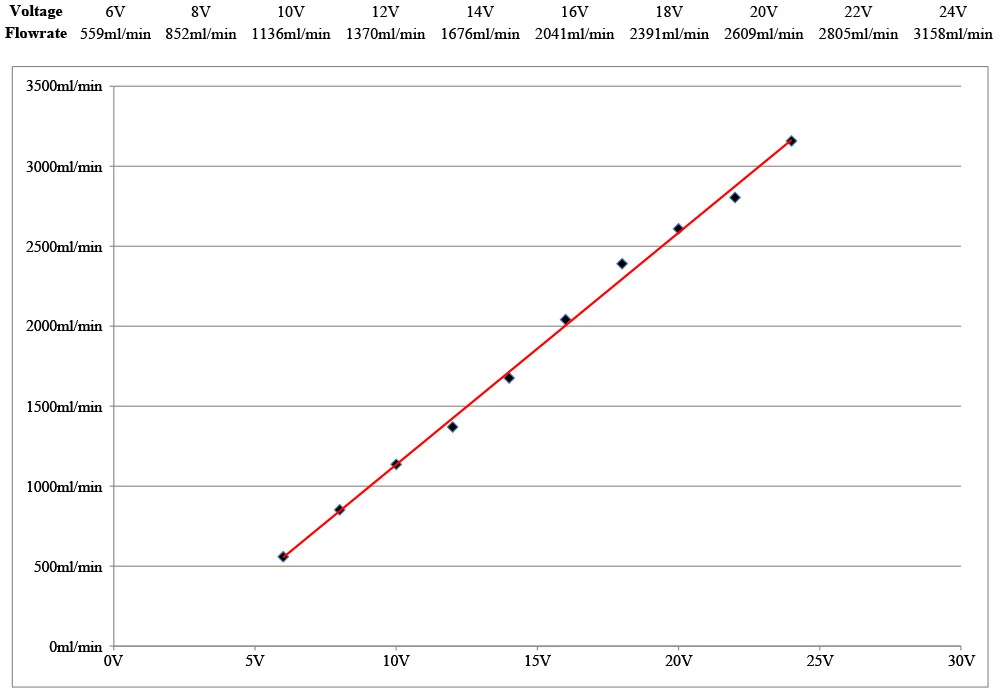

4. Voltage/flow relationship
The flow rate increases linearly with voltage. The "voltage/flow" relationship diagram is as follows. It is for reference only. There will be slight deviations in actual situations.
The flow rate increases linearly with voltage. The "voltage/flow" relationship diagram is as follows. It is for reference only. There will be slight deviations in actual situations.
The equation of voltage/flow: flow=144.39*voltage-307.34 (for estimation only)
5. Time/traffic trend curve
If the product continues to work for a long time, the silicone tube will gradually wear out, and the flow rate will slowly increase. After working for about 20 hours, the flow rate will become stable.
5. Time/traffic trend curve
If the product continues to work for a long time, the silicone tube will gradually wear out, and the flow rate will slowly increase. After working for about 20 hours, the flow rate will become stable.

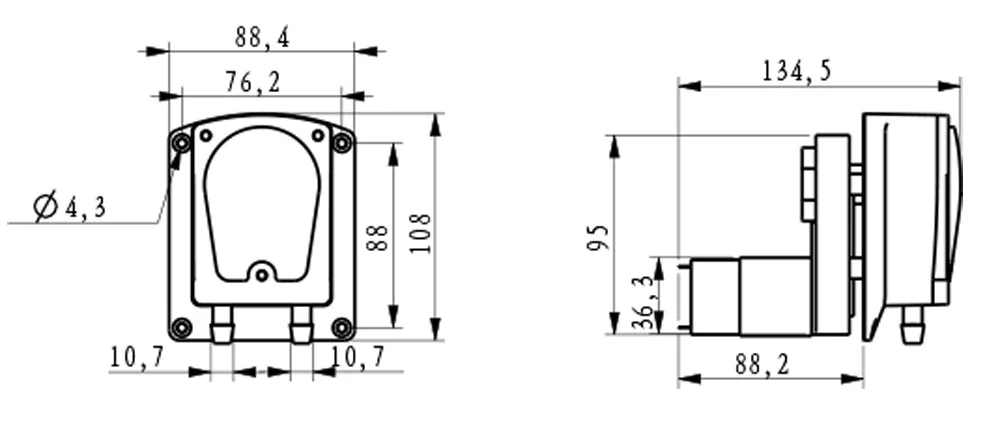

6. Product size chart
7. Product application scope
Detergent delivery: such as washing machines and dishwashers. Analytical instruments: sample injection for analytical testing instruments.
Printing equipment: conveying ink
Food machinery: beverage machines
kitchen equipment
laundry equipment
car wash equipment
Analytical equipment
8. Product maintenance and care
It is not recommended to work continuously for 24 hours, otherwise the life of the motor will be shortened.
After long-term use, the tube will slowly wear out. You can remove the pump cover and clean the pump tube.
Detergent delivery: such as washing machines and dishwashers. Analytical instruments: sample injection for analytical testing instruments.
Printing equipment: conveying ink
Food machinery: beverage machines
kitchen equipment
laundry equipment
car wash equipment
Analytical equipment
8. Product maintenance and care
It is not recommended to work continuously for 24 hours, otherwise the life of the motor will be shortened.
After long-term use, the tube will slowly wear out. You can remove the pump cover and clean the pump tube.
