KINGER hydraulic rock hammer demolition breaker hammer for excavator with CE ISO
- Category: >>>
- Supplier: Yantai Dongheng Machinery Co. Ltd.
Share on (1601037994772):
Product Overview
Description
KINGER HYDRAULIC BREAKER
________\\\\\\ ________
With stably high quality, excellent materials and long service life, KINGER hydraulic breaker is suitable to work in the hardest rock and the most difficult excavation conditions.
Main Features：
1. Suitable for 0.5-55 ton excavator, skid steer, backhoe loader, etc.2. Adopt Korean technology to ensure high quality.
3. Adopt good special materials and leading heat treatment technology to ensure hardness and more wear resistance.
4. Powerful "Hydraulic + Nitrogen" impact system.
5. Impact force and beat frequency can be adjusted according to different working situation.
6. Long service life, less maintenance.
7. Support OEM and ODM.
KINGER Hydraulic Breaker Parameter
Model | YDH B350 | YDH B400 | YDH B450 | YDH B530 | YDH B600 |
Applicable(Ton) | 0.5-1.5 | 1-2 | 1.5-3 | 2.5-4.5 | 4-6 |
Oil flow(Lpm) | 14-25 | 15-25 | 20-30 | 25-45 | 30-60 |
Pressure(Bar) | 80-120 | 90-120 | 90-120 | 90-120 | 110-140 |
Chisel Dia.(mm) | 35 | 40 | 45 | 53 | 60 |
Hose Dia.(inch) | 3/8 | 1/2 | 1/2 | 1/2 | 1/2 |
Side weight(kg) | 70 | 95 | 115 | 150 | 230 |
Top weight(kg) | 100 | 135 | 165 | 190 | 270 |
Silenced weight(kg) | 125 | 145 | 170 | 205 | 305 |
Model | YDH B680 | YDH B750 | YDH B850 | YDH B1000 | YDH B1250 |
Applicable(Ton) | 5-7 | 6-9 | 7-14 | 10-15 | 15-18 |
Oil flow(Lpm) | 35-60 | 50-90 | 45-85 | 80-120 | 90-120 |
Pressure(Bar) | 110-140 | 120-170 | 127-147 | 150-170 | 150-170 |
Chisel Dia.(mm) | 68 | 75 | 85 | 100 | 125 |
Hose Dia.(inch) | 1/2 | 1/2 | 3/4 | 3/4 | 1 |
Side weight(kg) | 260 | 370 | 500 | 750 | 1280 |
Top weight(kg) | 315 | 430 | 580 | 890 | 1310 |
Silenced weight(kg) | 335 | 430 | 680 | 950 | 1390 |
Model | YDH B1350 | YDH B1400 | YDH B1550 | YDH B1650 | YDH B1750 |
Applicable(Ton) | 18-25 | 20-26 | 28-35 | 30-40 | 35-40 |
Oil flow(Lpm) | 130-170 | 150-190 | 150-230 | 200-260 | 210-280 |
Pressure(Bar) | 160-185 | 165-185 | 170-200 | 180-200 | 180-200 |
Chisel Dia.(mm) | 135 | 140 | 155 | 165 | 175 |
Hose Dia.(inch) | 1 | 1 | 5/4 | 5/4 | 5/4 |
Side weight(kg) | 1450 | 1670 | 2450 | 2800 | 3900 |
Top weight(kg) | 1520 | 1900 | 2750 | 3020 | 3950 |
Silenced weight(kg) | 1620 | 2000 | 2600 | 3050 | 4500 |
For more details, please send us inquiry :)

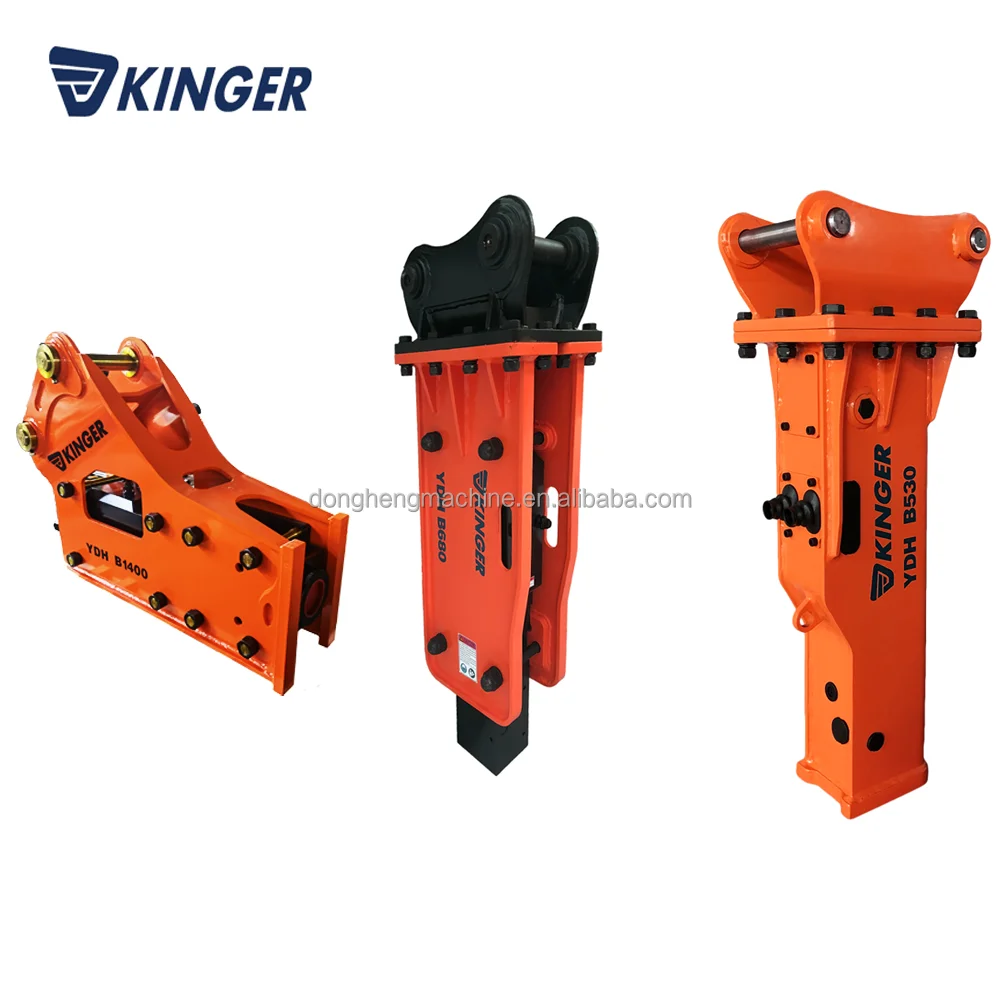

KINGER hydraulic breaker has three types: Side,Top and Silenced Box
*Top Breaker is suitable for the construction of narrow working range such as gully. KINGER Top breaker without side-weight can reduce the rate of chisel breakage.
*Silenced Breaker with fully enclosed box type housing to prevent body from damage. This type with low noise level is well received by customers.
KINGER Chisel :
Yantai Dongheng Machinery Co., Ltd. is established in 2010, which is a professional enterprise devoted to R&D, manufacture and sell Earth auger drive, Hydraulic breaker, Log splitter, Saw head, Hedge trimmer, Stump Planer, Tree Shear, Chain Trencher, Concrete Mixer Bucket and other construction, forestry and agricultural machinery and attachments.
We has passed ISO9001:2015 and CE certification, and we are national high-tech and professional, refined, unique and innovative enterprise. Our company owns plenty of independent intellectual property rights. So far, we have obtained more than 30 patents. That makes KINGER to be a leading position in the construction, forestry and agricultural machinery industry.
Our products adopt high and new technology, applied with best materials and supported by various advanced inspection and testing equipment to make sure the quality stable and performance more excellent.
With more than 14 years manufacturing, sales and after-sales service experience, we have created our own brand "KINGER". Our products have been exported to US, UK, Germany, Russia, Australia, Canada, Japan, Korea etc, recognized by customers all over the world.
We has passed ISO9001:2015 and CE certification, and we are national high-tech and professional, refined, unique and innovative enterprise. Our company owns plenty of independent intellectual property rights. So far, we have obtained more than 30 patents. That makes KINGER to be a leading position in the construction, forestry and agricultural machinery industry.
Our products adopt high and new technology, applied with best materials and supported by various advanced inspection and testing equipment to make sure the quality stable and performance more excellent.
With more than 14 years manufacturing, sales and after-sales service experience, we have created our own brand "KINGER". Our products have been exported to US, UK, Germany, Russia, Australia, Canada, Japan, Korea etc, recognized by customers all over the world.
Q: Are you trading company or manufacturer?
A: Yes, we are manufacturer.
Q: How long is your delivery time?
A: It is according to quantity.
Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample, but it is not free.
Q: If I need different measurements or weight, could you offer OEM service?
A: Sure, we can provide OEM service, also we can make new mould for your product, attaching your name brand.
Q: If buy your product, can the quality and after-sales service be guaranteed?
A: Yes, you can rest assured that we have our own factory and technical consultants, and you will have a pleasant shopping experience in our company.
Q: How long is your delivery time?
A: It is according to quantity.
Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample, but it is not free.
Q: If I need different measurements or weight, could you offer OEM service?
A: Sure, we can provide OEM service, also we can make new mould for your product, attaching your name brand.
Q: If buy your product, can the quality and after-sales service be guaranteed?
A: Yes, you can rest assured that we have our own factory and technical consultants, and you will have a pleasant shopping experience in our company.
