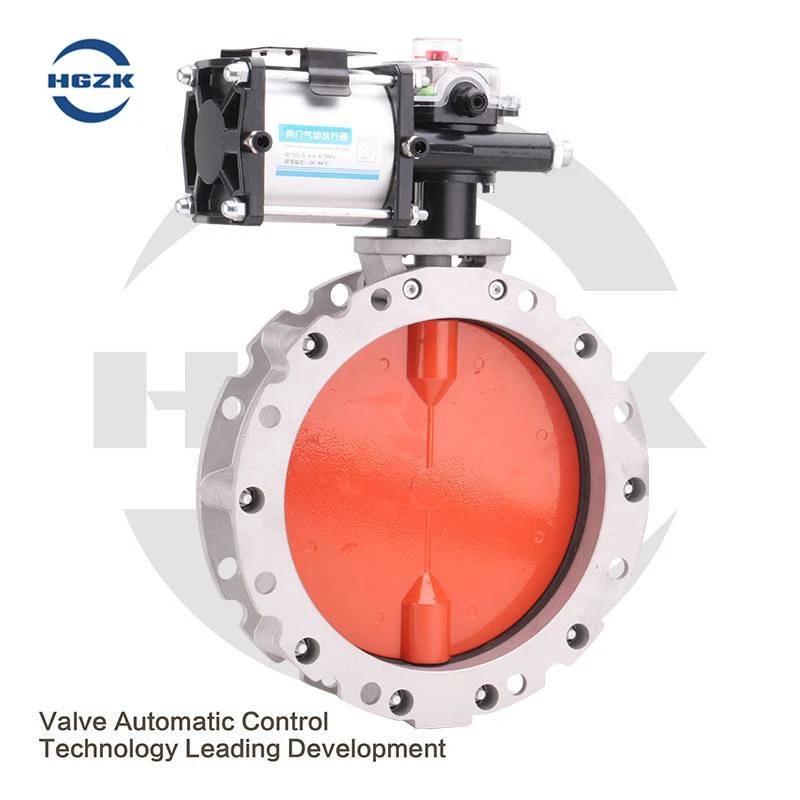

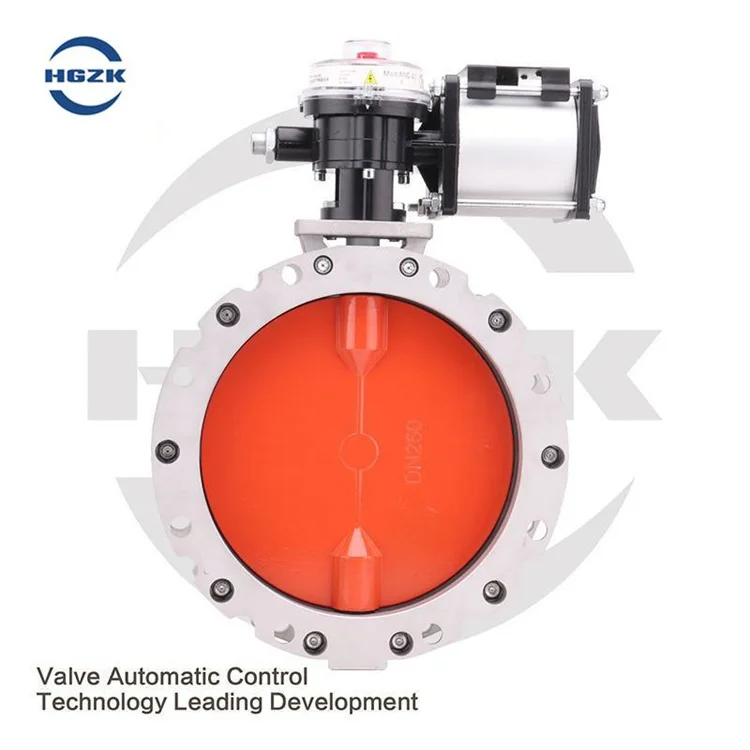

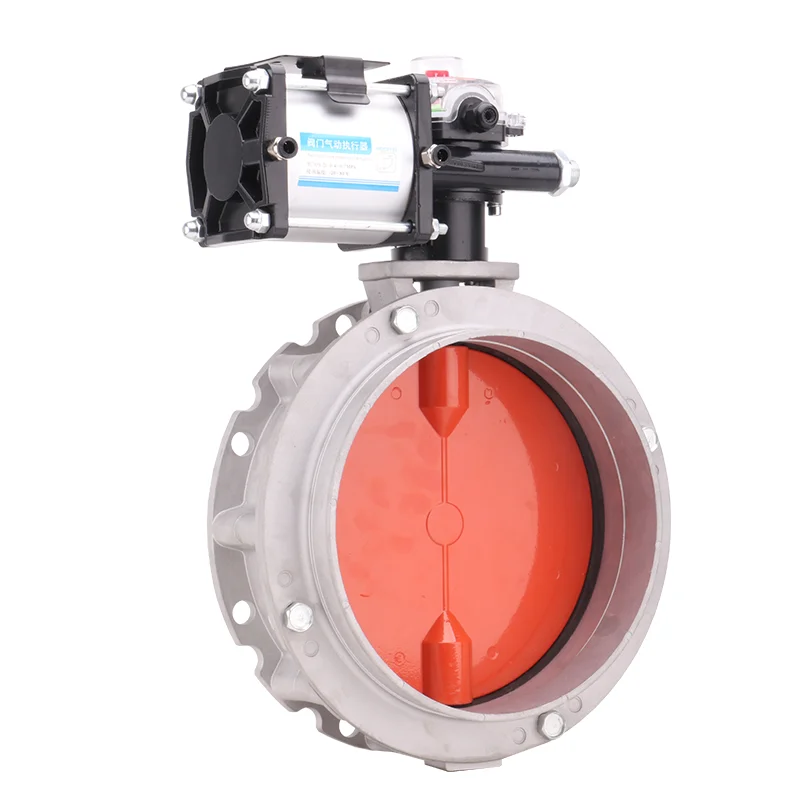

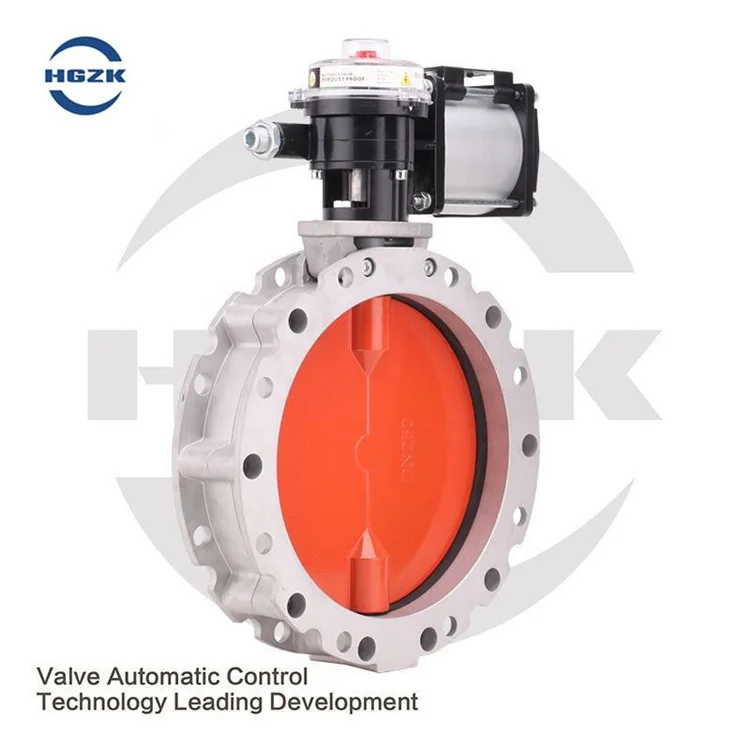

High Pressure Aluminum Alloy Pneumatic V1FS Single Flange Butterfly Valve V2FS Double Flanges VFS Aluminium Butterfly Valves
- Category: >>>
- Supplier: Jiangsu Huagong Automatic Control Valve Co. Ltd.Jiangsu Ltd.
Share on (1601038151373):
Product Overview
Description
item | valve |
Warranty | 12month |
Type | Pneumatic valve |
Customized support | OEM |
Place of Origin | China |
Jiangsu | |
Brand Name | HGZK |
Application | General |
Temperature of Media | High Temperature, Low Temperature, Medium Temperature, Normal Temperature |
Power | Pneumatic |
Structure | BUTTERFLY |
Model | VFS V1FS V2FS |
Size | 4in 6in 8in 10in 12in 14in 16in 20in 24in |
Working pressure | 2-7bar |
Drive mode | Pneumatic |
Medium | Cement,material powder medium |
Body | Die-casting aluminium |

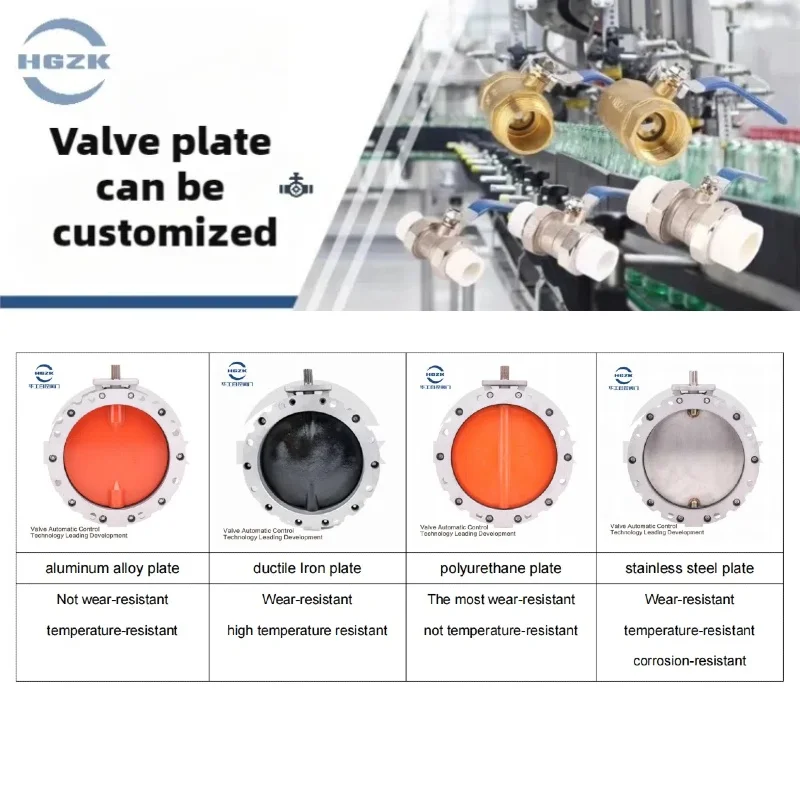

Butterfly | Resistant composite material,iron |
Stem | 45# |
Seat | Abrasive rubber |

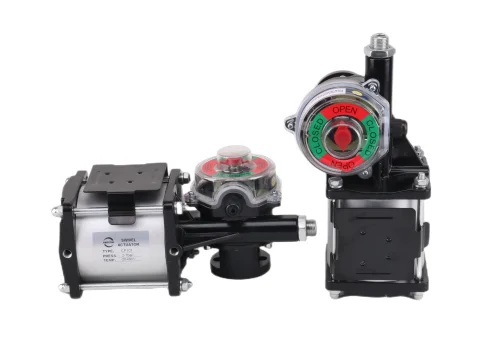

Swivel ACTUATOR
The swivel actuator controls the valve switch through the air source, and the air source pressure is 2-7 bar.
MIC23 Limit switch
The limit switch can indicate the valve switch status, or the electric signal can feedback the valve switch status
Limit screw
The limit screw is used to adjust the valve angle. When the valve is not closed in place, the limit screw can be adjusted
Connecting gear
The connecting gear is used to connect with the valve stem and has a fixed installation size
