Customized Unidirectional Prepreg T700 T300 20g 75g 100g 200g Carbon Fiber Fabric Epoxy Resin
- Category: >>>
- Supplier: Xiamen Tanxiang International Co. Ltd.
Share on (1601038240351):
Product Overview
Description
Product Description
Specification
Tairyfil T300 --carbon fiber unidirectional prepreg | ||||||||
specification | Carbon content (g/㎡) | Resin content WT(g/㎡) | Total weight WT(g/㎡) | thickness MM±0.02 | ||||
020# | 20 | 42（±2） | 35 | 0.02 | ||||
030# | 30 | 42（±2） | 52 | 0.025 | ||||
050# | 50 | 38（±2） | 81 | 0.05 | ||||
065# | 65 | 38（±2） | 105 | 0.06 | ||||
0750# | 75 | 38（±2） | 121 | 0.07 | ||||
100# | 100 | 38（±2） | 161 | 0.09 | ||||
125# | 125 | 38（±2） | 202 | 0.12 | ||||
150# | 150 | 38（±2） | 242 | 0.14 | ||||
175# | 175 | 38（±2） | 282 | 0.17 | ||||
200# | 200 | 38（±2） | 322 | 0.19 | ||||
Tairyfil T700 --- carbon fiber unidirectional prepreg | ||||||||
specification | Carbon content (g/㎡) | Resin content WT(g/㎡) | Total weight WT(g/㎡) | thickness MM | ||||
065# | 65 | 38（±2） | 105 | 0.06-0.065 | ||||
075# | 75 | 38（±2） | 121 | 0.07-0.07 | ||||
100# | 100 | 38（±2） | 161 | 0.09-0.10 | ||||
125# | 125 | 38（±2） | 202 | 0.12-0.13 | ||||
150# | 150 | 38（±2） | 242 | 0.14-0.15 | ||||
Tairyfil 30 ton---carbon fiber unidirectional prepreg | ||||||||
specification | Carbon content (g/㎡) | Resin content WT(g/㎡) | Total weight WT(g/㎡) | thickness MM | ||||
050# | 50 | 38（±2） | 81 | 0.05-0.06 | ||||
065# | 65 | 38（±2） | 105 | 0.06-0.065 | ||||
075# | 75 | 30（±2） | 100 | 0.06-0.07 | ||||
100# | 100 | 25（±2） | 135 | 0.09-0.10 | ||||
125# | 125 | 25（±2） | 168 | 0.12-0.13 | ||||
150# | 150 | 25（±2） | 205 | 0.14-0.15 | ||||
PYROFIL 40 ton --- carbon fiber unidirectional prepreg | ||||||||
specification | Carbon content | Resin content | Total weight | thickness | ||||
075# | 75 | 30（±2） | 110 | 0.07-0.08 | ||||
100# | 100 | 25（±2） | 135 | 0.09-0.10 | ||||
125# | 125 | 25（±2） | 168 | 0.09-0.10 | ||||
150# | 150 | 25（±3） | 205 | 0.14-0.15 | ||||
Product Paramenters
Curing temperature | 80ºC-150ºC |
Curing time | 25-60min |
Storage life at -5ºC | 6 months |
Storage life at -18ºC | 12 months |
Customer Photos
Packing & Delivery

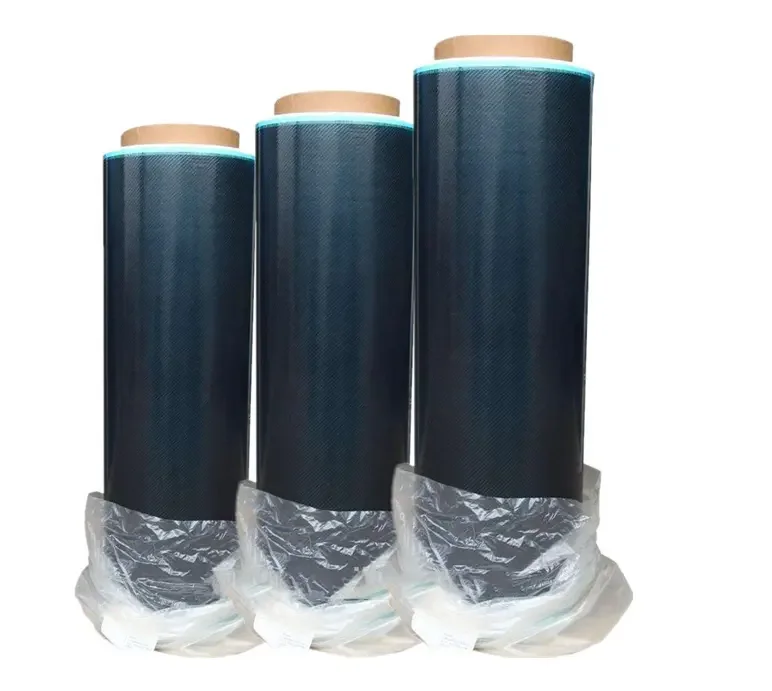

PE bag + carton stored at low temperature.
Company Profile
Our Advantages
+ possess own factories,can provide 100% facotory price
+ 30years experience in composite materials production+ outstanding technology
+ high quality and good service+ delivery date guarantee
+ advanced production equipment
+ 30years experience in composite materials production+ outstanding technology
+ high quality and good service+ delivery date guarantee
+ advanced production equipment
Xiamen Tanxiang International Co.,Ltd. is located in the beautiful coastal city - Xiamen, Fujian Province, its production department was established in 2002, located in Xinyu City, Jiangxi Province, National high-tech Industrial Development Zone. Covering an area of more than 260 acres, it is one of the largest carbon fiber industrial production bases in China.
The company is mainly engaged in carbon fiber prepreg, glass fiber prepreg, carbon fiber decoration prepreg and all kinds of carbon fiber products OEM or ODM production and research and development.
The company has a professional technical research and development team, has its own independent carbon fiber prepreg production workshop, the use of Japan and Taiwan imported carbon fiber yarn, the introduction of Taiwan advanced prepreg cloth production equipment, carbon fiber prepreg cloth and carbon fiber products are exported to Europe, America, Japan, Australia, mainland, Taiwan, Russia and other countries or regions, the quality has been praised by domestic and foreign customers. And passed ISO9001, SGS and other multi-party certification.
The company is mainly engaged in carbon fiber prepreg, glass fiber prepreg, carbon fiber decoration prepreg and all kinds of carbon fiber products OEM or ODM production and research and development.
The company has a professional technical research and development team, has its own independent carbon fiber prepreg production workshop, the use of Japan and Taiwan imported carbon fiber yarn, the introduction of Taiwan advanced prepreg cloth production equipment, carbon fiber prepreg cloth and carbon fiber products are exported to Europe, America, Japan, Australia, mainland, Taiwan, Russia and other countries or regions, the quality has been praised by domestic and foreign customers. And passed ISO9001, SGS and other multi-party certification.
FAQ
Q1. Are you trading company or factory ?
A: We’re a factory founded in 2002, welcome to visit us at your convenience.
Q2. Can I have a sample ?
A: Yes, welcome to request samples to make test and check quality.
Q3. Do you offer OEM services ?
A: Since our products are mainly customized spec, we accept the OEM orders based on detailed size drawing.
Q4. Could I have your price list detail ?
A: Yes, please leave a messege here or send email, we’ll reply details within 12 hours.
Q5. What’s the production lead time for normal order ?
A: for in-stock items, ship immediately;
for customized sample order, try to finish within 2~3 workdays;
for bulk order, 5~10 workdays based on quantiy.
Q6. Can I get a discount ?
A: Yes, we can negotiate and provide best offer based on quantity and request.
Q7. Do you make inspection with the finished products ?
A: That’s for sure each production process and finished products must be checked by QC & QA workers before package.
Q8. How is your after-sale service ?
A: We provide excellent after-sale service such as shipment logistics tracking, application guide, problem solution,etc.
A: We’re a factory founded in 2002, welcome to visit us at your convenience.
Q2. Can I have a sample ?
A: Yes, welcome to request samples to make test and check quality.
Q3. Do you offer OEM services ?
A: Since our products are mainly customized spec, we accept the OEM orders based on detailed size drawing.
Q4. Could I have your price list detail ?
A: Yes, please leave a messege here or send email, we’ll reply details within 12 hours.
Q5. What’s the production lead time for normal order ?
A: for in-stock items, ship immediately;
for customized sample order, try to finish within 2~3 workdays;
for bulk order, 5~10 workdays based on quantiy.
Q6. Can I get a discount ?
A: Yes, we can negotiate and provide best offer based on quantity and request.
Q7. Do you make inspection with the finished products ?
A: That’s for sure each production process and finished products must be checked by QC & QA workers before package.
Q8. How is your after-sale service ?
A: We provide excellent after-sale service such as shipment logistics tracking, application guide, problem solution,etc.
