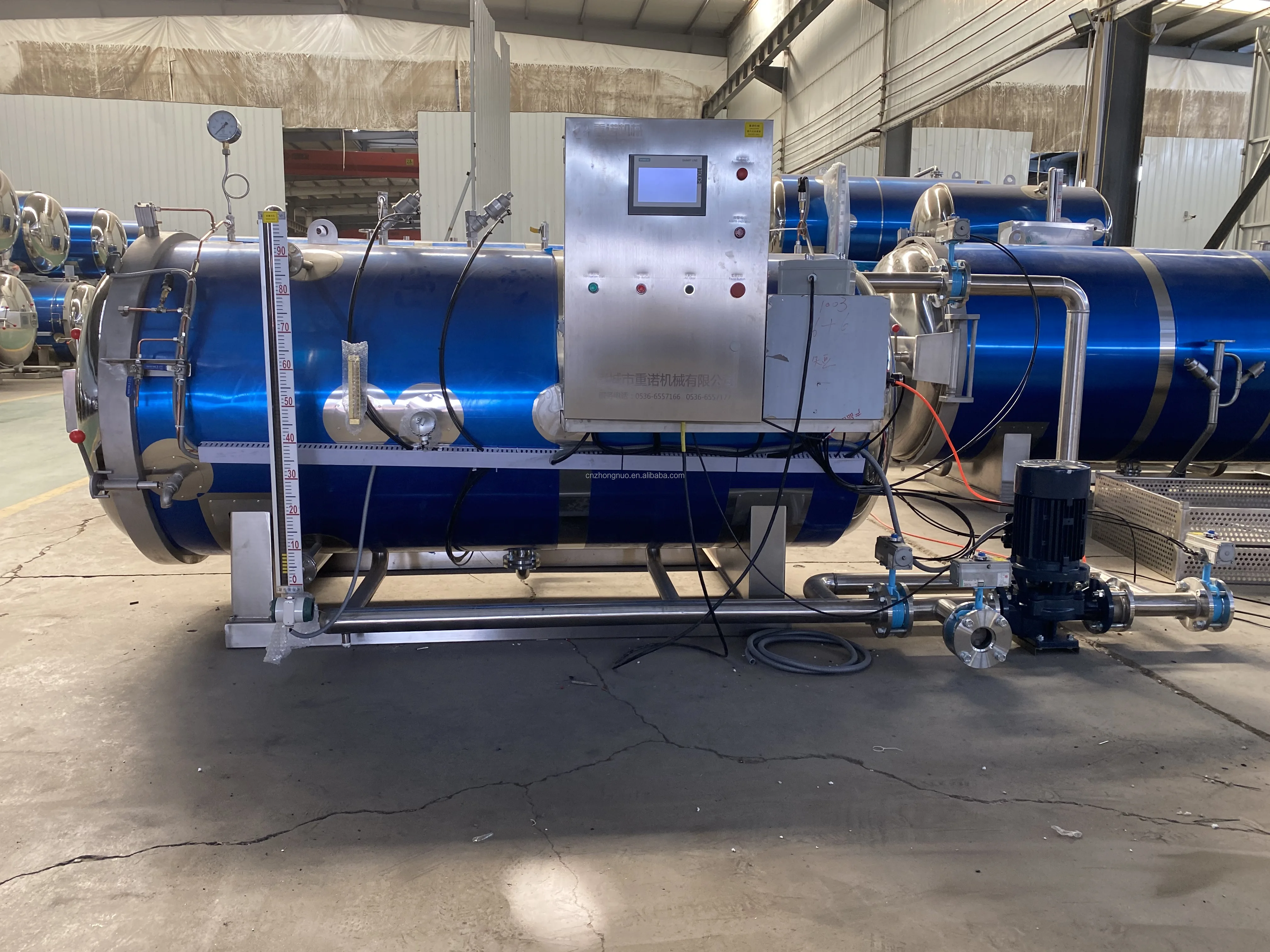

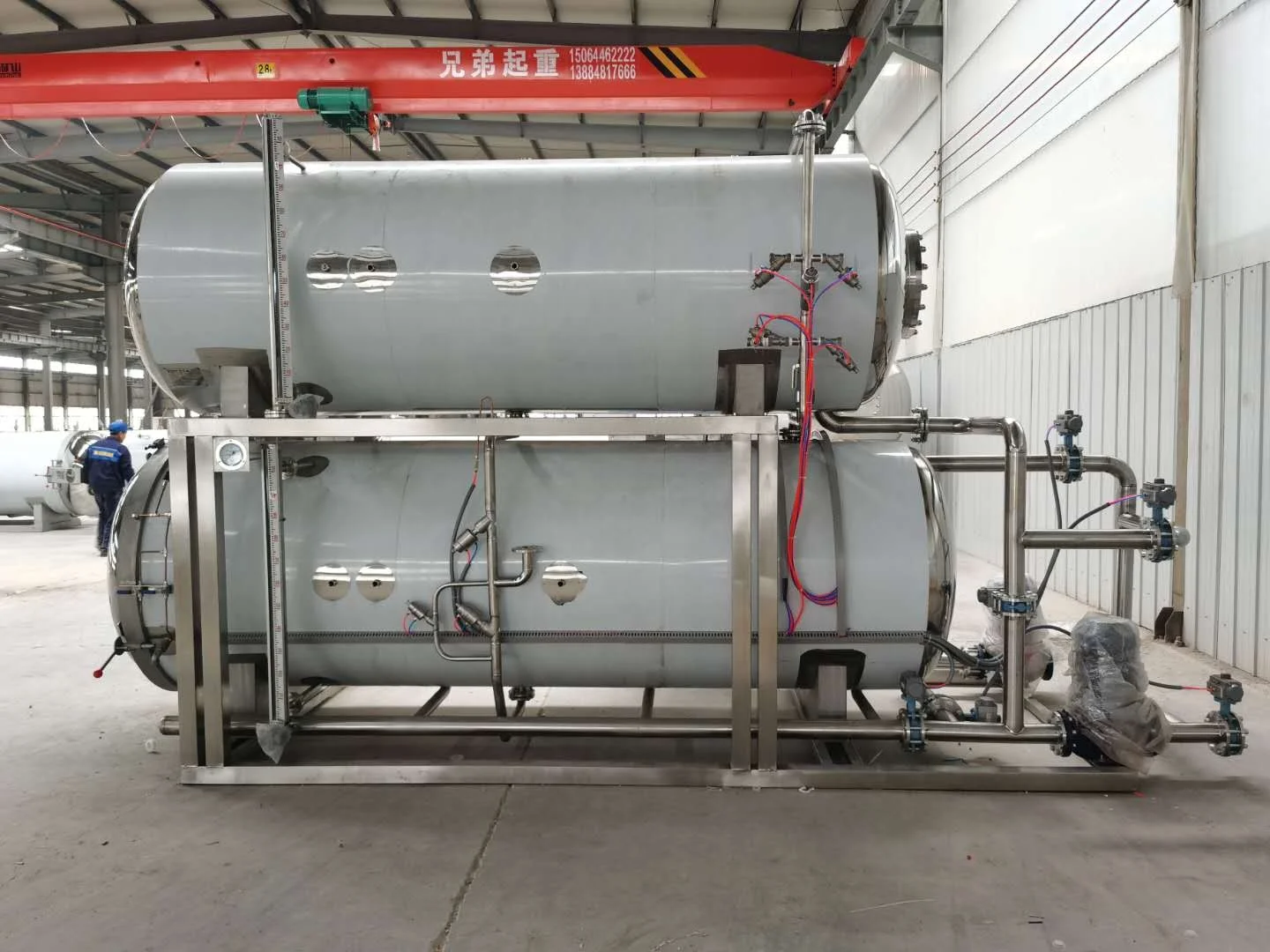

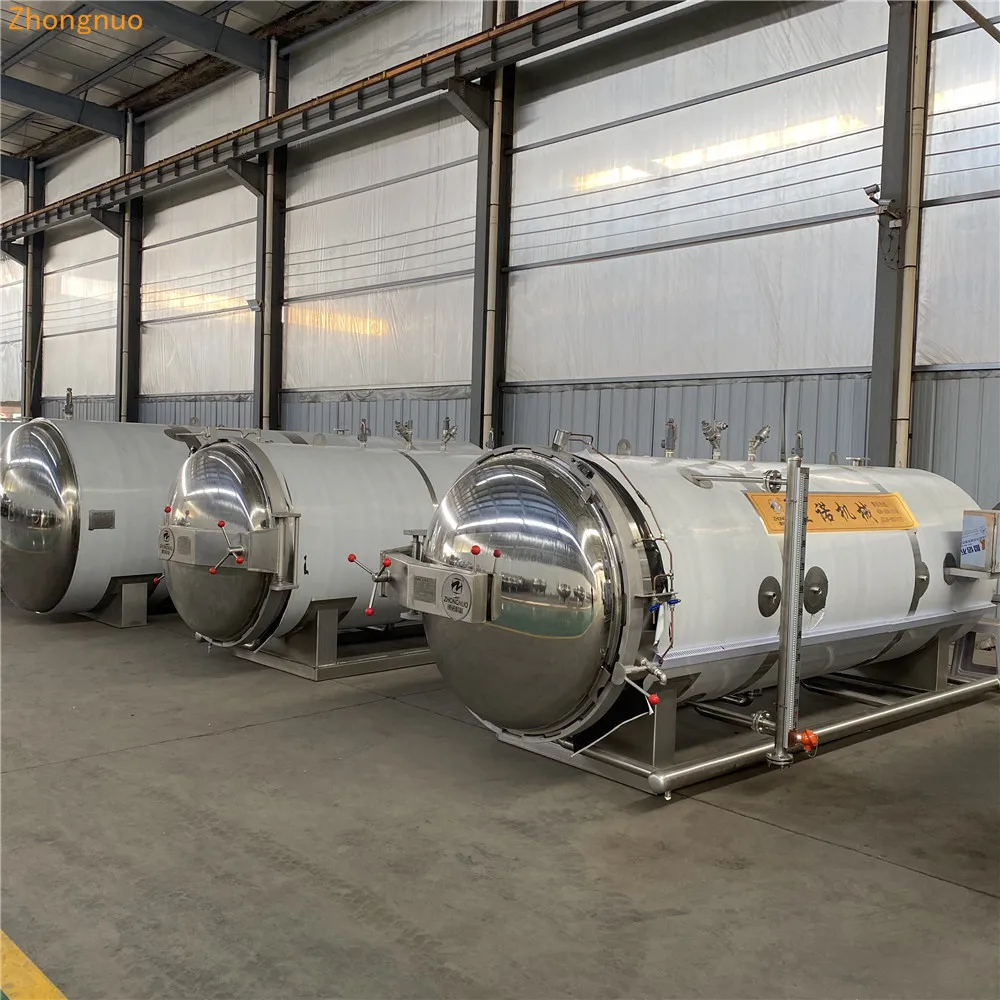

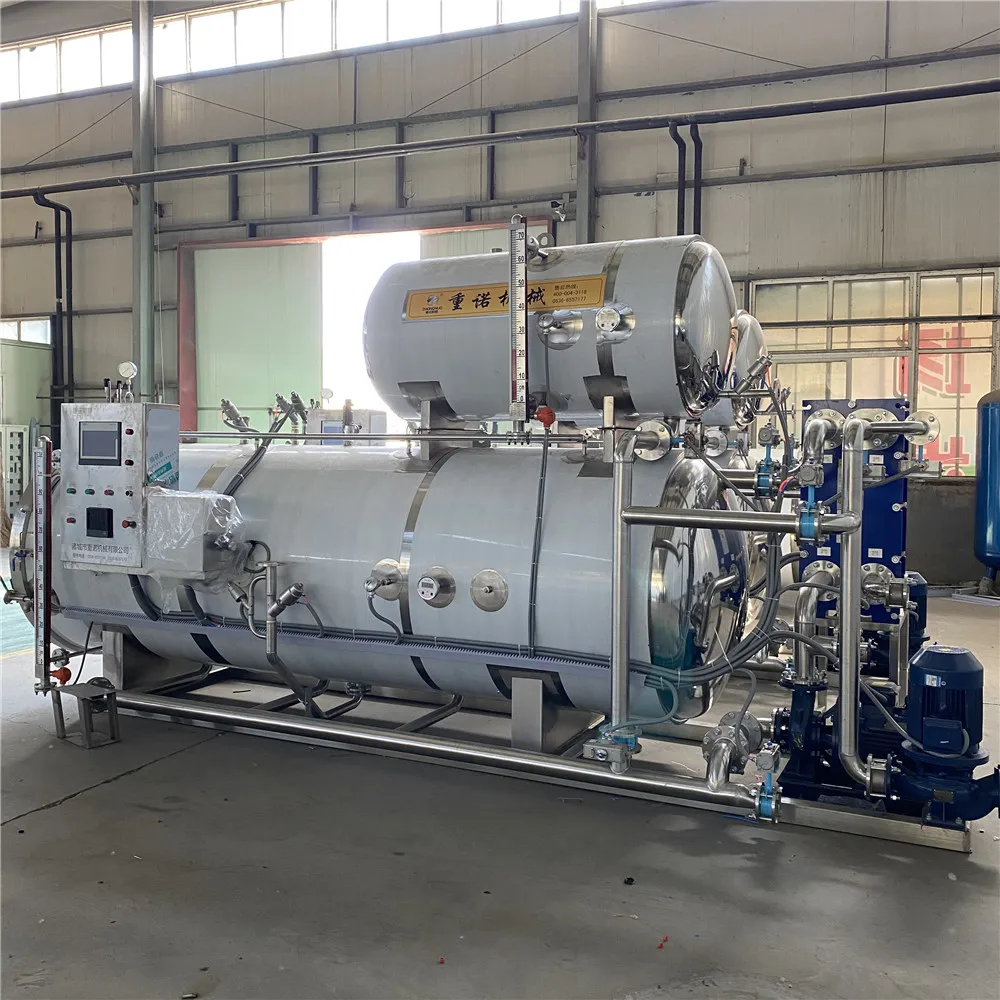

Good Quality Tuna Fish Factory Machine Cooking Autoclave Tuna Cooker
$15,800.00-16,900.00
Steam Automatic Autoclave Sterilization Retort Machine for Canned Food Tuna&Sardines
- Category: >>>
- Supplier: Zhucheng City Zhongnuo Machinery Co. ltd.
Share on (1601038340731):
Product Overview
Description
Product Description
Scope of application:
Pouch food sterilizer retort canned food autoclave is mainly suitable for canned food (such as canned meat, fish, eggs, vegetables and so on) and protein drinks that need high temperature sterilization (such as tinplate cans, aluminum cans, glass bottles cans, drinks and so on). At the same time suitable for aluminum foil bag, high temperature cooking bag and other soft packaging products (such as: ham sausage, steamed boiled bag chicken, grilled chicken, pure milk and so on).
Structure classification of sterilization Pot: Single layer sterilizer, double layer sterilizer, double pot parallel, three-pot series, spraying sterilizer and so on.
According to the heating mode: electric heating, boiler steam heating (boiler needs customer-owned), electric and steam heating double use.
Pouch food sterilizer retort canned food autoclave is mainly suitable for canned food (such as canned meat, fish, eggs, vegetables and so on) and protein drinks that need high temperature sterilization (such as tinplate cans, aluminum cans, glass bottles cans, drinks and so on). At the same time suitable for aluminum foil bag, high temperature cooking bag and other soft packaging products (such as: ham sausage, steamed boiled bag chicken, grilled chicken, pure milk and so on).
Structure classification of sterilization Pot: Single layer sterilizer, double layer sterilizer, double pot parallel, three-pot series, spraying sterilizer and so on.
According to the heating mode: electric heating, boiler steam heating (boiler needs customer-owned), electric and steam heating double use.
retort Inter Diameter/Length/ Volume | 1000mm /2200mm/1.73m³ |
retort effective area(L/W/H) | 2200mm /650mm /650mm |
Set Pressure | 0.35Mpa |
Max Working Pressure | 0.3Mpa |
Test Pressure | 0.44Mpa |
Max Working Temp. | 143℃ |
Total Power | Water pump power 4KW |
Product | Fruit and Vegetables in Tin cans |
Product Size | Dia*H:75*110mm,400g |
Electric Voltage | 440V/ 50HZ |
Material | SUS30408 |
retort thickness | 4mm |
Floor space L/W/H) | 3900mm×2000mm×1800mm (Approx ) |
Characteristics:
1.high temperature short time sterilization,A small amount of process water cycles rapidly to reach the perset sterilization temperature,because of dispensing with exhausting before heating up,so up to 30% less needs in energy compared with traditional steam retort;
1.high temperature short time sterilization,A small amount of process water cycles rapidly to reach the perset sterilization temperature,because of dispensing with exhausting before heating up,so up to 30% less needs in energy compared with traditional steam retort;
2.sterilization temperature and pressure control independently to meet the product is wide, save investment;
3.indirect cooling, cooling water doesn’t contact with process water to avoid the secondary pollution of food,no need of
3.indirect cooling, cooling water doesn’t contact with process water to avoid the secondary pollution of food,no need of
treatment for cooling water;
4.PLC fullautomatic control is used for entire sterilization process which controls the heat distribution temperature within ±0.5℃;It can set multistage heating to save energy;It has F value measuring function and can store 100 sterilization formula;
5. Process water preheating system guarantees the hot filling product get continuous heating process;
6. Steam for sterilization function is optional;automatic up-sliding door and side-sliding door for option;
7.The whole sterilization process autocompletes in strict accordance with preset technical formula which has multilevel password to eliminate the possibilities of misoperation;
8. After power recovery, procedure will automatically recover to the preceding state before power failure;

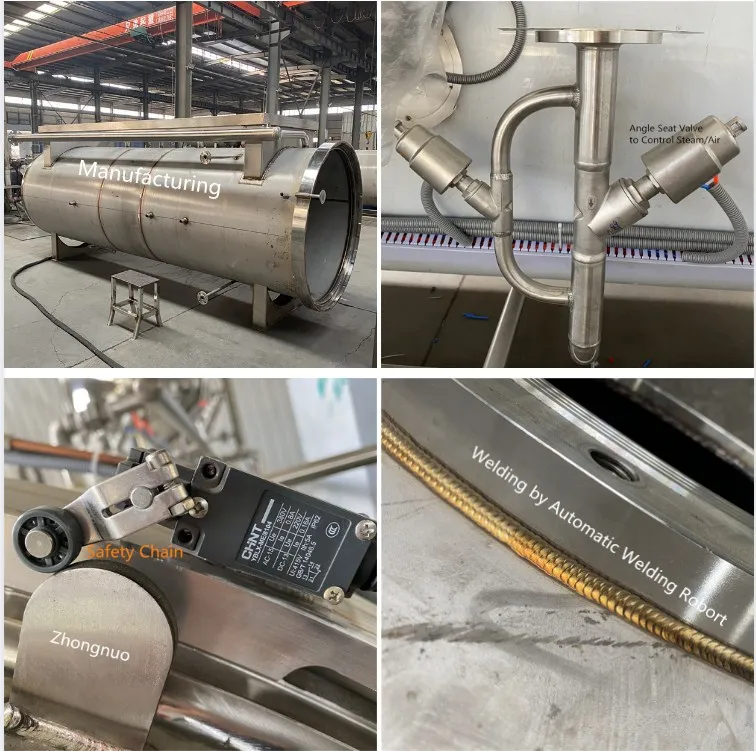

9.Retort door is equipment with triple interlocking device to prevent the misoperations and accidents efficiently;
10.Double safety valves and pressure sensors are adopted to eliminate potential safety hazard.
4.PLC fullautomatic control is used for entire sterilization process which controls the heat distribution temperature within ±0.5℃;It can set multistage heating to save energy;It has F value measuring function and can store 100 sterilization formula;
5. Process water preheating system guarantees the hot filling product get continuous heating process;
6. Steam for sterilization function is optional;automatic up-sliding door and side-sliding door for option;
7.The whole sterilization process autocompletes in strict accordance with preset technical formula which has multilevel password to eliminate the possibilities of misoperation;
8. After power recovery, procedure will automatically recover to the preceding state before power failure;
9.Retort door is equipment with triple interlocking device to prevent the misoperations and accidents efficiently;
10.Double safety valves and pressure sensors are adopted to eliminate potential safety hazard.
Prepare by Customers in Advanve | ||
Total Power | Circulate Pump Power: ≥7.5Kw /380V/ 50HZ | |
Water Quality | Water hardness≦0.003mmoll/L | |
Air compressor | 1.0m3/min，Max Pressure 1.0Mpa | |
Cooling water tank | ≧10m3 | |
Cooling tower（optional） | 70T/H（down 4℃） | |
Cooling tower circulate（optional） | 70m3/h (according to customer factory height) | |
Soft water device（optional） | 2000L/H | |

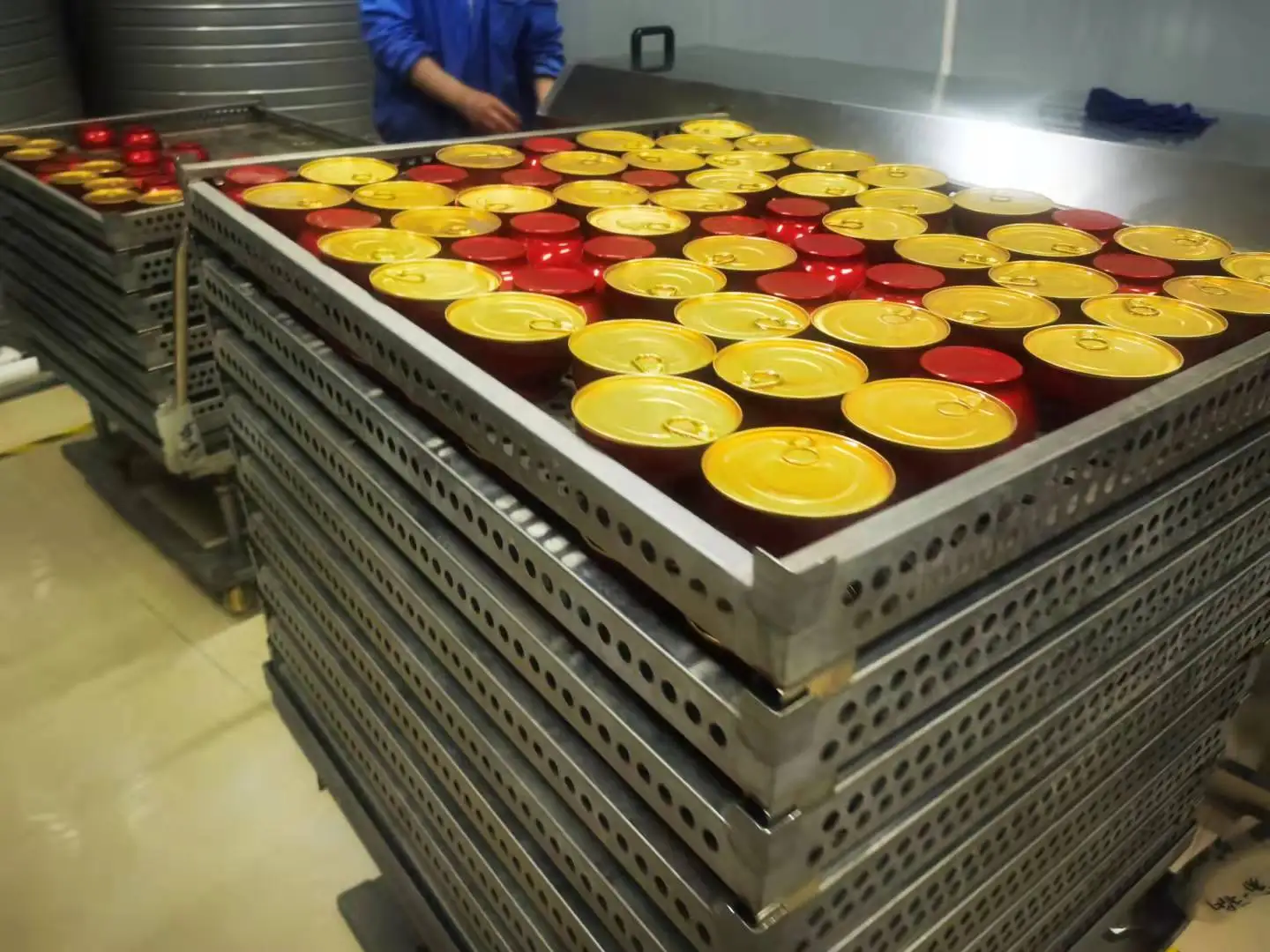

Scope of application
Certifications

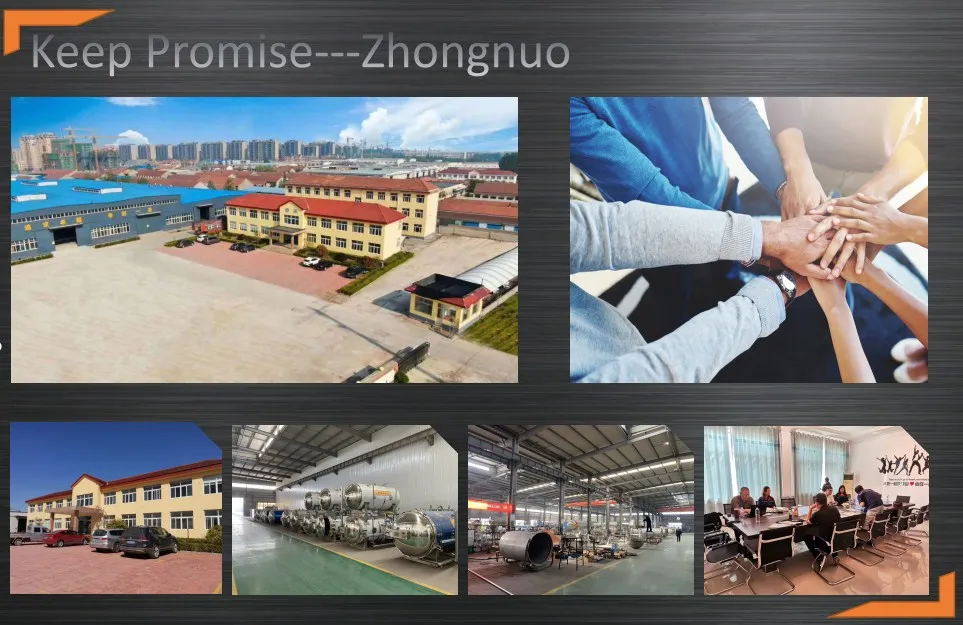

Company Profile
Zhongnuo, the implication of "keep its promise", which is our creed when establish the company.We have been completely implemented, from good to the best.
Zhucheng Zhongnuo Machinery Co.,Ltd, established in 2010, is a professional manufacturer of food processing machine and D1/D2 pressure vessel equipment(manufacturing license No. : ts2237466-2016). The company has complete qualification, advanced equipment, strong technical team and first-class testing equipment. We are engaged in food machinery and pressure vessels for a long time. Zhongnuo company will keep the high quality of products all the time, and constantly bring forth the new in order to provide better balue for thenew and old customers.
Delivery
FAQ
