Low Cost High Density Polyethylene HDPE Pipe HDPE Water Pipe
Low Cost High Density Polyethylene HDPE Pipe HDPE Water Pipe
Low Cost High Density Polyethylene HDPE Pipe HDPE Water Pipe
Low Cost High Density Polyethylene HDPE Pipe HDPE Water Pipe
Low Cost High Density Polyethylene HDPE Pipe HDPE Water Pipe
Low Cost High Density Polyethylene HDPE Pipe HDPE Water Pipe
Low Cost High Density Polyethylene HDPE Pipe HDPE Water Pipe

Low Cost High Density Polyethylene HDPE Pipe HDPE Water Pipe

Share on (1601038346655):


Price:

Quantity:


Product Overview

Description



Products Description




HDPE Pipe
PE pipe inner wall is smooth with features of low friction resistance and energy saving and does not change with the use of time.Its pressure loss is about 30% smaller than steel pipe, therefore,smaller pe pipe is a better way than steel pipe.PE pipe has good hygienic performance with no additives, so it is impossible to pollute the drinking water.Polyethylene material level is 0 (the lowest level) in ISO standard and it is moldy material. Compared with other commonly used plastic materials,mildew resistance of polyethylene is much higher resulting a long term use without scaling.


Features:
1. High toughness and good seismic performance;
2. The connection is reliable;
3. Low density, light weight, easy to handle and install
4. Can resist a variety of chemical media corrosion;
5. Excellent hydraulic performance, the wear resistance coefficient is only 0.009;
6. Long service life, up to 50 years;
7. Good hygiene and environmental performance;
8. Better resistance to slow crack growth (SCG) and rapid crack propagation (RCP).


Applications:
1. Urban potable water pipeline network system.
2. Replaceable cement pipe, iron pipe and steel pipes.
3. Fire fighting pipeline.
4. Landscaping water supply network.
5. Sewage discharge pipes.
6. Ore and mud transfers.
7. Agricultural irrigation pipe.


Specification:


PE100
0.4MPa
0.5MPa
0.6MPa
0.8MPa
1.0MPa
1.25MPa
1.6MPa
2.0MPa
2.5MPa
Outside Diameter
PN4
PN5
PN6
PN8
PN10
PN12.5
PN16
PN20
PN25
SDR41
SDR33
SDR26
SDR21
SDR17
SDR13.6
SDR11
SDR9
SDR7.4
Wall Thickness (en)
20
-
-
-
-
-
-
2.0
2.3
3.0
25
-
-
-
-
-
2.0
2.3
3.0
3.5
32
-
-
-
-
2.0
2.4
3.0
3.6
4.4
40
-
-
-
2.0
2.4
3.0
3.7
4.5
5.5
50
-
-
2.0
2.4
3.0
3.7
4.6
5.6
6.9
63
-
-
2.5
3.0
3.8
4.7
5.8
7.1
8.6
75
-
-
2.9
3.6
4.5
5.6
6.8
8.4
10.3
90
-
-
3.5
4.3
5.4
6.7
8.2
10.1
12.3
110
-
-
4.2
5.3
6.6
8.1
10.0
12.3
15.1
125
-
-
4.8
6.0
7.4
9.2
11.4
14.0
17.1
140
-
-
5.4
6.7
8.3
10.3
12.7
15.7
19.2
160
-
-
6.2
7.7
9.5
11.8
14.6
17.9
21.9
180
-
-
6.9
8.6
10.7
13.3
16.4
20.1
24.6
200
-
-
7.7
9.6
11.9
14.7
18.2
22.4
27.4
225
-
-
8.6
10.8
13.4
16.6
20.5
25.2
30.8
250
-
-
9.6
11.9
14.8
18.4
22.7
27.9
34.2
280
-
-
10.7
13.4
16.6
20.6
25.4
31.3
38.3
315
7.7
9.7
12.1
15.0
18.7
23.2
28.6
35.2
43.1
355
8.7
10.9
13.6
16.9
21.1
26.1
32.2
39.7
48.5
400
9.8
12.3
15.3
19.1
23.7
29.4
36.3
44.7
54.7
450
11.0
13.8
17.2
21.5
26.7
33.1
40.9
50.3
61.5
500
12.3
15.3
19.1
23.9
29.7
36.8
45.4
55.8
-
560
13.7
17.2
21.4
26.7
33.2
41.2
50.8
62.5
-
630
15.4
19.3
24.1
30.0
37.4
46.3
57.2
70.3
-
710
17.4
21.8
27.2
33.9
42.1
52.2
64.5
79.3
-
800
19.6
24.5
30.6
38.1
47.4
58.8
72.6
89.3
-
900
22.0
27.6
34.4
42.9
53.3
66.2
81.7
-
-
1000
24.5
30.6
38.2
47.7
59.3
72.5
90.2
-
-
1200
29.4
36.7
45.9
57.2
67.9
88.2
-
-
-
1400
34.3
42.9
53.5
66.7
82.4
102.9
-
-
-
1600
39.2
49.0
61.2
76.2
94.1
117.6
-
-
-


Physical properties index:


No.
Item
Requirements
1
Percentage of breaking-elongation,%
≥350
2
Longitudinal reversion(110℃),%
≤3
3
Oxidation induction time (200℃)min
≥20
4
Weather resistance 1. (After the pipe has accepted the aging energy which equal to or more than 3.5GJ/m2)
80℃ static hydraulic strength (165h)
No break, no leakage.
Percentage of breaking-elongation,%
≥350
Oxidation induction time (200℃)min
≥10
1. Only suitable for pipe in blue color.
Application field: Drinking water supply pipe for urban and rural area, liquid transmission pipe in chemical, chemical fiber,
food, forestry and metallurgy industry, waste water drainage pipe, mining slurry transmission pipe for mining field.


Technical data sheet:


No
Items
HDPE Pipe
1
Molecular
≥300 000
2
Density
0.960 g/cm3
3
Tensile breaking strength
≥28 Mpa
4
Longitudinal contraction rate of return
≤3%
5
Breaking elongation
≥500%
6
Resistant to corrosion
good
7
Tensile strength
≥28Mpa
8
Static hydraulic strength
1)20℃,cycle stress 12.4Mpa,100h,no break,no leakage
2)80℃,cycle stress5.5Mpa,165h,no break,no leakage
3)80℃,cycle stress5.0Mpa,1000h,no break,no leakage
9
MFR(190℃,5kg,)g/10min
≤25%
10
Oxidation induction time (200℃)min
≥20








Company Profile

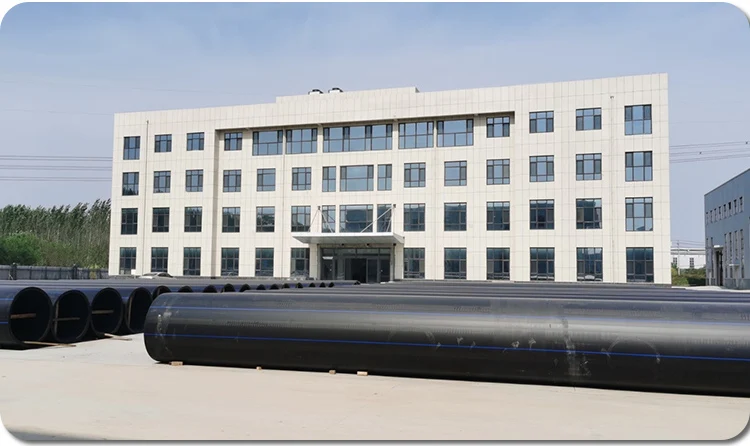

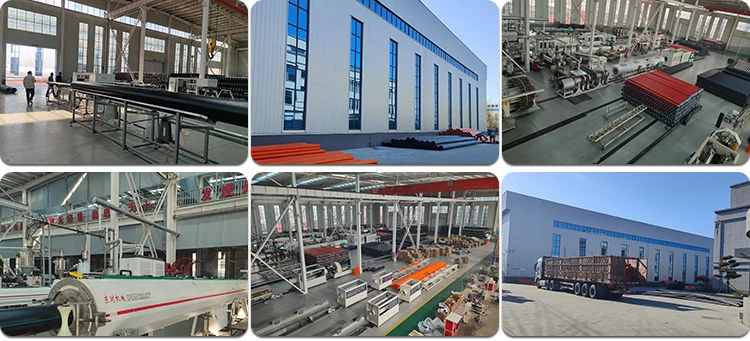

Hebei Zhuoshi Pipeline Technology Co., Ltd. is a national high-tech enterprise. The factory is located in Xian County, Cangzhou City, Hebei Province, with a construction area of 25,000 square meters and an annual output of 150,000 tons. The company has more than 60 intermediate and senior engineering and technical personnel, strong financial and technical strength, complete testing equipment, and strong development, design and production capabilities. During the production process, the company strictly implements national and industry standards and implements comprehensive quality management.

Mainly engaged in HDPE pipes, PVC pipes, PPR pipes, CPVC pipes, UPVC pipes, PVC-m pipes, HDPE double-wall corrugated pipes, steel-strip reinforced HDPE corrugated pipes, fiberglass pipes and corresponding pipe fittings production, supply and export.

After more than 20 years of hard work, we have established ourselves as a reliable and worthy supplier of plastic pipes and fittings. We ensure that the quality of our products meets our customers' requirements.








Q: What is your MOQ?
A: As customer's request.

Q: Why choose us?
A: We are a professional and leader of HDPE pipe factory, we offer pipeline system one stop services with competitive price and fast delivery time, and we insure our quality is the second to none.

Q: How to buy the product?
A: Contact with us by email or by Trade Manager, and inform us which product and quantity that you need, we will contact you immediately. More specify the information that you provided more faster and easier you will get the quotation.

Q: Can I make my own design and logo on the product?
A: Yes, we do OEM. Welcome partner from globally, we can make your product in China.

Q: What's the payment term?
A: Order amount <=1,000USD, 100% in advance.
Order amount>=1,000USD, 30% T/T in advance, balance before shipment.
Order amount>20,000USD, 30% T/T in advance, balance L/C at sight acceptable.
Order amount>100,000USD, 100% L/C at sight acceptable.

Q: Still have more questions?
A: Please use the table below and send your questions to us. Thank you.
