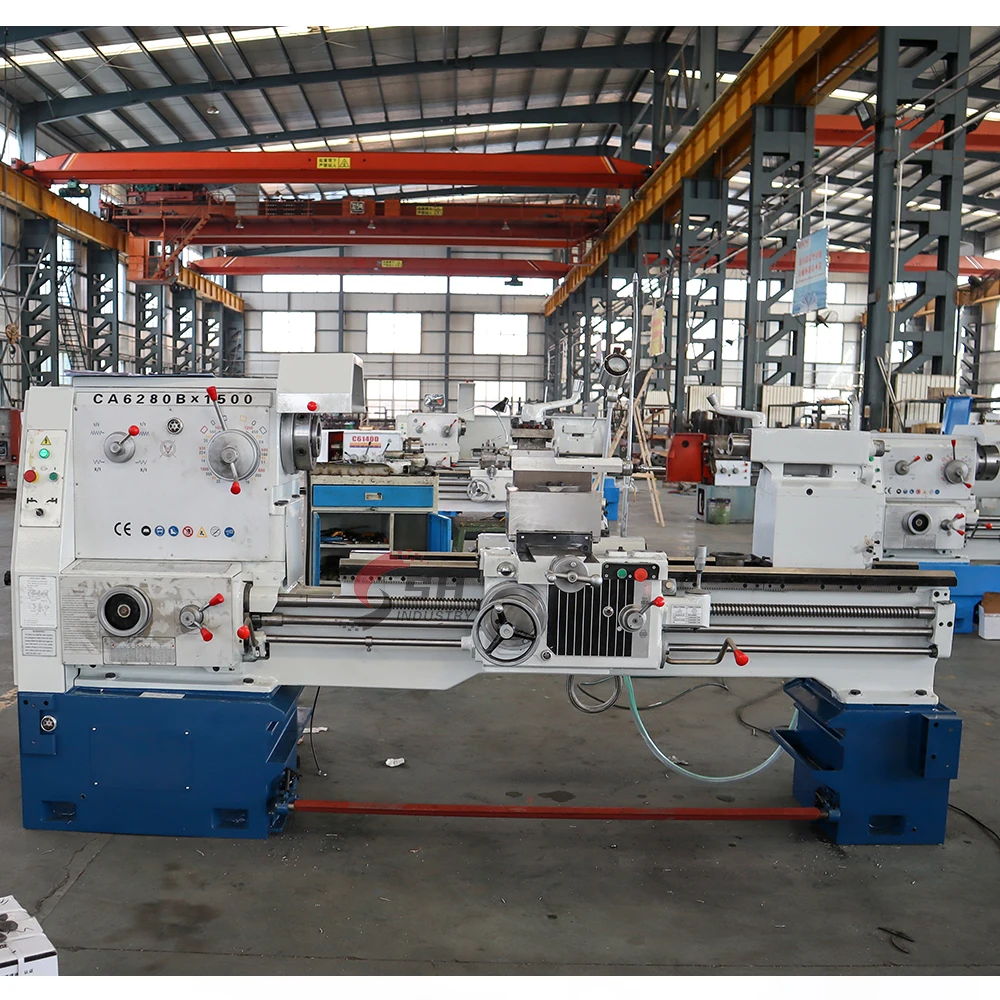

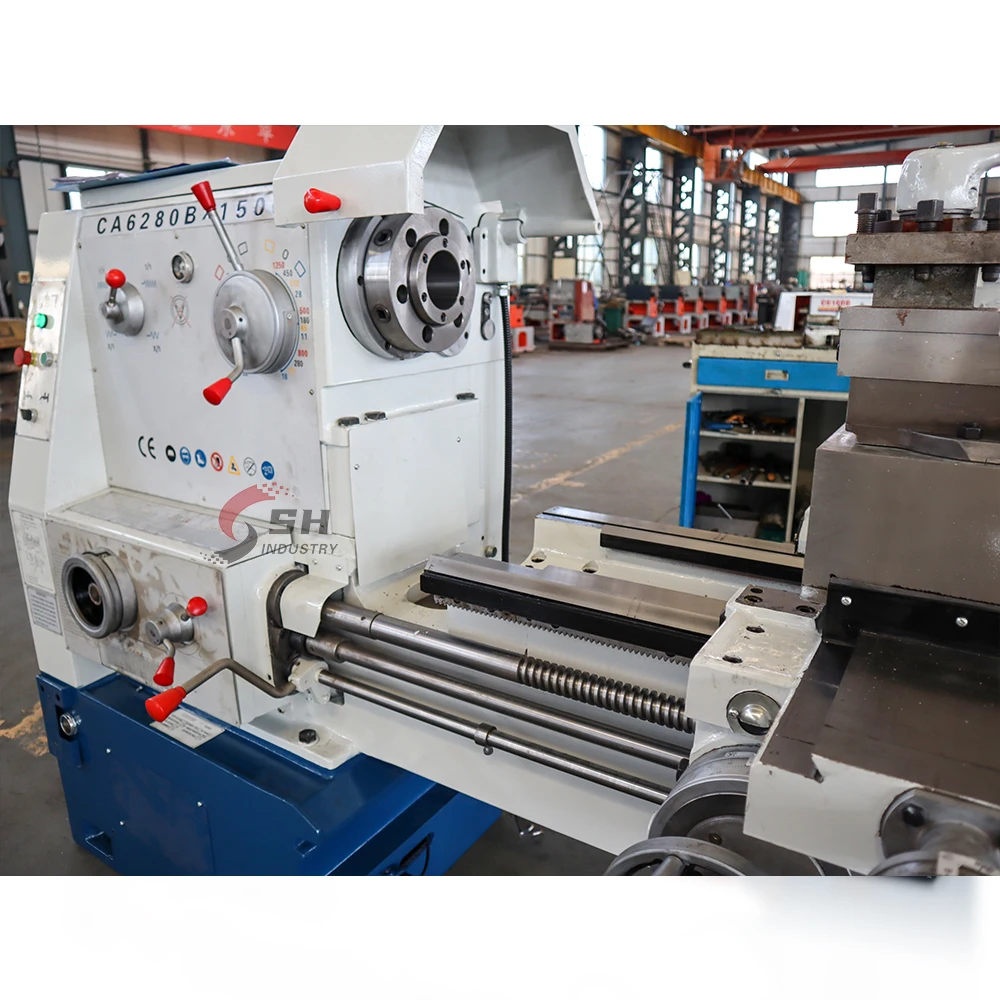

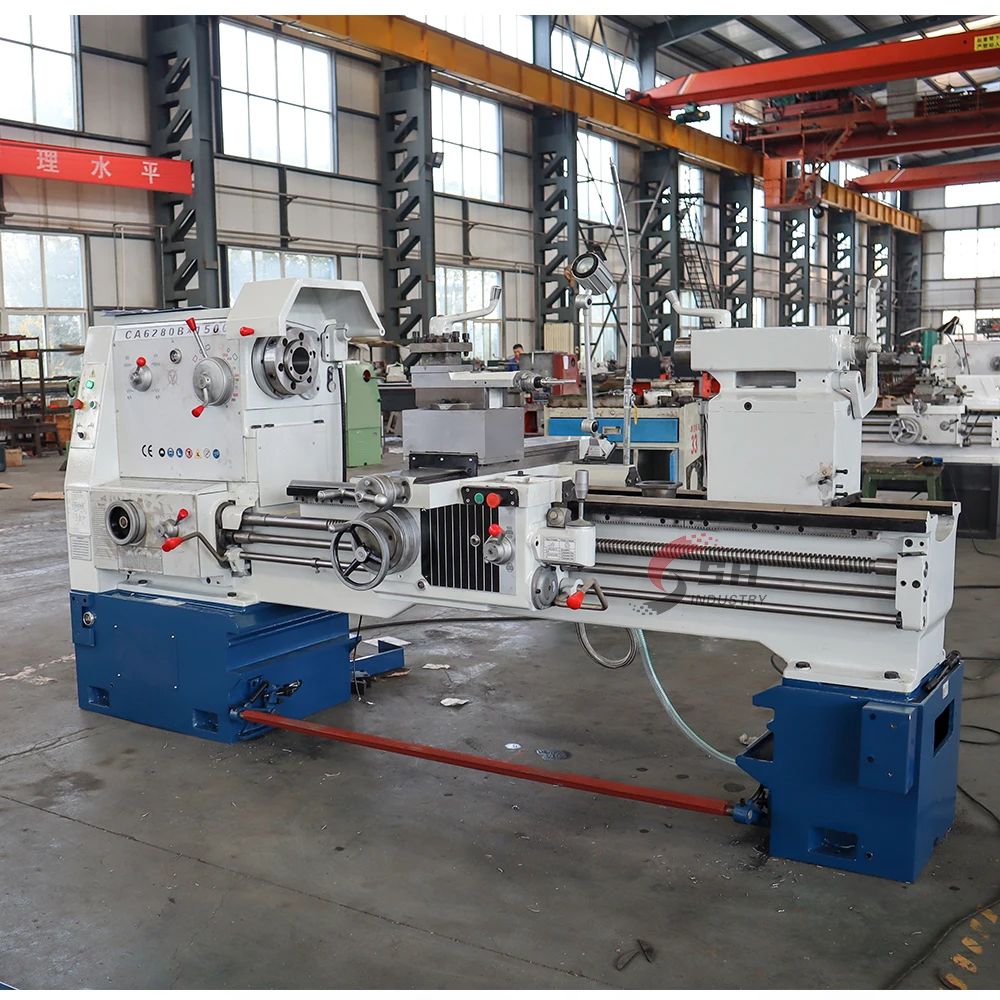

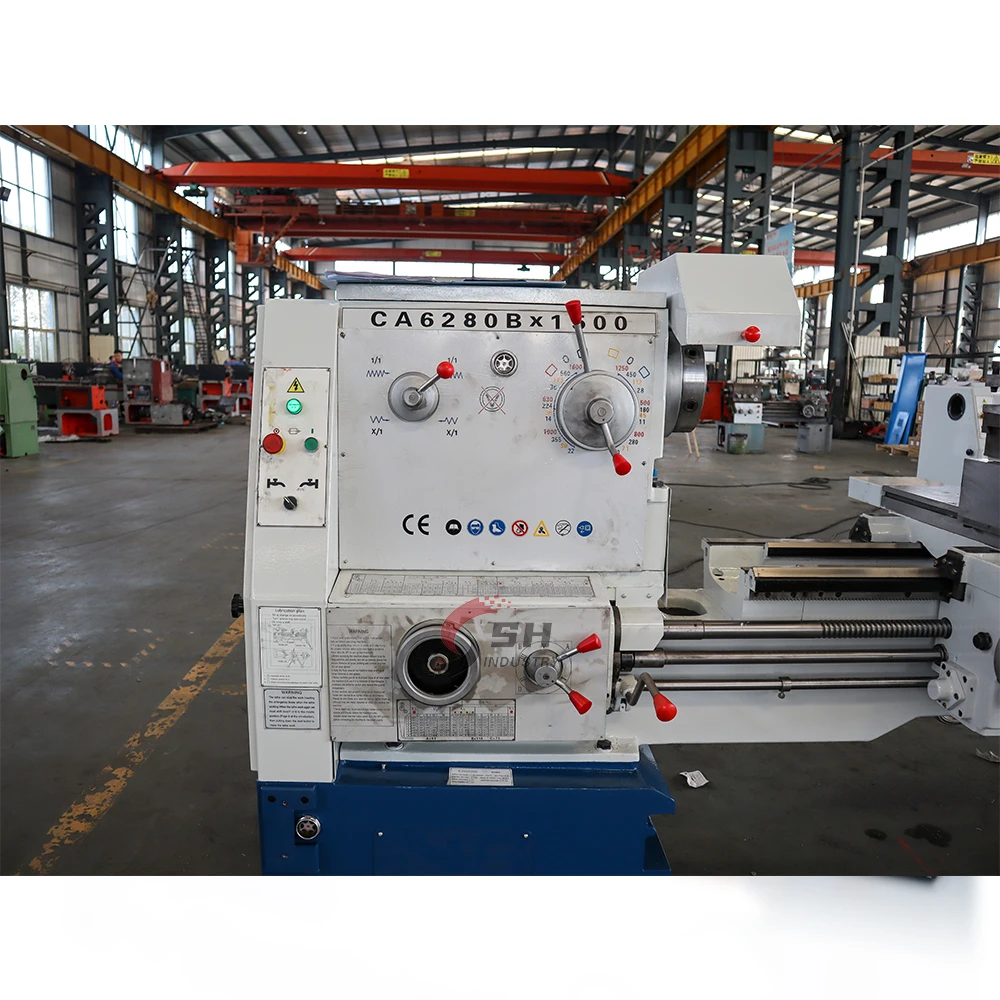

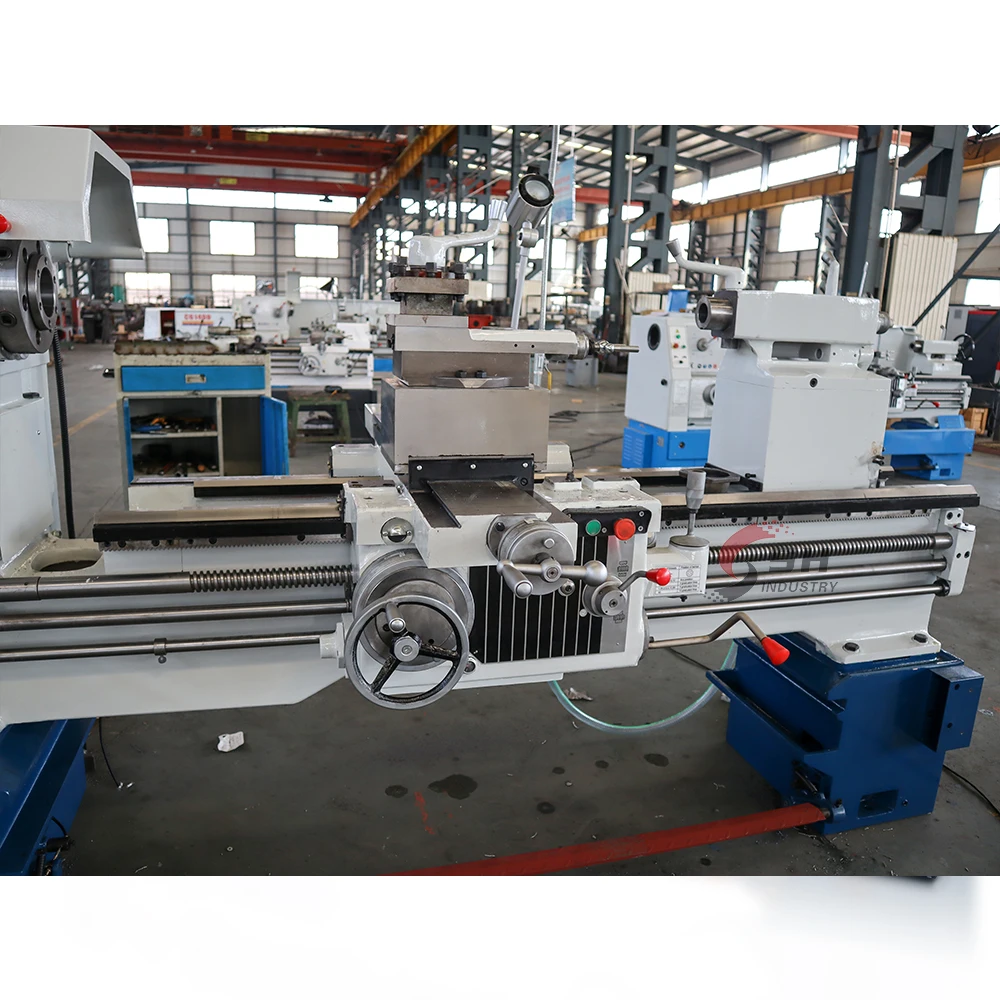

easy operate Body processing conventional lathe machine CA6140 horizontal manual lathe
- Category: >>>
- Supplier: Zaozhuang Shenghuan Cnc Machine Tool Co. Ltd.
Share on (1601038385694):
Product Overview
Description
Specification
Features ：
360mm Rail width
Thread processing need to change gears
Tool size is 20x20mm
Gears is steel of precision grinding and hardened
MAIN SPECIFICATIONS:
360mm Rail width
Thread processing need to change gears
Tool size is 20x20mm
Gears is steel of precision grinding and hardened
MAIN SPECIFICATIONS:
Standard Accessories | Optional Accessories |
Hook wrench Inner hexagon spanner Single-ended wrench Socket wrench 3-jaw chuck Dead center Center sleeve Triangular belt Adjustment pad iron Foundation bolts | Steady Rest,Follow rest DRO Chuck cover ,Tool post cover ,Lead screw cover Foot brake Fast moving Live center 4 jaw chuck Drill chuck and holder Face plate Quick change tool post Taper turning attachment |
Specifications | CA6140 CA6140B | CA6240 CA6240B | |||
Max.swing over bed | 400mm | ||||
Max. Swing over carriage | 210mm | ||||
Max. swing in gap | -- | 630mm | |||
Effective gap length | -- | 210mm | |||
Max. length of work piece | 750mm/1000mm/1500mm/2000mm/2200mm/3000mm/4000mm | ||||
Width of bed | 400mm | ||||
Section of turning tool | 25x25mm | ||||
Spindle | Spindle speeds | 10-1400rpm/16-1400rpm(24steps) | |||
Hole through spindle | 52mm. (80mm) | ||||
Spindle taper | NO.6(Φ90 1：20) | ||||
Feed | Number of feeds | 64 kinds(for each) | |||
Range of metric threads(kinds) | (1-192mm)44kinds | ||||
Range of inch threads(kinds) | (2-24tpi)21kinds | ||||
Range of module threads(kinds) | 0.25-48Module (39kinds) | ||||
Range of pitch threads(kinds) | 1-96DP(37kinds) | ||||
Tailstock | Max. tail stock spindle travel | 150mm | |||
Tail stock spindle diameter | 75mm | ||||
Taper of tail stock spindle center hole | NO.5 | ||||
Main motor | 7.5KW(10HP) | ||||
Packing dimensions (L*W*Hmm) | Overall dimensions for750mm | 2550x1140x1750 | |||
Overall dimensions for1000mm | 2700x1140x1750 | ||||
Overall dimensions for1500mm | 3200x1140x1750 | ||||
Overall dimensions for2000mm | 3700x1140x1750 | ||||
Overall dimensions for2200mm | 4030x1140x1750 | ||||
Overall dimensions for3000mm | 4850x1140x1750 | ||||
Overall dimensions for4000mm | 5800x1140x1750 | ||||
Weight (kg) | Length | G.W N.W. | |||
Weight for 750mm | 2100 1990 | ||||
Weight for 1000mm | 2190 2070 | ||||
Weight for 1500mm | 2350 2220 | ||||
Weight for 2000mm | 2720 2570 | ||||
Weight for 2200mm | 2800 2600 | ||||
Weight for 3000mm | 3300 3200 | ||||
Weight for 4000mm | 3500 3400 | ||||
