Gas Fired Boogie Hearth Furnaces Bogie Hearth Furnace with best price and good quality Gas Fired Boogie Hearth
- Category: >>>
- Supplier: Sta Refractory (zhengzhou) Co. Ltd.
Share on (1601038406451):
Product Overview
Description
Products Description

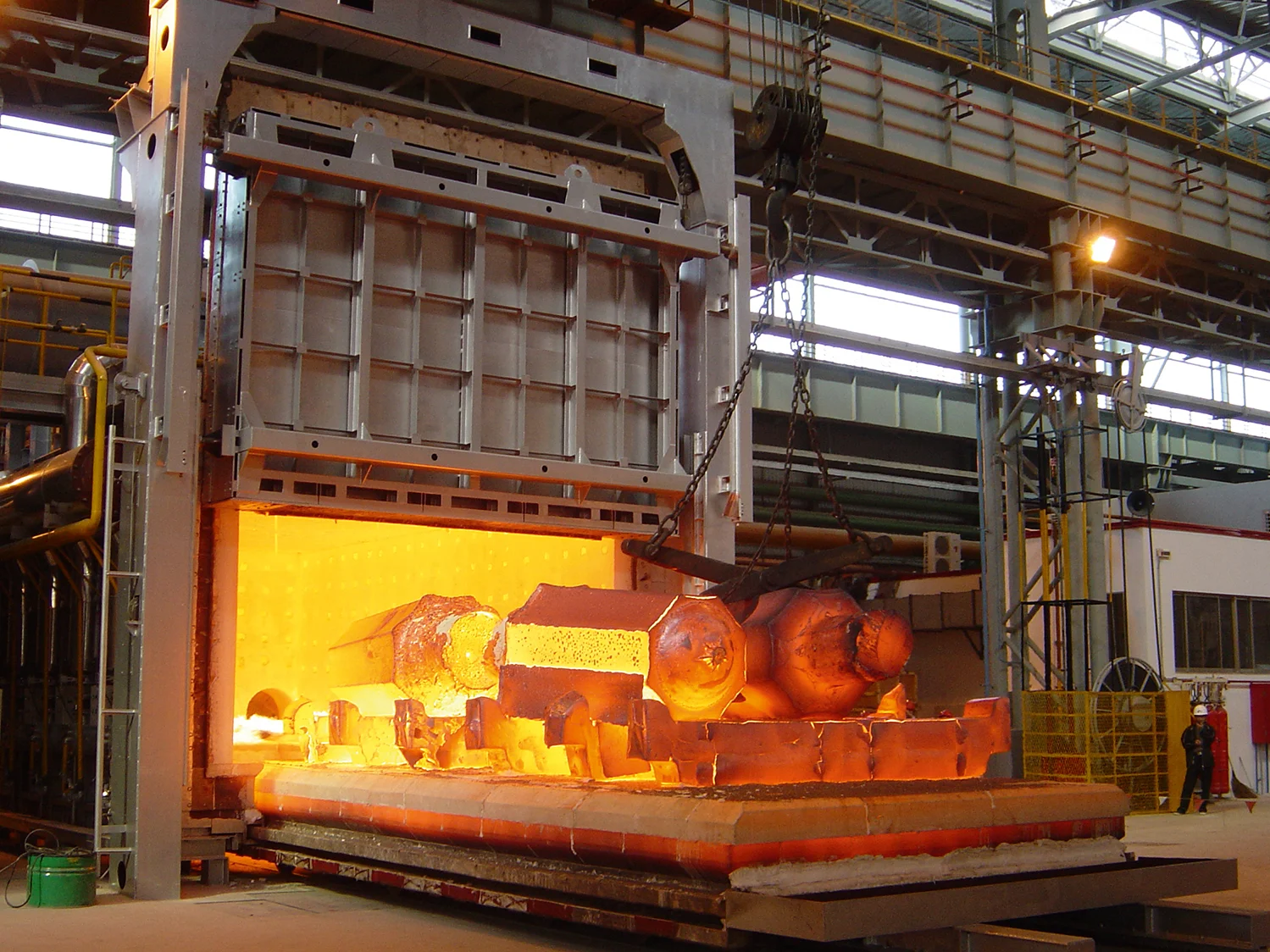

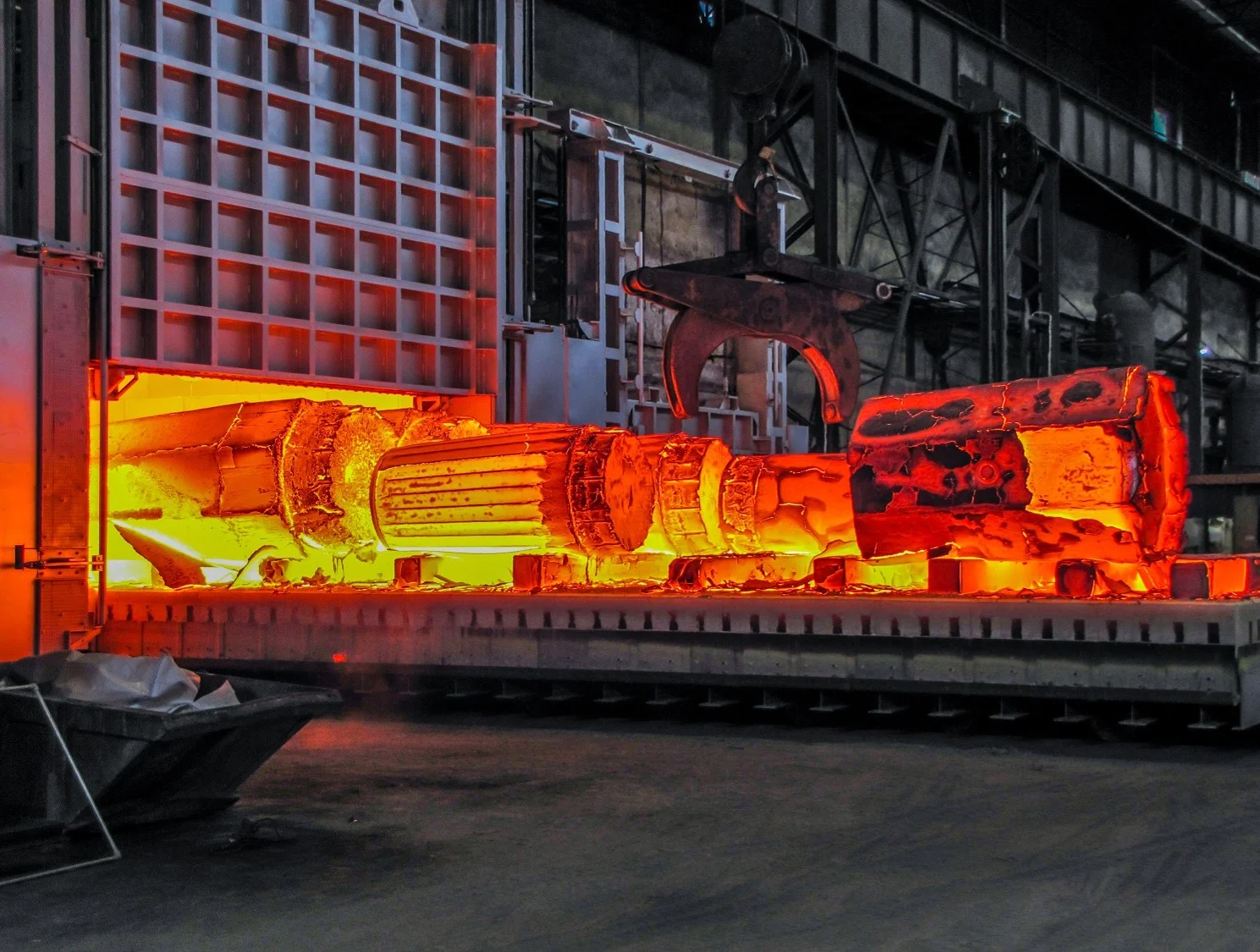

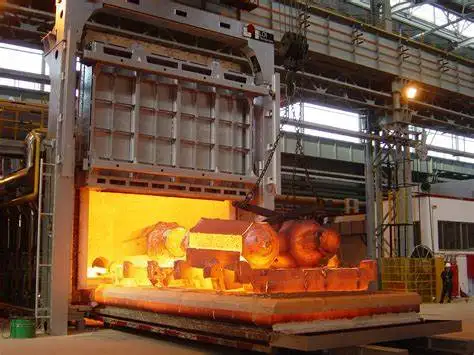

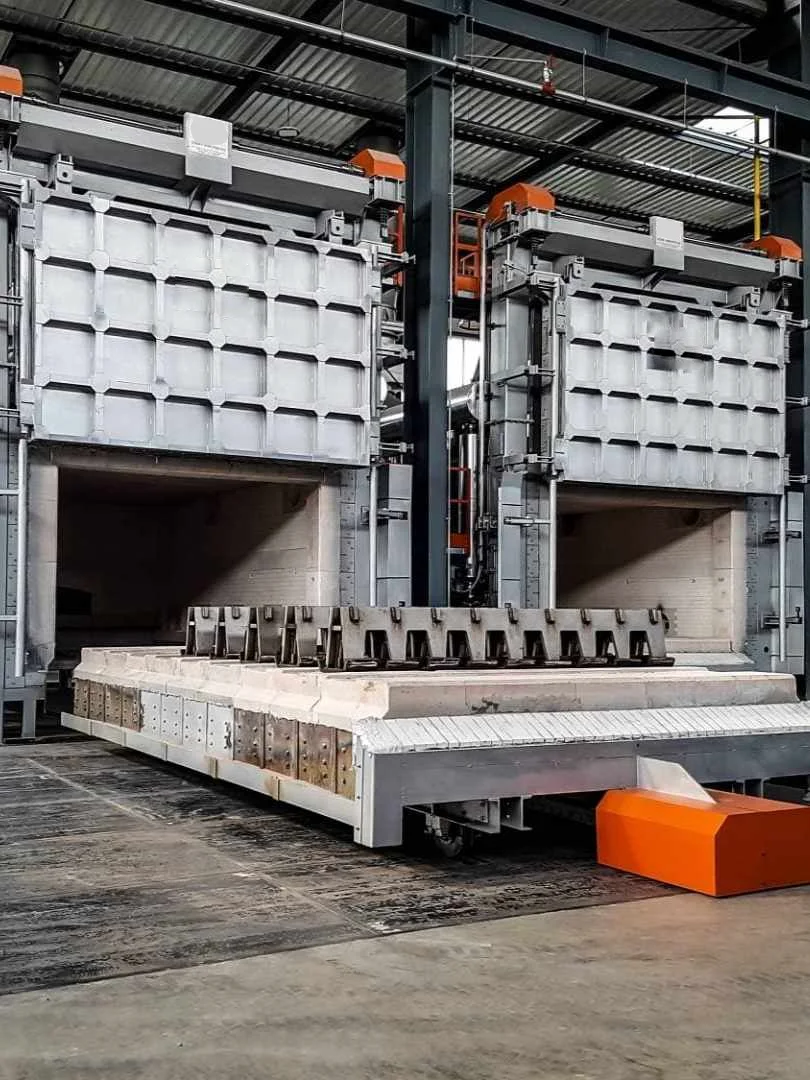

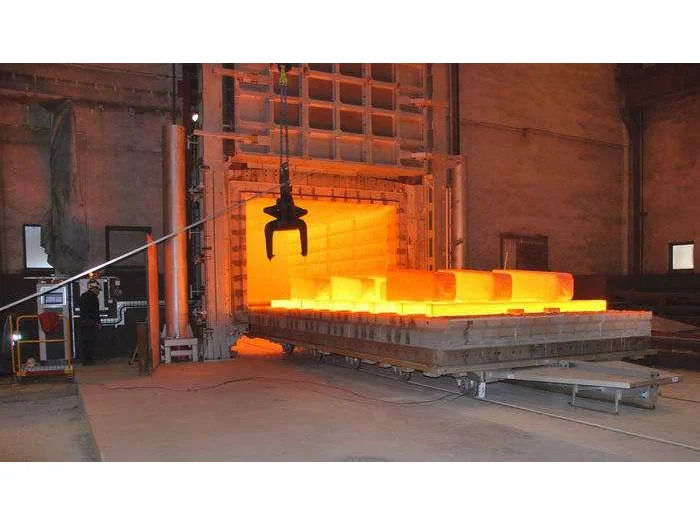

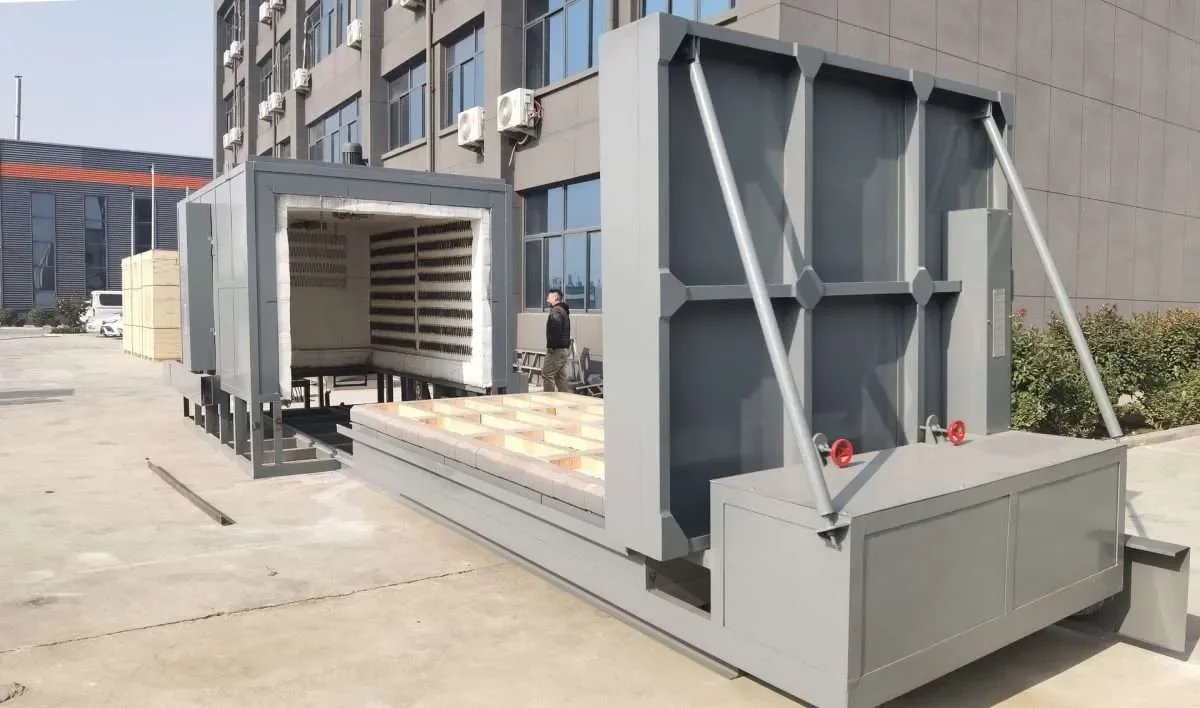

Bogie Hearth Furnace
Bogie Hearth furnace is a piece of equipment specifically designed to provide heat for industrial processes. These furnaces are typically used to heat materials, liquids or gases to meet the needs of specific industrial applications. The design and functionality of industrial furnaces can vary based on different applications and industries.
Product Application
STA Series Trolley Type Resistance Furnace is state standard energy saving cyclic furnace. It is a fiber structure saving 60% power consumption. It is among the first manufacturers to employ compound high aluminum porcelain nail group, trolley anti-explosion sealing bricks, automatic sealing trolley and furnace door, and integrated rail. This series furnace is applicable to the quenching, annealing and aging treatment of high chrome parts, high manganese cast parts, cast iron, rolls, steel balls, 45# steel parts and others.
Main Features
1) The trolley type furnace has a shell of welded steel plates and sectional steel. The structure is of thick material.
2) The hearth wall lining is an all-fiber structure, saving about 60% of power consumption compared with the traditional brick hearth.
3) Heating components: high temperature resistance alloy wires and strips.
4) Low noise, energy-friendliness, and stable performance.
5) Advanced CAD design.
6) Years of experiences in heat treatment process.
2) The hearth wall lining is an all-fiber structure, saving about 60% of power consumption compared with the traditional brick hearth.
3) Heating components: high temperature resistance alloy wires and strips.
4) Low noise, energy-friendliness, and stable performance.
5) Advanced CAD design.
6) Years of experiences in heat treatment process.
Specifications For 3.5x1.5x1M Electrical Annealing Heat Treatment Trolley Type Furnace | ||||
1 | Rated power | 210Kw (1-100%) adjustable | ||
2 | Power supply | 380V, 3P, 50Hz | ||
3 | Rated temperature | 850℃ | ||
4 | Empty furnace temperature rise time | ≤1.5hours | ||
5 | Control zone | 2 zones, independent control | ||
6 | Effective working size | 3600×1500×1000mm(L×W×H) | ||
7 | Heating element connection | Y | ||
8 | Temperature uniformity | ±8℃ | ||
9 | Temperature measurement accuracy | ±1℃ | ||
10 | Empty furnace power consumption | ≤18% | ||
11 | Temperature control method | SCR, PID regulator; Shimaden Japan programmable temperature controller with 485 communication interface work with 10.1 inch touch screen. | ||
12 | furnace surface temperature rise | ＜45℃ | ||
13 | Heating element | 0Cr25AL5 (strip) | ||
14 | Bogie face plate | CrMnN, 30mm thickness | ||
15 | Loading method | Product loaded on the bogie, and then bogie moves into the furnace | ||
16 | Axial flow fan | The hot air circulation system of this equipment mainly consists of 2 sets 2.2KW water-cooled axial flow fans. | ||
17 | Furnace door opening method | 1 ton Electric hoist up-down, furnace door self-weight compression seal | ||
18 | Bogie moving method | 3KW cycloidal pinwheel reducer, 1 set | ||
19 | Sealing between furnace body and bogie | Fiber cotton and Irregular brick | ||
20 | Furnace lining | High temperature refractory fiber structure | ||
Company Profile
located in Henan, China, Zhengzhou STA Universe Group Co., Ltd is brazing the trail in the refra-ctory materials industry. It was founded in 2013. We have our own fully automated plants. Since the day the company was established, we have been focusing on the development and innovation of refractory materials and high temperature furnace, striving to provide customers with top-notch products. Our products are widely used in laboratories, metallurgy, petrochemical and other fields, which are exported to more than 70 countries and regions around the world, such as Europe, America, Oceania, Southeast Asia, and Middle East.
FAQ
1. Are you trading company or manufacturer ?
--We are factory and manufacturer.
2. Can you accept OEM?
--Yes! We can manufacture as per your specification.
3. Can you deliver the goods via our shipping agent?
--Yes, we could help you make the delivery using your shipping agent.
4. How long is your delivery time?
--Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock. And order quantity also plays a part in delivery time.
5.When we can contact you?
--You can contact us 24 hours every day. It is our pleasure to service you at any time.
6. What about your After-sales service?
--Yes. We have a professional after-sales team to help you solve problems.
--We are factory and manufacturer.
2. Can you accept OEM?
--Yes! We can manufacture as per your specification.
3. Can you deliver the goods via our shipping agent?
--Yes, we could help you make the delivery using your shipping agent.
4. How long is your delivery time?
--Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock. And order quantity also plays a part in delivery time.
5.When we can contact you?
--You can contact us 24 hours every day. It is our pleasure to service you at any time.
6. What about your After-sales service?
--Yes. We have a professional after-sales team to help you solve problems.
