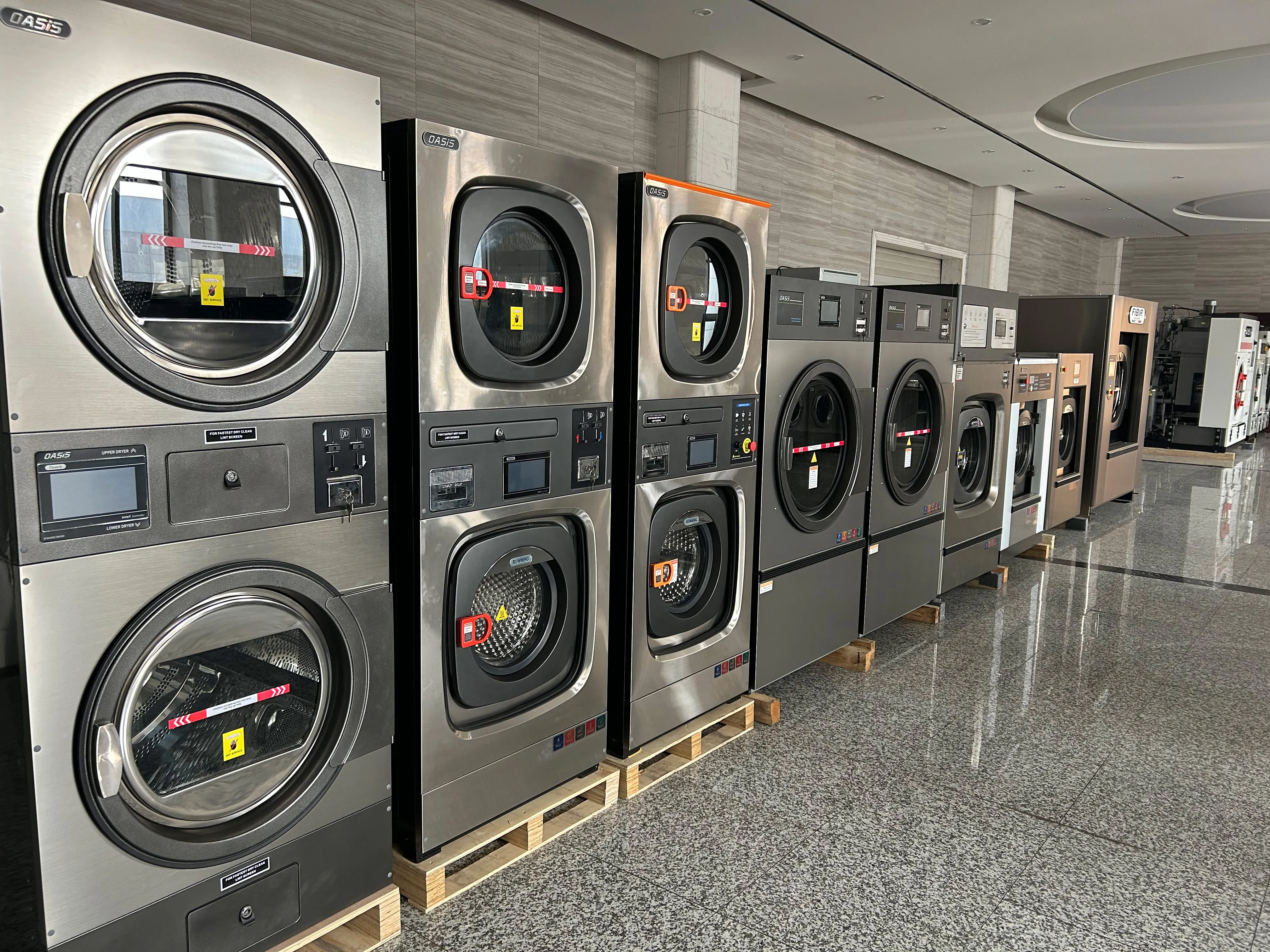

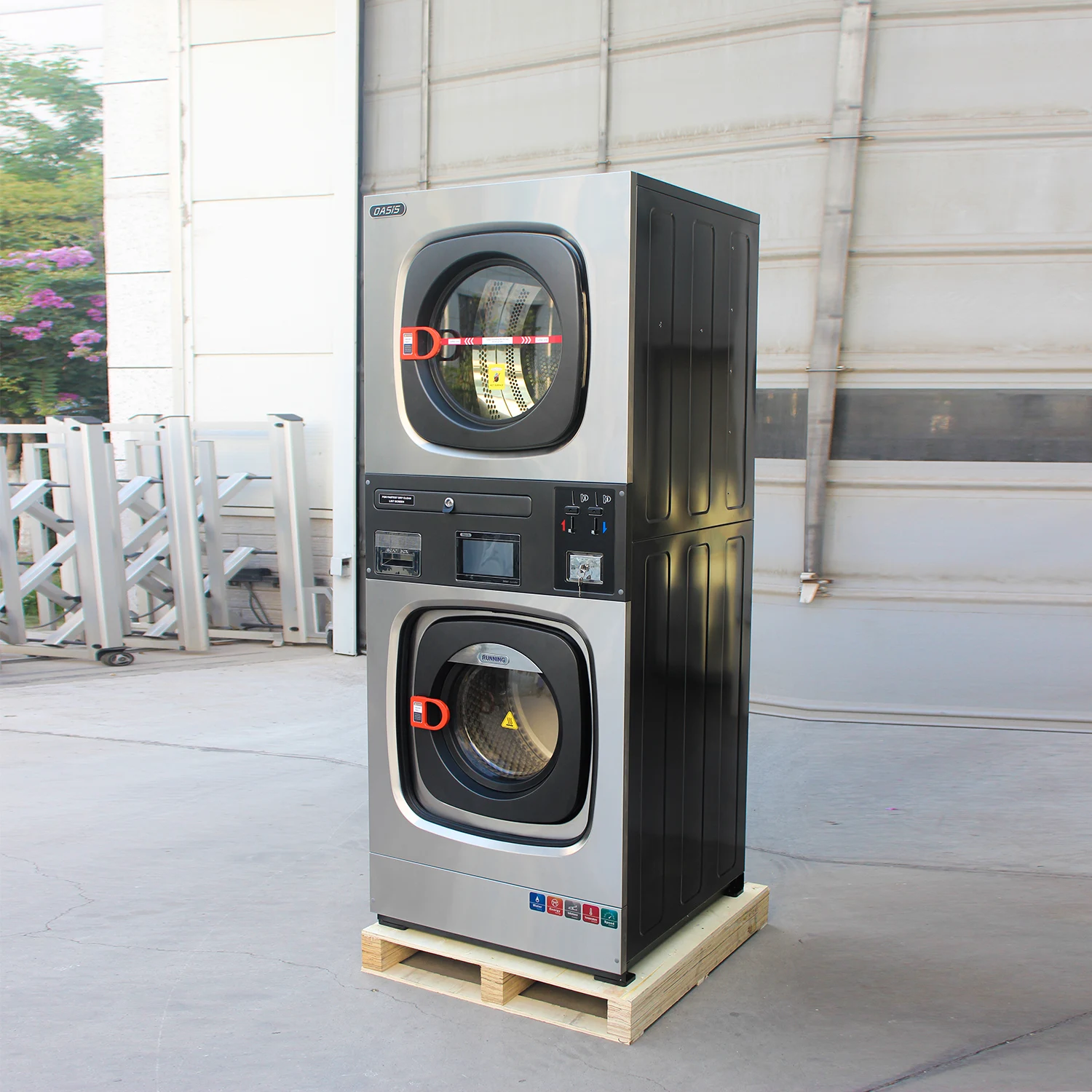

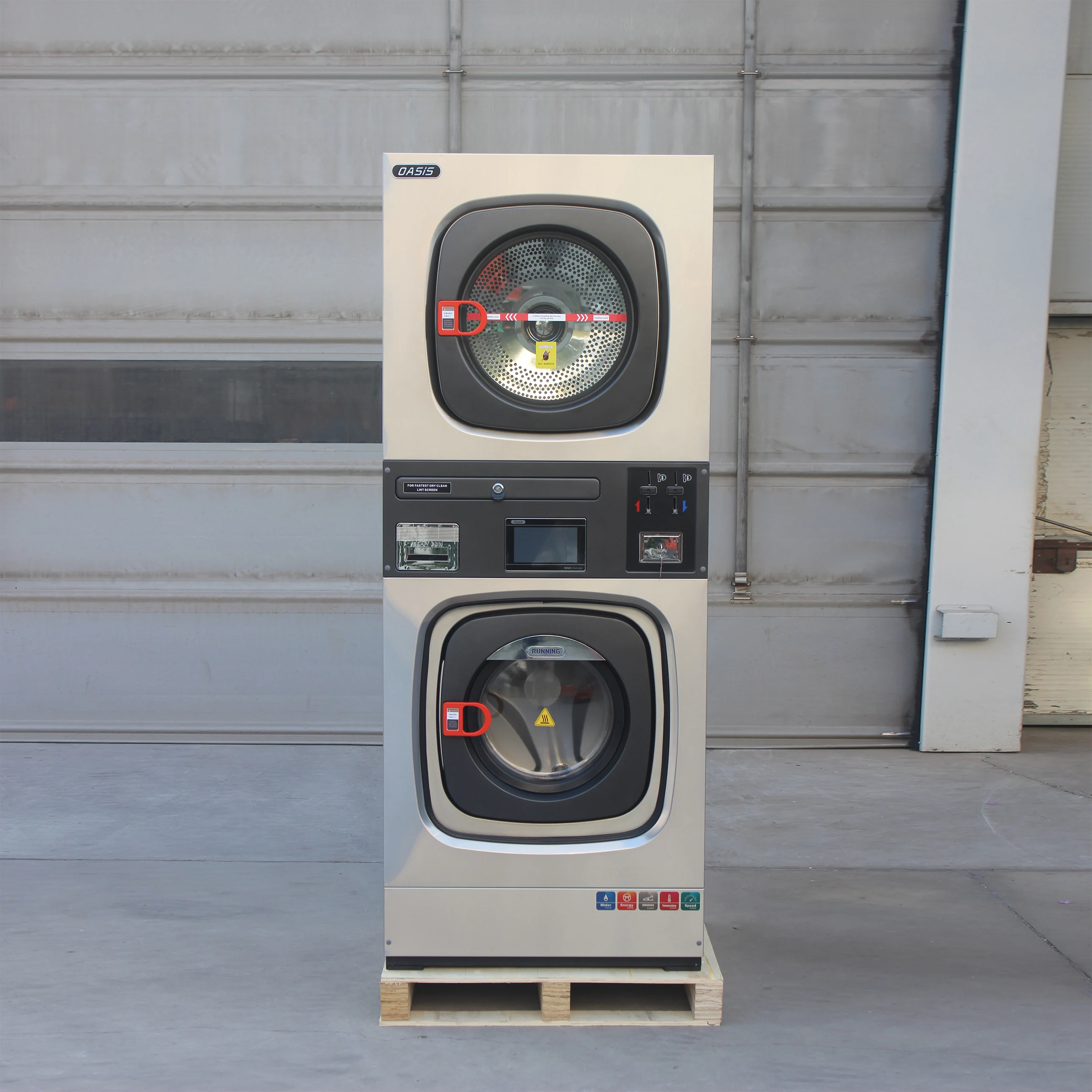

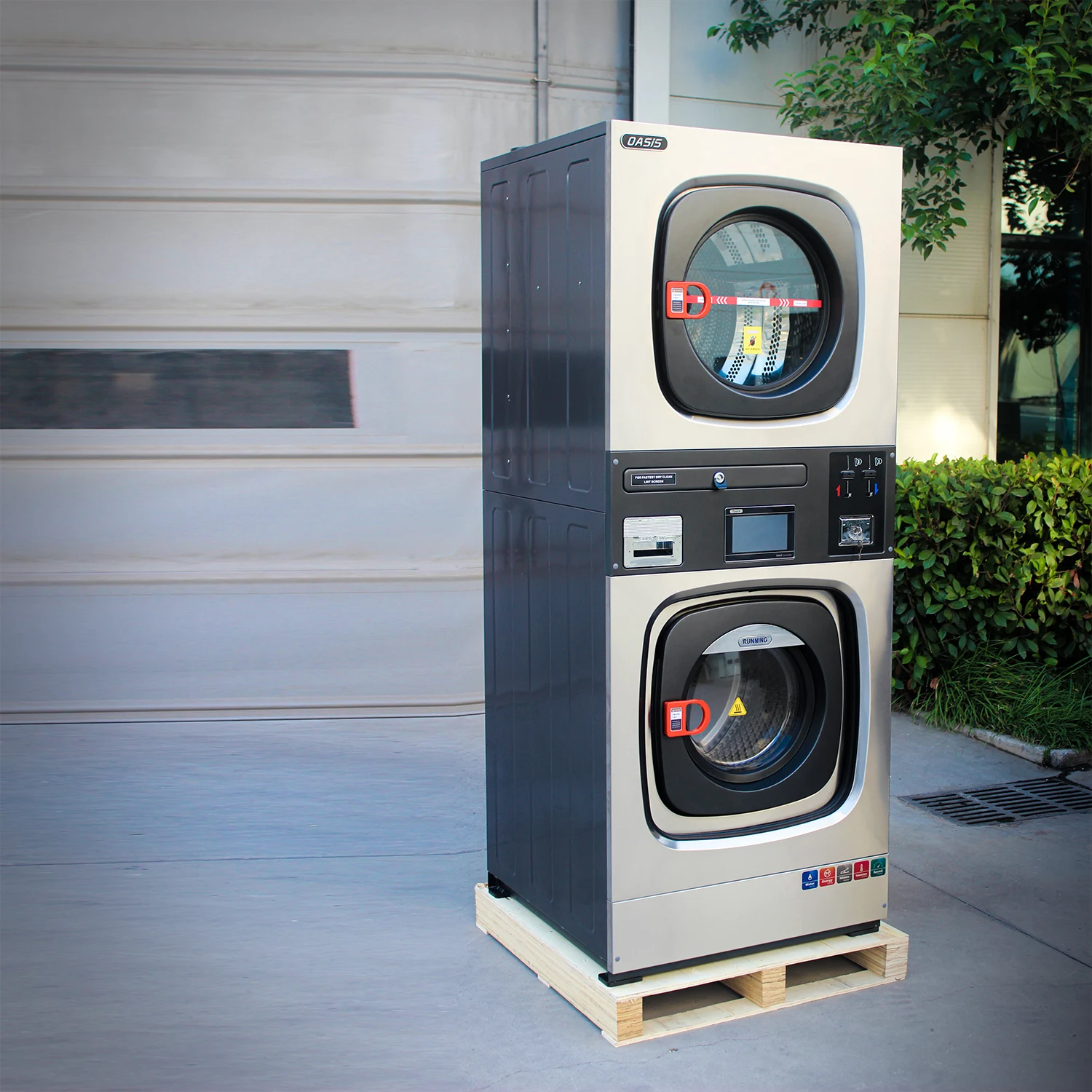

Large Capacity 15Kg Commercial Laundry Stacked Washing Machine With Coin American Self Service Laundry Vending Station
- Category: >>>
- Supplier: Jinan Oasis Dry Cleaning And Laundry Equipment Co. Ltd.
Share on (1601038410554):
Product Overview
Description
Product Description
Features
1. Saves floor space.

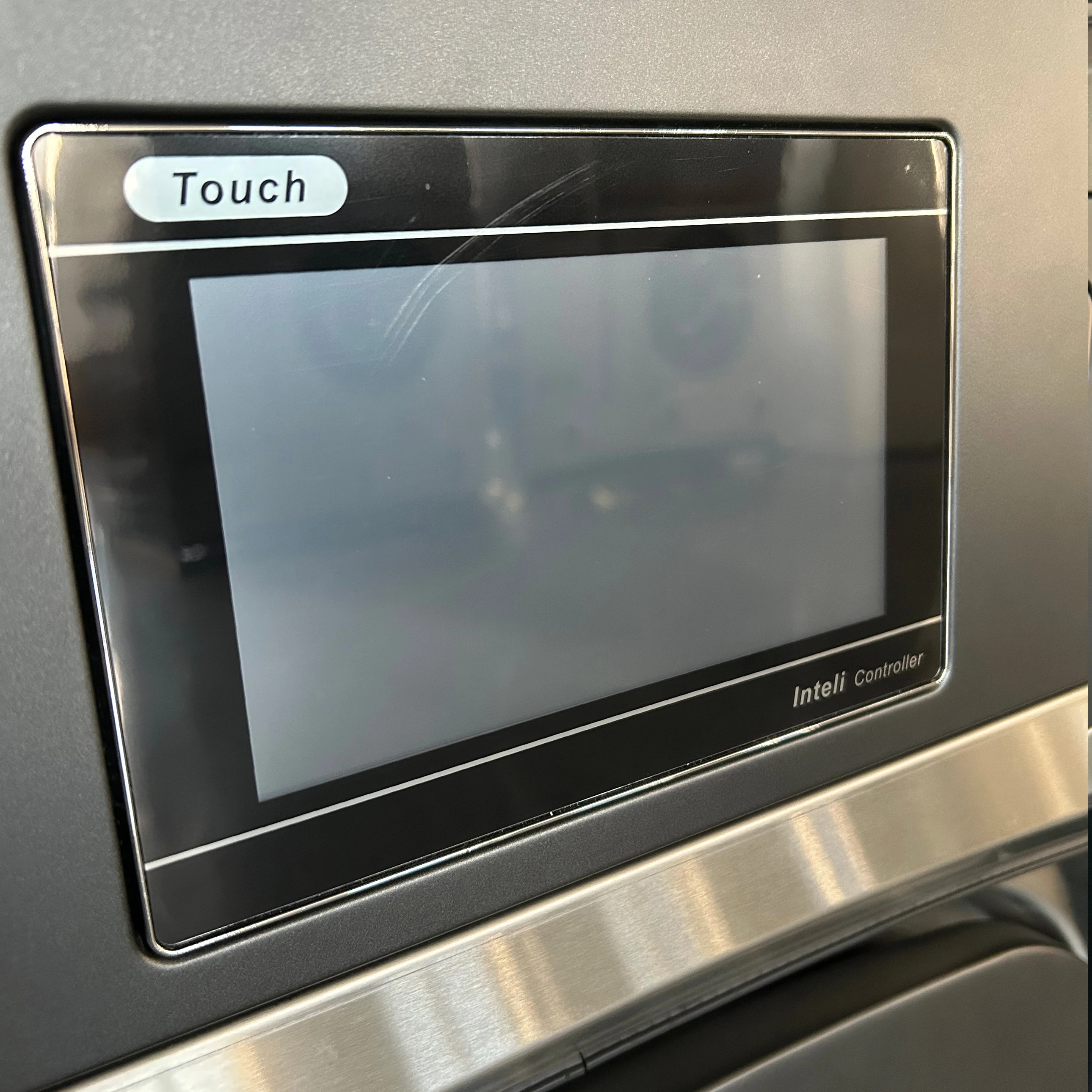

2. Large-screen full-color touchscreen controller with built-in USB interface, supports up to 50 sets of automatic programs and multiple language options.
3. Adopts direct drive motor. （10KG）
4. Advanced electronic balance monitoring effectively reduces vibration. (10, 15KG).
5. The 3D stereoscopic honeycomb inner drum improves the cleanliness and effectively reduces clothing damage. 6. The drive motor and fan motor adopt dual frequency conversion drive, which saves energy, reduces noise and ensures more reliable performance.
7. Full suspension composite shock absorption technology with components imported from Germany achieves ultra-low vibration and is free from foundation fixation
8. Adopts waterless distribution technology, saving water and time, and reducing labor costs.
9. Built-in LED light realizes washing visualization.
2. Large-screen full-color touchscreen controller with built-in USB interface, supports up to 50 sets of automatic programs and multiple language options.
3. Adopts direct drive motor. （10KG）
4. Advanced electronic balance monitoring effectively reduces vibration. (10, 15KG).
5. The 3D stereoscopic honeycomb inner drum improves the cleanliness and effectively reduces clothing damage. 6. The drive motor and fan motor adopt dual frequency conversion drive, which saves energy, reduces noise and ensures more reliable performance.
7. Full suspension composite shock absorption technology with components imported from Germany achieves ultra-low vibration and is free from foundation fixation
8. Adopts waterless distribution technology, saving water and time, and reducing labor costs.
9. Built-in LED light realizes washing visualization.
Specification
Specifications | Unit | SXHG-020F | SXHG-030F |
Capacity | kg | 10 | 15 |
Cylinder Diameter | mm | 532 | 600 |
Cylinder Depth | mm | 405 | 478 |
Door Center to Floor | mm | 539 | 643 |
Cold Water Inlet | inch | 1/2 | 1/2 |
Hot Water Inlet | inch | 1/2 | 1/2 |
Drain Diameter（pump/valve） | mm | 22/51 | 51 |
Wash Speed | RPM | 40-55 | 40-50 |
Extract Speed | RPM | 200-1200 | 200-900 |
Motor Power | kW | 0.8（DD） | 1 |
Single phase heating power | kW | 2 | 6 |
Three phase heating power | kW | 6 | 9 |
Reversing Cylinder | yes | YES | YES |
Cylinder Diameter | mm | 658 | 720 |
Cylinder Depth | mm | 500 | 635 |
Heating Power | kW | 7.5 | 10.5 |
Gas Inlet | inch | 1/2 | 1/2 |
Exhaust | mm | 110 | 160 |
Motor Power | kW | 0.25 | 0.25 |
Fan Power | kW | 0.25 | 0.25 |
Door Center to Floor | mm | 543/1566 | 643/1630 |
Voltage | V | AC220/380 | AC220/380 |
Hz | 50 | 50 | |
Overall Width | mm | 710 | 800 |
Overall Depth | mm | 859 | 986.5 |
Overall Height | mm | 1937 | 2055 |
Net Weight | kg | 260 | 360 |
Packing & Delivery
PE packages
Company Profile

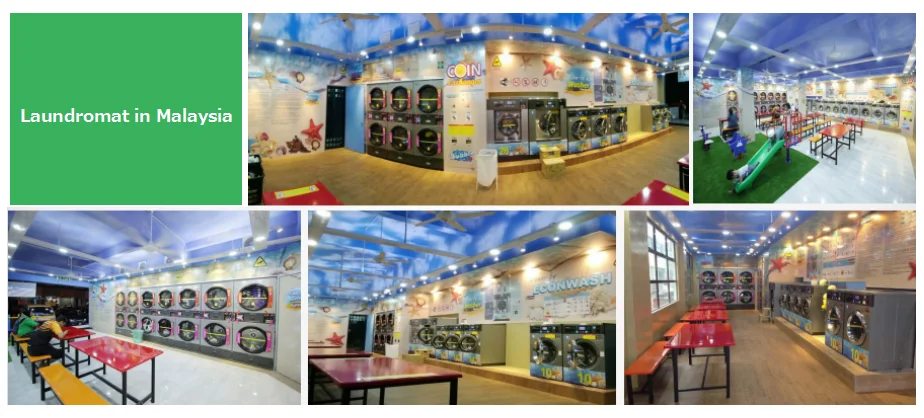

Customer Photos
