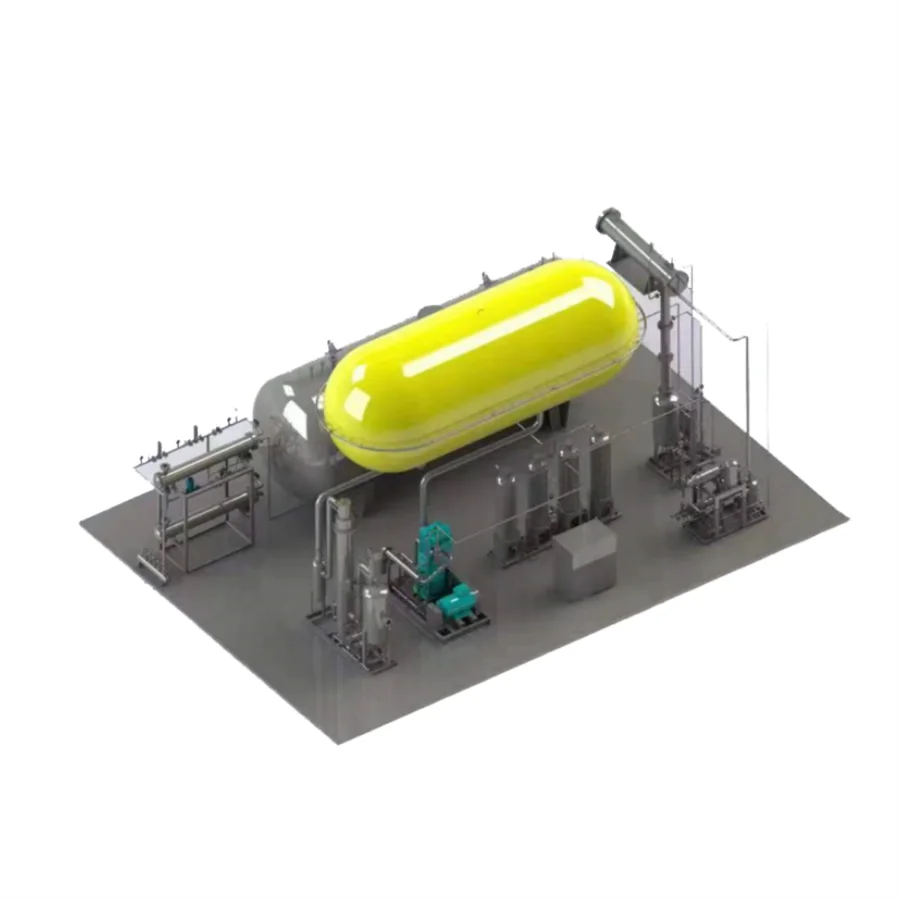

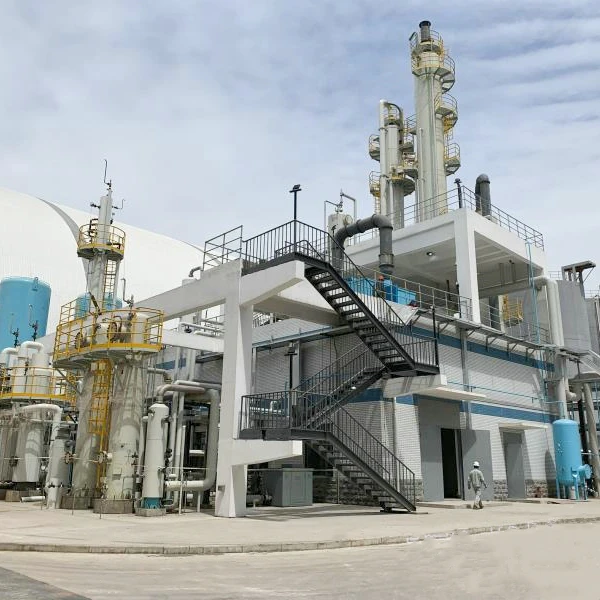

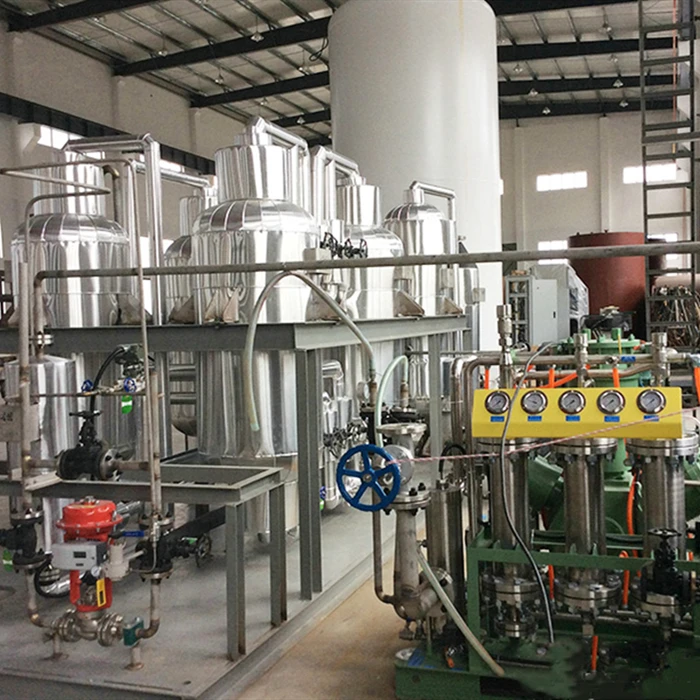

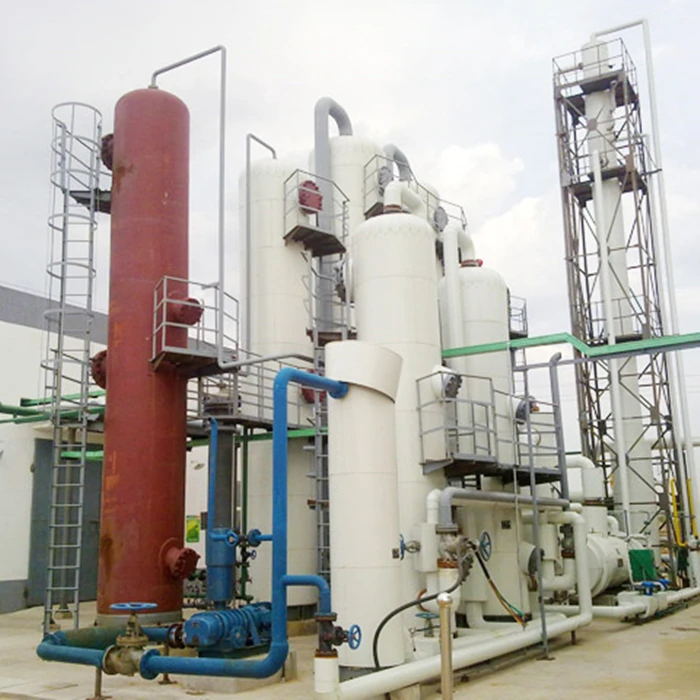

Best Selling CO2 Extract System MEA CO2 Generator for Greenhouse
- Category: >>>
- Supplier: Wobo Industrial Group Corp.
Share on (1601038424499):
Product Overview
Description
Enviromentally Friendly High Purity Gas Recovery Gas CO2 Generator Equipment
Carbon Dioxide Capture and Recovery System :
WOBO is dedicated to the design, manufacturing, and provision of complete systems for Food Grade gases and Industrial Grade gases,liquid carbon dioxide, and solid dry ice. All the essential components of our equipment are sourced from international brands, and the system is made of stainless steel. The recovered CO2 gas meets ISBT standards, as well as GB/T2398-2009 and GB10621-2006 for food additive liquid carbon dioxide.
Our products are exported to various countries and regions, including the United States, Peru, Ukraine, Russia, India, Cameroon, and Algeria. We offer customizable solutions for CO2 recovery systems, ranging from 100,000 Kt/a to 9,000,000 Kt/a. The final CO2 product purity exceeds 99.998%, with oxygen levels below 5ppm.
Our industrial-grade carbon dioxide equipment is primarily used for carbon dioxide capture from various sources, such as lime kiln emissions in metallurgical and cement factories, flue gas emissions from chemical, fertilizer, and power plants, as well as carbon dioxide recovery from fermentation gases like alcohol and xylitol. It is also employed for carbon dioxide recovery in gas fields, among other applications.

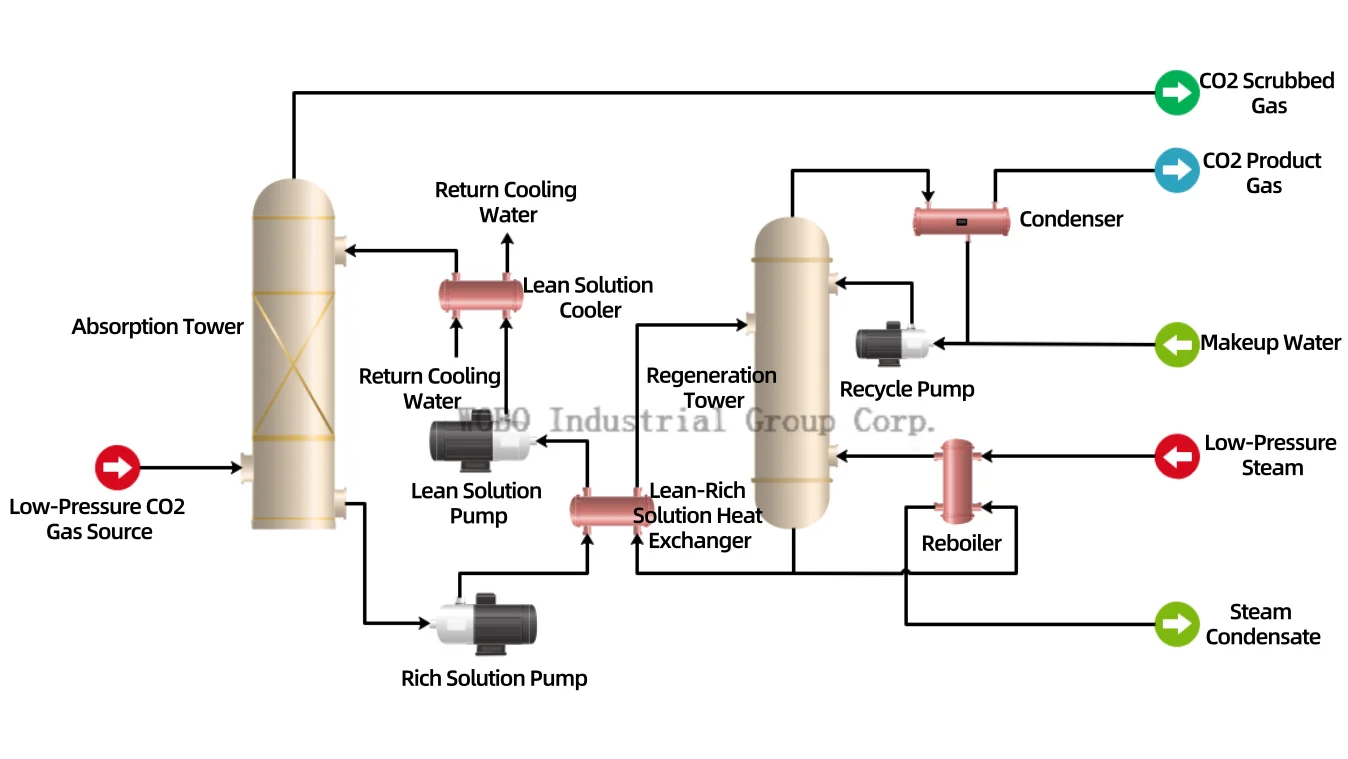

Process Flow Diagram
Product Parameter
Model | Capacity(T/H) | CO2 Purity | Power (KW/T) | Floor Space(M2) | ||||
WOCO2-2.4K | 0.3 | 99.99% | 250 | 6 x 12 | ||||
WOCO2-1W | 1.2 | 99.99% | 230 | 12 x 24 | ||||
WOCO2-2W | 2.5 | 99.99% | 220 | 12 x 24 | ||||
WOCO2-3W | 3.7 | 99.99% | 210 | 12 x 30 | ||||
WOCO2-4W | 5 | 99.99% | 200 | 12 x 36 | ||||
WOCO2-10W | 10 | 99.99% | 190 | 15 x 40 | ||||
Parameters may vary with different carbon dioxide gas raw materials | ||||||||
Product Description
1. Flue gas generally refers to the high temperature and low carbon dioxide concentration tail gas emitted by power plants, boiler plants, lime kilns, cement plants, etc., from coal, gas, oil or heating. The flue gas contains 8-35% CO2. This system uses MEA to absorb carbon dioxide at room temperature. After the concentration section, the carbon dioxide undergoes adsorption, drying, cooling, heat exchange and enters the rectification tower for rectification to remove sulfur and nitrate. Impurities such as oxygen, nitrogen and water vapor are stored in storage tanks for users to use;
2. Petrochemical and chemical exhaust gas generally refers to the high-concentration carbon dioxide tail gas emitted from the reaction and separation devices of petrochemical plants, fertilizer plants, hydrogen plants and other chemical plants. Petrochemical and chemical exhaust gases generally contain 80-99% CO2, as well as impurities such as sulfur, carbon monoxide, hydrogen, nitrogen, oxygen, benzene, and water vapor. This system uses water washing, water separator to remove dust and cool down, special adsorbent adsorption, desulfurization, dehydration and hydrocarbon removal, and combined with distillation tower distillation to remove methane, hydrogen, nitrogen, carbon monoxide, oxygen and other impurities;
3. Fermentation gas generally refers to the high-concentration carbon dioxide tail gas emitted from fermentation systems such as alcohol factories, breweries, sugar factories, etc., generally containing 90-99% CO2, as well as alcohols, aldehydes, methane, hydrogen, nitrogen, water vapor, etc. Impurities, may contain a small amount of carbon monoxide and oils. This system uses a combination of water washing, water separation and special adsorbents to remove alcohols, aldehydes, and the like, carbon monoxide, etc., and removes water through drying, cooling, heat exchange, and distillation in a distillation tower. , Methane, hydrogen, nitrogen and other impurities;
2. Petrochemical and chemical exhaust gas generally refers to the high-concentration carbon dioxide tail gas emitted from the reaction and separation devices of petrochemical plants, fertilizer plants, hydrogen plants and other chemical plants. Petrochemical and chemical exhaust gases generally contain 80-99% CO2, as well as impurities such as sulfur, carbon monoxide, hydrogen, nitrogen, oxygen, benzene, and water vapor. This system uses water washing, water separator to remove dust and cool down, special adsorbent adsorption, desulfurization, dehydration and hydrocarbon removal, and combined with distillation tower distillation to remove methane, hydrogen, nitrogen, carbon monoxide, oxygen and other impurities;
3. Fermentation gas generally refers to the high-concentration carbon dioxide tail gas emitted from fermentation systems such as alcohol factories, breweries, sugar factories, etc., generally containing 90-99% CO2, as well as alcohols, aldehydes, methane, hydrogen, nitrogen, water vapor, etc. Impurities, may contain a small amount of carbon monoxide and oils. This system uses a combination of water washing, water separation and special adsorbents to remove alcohols, aldehydes, and the like, carbon monoxide, etc., and removes water through drying, cooling, heat exchange, and distillation in a distillation tower. , Methane, hydrogen, nitrogen and other impurities;
Product Advantages
1. Quality Components: We use premium international components for reliability.
2. Stainless Steel Build: Durable, corrosion-resistant stainless steel construction.
3. End-to-End Service: In-house design, manufacture, and installation for seamless service.
4. User-Friendly: Competitive pricing and ease of use.
5. High Automation: PLC and DCS control for efficient operation.
6. Real-time Monitoring: Constant monitoring of key parameters.
7. Instant Alerts: Immediate notifications in case of deviations.
8. Remote Access: Allows remote control and monitoring.
9. Unattended Operation: Advanced features for hands-free management.
2. Stainless Steel Build: Durable, corrosion-resistant stainless steel construction.
3. End-to-End Service: In-house design, manufacture, and installation for seamless service.
4. User-Friendly: Competitive pricing and ease of use.
5. High Automation: PLC and DCS control for efficient operation.
6. Real-time Monitoring: Constant monitoring of key parameters.
7. Instant Alerts: Immediate notifications in case of deviations.
8. Remote Access: Allows remote control and monitoring.
9. Unattended Operation: Advanced features for hands-free management.

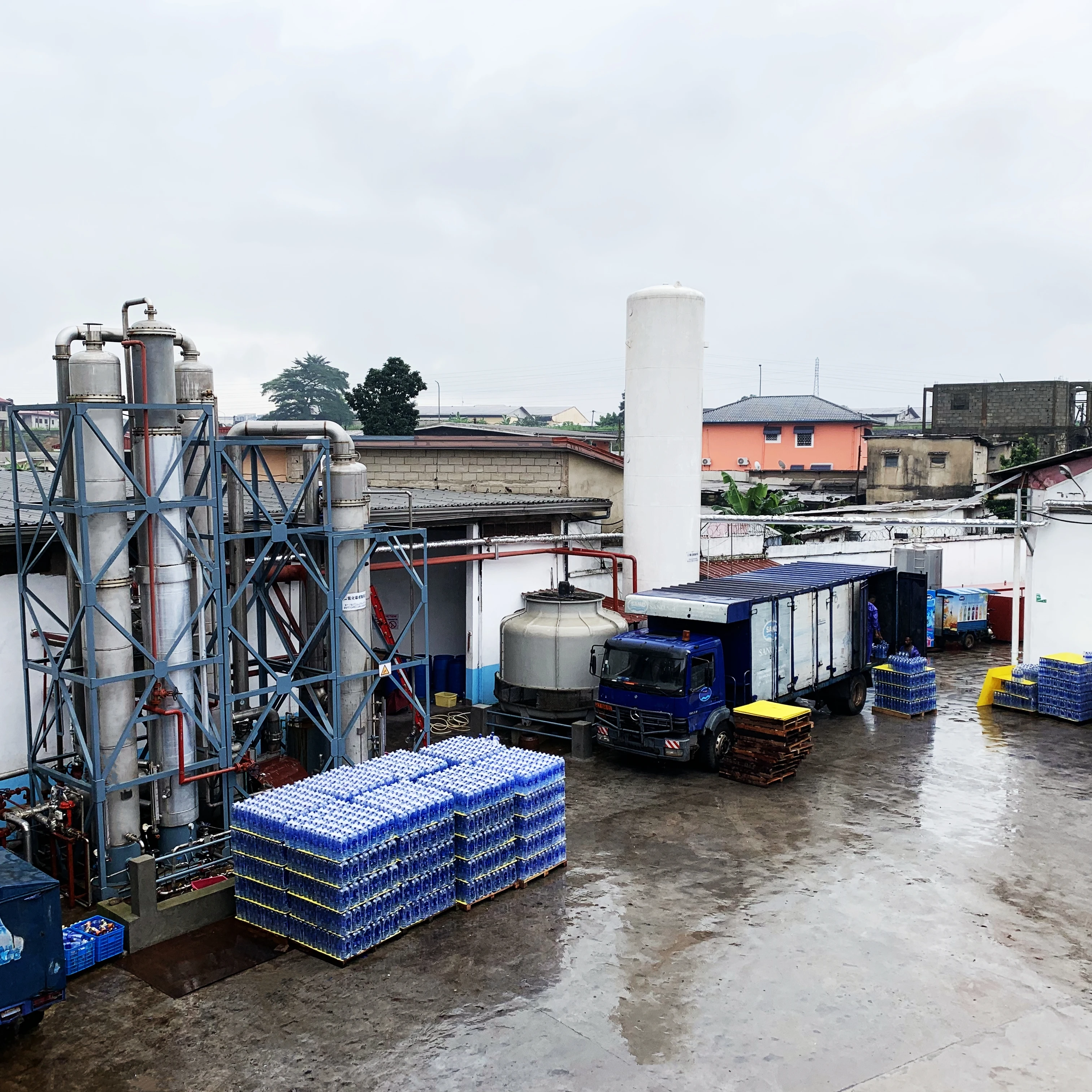

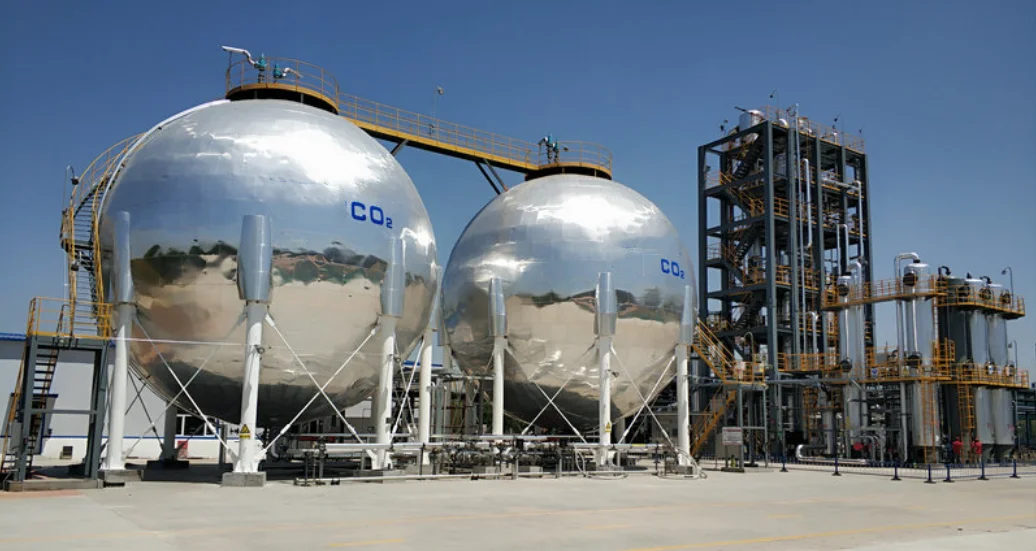

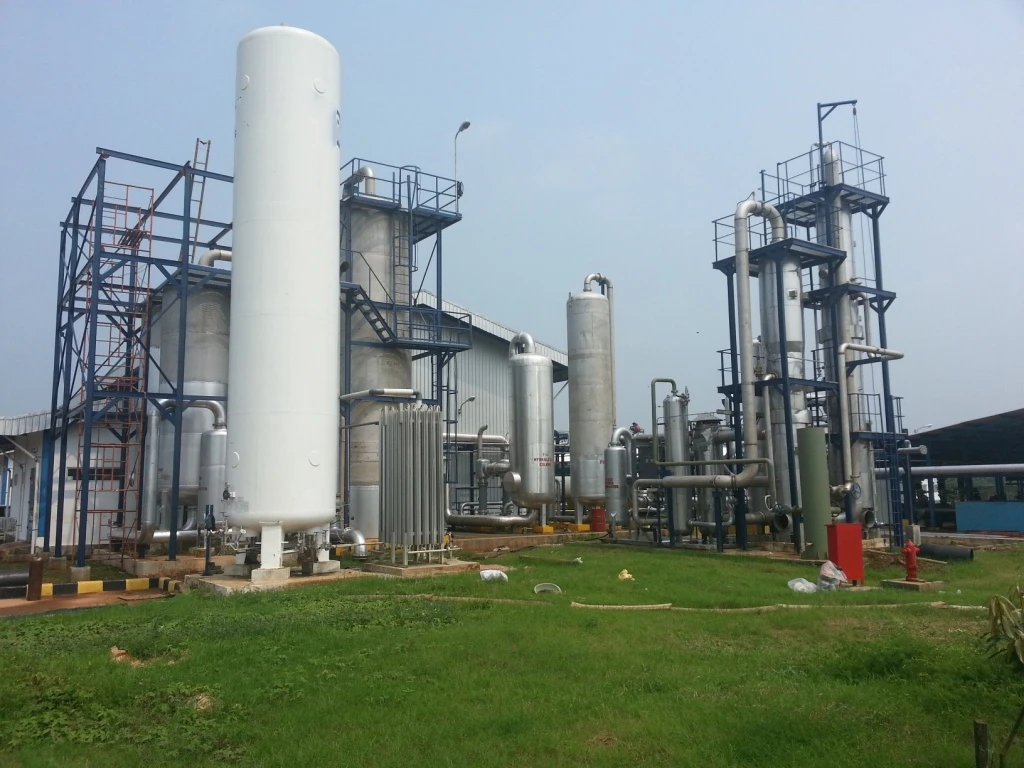

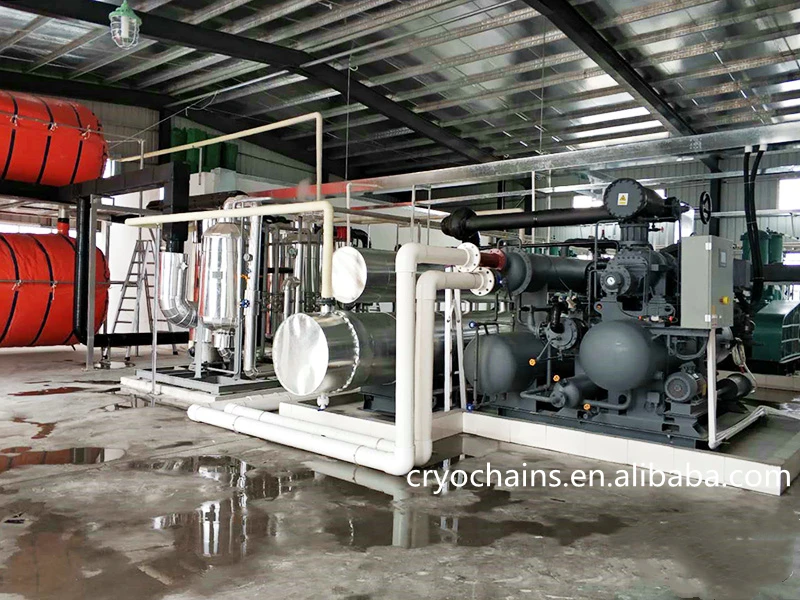

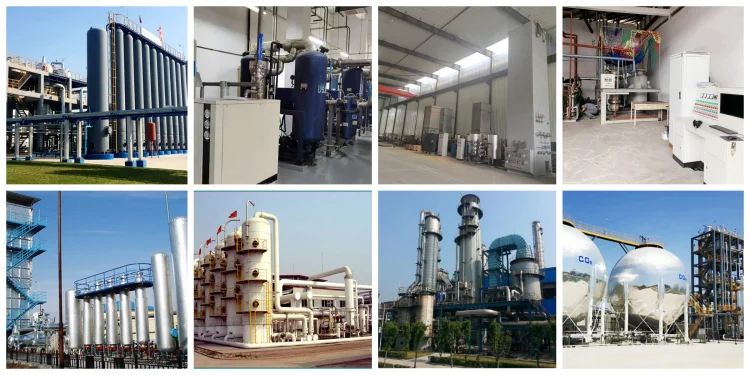

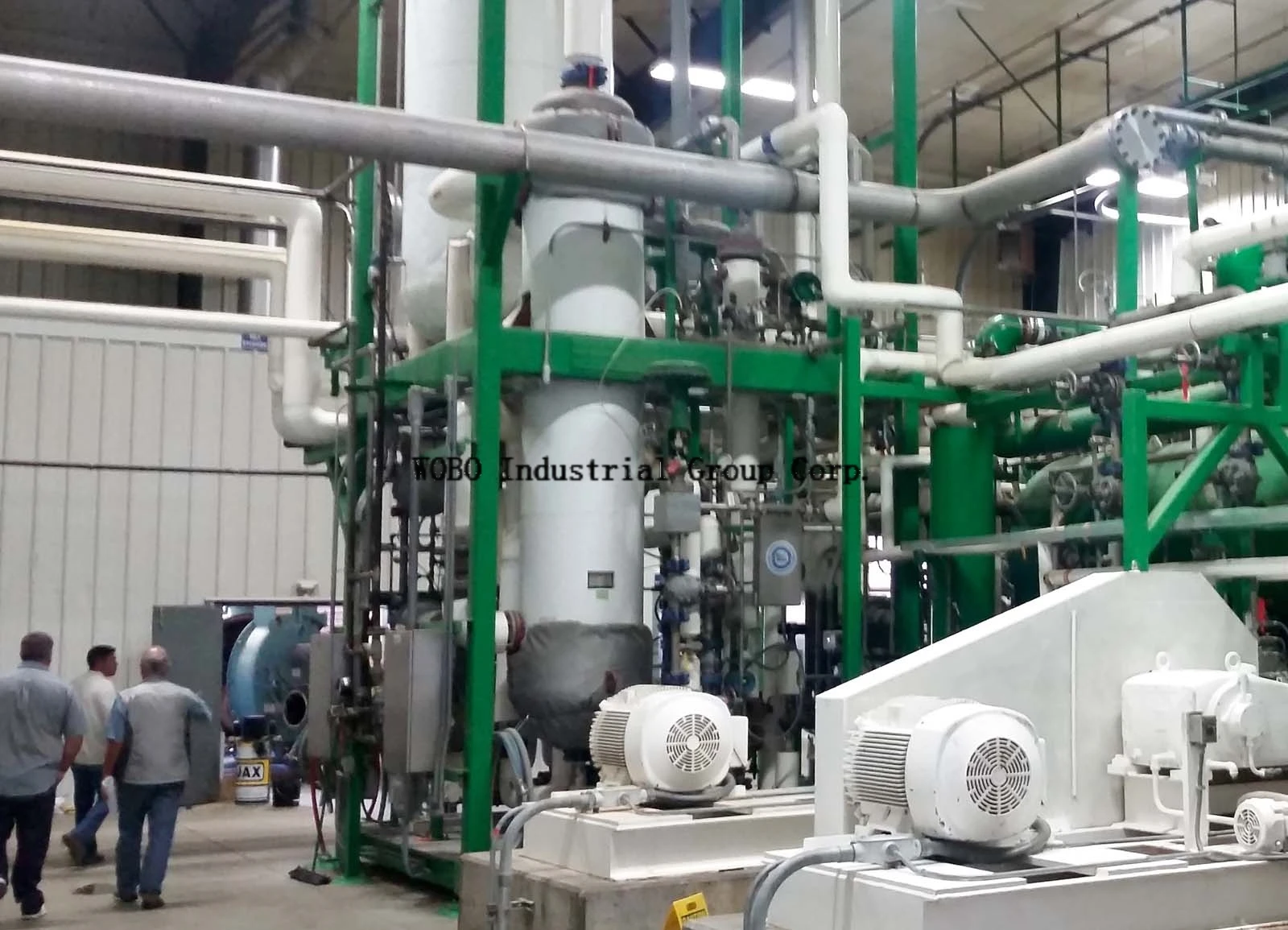

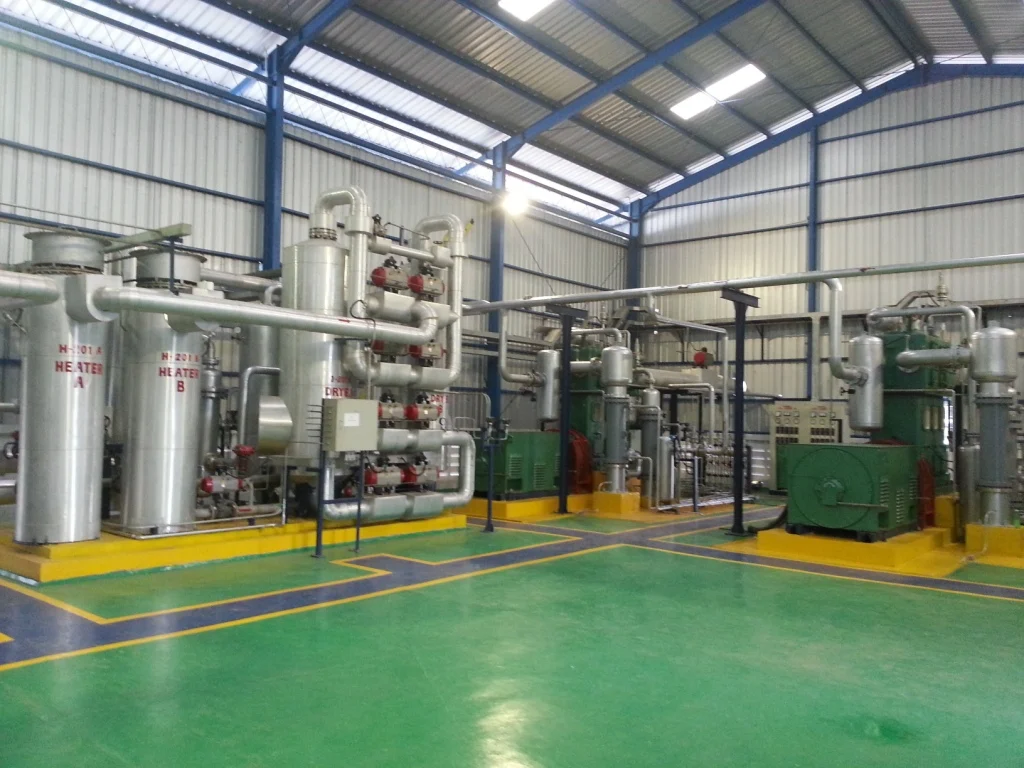

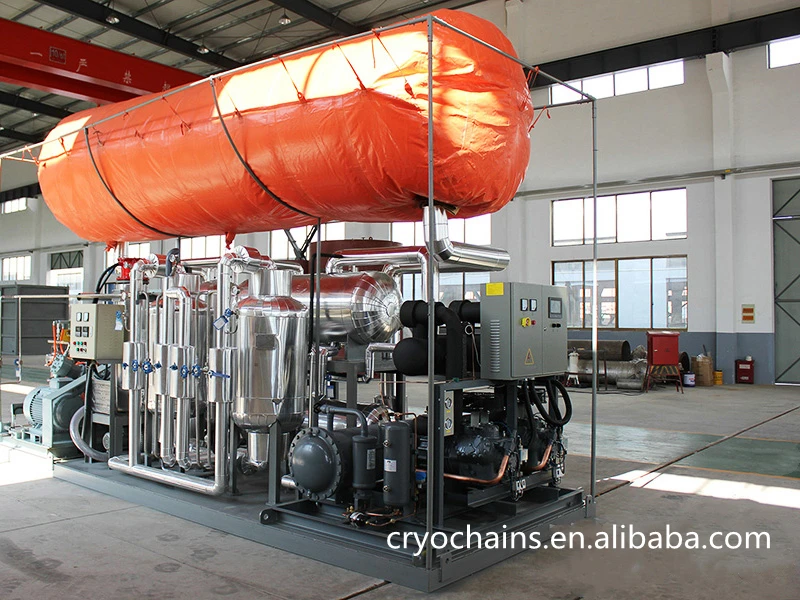

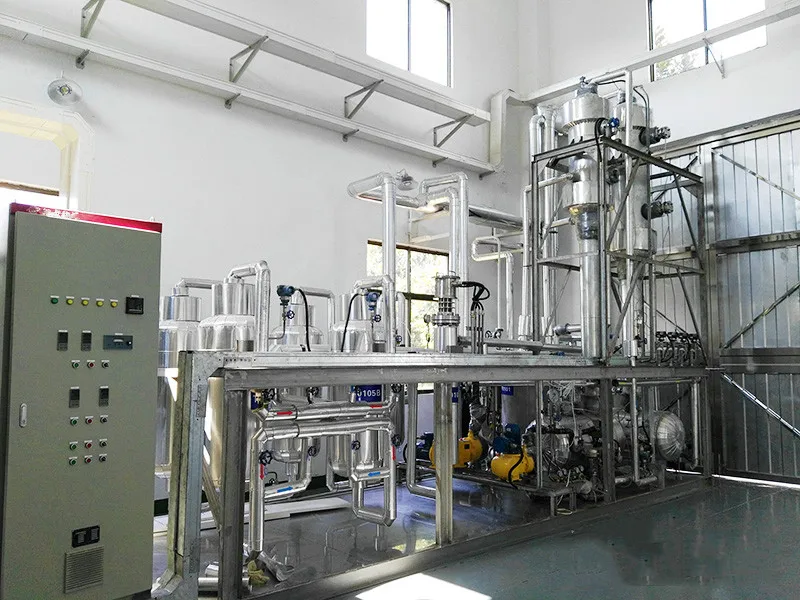

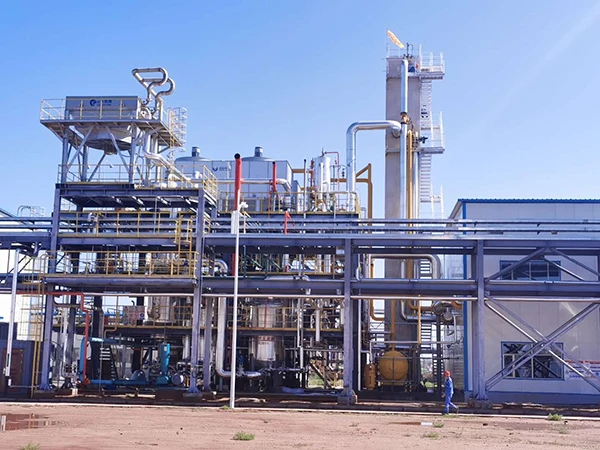

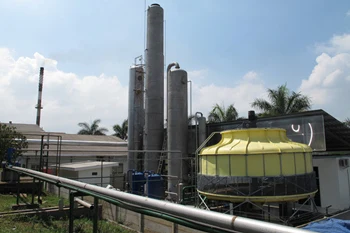

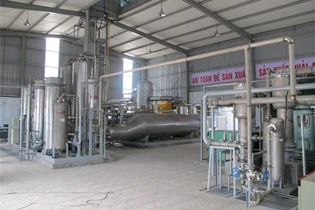

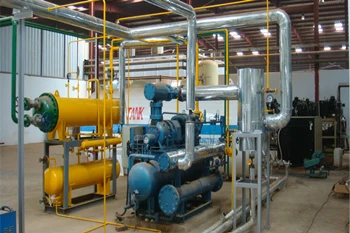

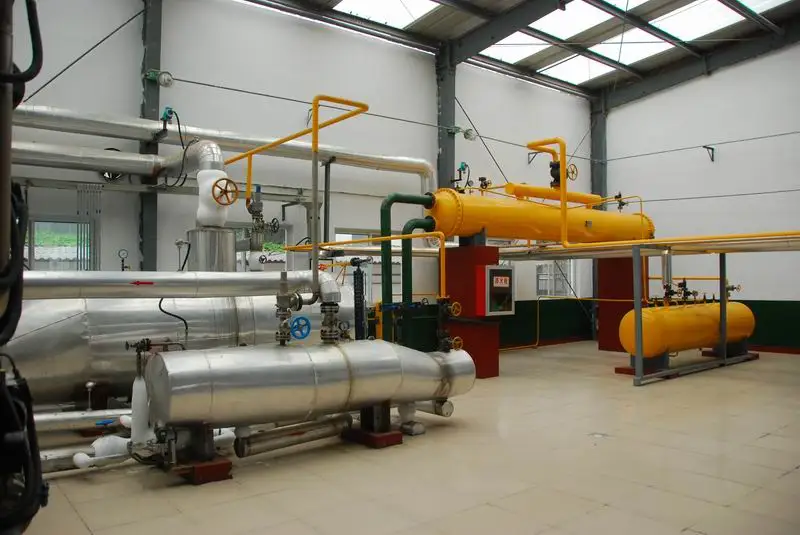

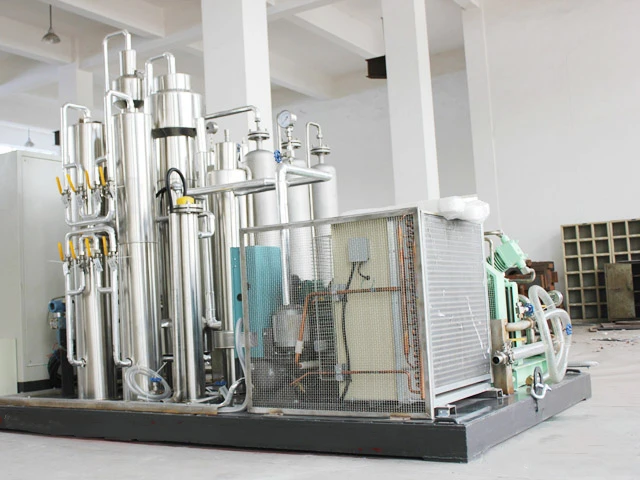

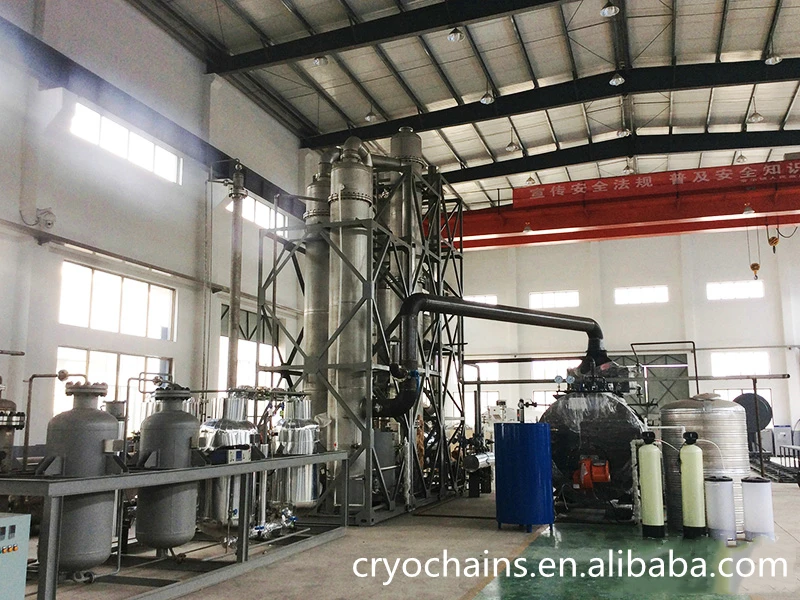

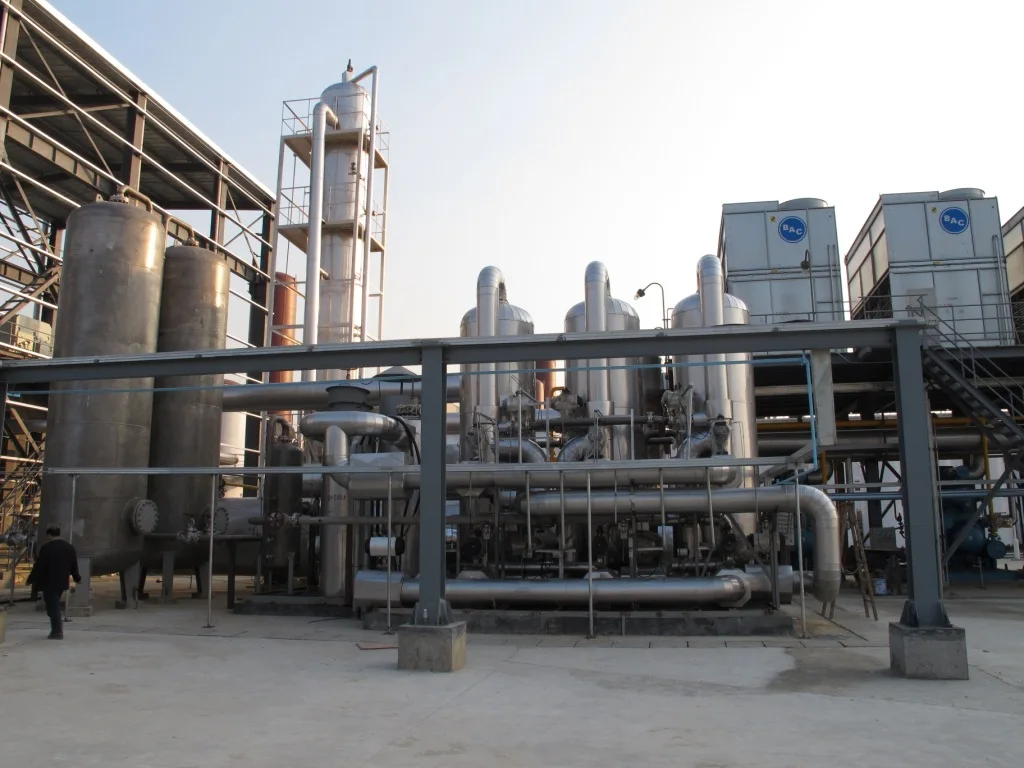

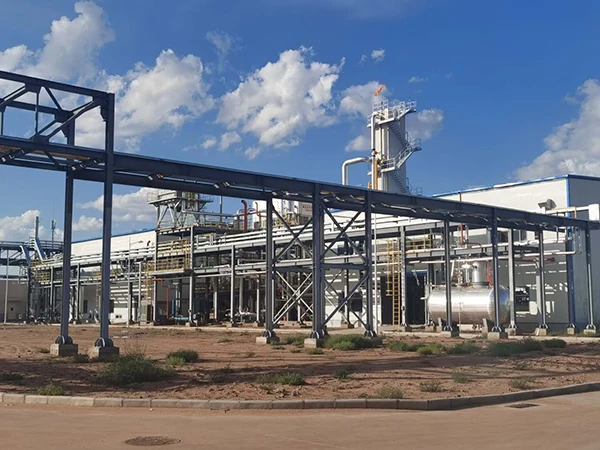

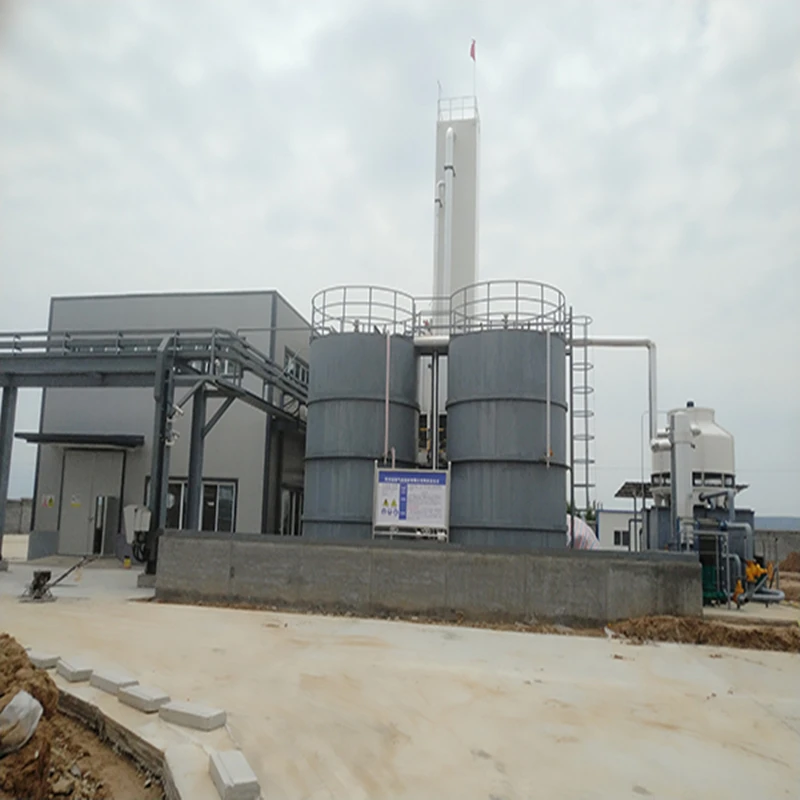

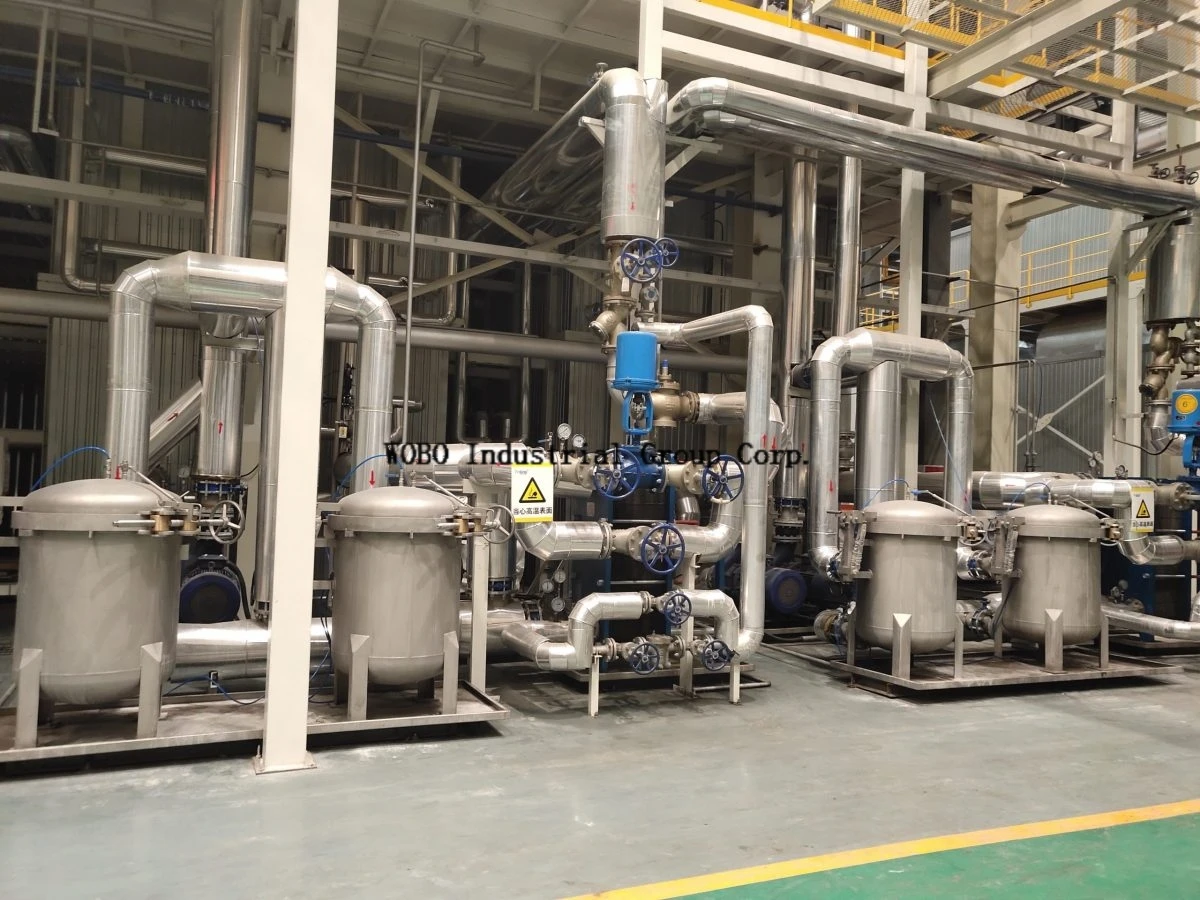

Product Show

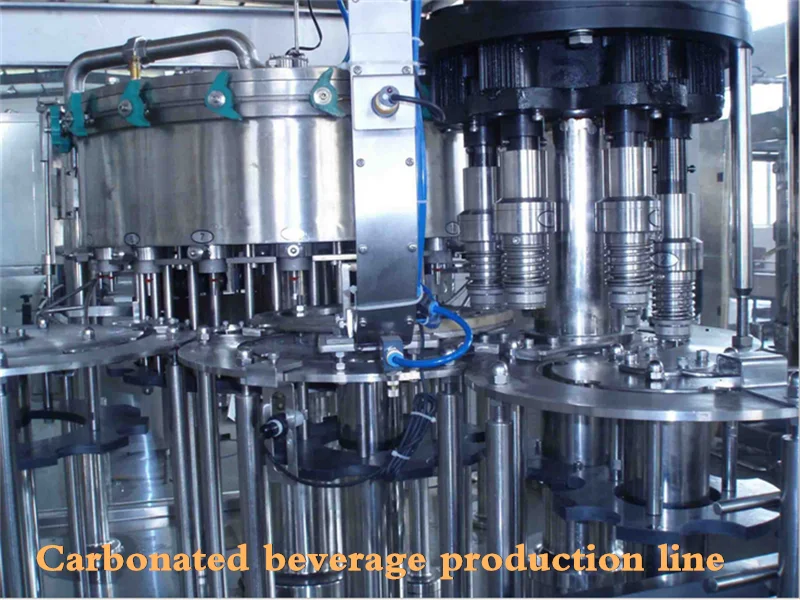

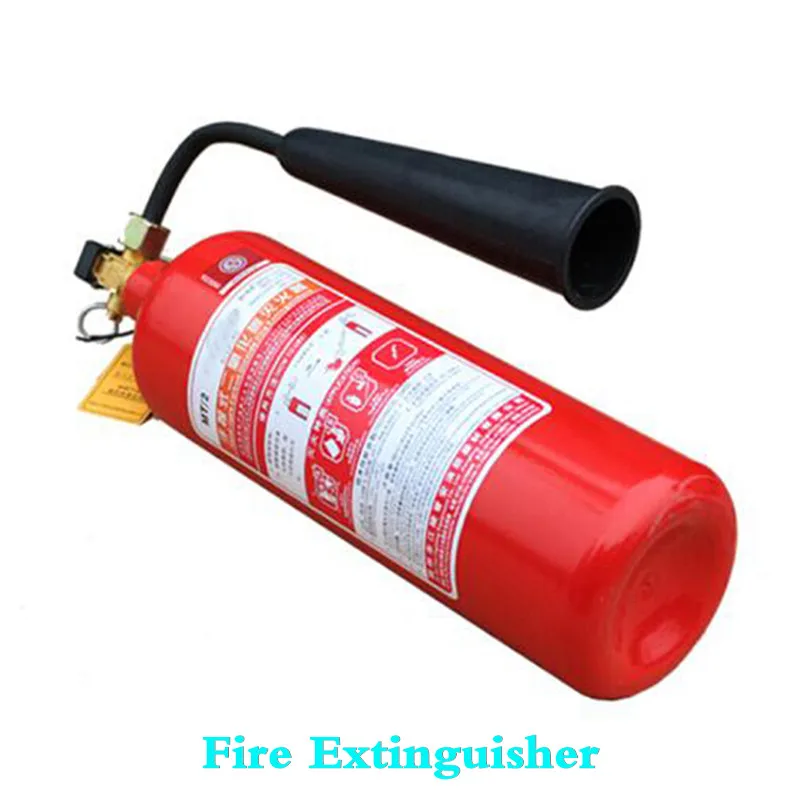

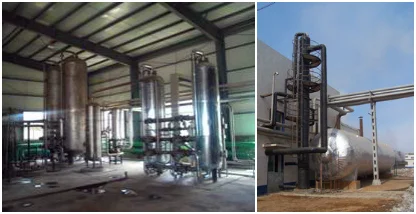

Product Application
