RM063 vertical blue white adjustable resistor WH06 potentiometer 101 passive rotary potentiometer variable resistor 100R
- Category: >>>
- Supplier: Shenzhen Hongyaxing Electronics Co. Ltd.
Share on (1601038615537):
Product Overview
Description
Product Model.

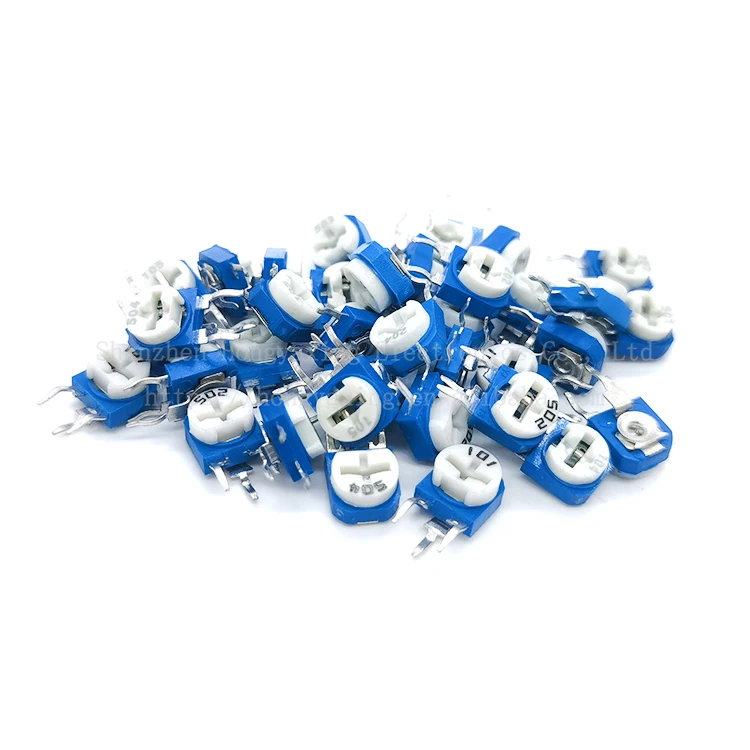

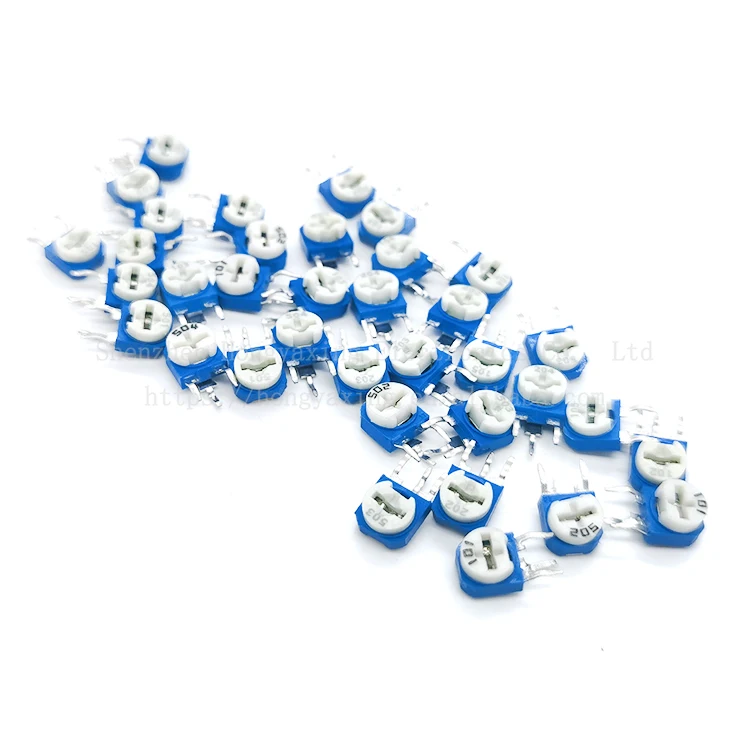

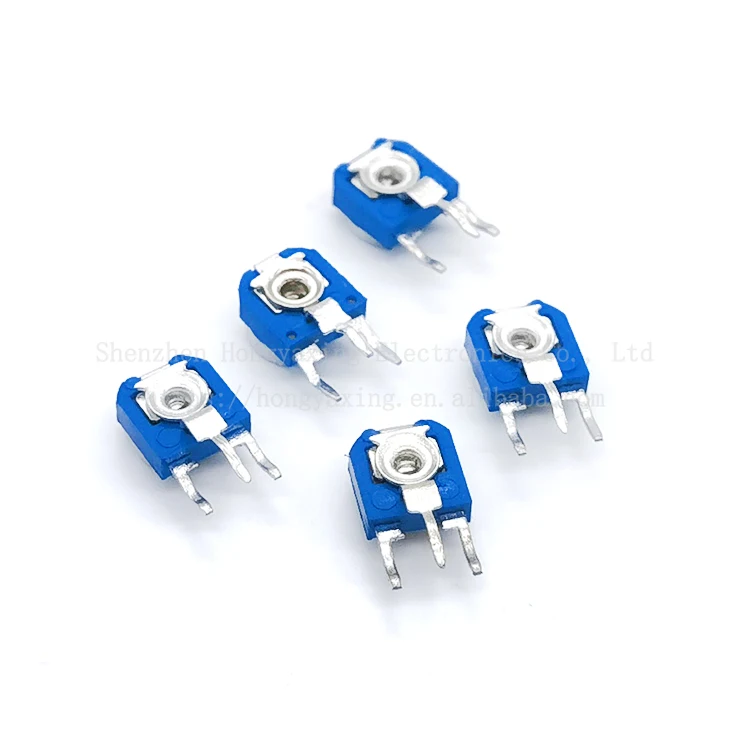

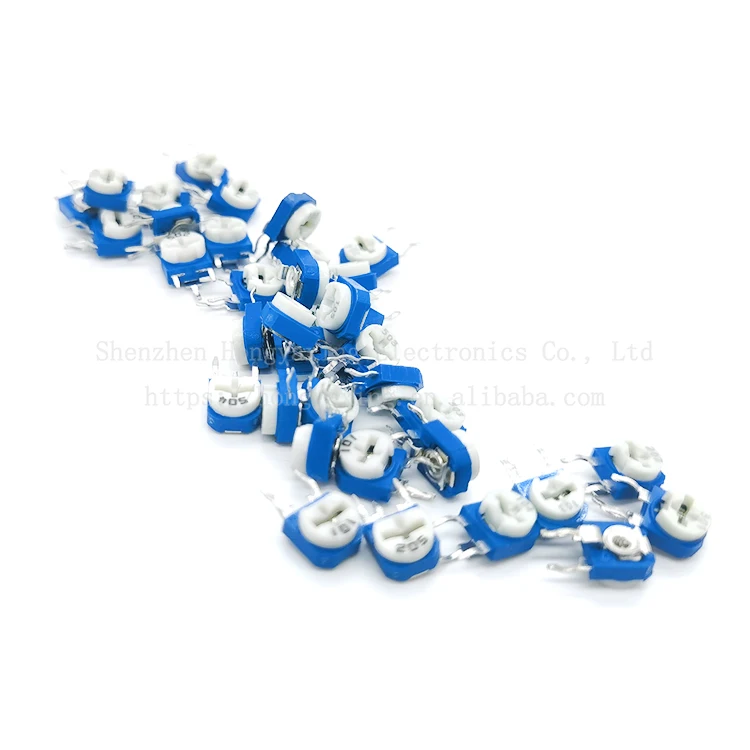

vertical Blue and White Adjustable Resistor Potentiometers.
vertical potentiometer with various specifications 10K/1K/2K/1M/20/50/100R/200/500/102/103/203.
vertical potentiometer with various specifications 10K/1K/2K/1M/20/50/100R/200/500/102/103/203.
Product Introduction.
Miniature Blue and White Vertical Adjustable Resistor is a kind of plug-in adjustable resistor, plug-in adjustable resistor is also vertical and horizontal two kinds, this product is a horizontal adjustable resistor. Because the color of the rubber cover of this product is white and the color of the rubber frame is blue, so it is called blue and white adjustable resistor in the market, blue and white horizontal adjustable resistor potentiometer.
Product Parameters.
Brush:Copper
Resistor: Bakelite
Center leg: Iron, tin finish
Eyelets: Iron, bright tin surface treatment
Curved foot: Iron, tin surface treatment
Cover: Plastic POM, white color.
Frame: Plastic PBT, blue in color.
Swivel Angle:200°±20
Rotating torque: 60-150g.cm
Stopping strength: resistor sheet can withstand 1kg pressure without rupture
Resistance range:100~2m
Resistance value deviation:±20%
Resistance value change:B
Voltage:50V
Rated:0.1W
Residual should be Yang value: not more than 5% of the nominal resistance value, limit not more than 30R
Resistor: Bakelite
Center leg: Iron, tin finish
Eyelets: Iron, bright tin surface treatment
Curved foot: Iron, tin surface treatment
Cover: Plastic POM, white color.
Frame: Plastic PBT, blue in color.
Swivel Angle:200°±20
Rotating torque: 60-150g.cm
Stopping strength: resistor sheet can withstand 1kg pressure without rupture
Resistance range:100~2m
Resistance value deviation:±20%
Resistance value change:B
Voltage:50V
Rated:0.1W
Residual should be Yang value: not more than 5% of the nominal resistance value, limit not more than 30R
item | value |
Place of Origin | China |
Brand Name | CI |
Model Number | Blue and white potentiometers |
Specification | RM065 potentiometers |
Packaging Type | standard |
Application | Adjusting resistance |
Package / Case | RM065 |
Series | RM065 |
Features | Blue and white |
Size / Dimension | standard |
Description | Blue and white potentiometers |
Manufacturing Date Code | standard |
Resistance | standard |
Resistance Tolerance | standard |
resistance | 100R-500K |
series | RM065 |
form | vertical adjustable resistor |
rated | 0.1W |
MOQ | 1pcs |
