FEATURES | Configuration |
SIZE | 60 cm |

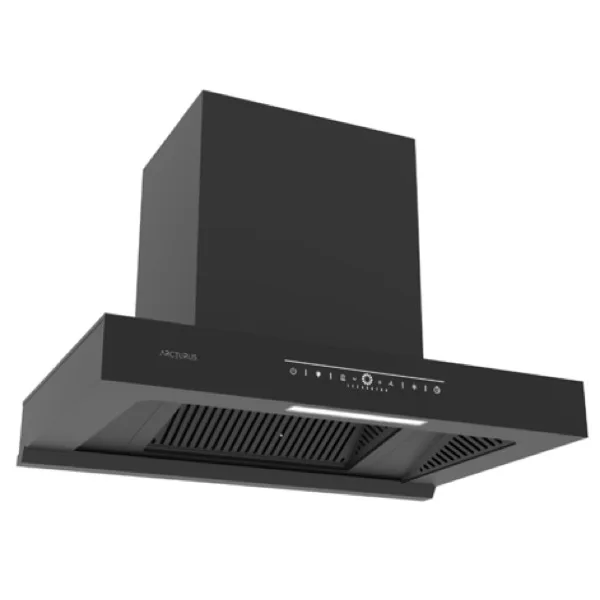

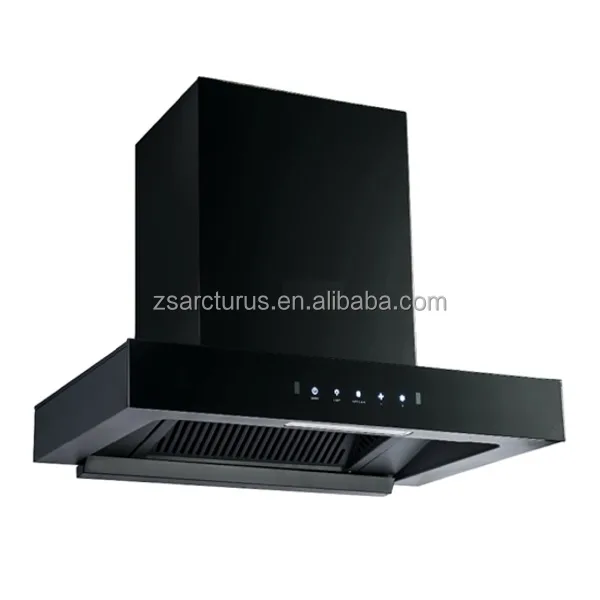

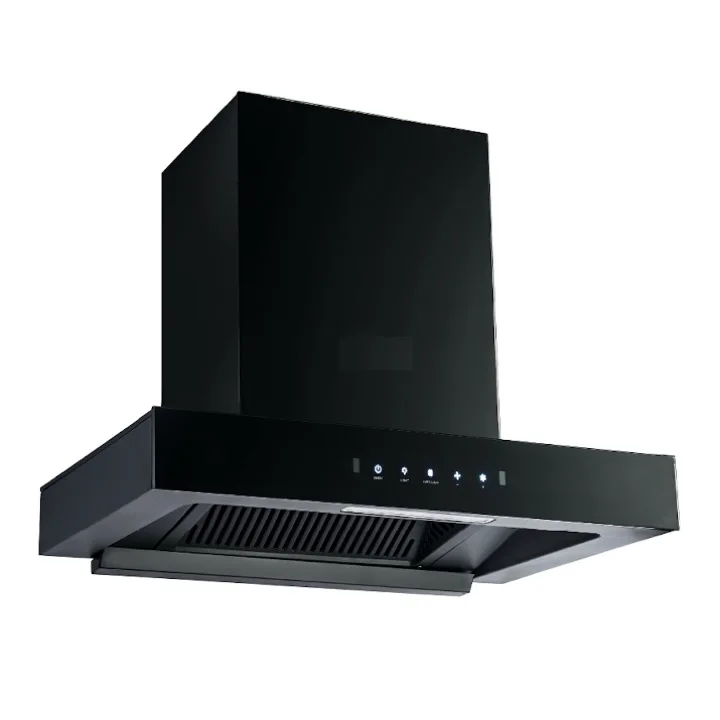

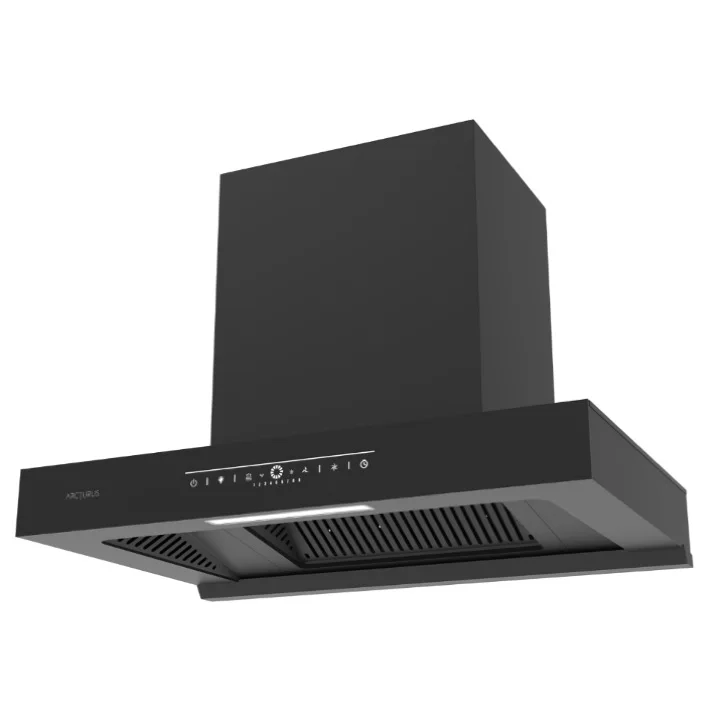

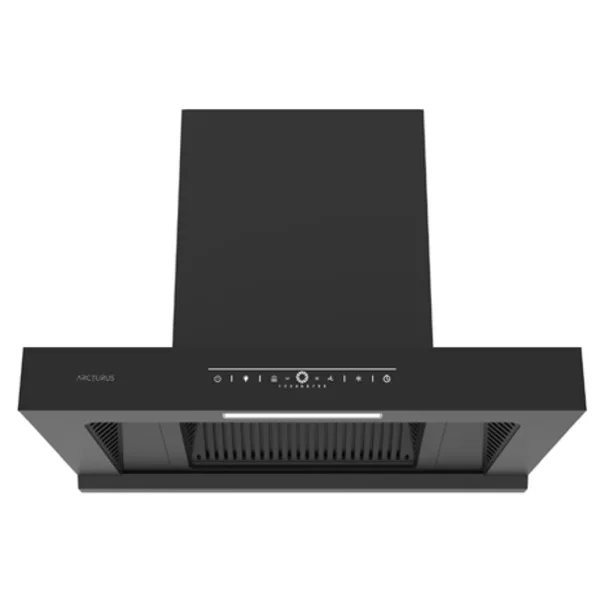

Product name | Hot dry cleaning AC motor range hood |
Body thickness | .5 mm |
Motor | AC 180 watt (grade 4, insulation class B) |
Switch | Gesture control display switch |
flashlight | 1*3 W 6 beads 12v, LED lights, |
Capacitor | 4uF plus minus5%, 450V |
Power cable | 3*0.75mm2, 1.8 meters |
Rated voltage | 220VAC |
Rated frequency | 50Hz |
Lighting power | 3W |
Rated total power | 183 w |
Air volume | 495m3/h Actual, if measured manually around 540m3/h |
Wind pressure | ≥172Pa |
Noise label | ≤76dB(A) |
Maximum static pressure | ≥166.27Pa |
Product configuration | Motor :AC 180 watt (grade 4, insulation class B), Output -85Watt, Rated Speed-1050/min, No load 1500/ on Load Max 1240 |
Motor RPM- | 1050r/min(H)-800r/min(M)-690r/min(L) |
Blower | Φ210*90*10mm, electrophoresis black |
Blower housing | 273x281x115mm |
Filter size | 301*311mm |
Oil filter net | -------- |
Heating Films Size | 440*140 mm |
Hot dry cleaning | 60W heating film |
Decorative cover | 450*315mm |
Outlet seat/pipe | Φ150*1500mm aluminum foil pipe |
Oil Cup size and metrial | Cold rolled, black coated 901*54*30mm |
Hood size, material and finish | 450*380*255 for both , with front Insignia |
Spigot Size | 150mm, |
front glass | 5mm glass thickness |
net weight | 14.22kg |
Gross weight | 15.69kg |
Dimensions | 601*520*385 |
Package dimensions | 650*560*465 |
FEATURES | Front Glass |
1, switch : switch : intelligent gesture control , with hot dry-cleaning function. | |
2, power : energy-efficient circuit board back and chip surface coated with moisture-proof paint. | |
3, motor: # 24 AC copper motor. | |
4, wind wheel: 12-axis diameter 210*90, 60 fins, electrophoresis. |
