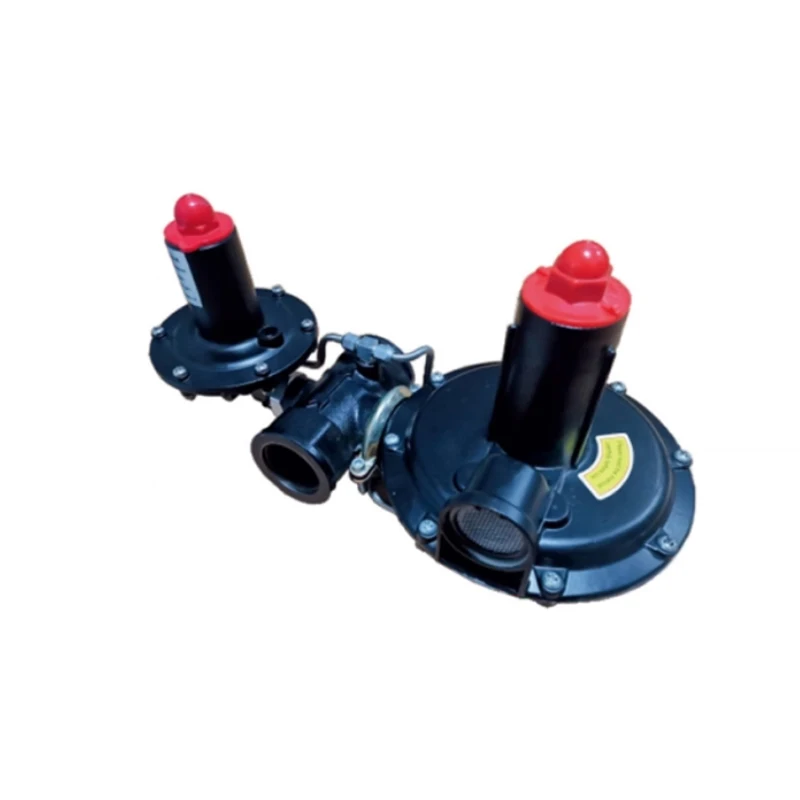

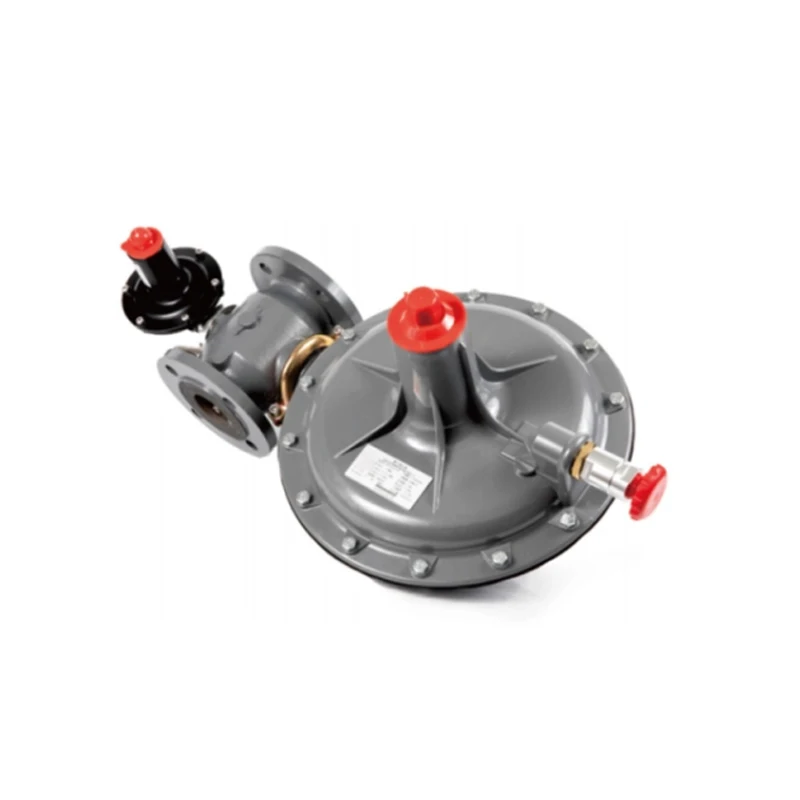

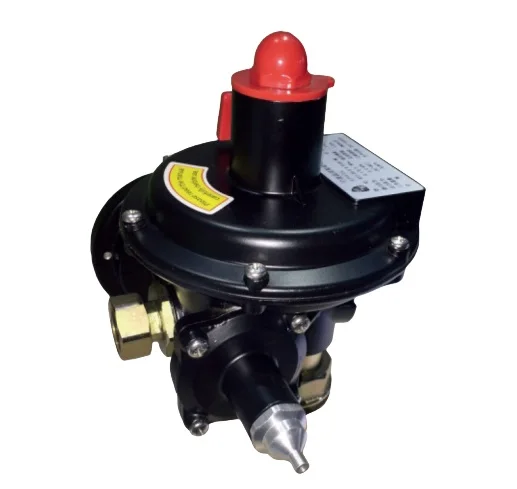

Industrial Gas Regulator Low Pressure Ball Structure Alloy Regulator OEM Customizable for Low Temperature Media
- Category: >>>
- Supplier: Stiefel(Guangdong) Env. Protection Eng. Co. Ltd.
Share on (1601038785485):
Product Overview
Description
Application:

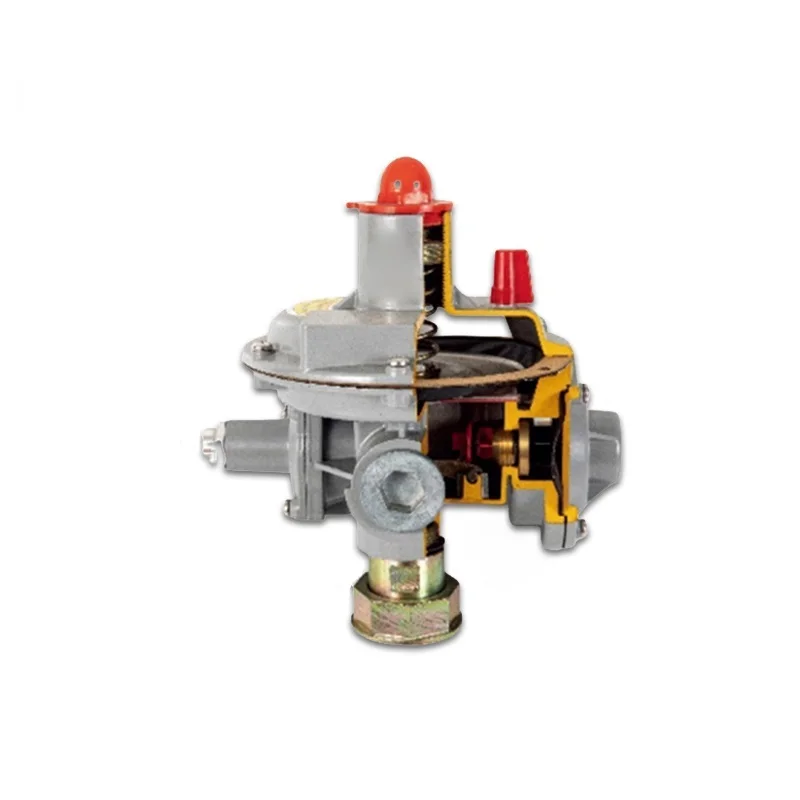

A140 series regulator is a diaphragm and spring controlled directacting regulator. Widely used in medium-sized commercialfacilitiesand regional regulator. Built-in with reliefvalve and ultra low-pressuresafety devices. The regulator has characteristics of simple structureconvenientcoperation,easy maintenance onlineetc.
Parameter:
Maximum inlet pressure / P1max :16bar
Inlet pressure range / P1 : 0.03-16bar
Outlet pressure range P2 : 0015-3bar
Precision regulator / AC:5%~±15%
Lock-up pressure/SG : 20%
Cutting accuracy/AQ :<+5%
Response time/ta : s1sec

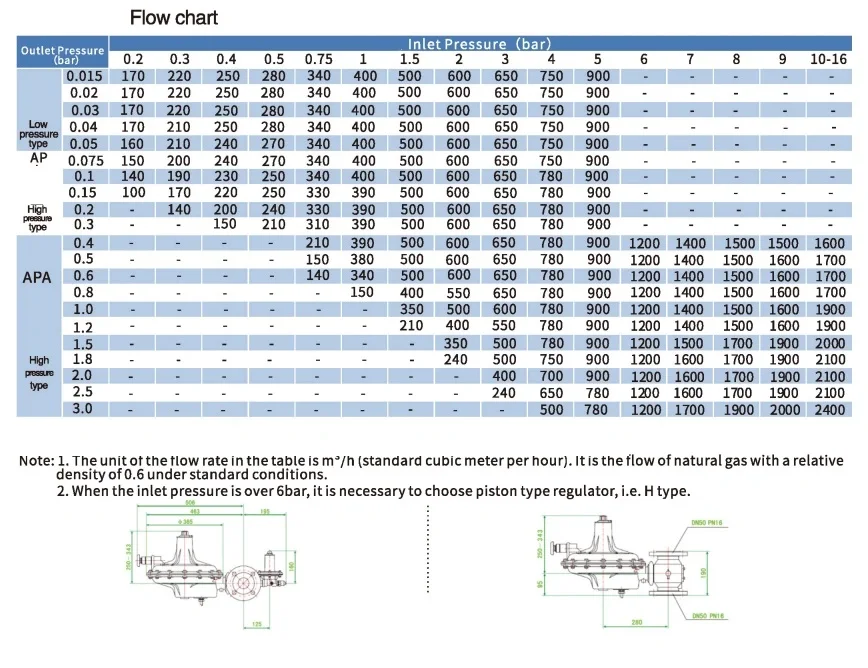

Maximum flow(NG)/Qmax : 2400 Nm /Operating Temperature : -20+ 60°C
Connection size : DN50 PN16
Weight / Low pressure type : 19kg/ High pressure type :23.5kg
Inlet pressure range / P1 : 0.03-16bar
Outlet pressure range P2 : 0015-3bar
Precision regulator / AC:5%~±15%
Lock-up pressure/SG : 20%
Cutting accuracy/AQ :<+5%
Response time/ta : s1sec
Maximum flow(NG)/Qmax : 2400 Nm /Operating Temperature : -20+ 60°C
Connection size : DN50 PN16
Weight / Low pressure type : 19kg/ High pressure type :23.5kg
