Paper Hole Punching Machine Hole Punching Machine For Paper With High Speed
- Category: >>>
- Supplier: Ruian Koten Machinery Co. Ltd.
Share on (1601038867795):
Product Overview
Description
Product Description
High speed paper hole punching machine
Automatic punching machine is paper and board punching special equipment, mainly used for, calendar, notebook, exercise book, grey board, PP board binding with blanking, can not be used for metal and other items blanking, this machine adopts step drive paper, thickness can be adjusted.
The paper holding part adopts the way of picking up and then inserting the paper head, so that the paper surface should not be scratched to ensure the beauty and quality of the product.
After taking the paper, it is sent to the punching mold through the conveyor belt, and then the paper is adjusted on three sides at the same time before punching.
After punching, the paper will automatically enter the paper collecting according to the sequence of paper size and edge can be adjusted. Holes of various shapes can be punched by changing the mold.
Details Images

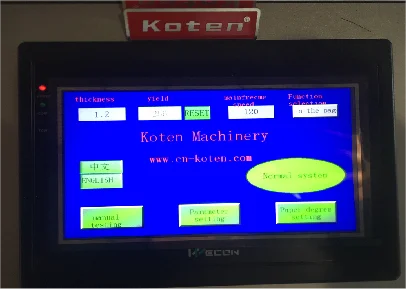

PLC touch screen: DELTA, Taiwan

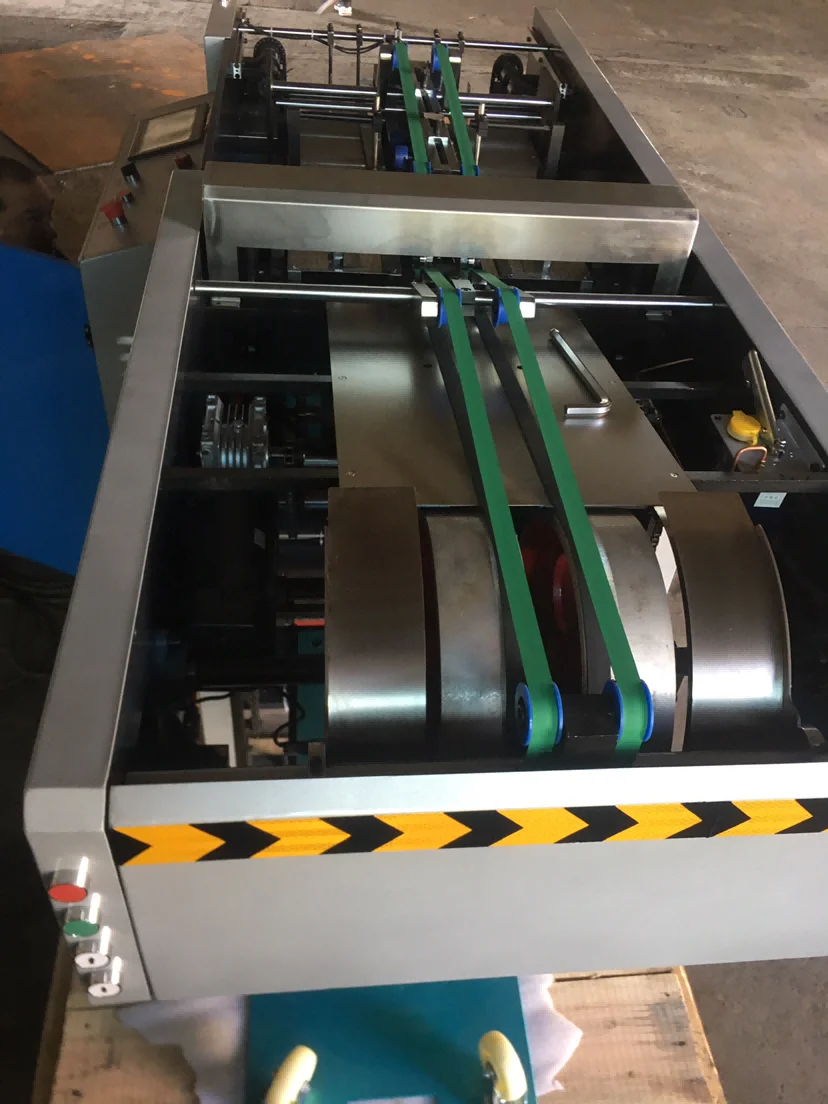

Belt: Habasit, Switzerland
Main Parameters
Model | CK-420D |
Max. Punching Size | 420*420mm |
Min. Punching Size | 70*100mm |
Max. Punching Thickness | 3mm |
Max. Paper Height | 350mm |
Max. Working Speed | 9000times/h. |
Suitable Paper | 50-300gsm |
Power | 380V 50HZ 3KW |
Air Compressor(self-prepare) | 1.5kw |
N.W. | 900kg |
Dimension | 2200*1000*1300mm |
