Hot Selling Kettle Chips Frying Machine Large Round Deep Basket Gas Fryer Commercial
- Category: >>>
- Supplier: Zhengzhou Hongle Machinery Equipment Co. Ltd.Zhengzhou Ltd.
Share on (1601038945848):
Product Overview
Description
Product Description

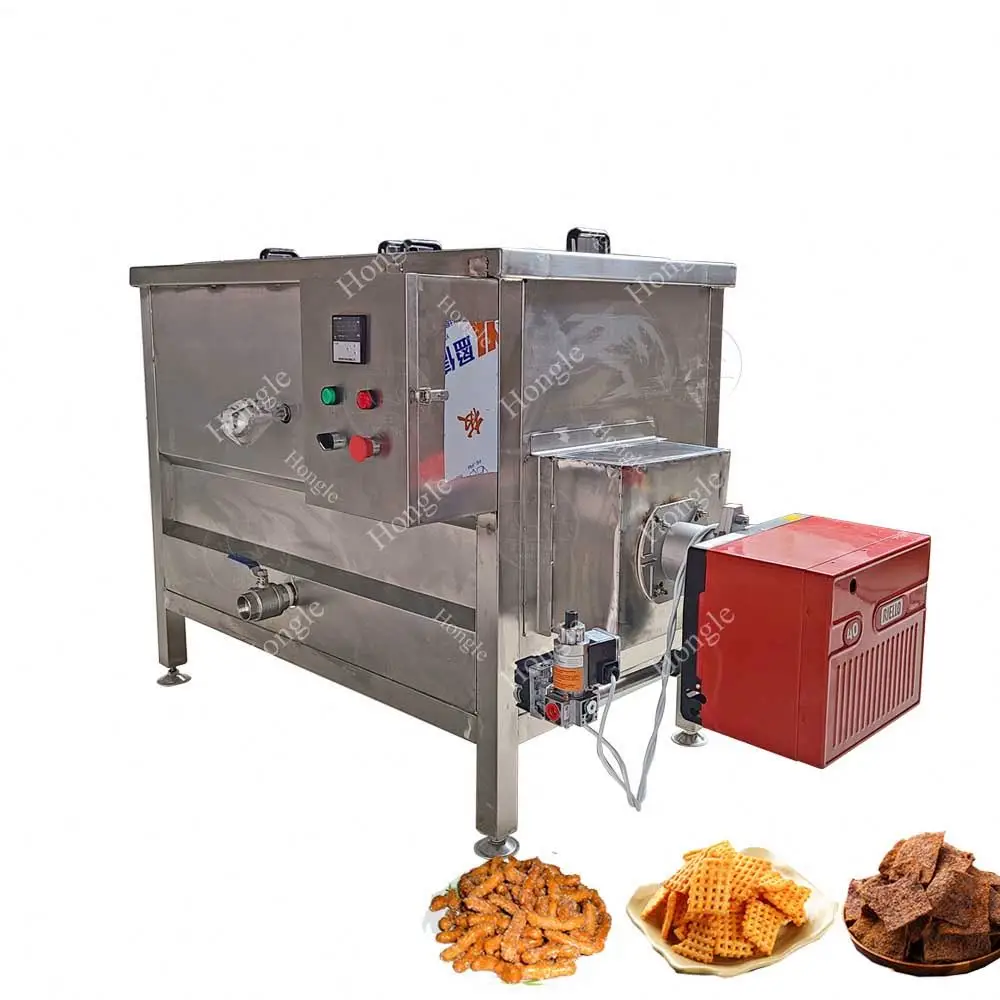

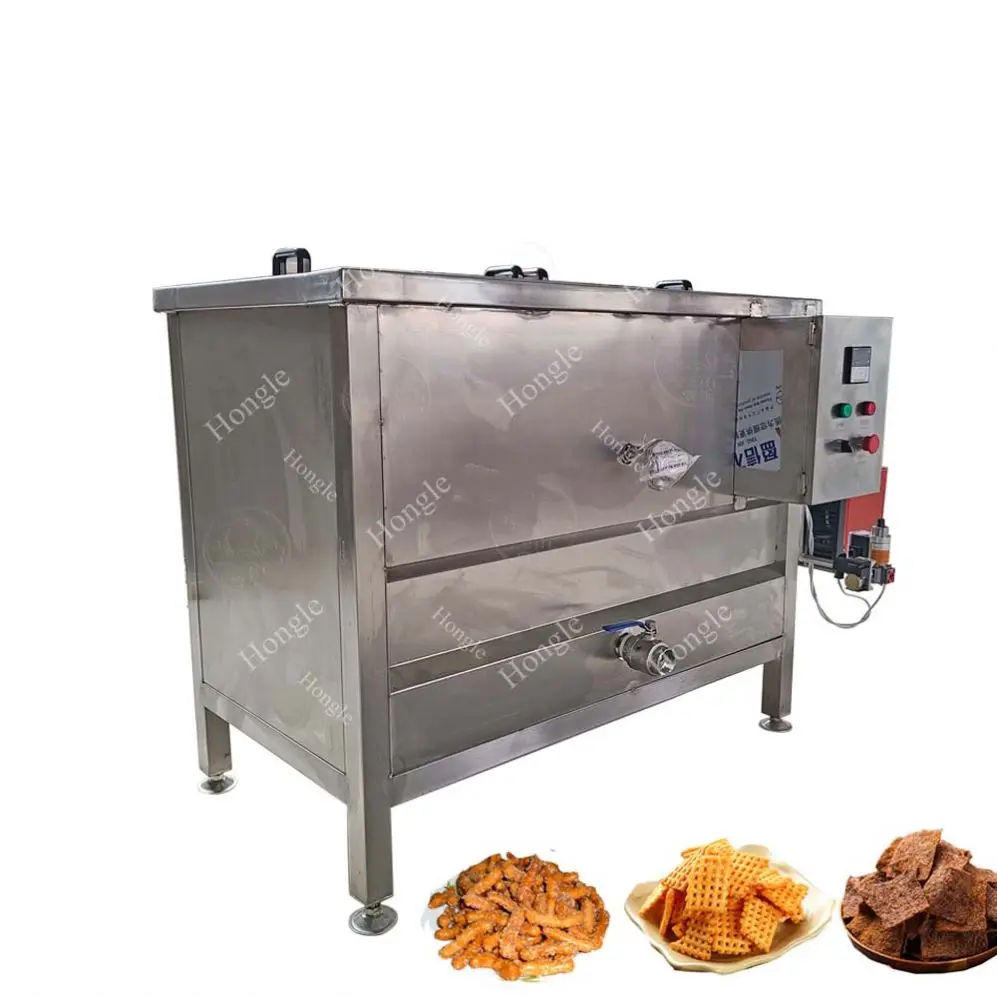

Commercial Gas Chicken Deep Fryer Machine
Introduction:
1. The mixing system is more comprehensive: the main and auxiliary mixing shafts are connected by right angle bevel gears, the transmission is stable, and the speed is reliable. It can effectively solve the floating and sinking phenomenon caused by the product's own characteristics during the frying process.
1. The mixing system is more comprehensive: the main and auxiliary mixing shafts are connected by right angle bevel gears, the transmission is stable, and the speed is reliable. It can effectively solve the floating and sinking phenomenon caused by the product's own characteristics during the frying process.
2. The equipment structure is more fuel-efficient: the whole body structure adopts the outer inner circle design, and the whole SUS304 food grade stainless steel material saves the consumption of edible oil (about 59% fried oil) and the heating speed is more than that of the traditional frying basket. Fast, and solve the problem of cleaning the corners in the pot.
3. the sewage system is more advanced: with independent scraping system, derived from German sewage technology, replacing the traditional oil-water separation fryer, without water and water, can directly discharge the bottom sediment, effectively avoiding the traditional oil-water separation method in the clear water area The occurrence of oil film wall deterioration causes the oil quality of the upper frying zone to deteriorate.
3. the sewage system is more advanced: with independent scraping system, derived from German sewage technology, replacing the traditional oil-water separation fryer, without water and water, can directly discharge the bottom sediment, effectively avoiding the traditional oil-water separation method in the clear water area The occurrence of oil film wall deterioration causes the oil quality of the upper frying zone to deteriorate.
4. The main control system is more stable: the whole PLC programmable controller controls, the oil temperature is even and stable, and the fried products are bright in color and evenly colored.
5.the discharge mechanism is more efficient: worm gear worm gear motor drive, fully automatic discharge, process safety and stability, saving time and effort; the discharge port improvement is software simulation molding design, discharge efficient and concentrated.
6. Applicable groups: Applicable to small and medium-sized food processing enterprises, with flexible production and efficient frying. It can be fried meat, fish, nuts, pasta, and conditioning.
7. Matching method: According to the different products, it can be equipped with automatic mixing, automatic feeding and other devices, and it is matched with the production mode of the assembly line.
Parameters:
Name | gas heating square fryer | |
Model | HL-QF 1000 | HL-QF1500 |
Size (MM) | 1500*800*1000 | 1900*980*1000 |
Weight (KG) | 320 | 400 |
Power (the burner) | 0 × 10~ 4kcal/ h | 15 × 10~ 4kcal/ h |
Capacity | 100kg/h | 150kg/h |
Related Products
Model | HLWD1000 | HLWD1300 | HLWD1500 |
Size | 1750*1500*1500 | 2100*1850*1600 | 2300*2100*1600 |
Weight | 450 | 620 | 830 |
Voltage | 0.37KW Electric heating 51KW | 0.37KW Electric heating 63KW | 1.12kw Electric heating 81KW |
Capacity | Expanded food(70-100KG/H)peanut (200*350KG/H) | Expanded food(100-150KG/H)peanut (350*450KG/H) | Expanded food(180-250KG/H)peanut (450*600KG/H) |
Oil volume | 360L | 420L | 650L |
Temperature range℃ | 0-400 | 0-400 | 0-400 |

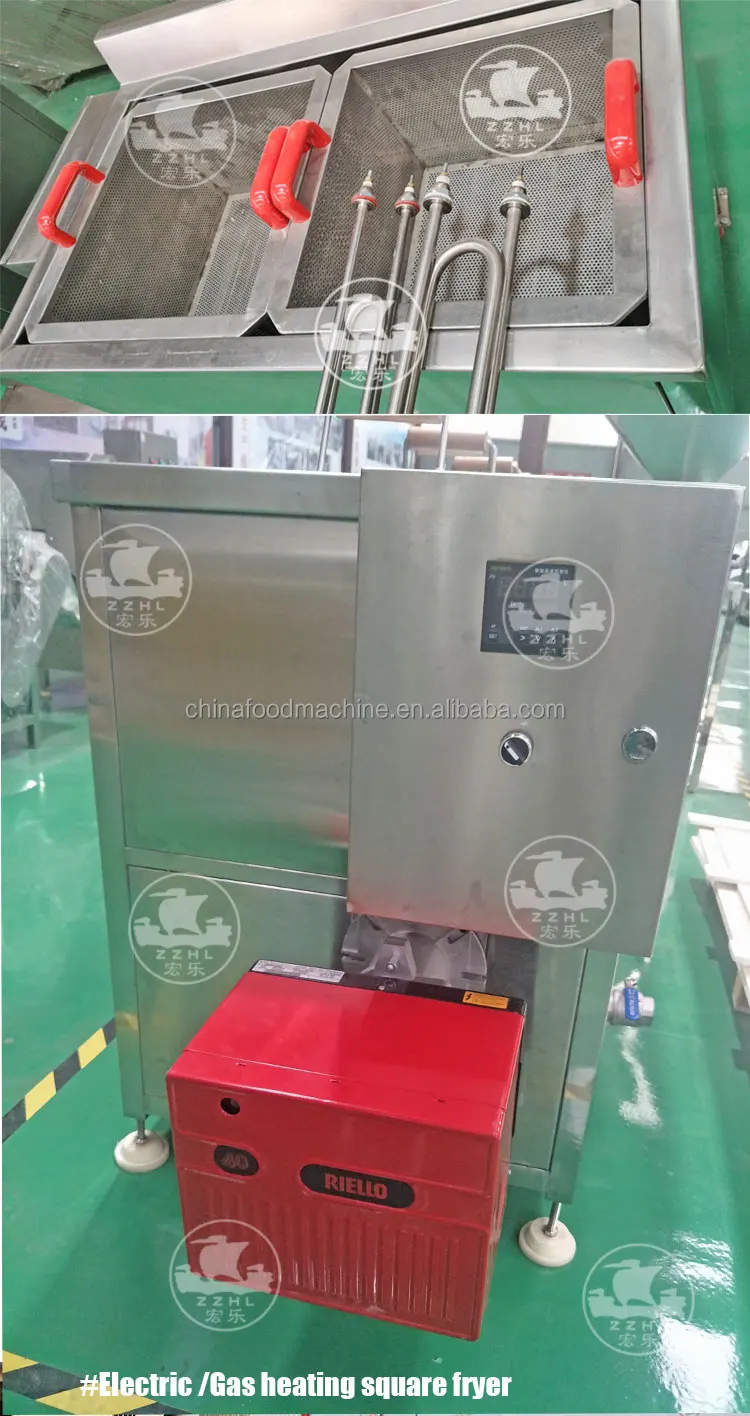

Name | square fryer | Heating Way | Electricheating | |
Model | Size | Weight | Voltage | Capacity |
HL-FD 500 | 700*700*950 | 70 | 12 | 50kg/h |
HL-FD 1000 | 1200*700*950 | 100 | 24 | 100kg/h |
HL-FD 1500 | 1700*700*950 | 160 | 36 | 150kg/h |
HL-FD 2000 | 2200*700*950 | 180 | 42 | 200kg/h |
Name | Electric heating continuous fryer | ||||||
Model | Size (MM) | Weight (KG) | Power (kw) | Capacity | |||
HL-DFCX 3500 | 3500*1200*2400 | 1000 | 80 | 500kg/h | |||
HL-DFCX 4000 | 4000*1200*2400 | 1200 | 100 | 600kg/h | |||
HL-DFCX 5000 | 5000*1200*2400 | 1500 | 120 | 800kg/h | |||
HL-DFCX 6000 | 6000*1200*2400 | 1800 | 180 | 1000kg/H | |||
HL-DFCX 8000 | 8000*1200*2600 | 2000 | 200 | 1500kg/h | |||
Name | Gas heating continuous fryer | ||||||
Model | Size (MM) | Weight (KG) | Power (the burner) | Capacity | |||
HL-QFCX 3500 | 3500*1200*2400 | 1200 | 30 × 10~ 4kcal/ h | 500kg/h | |||
HL-QFCX 6000 | 6000*1200*2400 | 1700 | 60 × 10~ 4kcal/ h | 800kg/h | |||
Recommend Products
*If you can not open the links above on Alibaba APP on mobile phone, please use IE browser to visit our website: https://chinafoodmachine.en.alibaba.com
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
Packaging & Shipping
FAQ
Contact Me
Need more machine details or video ? Please contact us directly
