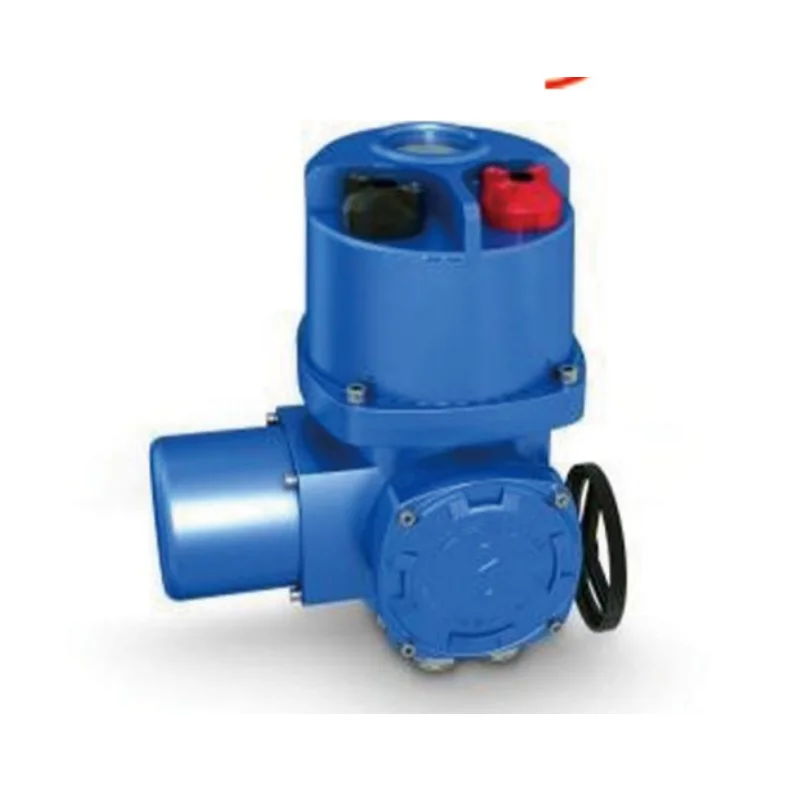

Valve Manufacturer Explosion proof Waterproof Electric Actuator For Ball Valve
- Category: >>>
- Supplier: Hebei Lanhui Intelligent Fluid Equipment Co. Ltd.
Share on (1601038945881):
Product Overview
Description
DN | DN50~500mm(other DN can be customized) |
Nominal Pressure | 1.0~1.6Mpa(other pressure can be customized) |
Body material | Ductile Iron(Q), Carbon steel( C),Stainless (P4,P6) |
Seal material | NBR, NR, EPDM, FPM |
Media Temper. | W1:-20~80℃,W2:-20~150℃ |
Connection way | Flange ,Butt clamp |
Pneumatic actuator | JLAT series,JLGT series,JLAW series,Import actuator |
Interaction method | Double action, Single acting normally close or open |
Electric actuator | JLA series, JLB series Import actuator series |
Control mode | Standard Switch type, Overall adjust & Switch type,Field bus type |

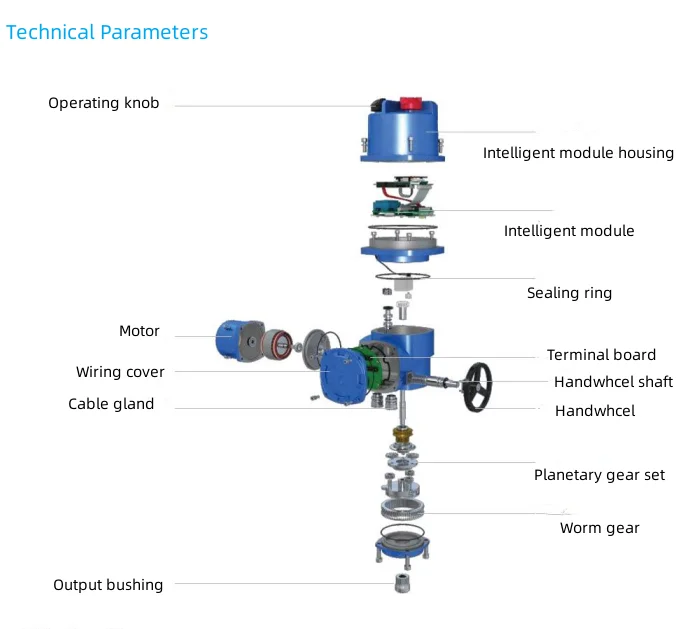

Part-turn
Partial rotary O series electric actuator,yes Mycompany's original mature products based onthe introduction ofthe country Advanced electric actuator manufacturing technology,comprehensive research Hair,open molddesign ofa new valve intelligent grip Bank mechanism.Set fieldbus technology,absolute coding Technology,remote control technology,Excellent human-machineinteraction,no open cover debugging,phasesequence self-correction and lack of phas orotection,magnetic switch control technologySuch as a variety ofthe latest automatic contro technology as one,now widely Suitable fo allkinds of industrial environment,such as sewage anagement,water conservancyengineering,military ships,chemical and
papermaking,electric power oil and so on.
Q series ordinary partial rotary electric actuator needs to cooperate withthe valve electric device control box to realize the remote control andcentralized control ofthe ordinary actuator to the valve.
O series intelligent integration part of the rotary electric executiveequipment to prepare the main advantages:1.Non-invasive design,no open cover debugging,simple operation;2.Absolute value encoder technology,power off valve position is not lost3.Excellent man-machine interaction interface, intuitive valve feedback4.Mutual self-correction,lack ofphase protection,to ensure correct poweraccess;5Local and remote switching operation,fast and convenient;,6.ESD emergency instruction;7.Diversified bus communication protocols,connection control.
Power transmission
Precision deceleration mechanism composed of bronze alloy wormgear and alloy steel worm is selected for the power transmission of theactuator.Worm gear and worm run separately in grease,which issuitable for the maximum ambient temperature and maximizes theservice life.

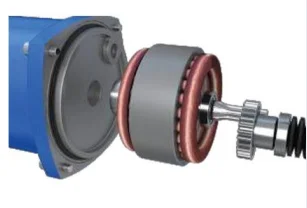

Driving motor
The motor adopts low inertia and high torque motor,so that the motorcan quickly reach the peak torque after starting,and there is almost ncover-limit movement when the motor is not excited.The motor has aprecise temperature sensor,which can set the temperature limit throughthe control system to avoid the damage caused by the motoroverhcating.

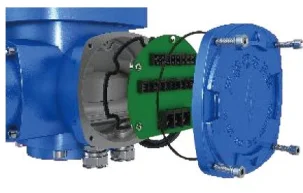

Terminal box
The independent sealing terminal chamber can ensure the sealingintegrity of the electrical part in the electric actuator and meet therequirements of product flameproof during field wiring.
Q: How many factories do Lan Hui have?
A: Three factories under Lan Hui company: foundry factory, valve design factory, and valve manufacturing factory.
Q: What's the advantage of Lan Hui?
A: Is Chinas early grooved series valve manufacturers.
Q: What is Lan Huicore product?
A: Grooved butterfly valve, grooved gate valve, grooved check valve, grooved bellows, grooved filter and so on.
Q: What can I get from cooperating with Lan Hui?
A: 1. Unique valves, with customized service.
2. Timely production and delivery, time is money.
3. Market protection service, long term business strategy.
A: Three factories under Lan Hui company: foundry factory, valve design factory, and valve manufacturing factory.
Q: What's the advantage of Lan Hui?
A: Is Chinas early grooved series valve manufacturers.
Q: What is Lan Huicore product?
A: Grooved butterfly valve, grooved gate valve, grooved check valve, grooved bellows, grooved filter and so on.
Q: What can I get from cooperating with Lan Hui?
A: 1. Unique valves, with customized service.
2. Timely production and delivery, time is money.
3. Market protection service, long term business strategy.
