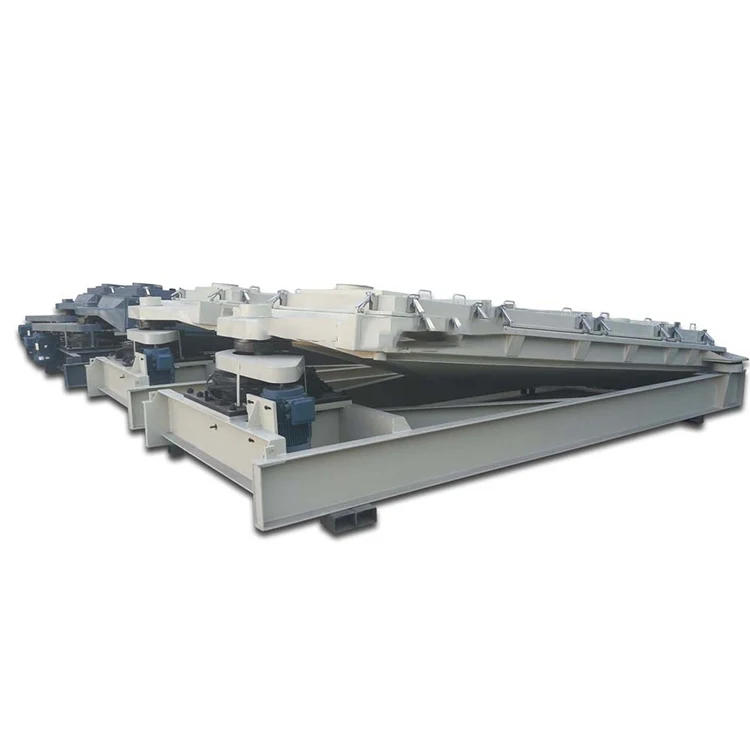

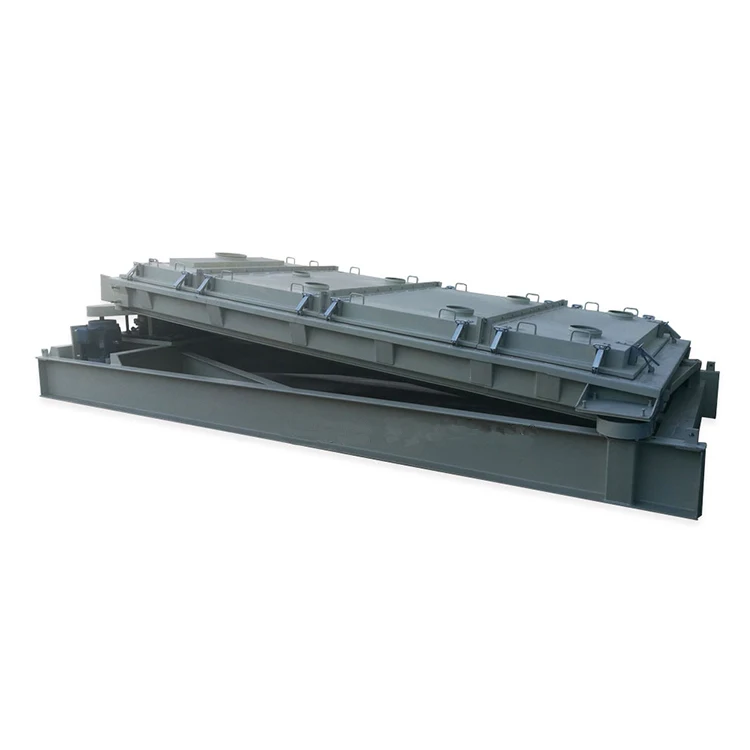

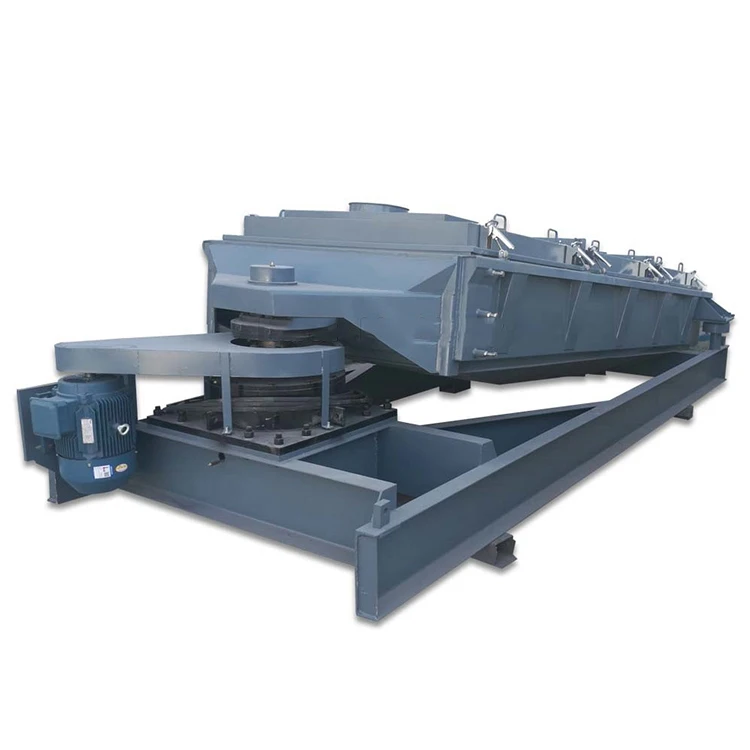

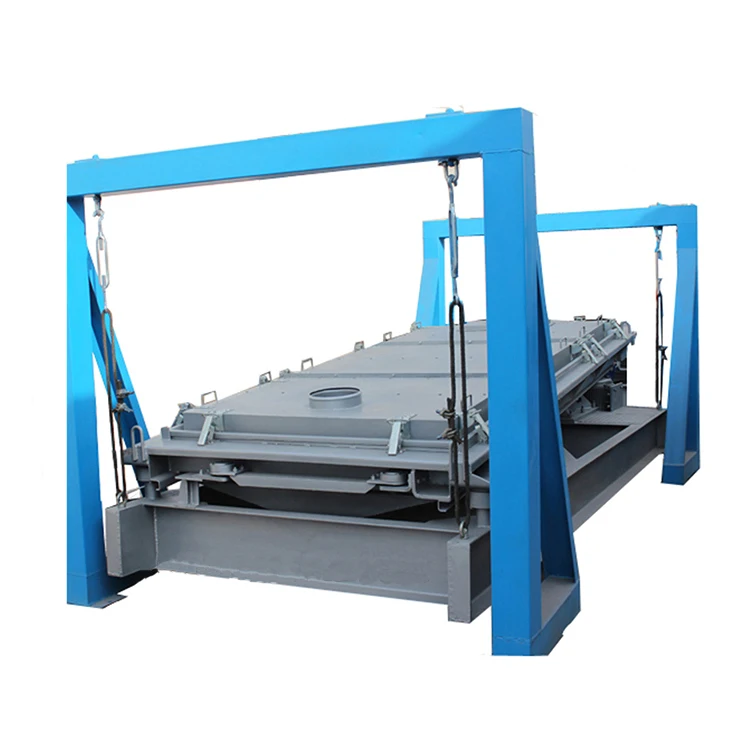

Carbon Steel Sugar Salt Screening 1 3 Layers Rotex Gyratory Screeners
- Category: >>>
- Supplier: Xinxiang Karat Machinery Equipment Co. Ltd.
Share on (1601038966223):
Product Overview
Description
Products Description
Rotary vibrating compost sifter garden functional electric soil Gyratory vibrating screen

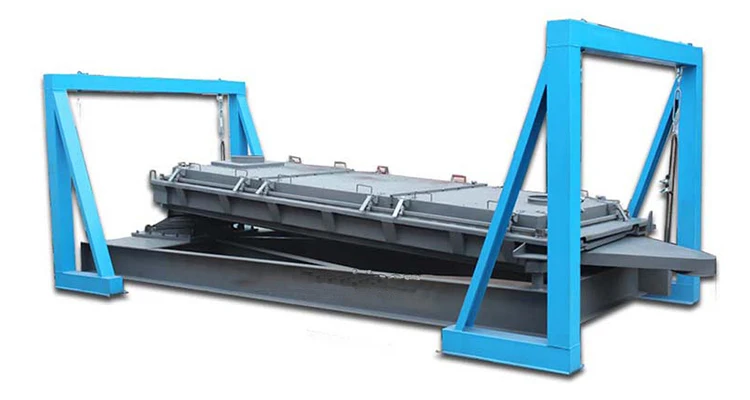

Gyratory screen is one precise sieving machine, the screening box do the reciprocating movement of forward and backward under the action of inertial forces, which from driving unit’s force rotated around the dead axle. The materials on the screening mesh surface of Gyratory screen do the directional jumping movement. This movement effectively reduced the dynamic-static ratio and dynamic load, and there is automatic cleaning device under the screening mesh.
Feature
1. Super large capacity and high screening accuracy, suitable for industrial continuous screening.
2. The effect of anti-clogging screen mesh blinding is good. Especially suitable for the screening of materials which are easy
plugging and sticking the screen mesh.
3. Screen service life is long. It is 5~100 times than the ordinary vibrating screen.
4. The soft running does not damage the particles original structure of the material.
5. Three types of screen tensioning spring clips and screen side pull mode. Easy to remove and replace the screen.
6. It is not easy to generate static electricity, especially suitable for the screening of materials those are flammable and
explosive, and easy to generate static electricity.
7. Smooth operation, no special requirement for the plant.
8. Totally enclosed structure, no dust, low noise to 70 decibels.
2. The effect of anti-clogging screen mesh blinding is good. Especially suitable for the screening of materials which are easy
plugging and sticking the screen mesh.
3. Screen service life is long. It is 5~100 times than the ordinary vibrating screen.
4. The soft running does not damage the particles original structure of the material.
5. Three types of screen tensioning spring clips and screen side pull mode. Easy to remove and replace the screen.
6. It is not easy to generate static electricity, especially suitable for the screening of materials those are flammable and
explosive, and easy to generate static electricity.
7. Smooth operation, no special requirement for the plant.
8. Totally enclosed structure, no dust, low noise to 70 decibels.
The following table shows the detailed data of different models of Gyratory screen for your reference.
Model | Screening area（㎡） | Layer | Feeding Size | Amplitude（mm） | Frequency（r/min） | Power（KW） |
PXZS1224 | 1.2*2.4 | 1-4 | ＜50mm | 75-90 | 1450 | 5.5 |
PXZS1230 | 1.2*3 | 1-4 | ＜50mm | 75-90 | 1450 | 5.5 |
PXZS1236 | 1.2*3.6 | 1-4 | ＜50mm | 75-90 | 1450 | 5.5 |
PXZS1524 | 1.5*2.4 | 1-4 | ＜50mm | 75-90 | 1450 | 5.5 |
PXZS1530 | 1.5*3 | 1-4 | ＜50mm | 75-90 | 1450 | 5.5 |
PXZS1536 | 1.5*3.6 | 1-4 | ＜50mm | 75-90 | 1450 | 5.5 |
PXZS1830 | 1.8*3 | 1-4 | ＜75mm | 75-90 | 750 | 7.5 |
PXZS1836 | 1.8*3.6 | 1-4 | ＜75mm | 75-90 | 750 | 7.5 |
PXZS1840 | 1.8*4 | 1-4 | ＜75mm | 75-90 | 750 | 7.5 |
PXZS2036 | 2*3.6 | 1-4 | ＜75mm | 75-90 | 750 | 7.5 |
PXZS2040 | 2*4 | 1-4 | ＜75mm | 75-90 | 750 | 11 |
1.Circular motion at the feed end
The gyratory movement at the feed end can quickly complete the material’s spreading, stratifying, separating and moving forward across the full width of the screen surface.
2. Changing to elliptical motion at center
3.Straight line motion at the discharge end
The linear sifting motion at the discharge end has almost no particles jump vertically, which ensures that the material is in constant contact with the screen surface.
Application
Abrasive: glass beads, slag, alumina, sand and other abrasive materials
Animal feed: feed powder and chips, meat paste and small food
Carbon products: coking coal, graphite, charcoal etc.
Chemical products: hundreds of different compounds
Clay: product classification
Fertilizer: raw material sieving and finished product fine screening.Including ammonium nitrate, phosphate, potassium hydroxide, urea and other compounds
Food: sugar, flour, milk powder, coffee, cereals, rice, nuts, condiments, cocoa powder, glucose, starch etc.
Grain cleaning: corn, wheat, soybean and other cereals peeling and cleaning
Ore: ore, rubble, limestone, soda ash and salt
Paper: paper pulp, coating
Fiberboard: wood chips, flaking, bits of wood, to make high quality fiberboard
Drug: many large drug manufacturers use our screening machines, which meet the health standard design and GMP, to achieve precise and effectiveseparation and cleaning
Plastic: plastic particles, plastic powder
Powder metal: aluminum, copper, iron, nickel, steel, zinc and many other metal powders
Recycling of resources: used in the recycling of various materials, such as PET recycling etc.
Steel-making: classification of steel shot and metal filing
Animal feed: feed powder and chips, meat paste and small food
Carbon products: coking coal, graphite, charcoal etc.
Chemical products: hundreds of different compounds
Clay: product classification
Fertilizer: raw material sieving and finished product fine screening.Including ammonium nitrate, phosphate, potassium hydroxide, urea and other compounds
Food: sugar, flour, milk powder, coffee, cereals, rice, nuts, condiments, cocoa powder, glucose, starch etc.
Grain cleaning: corn, wheat, soybean and other cereals peeling and cleaning
Ore: ore, rubble, limestone, soda ash and salt
Paper: paper pulp, coating
Fiberboard: wood chips, flaking, bits of wood, to make high quality fiberboard
Drug: many large drug manufacturers use our screening machines, which meet the health standard design and GMP, to achieve precise and effectiveseparation and cleaning
Plastic: plastic particles, plastic powder
Powder metal: aluminum, copper, iron, nickel, steel, zinc and many other metal powders
Recycling of resources: used in the recycling of various materials, such as PET recycling etc.
Steel-making: classification of steel shot and metal filing

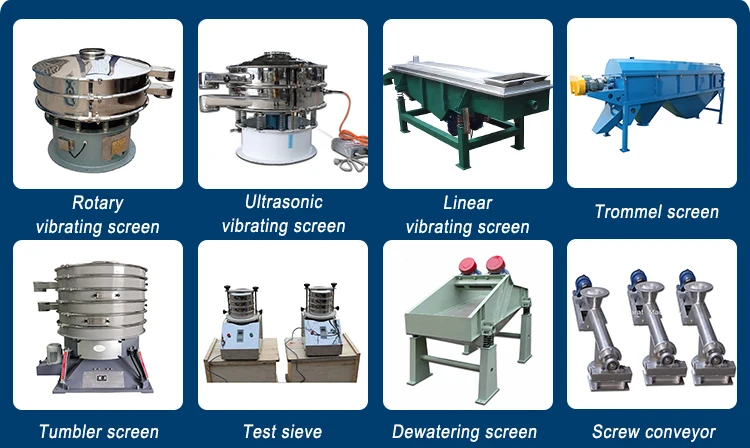

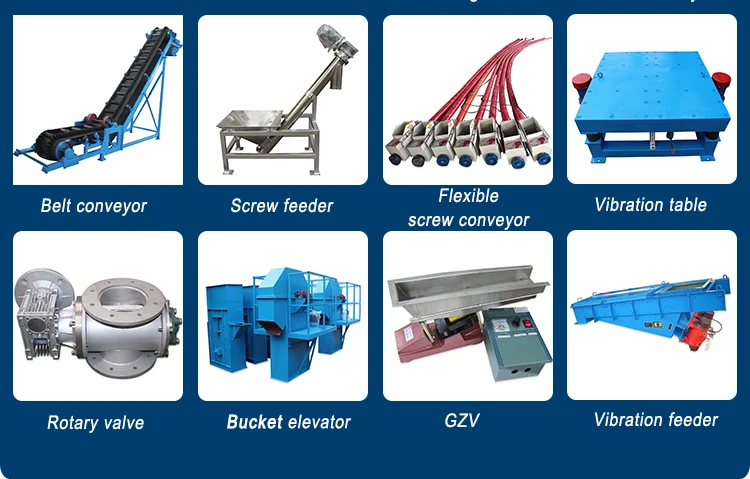

Main Product

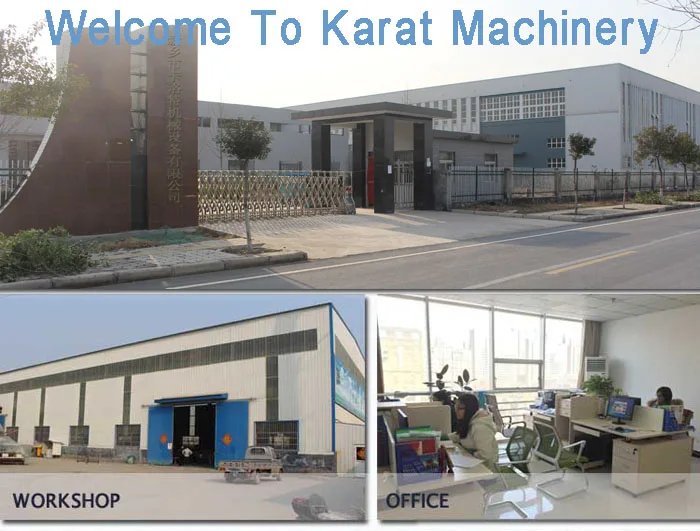

Company Information
Karat Machinery Equipment Co., Ltd is located in Xinxiang City--the hometown of China's vibrating screen. It is a professional manufacturer of screening and conveying equipment. Our company is specialty in the development and sales of vibration machinery,screening equipment, conveying equipment and lifting equipment. Our company produces a series of products as follows: circular vibrating screen sieve, screw conveyor, ultrasonic round separator, rectangular separator, vibration table, drum screen, standard laboratory inspection sieve, straight line vibrating screen, vibration motor, vibrating conveyor,feeding machine, hoisting equipment, belt conveyor. All of our production are widely used in food, pharmaceutical, chemical,metallurgy, building materials, mining, thermoelectric, environmental protection and other fields. And our company's business covers all parts of the country, and is exported to the United States, France, Canada, Russia, Australia, Japan, Singapore,Malaysia, India, Vietnam and other countries.
Customer Visiting
We have many customers from all over the world and we have become very good friends in good communication.

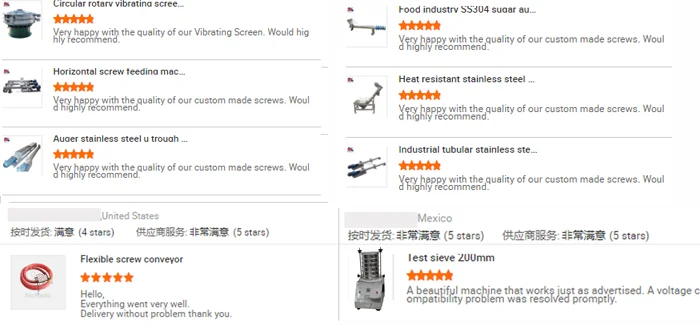

Customer Feedback
Packaging & Shipping
Gyratory screen is packed by wooden case or according to the customer's requirements.
FAQ
Q: What information do I need to provide for getting an accurate quotation for Gyratory screen?
1. Material's name, bulk density, and water content
2. Capacity you required___kg/h
3. What's the purpose for our machine? Filtering, removing impurities or classification?
4. How many layers do you need?
5. The mesh size for each layer
6. Voltage and frequency
Q: How long for the delivery time?
A: 5-10 working days for conventional products.
Q: How long for warranty time?
A: 12 months from the shipping date.
Q: Can your engineer come to the construction site to guide the installation?
A: Yes, we can arrange our engineer to guide your installation, and salary is 150USD per day for one person, the air ticket/ visa/local accommodation/ local traffic is in charge of customer.
Generally there is no need to send our engineer to guide, because we will provide detailed installation drawings to the customer,
the customer only need to find special installation team to execute.
1. Material's name, bulk density, and water content
2. Capacity you required___kg/h
3. What's the purpose for our machine? Filtering, removing impurities or classification?
4. How many layers do you need?
5. The mesh size for each layer
6. Voltage and frequency
Q: How long for the delivery time?
A: 5-10 working days for conventional products.
Q: How long for warranty time?
A: 12 months from the shipping date.
Q: Can your engineer come to the construction site to guide the installation?
A: Yes, we can arrange our engineer to guide your installation, and salary is 150USD per day for one person, the air ticket/ visa/local accommodation/ local traffic is in charge of customer.
Generally there is no need to send our engineer to guide, because we will provide detailed installation drawings to the customer,
the customer only need to find special installation team to execute.
