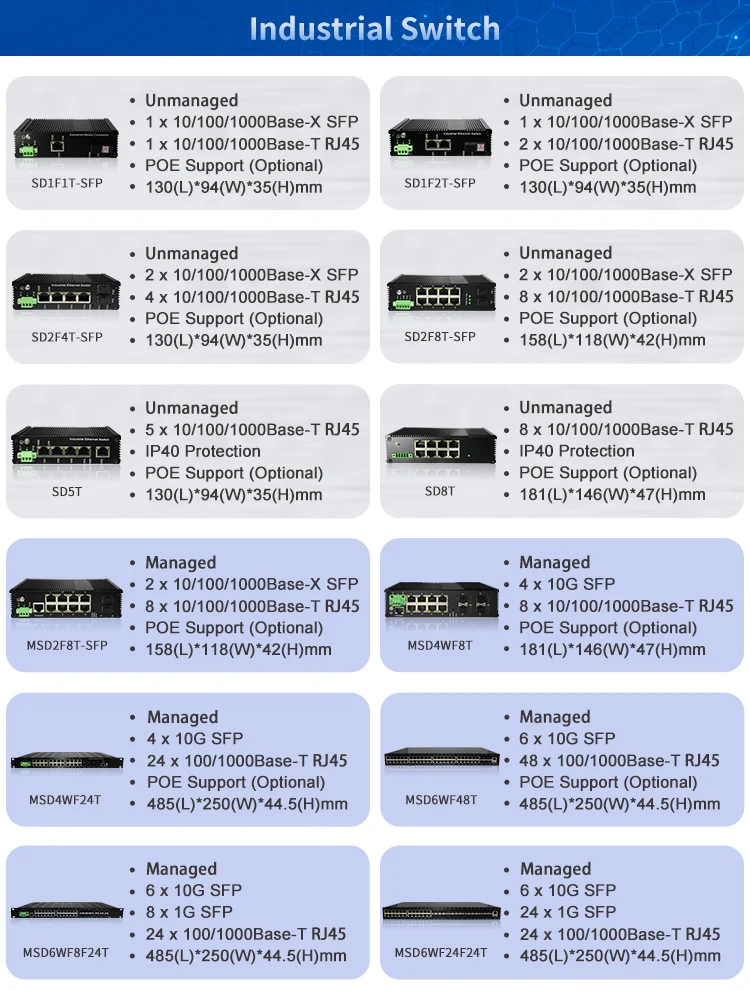

2. We have unmanaged and managed industrial switches, please refer to the selection table below.
3.
If you have any question about our company or products, please feel free to
contact us.


Recommend Products




Product Description


General Description

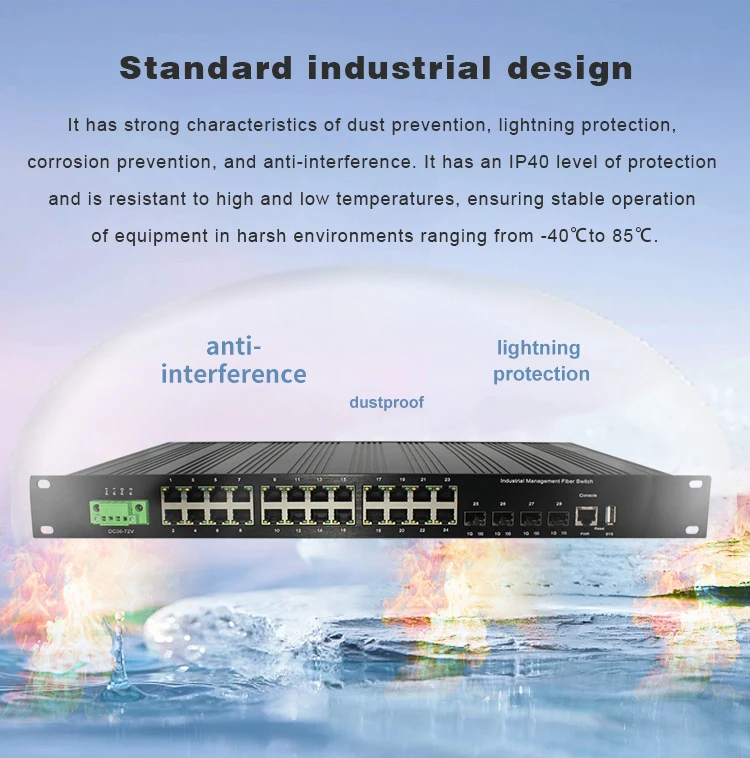

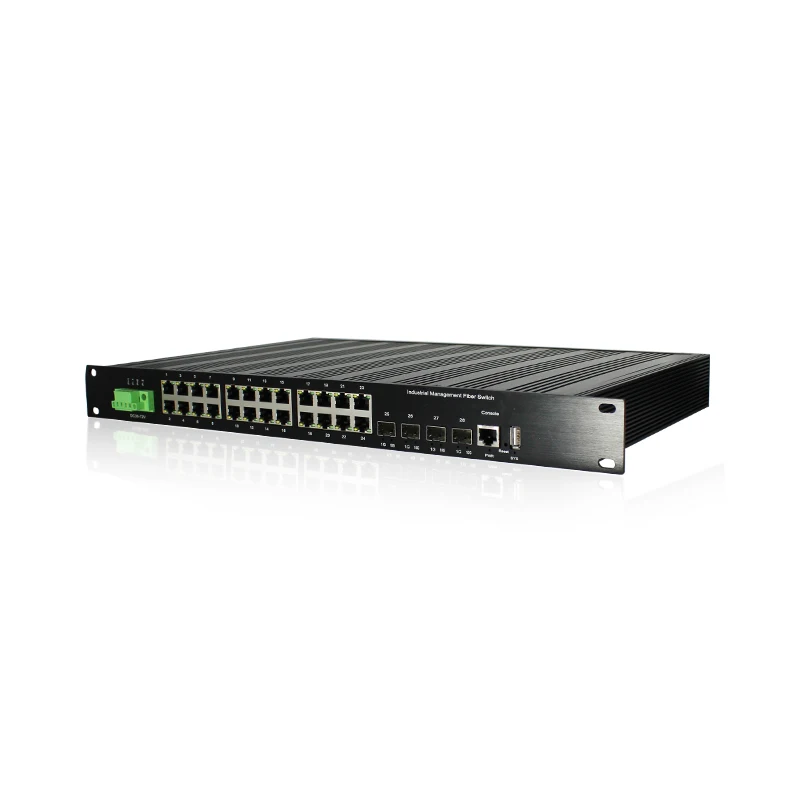

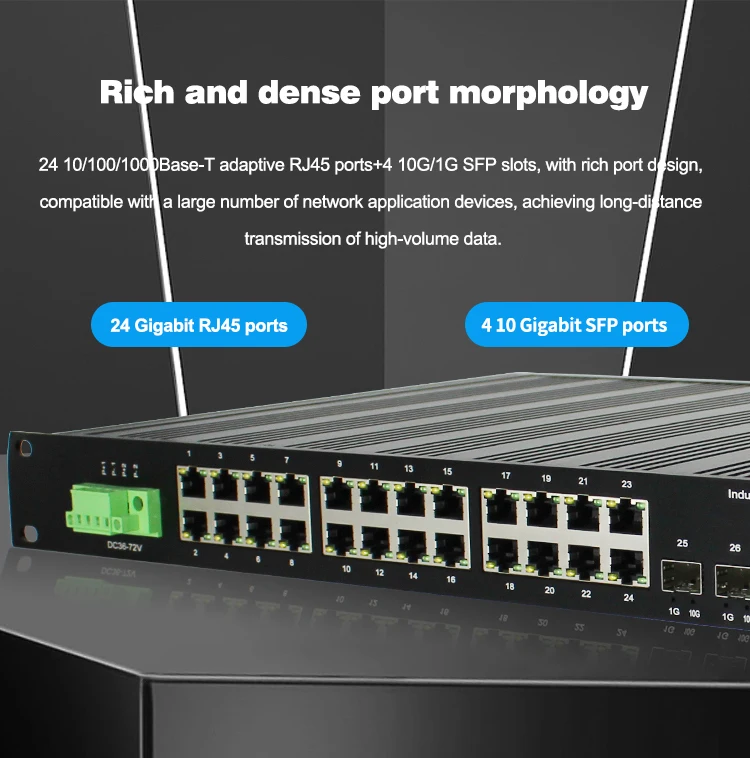

The MSD4WF24T/MSD4WF24T-POE is a managed industrial-grade layer-2+ 10-Gigabit fiber optic Ethernet switch. It features 24 10/100/1000Base-T adaptive RJ45 ports and 4 x 10G/1G SFP slots. Complying with industrial product design standards, the switch's aluminum alloy shell enhances heat dissipation performance. With its fanless heat dissipation circuit design, wide range of working environment temperatures, and high protection level, it ensures excellent industrial quality, including resistance to high/low temperatures and lightning protection.

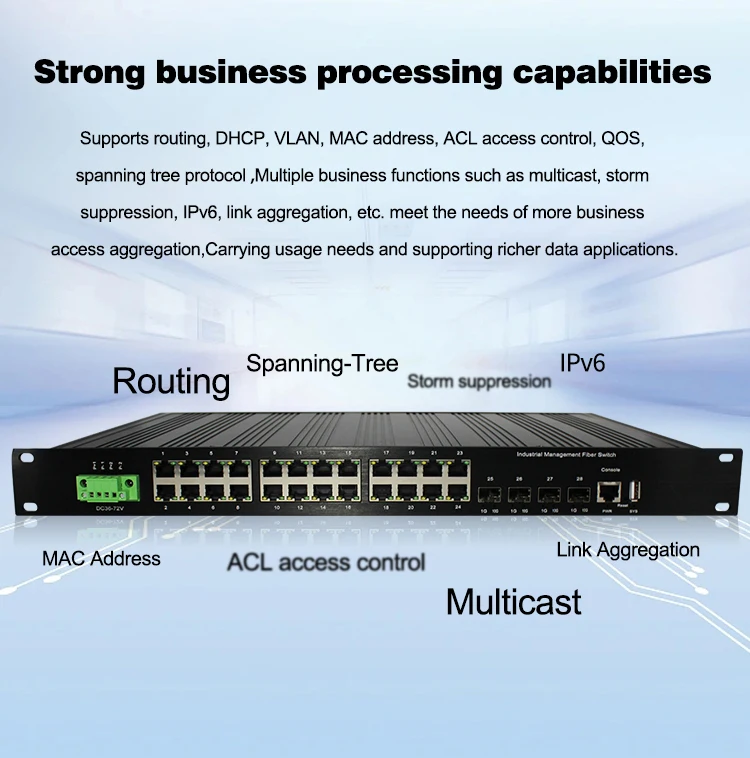

The switch supports various network functions, such as WEB management, VLAN, QoS, SNMP, and IGMP snooping. It also provides support for Ethernet fast ring network protection, including STP/RSTP/MSTP spanning tree ring networks. Additionally, the switch offers industrial-grade three-level ESD protection, making it suitable for numerous applications, including intelligent transportation, outdoor monitoring, industrial networks, and safe cities, which require fanless, low power consumption, and industrial-grade design with an operating temperature range of -40 to 85°C. This makes it adaptable to various industrial sites, providing cost-effective solutions.





Specification


INTERFACE
Network Port Interfaces
4 x 10G/1G SFP Port
24 x 10/100/1000Base-T RJ45 Port
Console Interface
1 x Console RJ45 Control Port
Power Connector
4P Phoenix Terminal, Dual Power Supply Redundancy, 100-240VAC Input
LED Lights
Power Indicator: PWR (Green)
System Indicator: SYS (Green)
Network Port Indicator: Green (SFP L/A), Green (Speed), Yellow (Link)
CABLE TYPE AND DISTANCE
Twisted Pair
0-100m (CAT5e, CAT6)
Single-Mode Fiber
20/40/60/80/100/120KM
Multimode Fiber
550m/2KM
Fiber Interface
LC/SC
Network Topology Mode
Ring Topology
Support
Star Topology
Support
Bus Topology
Support
Tree Topology
Support
Mixed Topology
Support
ELECTRICAL CHARACTERISTICS
Input Voltage
DC36-72V/AC 100-240V 50-60HZ
Power Consumption
Non-PoE Total Power <70W,
With PoE < 450W (Full Load)
POE SUPPORT (OPTIONAL POE FEATURE, SPECIFIC POWER CAN BE CUSTOMIZED ACCORDING TO CUSTOMER REQUIREMENTS)
PoE Port
1-24
PoE Protocol
802.3af, 802.3at
PoE Pinout
1,2,3,6
PoE Management Mode
Support
LAYER 2 SWITCHING
Swap Capacity
128G
Packet Forwarding Rate
95.23Mpps
MAC Address Table
16K
VLAN Support and Number
Supports 4096 VLAN ID
Report Buffer
12M
Forwarding Delay
<10us
Port Characteristics
Cross-Direct Adaptative
Flow Control
Support
Jumbo Frames
Support 10Kbytes
Spanning Tree Protocol
Support STP/RSTP/MSTP
Link Aggregation
Support 16 Group
Multicast
Support IGMP Snooping
Port Mirroring
Support
Storm Suppression
Support
Port Traffic Statistics
Support
Port Flow Statistics
Support
QINQ
Support
LAYER 3 SWITCHING
RIP
Support RIP v1/v2
OSPF
Support OSPF v2
Policy Routing
Support
VRRP
Support
BGP
Support
